A/T SHIFT LOCK SYSTEM
AT-309
D
E
F
G
H
I
J
K
L
M
A
B
AT
Shift Lock Control Unit Reference Values
ACS001KM

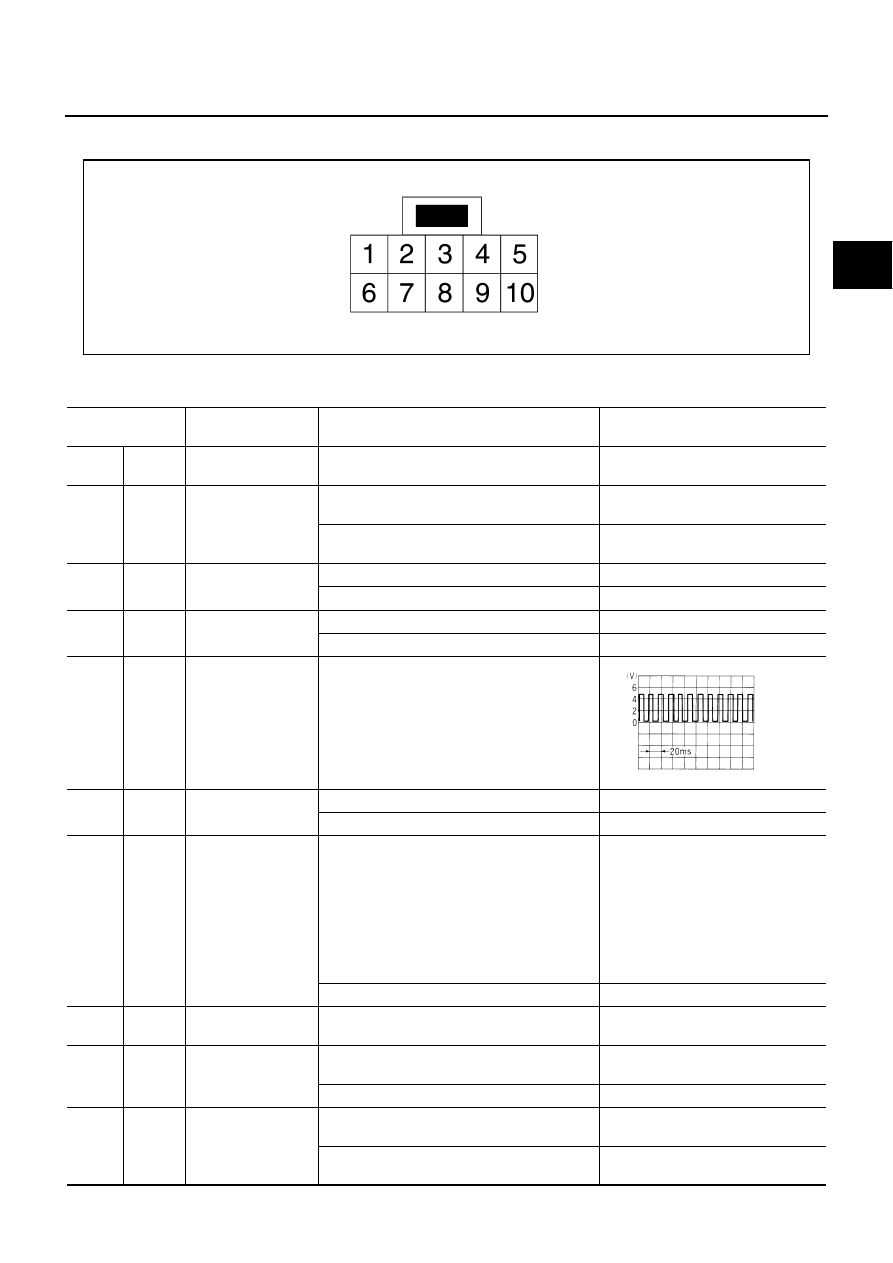

SHIFT LOCK HARNESS CONNECTOR TERMINALS LAYOUT
SHIFT LOCK CONTROL UNIT INSPECTION TABLE
Data are reference values.
SCIA2004E
Terminal No. (Wire
color)
Item
Condition
Judgement standard
1
(Y/G)
8
(B)
Power source
Always
Battery voltage
2
(G/OR)
8
(B)
Detention switch (for
key)
When selector lever is not in “P” position with
key inserted.
Battery voltage
When selector lever is in “P” position with key
inserted.
Approx. 0V
3
(Y)
8
(B)
Detention switch (for
shift)
When selector lever is not “P” position.
Battery voltage
When selector lever is “P” position.
Approx. 0V
4
(G)
8
(B)
Stop lamp switch
When brake pedal is depressed
Battery voltage
When brake pedal is released
Approx. 0V
5
(SB)
8
(B)
Vehicle speed signal
(8pulse signal)
Speed meter is operated
6
(W/G)
8
(B)
Ignition signal
Ignition switch: OFF
Approx. 0V
Ignition switch: ON
Battery voltage
7
(L/Y)
8
(B)
Shift lock solenoid
●
When selector lever is in “P” position, brake
pedal is depressed, and ignition switch is ON.
●
When selector lever is not in “P” position,
ignition switch is ON, and vehicle speed is
10km/h or less.
●
For 3minutes after selector lever is not in “P”
position, vehicle speed is 10km/h or less, and
ignition switch is ON
→
OFF.
Approx. 0V
Except the above
Battery voltage
8
(B)
—
Ground
Always
Approx. 0V
9
(BR)
8
(B)
Key lock solenoid
When selector lever is not “P” position.
Battery voltage for approx. 0.1 sec.
(Note)
When selector lever is “P” position.
Approx. 0V
10
(R/W)
8
(B)
Key unlock solenoid
When selector lever is “P” position with ignition
switch is OFF.
Battery voltage for approx. 0.1 sec.
(Note)
When selector lever is not “P” position with igni-
tion switch is OFF.
Approx. 0V
