BACK-UP LAMP

LT-245

C

D

E

F

G

H

I

J

L

M

A

B

LT

BACK-UP LAMP

PFP:26550

Wiring Diagram — B/LAMP —

NKS003SE

TKWT5069E

LT-246

BACK-UP LAMP

Bulb Replacement

NKS003SF

1.

Remove trunk lid finisher inner. Refer to

EI-33, "TRUNK LID FINISHER"

 .

2.

Turn bulb socket (1) counterclockwise and unlock it.

3.

Remove bulb (2) from its socket.

Back-up lamp

: 12V-18W

SKIB4189E

BACK-UP LAMP

LT-247

C

D

E

F

G

H

I

J

L

M

A

B

LT

Removal and Installation

NKS003SG

REMOVAL

1.

Remove trunk lid finisher inner. Refer to

EI-33, "TRUNK LID FINISHER"

 .

2.

Disconnect back up lamp and trunk lid request switch connector.

3.

Remove trunk lid finisher outer. Refer to

EI-33, "TRUNK LID FINISHER"

 .

4.

Remove screws and clip, and then remove back up lamp.

5.

Remove seal packing from back up lamp.

INSTALLATION

Installation is the reverse order of removal.

Install a new seal packing to the back up lamp.

CAUTION:

Seal packing cannot be reused.

1.

Nut

2.

Nut

3.

Seal packing

4.

Clip

5.

Back up lamp

6.

Two-sided tape

7.

Trunk lid finisher outer

8.

Screw

: N·m (kg-m, in-lb)

: Always replace after every disassembly.

SKIB4190E

Back up lamp mounting nut

: 3.0 N·m (0.31 kg-m, 27 in-lb)

Trunk lid finisher mounting nut

: 3.0 N·m (0.31 kg-m, 27 in-lb)

LT-248

PARKING, LICENSE PLATE AND TAIL LAMPS

PARKING, LICENSE PLATE AND TAIL LAMPS

PFP:26550

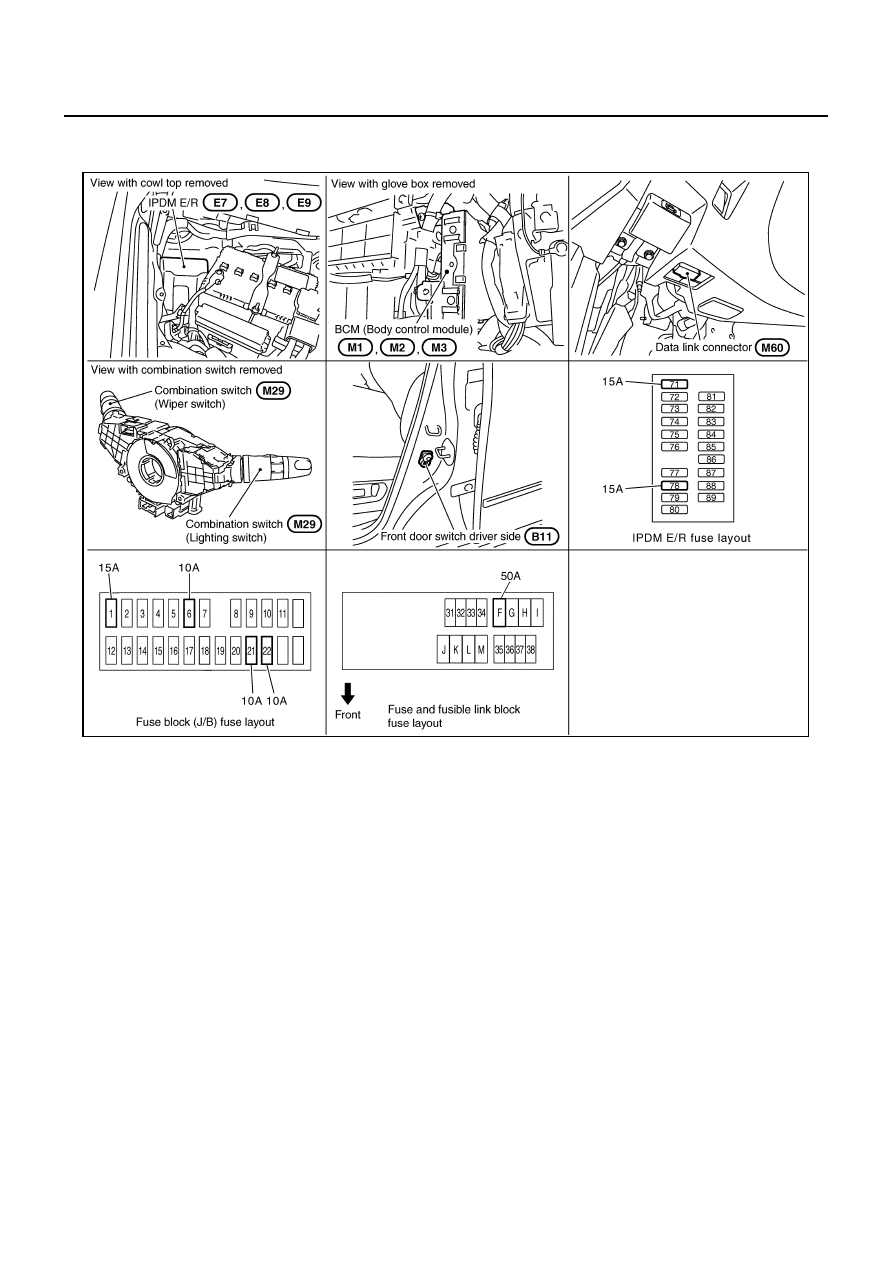

Component Parts and Harness Connector Location

NKS003SH

System Description

NKS003SI

The control of the parking, license plate and tail lamp operation is dependent upon the position of the lighting
switch (combination switch). When the lighting switch is placed in the 1ST position, the BCM (body control
module) receives input signal requesting the parking, license plate and tail lamps to illuminate. This input sig-
nal is communicated to the IPDM E/R (intelligent power distribution module engine room) across the CAN
communication lines. The CPU (central processing unit) located in the IPDM E/R controls the tail lamp relay
coil. This relay, when energized, directs power to parking, license plate and tail lamps, which then illuminate.

OUTLINE

Power is supplied at all times

●

through 15A fuse (No. 71, located in IPDM E/R)

●

to CPU located in IPDM E/R, and

●

to tail lamp relay located in IPDM E/R,

●

through 15A fuse (No. 78, located in IPDM E/R)

●

to CPU located in IPDM E/R,

●

through 50A fusible link (letter F, located in fuse, fusible link and relay block)

●

to BCM terminal 55,

●

through 10A fuse [No. 21, located in fuse block (J/B)]

●

to BCM terminal 42,

●

through 10A fuse [No. 22, located in fuse block (J/B)]

●

to key slot terminal 1.

PKID0503E
