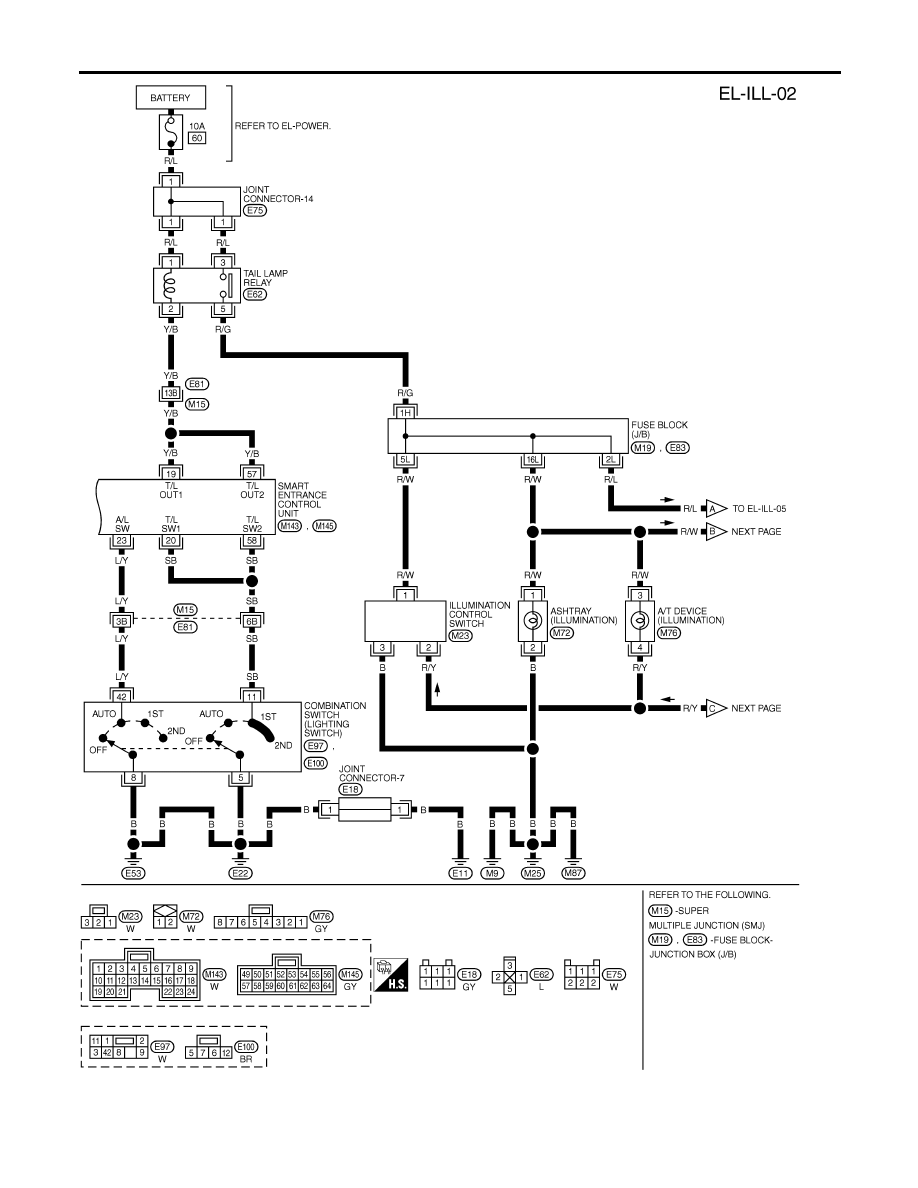

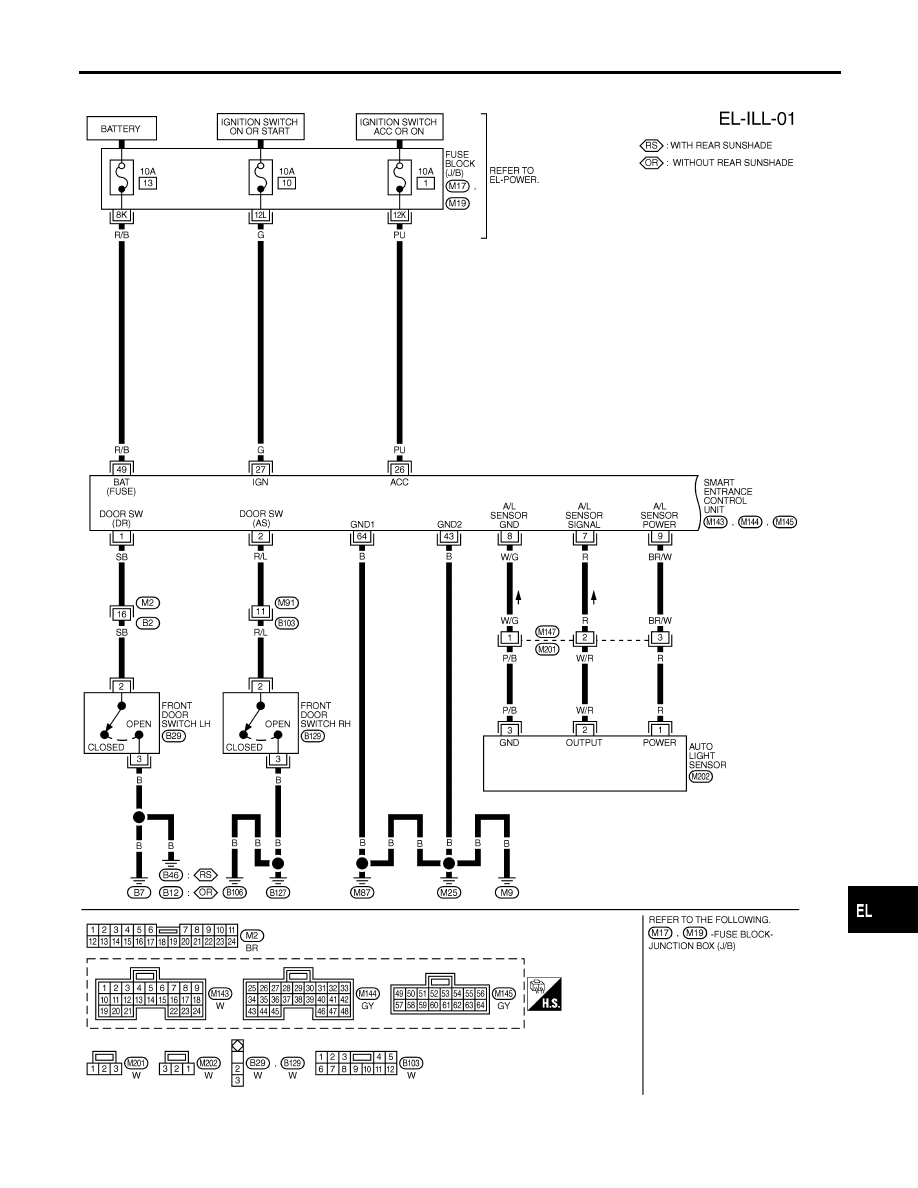

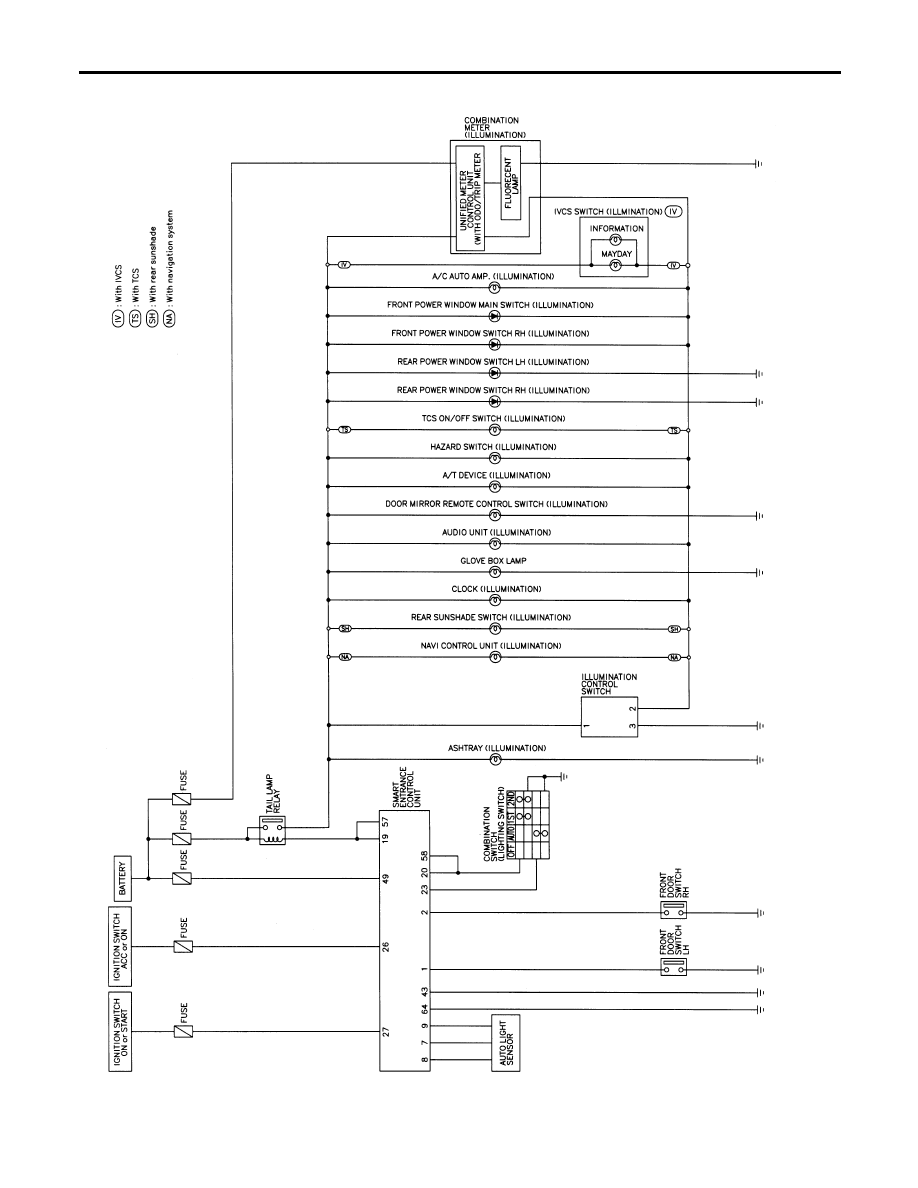

System Description NHEL0035 The illumination lamp operation is controlled by the lighting switch which is built into the combination switch I to tail lamp relay terminals 1 and 3 I through 10A fuse (No. 60, located in the fuse and fusible link box), and I to smart entrance control unit terminal 49 I through 10A fuse [No. 13, located in the fuse block (J/B)]. When ignition switch is in ON or START position, power is supplied I to smart entrance control unit terminal 27 I through 10A fuse [No. 10, located in the fuse block (J/B)], and When the ignition switch is in ACC or ON position, power is supplied I to smart entrance control unit terminal 26 I through 10A fuse [No. 1, located in the fuse block (J/B)]. Ground is supplied to smart entrance control unit terminals 43 and 64. LIGHTING OPERATION BY LIGHTING SWITCH NHEL0035S01 When lighting switch is 1ST (or 2ND) position, ground is supplied I to tail lamp relay terminal 2 from smart entrance control unit terminals 19 and 57 I through smart entrance control unit terminals 20 and 58, and I through lighting switch and body grounds E11, E22 and E53. Tail lamp relay is then energized and illumination lamps illuminate. BATTERY SAVER CONTROL NHEL0035S02 Illumination lamps will remain on for a short while after the ignition switch is turned ON (or START) from OFF I to smart entrance control unit terminals 20 and 58 from lighting switch terminal 11, and I to tail lamp relay terminal 2 from smart entrance control unit terminals 19 and 57. Then illumination lamps illuminate again. GI MA EM LC EC FE AT AX SU BR ST RS BT HA SC IDX ILLUMINATION System Description EL-113 |
