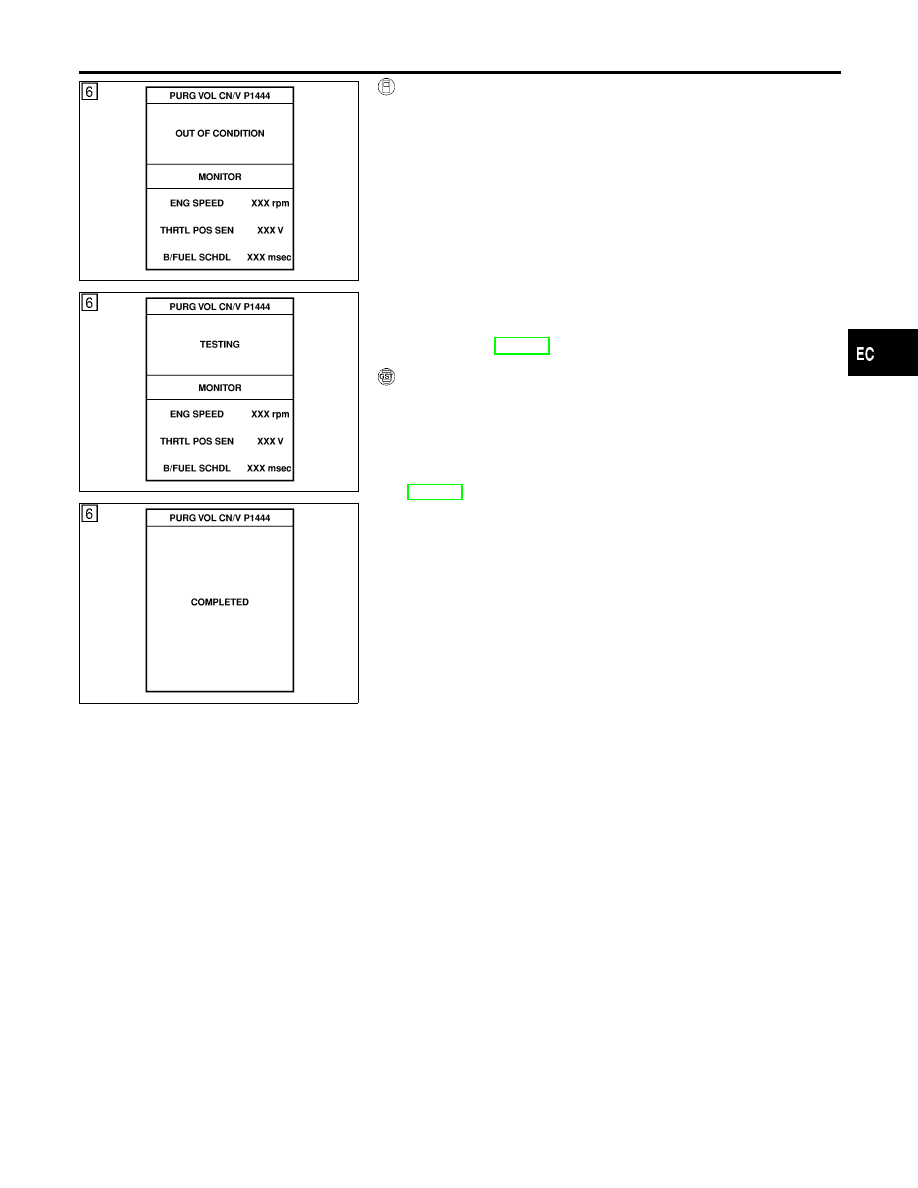

SEF205Y SEF206Y SEF237Y WITH CONSULT-II NHEC0323S01 1) Start engine and warm it up to normal operating temperature. 2) Turn ignition switch “OFF” and wait at least 10 seconds. 3) Turn ignition switch “ON”. 4) Select “PURG VOL CN/V P1444” of “EVAPORATIVE SYS- 5) Touch “START”. 6) Start engine and let it idle until “TESTING” on CONSULT-II 7) Make sure that “OK” is displayed after touching “SELF-DIAG If “NG” is displayed, refer to “Diagnostic Procedure”, EC-537. WITH GST NHEC0323S02 1) Start engine and warm it up to normal operating temperature. 2) Turn ignition switch “OFF” and wait at least 10 seconds. 3) Start engine and let it idle for at least 20 seconds. 4) Select “MODE 7” with GST. 5) If 1st trip DTC is detected, go to “Diagnostic Procedure”, GI MA EM LC FE AT AX SU BR ST RS BT HA SC EL IDX DTC P1444 EVAP CANISTER PURGE VOLUME CONTROL SOLENOID VALVE DTC Confirmation Procedure (Cont’d) EC-535 |
