Infiniti I30 (A33). Manual - part 286





3

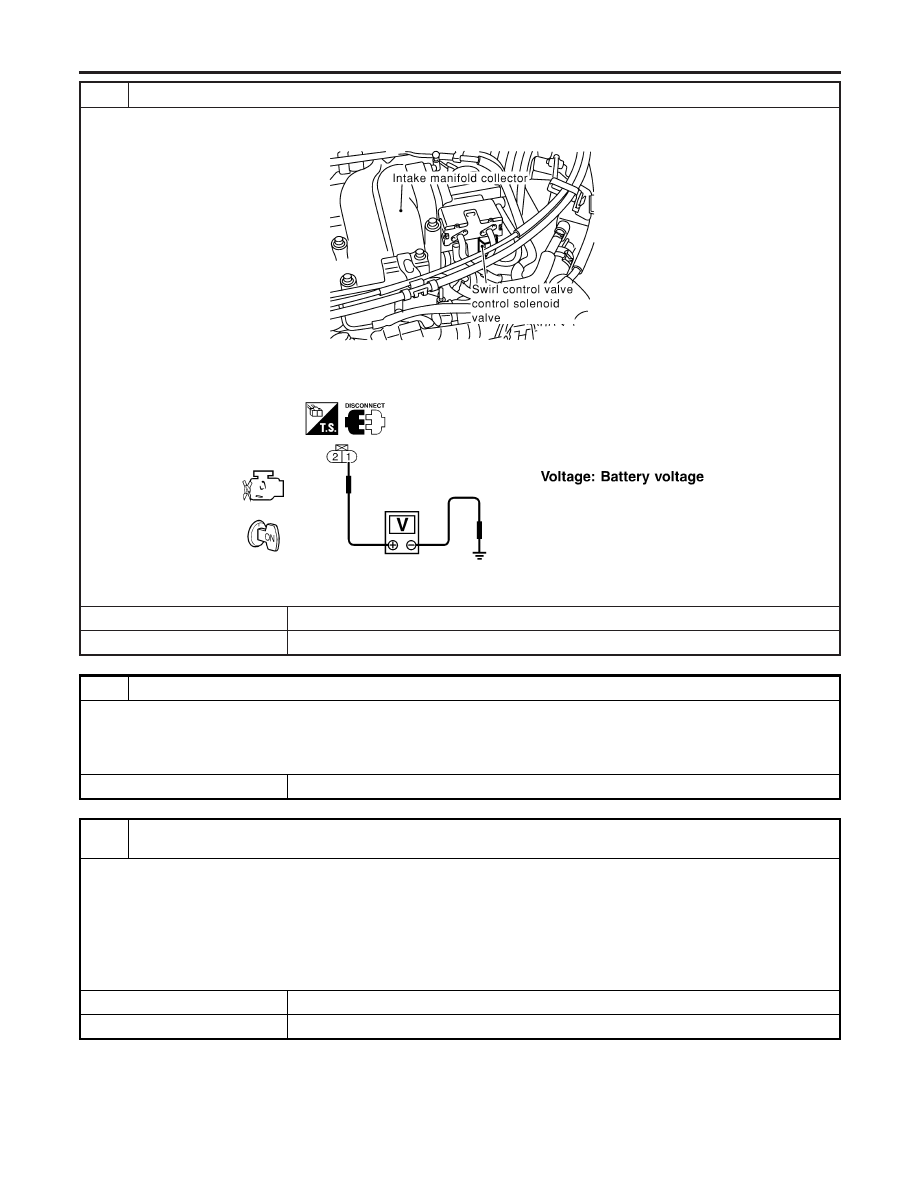

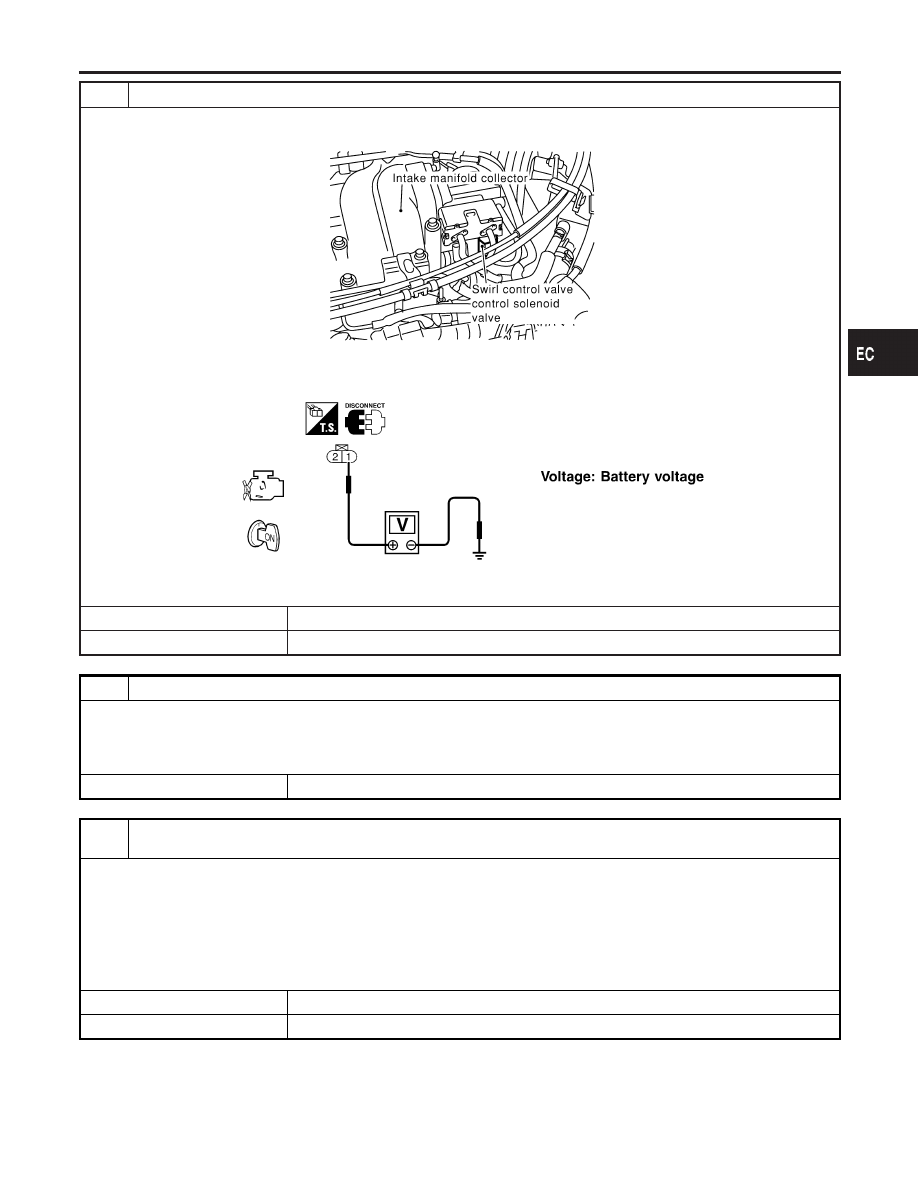

CHECK SWIRL CONTROL VALVE CONTROL SOLENOID VALVE POWER SUPPLY CIRCUIT

1. Turn ignition switch “OFF”.
2. Disconnect swirl control valve control solenoid valve harness connector.

SEF272X

3. Turn ignition switch “ON”.
4. Check voltage between swirl control valve control solenoid valve terminal 1 and ground with CONSULT-II or tester.

SEF619X

OK or NG

OK

©

GO TO 5.

NG

©

GO TO 4.

4

DETECT MALFUNCTIONING PART

Check the following.

I

Harness connectors M46, F44

I

15A fuse

I

Harness for open or short between swirl control valve control solenoid valve and fuse

©

Repair harness or connectors.

5

CHECK SWIRL CONTROL VALVE CONTROL SOLENOID VALVE OUTPUT SIGNAL CIRCUIT FOR OPEN
AND SHORT

1. Turn ignition switch “OFF”.
2. Disconnect ECM harness connector.
3. Check harness continuity between ECM terminal 29 and swirl control valve control solenoid valve terminal 2. Refer to

Wiring Diagram.

Continuity should exist.

4. Also check harness for short to ground and short to power.

OK or NG

OK

©

GO TO 6.

NG

©

Repair open circuit, short to ground or short to power in harness connectors.

GI

MA

EM

LC

FE

AT

AX

SU

BR

ST

RS

BT

HA

SC

EL

IDX

DTC P1130 SWIRL CONTROL VALVE CONTROL SOLENOID VALVE

Diagnostic Procedure (Cont’d)

EC-459

6

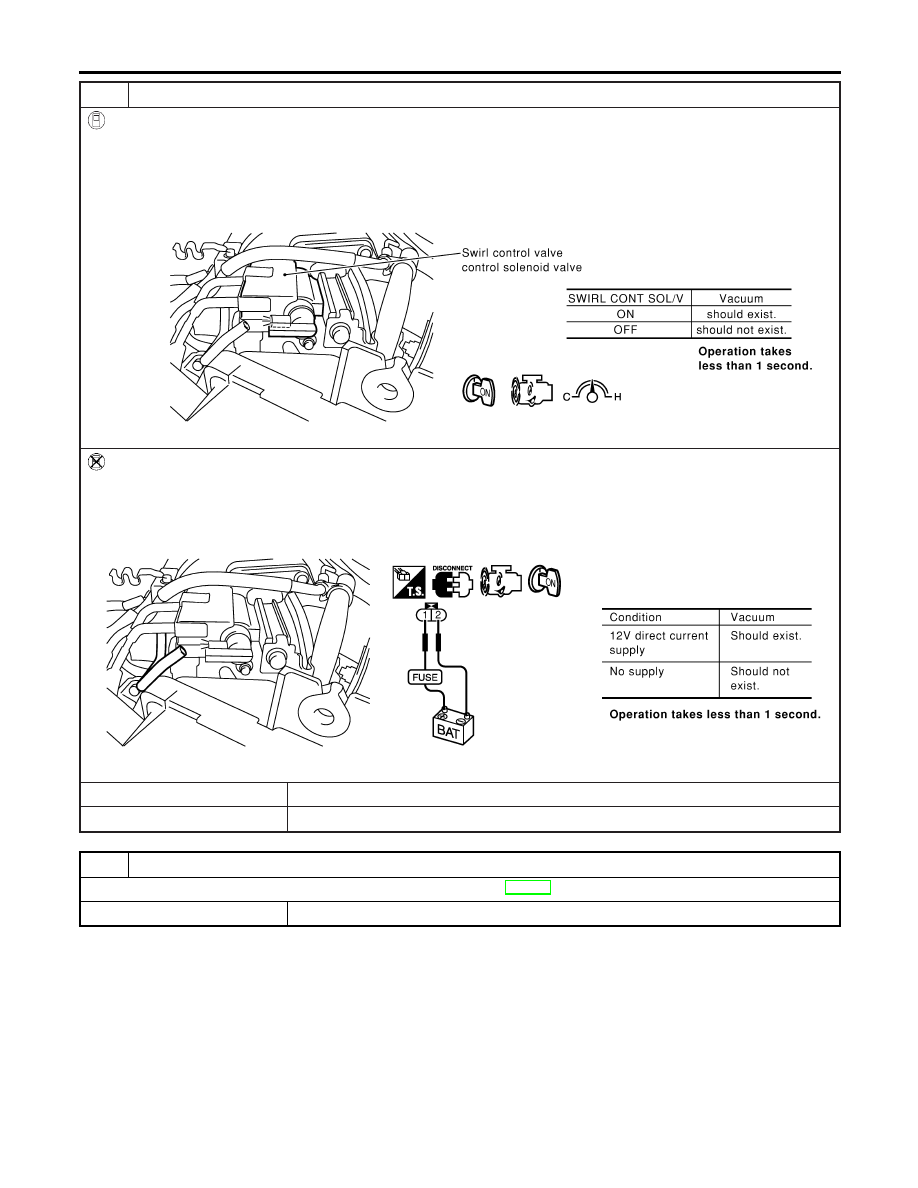

CHECK SWIRL CONTROL VALVE CONTROL SOLENOID VALVE

With CONSULT-II

1. Reconnect the disconnected harness connectors.
2. Start engine and let it idle.
3. Remove vacuum hose connected to swirl control valve actuator.
4. Select “SWIRL CONT SOL/V” in “ACTIVE TEST” mode with CONSULT-II.
5. Touch “ON” and “OFF” on CONSULT-II screen.
6. Check vacuum existence and operation delay time under the following conditions.

SEF046Y

Without CONSULT-II

1. Reconnect ECM harness connector.
2. Remove vacuum hose connected to swirl control valve actuator.
3. Start engine and let it idle.
4. Apply 12V of direct current between swirl control valve control solenoid valve terminals 1 and 2.
5. Check vacuum existence and operation delay time under the following conditions.

SEF047Y

OK or NG

OK

©

GO TO 7.

NG

©

Replace intake manifold collector assembly.

7

CHECK INTERMITTENT INCIDENT

Perform “TROUBLE DIAGNOSIS FOR INTERMITTENT INCIDENT”, EC-144.

©

INSPECTION END

DTC P1130 SWIRL CONTROL VALVE CONTROL SOLENOID VALVE

Diagnostic Procedure (Cont’d)

EC-460

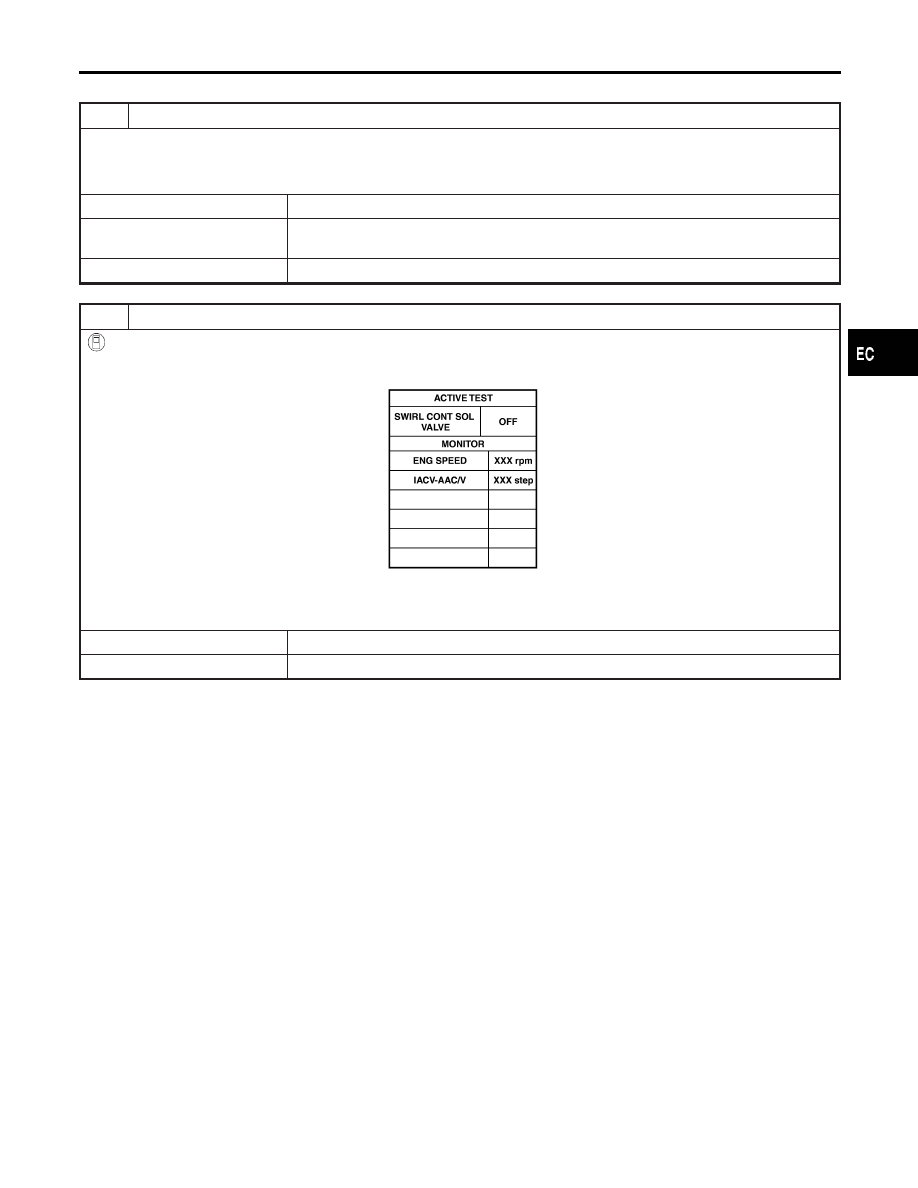

PROCEDURE B

NHEC0530S02

1

CHECK INTAKE SYSTEM

1. Start engine and let it idle.
2. Check intake air system for air leaks.

OK or NG

OK (With CONSULT-II)

©

GO TO 2.

OK (Without CONSULT-
II)

©

GO TO 3.

NG

©

Repair intake system.

2

CHECK SWIRL CONTROL VALVE CONTROL SOLENOID VALVE CIRCUIT

With CONSULT-II

1. Select “SWIRL CONT SOL/V” in “ACTIVE TEST” mode with CONSULT-II.
2. Touch “ON” and “OFF” on CONSULT-II screen.

SEC012C

3. Make sure that clicking sound is heard from the swirl control valve control solenoid valve.

OK or NG

OK

©

GO TO 6.

NG

©

GO TO 3.

GI

MA

EM

LC

FE

AT

AX

SU

BR

ST

RS

BT

HA

SC

EL

IDX

DTC P1130 SWIRL CONTROL VALVE CONTROL SOLENOID VALVE

Diagnostic Procedure (Cont’d)

EC-461

3

CHECK SWIRL CONTROL VALVE CONTROL SOLENOID VALVE POWER SUPPLY CIRCUIT

1. Turn ignition switch “OFF”.
2. Disconnect swirl control valve control solenoid valve harness connector.

SEF272X

3. Turn ignition switch “ON”.
4. Check voltage between swirl control valve control solenoid valve terminal 1 and ground with CONSULT-II or tester.

SEF619X

OK or NG

OK

©

GO TO 5.

NG

©

GO TO 4.

4

DETECT MALFUNCTIONING PART

Check the following.

I

Harness connectors M46, F44

I

15A fuse

I

Harness for open or short between swirl control valve control solenoid valve and fuse

©

Repair harness or connectors.

5

CHECK SWIRL CONTROL VALVE CONTROL SOLENOID VALVE OUTPUT SIGNAL CIRCUIT FOR OPEN
AND SHORT

1. Turn ignition switch “OFF”.
2. Disconnect ECM harness connector.
3. Check harness continuity between ECM terminal 29 and swirl control valve control solenoid valve terminal 2. Refer to

Wiring Diagram.

Continuity should exist.

4. Also check harness for short to ground and short to power.

OK or NG

OK

©

GO TO 6.

NG

©

Repair open circuit, short to ground or short to power in harness connectors.

DTC P1130 SWIRL CONTROL VALVE CONTROL SOLENOID VALVE

Diagnostic Procedure (Cont’d)

EC-462
