Infiniti I30 (A33). Manual - part 119





5

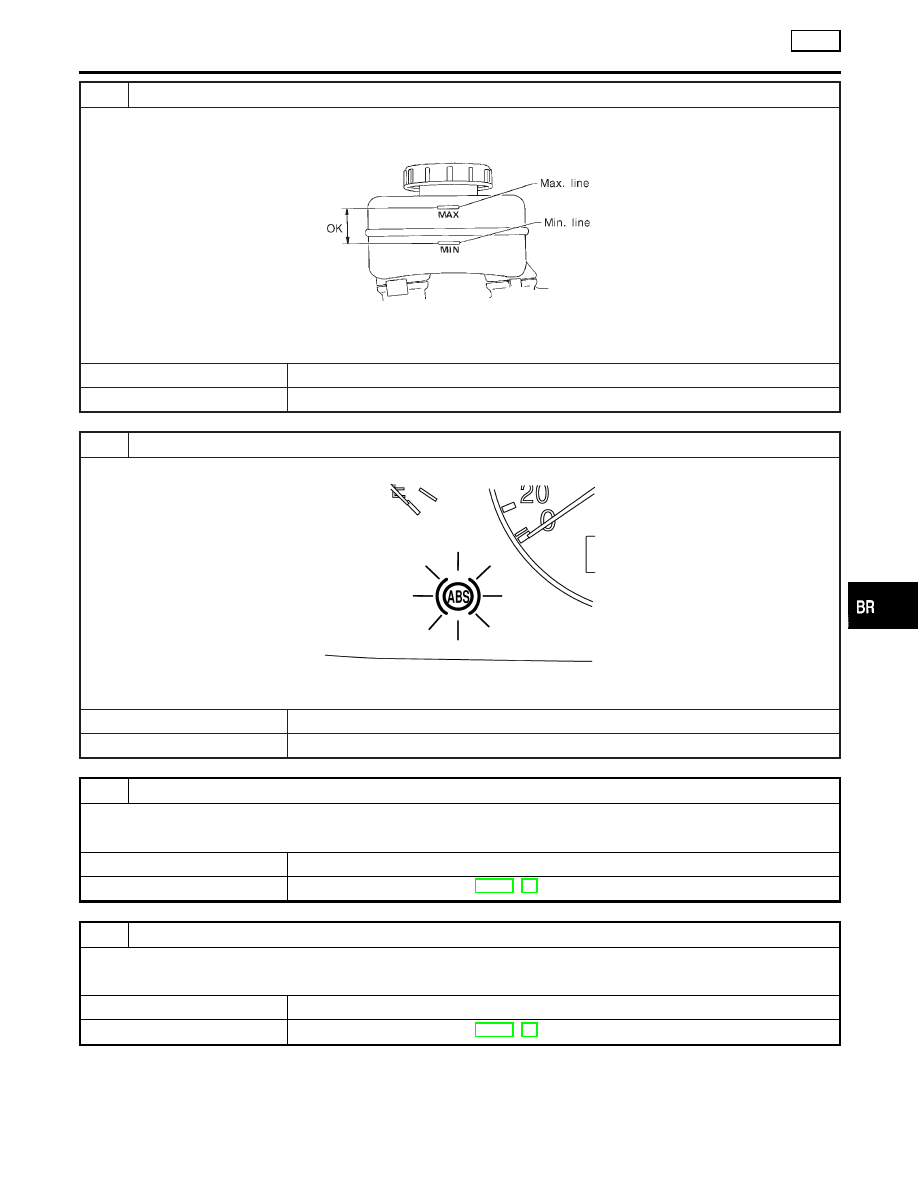

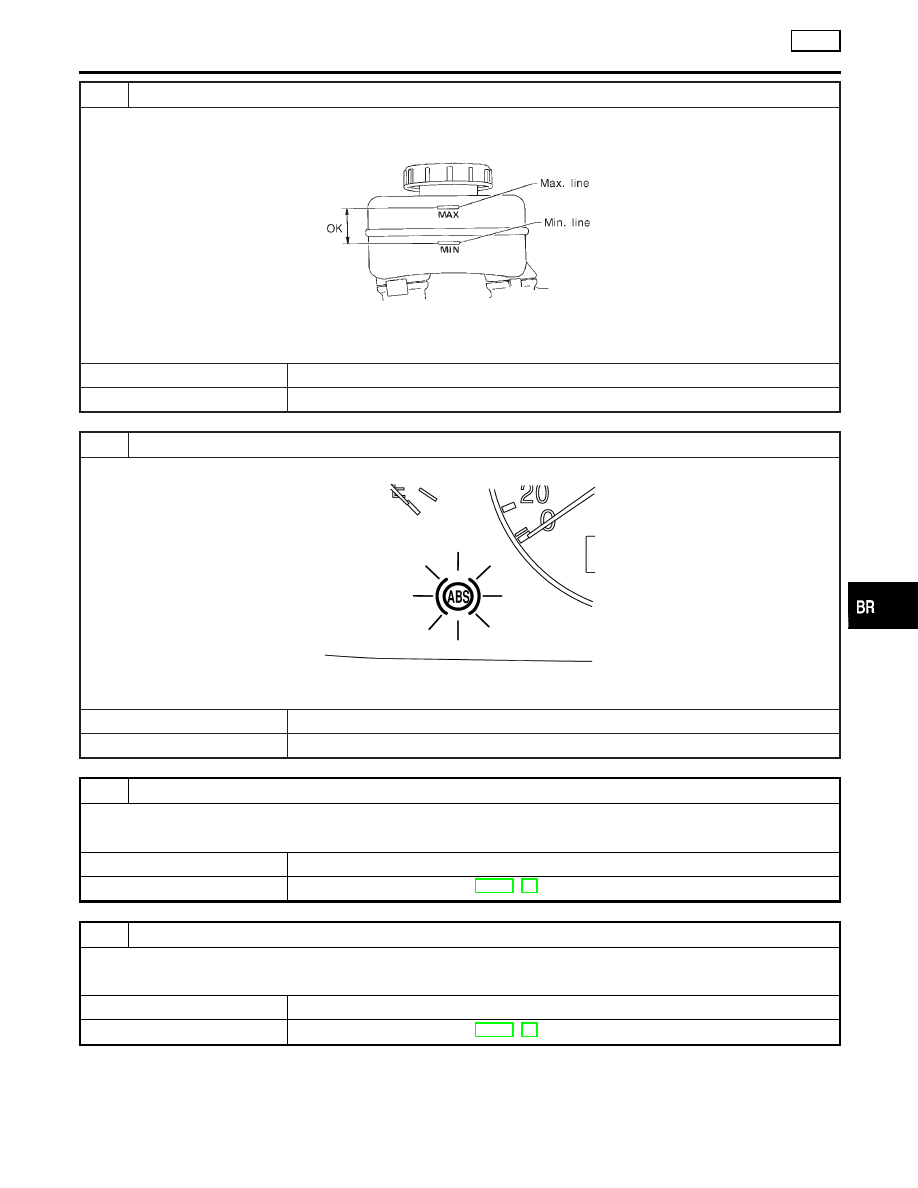

RECHECK BRAKE FLUID LEVEL

Check brake fluid level in reservoir tank again.

SBR451D

Is brake fluid filled between MAX and MIN lines on reservoir tank and/or has brake fluid been contaminated?

Yes

©

GO TO 6.

No

©

Fill up brake fluid.

6

CHECK WARNING LAMP ACTIVATION

Check warning lamp activation.

SBR588E

Does warning lamp turn on when ignition switch is turned “ON”?

Yes

©

GO TO 7.

No

©

Check fuse, warning lamp bulb and warning lamp circuit.

7

CHECK WARNING LAMP DEACTIVATION

Check warning lamp for deactivation after engine is started.

Does warning lamp turn off when engine is started?

Yes

©

GO TO 8.

No

©

Go to Self-diagnosis. Refer to BR-48, 50.

8

DRIVE VEHICLE

Drive vehicle at speeds over 30 km/h (19 MPH) for at least one minute.

Does warning lamp remain off after vehicle has been driven at 30 km/h (19 MPH) for at least one minute?

Yes

©

END

No

©

Go to Self-diagnosis. Refer to BR-48, 50.

GI

MA

EM

LC

EC

FE

AT

AX

SU

ST

RS

BT

HA

SC

EL

IDX

TROUBLE DIAGNOSIS — BASIC INSPECTION

ABS

Preliminary Check (Cont’d)

BR-59

SBR045EG

Ground Circuit Check

NHBR0113

ABS ACTUATOR AND ELECTRIC UNIT GROUND

NHBR0113S01

I

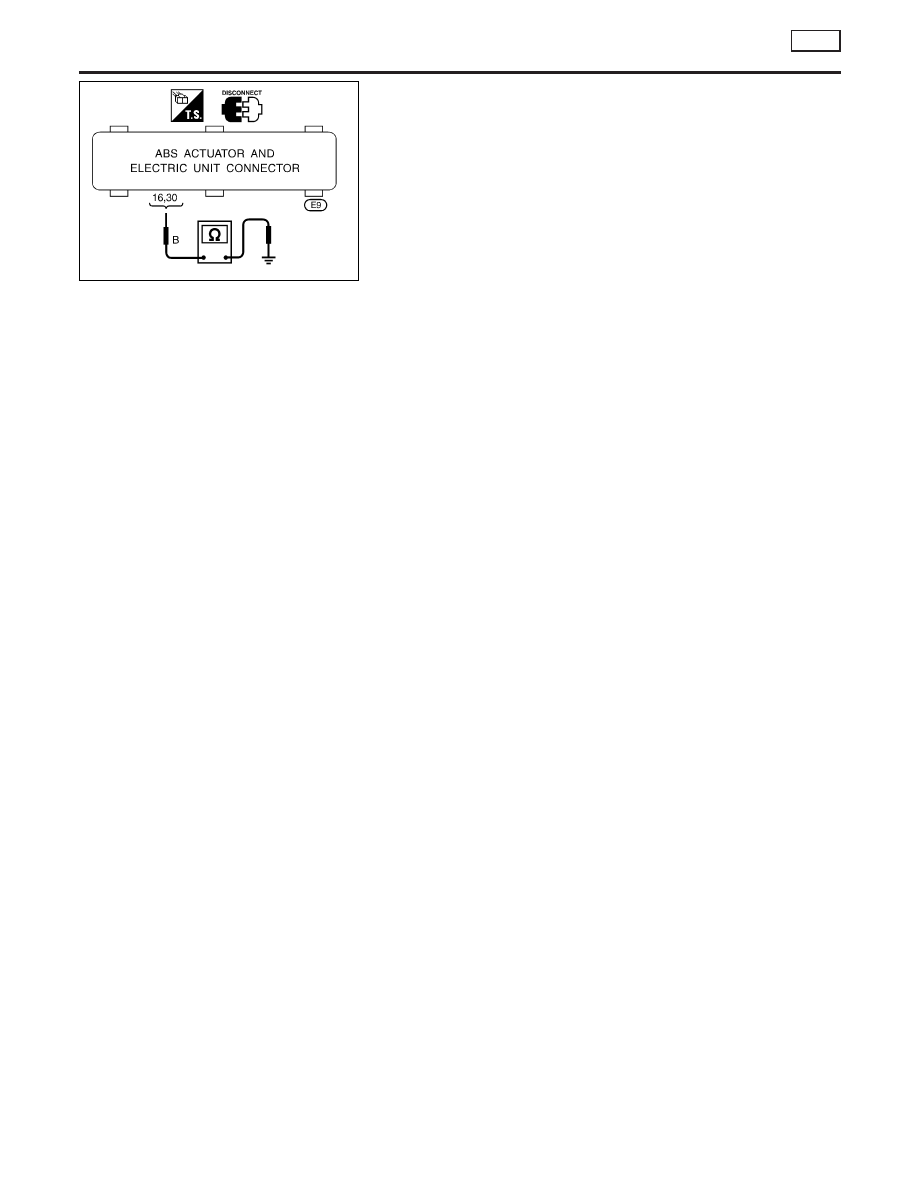

Check continuity between ABS actuator and electric unit con-
nector terminals and ground.

Continuity should exist.

TROUBLE DIAGNOSIS — BASIC INSPECTION

ABS

Ground Circuit Check

BR-60

Malfunction Code/Symptom Chart

NHBR0114

Code No. (No. of LED flashes)

Malfunctioning part

Reference page

12

Self-diagnosis could not detect any malfunctions.

21

Front right sensor (open-circuit)

BR-62

22

Front right sensor (short-circuit)

BR-62

25

Front left sensor (open-circuit)

BR-62

26

Front left sensor (short-circuit)

BR-62

31

Rear right sensor (open-circuit)

BR-62

32

Rear right sensor (short-circuit)

BR-62

35

Rear left sensor (open-circuit)

BR-62

36

Rear left sensor (short-circuit)

BR-62

41

Actuator front right outlet solenoid valve

BR-65

42

Actuator front right inlet solenoid valve

BR-65

45

Actuator front left outlet solenoid valve

BR-65

46

Actuator front left inlet solenoid valve

BR-65

51

Actuator rear right outlet solenoid valve

BR-65

52

Actuator rear right inlet solenoid valve

BR-65

55

Actuator rear left outlet solenoid valve

BR-65

56

Actuator rear left inlet solenoid valve

BR-65

57*

Power supply (Low voltage)

BR-70

61

Actuator motor or motor relay

BR-68

63

Solenoid valve relay

BR-65

71

Control unit

BR-72

ABS warning lamp stays on when
ignition switch is turned on.

Control unit power supply circuit
Warning lamp bulb circuit
Control unit or control unit connector
Solenoid valve relay stuck
Power supply for solenoid valve relay coil

BR-79

ABS warning lamp stays on, during
self-diagnosis.

Control unit

ABS warning lamp does not come on
when ignition switch is turned on.

Fuse, warning lamp bulb or warning lamp circuit
Control unit

BR-77

ABS warning lamp does not come on
during self-diagnosis.

Control unit

Pedal vibration and noise

BR-76

Long stopping distance

BR-74

Unexpected pedal action

BR-73

ABS does not work.

BR-75

ABS works frequently.

BR-73

*: Under voltage that is too low, the control unit disable the ABS. It does not set the ABS in fail-safe condition. Instead, the ABS becomes
a conventional brake system. After the power supply has resumed, the warning lamp goes off, making it possible for the ABS to be
re-engaged.

GI

MA

EM

LC

EC

FE

AT

AX

SU

ST

RS

BT

HA

SC

EL

IDX

TROUBLE DIAGNOSIS — GENERAL DESCRIPTION

ABS

Malfunction Code/Symptom Chart

BR-61

Wheel Sensor or Rotor

NHBR0115

DIAGNOSTIC PROCEDURE

NHBR0115S01

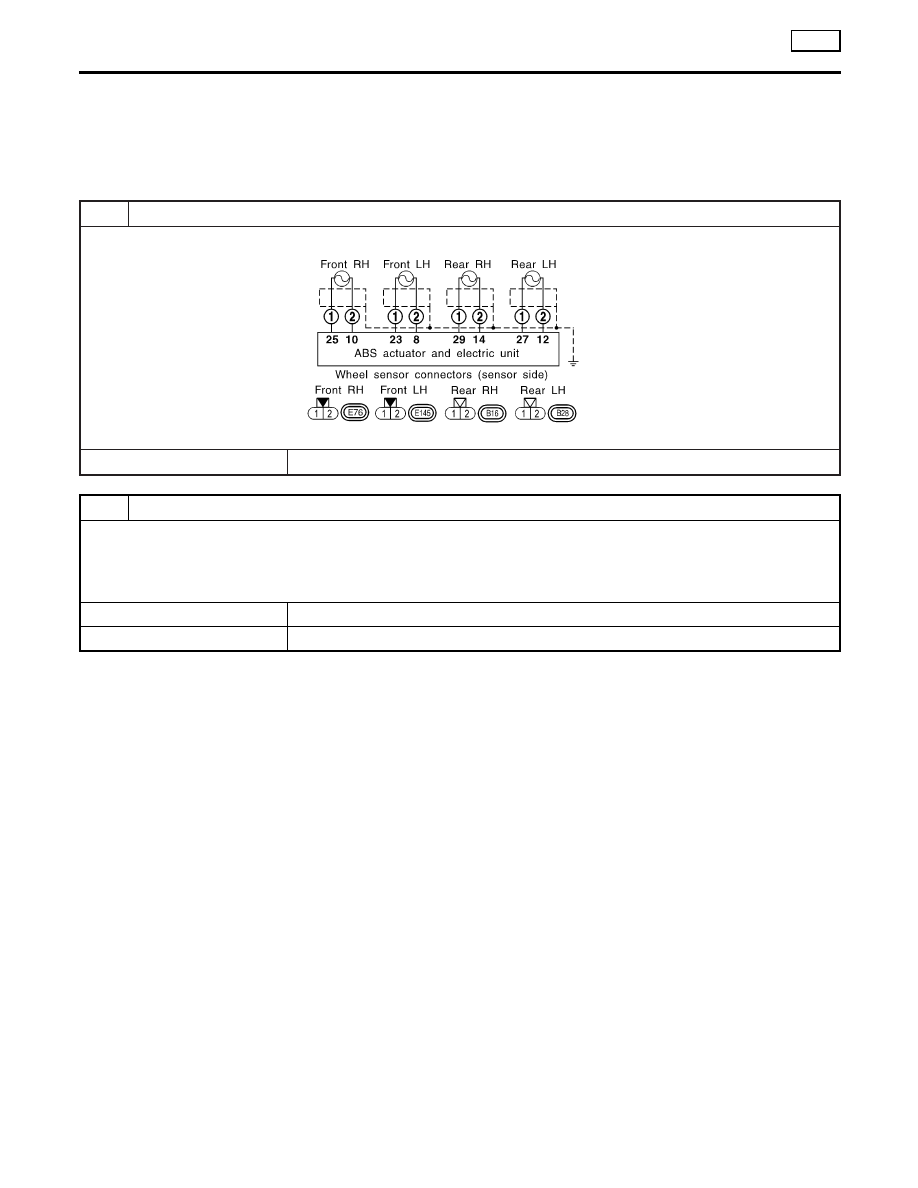

Malfunction code No. 21, 22, 25, 26, 31, 32, 35, 36 or 18
NOTE:
Wheel position should be identified by code No. except code No.
18 (sensor rotor).

1

INSPECTION START

Wheel sensor inspection

SBR590EA

©

GO TO 2.

2

CHECK CONNECTOR

1. Disconnect connectors from control unit and wheel sensor of malfunction code No. Check terminals for damage or

loose connections. Then reconnect connectors.

2. Carry out self-diagnosis again.

Does warning lamp activate again?

Yes

©

GO TO 3.

No

©

INSPECTION END

TROUBLE DIAGNOSES FOR SELF-DIAGNOSTIC ITEMS

ABS

Wheel Sensor or Rotor

BR-62
