Precautions

PRECAUTIONS

NHAX0001

When installing rubber parts, final tightening must be car-
ried out under unladen condition* with tires on ground.
*: Fuel, radiator coolant and engine oil full. Spare tire, jack,
hand tools and mats in designated positions.

After installing removed suspension parts, check wheel
alignment and adjust if necessary.

Use flare nut wrench when removing or installing brake
tubes.

Always torque brake lines when installing.

Preparation

SPECIAL SERVICE TOOLS

NHAX0002

The actual shapes of Kent-Moore tools may differ from those of special service tools illustrated here.

Tool number
(Kent-Moore No.)
Tool name

Description

HT72520000
(J25730-B)
Ball joint remover

NT146

Removing tie-rod outer end and lower ball joint

KV38106700
(J34296)
KV38106800
(J34297)
Differential side oil seal
protector

NT147

Installing drive shaft
LH: KV38106700 (J34296)
RH: KV38106800 (J34297)

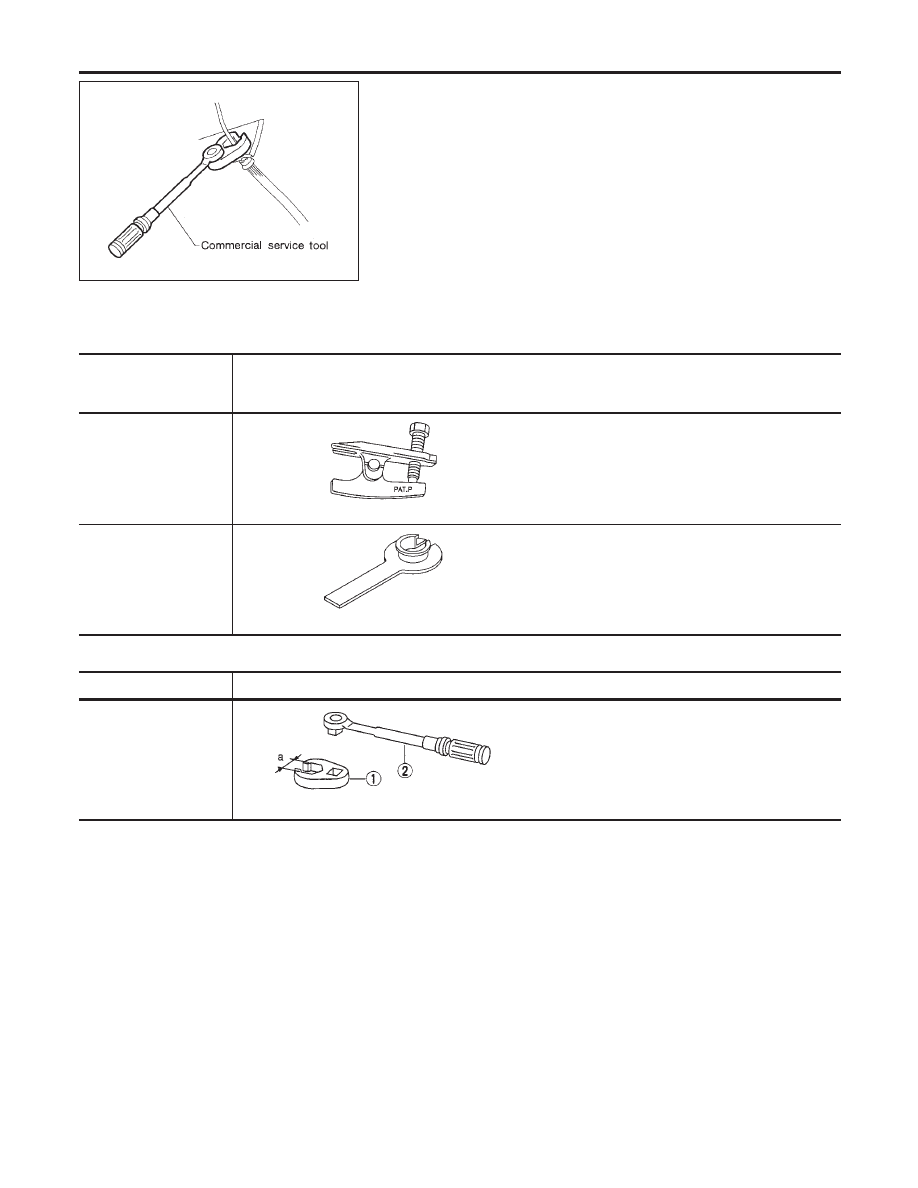

COMMERCIAL SERVICE TOOLS

NHAX0003

Tool name

Description

1 Flare nut crowfoot
2 Torque wrench

NT360

Removing and installing each brake piping
a: 10 mm (0.39 in)

FRONT AXLE

Precautions

AX-2

Noise, Vibration and Harshness (NVH)
Troubleshooting

=NHAX0004

NVH TROUBLESHOOTING CHART

NHAX0004S01

Use the chart below to help you find the cause of the symptom. If necessary, repair or replace these parts.

Reference page

—

AX-13

—

AX-5,

—

AX-3,

—

SU-4

BR-7

-5

Possible cause and
SUSPECTED PARTS

Excessive

joint

angle

Joint

sliding

resistance

Imbalance

Improper

installation,

looseness

Parts

interference

Wheel

bearing

damage

DRIVE

SHAFT

AXLE

SUSPENSION

TIRES

ROAD

WHEEL

BRAKES

STEERING

Symptom

DRIVE SHAFT

Noise, Vibration

Shake

AXLE

Noise

Shake

Vibration

Shimmy

Judder

Poor quality ride or
handling

: Applicable

SMA525A

On-vehicle Service

FRONT AXLE PARTS

NHAX0005

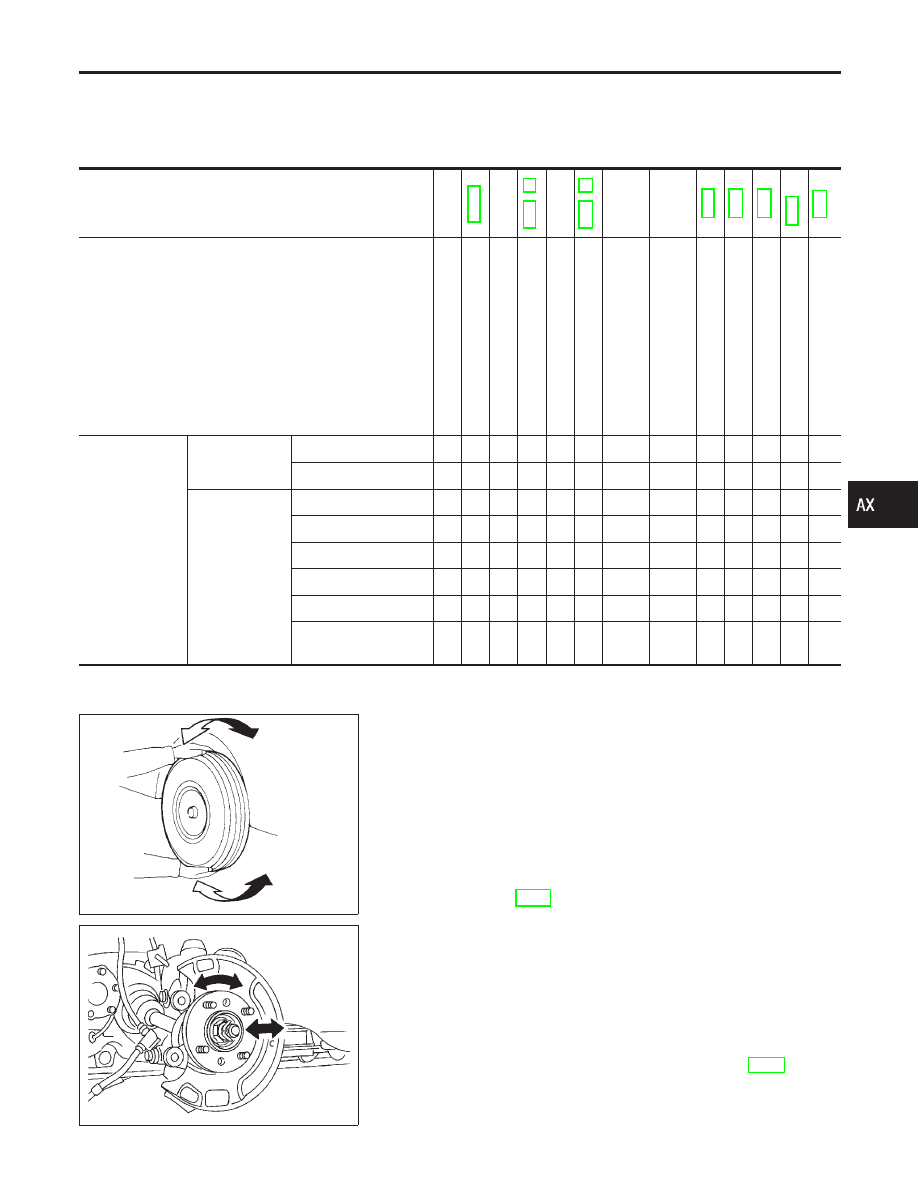

Check front axle and front suspension parts for excessive play,
cracks, wear or other damage.

Shake each front wheel to check for excessive play.

Make sure that cotter pin is inserted.

Retighten all axle and suspension nuts and bolts to the speci-
fied torque.

Tightening torque:

Refer to SU-9, “FRONT SUSPENSION”.

SFA805B

FRONT WHEEL BEARING

NHAX0006

Check that wheel bearings operate smoothly.

Check axial end play.

Axial end play:

0.05 mm (0.0020 in)

If out of specification or wheel bearing does not turn smoothly,
replace wheel bearing assembly.
Refer to “Wheel Hub and Knuckle”, “FRONT AXLE”, AX-5.

IDX

FRONT AXLE

Noise, Vibration and Harshness (NVH) Troubleshooting

AX-3

SFA108A

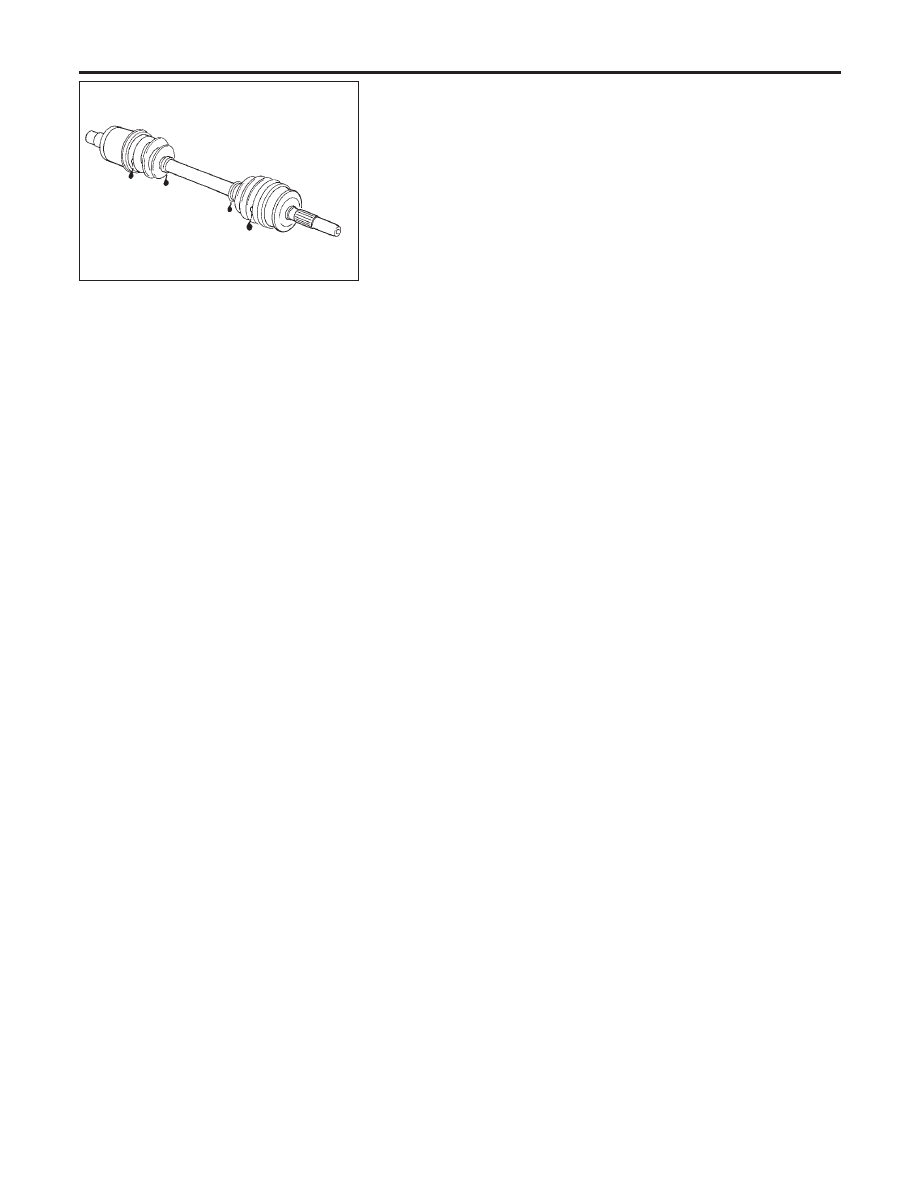

DRIVE SHAFT

NHAX0007

Check for grease leakage or other damage.

FRONT AXLE

On-vehicle Service (Cont’d)

AX-4
