Infiniti I30 (A33). Manual - part 90

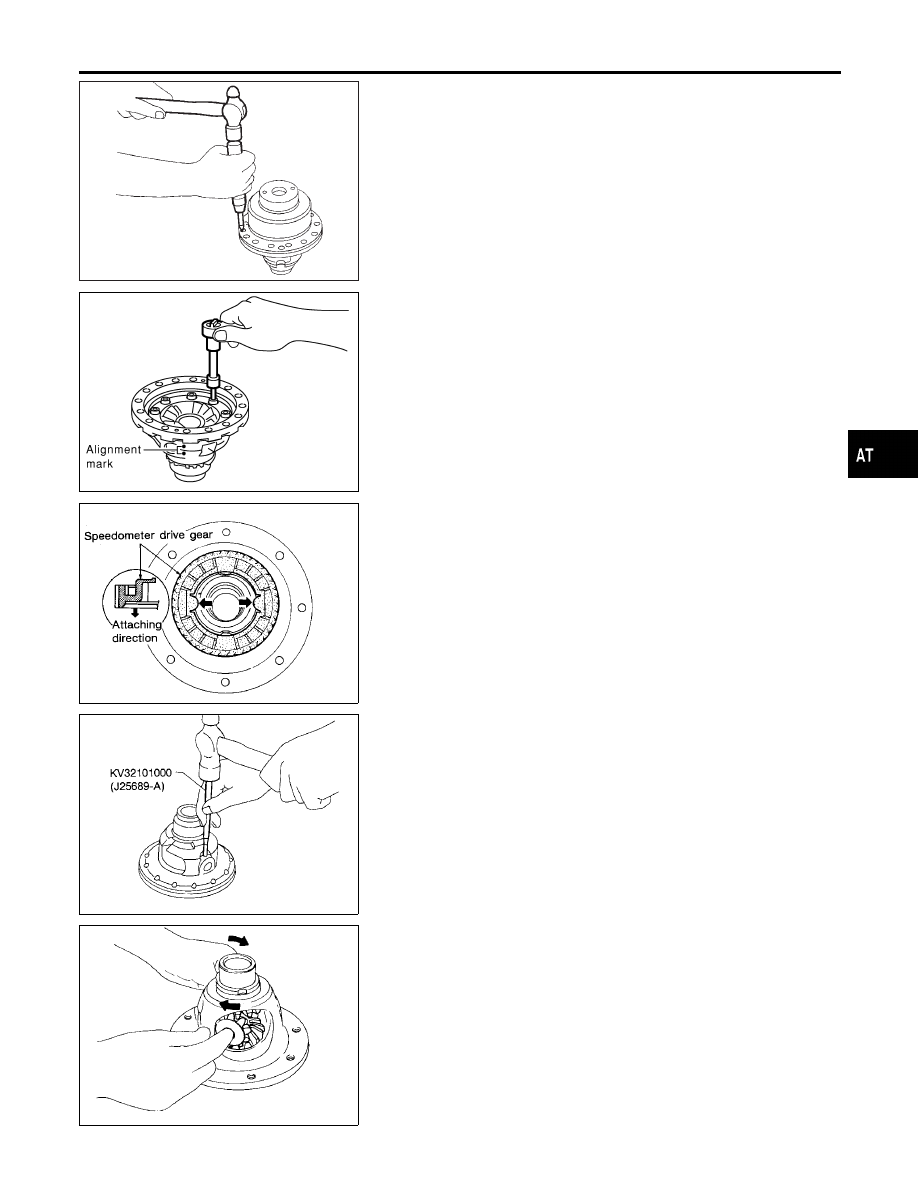

SMT698B

3.

Remove viscous coupling — RE4F04W.

a.

Remove viscous coupling.

SAT707J

b.

Make alignment marks with paint on differential cases A and B.

c.

Remove the bolts holding the differential cases, and remove
the pinion mate gears and side gears.

SAT313D

4.

Remove speedometer drive gear.

SAT904D

5.

Drive out pinion mate shaft lock pin.

SAT316D

6.

Draw out pinion mate shaft lock pin.

7.

Remove pinion mate gears and side gears.

GI

MA

EM

LC

EC

FE

AX

SU

BR

ST

RS

BT

HA

SC

EL

IDX

REPAIR FOR COMPONENT PARTS

Final Drive (Cont’d)

AT-357

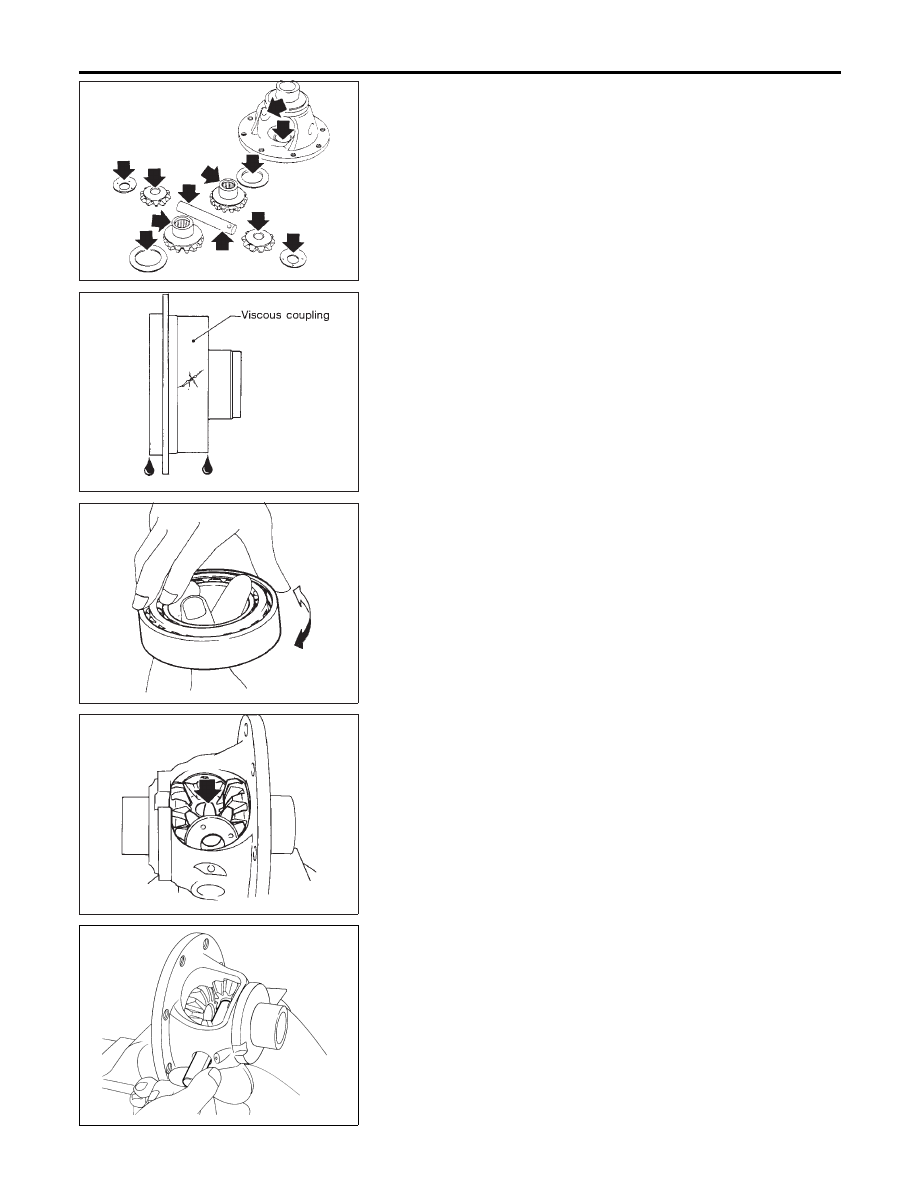

SAT544F

INSPECTION

NHAT0175

Gear, Washer, Shaft and Case

NHAT0175S01

I

Check mating surfaces of differential case, side gears and
pinion mate gears.

I

Check washers for wear.

SMT508B

Viscous Coupling — RE4F04W

NHAT0175S02

I

Check case for cracks.

I

Check silicone oil for leakage.

SPD715

Bearings

NHAT0175S03

I

Make sure bearings roll freely and are free from noise, cracks,
pitting or wear.

I

When replacing taper roller bearing, replace outer and
inner race as a set.

SMT839

ASSEMBLY

NHAT0176

1.

Attach side gear thrust washers to side gears, then install pin-
ion mate thrust washers and pinion mate gears in place.

I

Apply ATF to any parts.

SMT087A

2.

Insert pinion mate shaft.

I

When inserting, be careful not to damage pinion mate
thrust washers.

REPAIR FOR COMPONENT PARTS

Final Drive (Cont’d)

AT-358

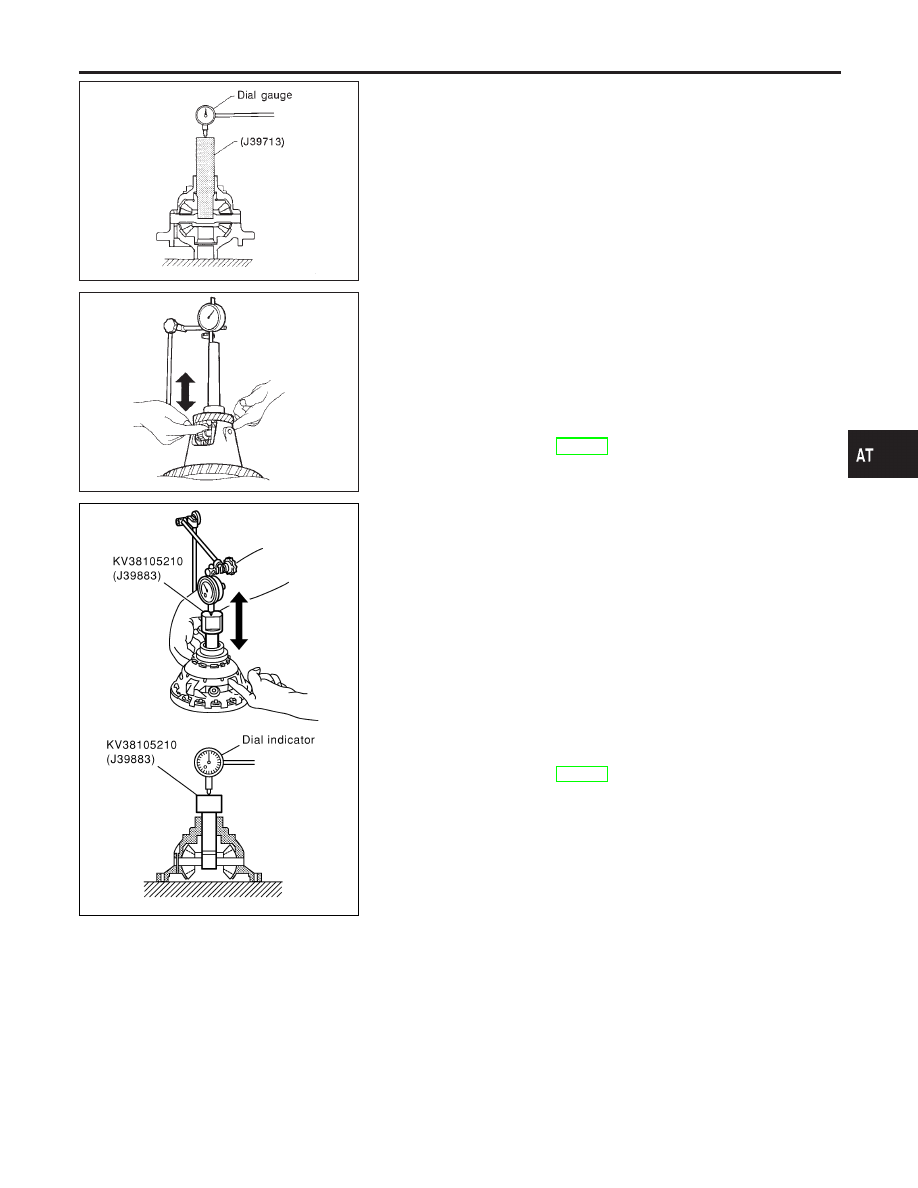

AAT782

— RE4F04B —

NHAT0176S01

1.

Measure clearance between side gear and differential case
with washers following the procedure below:

a.

Set Tool and dial indicator on side gear.

SMT611A

b.

Move side gear up and down to measure dial indicator deflec-
tion. Always measure indicator deflection on both side gears.

Clearance between side gear and differential case with
washer:

0.1 - 0.2 mm (0.004 - 0.008 in)

c.

If not within specification, adjust clearance by changing thick-
ness of differential side gear thrust washers.

Differential side gear thrust washers:

Refer to SDS, AT-386.

SAT708J

— RE4F04W —

NHAT0176S02

Differential Case Side

NHAT0176S0201

1.

Measure clearance between side gear and differential case &
viscous coupling with washers using the following procedure:

a.

Set Tool and dial indicator on side gear.

b.

Move side gear up and down to measure dial indicator deflec-
tion.

Clearance between side gear and differential case with
washers:

0.1 - 0.2 mm (0.004 - 0.008 in)

c.

If not within specification adjust clearance by changing thick-
ness of side gear thrust washer.

Differential side gear thrust washers for differential
case side:

Refer to SDS, AT-386.

GI

MA

EM

LC

EC

FE

AX

SU

BR

ST

RS

BT

HA

SC

EL

IDX

REPAIR FOR COMPONENT PARTS

Final Drive (Cont’d)

AT-359

SMT753B

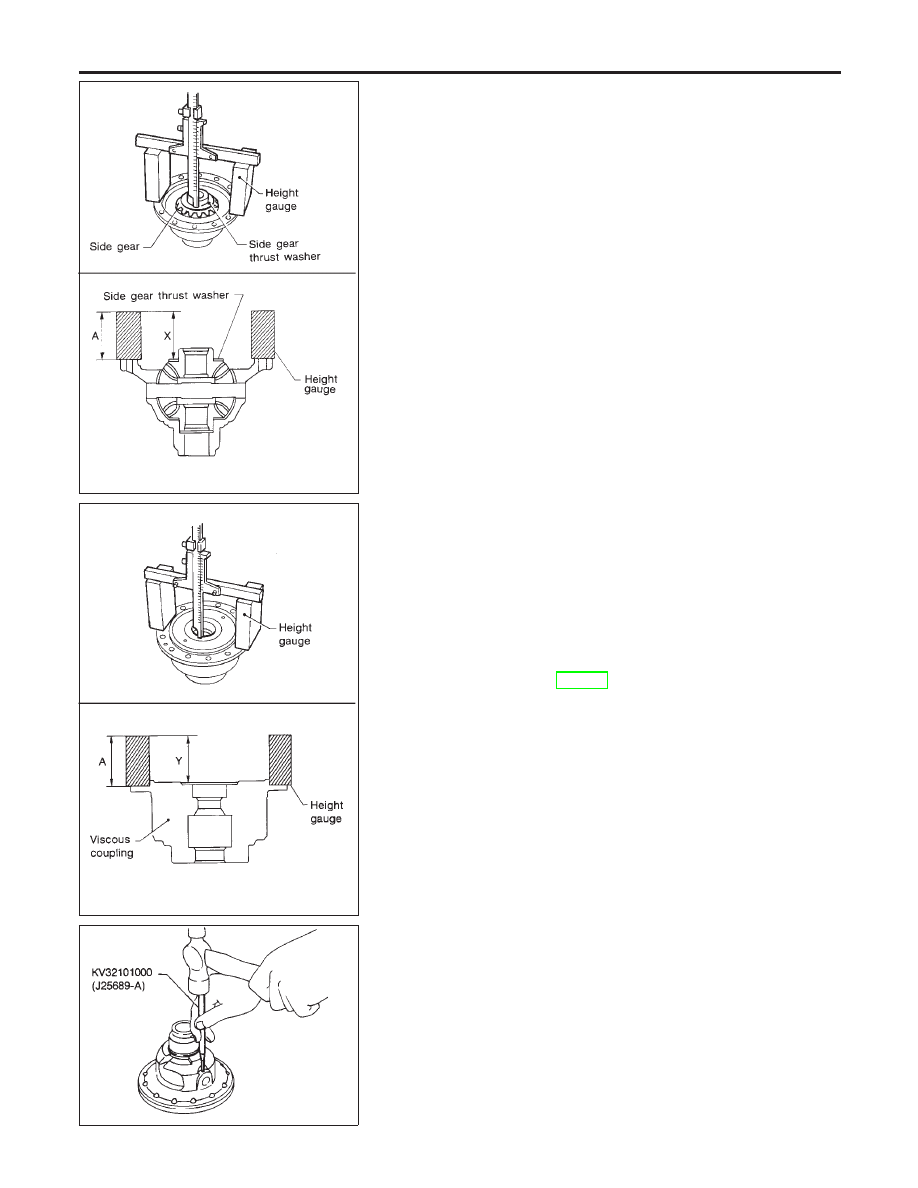

Viscous Coupling Side

NHAT0176S0202

1.

Measure clearance between side gear and differential case &
viscous coupling with washers using the following procedure:

a.

Place side gear and thrust washer on pinion mate gears
installed on differential case.

b.

Measure dimension X.

I

Measure dimension X in at least two places.

SMT754B

c.

Measure dimension Y.

I

Measure dimension Y in at least two places.

Clearance between side gear and viscous coupling
= X + Y − 2A: 0.1 - 0.2 mm (0.004 - 0.008 in)
A: Height of gauge

d.

If not within specification, adjust clearance by changing thick-
ness of side gear thrust washer.

Differential side gear thrust washers for viscous cou-
pling side:

Refer to SDS, AT-386.

SMT699B

3.

Install lock pin.

I

Make sure that lock pin is flush with case.

REPAIR FOR COMPONENT PARTS

Final Drive (Cont’d)

AT-360
