RF-50

< ECU DIAGNOSIS >

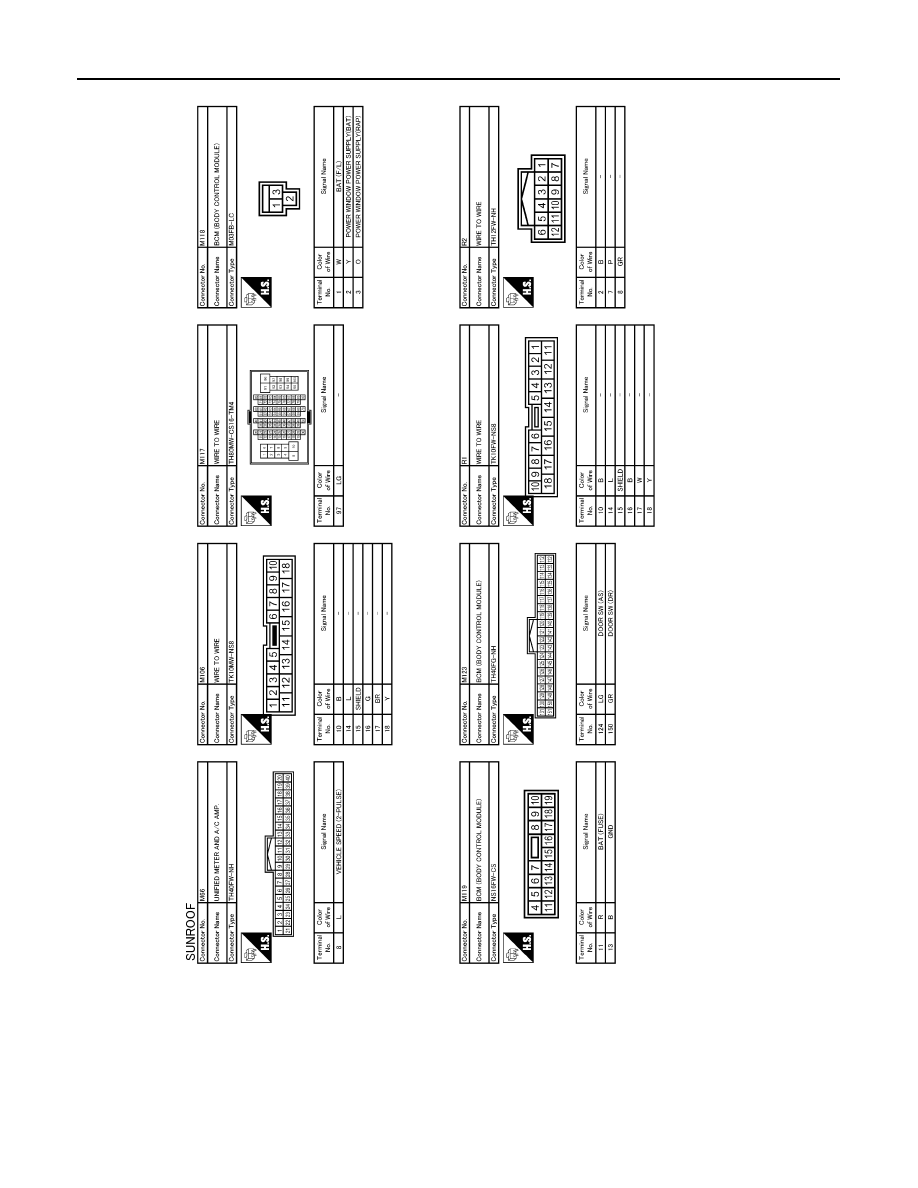

SUNROOF SYSTEM

JCKWA0059GB

SUNROOF SYSTEM

RF-51

< ECU DIAGNOSIS >

C

D

E

F

G

H

I

J

L

M

A

B

RF

N

O

P

JCKWA0060GB

RF-52

< SYMPTOM DIAGNOSIS >

SUNROOF DOES NOT OPERATE PROPERLY

SYMPTOM DIAGNOSIS

SUNROOF DOES NOT OPERATE PROPERLY

Diagnosis Procedure

INFOID:0000000000961766

1.

CHECK BCM POWER SUPPLY AND GROUND CIRCUIT

Check BCM power supply and ground circuit.
Refer to

BCS-38, "Diagnosis Procedure"

Is the inspection result normal?

YES

>> GO TO 2.

NO

>> Repair or replace the malfunctioning parts.

2.

CHECK SUNROOF MOTOR ASSEMBLY POWER SUPPLY AND GROUND CIRCUIT

Check sunroof motor assembly power supply and ground circuit.
Refer to

RF-9, "SUNROOF MOTOR ASSEMBLY : Component Function Check"

Is the inspection result normal?

YES

>> Inspection end.

NO

>> Check intermittent incident. Refer to

GI-39, "Intermittent Incident"

AUTO OPERATION DOES NOT OPERATE

RF-53

< SYMPTOM DIAGNOSIS >

C

D

E

F

G

H

I

J

L

M

A

B

RF

N

O

P

AUTO OPERATION DOES NOT OPERATE

Diagnosis Procedure

INFOID:0000000000961767

1.

PERFORM INITIALIZATION PROCEDURE

Perform initialization procedure.
Refer to

RF-4, "ADDITIONAL SERVICE WHEN REPLACING CONTROL UNIT : Special Repair Requirement"

.

Is the inspection result normal?

YES

>> Inspection end.

NO

>> Check intermittent incident. Refer to

GI-39, "Intermittent Incident"

.
