RF-46

< ECU DIAGNOSIS >

BCM (BODY CONTROL MODULE)

B2616: IGN RELAY CIRC

—

×

—

PCS-60

B2617: STARTER RELAY CIRC

×

×

—

SEC-83

B2618: BCM

×

×

—

PCS-63

B2619: BCM

×

×

—

SEC-85

B261A: PUSH-BTN IGN SW

—

×

—

SEC-86

B261E: VEHICLE TYPE

×

×

 (Turn ON for 15

seconds)

—

SEC-88

B2621: INSIDE ANTENNA

—

—

—

DLK-58

B2622: INSIDE ANTENNA

—

—

—

DLK-60

B2623: INSIDE ANTENNA

—

—

—

DLK-62

B26E1: ENG STATE NO RES

×

×

—

SEC-78

C1704: LOW PRESSURE FL

—

—

×

WT-14

C1705: LOW PRESSURE FR

—

—

×

WT-14

C1706: LOW PRESSURE RR

—

—

×

WT-14

C1707: LOW PRESSURE RL

—

—

×

WT-14

C1708: [NO DATA] FL

—

—

×

WT-16

C1709: [NO DATA] FR

—

—

×

WT-16

C1710: [NO DATA] RR

—

—

×

WT-16

C1711: [NO DATA] RL

—

—

×

WT-16

C1712: [CHECKSUM ERR] FL

—

—

×

WT-19

C1713: [CHECKSUM ERR] FR

—

—

×

WT-19

C1714: [CHECKSUM ERR] RR

—

—

×

WT-19

C1715: [CHECKSUM ERR] RL

—

—

×

WT-19

C1716: [PRESSDATA ERR] FL

—

—

×

WT-22

C1717: [PRESSDATA ERR] FR

—

—

×

WT-22

C1718: [PRESSDATA ERR] RR

—

—

×

WT-22

C1719: [PRESSDATA ERR] RL

—

—

×

WT-22

C1720: [CODE ERR] FL

—

—

×

WT-24

C1721: [CODE ERR] FR

—

—

×

WT-24

C1722: [CODE ERR] RR

—

—

×

WT-24

C1723: [CODE ERR] RL

—

—

×

WT-24

C1724: [BATT VOLT LOW] FL

—

—

×

WT-27

C1725: [BATT VOLT LOW] FR

—

—

×

WT-27

C1726: [BATT VOLT LOW] RR

—

—

×

WT-27

C1727: [BATT VOLT LOW] RL

—

—

×

WT-27

C1729: VHCL SPEED SIG ERR

—

—

×

WT-30

C1734: CONTROL UNIT

—

—

×

WT-31

CONSULT display

Fail-safe

Intelligent Key

warning lamp ON

Tire pressure

monitor warning

lamp ON

Reference page

SUNROOF SYSTEM

RF-47

< ECU DIAGNOSIS >

C

D

E

F

G

H

I

J

L

M

A

B

RF

N

O

P

SUNROOF SYSTEM

SUNROOF MOTOR ASSEMBLY

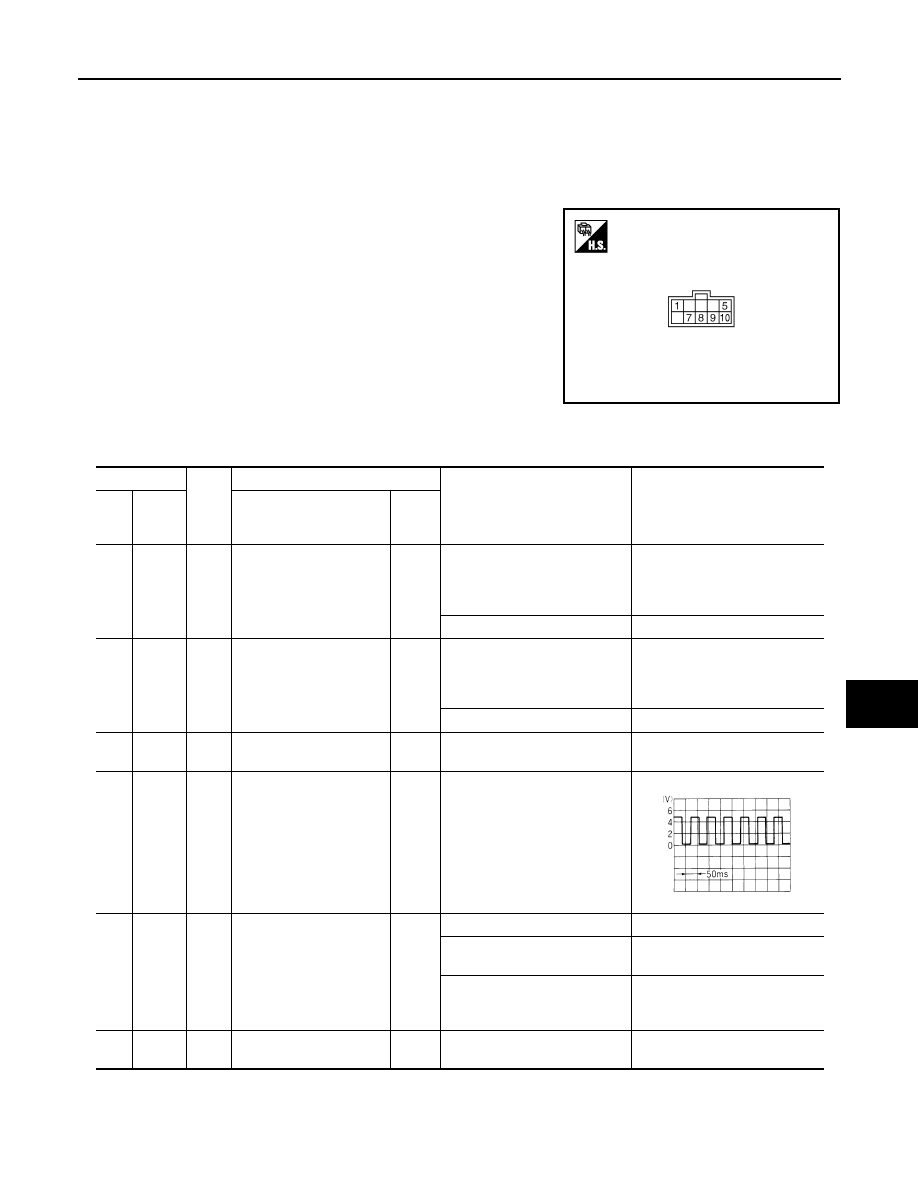

SUNROOF MOTOR ASSEMBLY : Reference Value

INFOID:0000000000961764

TERMINAL LAYOUT

PHYSICAL VALUES

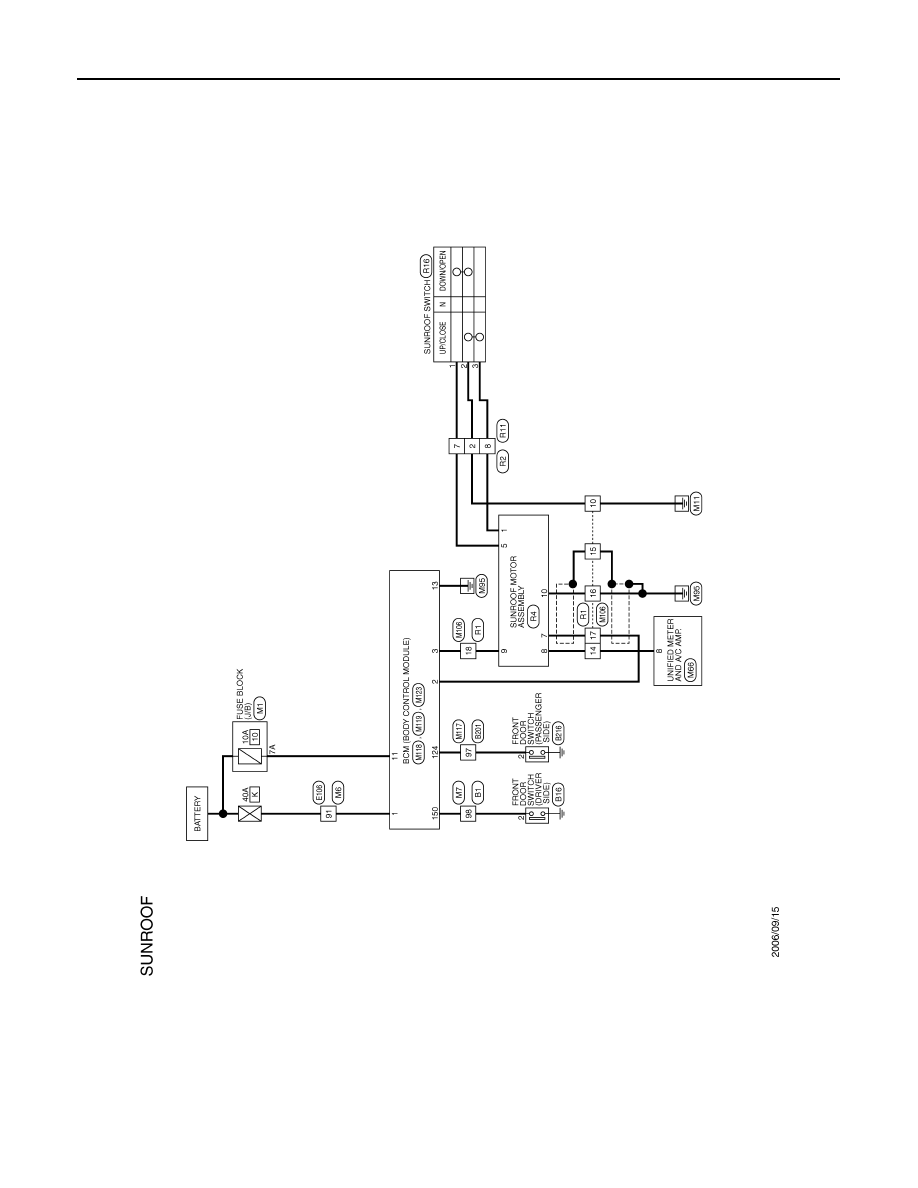

SUNROOF MOTOR ASSEMBLY : Wiring Diagram— SUNROOF CONTROL SYSTEM
—

INFOID:0000000000961765

JMKIA0131ZZ

Terminal No.

Wire

color

Description

Condition

Voltage (V)

(Approx.)

+

-

Signal name

Input/

Out-

put

1

Groun

d

GR

Sunroof close switch (BIT
1) signal

Input

Sunroof switch in following posi-
tion
• TILT  UP
• SLIDE CLOSE

0

Other than above

Battery voltage

5

Groun

d

P

Sunroof open switch (BIT
0) signal

Input

Sunroof switch in following posi-
tion
• TILT  DOWN
• SLIDE  OPEN

0

Other than above

Battery voltage

7

Groun

d

W

Sunroof power supply

Input

—

Battery voltage

8

Groun

d

L

Vehicle speed signal (2-
pulse)

Input

Speedometer operated [When
vehicle speed is approx.40km/ h
(25MPH)]

9

Groun

d

Y

RAP signal

Input

Ignition switch ON

Battery voltage

Within 45 second after ignition
switch is turned to OFF.

Battery voltage

When driver side or passenger
side door is opened during re-
tained power operation.

0

10

Groun

d

B

Ground

—

—

0

ELF1080D

RF-48

< ECU DIAGNOSIS >

SUNROOF SYSTEM

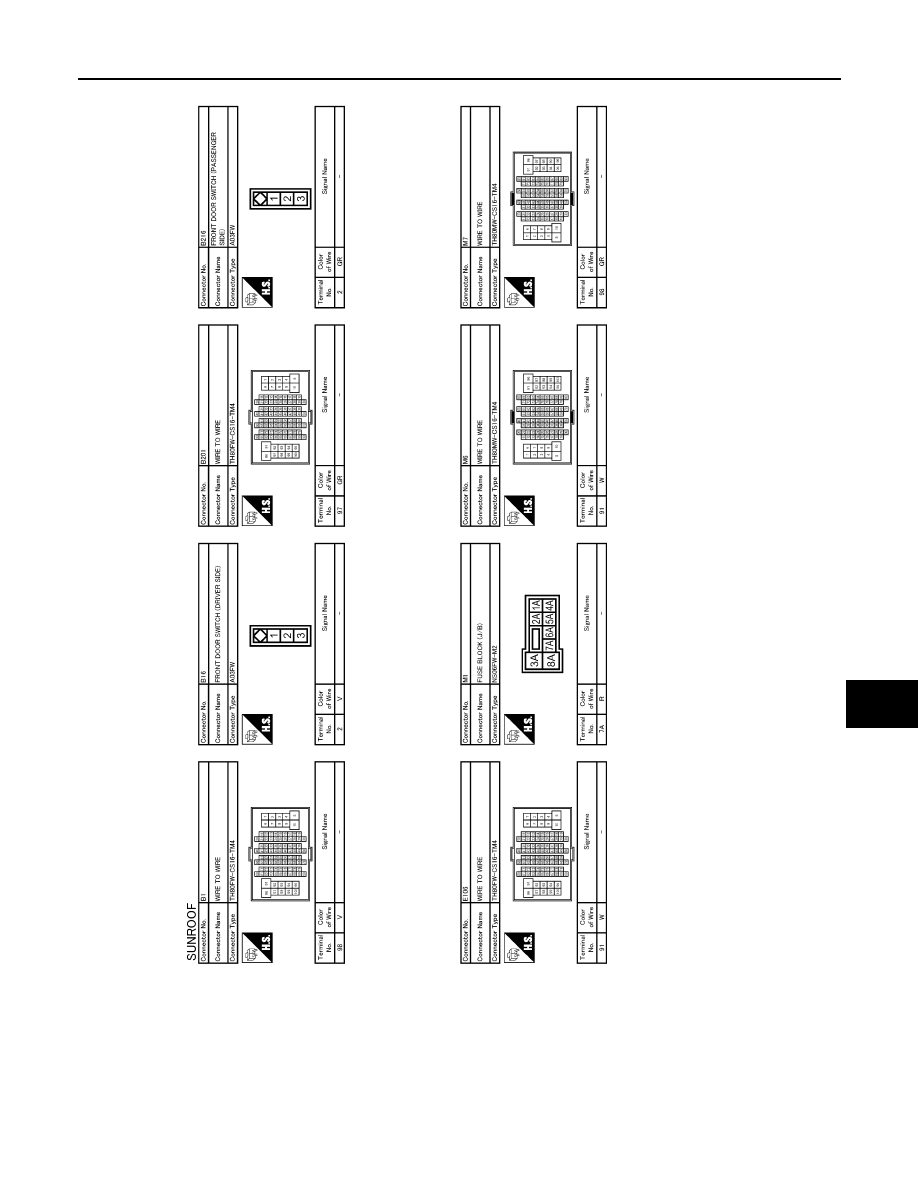

JCKWA0057GB

SUNROOF SYSTEM

RF-49

< ECU DIAGNOSIS >

C

D

E

F

G

H

I

J

L

M

A

B

RF

N

O

P

JCKWA0058GB
