Infiniti G35 (V35). Manual - part 793

WT-18

TROUBLE DIAGNOSIS

46 (PU/W)

Turn signal (right)

●

Ignition switch ON

●

Combination switch is turn signal
(right) ON

52 (B)

Ground

—

0 V

55 (W/R)

Battery power supply (F/L)

Always

Battery voltage (12 V)

Terminal

(Wire color)

Item

Condition

Voltage (V)

Approx. value

SKIA3009J

TROUBLE DIAGNOSIS

WT-19

C

D

F

G

H

I

J

K

L

M

A

B

WT

ID Registration Procedure

NES000BV

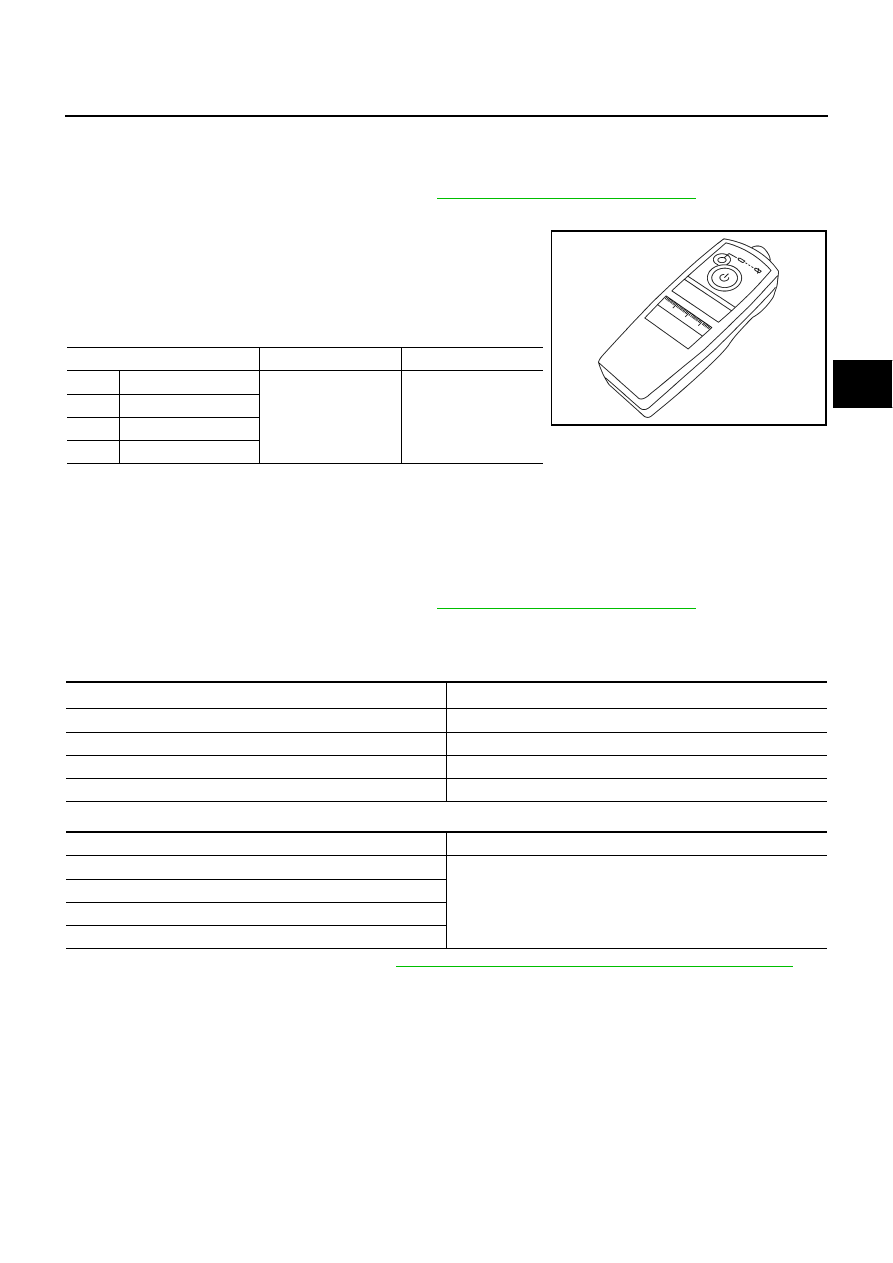

ID REGISTRATION WITH ACTIVATION TOOL

This procedure must be done after replacement of a transmitter or BCM.

1.

Perform “CONSULT-II Start Procedure”. Refer to

GI-37, "CONSULT-II Start Procedure"

 .

2.

Touch “WORK SUPPORT” on “SELECT DIAG MODE” screen, and select “ID REGIST”.

3.

With the activation tool (J-45295) pushed against the front-left
transmitter position of the tire air valve, press the button then
keep 5 seconds.

4.

Register the IDs in order from FR LH, FR RH, RR RH to RR LH.
When ID registration of each wheel has been completed, turn
signal lamp (LH/ RH) blinks.

5.

After completing all ID registrations, press “END” to complete the procedure.

NOTE:
Be sure to register the IDs in order from FR LH, FR RH, RR RH, to RR LH, or the self-diagnostic results dis-
play will not function properly.

ID REGISTRATION WITHOUT ACTIVATION TOOL

This procedure must be done after replacement of a transmitter or BCM.

1.

Perform “CONSULT-II Start Procedure”. Refer to

GI-37, "CONSULT-II Start Procedure"

 .

2.

Touch “WORK SUPPORT” on “SELECT DIAG MODE” screen, and select “ID REGIST”.

3.

Adjust the tire pressure to the values shown in the table below for ID registration, and drive the vehicle at
40 km/h (25 MPH) or more for a few minutes.

4.

After completing all ID registrations, press “END” to complete the procedure.

5.

Inflate all tires to proper pressure. Refer to

WT-38, "SERVICE DATA AND SPECIFICATIONS (SDS)"

 .

Activation tire position

Turn signal lamp

CONSULT-II

1

Front LH

2 times flashing

“YET”

↓

“DONE”

2

Front RH

3

Rear  RH

4

Rear LH

SEIA0460E

Tire position

Tire pressure kPa (kg/cm

2

 , psi)

Front

−

 Left

240 (2.4, 34)

Front

−

 Right

220 (2.2, 31)

Rear

−

 Right

200 (2.0, 29)

Rear

−

 Left

180 (1.8, 26)

Activation tire position

CONSULT-II

Front LH

“YET”

↓

“DONE”

Front RH

Rear RH

Rear LH

WT-20

TROUBLE DIAGNOSIS

Transmitter Wake Up Operation

NES000BW

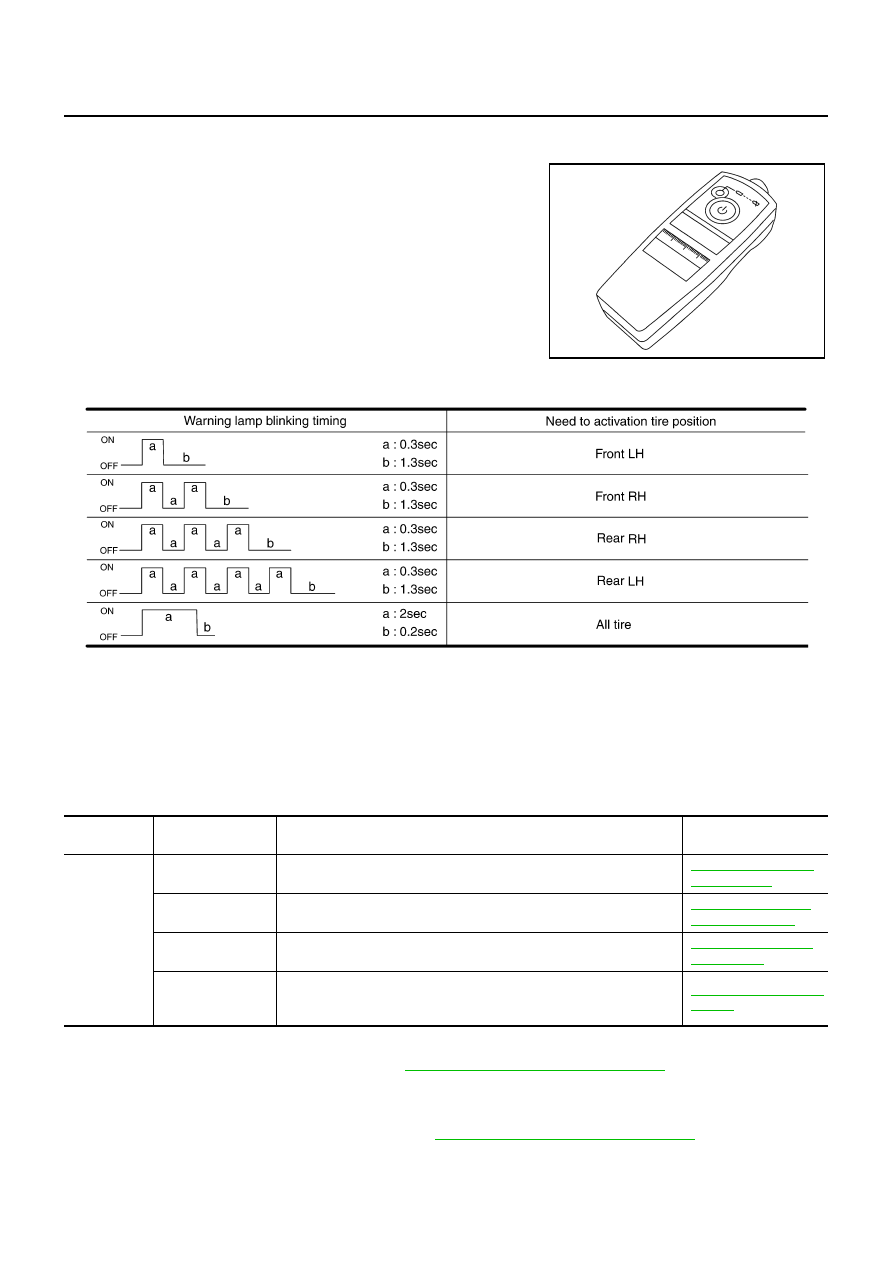

WITH ACTIVATION TOOL

1.

With the activation tool (J-45295) pushed against the front-left
transmitter, press the button for 5 seconds.

●

When ignition switch ON, as the low tire pressure warning
lamp blinks per the follow diagram, the respective transmitter
then must be woken up.

2.

Register the ID of wheel that warning lamp flashes. When wake up of registered wheel has been com-
pleted, turn signal lamp flashes two times.

3.

After completing wake up of all transmitters, make sure low tire pressure warning lamp goes out.

CONSULT-II Function (BCM)

NES000BY

CONSULT-II MAIN FUNCTION

CONSULT-II can display each diagnostic item using the diagnostic test modes shown following.

CONSULT-II SETTING PROCEDURE

Perform “CONSULT-II Start Procedure”. Refer to

GI-37, "CONSULT-II Start Procedure"

 .

WORK SUPPORT MODE
Operation Procedure

1.

Perform “CONSULT-II Start Procedure”. Refer to

GI-37, "CONSULT-II Start Procedure"

 .

2.

Touch “WORK SUPPORT”.

SEIA0460E

SEIA0378E

BCM diagno-

sis part

Mode

Function

Reference

Air pressure
monitor

WORK SUPPORT

This mode enables a technician to adjust some devices faster and
more accurately by following the indications on CONSULT-II.

WT-20, "WORK SUP-
PORT MODE"

.

SELF-DIAG
RESULTS

Self-diagnostic results can be read and erased quickly.

WT-21, "SELF-DIAG
RESULTS MODE"

.

DATA MONITOR

Input/Output data in the control unit can be read.

WT-22, "DATA MONI-
TOR MODE"

.

ACTIVE TEST

Diagnostic Test Mode in with CONSULT-II drives some actuators apart
from the control unit (BCM) and also shifts some parameters in a spec-
ified range.

WT-24, "ACTIVE TEST
MODE"

.

TROUBLE DIAGNOSIS

WT-21

C

D

F

G

H

I

J

K

L

M

A

B

WT

3.

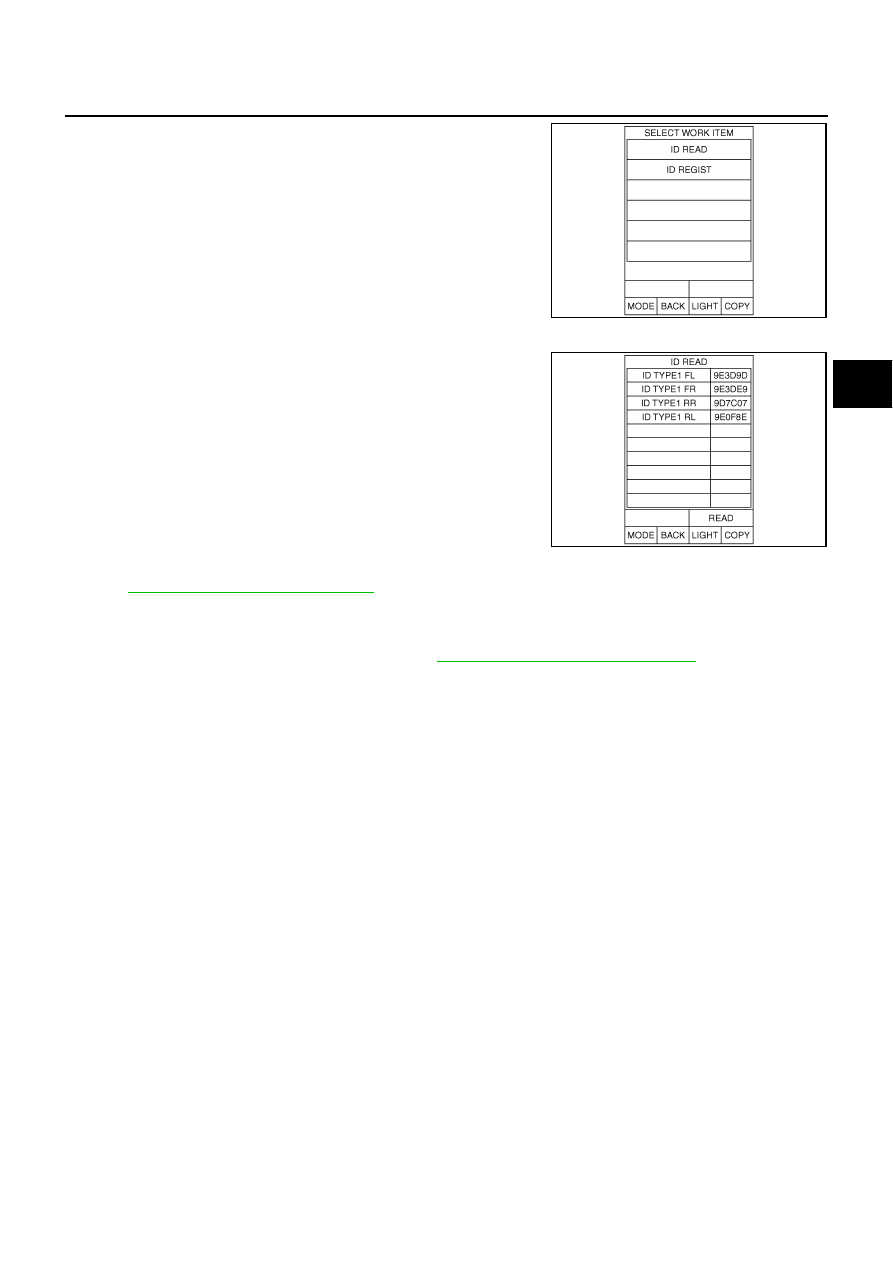

Select from “SELECT WORK ITEM”, screen of work support
made is displayed

ID Read

The registered ID number is displayed.

ID Regist

Refer to

WT-19, "ID Registration Procedure"

 .

SELF-DIAG RESULTS MODE
Operation Procedure

1.

Perform “CONSULT-II Start Procedure”. Refer to

GI-37, "CONSULT-II Start Procedure"

 .

2.

Touch “SELF-DIAG RESULTS”. Display shows malfunction experienced since the last erasing operation.

SEIA0583E

SEIA0584E
