WT-10

TIRE PRESSURE MONITORING SYSTEM

TIRE PRESSURE MONITORING SYSTEM

PFP:40720

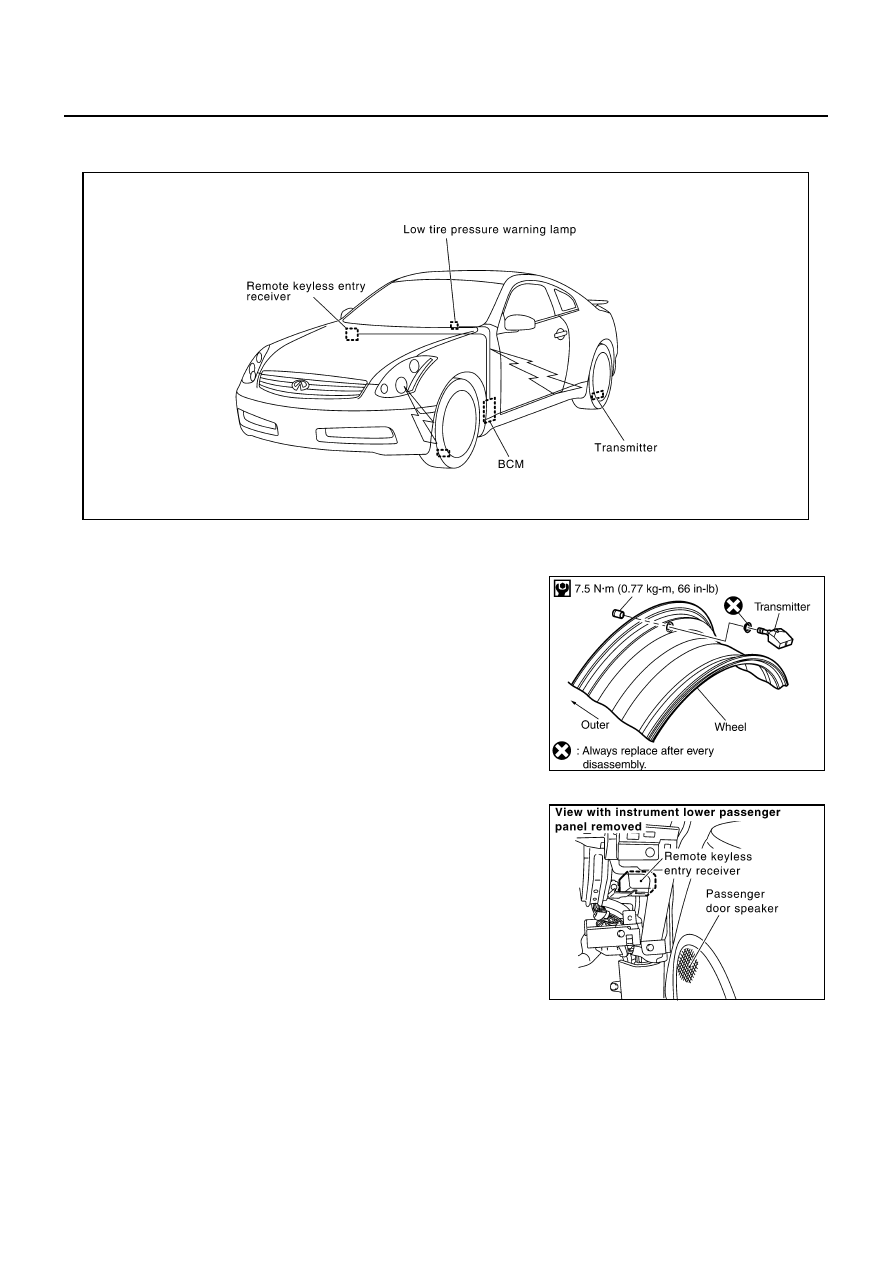

System Components

NES00034

System Description

NES00035

TRANSMITTER

A sensor-transmitter integrated with a valve is installed on a wheel,
and transmits a detected air pressure signal in the form of a radio
wave.

REMOTE KEYLESS ENTRY RECEIVER

The remote keyless entry receiver receives the air pressure signal
transmitted by the transmitter in each wheel.

SEIA0468E

SEIA0521E

SEIA0431E

TIRE PRESSURE MONITORING SYSTEM

WT-11

C

D

F

G

H

I

J

K

L

M

A

B

WT

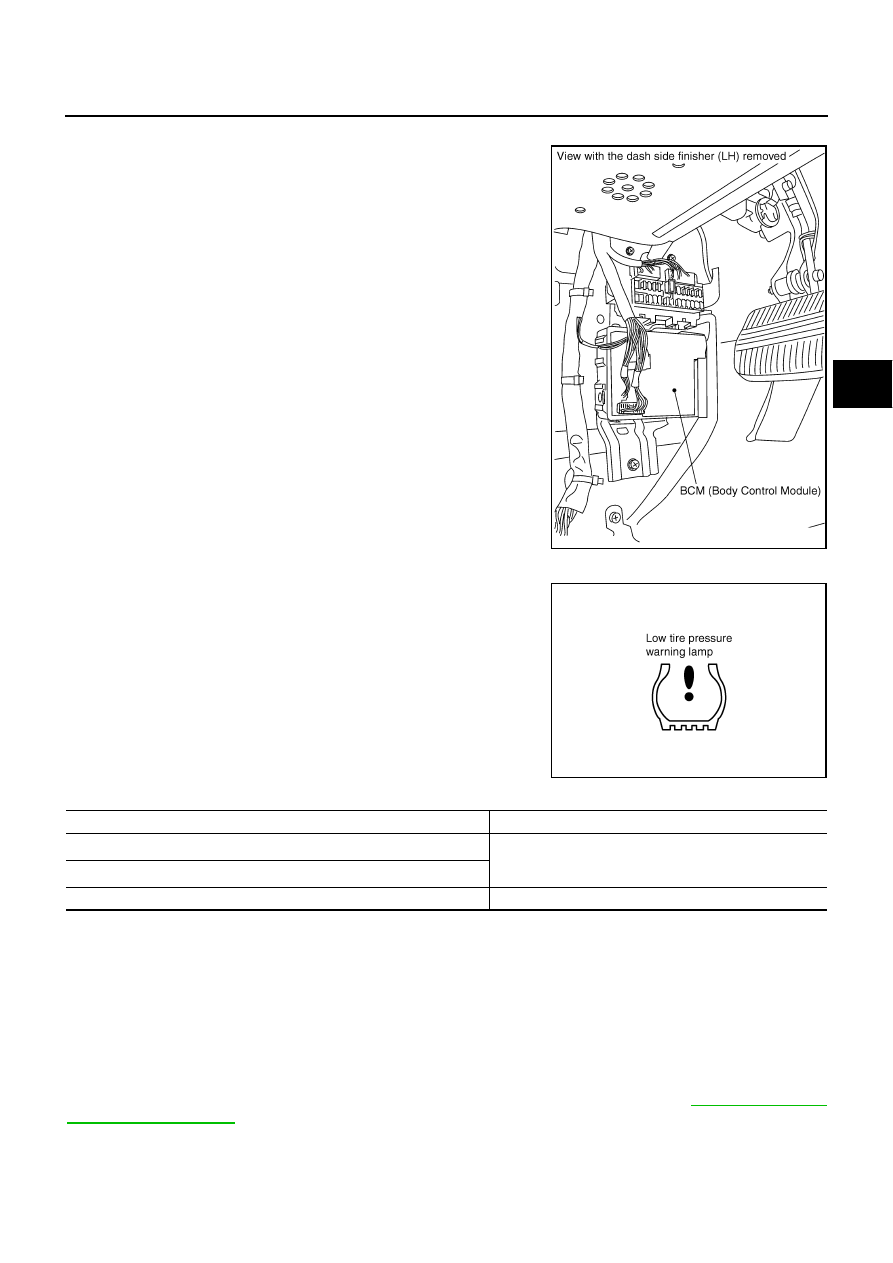

BCM (BODY CONTROL MODULE)

The BCM reads the air pressure signal received by the remote key-
less entry receiver, and controls the low tire pressure warning lamp r
operations. It also has a judgement function to detect a system mal-
function.

LOW TIRE PRESSURE WARNING LAMP

The combination meter receives tire pressure status from the BCM
using CAN communication. When a low tire pressure condition is
sensed by the BCM, the combination meter low tire pressure warn-
ing lamp and buzzer are activated.

Low tire pressure warning lamp indication

Note 1: Standard air pressure is for 210 kpa (2.1 kg/cm

2

 , 30 psi) vehicles.

Note 2: Standard air pressure is for 240 kpa (2.4 kg/cm

2

 , 35 psi) vehicles.

Can Communication

NES000BN

SYSTEM DESCRIPTION

CAN (Controller Area Network) is a serial communication line for real time application. It is an on-vehicle mul-
tiplex communication line with high data communication speed and excellent error detection ability. Many elec-
tronic control units are equipped onto a vehicle, and each control unit shares information and links with other
control units during operation (not independent). In CAN communication, control units are connected with 2
communication lines (CAN-H line, CAN-L line) allowing a high rate of information transmission with less wiring.
Each control unit transmits/receives data but selectively reads required data only. Refer to

LAN-47, "CAN Sys-

tem Specification Chart"

 .

SEIA0591E

SEIA0434E

Condition

Low tire pressure warning lamp

Less than 166 kPa (1.7 kg/cm

2

 , 24 psi)  [Note 1]

ON

Less than 188 kPa (1.9 kg/cm

2

 , 27 psi)  [Note 2]

Low tire pressure warning system malfunction [Other diagnostic item]

Warning lamp flashes 1 min, then turns ON.

WT-12

TROUBLE DIAGNOSIS

TROUBLE DIAGNOSIS

PFP:00004

How to Perform Trouble Diagnosis

NES000BT

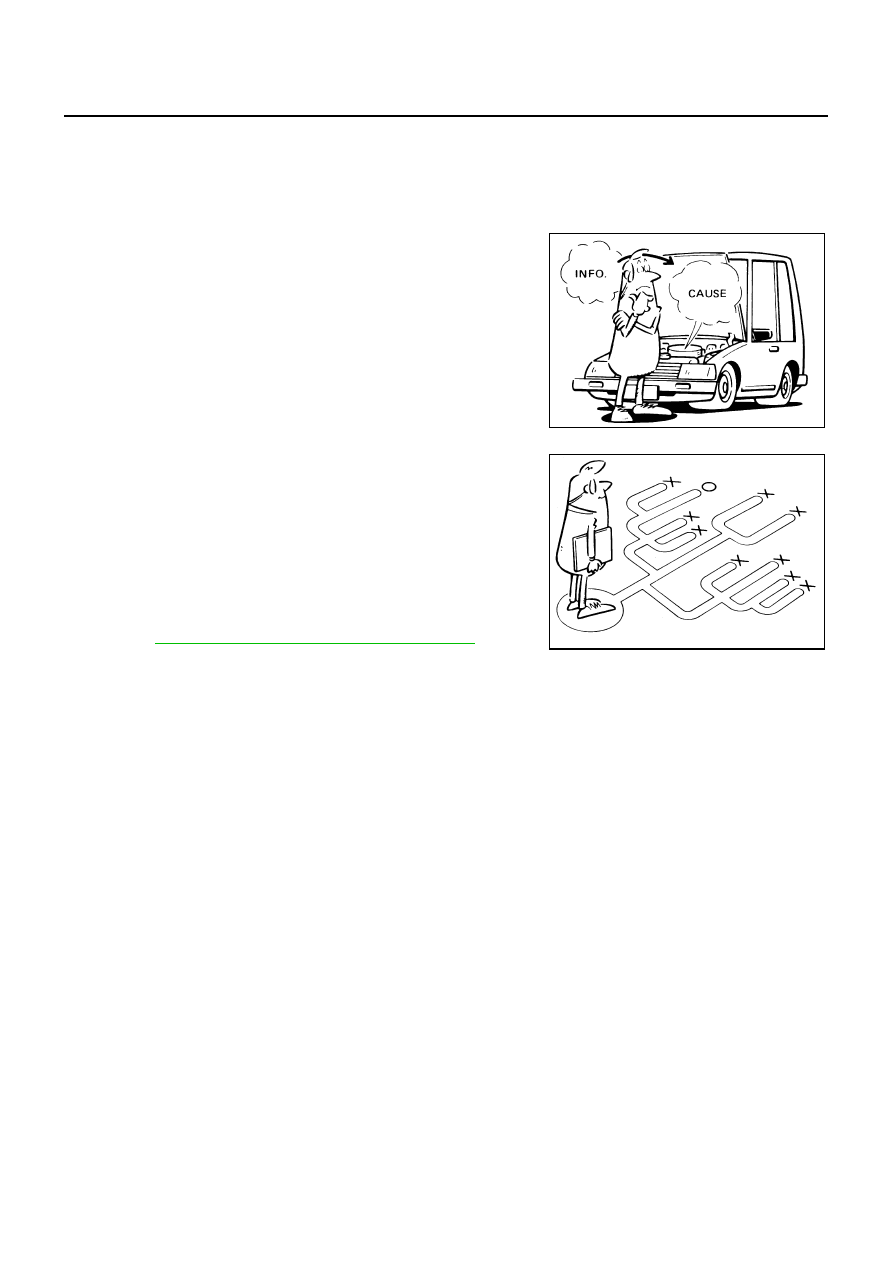

BASIC CONCEPT

●

To perform trouble diagnosis, it is the most important to have understanding about vehicle systems (con-
trol and mechanism) thoroughly.

●

It is also important to clarify customer complaints before inspec-
tion.
First of all, reproduce symptoms, and understand them fully.
Ask customer about his/her complaints carefully. In some cases,
it will be necessary to check symptoms by driving vehicle with
customer.

CAUTION:

Customers are not professional. It is dangerous to make an
easy guess like “maybe the customer means that...,” or
“maybe the customer mentions this symptom”.

●

It is essential to check symptoms right from the beginning in
order to repair malfunctions completely.
For intermittent malfunctions, reproduce symptoms based on
interview with customer and past examples. Do not perform
inspection on ad hoc basis. Most intermittent malfunctions are
caused by poor contacts. In this case, it will be effective to shake
suspected harness or connector by hand. When repairing with-
out any symptom diagnosis, you cannot judge if malfunctions
have actually been eliminated.

●

After completing diagnosis, always erase diagnostic memory.
Refer to

WT-22, "How to Erase Self-diagnosis Results"

 .

●

For intermittent malfunctions, move harness or harness connec-
tor by hand. Then check for poor contact or reproduced open circuit.

INTRODUCTION

●

Before troubleshooting, verify customer complaints.

●

If a vehicle malfunction is difficult to reproduce, harnesses, harness connectors or terminals may be mal-
functioning. Hold and shake these parts to make sure they are securely connected.

●

When using a circuit tester to measure voltage or resistance of each circuit, be careful not to damage or
deform connector terminals.

SEF233G

SEF234G

TROUBLE DIAGNOSIS

WT-13

C

D

F

G

H

I

J

K

L

M

A

B

WT

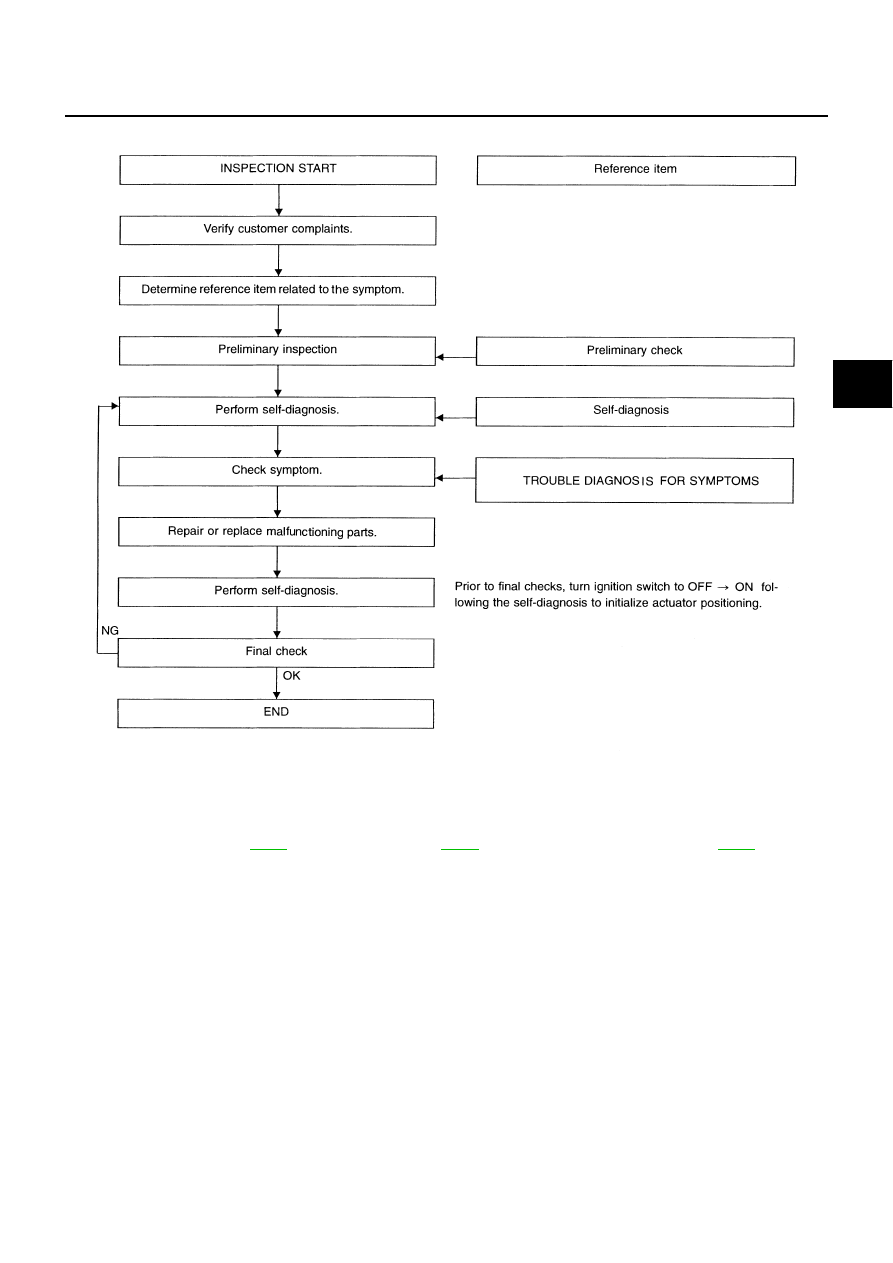

WORK FLOW

Preliminary check:

WT-28

Self-diagnosis:

WT-21

Trouble diagnosis for symptoms:

WT-32

SEIA0100E
