STC-48

[TILT/TELESCOPIC]

TILT & TELESCOPIC SYSTEM

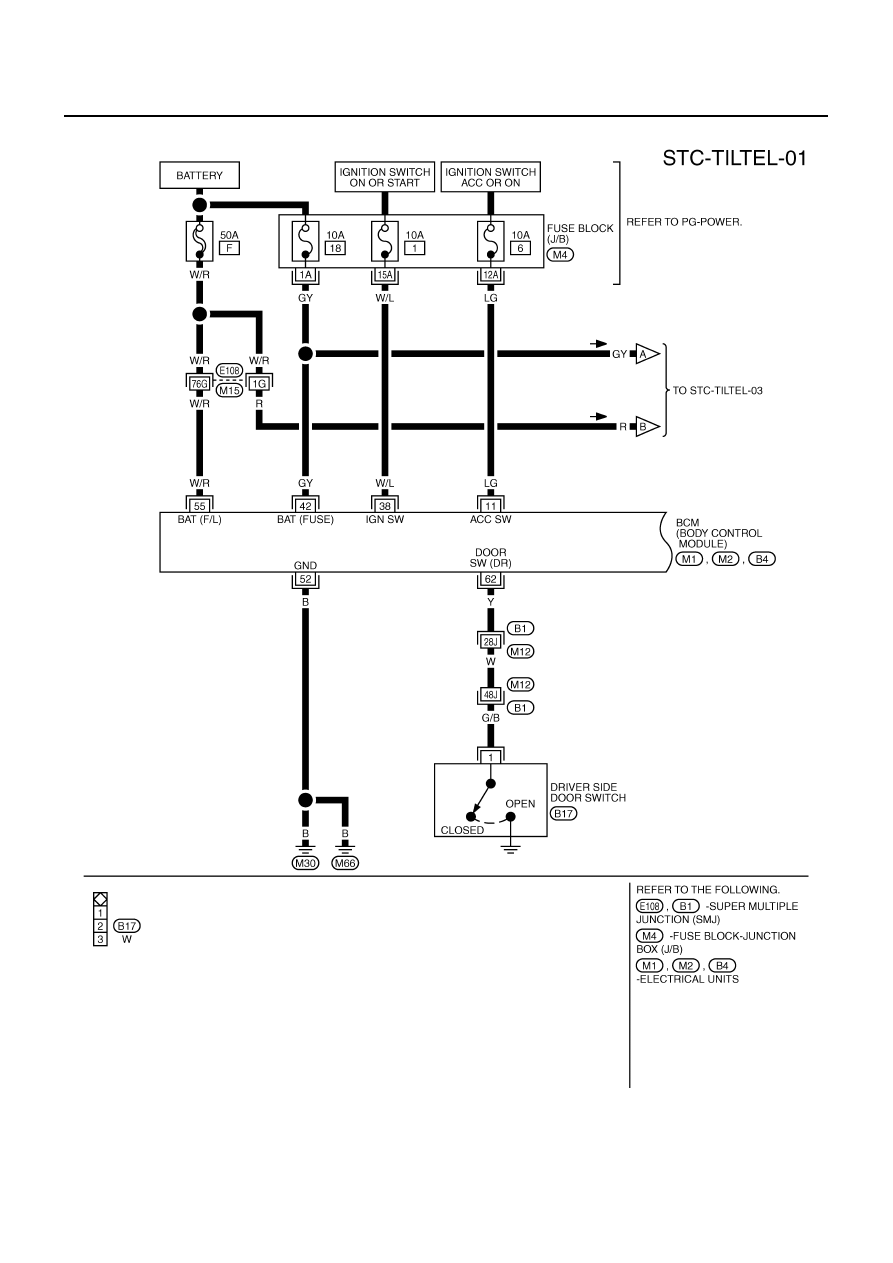

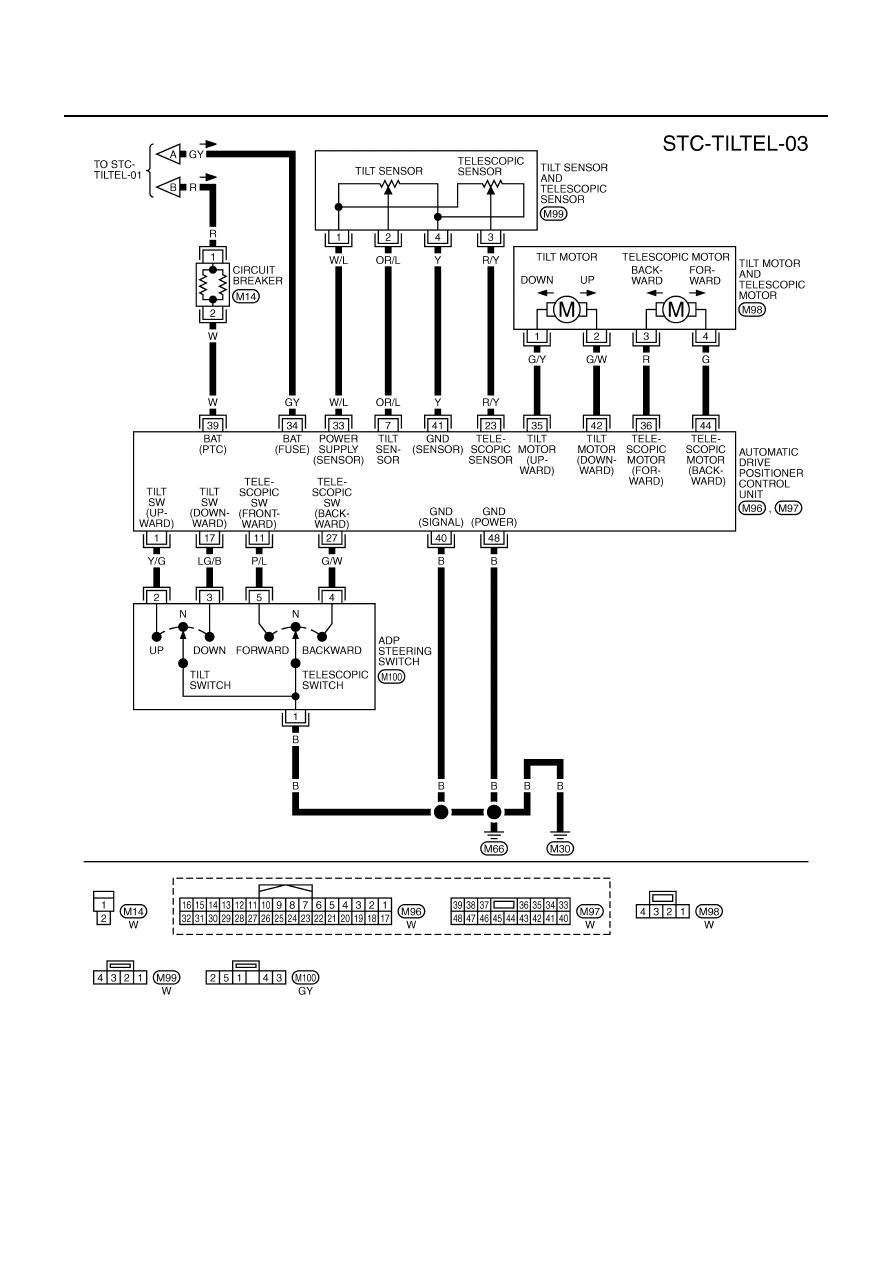

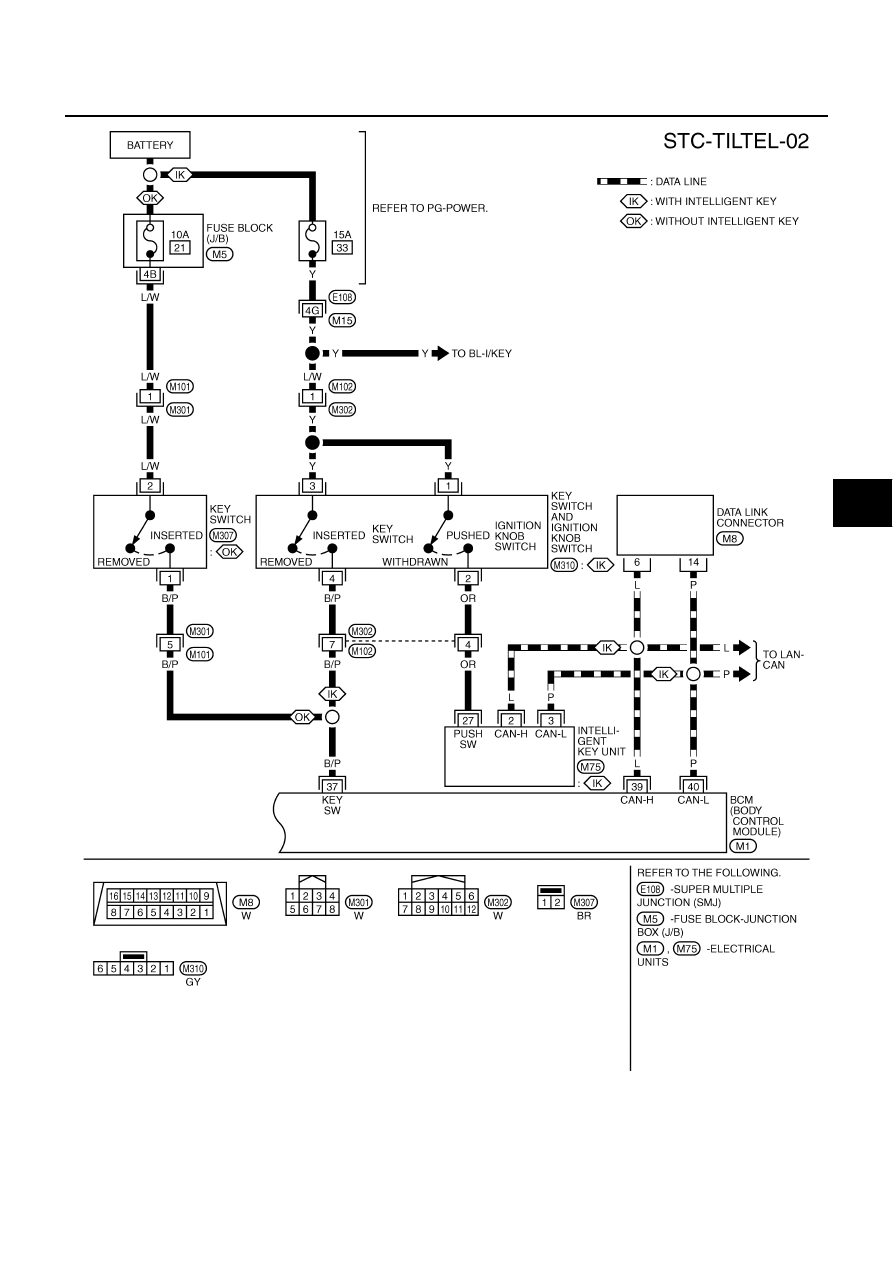

Wiring Diagram—TILTEL—

NGS0001L

TGWM0051E

TILT & TELESCOPIC SYSTEM

STC-49

[TILT/TELESCOPIC]

C

D

E

F

H

I

J

K

L

M

A

B

STC

TGWM0052E

STC-50

[TILT/TELESCOPIC]

TILT & TELESCOPIC SYSTEM

TGWM0053E

TILT & TELESCOPIC SYSTEM

STC-51

[TILT/TELESCOPIC]

C

D

E

F

H

I

J

K

L

M

A

B

STC

Terminals and Reference Values for Automatic Drive Positioner Control Unit

NGS0001M

Terminal

Wire color

Item

Condition

Data (Approx.)

1

Y/G

ADP steering switch signal
(UPWARD)

ADP steering switch turned to up

0 V

Other than above

5 V

7

OR/L

Tilt sensor and telescopic sensor signal
(Tilt sensor)

Tilt position, top

2 V

Tilt position, bottom

4 V

11

P/L

ADP steering switch signal
(FRONTWARD)

ADP steering switch turned to forward

0 V

Other than above

5 V

17

LG/B

ADP steering switch signal
(DOWNWARD)

ADP steering switch turned to downward

0 V

Other than above

5 V

23

R/Y

Tilt sensor and telescopic sensor signal
(Telescopic sensor)

Telescopic position, top

1 V

Telescopic position, bottom

4 V

27

G/W

ADP steering switch signal
(BACKWARD)

ADP steering switch turned to backward

0 V

Other than above

5 V

33

W/L

Tilt sensor and telescopic sensor power
supply

—

5  V

34

GY

Automatic drive positioner control unit
power supply (FUSE)

—

Battery voltage

(Approx. 12 V)

35

G/Y

Tilt motor and telescopic motor signal
[Tilt motor (UPWARD)]

ADP steering switch turned upward

Battery voltage

(Approx. 12 V)

Other than above

0 V

36

R

Tilt motor and telescopic motor signal
[Telescopic motor (FORWARD)]

ADP steering switch turned to forward

Battery voltage

(Approx. 12 V)

Other than above

0 V

39

W

Automatic drive positioner control unit
power supply (PTC)

—

Battery voltage

(Approx. 12 V)

40

B

Automatic drive positioner control unit
ground (signal)

—

0  V

41

Y

Tilt sensor and telescopic sensor ground
(signal)

—

0  V

42

G/W

Tilt motor and telescopic motor signal
[Tilt motor (DOWNWARD)]

ADP steering switch turned to downward

Battery voltage

(Approx. 12 V)

Other than above

0 V

44

G

Tilt motor and telescopic motor signal
[Telescopic motor (BACKWARD)]

ADP steering switch turned backward

Battery voltage

(Approx. 12 V)

Other than above

0 V

48

B

Automatic drive positioner control unit
ground (power)

—

0  V
