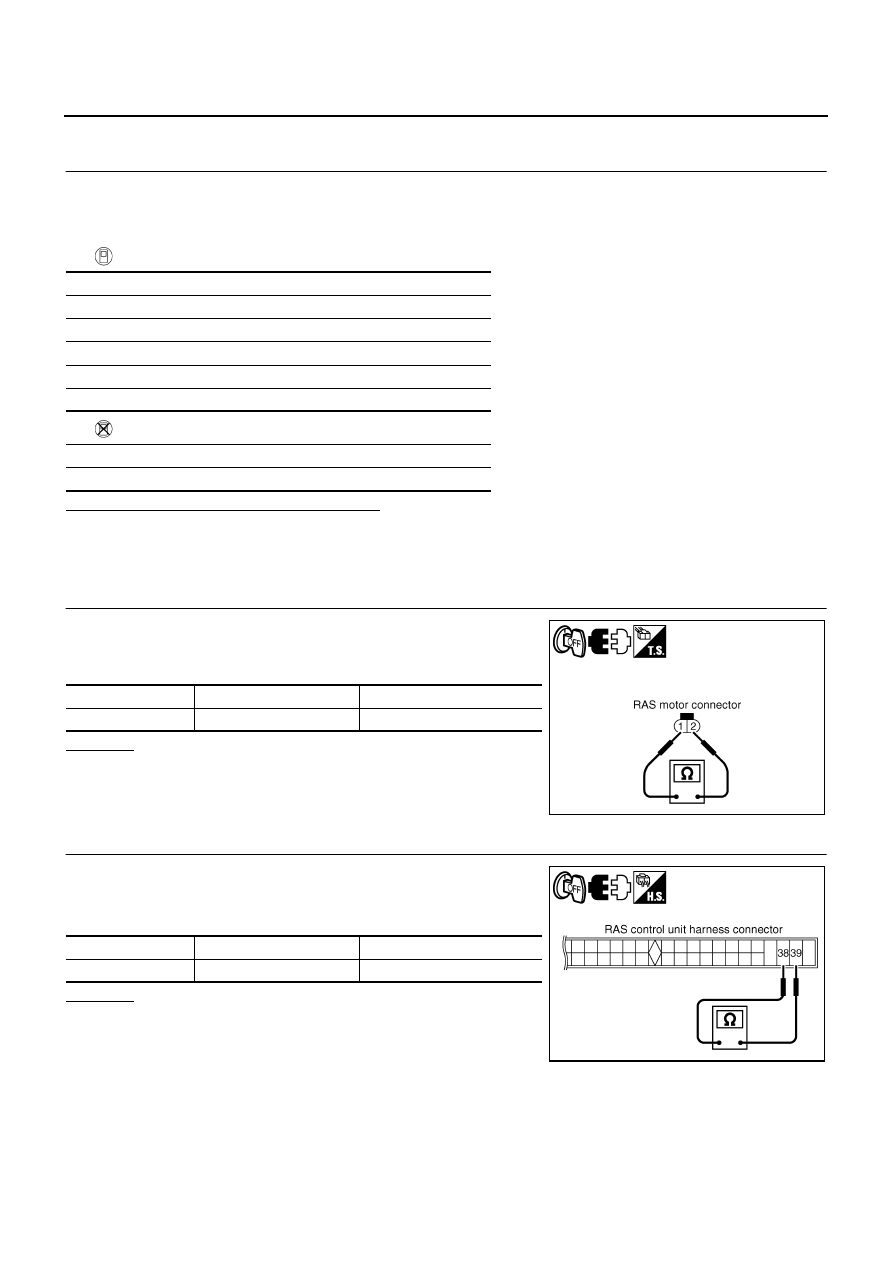

STC-32

[RAS]

TROUBLE DIAGNOSIS

Inspection 3: RAS Motor Output Malfunction

NGS0009R

1.

CHECK RAS CONTROL UNIT CONNECTOR

1.

Turn ignition switch OFF, disconnect RAS control unit harness connector and RAS motor harness connec-
tor, and check terminal for deformation, disconnection, looseness, etc.

2.

Reconnect harness connector securely, and perform self-diagnosis.

With CONSULT-II

Without CONSULT-II

Is above displayed on self-diagnosis display?

YES

>> GO TO 2.

NG

>> Connector terminal connection is loose, damaged, open, or shorted. Repair or replace the termi-

nal.

2.

CHECK RAS MOTOR RESISTANCE

1.

Turn ignition switch OFF, and disconnect RAS motor harness
connector.

2.

Check the resistance RAS motor connector.

OK or NG

OK

>> GO TO 3.

NG

>> RAS motor malfunction. Replace RAS motor.

3.

CHECK RAS MOTOR HARNESS

1.

Connect RAS motor harness connector.

2.

Disconnect RAS control unit harness connector.

3.

Check continuity RAS control unit harness connector.

OK or NG

OK

>> RAS control unit malfunction. Replace RAS control unit.

NG

>> Harness between RAS motor and RAS control unit open

or shorted. Repair or replace harness.

Self-diagnosis results

MOTOR OUTPUT [ABNORMAL SIG]

MOTOR OUTPUT [REV CURRENT]

MOTOR OUTPUT [NO CURRENT]

MOTOR OUTPUT [OVER CURRENT]

MOTOR OUTPUT [MOTOR LOCK]

DTC (warning lamp blinks)

13

Connector

Terminal

Resistance

B134

1

−

 2

Approx. 0.6

Ω

SGIA1268E

Connector

Terminal

Continuity

B136

38

−

 39

Yes

SGIA1269E

TROUBLE DIAGNOSIS

STC-33

[RAS]

C

D

E

F

H

I

J

K

L

M

A

B

STC

Inspection 4: Vehicle Speed Signal

NGS0009S

1.

CHECK VDC/TCS/ABS CONTROL UNIT

Perform self-diagnosis with VDC/TCS/ABS control unit. Refer to

BRC-25, "DESCRIPTION"

 .

Is any malfunction detected by self-diagnosis?

YES

>> Check the malfunctioning system.

NO

>> GO TO 2.

2.

CHECK RAS CONTROL UNIT CONNECTOR

1.

Turn ignition switch OFF, disconnect RAS control unit harness connector, and check terminal for deforma-
tion, disconnection, looseness, etc.

2.

Reconnect harness connector securely, and perform self-diagnosis.

With CONSULT-II

Without CONSULT-II

Is above displayed on self-diagnosis display?

YES

>> RAS control unit malfunction. Replace RAS control unit.

NO

>> Connector terminal connection is loose, damaged, open, or shorted. Repair or replace the termi-

nal.

Inspection 5: Steering Angle Signal Malfunction

NGS0009T

1.

CHECK CONNECTOR

1.

Turn ignition switch OFF, disconnect RAS control unit harness connector and steering angle sensor har-
ness connector, and check terminal for deformation, disconnection, looseness, etc.

2.

Reconnect harness connector securely, and perform self-diagnosis.

With CONSULT-II

Without CONSULT-II

Is above displayed on self-diagnosis display?

YES

>> GO TO 2.

NO

>> Connector terminal connection is loose, damaged, open, or shorted. Repair or replace the termi-

nal.

2.

ADJUST NEUTRAL POSITION OF STEERING ANGLE SENSOR

Adjust the steering angle sensor neutral position, and then perform self-diagnosis again. Refer to

BRC-6,

"Adjustment of Steering Angle Sensor Neutral Position"

 .

Is the result of self-diagnosis normal?

OK

>> Inappropriate neutral position adjustment of steering angle sensor.

NG

>> GO TO 3.

Self-diagnosis results

VEHICLE SPEED SEN [NO SIGNAL]

DTC (warning lamp blinks)

21

Self-diagnosis results

STEERING ANGLE SEN [NO CHANGE]

STEERING ANGLE SEN [NO NEUT STATE]

STEERING ANGLE SEN [NO SIGNAL]

STEERING ANGLE SEN

DTC (warning lamp blinks)

22

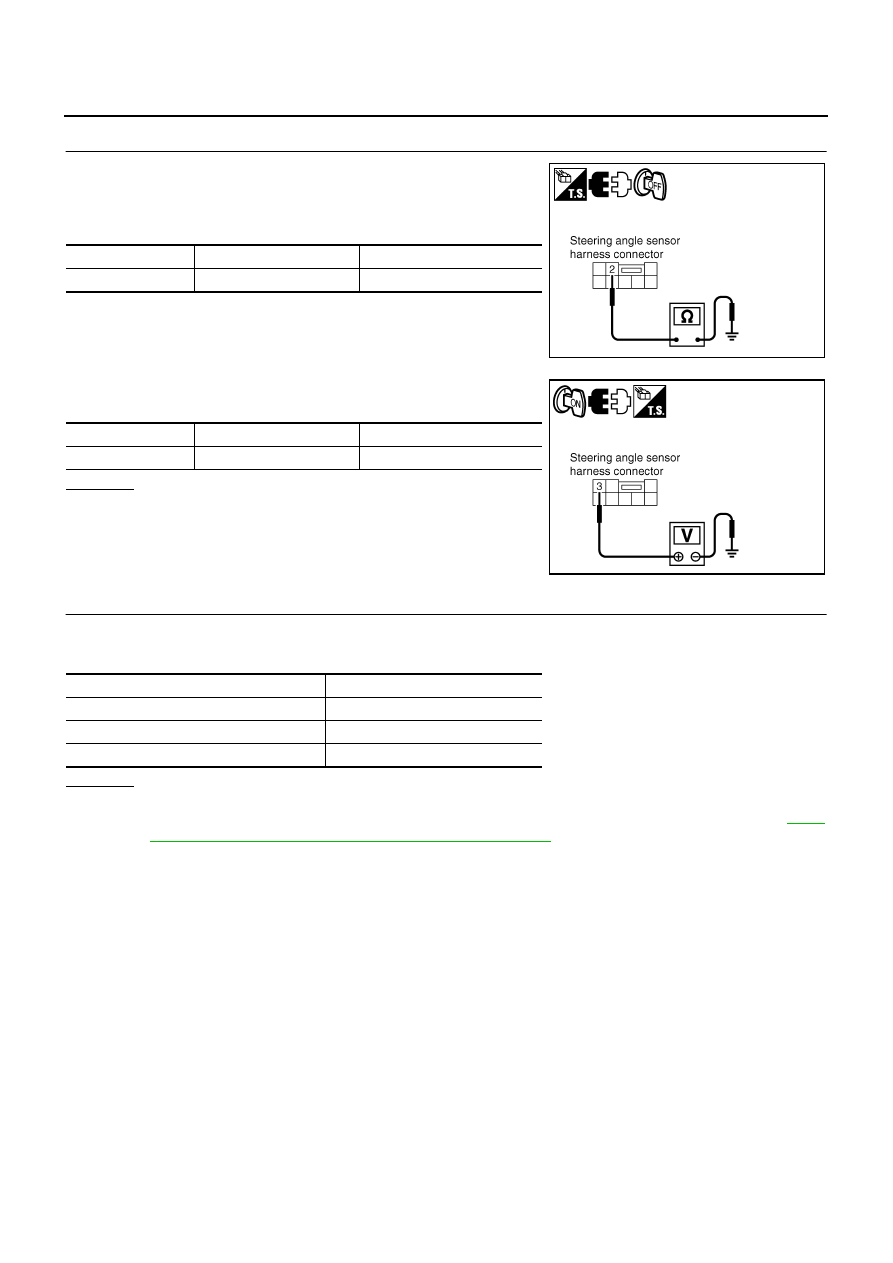

STC-34

[RAS]

TROUBLE DIAGNOSIS

3.

CHECK STEERING ANGLE SENSOR POWER SUPPLY AND GROUND CIRCUIT

1.

Turn ignition switch OFF, and disconnect steering angle sensor
harness connector.

2.

Check continuity steering angle sensor harness connector and
ground.

3.

Turn ignition switch ON, and then check voltage steering angle
sensor harness connector and ground.

OK or NG

OK

>> GO TO 4.

NG

>> Steering angle sensor power supply and ground circuit

open or shorted. Repair or replace the applicable mal-
functioning circuit.

4.

DATA MONITOR

1.

Connect steering angle sensor harness connector.

2.

Select ”DATA MONITOR“ on “STEERING ANG” mode, and then check the steering angle.

OK or NG

OK

>> RAS control unit malfunction. Replace RAS control unit.

NG

>> Replace steering angle sensor and adjust neutral position of steering angle sensor. Refer to

BRC-

6, "Adjustment of Steering Angle Sensor Neutral Position"

 .

Connector

Terminal

Continuity

M22

2

−

 Ground

Yes

SGIA1270E

Connector

Terminal

Voltage

M22

3

−

 Ground

Battery voltage (Approx. 12 V)

SGIA1271E

Steering condition

DATA MONITOR

Straight-ahead position

– 3.5 - +3.5

°

Turn wheel to the right by 90

°

Approx. R 90

°

Turn wheel to the left by 90

°

Approx. R 90

°

TROUBLE DIAGNOSIS

STC-35

[RAS]

C

D

E

F

H

I

J

K

L

M

A

B

STC

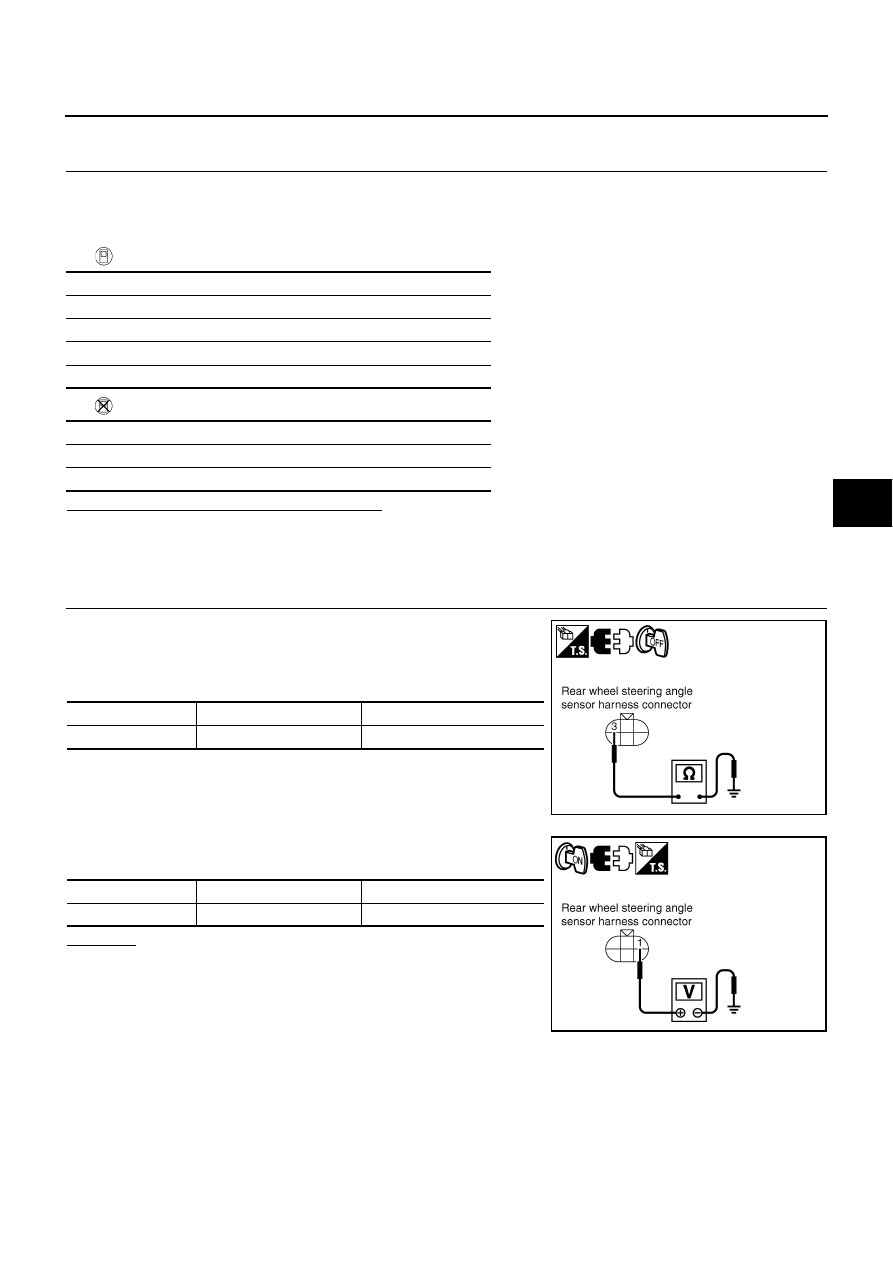

Inspection 6: Rear Main Signal and Rear Sub Signal Malfunction

NGS0009U

1.

CHECK RAS CONTROL UNIT CONNECTOR

1.

Turn ignition switch OFF, disconnect RAS control unit harness connector and rear wheel steering angle
sensor harness connector, and check terminal for deformation, disconnection, looseness, etc.

2.

Reconnect harness connector securely, and perform self-diagnosis.

With CONSULT-II

Without CONSULT-II

Is above displayed on self-diagnosis display?

YES

>> GO TO 2.

NO

>> Connector terminal connection is loose, damaged, open, or shorted. Repair or replace the termi-

nal.

2.

CHECK (1): REAR WHEEL STEERING ANGLE SENSOR POWER SUPPLY AND GROUND CIRCUIT

1.

Turn ignition switch OFF, and disconnect rear wheel steering
angle sensor harness connector.

2.

Check continuity rear wheel steering angle sensor harness con-
nector and ground.

3.

Turn ignition switch ON, and then check voltage rear wheel
steering angle sensor harness connector and ground.

OK or NG

OK

>> GO TO 4.

NG

>> GO TO 3.

Self-diagnosis results

RR ST ANGLE SENSOR [MAIN SIGNAL]

RR ST ANGLE SENSOR [SUB SIGNAL]

RR ST ANGLE SENSOR [OFFSET SIG 1, 2]

RR ST ANGLE SENSOR [ABNORMAL VOL]

DTC (warning lamp blinks)

24

25

Connector

Terminal

Continuity

B133

3

−

 Ground

Yes

SGIA1272E

Connector

Terminal

Voltage

B133

1

−

 Ground

Approx. 5 V

SGIA1273E
