SC-12

STARTING SYSTEM

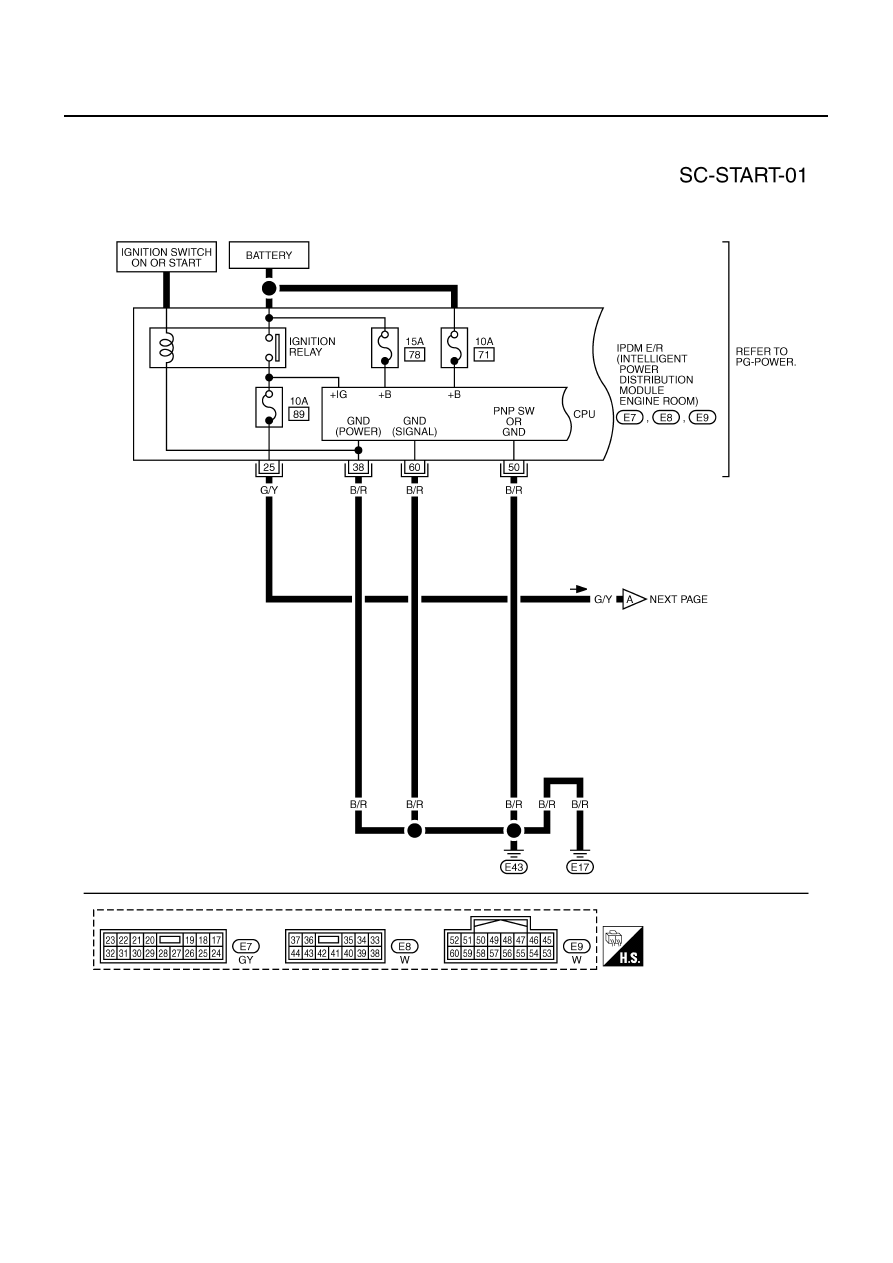

Wiring Diagram — START —

NKS000EY

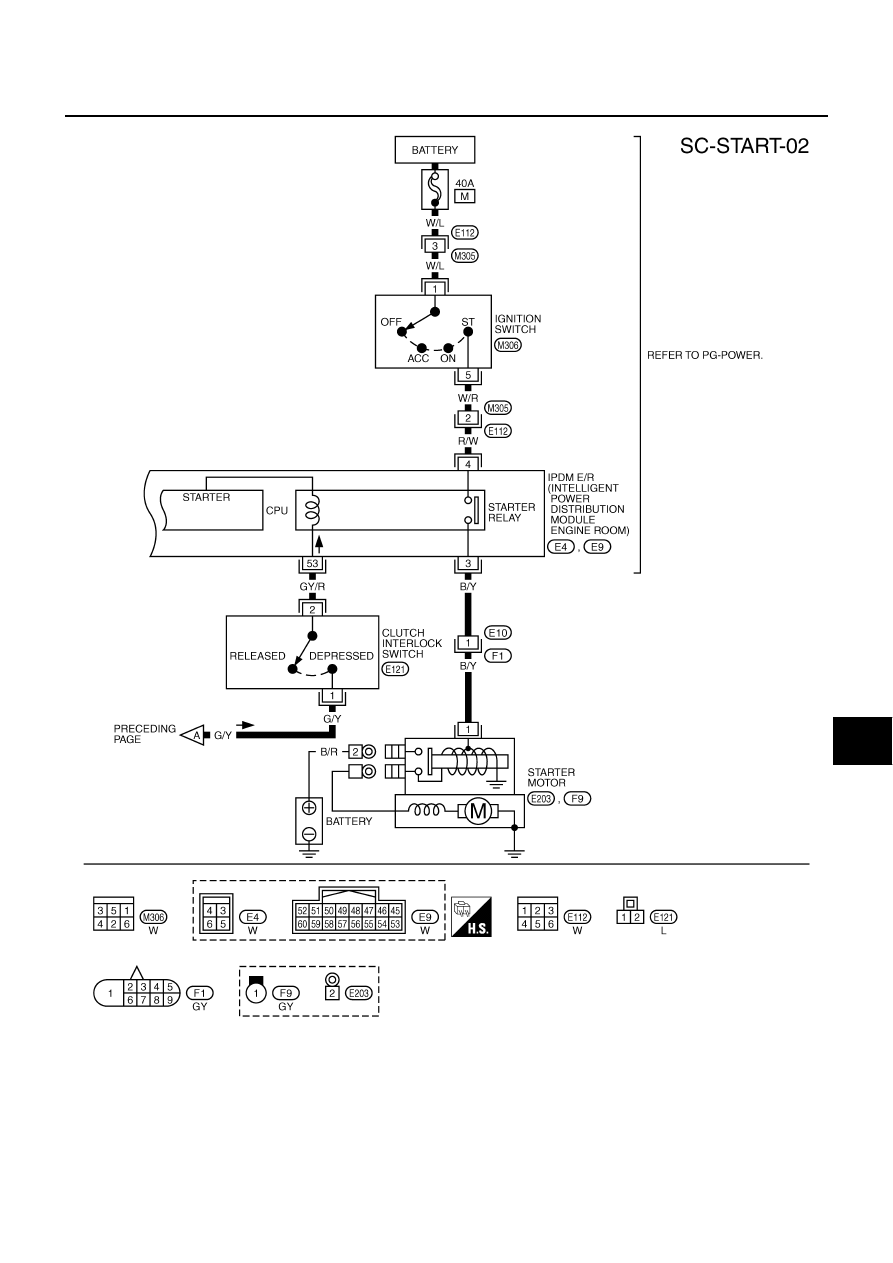

M/T MODELS

TKWM2603E

STARTING SYSTEM

SC-13

C

D

E

F

G

H

I

J

L

M

A

B

SC

TKWM2180E

SC-14

STARTING SYSTEM

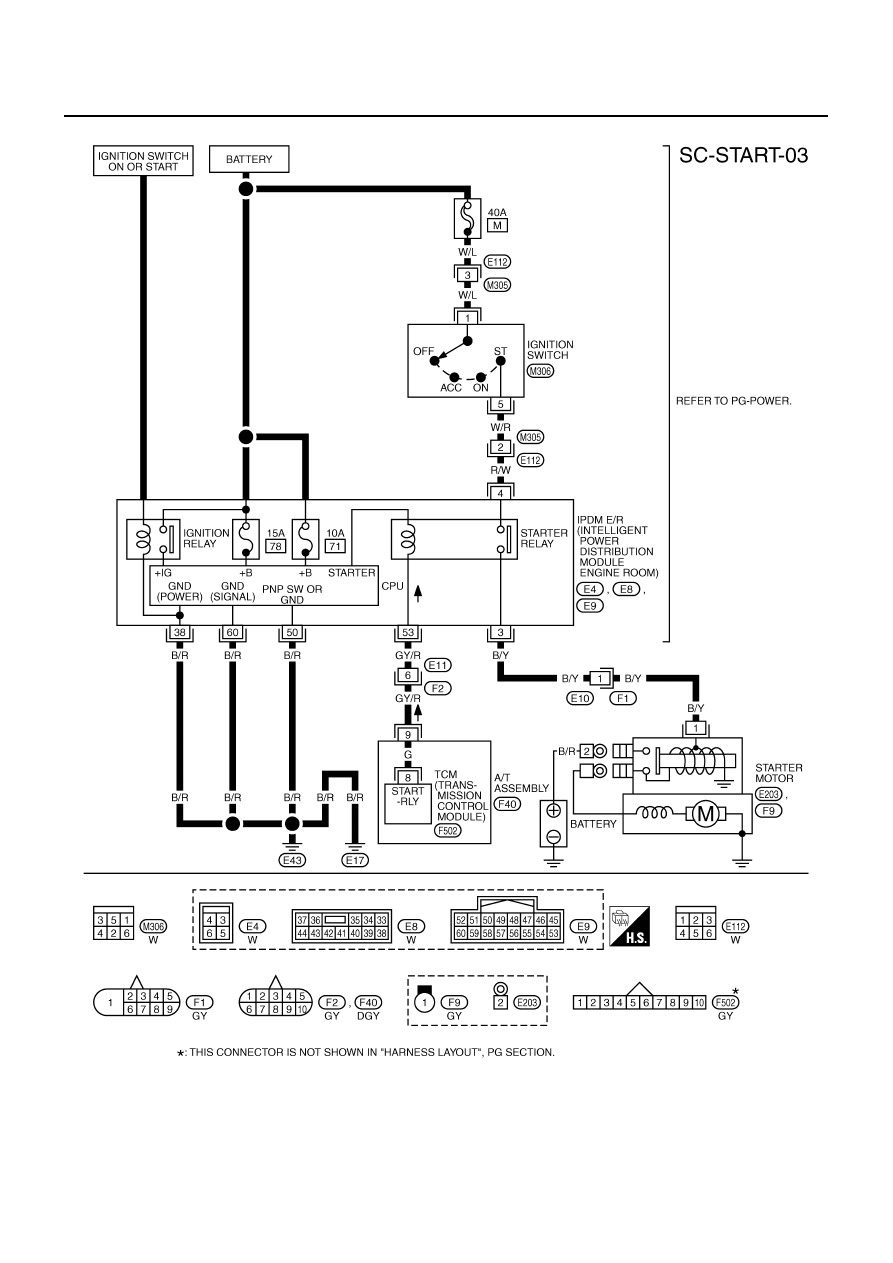

A/T MODELS

TKWM2181E

STARTING SYSTEM

SC-15

C

D

E

F

G

H

I

J

L

M

A

B

SC

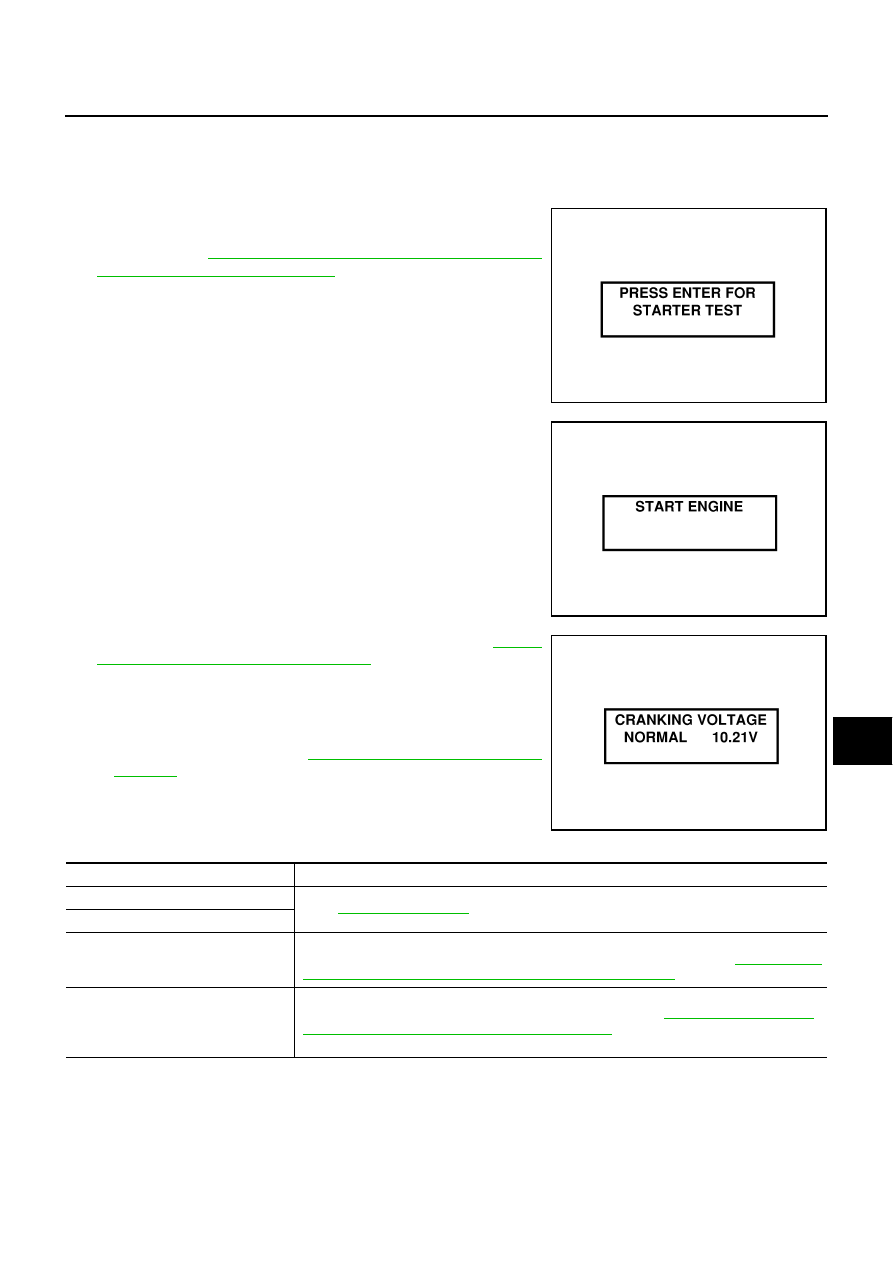

Trouble Diagnosis with Battery/Starting/Charging System Tester (Starting)

NKS000EZ

NOTE:
To ensure a complete and thorough diagnosis, the battery, starter and generator test segments must be done
as a set from start to finish.

1.

Turn off all loads on the vehicle electrical system.

2.

Perform battery test with Battery/Starting/Charging system
tester. Refer to

SC-6, "Trouble Diagnoses with Battery/Starting/

Charging System Tester (Battery)"

 .

3.

Press “ENTER” to begin the starting system test.

4.

Start the engine.

5.

Diagnostic result is displayed on the tester. Refer to

SC-15,

"DIAGNOSTIC RESULT ITEM CHART"

 .

NOTE:

●

If the starter performs normally but the engine does not start,
perform engine diagnosis.

●

For intermittent “NO CRANK” or “NO STARTER OPERA-
TION” incidents, refer to

SC-18, "DIAGNOSTIC PROCE-

DURE 2"

 .

DIAGNOSTIC RESULT ITEM CHART

SEL408X

SEL409X

SEL410X

Diagnostic item

Service procedure

CRANKING VOLTAGE NORMAL

Go to

SC-16, "WORK FLOW"

 .

CRANKING VOLTAGE LOW

CHARGE BATTERY

Perform the slow battery charging procedure. (Initial rate of charge is 10A for 12 hours.) Per-
form battery test again with Battery/Starting/Charging system tester. Refer to

SC-6, "Trouble

Diagnoses with Battery/Starting/Charging System Tester (Battery)"

 .

REPLACE BATTERY

Before replacing battery, clean the battery cable clamps and battery posts. Perform battery
test again with Battery/Starting/Charging system tester. Refer to

SC-6, "Trouble Diagnoses

with Battery/Starting/Charging System Tester (Battery)"

 . If second test result is “REPLACE

BATTERY”, then do so. Perform battery test again to confirm repair.
