RSU-14

FRONT LOWER LINK

FRONT LOWER LINK

PFP:55110

Removal and Installation

NES0002T

REMOVAL

1.

Remove tires from vehicle with power tool.

2.

Set jack under rear lower link.

3.

Remove mounting nut and bolt between front lower link and rear suspension member with power tool.

4.

Remove mounting nut and bolt between front lower link and axle with power tool.

5.

Remove front lower link from vehicle.

INSPECTION AFTER REMOVAL

Check front lower link and bushing for any deformation, cracks, or damage. Replace if necessary.

INSTALLATION

●

Refer to

RSU-7, "Components"

  for tightening torque. Install in the reverse order of removal.

NOTE:
Refer to component parts location and do not reuse non-reusable parts.

●

Perform final tightening of rear suspension member and axle installation position (rubber bushing) under
unladen condition with tires on level ground. Check wheel alignment. Refer to

RSU-18, "SERVICE DATA

AND SPECIFICATIONS (SDS)"

 .

REAR LOWER LINK & COIL SPRING

RSU-15

C

D

F

G

H

I

J

K

L

M

A

B

RSU

REAR LOWER LINK & COIL SPRING

PFP:551B0

Removal and Installation

NES0002U

REMOVAL

1.

Remove tires from vehicle with power tool.

2.

Set jack under rear lower link.

3.

Loosen mounting bolt and nut of rear lower link in side of suspension member, and then remove mounting
bolt and nut in side of axle with power tool.

4.

Slowly lower jack, then remove upper seat, coil spring and rubber sheet from rear lower link.

5.

Remove mounting bolt and nut in side of rear suspension member to remove rear lower link with power
tool.

INSPECTION AFTER REMOVAL

Check rear lower link, bushing and coil spring for deformation, cracks, and damage. Replace rear lower link
and coil spring if necessary.

INSTALLATION

●

Refer to

RSU-7, "Components"

  for tightening torque. Install in the reverse order of removal.

NOTE:
Refer to component parts location and do not reuse non-reusable parts.

●

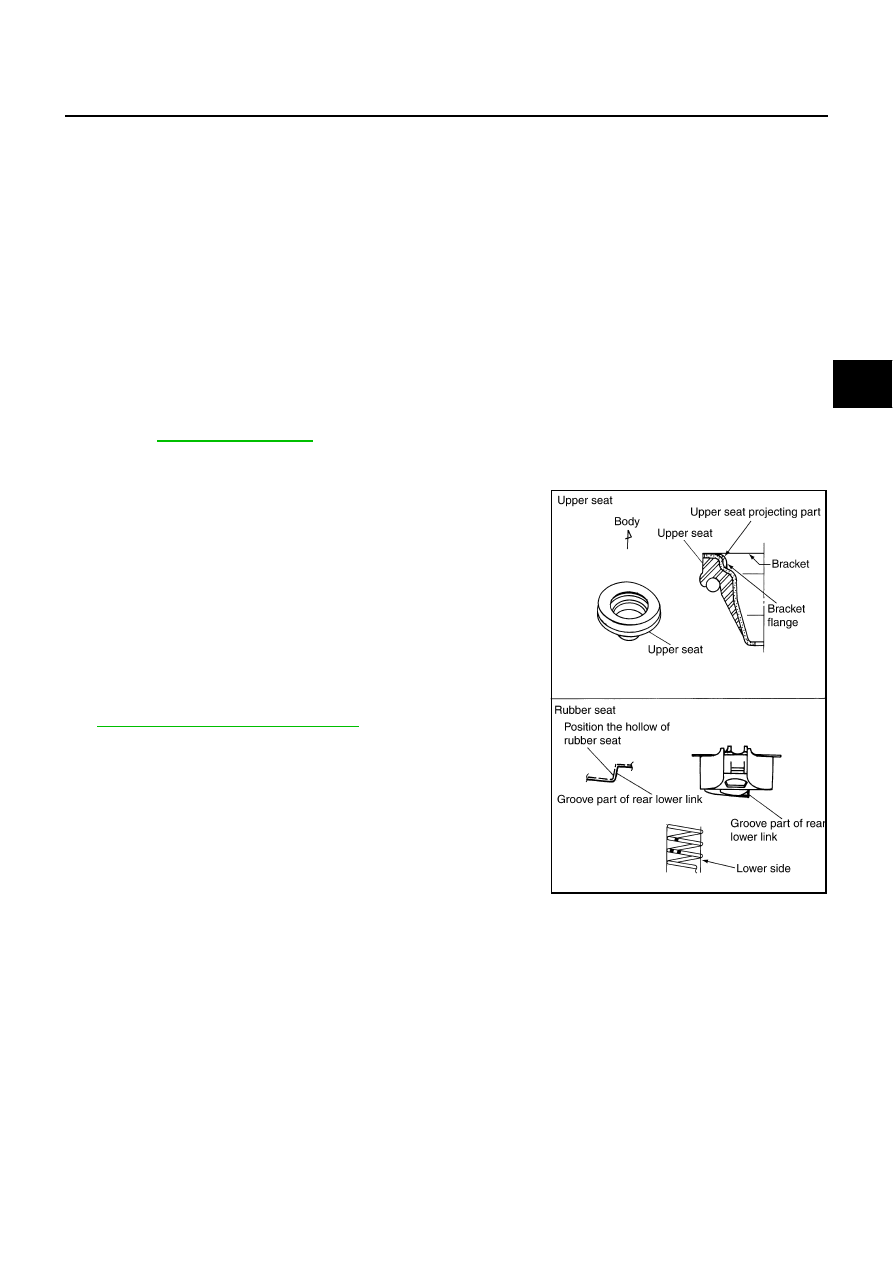

Check that upper seat is attached as shown in the figure.

NOTE:
Insert bracket tabs (3) and the inside protrusion on upper seat
into each other beforehand as shown in the figure.

●

Match up rubber seat indentions and rear lower link grooves and
attach.

NOTE:
Make sure spring is not up side down. The top and bottom are
indicated by paint color.

●

Perform final tightening of rear suspension member and axle
installation position (rubber bushing) under unladen condition
with tires on level ground. Check wheel alignment. Refer to

RSU-5, "Wheel Alignment Inspection"

 .

SEIA0229E

RSU-16

STABILIZER BAR

STABILIZER BAR

PFP:56230

Removal and Installation

NES0002V

REMOVAL

1.

Remove mounting bolts and remove stabilizer connecting rod mount bracket from suspension arm.

2.

Remove lower side mounting nut on stabilizer connecting rod and remove stabilizer connecting rod from
stabilizer bar with power tool.

3.

Remove mounting nut on stabilizer clamp and remove stabilizer from vehicle with power tool.

INSPECTION AFTER REMOVAL

Check stabilizer bar, stabilizer bushings, stabilizer clamps, stabilizer connecting rod, stabilizer connecting rod
mounting bracket for any deformation, crack or damage. Replace if necessary.

INSTALLATION

●

Refer to

RSU-7, "Components"

  for tightening torque. Install in the reverse order of removal.

NOTE:
Refer to component parts location and do not reuse non-reusable parts.

REAR SUSPENSION MEMBER

RSU-17

C

D

F

G

H

I

J

K

L

M

A

B

RSU

REAR SUSPENSION MEMBER

PFP:55501

Removal and Installation

NES0002W

REMOVAL

1.

Remove tires from vehicle with power tool.

2.

Remove brake caliper with power tool. Hang it in a place where it will not interfere with work. Refer to

BR-

27, "REAR DISC BRAKE"

 .

NOTE:
Avoid depressing brake pedal while brake caliper is removed.

3.

Remove exhaust front tube. Refer to

EX-3, "EXHAUST SYSTEM"

 .

4.

Remove stabilizer bar. Refer to

RSU-16, "STABILIZER BAR"

 .

5.

Remove drive shaft. Refer to

RAX-10, "REAR DRIVE SHAFT"

 .

6.

Remove final drive. Refer to

RFD-17, "REAR FINAL DRIVE ASSEMBLY"

 .

7.

Separate the attachment between parking brake cable and vehicle and rear suspension member. Refer to

PB-6, "PARKING BRAKE CONTROL"

 .

8.

Remove rear lower link and coil spring. Refer to

RSU-15, "REAR LOWER LINK & COIL SPRING"

 .

9.

Remove mounting bolt in lower side of shock absorber. Refer to

RSU-9, "SHOCK ABSORBER"

 .

10. Set jack under rear suspension member.

11. Remove mounting bolts and nuts tunnel stay and member stay from vehicle.

12. Remove mounting bolts and nuts of rear pin stay and then remove rear pin stay from vehicle.

13. Slowly lowering jack, then remove rear suspension member, suspension arm, radius rod, front lower link

and axle from vehicle as a unit.

14. Remove mounting bolts and nuts, then remove suspension arm, front lower link, radius rod from rear sus-

pension member.

INSPECTION AFTER REMOVAL

Check rear suspension member for deformation, cracks, and other damage and replace if necessary.

INSTALLATION

●

Refer to

RSU-7, "Components"

 , for tightening torque. Install in the reverse order of removal.

NOTE:
Refer to component parts location and do not reuse non-reusable parts.

●

Perform final tightening of installation position of links (rubber bushing) under unladen condition with tires
on level ground. Check wheel alignment. Refer to

RSU-18, "SERVICE DATA AND SPECIFICATIONS

(SDS)"

 .
