RSU-6

REAR SUSPENSION ASSEMBLY

THE ALIGNMENT PROCESS

IMPORTANT:
Use only the alignment specifications listed in this Service Manual.

●

When displaying the alignment settings, many alignment machines use “indicators”: (Green/red, plus or
minus, Go/No Go). Do not use these indicators.

–

The alignment specifications programmed into your machine that operate these indicators may not be cor-
rect.

–

This may result in an ERROR.

●

Some newer alignment machines are equipped with an optional “Rolling Compensation” method to “com-
pensate” the sensors (alignment targets or head units). Do not use this “Rolling Compensation”
method.

–

Use the “Jacking Compensation Method”. After installing the alignment targets or head units, raise the
vehicle and rotate the wheels 1/2 turn both ways.

–

See Instructions in the alignment machine you're using for more information on this.

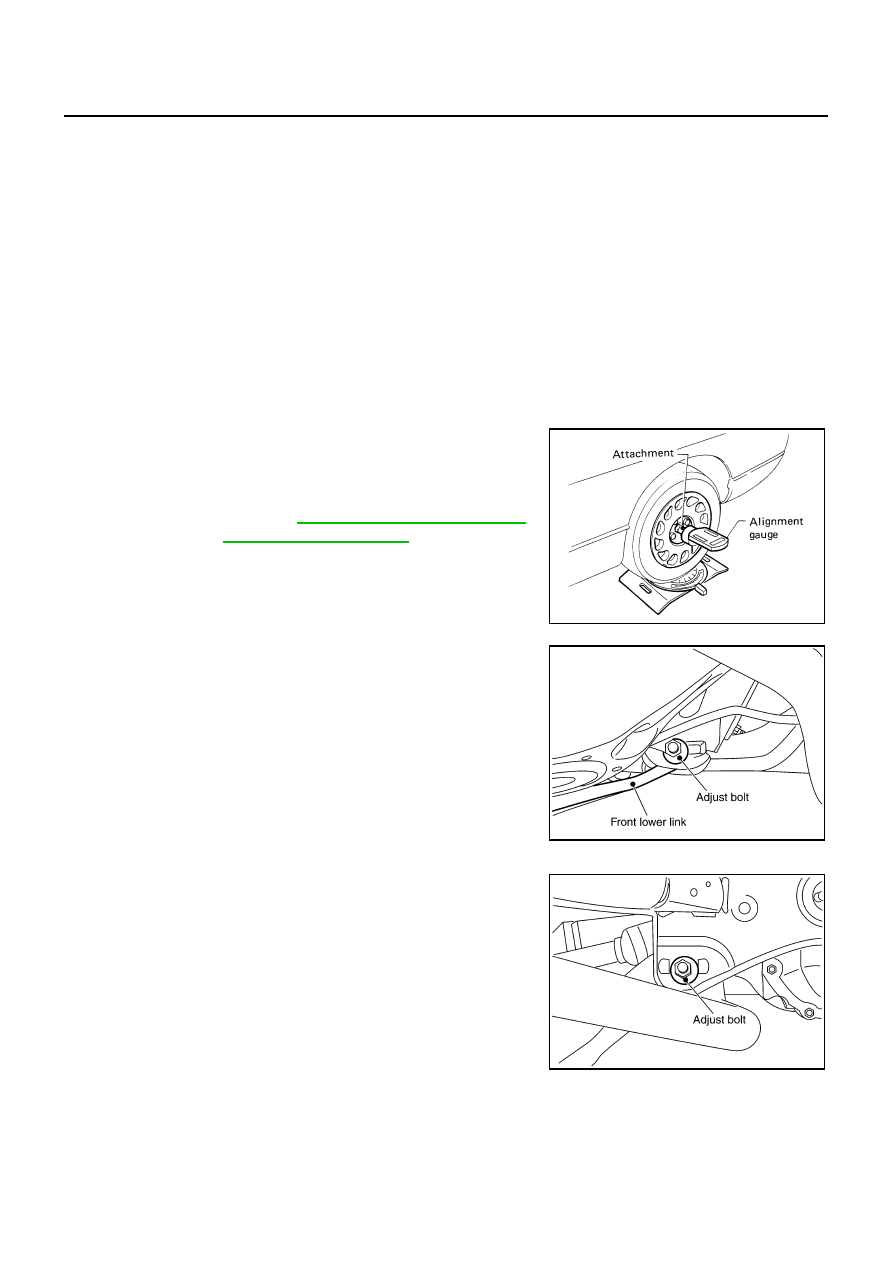

CAMBER INSPECTION

●

Measure camber of both right and left wheels with a suitable
alignment gauge and adjust in accordance with the following
procedures.

If outside the standard value, adjust with adjusting bolt in front
lower link.

NOTE:
After adjusting camber, be sure to check toe-in.

TOE-IN

If toe-in is not within the specification, adjust with adjusting bolt in
rear lower link.

CAUTION:

Be sure to adjust equally on RH and LH side with adjusting bolt.
If toe-in is not still within the specification, inspect and replace any
damaged or worn rear suspension parts.

Standard value

Camber

: Refer to

RSU-18, "SERVICE DATA AND

SPECIFICATIONS (SDS)"

 .

SRA096A

SEIA0227E

SEIA0228E

REAR SUSPENSION ASSEMBLY

RSU-7

C

D

F

G

H

I

J

K

L

M

A

B

RSU

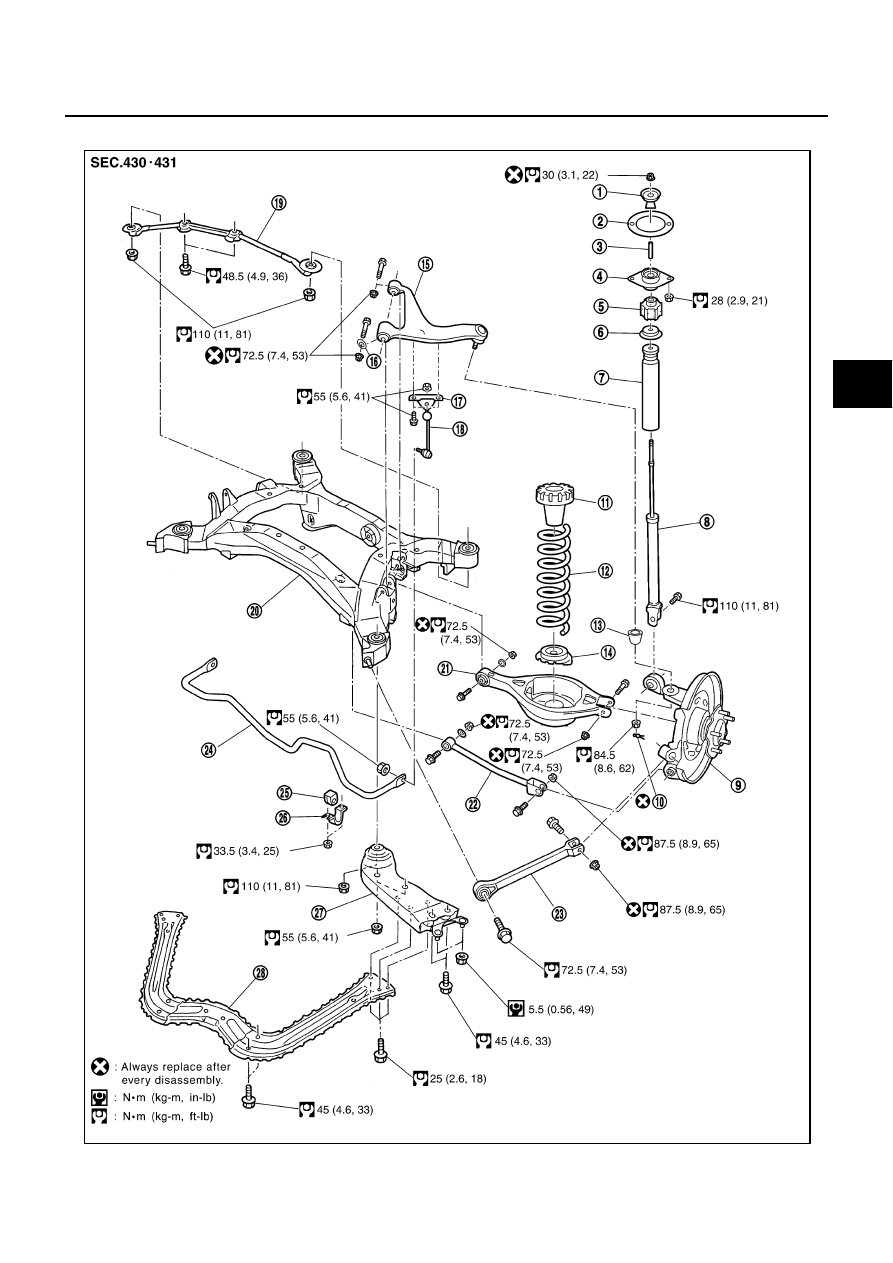

Components

NES0002N

SEIA0442E

RSU-8

REAR SUSPENSION ASSEMBLY

Removal and Installation

NES0002O

REMOVAL

1.

Remove tires from vehicle with power tool.

2.

Remove brake caliper with power tool. Hang it in a place where it will not interfere with work. Refer to

BR-

27, "REAR DISC BRAKE"

 .

NOTE:
Avoid depressing brake pedal while brake caliper is removed.

3.

Remove disc rotor.

BR-28, "Removal and Installation of Caliper Assembly"

 .

4.

Remove stabilizer bar. Refer to

RSU-16, "STABILIZER BAR"

 .

5.

Remove exhaust front tube. Refer to

EX-3, "EXHAUST SYSTEM"

 .

6.

Remove propeller shaft. Refer to

PR-4, "REAR PROPELLER SHAFT"

 .

7.

Separate the attachment between parking brake cable and vehicle and rear suspension member. Refer to

PB-6, "PARKING BRAKE CONTROL"

 .

8.

Remove wheel sensor from rear final drive. Refer to

BRC-58, "WHEEL SENSOR"

 .

9.

Remove rear lower link and coil spring. Refer to

RSU-15, "REAR LOWER LINK & COIL SPRING"

 .

10. Remove mounting nuts in upper side of mounting seal bracket. Refer to

RSU-9, "SHOCK ABSORBER"

 .

11. Set jack under rear final drive.

12. Remove tunnel stay and member stay from vehicle.

13. Remove mounting bolts and nuts of rear pin stay and then remove rear pin stay from vehicle.
14. Gradually lowering jack, remove rear suspension assembly.

INSTALLATION

●

Refer to

RSU-7, "Components"

  for tightening torque. Install in the reverse order of removal.

NOTE:
Refer to component parts location and do not reuse non-reusable parts.

●

Perform final tightening of installation position of links (rubber bushing) under unladen condition with tires
on level ground. Check wheel alignment. Refer to

RSU-5, "Wheel Alignment Inspection"

 .

1.

Bushing

2.

Mounting seal

3.

Distance tube

4.

Mounting seal bracket

5.

Bushing

6.

Bound bumper cover

7.

Bound bumper

8.

Shock absorber

9.

Axle

10. Cotter pin

11. Upper seat

12. Coil spring

13. Ball seat

14. Rubber seat

15. Suspension arm

16. Stopper rubber

17. Stabilizer connecting rod mounting

bracket

18. Stabilizer connecting rod

19. Rear pin stay

20. Rear suspension member

21. Rear lower link

22. Front lower link

23. Radius rod

24. Stabilizer bar

25. Stabilizer bushing

26. Stabilizer clamp

27. Member stay

28. Tunnel stay

SHOCK ABSORBER

RSU-9

C

D

F

G

H

I

J

K

L

M

A

B

RSU

SHOCK ABSORBER

PFP:56210

Removal and Installation

NES0002P

REMOVAL

1.

Remove tires from vehicle with power tool.

2.

Set jack under rear lower link.

3.

Remove mounting bolt in lower side of shock absorber assembly with power tool.

4.

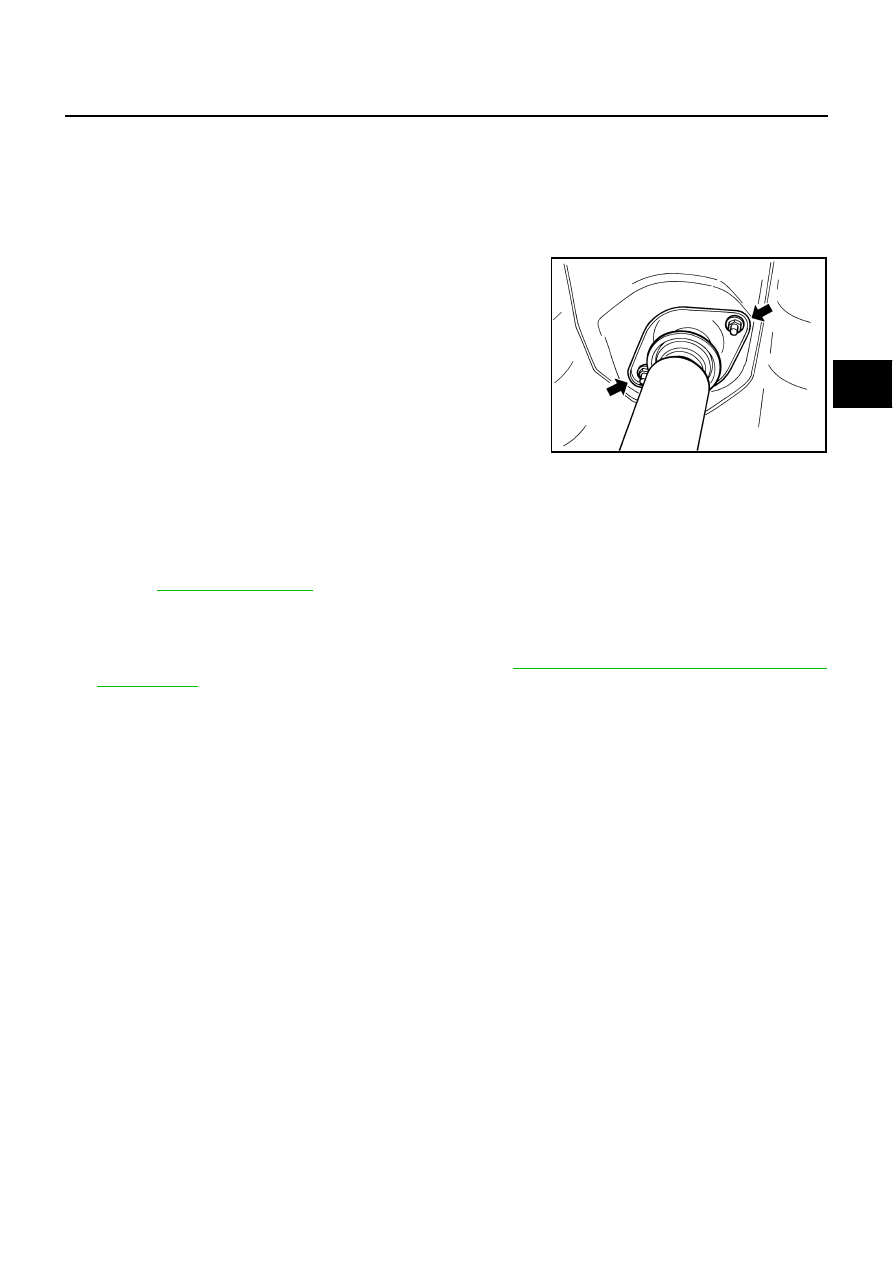

Remove mounting seal bracket mounting nuts of shock
absorber upper side with power tool and remove shock absorber
from vehicle.

INSPECTION AFTER REMOVAL

●

Check shock absorber assembly for deformation, cracks, damage, and replace if necessary.

●

Check piston rod for damage, uneven wear, distortion, and replace if necessary.

●

Check welded and sealed areas for oil leakage, and replace if necessary.

INSTALLATION

●

Refer to

RSU-7, "Components"

  for tightening torque. Install in the reverse order of removal.

NOTE:
Refer to component parts location and do not reuse non-reusable parts.

●

Perform final tightening of shock absorber assembly lower side (rubber bushing) under unladen condition
with tires on level ground. Check wheel alignment. Refer to

RSU-18, "SERVICE DATA AND SPECIFICA-

TIONS (SDS)"

 .

Disassembly and Assembly

NES0002Q

DISASSEMBLY

CAUTION:

Make sure piston rod on shock absorber is not damaged when removing components from shock
absorber.

1.

Remove mounting seal from mounting seal bracket.

2.

Wrap a shop cloth around lower side of shock absorber and fix it in a vise.

CAUTION:

Do not set the cylindrical part of shock absorber in vice.

3.

Secure piston rod tip so that piston rod does not turn, and remove piston rod lock nut.

4.

Remove bushing (upper side), distance tube, mounting seal bracket, bushing (lower side), bound bumper
cover and bound bumper from shock absorber.

FA-0274D
