MT-56

TRANSMISSION ASSEMBLY

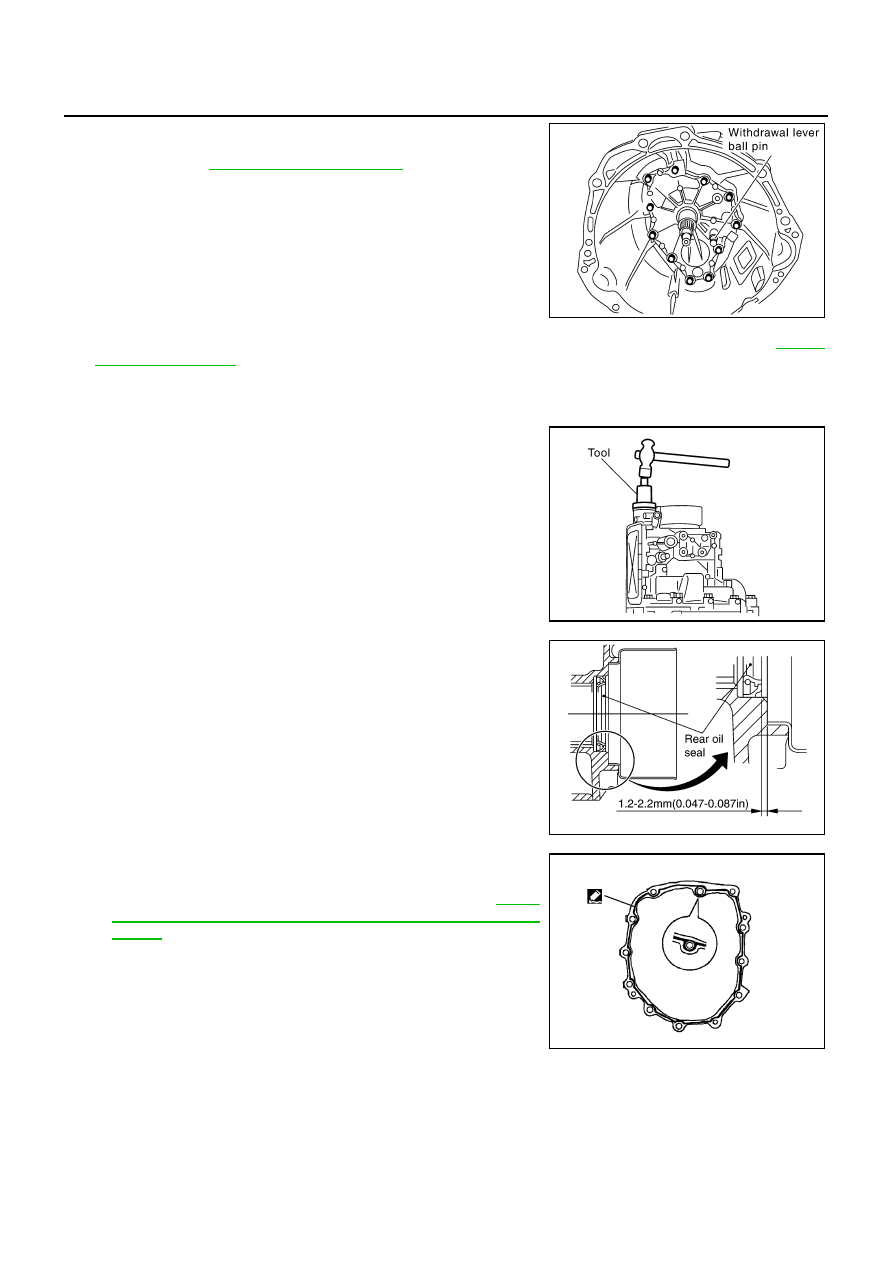

13. Install washer to the withdrawal lever ball pin and then install it

to front cover. Tighten withdrawal lever ball pin to the specified
torque. Refer to

MT-21, "Case Components"

 .

14. Install rear extension oil gutter to rear extension, and then tighten bolt to specified torque. Refer to

MT-21,

"Case Components"

 .

15. Install reverse idler shaft, reverse idler needle bearing, reverse idler gear, and reverse idler thrust washer

to the adapter plate.

16. Apply multi -purpose grease to the striking rod oil seal lip, and

then using the drift to install striking rod oil seal.

CAUTION:

●

Do not reuse striking rod oil seal.

●

When installing, do not incline the striking rod oil seal.

17. Apply multi - purpose grease to the lip of the rear oil seal. Using

a drift, to install rear oil seal. 1.2-2.2 mm (0.047-0.087 in) above
from the rear extension edge surface.

CAUTION:

●

Do not reuse rear oil seal.

●

When installing, do not incline the rear oil seal.

18. Apply liquid gasket to the adapter plate rear extension mounting

surface as shown in the figure.

●

Use Genuine Silicone RTV or equivalent.  Refer to

GI-46,

"RECOMMENDED CHEMICAL PRODUCTS AND SEAL-
ANTS"

 .

CAUTION:

Completely remove all moisture, oil, etc., from the adapter
plate and rear extension mounting surfaces.

PCIB0456E

Tool number

: ST35291000 (

—

)

PCIB0213E

Tool number

: ST33400001 (J-26082)

PCIB0619E

PCIB1374E

TRANSMISSION ASSEMBLY

MT-57

D

E

F

G

H

I

J

K

L

M

A

B

MT

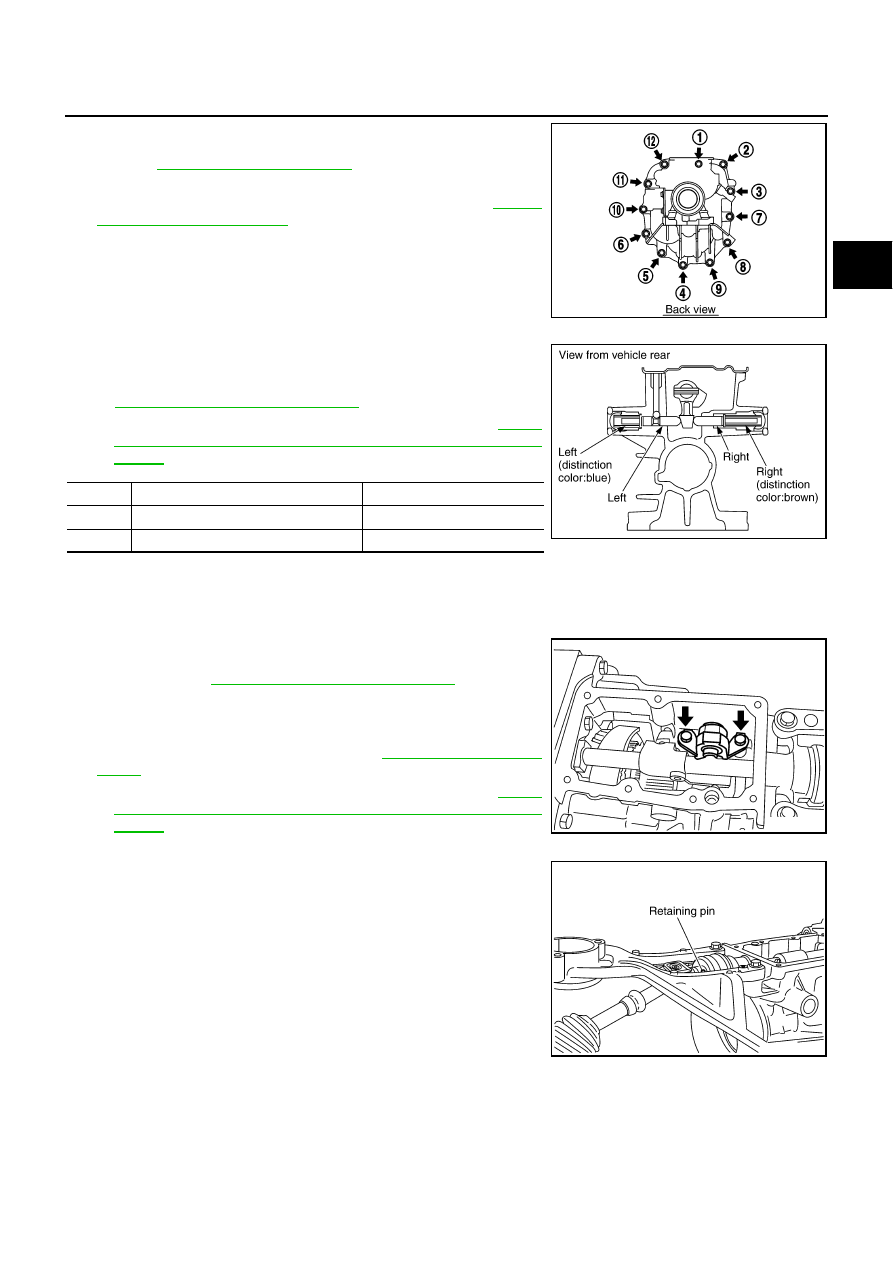

19. Install rear extension to adapter plate and then tighten mounting

bolts to the specified torque in order as shown on the figure.
Refer to

MT-21, "Case Components"

 .

20. Install control lever housing to the rear extension and then

tighten mounting bolts to the specified torque. Refer to

MT-24,

"Shift Control Components"

 .

CAUTION:

Do not hold control lever housing to prevent bushing of
control lever housing from deformation when moving trans-
mission assembly.

21. Install return spring plungers and return springs into the rear

extension, apply liquid gasket to the return spring plug threads,
and then tighten return spring plug to the specified torque. Refer
to

MT-24, "Shift Control Components"

 .

●

Use Genuine Silicone RTV or equivalent.  Refer to

GI-46,

"RECOMMENDED CHEMICAL PRODUCTS AND SEAL-
ANTS"

 .

CAUTION:

The right and left return spring and return spring plunger are different, so make sure they are
installed correctly.

22. Install shift check pin as a one unit with the control bracket to

rear extension and then tighten mounting bolts to the specified
torque. Refer to

MT-24, "Shift Control Components"

 .

23. Install plunger to the rear extension, and then screwing PNP

switch and back-up lamp switch to the rear extension with 1-2
pitches. Apply liquid gasket to the switch threads, and tighten
switch to the specified torque. Refer to

MT-21, "Case Compo-

nents"

 .

●

Use Genuine Silicone RTV or equivalent.  Refer to

GI-46,

"RECOMMENDED CHEMICAL PRODUCTS AND SEAL-
ANTS"

 .

24. Install retaining pin into the control rod, using a pin punch [6 mm

(0.24 in) dia.].

CAUTION:

Do not reuse retaining pin.

PCIB0256E

Region

Return spring identification mark

Plunger notch

RH

Brown

No

LH

Blue

Yes

SCIA1607E

SCIA1440E

SCIA1437E

MT-58

TRANSMISSION ASSEMBLY

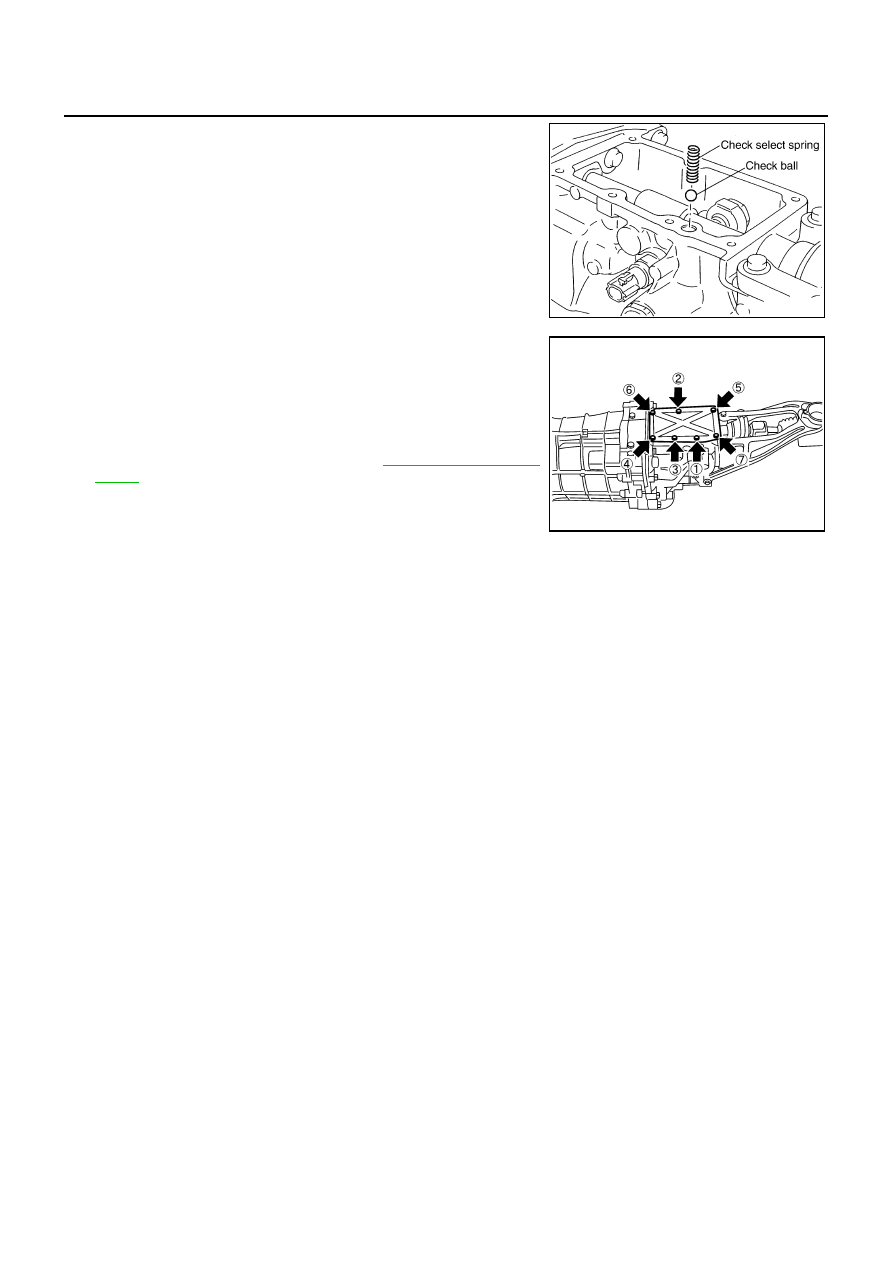

25. Install check ball and check select spring into the rear extension.

26. Install rear extension upper cover gasket and rear extension

upper cover to rear extension.

CAUTION:

●

Do not reuse rear extension upper cover gasket.

●

Avoid tangling check select spring.

27. Tighten rear extension upper cover bolts to the specified torque

in order as shown on the figure. Refer to

MT-21, "Case Compo-

nents"

 .

PCIB0599E

PCIB0257E

SERVICE DATA AND SPECIFICATIONS (SDS)

MT-59

D

E

F

G

H

I

J

K

L

M

A

B

MT

SERVICE DATA AND SPECIFICATIONS (SDS)

PFP:00030

General Specifications

NCS000AV

End Play

NCS000AW

Unit: mm (in)

Applied model

VQ35DE

Transmission

FS6R31A

Model code number

CD009

Number of speed

6

Shift pattern

Synchromesh type

Warner

Gear ratio

1st

3.794

2nd

2.324

3rd

1.624

4th

1.271

5th

1.000

6th

0.794

Reverse

3.446

Main gear
(Number of teeth)

Drive

26

1st

37

2nd

34

3rd

33

4th

31

6th

31

Reverse

42

Counter shaft gear
(Number of teeth)

Drive

32

1st

12

2nd

18

3rd

25

4th

30

6th

48

Reverse

15

Reverse idler gear (Number of teeth)

26

Oil capacity

 (US qt, Imp qt)

Approx. 2.9 (3-1/8, 2-1/2)

Remarks

Reverse synchronizer

Installed

Double cone synchronizer

4th

Triple cone synchronizer

1st, 2nd and 3rd

SCIA0955E

Item

Standard

Counter shaft

0 - 0.10 (0 - 0.004)

Main drive gear

0 - 0.10 (0 - 0.004)

Main shaft

0 - 0.10 (0 - 0.004)
