INTERIOR ROOM LAMP

6.

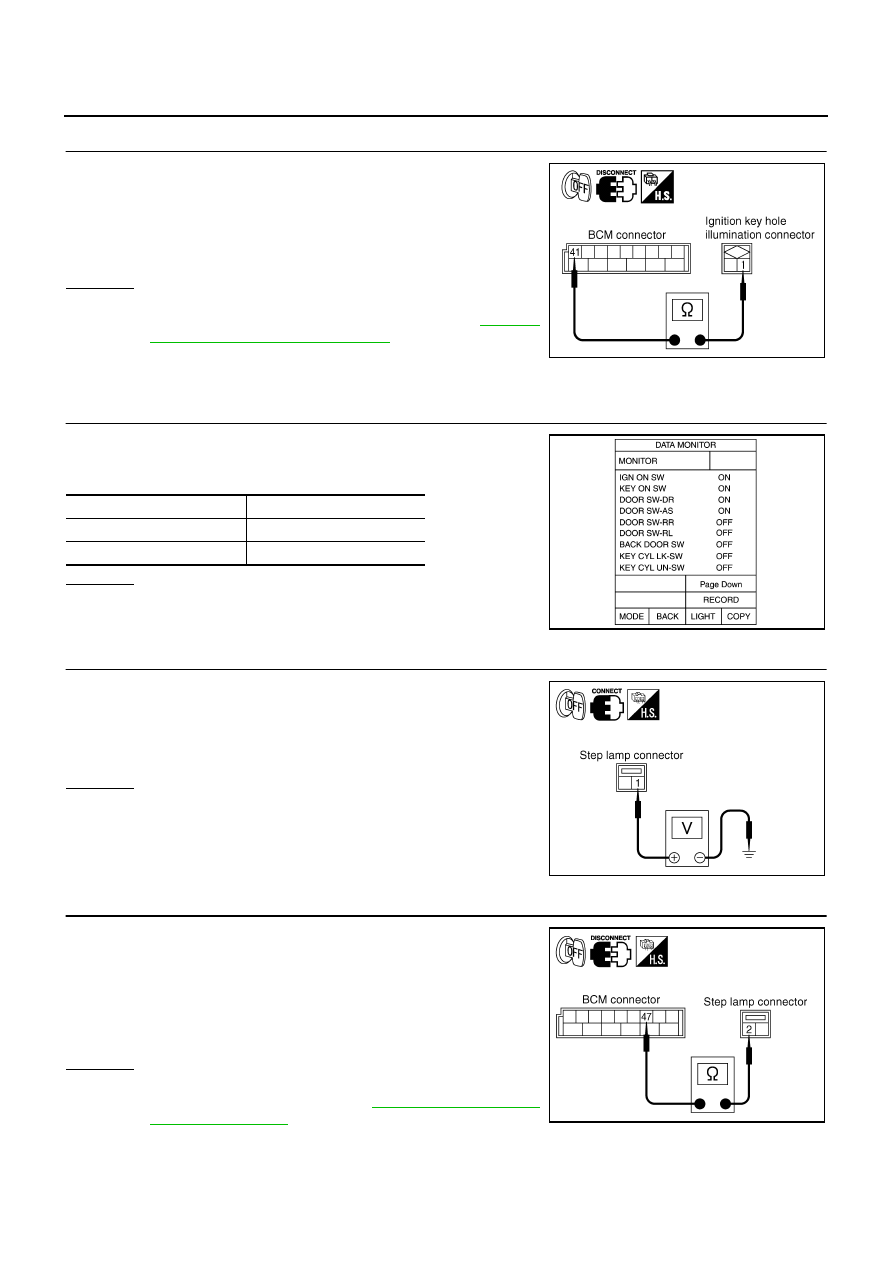

CHECK IGNITION KEY HOLE ILLUMINATION CIRCUIT

1.

Disconnect BCM connector and key hole illumination connector.

2.

Check continuity between BCM harness connector M2 terminal
41 and key hole illumination harness connector M309 terminal
1.

OK or NG

OK

>> Replace BCM if ignition key hole illumination does not

work after setting the connector again. Refer to

BCS-16,

"Removal and Installation of BCM"

 .

NG

>> Repair harness or connector.

All Step Lamps Does Not Operate

NKS002PW

1.

CHECK EACH DOOR SWITCH

Select “BCM” on CONSULT-II. With “INT LAMP” data monitor to
make sure switches listed below turn ON-OFF linked with switch
operation.

OK or NG

OK

>> GO TO 2.

NG

>> Inspect malfunctioning switch system.

2.

CHECK STEP LAMP INPUT

1.

Turn ignition switch OFF.

2.

Check voltage between step lamp (driver side) harness connec-
tor D10 terminal 1 and ground.

OK or NG

OK

>> GO TO 3.

NG

>> GO TO 4.

3.

CHECK STEP LAMP CIRCUIT

1.

Disconnect BCM connector and front door driver side step lamp
connector.

2.

Check continuity between BCM harness connector M2 terminal
47 and step lamp (driver side) harness connector D10 terminal
2.

OK or NG

OK

>> Replace BCM if step lamps does not work after setting

the connector again. Refer to

BCS-16, "Removal and

Installation of BCM"

 .

NG

>> Repair harness or connector.

41 – 1

: Continuity should exist.

PKIA5811E

Switch name

CONSULT screen

Driver side door switch

DOOR SW - DR

Passenger side door switch

DOOR SW - AS

PKIB3532E

1 – Ground

: Battery voltage

SKIA5949E

47 – 2

: Continuity should exist.

SKIA5950E

INTERIOR ROOM LAMP

LT-149

C

D

E

F

G

H

I

J

L

M

A

B

LT

4.

CHECK STEP LAMP CIRCUIT

1.

Disconnect BCM connector and step lamp connector.

2.

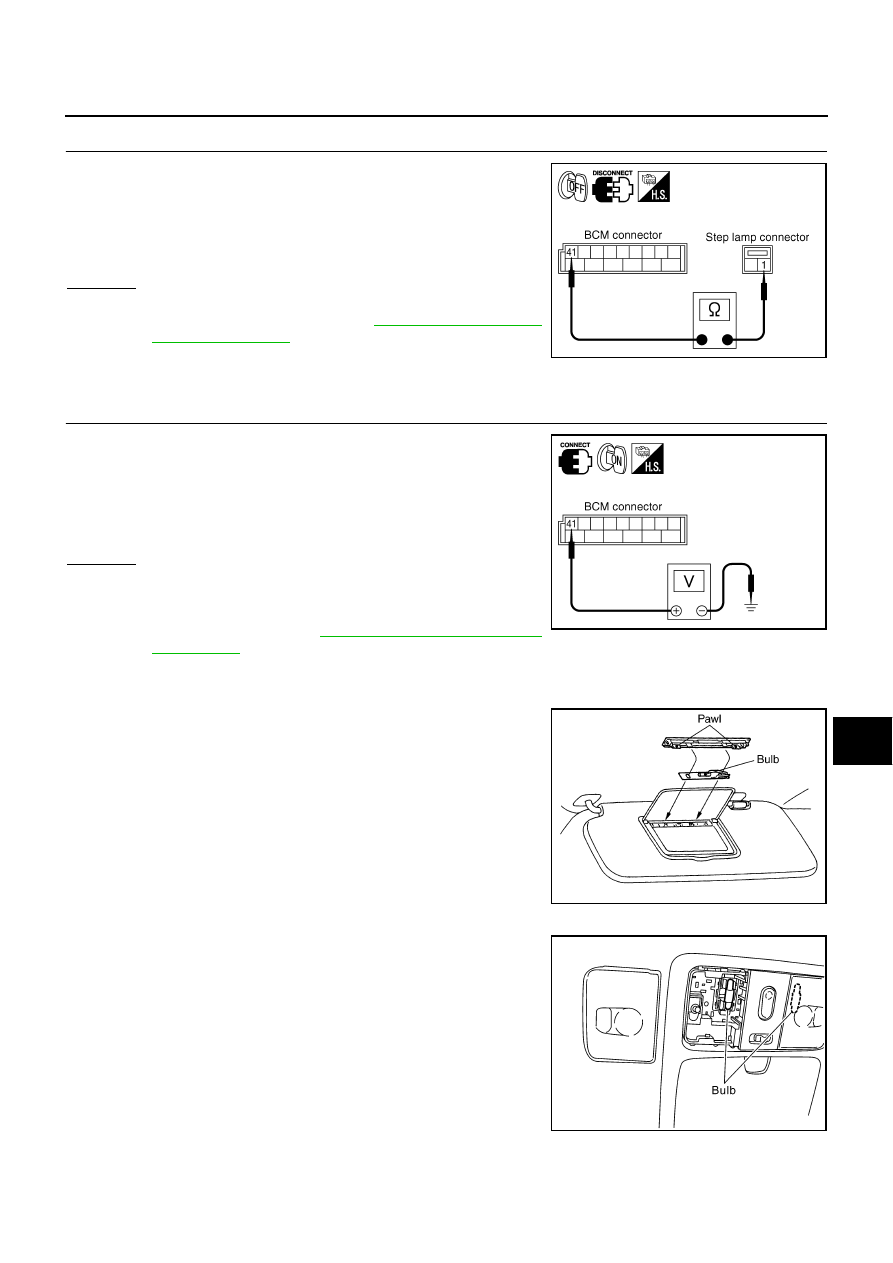

Check continuity between BCM harness connector M2 terminal
41 and step lamp (driver side) harness connector D10 terminal
1.

OK or NG

OK

>> Replace BCM if step lamps does not work after setting

the connector again. Refer to

BCS-16, "Removal and

Installation of BCM"

 .

NG

>> Repair harness or connector.

All Interior Room Lamps Does Not Operate

NKS002PX

1.

CHECK POWER SUPPLY CIRCUIT

1.

All interior room lamps switch are OFF.

2.

Turn ignition switch ON.

3.

Check voltage between BCM harness connector M2 terminal 41
and ground.

OK or NG

OK

>> Repair harness or connector. In a case of making a

short circuit, be sure to disconnect battery negative
cable after repairing harness, and then reconnect.

NG

>> Replace BCM. Refer to

BCS-16, "Removal and Installa-

tion of BCM"

 .

Bulb Replacement

NKS002PY

VANITY MIRROR LAMP

1.

Insert a thin screwdriver in the lens end and remove lens.

2.

Remove bulb together with substrate.

3.

Installation is the reverse order of removal.

MAP LAMP

1.

Insert a small screwdriver into the lens hinge gap and remove
lens.

2.

Remove bulb.

3.

Installation is the reverse order of removal.

41 – 1

: Continuity should exist.

SKIA5951E

41 – Ground

: Battery voltage

SKIA5952E

Vanity mirror lamp

: 12 V - 1.32 W

PKIA1137E

Map lamp

: 12 V - 8 W

PKIA1131E

LT-150

INTERIOR ROOM LAMP

STEP LAMP

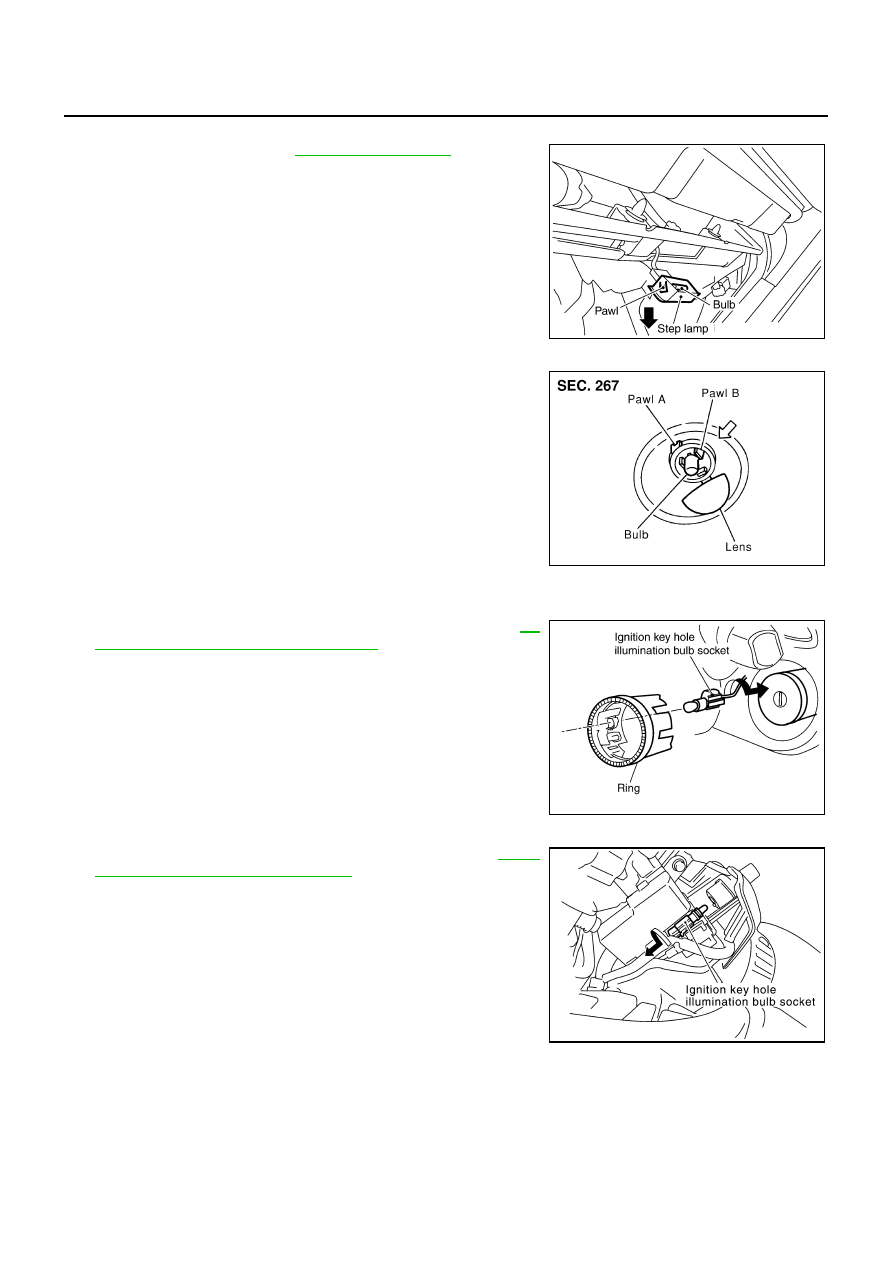

1.

Remove step lamp. Refer to

LT-151, "STEP LAMP"

 .

2.

Remove bulb.

3.

Installation is the reverse order of removal.

TRUNK ROOM LAMP

1.

Unfold pawl A and remove lens.

2.

Remove trunk room lamp while pressing pawl B in the direction
of the arrow.

3.

Disconnect trunk room lamp connector.

4.

Installation is the reverse order of removal.

IGNITION KEY HOLE ILLUMINATION
Without Intelligent Key System

1.

Remove cluster lid A and steering lock escutcheon. Refer to

IP-

10, "INSTRUMENT PANEL ASSEMBLY"

 .

2.

Pull out ring, turn bulb socket to left to release lock and remove
it.

3.

Installation is the reverse order of removal.

With Intelligent Key System

1.

Remove instrument lower driver panel. Refer to

IP-10,

"INSTRUMENT PANEL ASSEMBLY"

 .

2.

Turn bulb socket to left to release lock and remove it.

Step lamp

: 12 V - 5 W

PKIA1126E

Trunk room lamp

: 12 V - 3.4 W

PKIA0182E

Ignition key hole illumination

: 12 V - 1.4 W

PKIA1134E

Ignition key hole illumination

: 12 V - 1.4 W

PKIB6108E

INTERIOR ROOM LAMP

LT-151

C

D

E

F

G

H

I

J

L

M

A

B

LT

Removal and Installation

NKS002PZ

MAP LAMP
Removal

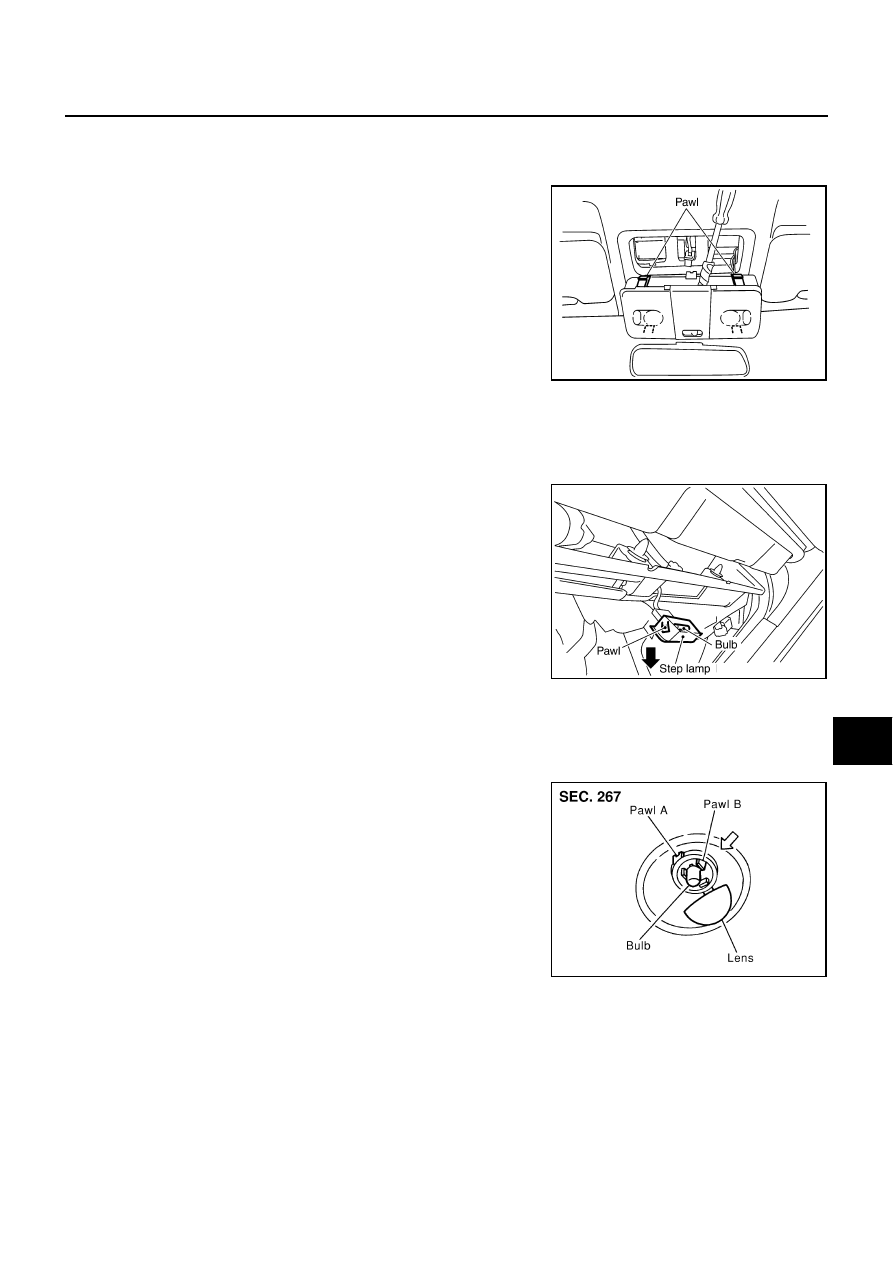

1.

Insert a clip driver or a suitable tool and disengage the pawl fit-
tings of the map lamp.

2.

Disconnect connector and remove map lamp.

Installation

Installation is the reverse order of removal.

STEP LAMP
Removal

1.

Remove clips which are lower part of front door finisher and lift
finisher up.

2.

Disconnect step lamp connector.

3.

Press pawl on reverse side and remove the step lamp.

Installation

Installation is the reverse order of removal.

TRUNK ROOM LAMP
Removal

1.

Unfold pawl A and remove lens.

2.

Remove trunk room lamp while pressing pawl B in the direction
of the arrow.

3.

Disconnect trunk room lamp connector.

4.

Installation is the reverse order of removal.

Installation

Installation is the reverse order of removal.
