INTERIOR ROOM LAMP

5.

Touch “CHANGE SETT”.

6.

The setting will be changed and “CUSTOMIZING COMPLETED ” will be displayed.

7.

Touch “END”.

Display Item List

DATA MONITOR (BATTERY SAVER)
Operation Procedure

1.

Touch “BATTERY SAVER” on “SELECT TEST ITEM” screen.

2.

Touch “DATA MONITOR” on “SELECT DIAG MODE” screen.

3.

Touch either “ALL SIGNALS” or “SELECTION FROM MENU” on “SELECT MONITOR ITEM” screen.

4.

When “SELECTION FROM MENU” is selected, touch items to be monitored. When “ALL SIGNALS” is
selected, all items will be monitored.

5.

Touch “START”.

6.

Touch “RECORD” while monitoring, then the status of monitored item can be recorded. To stop recording,
touch “STOP”.

Display Item List

Item

Description

CONSULT-II

ROOM LAMP TIME SET

Interior room lamp battery saver timer setting can be changed.

MODE 1: 30min
MODE 2: 60min

ALL SIGNALS

Monitors all the signals.

SELECTION FROM MENU

Selects items and monitor them.

Monitor item

Contents

IGN ON SW

“ON/OFF”

Displays status (ignition switch IGN position: ON/other: OFF) of ignition switch judged from
the ignition switch signal.

KEY ON SW

“ON/OFF”

Displays status (key inserted: ON/key removed: OFF) of key switch judged from the key
switch signal.

DOOR SW - DR

“ON/OFF”

Displays status (door is open: ON/door is closed: OFF) of driver side door switch judged from
the driver side door switch signal.

DOOR SW - AS

“ON/OFF”

Displays status (door is open: ON/door is closed: OFF) of passenger side door switch judged
from the passenger side door switch signal.

DOOR SW - RR

 NOTE

“OFF”

—

DOOR SW - RL

 NOTE

“OFF”

—

BACK DOOR SW

 NOTE

“OFF”

—

KEY CYL LK - SW

“ON/OFF”

Displays status (door is locked: ON/other: OFF) of key cylinder lock switch from the door key
cylinder switch (driver door) signal.

KEY CYL UN - SW

“ON/OFF”

Displays status (door is unlocked: ON/other: OFF) of key cylinder unlock switch from the
door key cylinder switch (driver door) signal.

CDL LOCK SW

“ON/OFF”

Displays status (door is locked: ON/other: OFF) of lock switch from the door lock and unlock
switch signal.

CDL UNLOCK SW

“ON/OFF”

Displays status (door is unlocked: ON/other: OFF) of unlock switch from the door lock and
unlock switch signal.

I

−

 KEY LOCK

“ON/OFF”

Displays status (door is locked: ON/other: OFF) of intelligent key system lock signal from the
intelligent key unit signal.

I

−

 KEY UNLOCK

“ON/OFF”

Displays status (door is locked: ON/other: OFF) of intelligent key system unlock signal from
the intelligent key unit signal.

KEYLESS LOCK

“ON/OFF”

Displays status (door is locked: ON/other: OFF) of remote keyless entry system lock signal
from the remote key less entry receiver signal.

KEYLESS UNLOCK

“ON/OFF”

Displays status (door is unlocked: ON/other: OFF) of remote keyless entry system unlock
signal from the remote key less entry receiver signal.

INTERIOR ROOM LAMP

LT-145

C

D

E

F

G

H

I

J

L

M

A

B

LT

NOTE:
This item is displayed, but cannot be monitored.

ACTIVE TEST (BATTERY SAVER)
Operation Procedure

1.

Touch “BATTERY SAVER” on “SELECT TEST ITEM” screen.

2.

Touch “ACTIVE TEST” on “SELECT DIAG MODE” screen.

3.

Touch item to be tested and check operation of the selected item.

4.

During the operation check, touching “OFF” deactivates the operation.

Display Item List

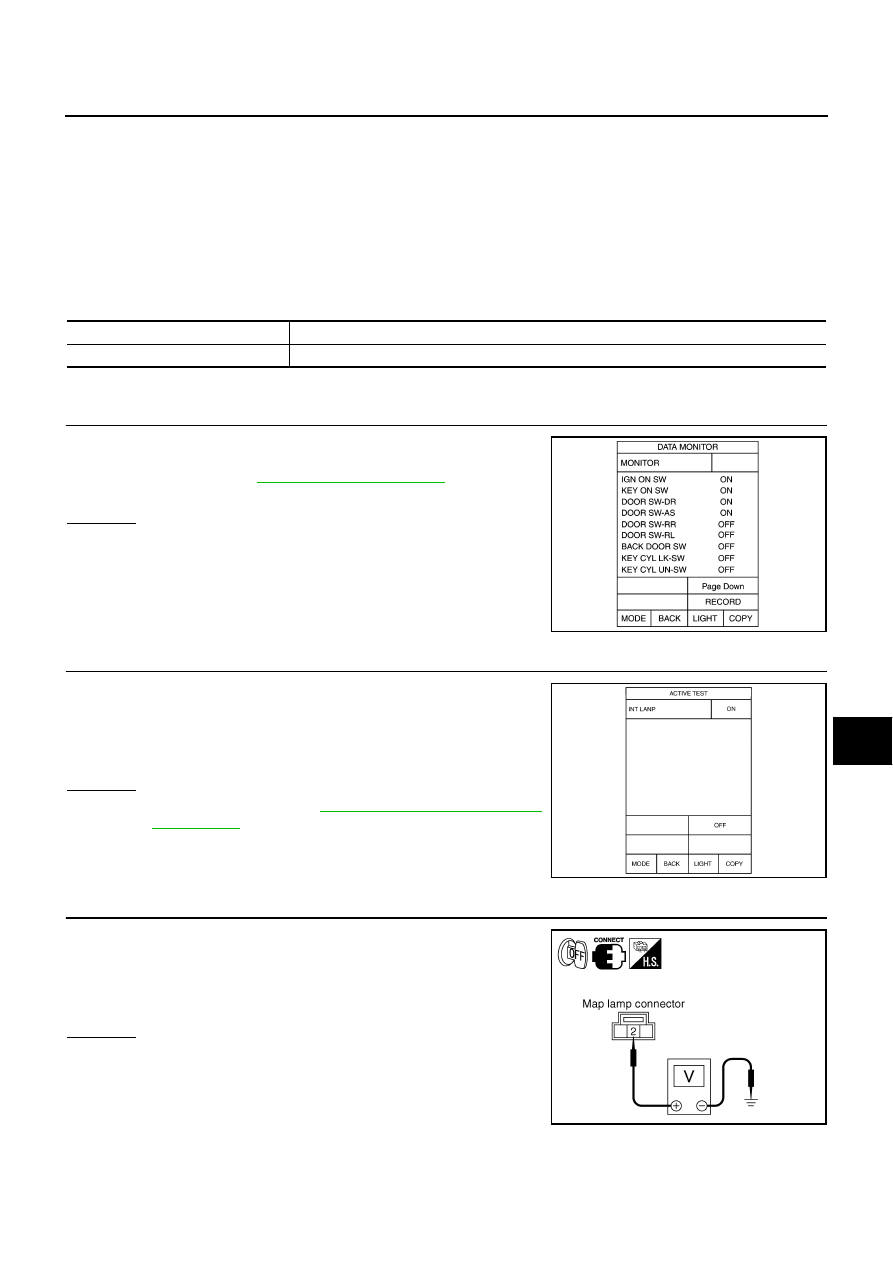

Map Lamp Control Does Not Operate

NKS002PU

1.

CHECK EACH SWITCH

Select “BCM” on CONSULT-II. With “INT LAMP” data monitor make
sure switches listed in display item list turn ON-OFF linked with
switch operation. Refer to

LT-143, "Display Item List"

    for  switches

and their functions.

OK or NG

OK

>> GO TO 2.

NG

>> Inspect malfunctioning switch system.

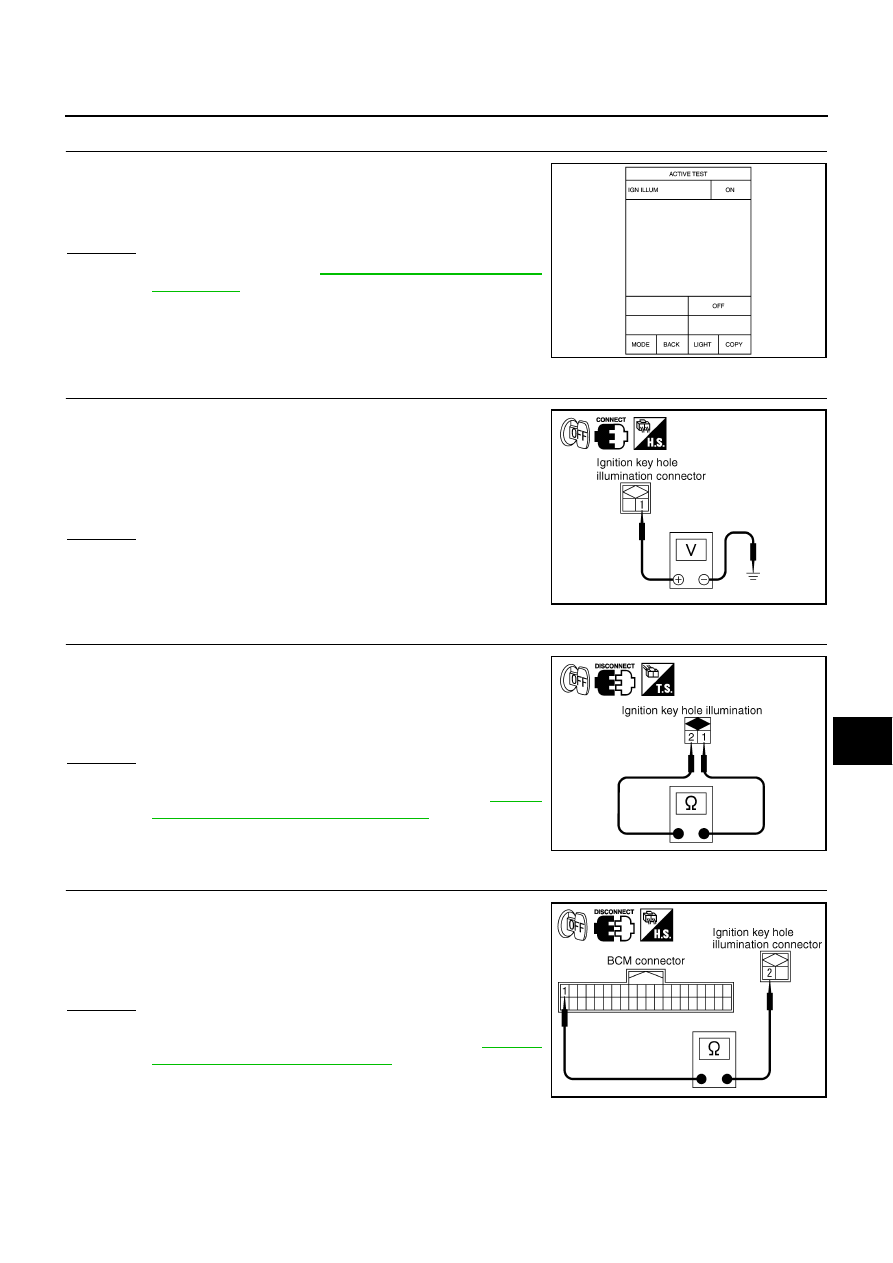

2.

ACTIVE TEST

1.

Select “BCM” on CONSULT-II. Select “INT LAMP” active test.

2.

When map lamp switch is in DOOR position, use active test to
make sure map lamp operates.

OK or NG

OK

>> Replace BCM. Refer to

BCS-16, "Removal and Installa-

tion of BCM"

 .

NG

>> GO TO 3.

3.

CHECK MAP LAMP INPUT

1.

Turn ignition switch OFF.

2.

Check voltage between map lamp harness connector R52 termi-
nal 2 and ground.

OK or NG

OK

>> GO TO 6.

NG

>> GO TO 4.

Test item

Description

BATTERY SAVER

Interior room lamp can be operated by ON

−

OFF operations.

PKIB3532E

Map lamp should operate.

PKIA6881E

2 – Ground

: Battery voltage

SKIA5935E

LT-146

INTERIOR ROOM LAMP

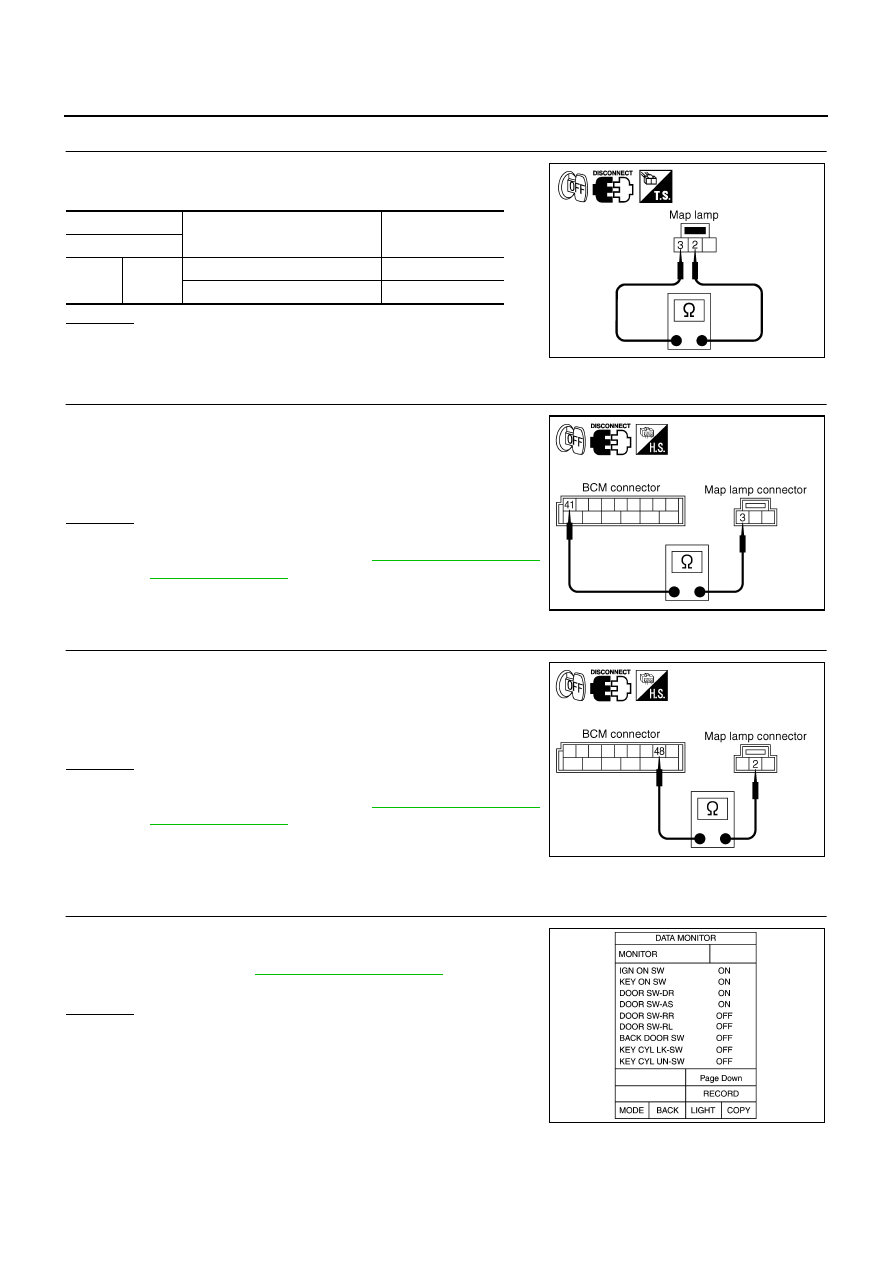

4.

CHECK MAP LAMP

1.

Disconnect map lamp connectors.

2.

Check continuity map lamp terminals.

OK or NG

OK

>> GO TO 5.

NG

>> Replace map lamp.

5.

CHECK MAP LAMP CIRCUIT

1.

Disconnect BCM connector and map lamp connector.

2.

Check continuity between BCM harness connector M2 terminal
41 and map lamp harness connector R52 terminal 3.

OK or NG

OK

>> Replace BCM if map lamp does not work after setting

the connector again. Refer to

BCS-16, "Removal and

Installation of BCM"

 .

NG

>> Repair harness or connector.

6.

CHECK MAP LAMP CIRCUIT

1.

Disconnect BCM connector.

2.

Check continuity between BCM harness connector M2 terminal
48 and map lamp harness connector R52 terminal 2.

OK or NG

OK

>> Replace BCM if map lamp does not work after setting

the connector again. Refer to

BCS-16, "Removal and

Installation of BCM"

 .

NG

>> Repair harness or connector.

Ignition Key Hole Illumination Control Does Not Operate

NKS002PV

1.

CHECK EACH SWITCH

Select “BCM” on CONSULT-II. With “INT LAMP” data monitor, make
sure switches listed in display item list turn ON-OFF linked with
switch operation. Refer to

LT-143, "Display Item List"

    for  switches

and their functions.

OK or NG

OK

>> GO TO 2.

NG

>> Inspect malfunctioning switch system.

Terminal

Condition

Continuity

Map lamp

2

3

Map lamp switch is DOOR

Yes

Map lamp switch is OFF

No

PKIA6018E

41 – 3

: Continuity should exist.

SKIA5938E

48 – 2

: Continuity should exist.

SKIA5937E

PKIB3532E

INTERIOR ROOM LAMP

LT-147

C

D

E

F

G

H

I

J

L

M

A

B

LT

2.

ACTIVE TEST

1.

Select “BCM” on CONSULT-II. Select “INT LAMP”.

2.

Select “IGN ILLUM” active test to make sure lamp operates.

OK or NG

OK

>> Replace BCM. Refer to

BCS-16, "Removal and Installa-

tion of BCM"

 .

NG

>> GO TO 3.

3.

CHECK IGNITION KEY HOLE ILLUMINATION INPUT

1.

Turn ignition switch OFF.

2.

Open the driver side door.

3.

Check voltage between ignition key hole illumination harness
connector M309 terminal 1 and ground.

OK or NG

OK

>> GO TO 4.

NG

>> GO TO 6.

4.

CHECK IGNITION KEY HOLE ILLUMINATION BULB

1.

Disconnect ignition key hole illumination connector.

2.

Check continuity between ignition key hole illumination terminals
1 and 2.

OK or NG

OK

>> GO TO 5.

NG

>> Replace ignition key hole illumination. Refer to

LT-150,

"IGNITION KEY HOLE ILLUMINATION"

 .

5.

CHECK IGNITION KEY HOLE ILLUMINATION CIRCUIT

1.

Disconnect BCM connector and key hole illumination connector.

2.

Check continuity between BCM harness connector M1 terminal
1 and key hole illumination harness connector M309 terminal 2.

OK or NG

OK

>> Replace BCM if ignition key hole illumination does not

work after setting the connector again. Refer to

BCS-16,

"Removal and Installation of BCM"

 .

NG

>> Repair harness or connector.

Ignition key hole illumination should operate.

PKIA6375E

1 – Ground

: Battery voltage

PKIA5808E

1 – 2

: Continuity should exist.

PKIA5809E

1 – 2

: Continuity should exist.

PKIA5810E
