INSTRUMENT PANEL ASSEMBLY

(M) Wiper and Washer Switch

Remove wiper and washer switch. Refer to

WW-37, "Removal and Installation of Front Wiper and Washer

Switch"

(N) Knee Protector Lower

Remove bolts and then remove knee protector lower.

(O) Steering Lock Escutcheon

Pull back to your side, and remove steering lock escutcheon.

(P) Cluster Lid A Assembly

After removing bolts, disconnect harness connectors of combination
meter and mirror control switch, and remove cluster lid A assembly.

(Q) Kicking Plate (RH/LH)

Remove kicking plate (RH/LH). Refer to

EI-31, "BODY SIDE TRIM"

 .

(R) Dash Side Finisher (RH/LH)

Remove dash side finisher (RH/LH). Refer to

EI-31, "BODY SIDE TRIM"

 .

(S) Instrument Lower Cover

Pull downward, disconnect metal clips, and remove instrument lower
cover.

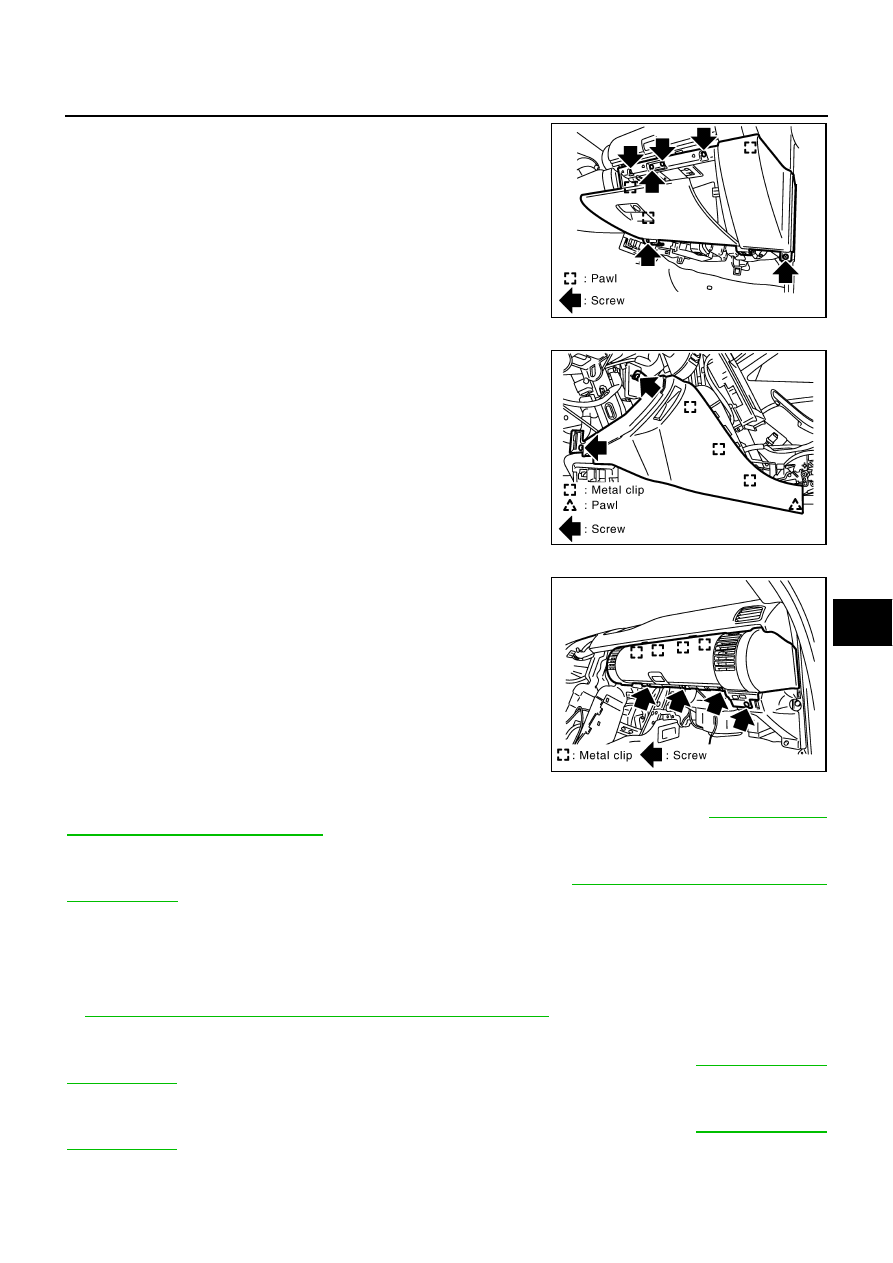

(T) Glove Box Assembly

1.

Remove screws with power tool.

PIIB2718E

PIIA1241E

PIIB2709E

INSTRUMENT PANEL ASSEMBLY

IP-15

C

D

E

F

G

H

J

K

L

M

A

B

IP

2.

Pull back to your side, and disconnect clips, and remove glove
box assembly.

(U) Instrument Side Panel (RH/LH)

1.

Remove screws.

2.

Pull to the side, disconnect metal clips and harness connector,
and remove instrument side panel (RH/LH).

(V) Center Box Assembly

1.

Remove screws.

2.

Hold left side of center box assembly, pull to outside of vehicle
and disconnect metal clips. Remove center box assembly.

(W) NAVI Control Unit

Remove screws, and disconnect harness connector, and remove NAVI control unit. Refer to

AV-90, "Removal

and Installation of NAVI Control Unit"

 .

(X) Passenger Air Bag Module

Remove bolts and nuts, and remove passenger air bag module. Refer to

SRS-46, "FRONT PASSENGER AIR

BAG MODULE"

 .

(Y) Center Console Assembly

Remove screws and remove center console assembly.

(Z) Display and A/C auto amp Assembly

Remove screws, and disconnect harness connector, and remove display and A/C auto amp assembly. Refer
to

ATC-114, "Removal and Installation of Display and A/C Auto Amp."

 .

(Aa) Defroster Grille (RH/LH)

Disconnect pawls with screwdriver wrapped in cloth and remove defroster grille. Refer to

ATC-131, "DUCTS

AND GRILLES"

 .

(Ab) Side Ventilator Grille (LH)

Pull back to your side, disconnect metal clips and remove side ventilator grille. Refer to

ATC-131, "DUCTS

AND GRILLES"

 .

PIIB2710E

PIIB2711E

PIIB2712E

IP-16

INSTRUMENT PANEL ASSEMBLY

(Ac) Center Ventilator Grille (LH)

Pull back to your side, disconnect metal clips and remove center ventilator grille. Refer to

ATC-131, "DUCTS

AND GRILLES"

 .

(Ad) Front Pillar Garnish (RH/LH)

Pull to inside of vehicle, disconnect metal clips and remove front pillar garnish. Refer to

EI-31, "BODY SIDE

TRIM"

 .

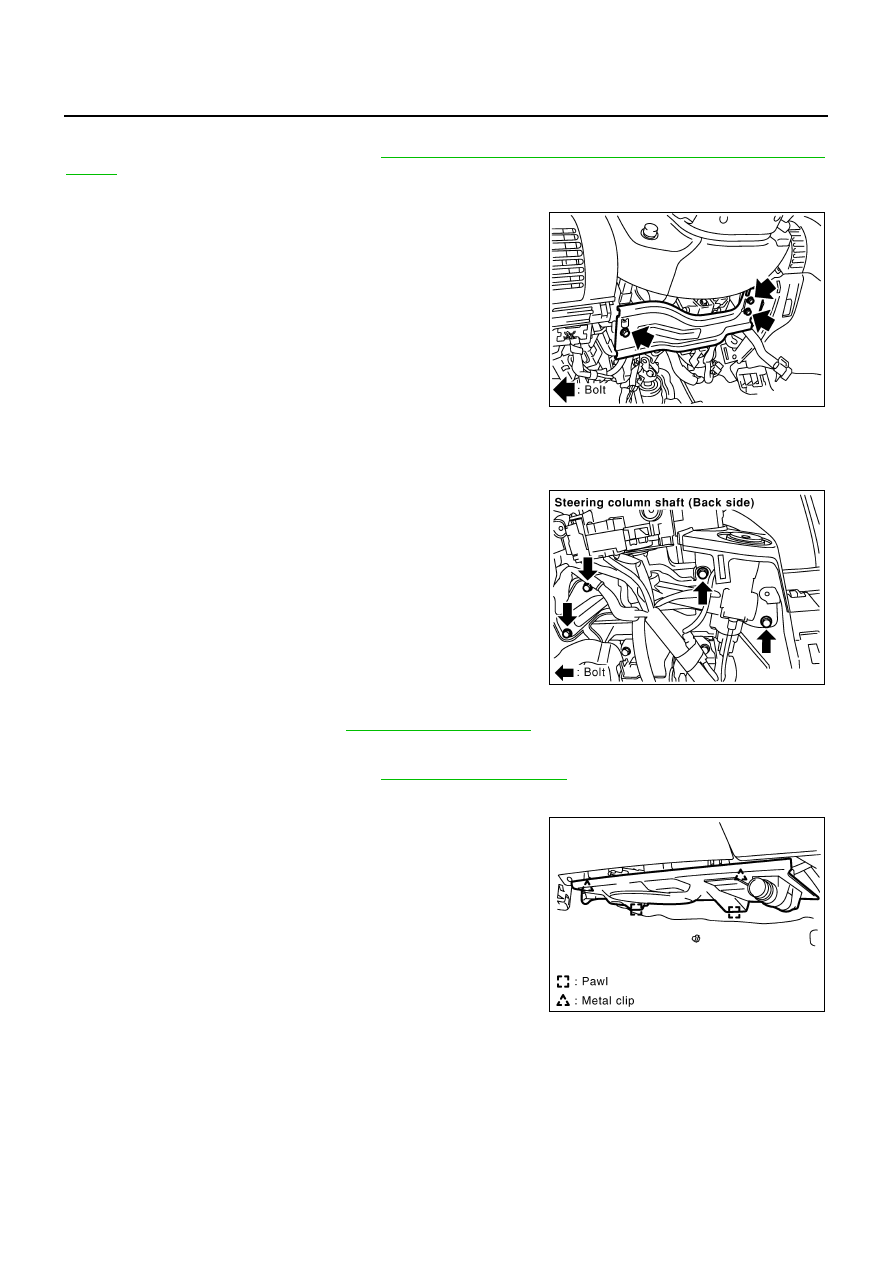

(Ae) Instrument Panel and Pad

1.

Lower steering column.

2.

Remove bolts and screws, and remove instrument panel and pad from passenger door opening portion.

INSTALLATION

Install in the reverse order of removal.

INSTRUMENT PANEL ASSEMBLY

IP-17

C

D

E

F

G

H

J

K

L

M

A

B

IP

Disassembly and Assembly

NIS000HE

CLUSTER LID A ASSEMBLY

Disassembly

1.

Remove screws, and then remove mirror control switch.

2.

Remove screws, and then remove cluster lid A cover.

3.

Remove screws, and then remove combination meter.

Assembly

Assemble in the reverse order of disassembly.

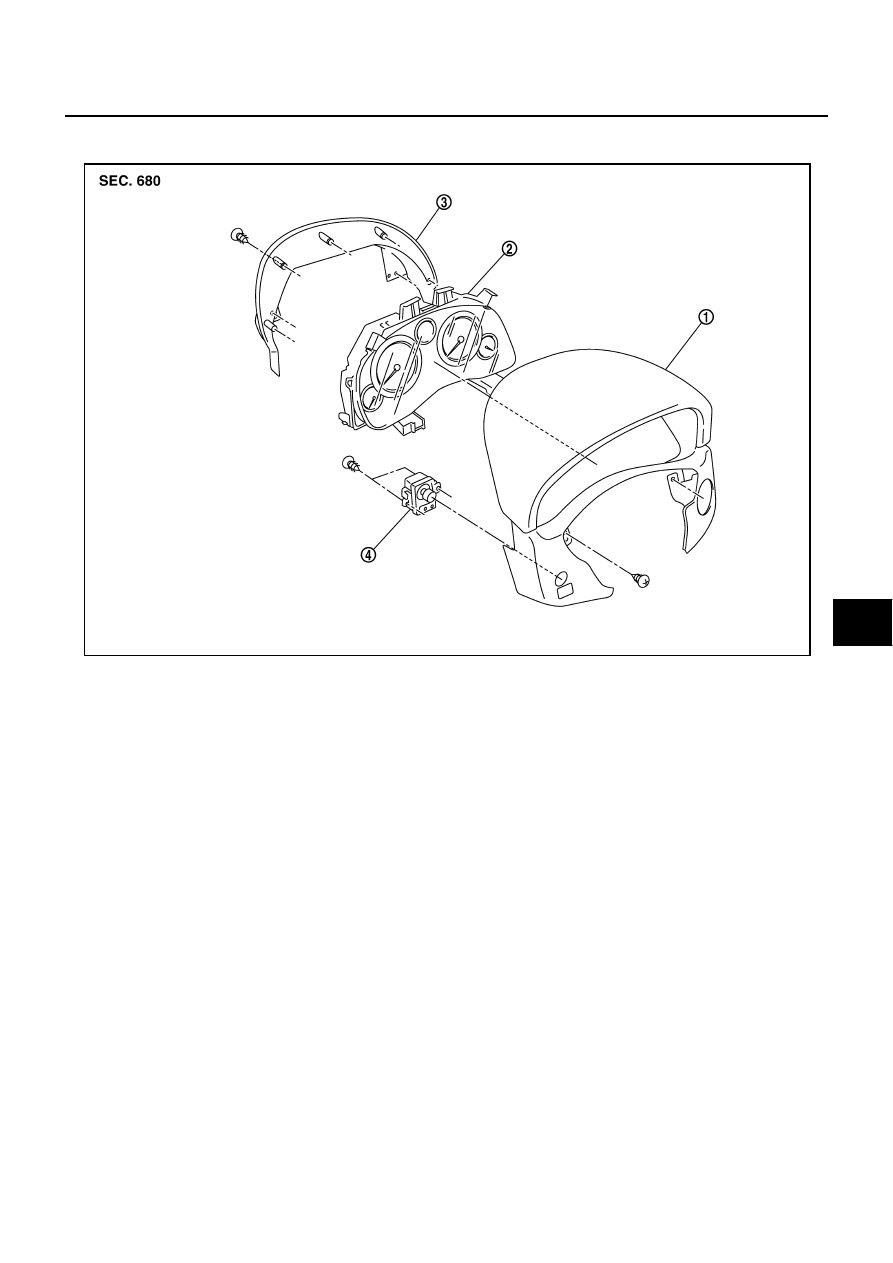

1.

Cluster lid A

2.

Combination meter

3.

Cluster lid A cover

4.

Mirror control switch

PIIB2713E
