3.

CHECK DOOR KEY CYLINDER SWITCH GROUND

Check continuity between door key cylinder switch connector D15
terminal 5 and ground.

OK or NG

OK

>> GO TO 4.

NG

>> Repair or replace harness.

4.

CHECK DOOR KEY CYLINDER SWITCH

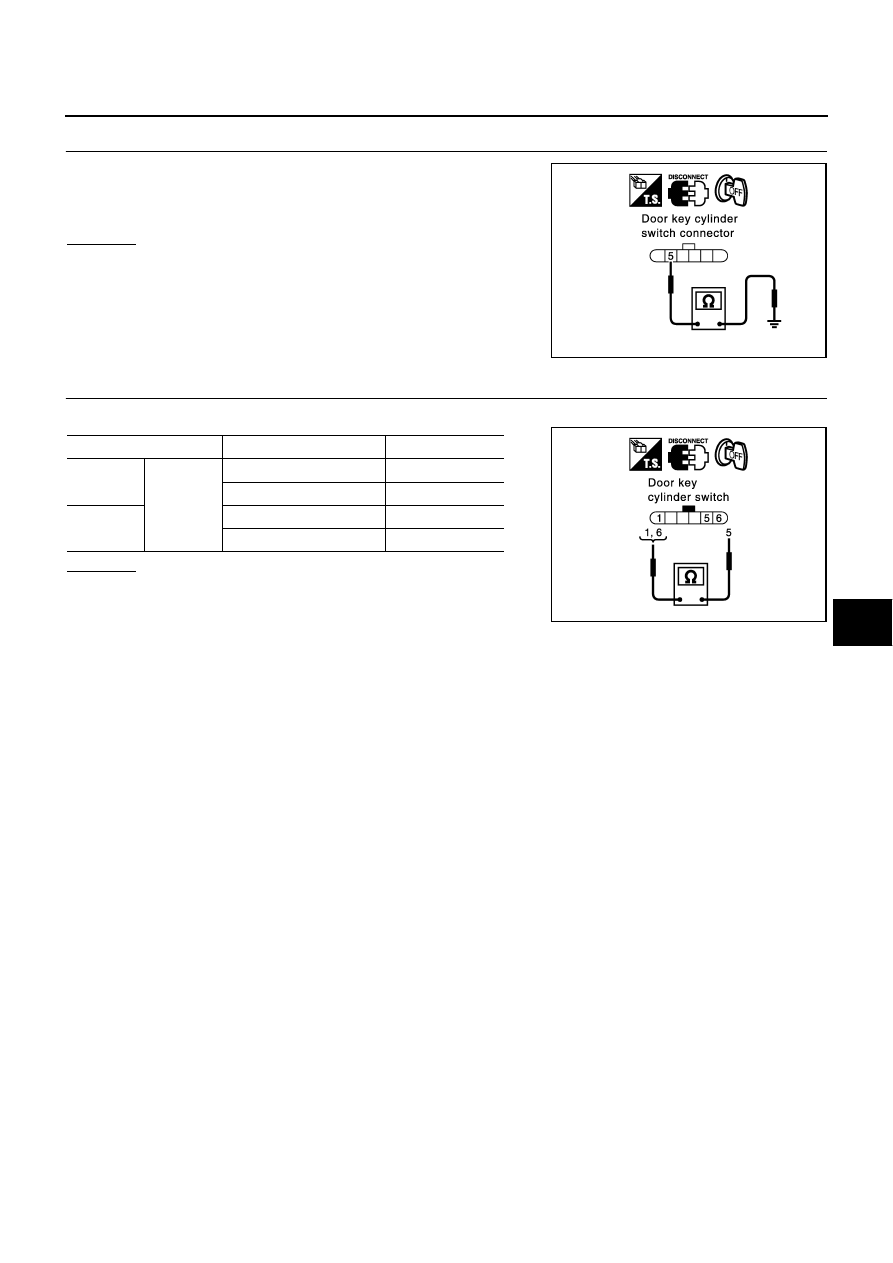

Check continuity between door key cylinder switch terminal 1, 6 and 5.

OK or NG

OK

>> Further inspection is necessary. Refer to symptom

chart.

NG

>> Replace door key cylinder switch.

5 (B) – Ground

: Continuity should exist.

PIIA3602E

Terminals

Key position

Continuity

1

5

Neutral / Unlock

No

Lock

Yes

6

Neutral / Lock

No

Unlock

Yes

PIIA3603E

GW-52

FRONT DOOR GLASS AND REGULATOR

FRONT DOOR GLASS AND REGULATOR

PFP:80300

Removal and Installation

NIS000EV

DOOR GLASS
Removal

1.

Remove the door finisher. Refer to

EI-29, "DOOR FINISHER"

 .

2.

Operate the power window main switch to raise/lower the door
window until the glass mounting bolts can be seen.

3.

Remove the glass mounting bolts.

PIIA3455E

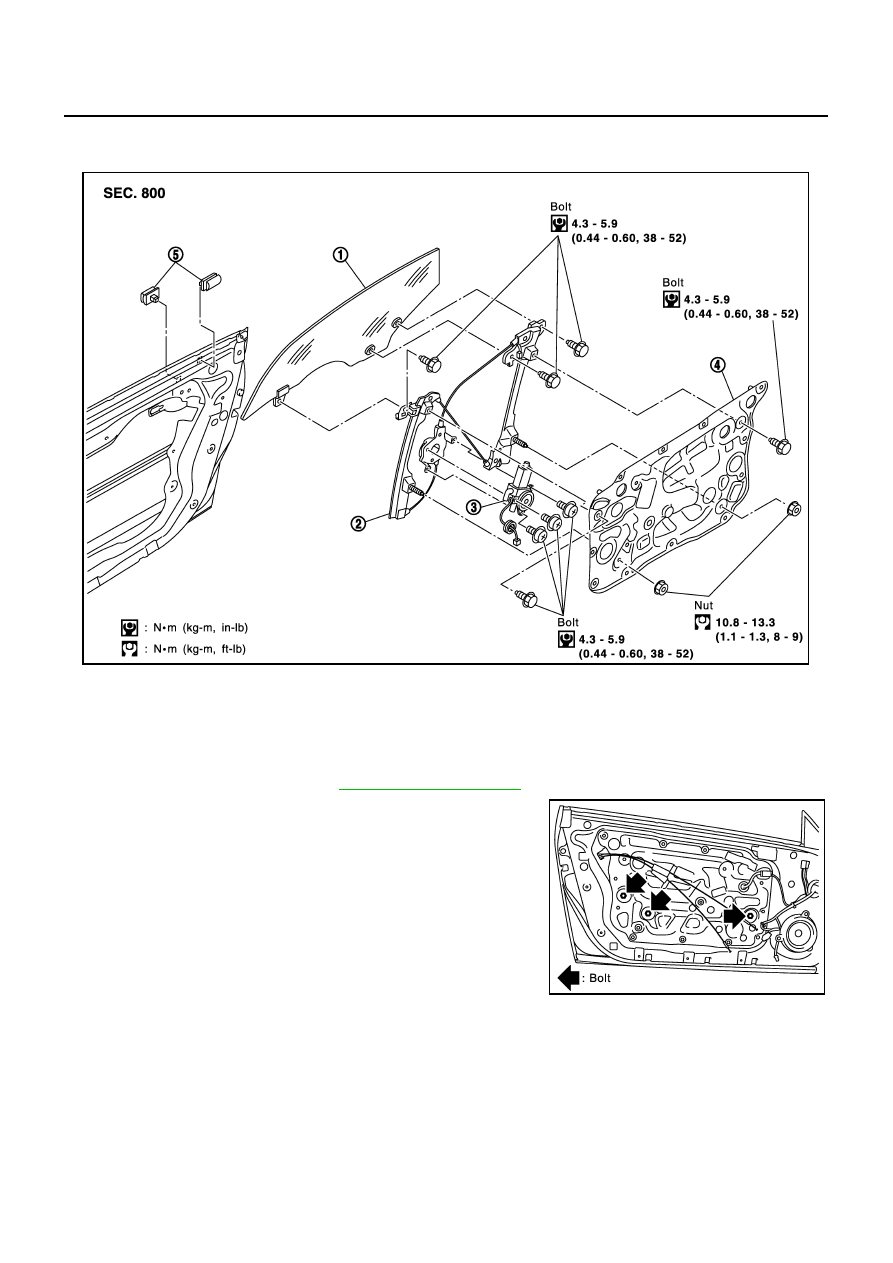

1.

Door glass

2.

Regulator assembly

3.

Power window motor

4.

Module assembly

5.

Glass stabilizer

PIIA3456E

FRONT DOOR GLASS AND REGULATOR

GW-53

C

D

E

F

G

H

J

K

L

M

A

B

GW

4.

While holding the door glass, raise it at the rear end to pull
toward the outside of the door.

Installation

Install in the reverse order of removal.

REGULATOR ASSEMBLY
Removal

1.

Remove the door glass. Refer to

GW-52, "DOOR GLASS"

 .

2.

Remove the mounting bolts, and remove the module assembly.

3.

Disconnect the harness connector for the module assembly, and
unclip the harness from the back.

Installation

Install in the reverse order of removal.

Inspection after Removal

Check the regulator assembly for the following items. If a malfunc-
tion is detected, replace or grease it.

●

Wire wear

●

Regulator deformation

●

Grease condition for each sliding part

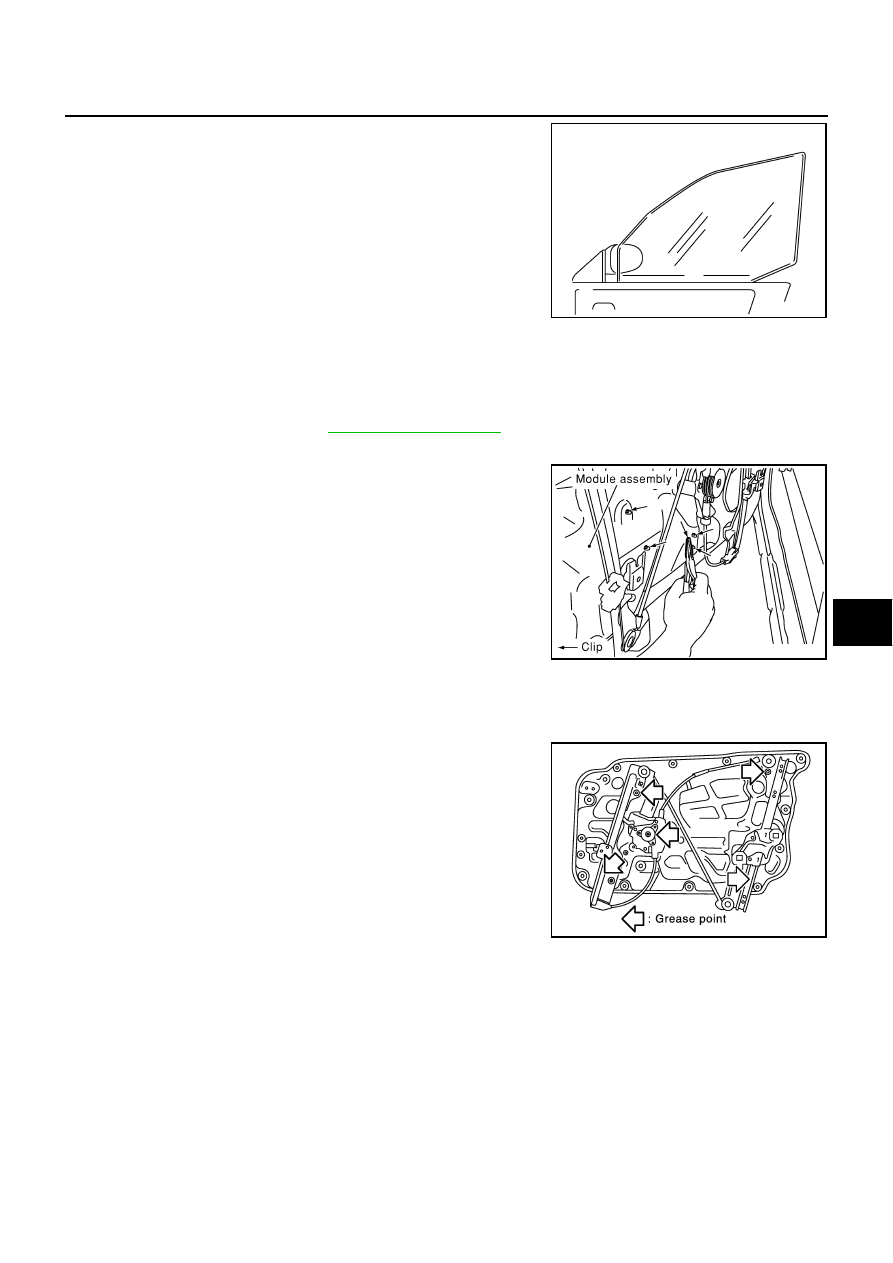

The arrows in the figure show the application points of the body
grease.

PIIA3461E

SIIA0287E

PIIA3457E

GW-54

FRONT DOOR GLASS AND REGULATOR

Disassembly and Assembly

NIS000EW

REGULATOR ASSEMBLY
Disassembly

Remove  power window motor and guide rail from  module assem-
bly.

Assembly

Assemble in the reverse order of removal.

Inspection after Installation

NIS000EX

SETTING OF LIMIT SWITCH

If any of the following work has been done, set the limit switch (integrated in the motor).

●

Removal and installation of the regulator.

●

Removal and installation of the motor from the regulator.

●

Operate the regulators as a unit.

●

Removal and installation of the glass.

Resetting

After installing each component to the vehicle, follow the steps below.

1.

With the door open, lift up and hold the power window switch until the door glass is fully closed.

2.

Get inside the vehicle and close the door.
You need to close the door so the door switch is fully depressed.

3.

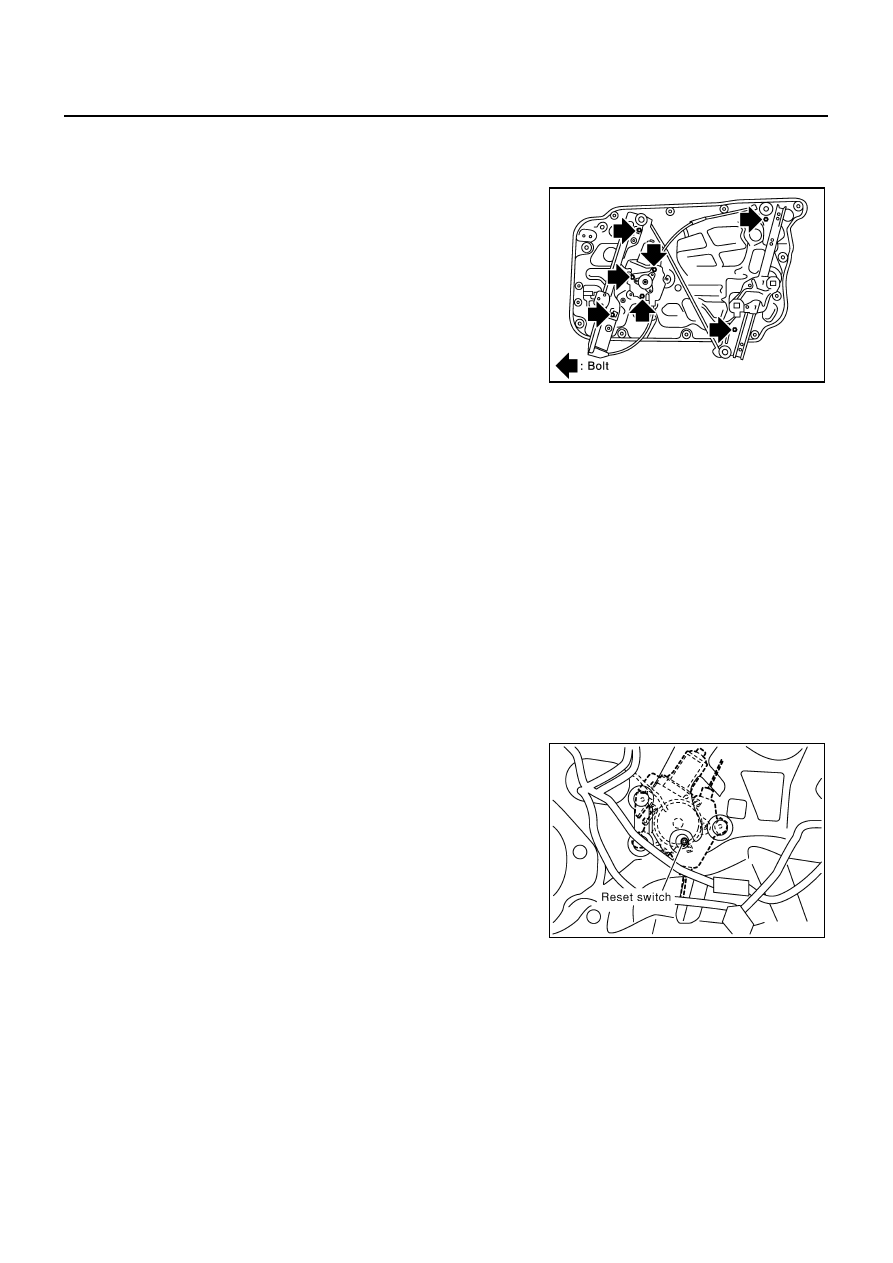

Press and hold the reset switch. While holding the reset switch, press down and hold the power window
switch until the door glass is fully opened.

4.

Release the reset switch.Then, lift up and hold the power win-
dow switch until the door glass is fully closed.

5.

Open the door to release the door switch. The door glass should
partially move down.

CAUTION:

●

Do not use the window auto function.

●

Do not release the switch before the window is fully
stopped.

FITTING INSPECTION

●

Check that the glass is securely fit into the glass run groove.

●

Lower the glass slightly [approx. 10 to 20 mm (0.39 to 0.79 in)] and check that the clearance to the sash is
parallel. If the clearance between the glass and sash is not parallel, loosen the regulator mounting bolts,
guide rail mounting bolts, and glass and guide rail mounting bolts to correct the glass position.

–

Regulator mounting bolt and nut

–

Glass and guide rail mounting bolt

PIIA3458E

SIIA0347E
