Infiniti G35 (V35). Manual - part 541





POWER WINDOW SYSTEM

GW-35

C

D

E

F

G

H

J

K

L

M

A

B

GW

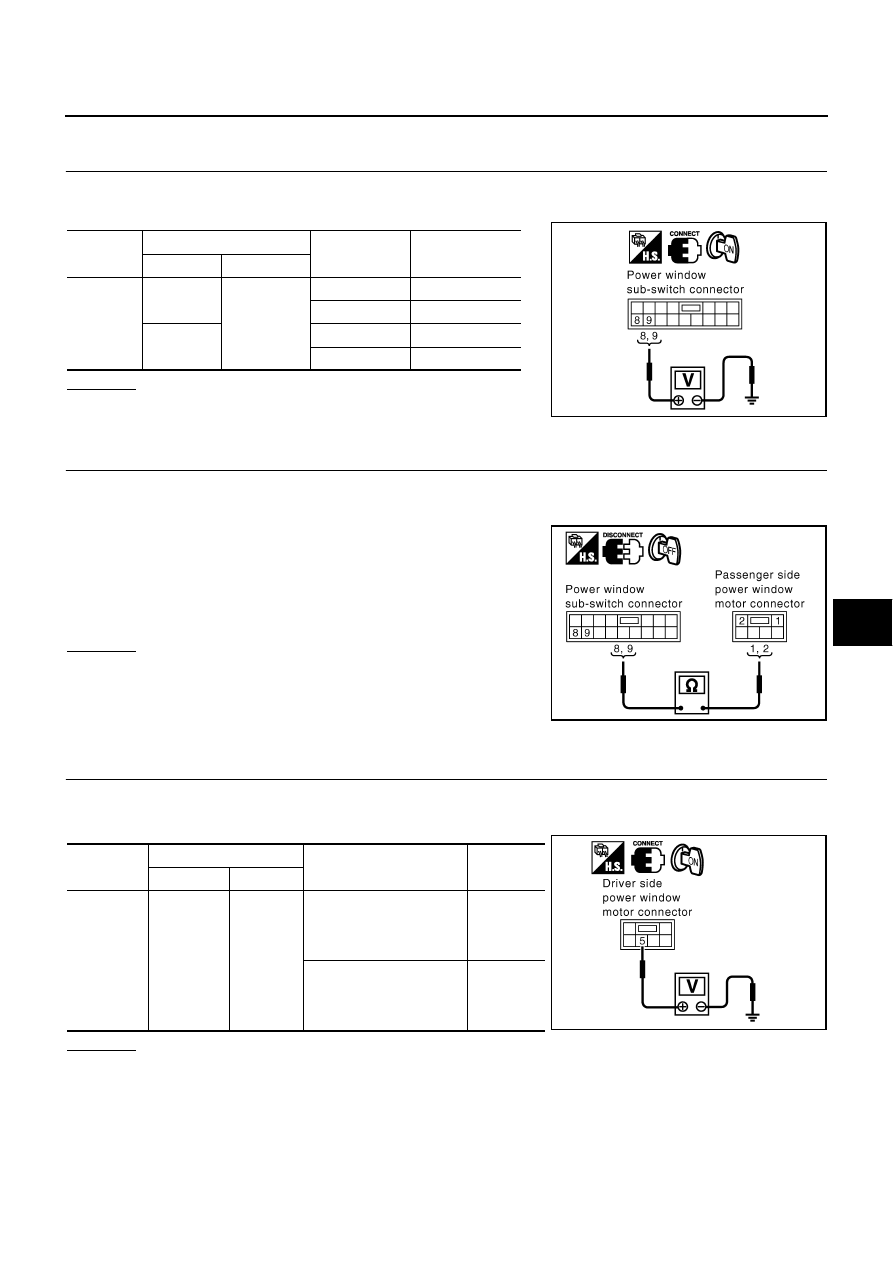

Check Passenger Side Power Window Motor Circuit

NIS000EM

1.

CHECK POWER WINDOW SUB-SWITCH OUTPUT SIGNAL

1.

Turn ignition switch ON.

2.

Check voltage between power window sub-switch connector and ground.

OK or NG

OK

>> GO TO 2.

NG

>> Replace power window sub-switch.

2.

CHECK POWER WINDOW MOTOR (PASSENGER SIDE) CIRCUIT

1.

Turn ignition switch OFF.

2.

Disconnect power window sub-switch and passenger side power window motor connector.

3.

Check continuity between power window sub-switch connector
D43 terminals 8, 9 and passenger side power window motor
connector D38 terminals 1, 2.

OK or NG

OK

>> Replace passenger side power window motor.

NG

>> Repair or replace harness.

Check Limit Switch Circuit (Driver Side)

NIS000EN

1.

CHECK DRIVER SIDE LIMIT SWITCH SIGNAL

1.

Turn ignition switch ON.

2.

Check voltage between driver side power window motor connector and ground.

OK or NG

OK

>> Limit sw circuit is OK.

NG

>> GO TO 2.

Connector

Terminals (Wire color)

Condition

Voltage (V)

(Approx.)

(+)

(-)

D43

8 (L)

Ground

Closing

Battery voltage

Opening

9 (G)

Closing

0

Opening

Battery voltage

PIIA3811E

9 (G) – 1 (G)

:Continuity should exist.

8 (L) – 2 (L)

:Continuity should exist.

PIIA8377E

Connector

Terminals (Wire color)

Condition

Voltage (V)

(Approx.)

(+)

(-)

D9

5 (OR)

Ground

Driver side door window is
between fully-open and
just before fully-closed
position (ON)

0

Driver side door window is
between just before fully-
closed position and fully-
closed position (OFF)

5

PIIA8378E

GW-36

POWER WINDOW SYSTEM

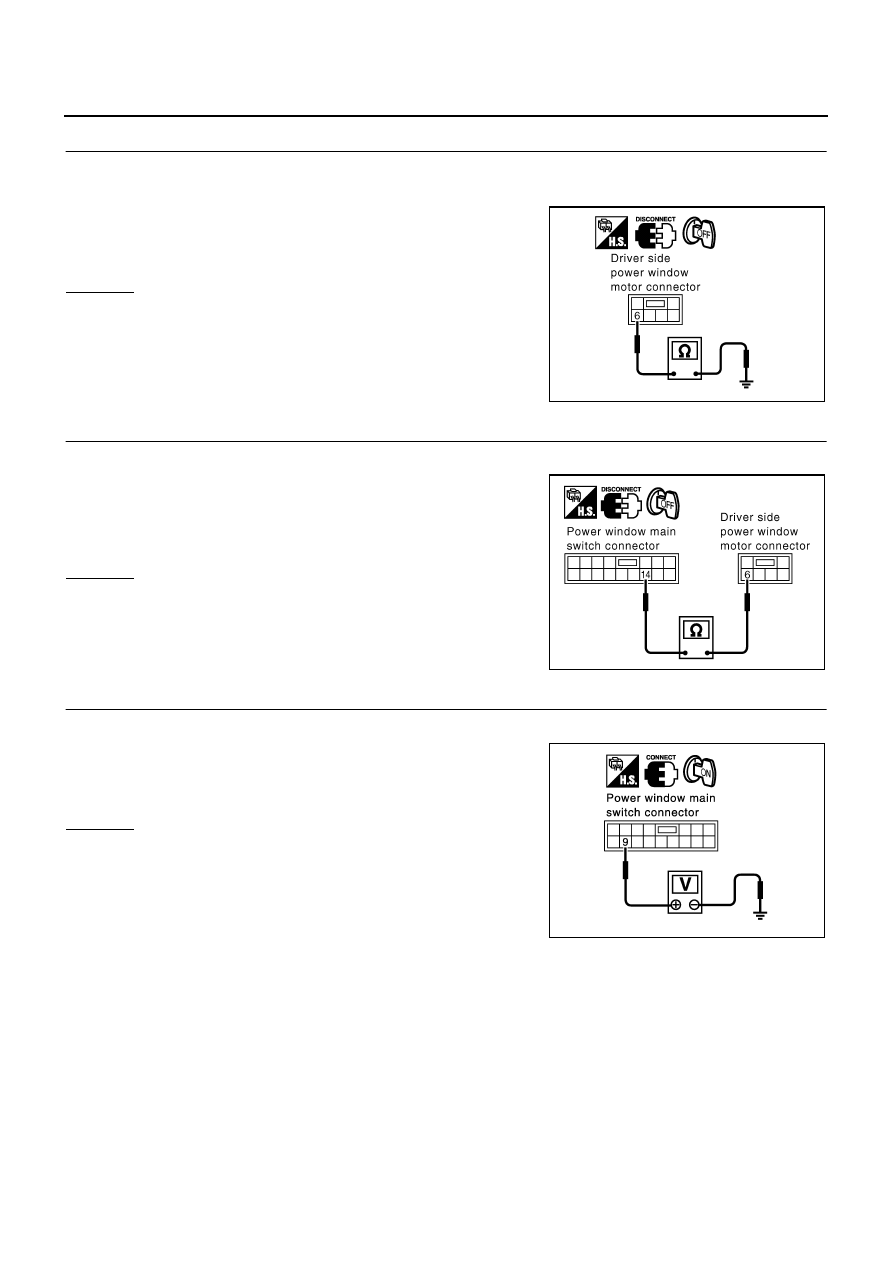

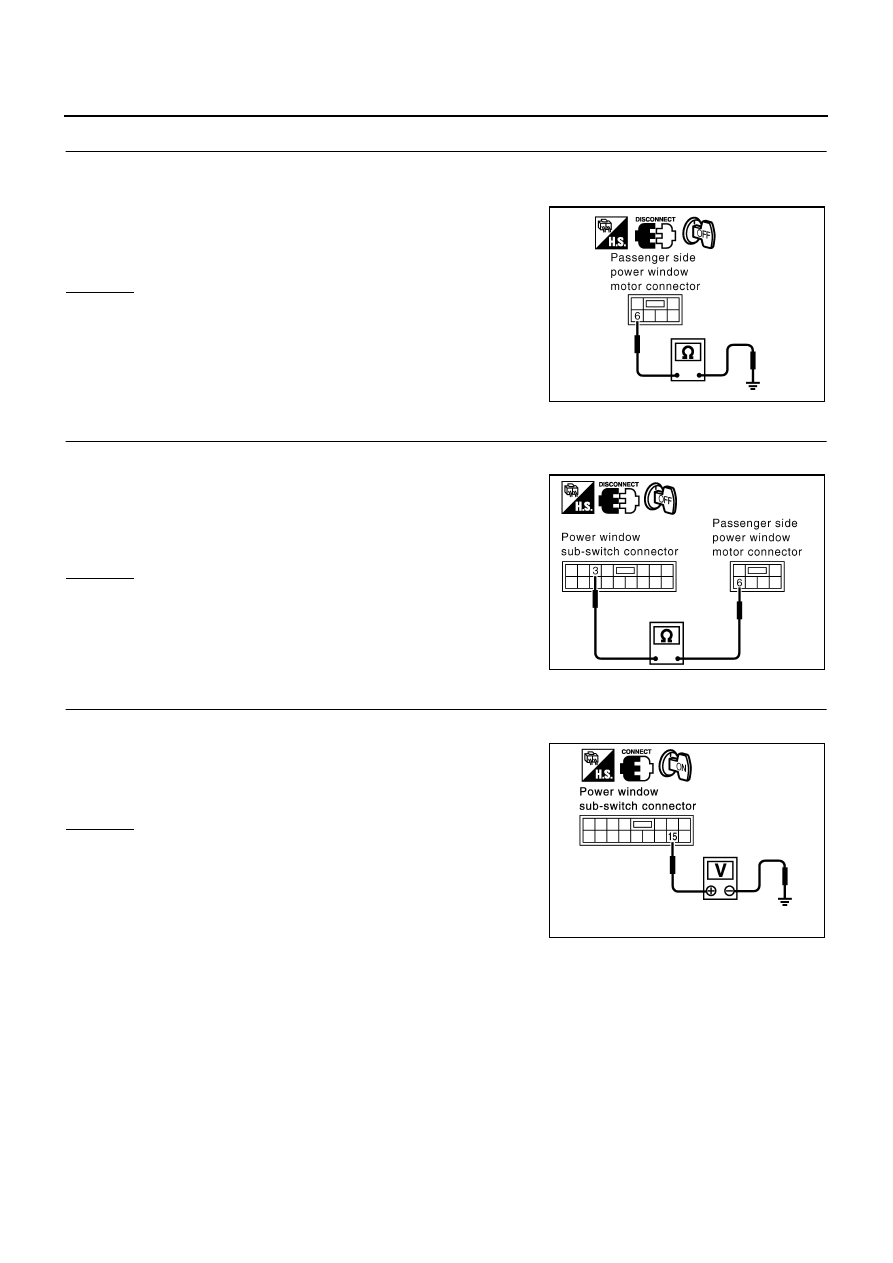

2.

CHECK LIMIT SWITCH GROUND CIRCUIT

1.

Turn ignition switch OFF.

2.

Disconnect driver side power window motor connector.

3.

Check continuity between driver side power window motor con-
nector D9 terminal 6 and ground.

OK or NG

OK

>> GO TO 4.

NG

>> GO TO 3.

3.

CHECK HARNESS CONTINUITY

1.

Disconnect power window main switch connector.

2.

Check continuity between power window main switch connector
D7 terminal 14 and driver side power window motor connector
D9 terminal 6.

OK or NG

OK

>> Replace power window main switch.

NG

>> Repair or replace harness.

4.

CHECK POWER WINDOW MAIN SWITCH OUTPUT SIGNAL

1.

Turn ignition switch ON.

2.

Check voltage between power window main switch connector
D7 terminal 9 and ground.

OK or NG

OK

>> GO TO 5.

NG

>> Replace power window main switch.

6 (PU) – Ground

:Continuity should exist.

PIIA8379E

14 (PU) – 6 (PU)

Continuity should exist.

PIIA8380E

9 (OR) – Ground

:Approx. 5V

PIIA2447E

POWER WINDOW SYSTEM

GW-37

C

D

E

F

G

H

J

K

L

M

A

B

GW

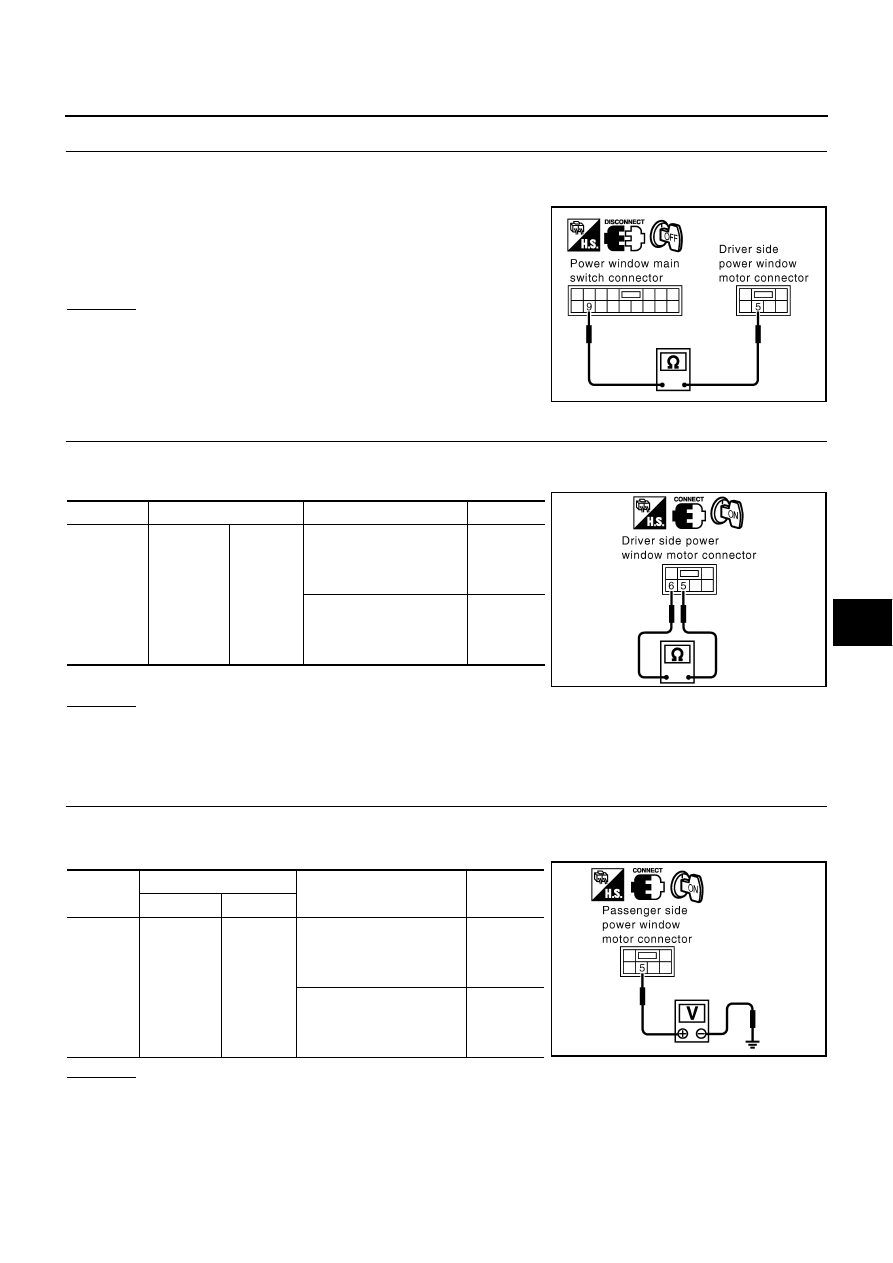

5.

CHECK HARNESS CONTINUITY

1.

Turn ignition switch OFF.

2.

Disconnect power window main switch connector.

3.

Check continuity between power window main switch connector
D7 terminal 9 and driver side power window motor connector D9
terminal 5.

OK or NG

OK

>> GO TO 6.

NG

>> Repair or replace harness.

6.

CHECK LIMIT SWITCH

1.

Connect power window main switch and driver side power window motor connector.

2.

Check continuity between driver side power window motor connector D9 terminal 5 and 6.

*: When checking continuity, turn ignition switch OFF.

OK or NG

OK

>> Check the condition of the harness and the connector.

NG

>> Replace driver side power window motor.

Check Limit Switch Circuit (Passenger Side)

NIS000EO

1.

CHECK POWER WINDOW LIMIT SWITCH SIGNAL

1.

Turn ignition switch ON.

2.

Check voltage between passenger side power window motor connector and ground.

OK or NG

OK

>> Limit sw circuit is OK.

NG

>> GO TO 2.

9 (OR) – 5 (OR)

: Continuity should exist.

PIIA8381E

Connector

Terminal (Wire color)

Condition

Continuity

D9

5 (OR)

6 (PU)

Driver side door window is
between fully-open and
just before fully-closed
position (ON)

Yes*

Driver side door window is
between just before fully-
closed position and fully-
closed position (OFF)

No*

PIIA8382E

Connector

Terminals (Wire color)

Condition

Voltage (V)

(Approx.)

(+)

(-)

D38

5 (OR)

Ground

Passenger side door win-
dow is between fully-open
and just before fully-closed
position (ON)

0

Passenger side door win-
dow is between just before
fully-closed position and
fully-closed position (OFF)

5

PIIA8383E

GW-38

POWER WINDOW SYSTEM

2.

CHECK LIMIT SWITCH GROUND CIRCUIT

1.

Turn ignition switch OFF.

2.

Disconnect passenger side power window motor connector.

3.

Check continuity between passenger side power window motor
connector D38 terminal 6 and ground

OK or NG

OK

>> GO TO 4.

NG

>> GO TO 3.

3.

CHECK HARNESS CONTINUITY

1.

Disconnect power window sub-switch connector.

2.

Check continuity between power window sub-switch connector
D43 terminal 3 and passenger side power window motor con-
nector D38 terminal 6.

OK or NG

OK

>> Replace power window sub-switch.

NG

>> Repair or replace harness.

4.

CHECK POWER WINDOW SUB-SWITCH OUTPUT SIGNAL

1.

Turn ignition switch ON.

2.

Check voltage between power window sub-switch connector
D43 terminal 15 and ground.

OK or NG

OK

>> GO TO 5.

NG

>> Replace power window sub-switch.

6 (PU) – Ground

:Continuity should exist.

PIIA8384E

3 (PU) – 6 (PU)

:Continuity should exist.

PIIA8385E

15 (OR) – Ground

:Approx. 5V

PIIA2452E
