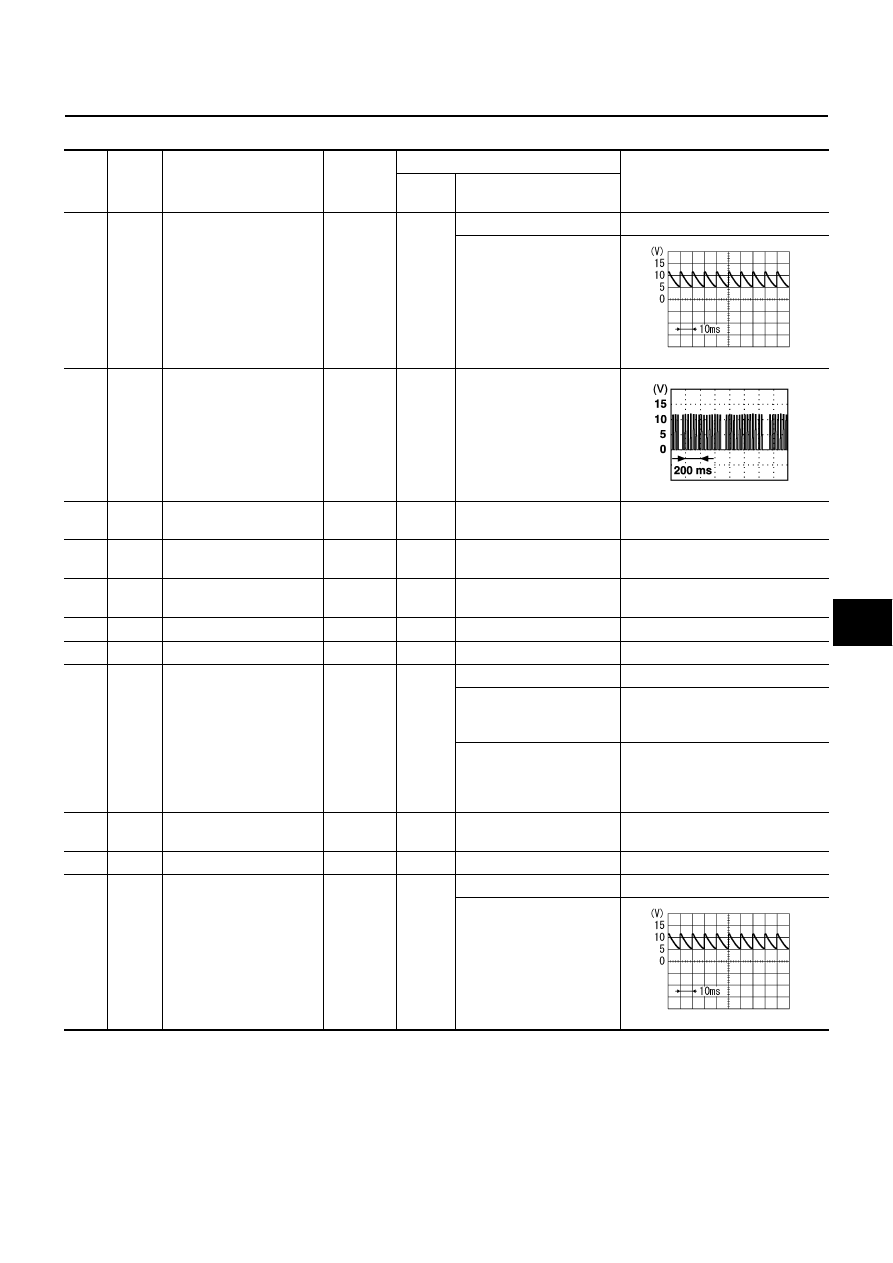

POWER WINDOW SYSTEM

GW-27

C

D

E

F

G

H

J

K

L

M

A

B

GW

Terminal and Reference Value for BCM

NIS000ED

Ter-

minal

Wire

color

Item

Signal

input/out-

put

Condition

Voltage (V)

(Approx.)

Ignition

switch

Operation or condition

12

P

Passenger side door
switch

Input

OFF

ON (open)

 0

OFF (closed)

22

Y

Power window serial link

Input/Out-

put

ON

—

38

W/L

Ignition switch ON or
START

Input

ON

Ignition switch
(ON or START position)

Battery voltage

39

L

CAN - H

Input/Out-

put

—

—

—

40

P

CAN - L

Input/Out-

put

—

—

—

42

GY

BAT power supply

Input

OFF

—

Battery voltage

52

B

Ground

—

ON

—

0

53

Y/B

Rap signal

Output

—

IGN SW ON

Battery voltage

Within 45 second after
ignition switch is turned to
OFF

Battery voltage

When driver side or pas-
senger side door is open in
power window  timer is
operates.

0

54

W

Power window switch
power supply

Output

OFF

—

Battery voltage

55

W/R

BAT power supply

Input

OFF

—

Battery voltage

62

Y

Driver side door switch

Input

OFF

ON (open)

 0

OFF (closed)

SKIB3419J

PIIA2344J

SKIB3419J

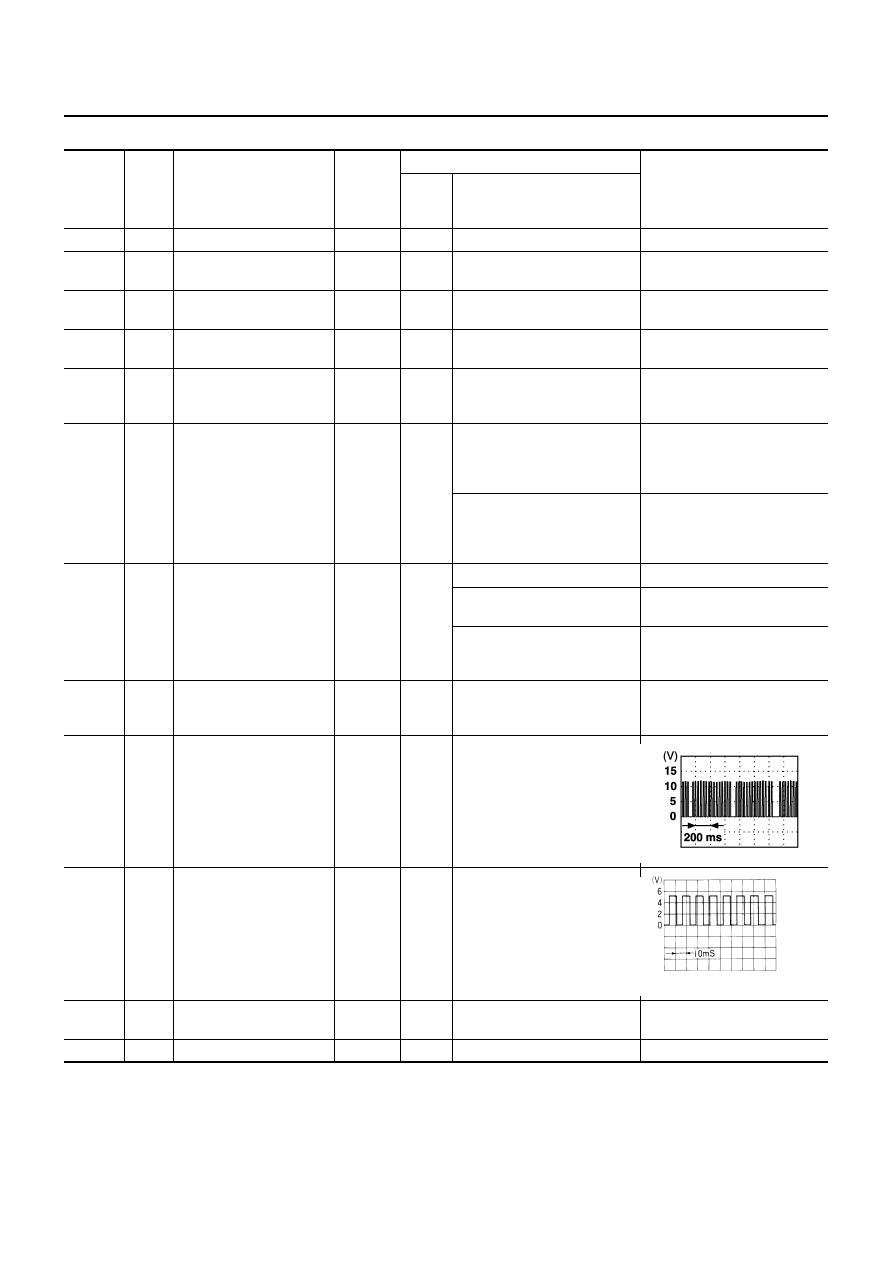

GW-28

POWER WINDOW SYSTEM

Terminal and Reference Value for Power Window Main Switch

NIS000EE

Termi-

nal

Wire

color

Item

Signal

input/out-

put

Condition

Voltage (V)

(ApproX.)

Igni-

tion

switch

Operation or condition

1

W

BAT power supply

Input

OFF

—

Battery voltage

5

R

Encoder power supply

Output

ON

When ignition switch ON or
power window timer operates

10

6

Y

Key cylinder lock switch

Input

OFF

Key position
(Neutral

→

 Locked)

5

→

 0

7

SB

Key cylinder unlock switch

Input

OFF

Key position
(Neutral

→

 Unlocked)

5

→

 0

8

L

Driver side
power window motor UP
signal

Output

ON

When power window motor
 UP operation.

Battery voltage

9

OR

Limit switch signal

Input

ON

Driver side door window is
between fully-open and just
before fully-closed position
(ON).

0

Driver side door window is
between just before fully-
closed position and fully-closed
position (OFF).

5

10

P

Rap signal

Input

—

IGN SW ON

Battery voltage

Within 45 second after ignition
switch is turned to OFF

Battery voltage

When driver side or passenger
side door is open in power win-
dow timer operates.

0

11

G

Driver side
power window motor
DOWN signal

Output

ON

When power window motor
DOWN operation.

 Battery voltage

12

BR

Power window serial link

Input/

Output

ON

—

13

LG

Encoder pulse signal

Input

ON

When power window motor
operates.

14

PU

Limit switch and encoder
ground

—

ON

—

0

15

B

Ground

—

OFF

—

0

PIIA2344J

OCC3383D

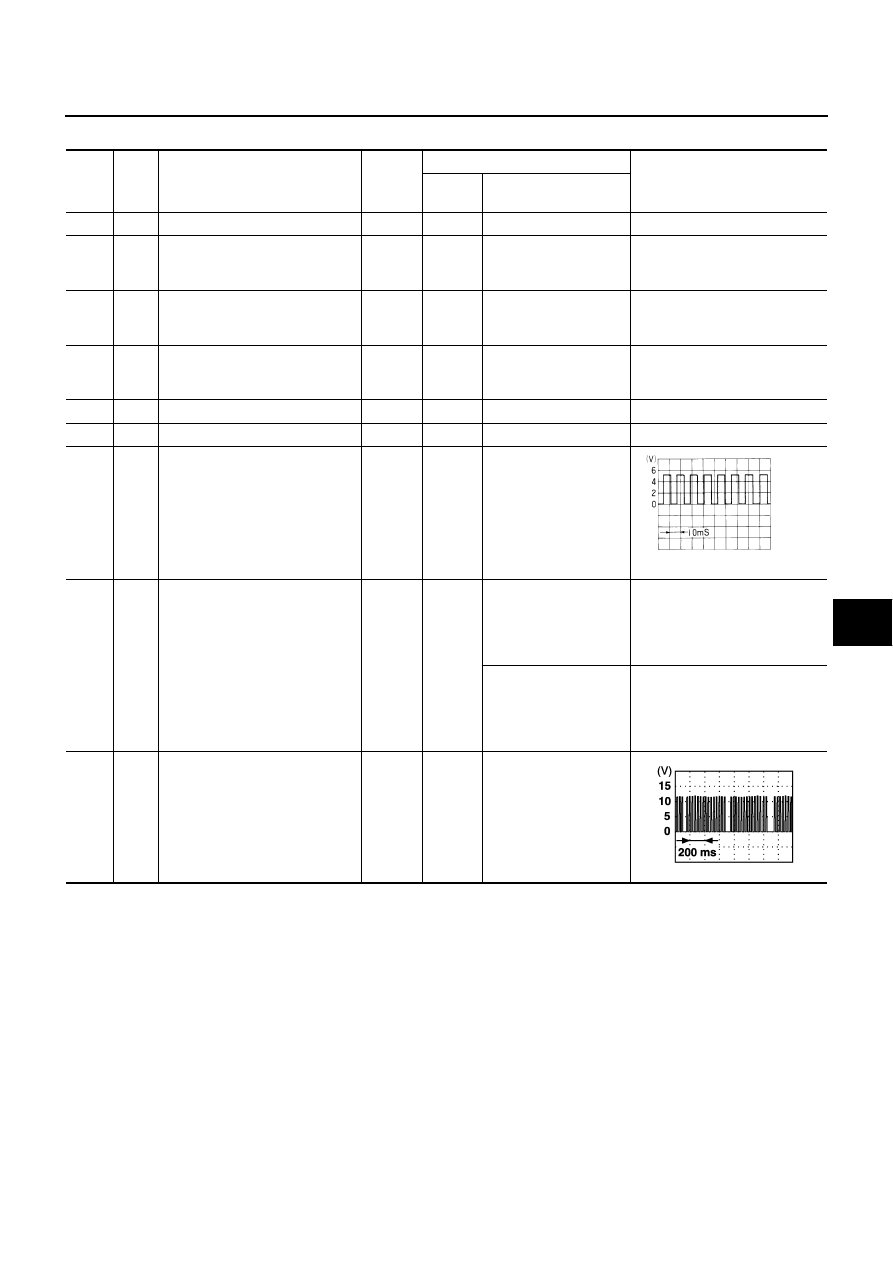

POWER WINDOW SYSTEM

GW-29

C

D

E

F

G

H

J

K

L

M

A

B

GW

Terminal and Reference Value for Power Window Sub–Switch

NIS000EF

Ter-

minal

Wire

color

Item

Signal

input/

output

Condition

Voltage (V)

(Approx)

Ignition

switch

Operation or condition

3

PU

Limit switch and encoder ground

—

ON

—

0

4

R

Encoder power supply

Output

ON

When ignition switch
ON or power window
timer operates

10

8

L

Passenger side
power window motor UP signal

Output

ON

When power window
motor
 UP operation.

 Battery voltage

9

G

Passenger side
power window motor DOWN sig-
nal

Output

ON

When power window
motor DOWN operation.

 Battery voltage

10

W

BAT power supply

Input

OFF

—

Battery voltage

11

B

Ground

—

ON

—

0

12

LG

Encoder pulse signal

Input

ON

When power window
motor operates.

15

OR

Limit switch signal

Input

ON

Passenger side door
window is between
fully-open and just
before fully-closed posi-
tion (ON).

0

Passenger side door
window is between just
before fully-closed posi-
tion and fully-closed
position (OFF).

5

16

Y

Power window serial link

Input/

Output

ON

—

OCC3383D

PIIA2344J

GW-30

POWER WINDOW SYSTEM

CONSULT-II Function (BCM)

NIS000EG

CONSULT-II can display each diagnostic item using the diagnostic test modes shown following.

CONSULT-II START PROCEDURE

Refer to

GI-37, "CONSULT-II Start Procedure"

WORK SUPPORT

DATE MONITOR

ACTIVE TEST

BCM diagnostic test item

Check item diagnostic test mode

Content

RETAINED PWR

Work support

Changes setting of each function.

Data monitor

Displays the input data of BCM in real time.

Active test

Gives a drive signal to a load to check the operation.

Work item

Description

RETAINED PWR

Rap signal’s power supply period can be changed by mode setting. Selects rap signal’s power
supply period between three steps

●

MODE 1 (45 sec.) / MODE 2 (OFF) / MODE 3 (2 min.).

Monitor  item

Description

IGN ON SW

Indicates [ON/OFF] condition of ignition switch.

DOOR SW–DR

Indicates [ON/OFF] condition of driver side door switch.

DOOR SW–AS

Indicates [ON/OFF] condition of passenger side door switch.

Test Item

Description

RETAINED PWR

This test is able to supply RAP signal (power) from BCM (body control module) to power window
system and power sunroof system (if equipped). Those systems can be operated when turning on
“RETAINED PWR” on CONSULT-II screen even if the ignition switch is turned OFF.

NOTE:
During this test, CONSULT-II can be operated with ignition switch in “OFF” position. “RETAINED
PWR” should be turned “ON” or “OFF” on CONSULT-II screen when ignition switch is ON. Then
turn ignition switch OFF to check retained power operation. CONSULT-II might be stuck if
“RETAINED PWR” is turned “ON” or “OFF” on CONSULT-II screen when ignition switch is OFF.
