Infiniti G35 (V35). Manual - part 460

FLOOR TRIM

EI-35

C

D

E

F

G

H

J

K

L

M

A

B

EI

14. Remove carpet hook.

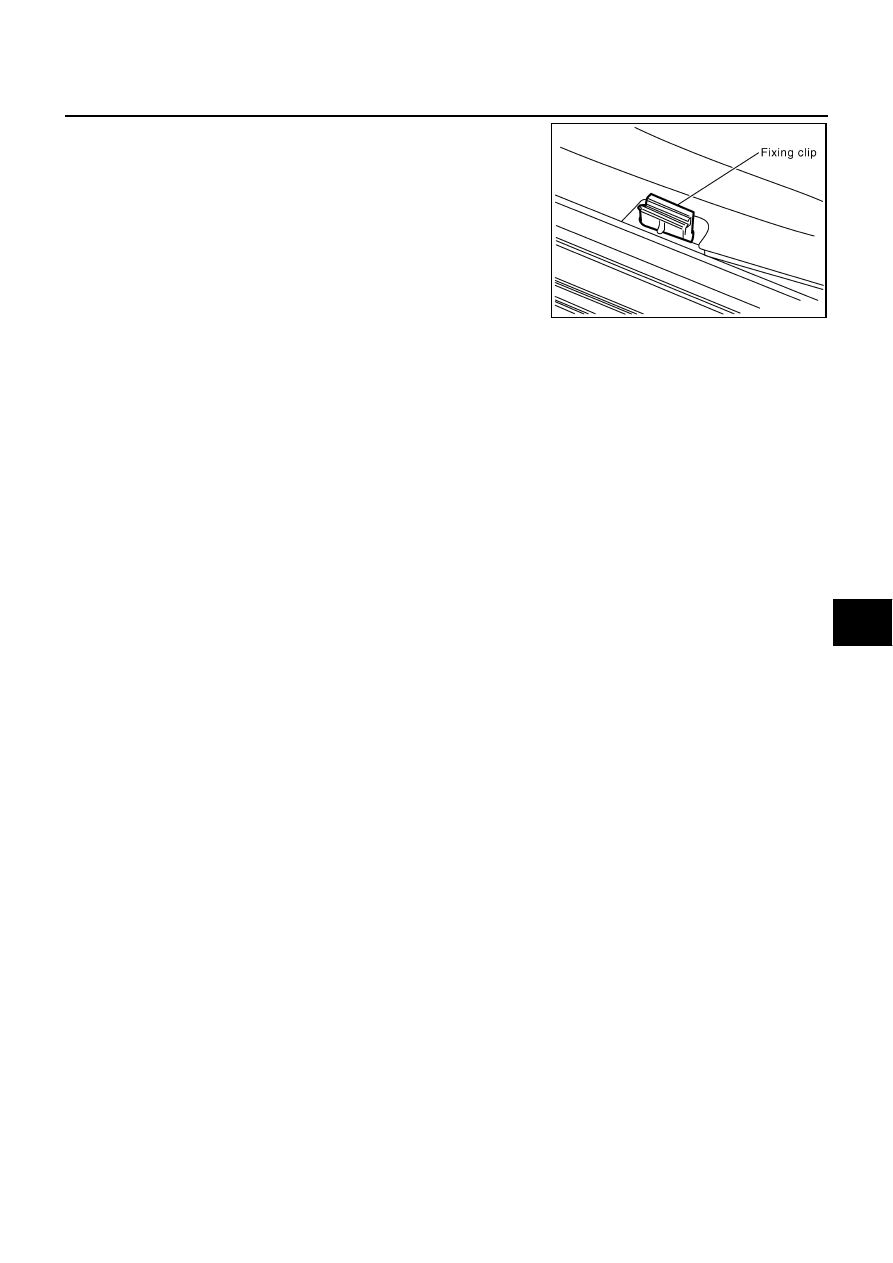

15. Remove floor carpet from carpet clip and remove floor carpet.

INSTALLATION

Install in the reverse order of removal.

PIIA1223E

EI-36

HEADLINING

HEADLINING

PFP:73910

Removal and Installation

NIS000H2

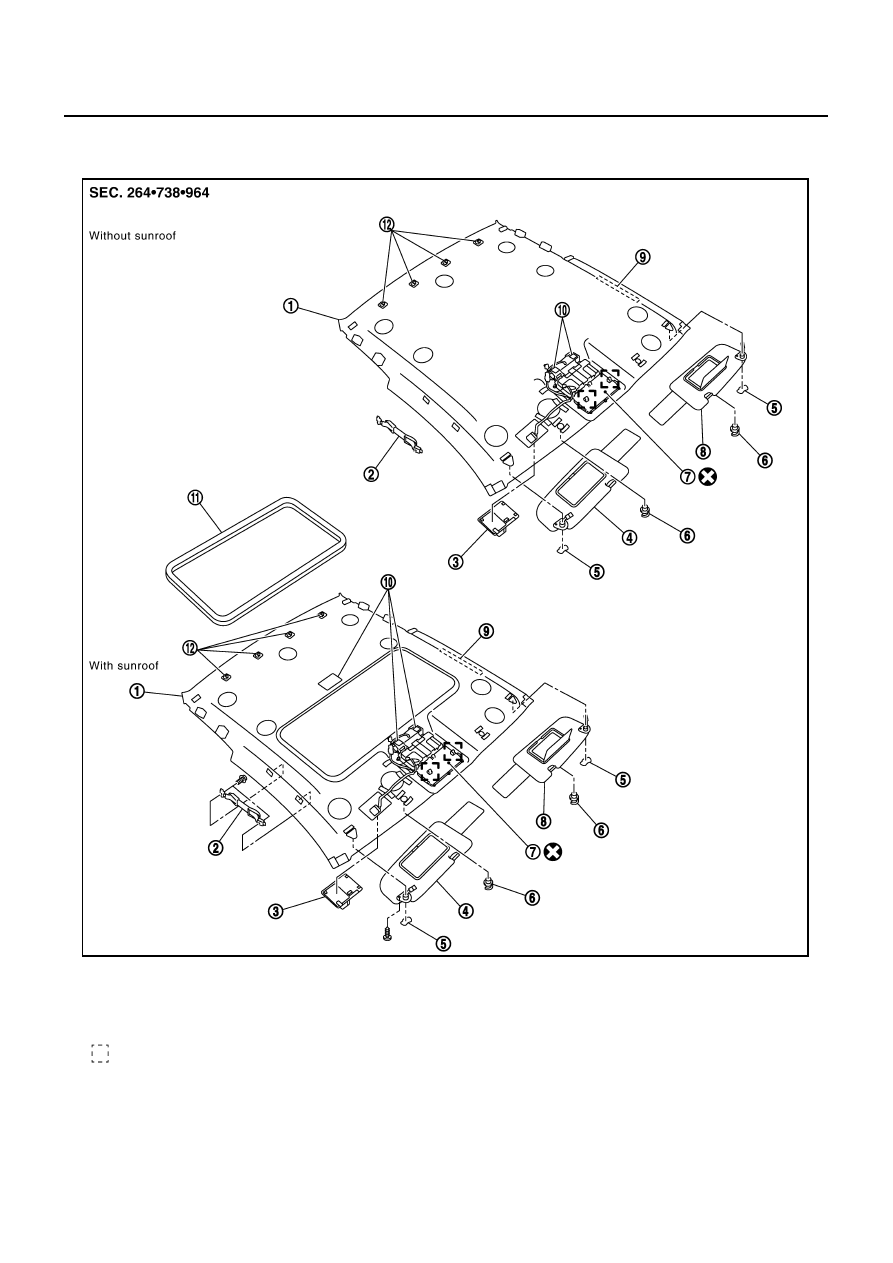

1.

Headlining

2.

Assist grip

3.

Roof front finisher

4.

Sun-visor (right)

5.

Sun-visor cover

6.

Sun-visor holder

7.

Map lamp assembly

8.

Sun-visor (left)

9.

Card holder

10. Dual lock fastener

11. Sunroof welt

12. Clamp

Metal clip

PIIB7202E

HEADLINING

EI-37

C

D

E

F

G

H

J

K

L

M

A

B

EI

REMOVAL

1.

Remove front pillar garnish. Refer to

EI-31, "BODY SIDE TRIM"

  .

2.

Remove rear side finisher. Refer to

EI-31, "BODY SIDE TRIM"

  .

3.

Remove rear pillar garnish. Refer to

EI-31, "BODY SIDE TRIM"

  .

4.

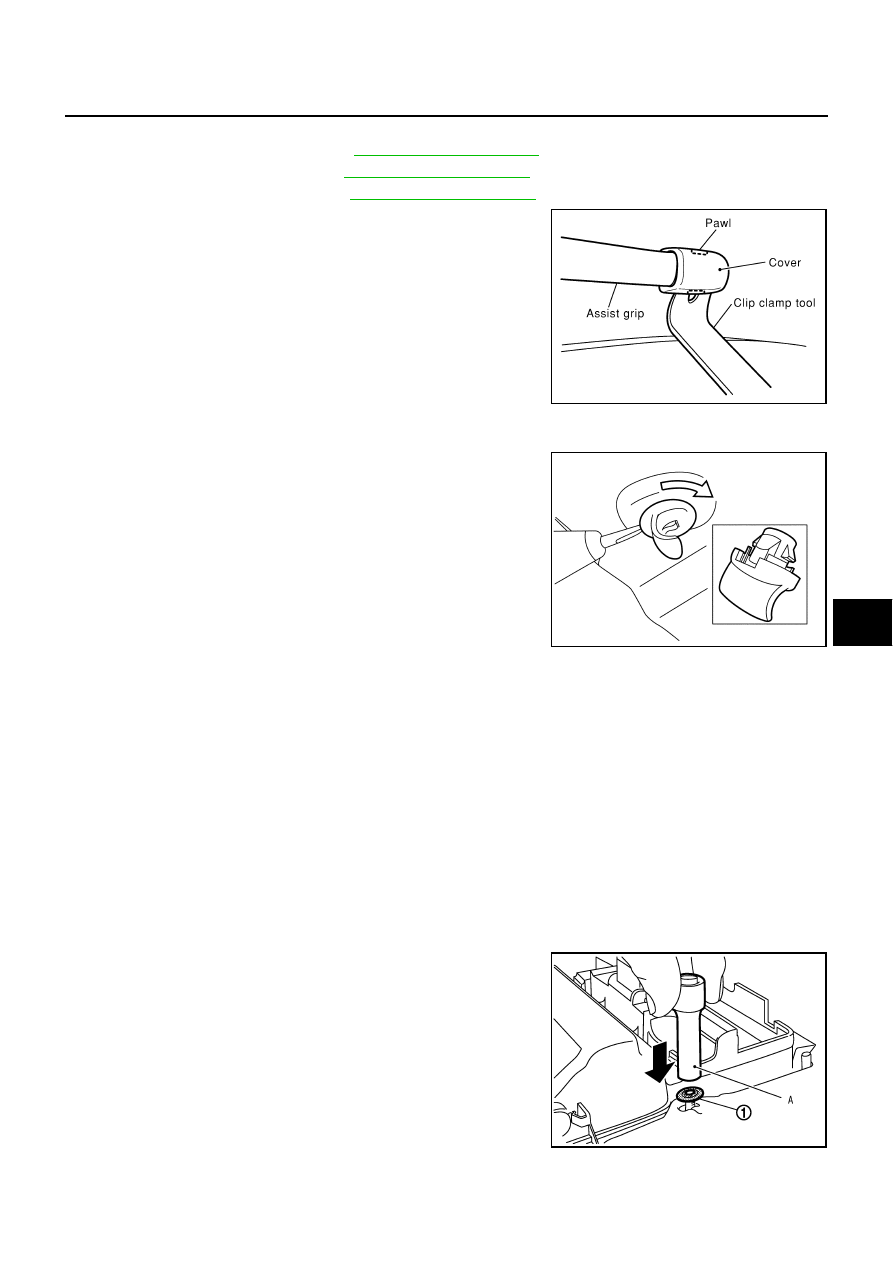

Remove assist grip cover, disconnect pawls both on upper and
lower parts insert clip clamp remover, slide cover inward, and
remove screws.

5.

Remove sun-visor (RH/LH), and disconnect harness connector with lamp model.

6.

Remove sun-visor holder (RH/LH).
NOTE:
Insert flat-bladed screw driver to edge, and turn it 90 degrees
and remove sun-visor holder.

7.

Remove roof front finisher and disconnect headlining module harness connector.

8.

Remove sunroof welt (with sunroof only).

9.

Remove dual lock fastener.

10. Put front seat to front most and recline seatback to backward.
11. Remove headlining, turn and take out from right side door.

CAUTION:

●

Always remove or install in a pair.

●

Cover surroundings with waste to avoid scratches or damages.

●

Do not bend headlining too hard.

INSTALLATION

Install in the reverse order of removal.

CAUTION:

●

Do not bend headlining when installing.

●

When installing the map lamp assembly (new unit), use
tools like drafter or deep socket A to eliminate the gap
between the headlining and the above new units while the
push on nuts (1).

PIIA1225E

SIIA0224J

PIIB7194J

EI-38

TRUNK ROOM TRIM & TRUNK LID FINISHER

TRUNK ROOM TRIM & TRUNK LID FINISHER

PFP:84920

Removal and Installation for Trunk Room Trim

NIS000H3

TRUNK ROOM TRIM
Removal

1.

Remove trunk floor board.

2.

Remove trunk rear plate.

3.

Remove trunk rear finisher (end).

4.

Remove trunk rear finisher welt.

5.

Remove rear seat back lever finisher.

6.

Remove trunk rear finisher (upper).

7.

Remove rear wheelhouse finisher (left/right).

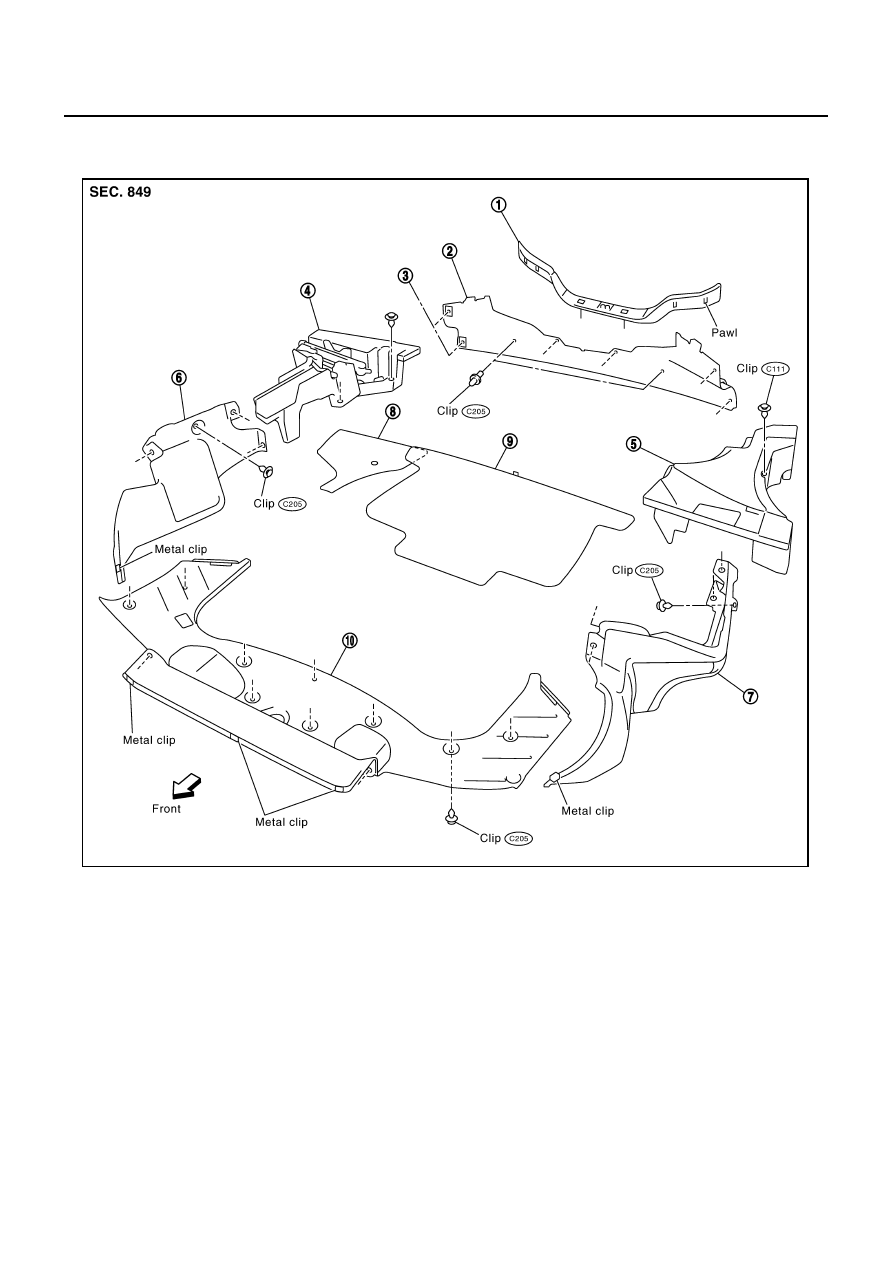

1.

Trunk rear plate

2.

Trunk Rear finisher (end)

3.

Net hook

4.

Trunk floor spacer (right)

5.

Trunk floor spacer (left)

6.

Rear wheelhouse finisher (right)

7.

Rear wheelhouse finisher (left)

8.

Trunk floor board (right)

9.

Trunk floor board (center)

10. Trunk rear finisher (upper)

PIIA3577E
