ASCD INDICATOR

EC-649

C

D

E

F

G

H

I

J

K

L

M

A

EC

Diagnostic Procedure

NBS0012E

1.

CHECK OVERALL FUNCTION

Check ASCD indicator under the following conditions.

OK or NG

OK

>> INSPECTION END

NG

>> GO TO 2.

2.

CHECK DTC

Check that DTC U1000 or U1001 is not displayed.

OK or NG

OK

>> GO TO 3.

NG

>> Perform trouble diagnoses for DTC U1000, U1001. Refer to

EC-161, "DTC U1000, U1001 CAN

COMMUNICATION LINE"

 .

3.

CHECK COMBINATION METER OPERATION

Does combination meter operate normally?

Yes or No

Yes

>> GO TO 4.

No

>> Check combination meter circuit. Refer to

DI-4, "COMBINATION METERS"

 .

4.

CHECK INTERMITTENT INCIDENT

Refer to

EC-151, "TROUBLE DIAGNOSIS FOR INTERMITTENT INCIDENT"

 .

>> INSPECTION END

ASCD INDICATOR

CONDITION

SPECIFICATION

CRUISE LAMP

Ignition switch: ON

MAIN switch: Pressed at the 1st
time

 at the 2nd time

ON

 OFF

SET LAMP

MAIN switch: ON

When vehicle speed is between 40 km/h
(25 MPH) and 144 km/h (89 MPH)

ASCD: Operating

ON

ASCD: Not operating

OFF

EC-650

ELECTRICAL LOAD SIGNAL

ELECTRICAL LOAD SIGNAL

PFP:25350

Description

NBS00123

The electrical load signal (Headlamp switch signal, rear window defogger switch signal, etc.) is transferred
through the CAN communication line from BCM to ECM via IPDM E/R.

CONSULT-II Reference Value in Data Monitor Mode

NBS00124

Specification data are reference values.

Diagnostic Procedure

NBS00125

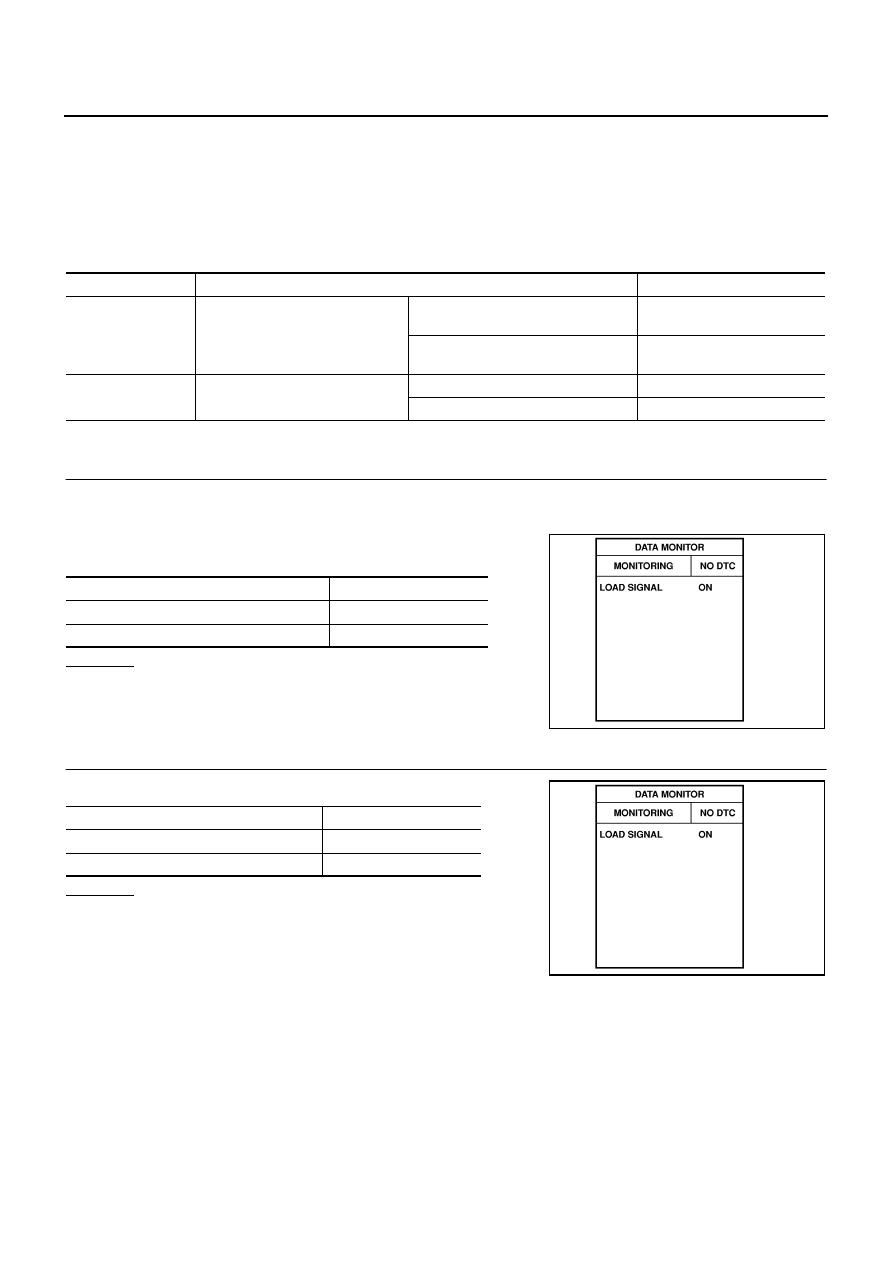

1.

CHECK LOAD SIGNAL CIRCUIT OVERALL FUNCTION-I

1.

Turn ignition switch ON.

2.

Connect CONSULT-II and select “DATA MONITOR” mode.

3.

Select “LOAD SIGNAL” and check indication under the following
conditions.

OK or NG

OK

>> GO TO 2.

NG

>> GO TO 4.

2.

CHECK LOAD SIGNAL CIRCUIT OVERALL FUNCTION-II

Check “LOAD SIGNAL” indication under the following conditions.

OK or NG

OK

>> GO TO 3.

NG

>> GO TO 5.

MONITOR ITEM

CONDITION

SPECIFICATION

LOAD SIGNAL

Ignition switch: ON

Rear window defogger switch is ON
and/or lighting switch is in 2nd.

ON

Rear window defogger switch is OFF
and lighting switch is OFF.

OFF

HEATER FAN SW

Engine: After warming up, idle
the engine

Heater fan: Operating

ON

Heater fan: Not operating

OFF

Condition

Indication

Rear window defogger switch: ON

ON

Rear window defogger switch: OFF

OFF

PBIB0103E

Condition

Indication

Lighting switch: ON at 2nd position

ON

Lighting switch: OFF

OFF

PBIB0103E

ELECTRICAL LOAD SIGNAL

EC-651

C

D

E

F

G

H

I

J

K

L

M

A

EC

3.

CHECK HEATER FAN SIGNAL CIRCUIT OVERALL FUNCTION

 With CONSULT-II

Check “HEATER FAN SW” in “DATA MONITOR” mode with CON-
SULT-II under the following conditions.

OK or NG

OK

>> INSPECTION END

NG

>> GO TO 6.

4.

CHECK REAR WINDOW DEFOGGER SYSTEM

Refer to

GW-58, "REAR WINDOW DEFOGGER"

 .

>> INSPECTION END

5.

CHECK HEADLAMP SYSTEM

Refer to

LT-5, "HEADLAMP - XENON TYPE -"

 .

>> INSPECTION END

6.

CHECK HEATER FAN CONTROL SYSTEM

Refer to

ATC-38, "TROUBLE DIAGNOSIS"

 .

>> INSPECTION END

Condition

Indication

Heater fan: Operating

ON

Heater fan: Not operating

OFF

PBIB1995E

EC-652

FUEL INJECTOR

FUEL INJECTOR

PFP:16600

Component Description

NBS0011N

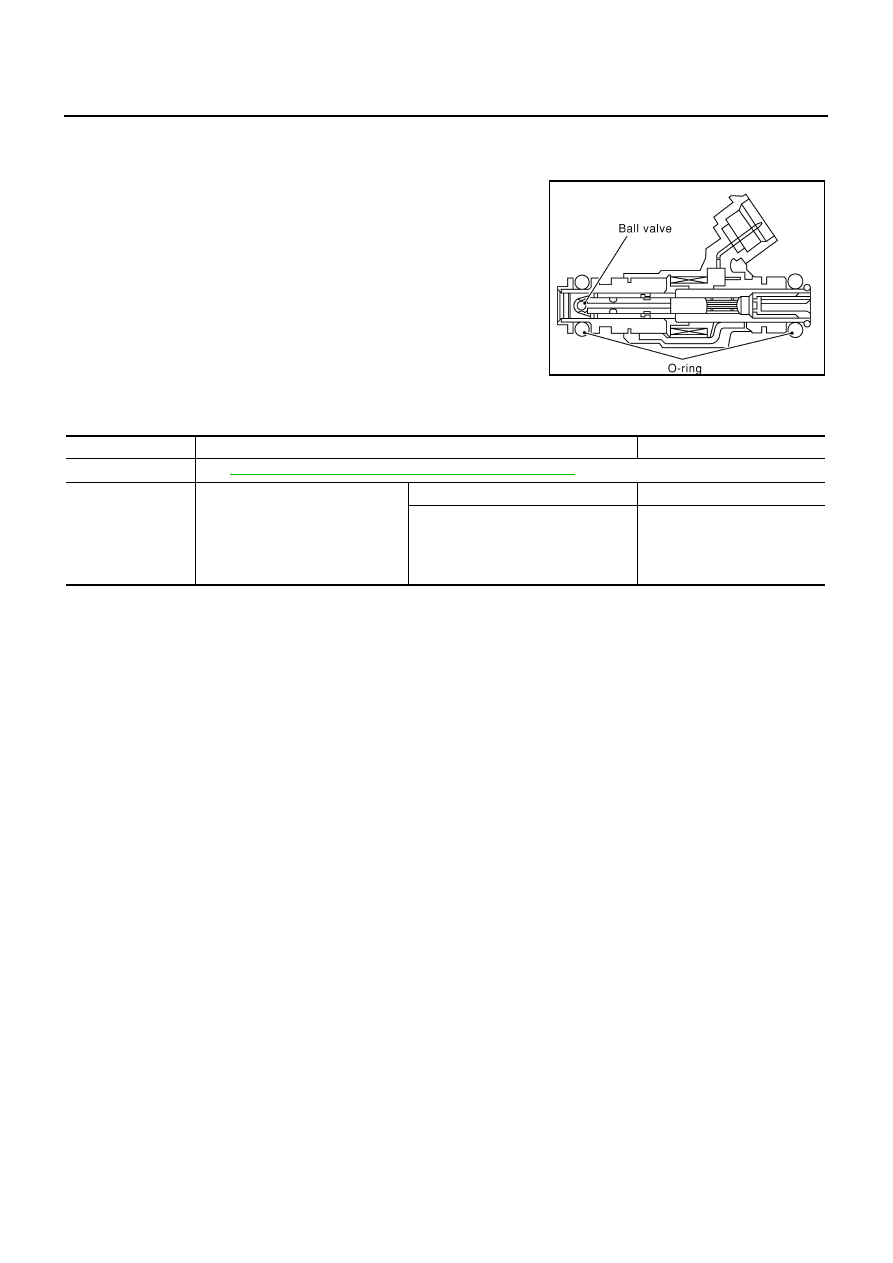

The fuel injector is a small, precise solenoid valve. When the ECM
supplies a ground to the fuel injector circuit, the coil in the fuel injec-
tor is energized. The energized coil pulls the ball valve back and
allows fuel to flow through the fuel injector into the intake manifold.
The amount of fuel injected depends upon the injection pulse dura-
tion. Pulse duration is the length of time the fuel injector remains
open. The ECM controls the injection pulse duration based on
engine fuel needs.

CONSULT-II Reference Value in Data Monitor Mode

NBS0011O

Specification data are reference values.

SEF375Z

MONITOR ITEM

CONDITION

SPECIFICATION

B/FUEL SCHDL

See

EC-141, "TROUBLE DIAGNOSIS - SPECIFICATION VALUE"

 .

INJ PULSE-B1
INJ PULSE-B2

Engine: After warming up

Shift lever: P or N (A/T), Neutral
(M/T)

Air conditioner switch: OFF

No load

Idle

2.0 - 3.0 msec

2,000 rpm

1.9 - 2.9 msec
