ASCD BRAKE SWITCH

EC-645

C

D

E

F

G

H

I

J

K

L

M

A

EC

12.

DETECT MALFUNCTIONING PART

Check the following.

●

Fuse block (J/B) connector E101

●

10A fuse

●

Harness for open or short between stop lamp switch and battery

>> Repair open circuit or short to ground or short to power in harness or connectors.

13.

CHECK STOP LAMP SWITCH INPUT SIGNAL CIRCUIT FOR OPEN AND SHORT

1.

Disconnect ECM harness connector.

2.

Check harness continuity between ECM terminal 101 and stop lamp switch terminal 4.
Refer to Wiring Diagram.

3.

Also check harness for short to ground and short to power.

OK or NG

OK

>> GO TO 15.

NG

>> GO TO 14.

14.

DETECT MALFUNCTIONING PART

Check the following.

●

Harness connectors E108, M15

●

Harness connectors M72, F102

●

Harness for open or short between ECM and stop lamp switch

>> Repair open circuit or short to ground or short to power in harness or connectors.

15.

CHECK STOP LAMP SWITCH

Refer to

EC-646, "Component Inspection"



OK or NG

OK

>> GO TO 16.

NG

>> Replace stop lamp switch.

16.

CHECK INTERMITTENT INCIDENT

Refer to

EC-151, "TROUBLE DIAGNOSIS FOR INTERMITTENT INCIDENT"

 .

>> INSPECTION END

Continuity should exist.

EC-646

ASCD BRAKE SWITCH

Component Inspection

NBS0012A

ASCD BRAKE SWITCH

1.

Turn ignition switch OFF.

2.

Disconnect ASCD brake switch harness connector.

3.

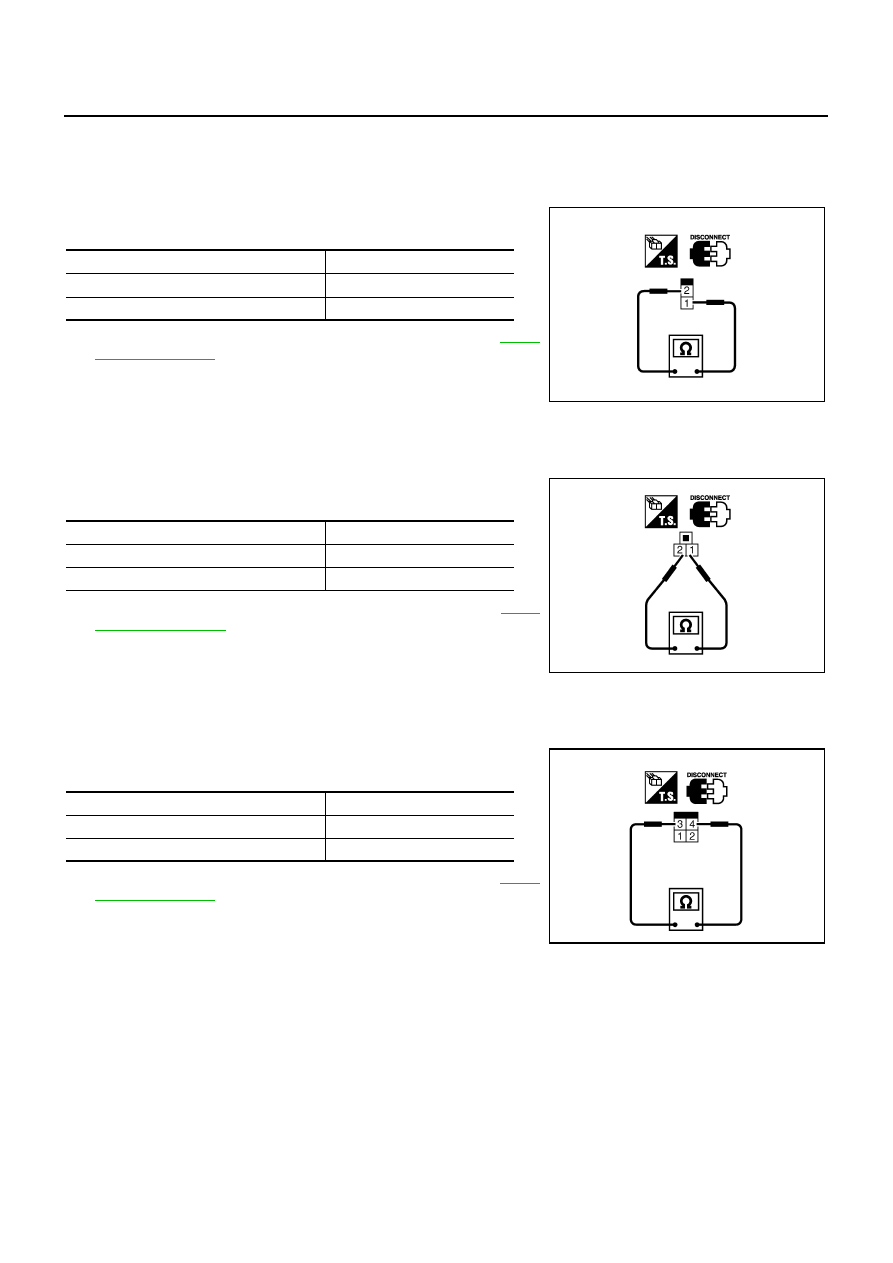

Check continuity between ASCD brake switch terminals 1 and 2
under the following conditions.

If NG, adjust ASCD brake switch installation, refer to

BR-6,

"BRAKE PEDAL"

 , and perform step 3 again.

ASCD CLUTCH SWITCH

1.

Turn ignition switch OFF.

2.

Disconnect ASCD clutch switch harness connector.

3.

Check continuity between ASCD clutch switch terminals 1 and 2
under the following conditions.

If NG, adjust ASCD clutch switch installation, refer to

CL-5,

"CLUTCH PEDAL"

 , and perform step 3 again.

STOP LAMP SWITCH

1.

Turn ignition switch OFF.

2.

Disconnect stop lamp switch harness connector.

3.

Check continuity between stop lamp switch terminals 3 and 4
under the following conditions.

If NG, adjust stop lamp switch installation, refer to

BR-6,

"BRAKE PEDAL"

 , and perform step 3 again.

Condition

Continuity

Brake pedal: Fully released

Should exist

Brake pedal: Slightly depressed

Should not exist

SEC023D

Condition

Continuity

Clutch pedal: Fully released

Should exist

Clutch pedal: Slightly depressed

Should not exist

SEC024D

Condition

Continuity

Brake pedal: Fully released

Should not exist

Brake pedal: Slightly depressed

Should exist

PBIB2103E

ASCD INDICATOR

EC-647

C

D

E

F

G

H

I

J

K

L

M

A

EC

ASCD INDICATOR

PFP:24814

Component Description

NBS0012B

ASCD indicator lamp illuminates to indicate ASCD operation status. Lamp has two indicators, CRUISE and
SET, and is integrated in combination meter.
CRUISE indicator illuminates when MAIN switch on ASCD steering switch is turned ON to indicated that
ASCD system is ready for operation.
SET indicator illuminates when following conditions are met.

●

CRUISE indicator is illuminated.

●

SET/COAST switch on ASCD steering switch is turned ON while vehicle speed is within the range of
ASCD setting.

SET indicator remains lit during ASCD control.
Refer to

EC-29, "AUTOMATIC SPEED CONTROL DEVICE (ASCD)"

  for the ASCD function.

CONSULT-II Reference Value in Data Monitor Mode

NBS0012C

Specification data are reference value.

MONITOR ITEM

CONDITION

SPECIFICATION

CRUISE LAMP

●

Ignition switch: ON

MAIN switch: Pressed at the 1st
time

→

 at the 2nd time

ON

→

 OFF

SET LAMP

●

MAIN switch: ON

●

When vehicle speed is between 40 km/h
(25 MPH) and 144 km/h (89 MPH)

ASCD: Operating

ON

ASCD: Not operating

OFF

EC-648

ASCD INDICATOR

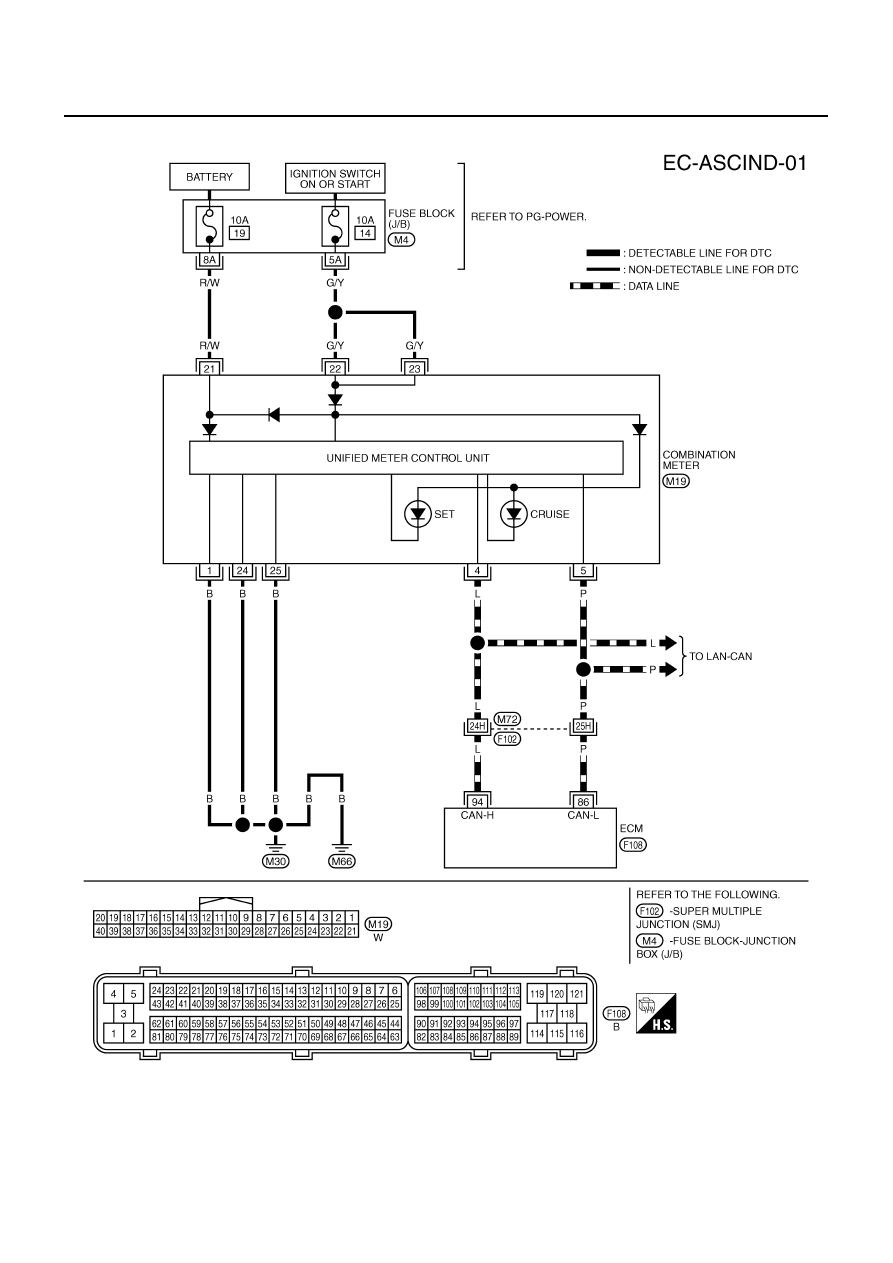

Wiring Diagram

NBS0012D

TBWM0832E
