DTC P2138 APP SENSOR

EC-617

C

D

E

F

G

H

I

J

K

L

M

A

EC

2.

CHECK APP SENSOR 1 POWER SUPPLY CIRCUIT

1.

Disconnect accelerator pedal position (APP) sensor harness
connector.

2.

Turn ignition switch ON.

3.

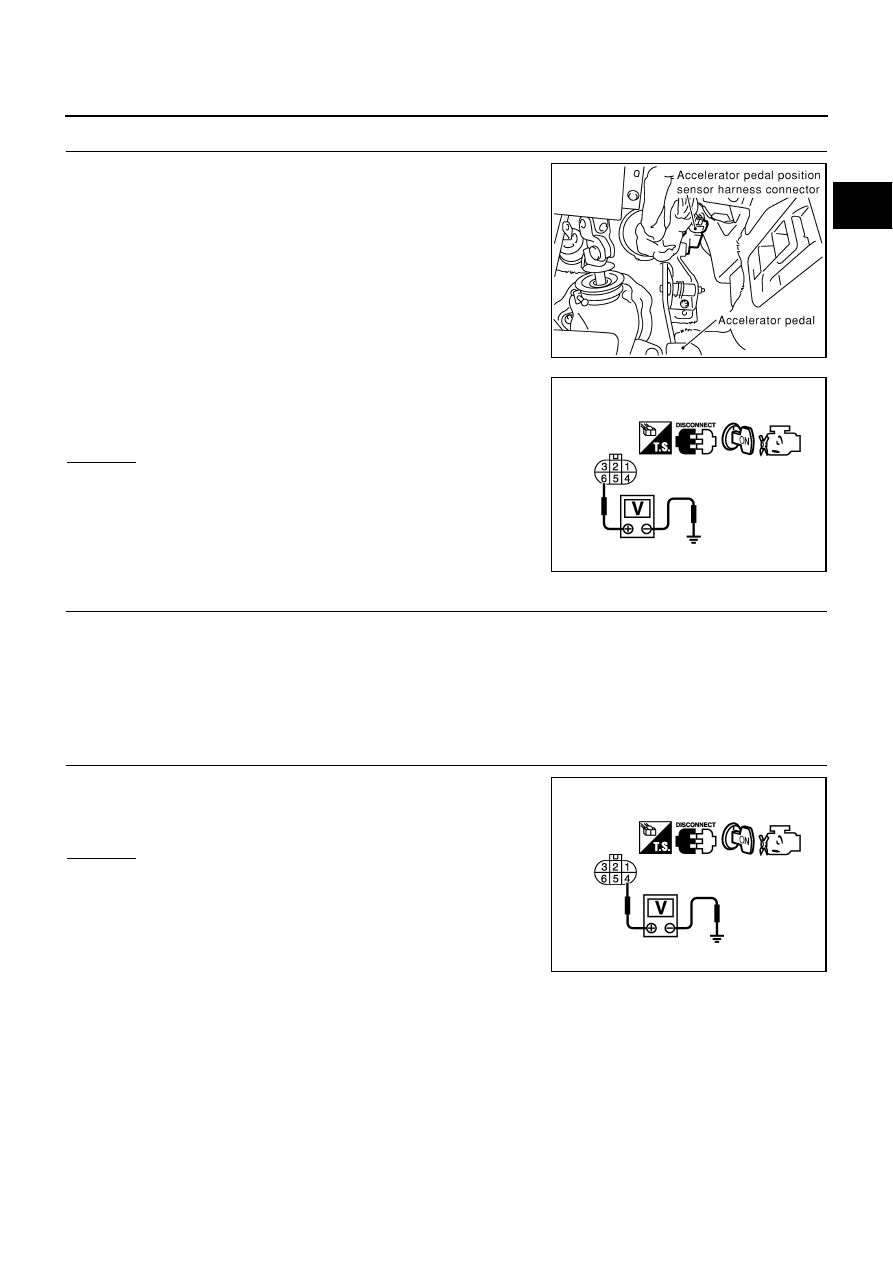

Check voltage between APP sensor terminal 6 and ground with
CONSULT-II or tester.

OK or NG

OK

>> GO TO 4.

NG

>> GO TO 3.

3.

DETECT MALFUNCTIONING PART

Check the following.

●

Harness connectors E10, F1

●

Harness for open or short between ECM and APP sensor

>> Repair open circuit or short to ground or short to power in harness or connectors.

4.

CHECK APP SENSOR 2 POWER SUPPLY CIRCUIT-I

Check voltage between APP sensor terminal 4 and ground with
CONSULT-II or tester.

OK or NG

OK

>> GO TO 10.

NG

>> GO TO 5.

PBIB0996E

Voltage: Approximately 5V

PBIB0914E

Voltage: Approximately 5V

PBIB0915E

EC-618

DTC P2138 APP SENSOR

5.

CHECK APP SENSOR 2 POWER SUPPLY CIRCUIT-II

1.

Turn ignition switch OFF.

2.

Disconnect ECM harness connector.

3.

Check harness continuity between APP sensor terminal 4 and ECM terminal 91.
Refer to Wiring Diagram.

OK or NG

OK

>> GO TO 7.

NG

>> GO TO 6.

6.

DETECT MALFUNCTIONING PART

Check the following.

●

Harness connectors E10, F1

●

Harness for open between ECM and APP sensor

>> Repair open circuit.

7.

CHECK APP SENSOR 2 POWER SUPPLY CIRCUIT-III

Check harness for short to power and short to ground, between the following terminals.

OK or NG

OK

>> GO TO 8.

NG

>> Repair short to ground or short to power in harness or connectors.

8.

CHECK THROTTLE POSITION SENSOR

Refer to

EC-612, "Component Inspection"

 .

OK or NG

OK

>> GO TO 16.

NG

>> GO TO 9.

9.

REPLACE ELECTRIC THROTTLE CONTROL ACTUATOR

1.

Replace the electric throttle control actuator.

2.

Perform

EC-79, "Throttle Valve Closed Position Learning"

 .

3.

Perform

EC-79, "Idle Air Volume Learning"

 .

>> INSPECTION END

Continuity should exist.

ECM terminal

Sensor terminal

Reference Wiring Diagram

47

Electric throttle control actuator terminal 1

EC-608

91

APP sensor terminal 4

EC-615

DTC P2138 APP SENSOR

EC-619

C

D

E

F

G

H

I

J

K

L

M

A

EC

10.

CHECK APP SENSOR GROUND CIRCUIT FOR OPEN AND SHORT

1.

Turn ignition switch OFF.

2.

Disconnect ECM harness connector.

3.

Check harness continuity between the following;
APP sensor terminal 1 and ECM terminal 83,
APP sensor terminal 3 and ECM terminal 82.
Refer to Wiring Diagram.

4.

Also check harness for short to ground and short to power.

OK or NG

OK

>> GO TO 12.

NG

>> GO TO 11.

11.

DETECT MALFUNCTIONING PART

Check the following.

●

Harness connectors E10, F1

●

Harness for open or short between ECM and APP sensor

>> Repair open circuit or short to ground or short to power in harness or connectors.

12.

CHECK APP SENSOR INPUT SIGNAL CIRCUIT FOR OPEN AND SHORT

1.

Check harness continuity between the following;
ECM terminal 106 and APP sensor terminal 5,
ECM terminal 98 and APP sensor terminal 2.
Refer to Wiring Diagram.

2.

Also check harness for short to ground and short to power.

OK or NG

OK

>> GO TO 14.

NG

>> GO TO 13.

13.

DETECT MALFUNCTIONING PART

Check the following.

●

Harness connectors E10, F1

●

Harness for open or short between ECM and APP sensor

>> Repair open circuit or short to ground or short to power in harness or connectors.

14.

CHECK APP SENSOR

Refer to

EC-620, "Component Inspection"

 .

OK or NG

OK

>> GO TO 16.

NG

>> GO TO 15.

Continuity should exist.

Continuity should exist.

EC-620

DTC P2138 APP SENSOR

15.

REPLACE ACCELERATOR PEDAL ASSEMBLY

1.

Replace accelerator pedal assembly.

2.

Perform

EC-79, "Accelerator Pedal Released Position Learning"

 .

3.

Perform

EC-79, "Throttle Valve Closed Position Learning"

 .

4.

Perform

EC-79, "Idle Air Volume Learning"

 .

>> INSPECTION END

16.

CHECK INTERMITTENT INCIDENT

Refer to

EC-151, "TROUBLE DIAGNOSIS FOR INTERMITTENT INCIDENT"

 .

>> INSPECTION END

Component Inspection

NBS0011G

ACCELERATOR PEDAL POSITION SENSOR

1.

Reconnect all harness connectors disconnected.

2.

Turn ignition switch ON.

3.

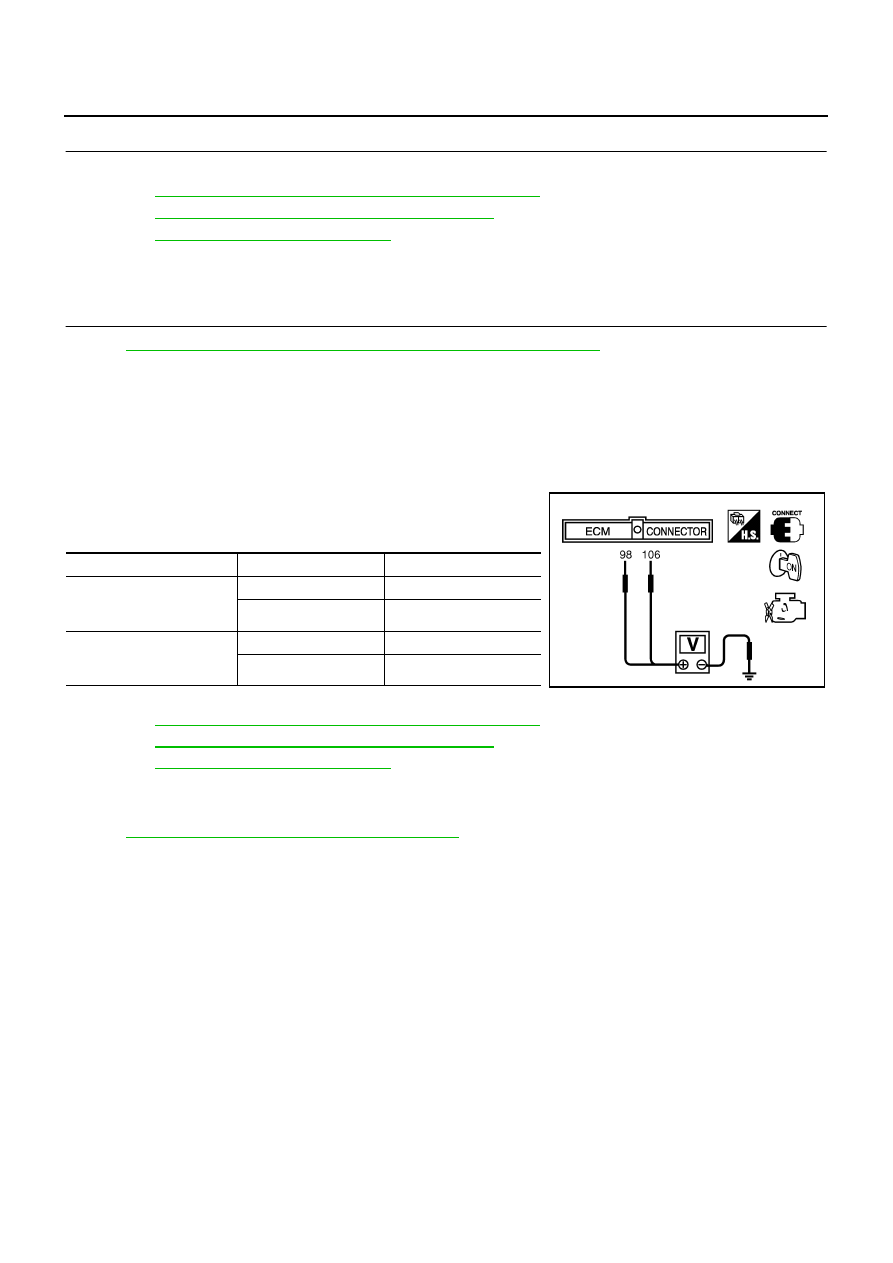

Check voltage between ECM terminals 106 (APP sensor 1 sig-
nal), 98 (APP sensor 2 signal) and ground under the following
conditions.

4.

If NG, replace accelerator pedal assembly and go to next step.

5.

Perform

EC-79, "Accelerator Pedal Released Position Learning"

 .

6.

Perform

EC-79, "Throttle Valve Closed Position Learning"

 .

7.

Perform

EC-79, "Idle Air Volume Learning"

 .

Removal and Installation

NBS0011H

ACCELERATOR PEDAL

Refer to

ACC-3, "ACCELERATOR CONTROL SYSTEM"

 .

Terminal

Accelerator pedal

Voltage

106
 (Accelerator pedal position
sensor 1)

Fully released

0.5 - 1.0V

Fully depressed

3.9 - 4.7V

98
(Accelerator pedal position
sensor 2)

Fully released

0.15 - 0.60V

Fully depressed

1.95 - 2.40V

MBIB0023E
