DTC P2135 TP SENSOR

EC-609

Specification data are reference values and are measured between each terminal and ground.

CAUTION:

Do not use ECM ground terminals when measuring input/output voltage. Doing so may result in dam-
age to the ECM's transistor. Use a ground other than ECM terminals, such as the ground.

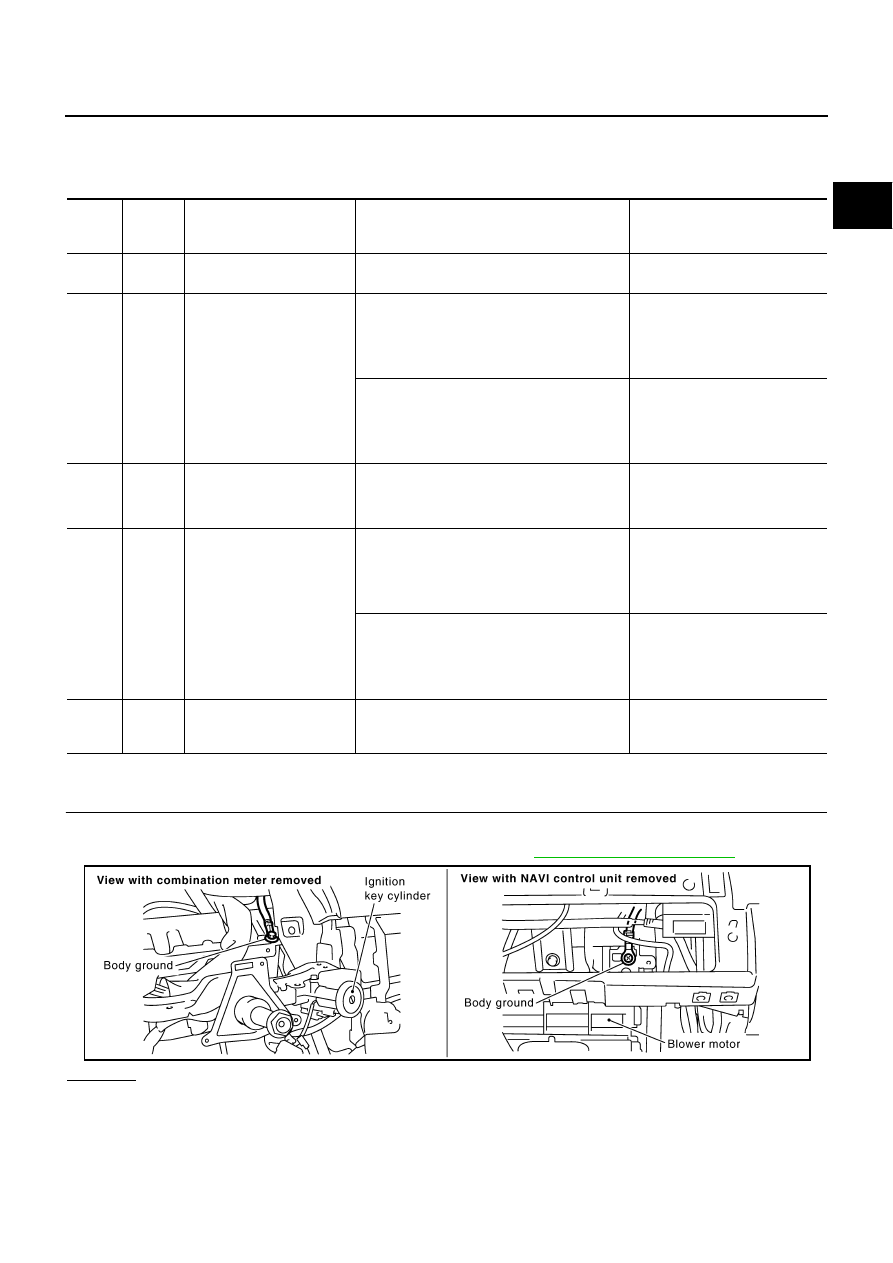

Diagnostic Procedure

NBS00117

CHECK GROUND CONNECTIONS

Turn ignition switch OFF.

Loosen and retighten two ground screws on the body. Refer to

EC-159, "Ground Inspection"

OK or NG

>> GO TO 2.

>> Repair or replace ground connections.

TER-

MINAL

NO.

WIRE

COLOR

ITEM

CONDITION

DATA (DC Voltage)

Sensor power supply
(Throttle position sensor)

[Ignition switch: ON]

Approximately 5V

Throttle position sensor 1

[Ignition switch: ON]

●

Engine stopped

●

Shift lever: D (A/T) or 1st (M/T)

●

Accelerator pedal: Fully released

More than 0.36V

[Ignition switch: ON]

●

Engine stopped

●

Shift lever: D (A/T) or 1st (M/T)

●

Accelerator pedal: Fully depressed

Less than 4.75V

W/R

Sensor ground
(Throttle position sensor)

[Engine is running]

●

Warm-up condition

●

Idle speed

Approximately 0V

R/L

Throttle position sensor 2

[Ignition switch: ON]

●

Engine stopped

●

Shift lever: D (A/T) or 1st (M/T)

●

Accelerator pedal: Fully released

Less than 4.75V

[Ignition switch: ON]

●

Engine stopped

●

Shift lever: D (A/T) or 1st (M/T)

●

Accelerator pedal: Fully depressed

More than 0.36V

Sensor power supply
(Accelerator pedal position
sensor 2)

[Ignition switch: ON]

Approximately 5V

PBIB2192E

EC-610

DTC P2135 TP SENSOR

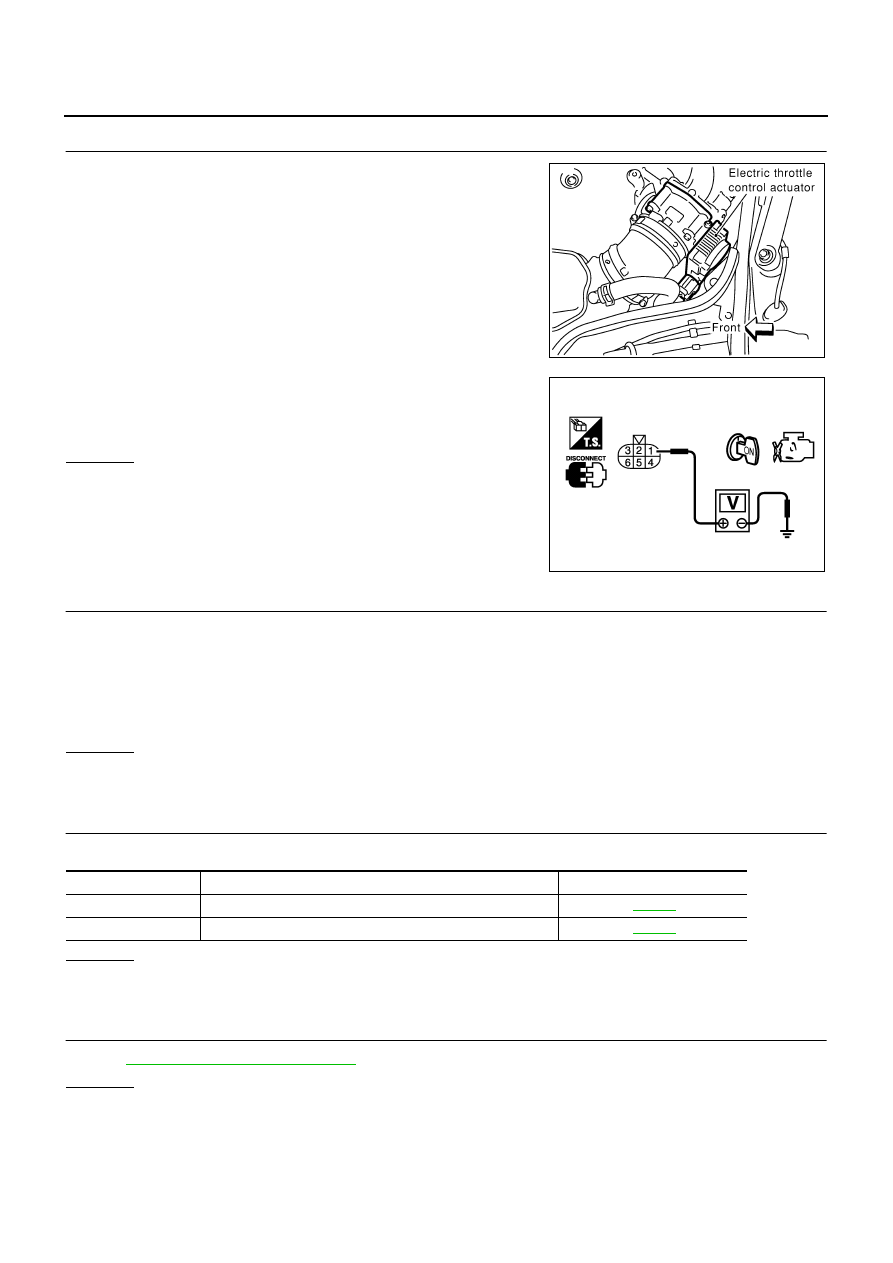

CHECK THROTTLE POSITION SENSOR POWER SUPPLY CIRCUIT-I

Disconnect electric throttle control actuator harness connector.

Turn ignition switch ON.

Check voltage between electric throttle control actuator terminal
1 and ground with CONSULT-II or tester.

OK or NG

>> GO TO 7.

>> GO TO 3.

CHECK THROTTLE POSITION SENSOR POWER SUPPLY CIRCUIT-II

Turn ignition switch OFF.

Disconnect ECM harness connector.

Check harness continuity between electric throttle control actuator terminal 1 and ECM terminal 47.
Refer to Wiring Diagram.

OK or NG

>> GO TO 4.

>> Repair open circuit.

CHECK THROTTLE POSITION SENSOR POWER SUPPLY CIRCUIT-III

Check harness for short to power and short to ground, between the following terminals.

OK or NG

>> GO TO 5.

>> Repair short to ground or short to power in harness or connectors.

CHECK APP SENSOR

Refer to

EC-605, "Component Inspection"

OK or NG

>> GO TO 11.

>> GO TO 6.

PBIB0995E

Voltage: Approximately 5V

PBIB0082E

Continuity should exist.

ECM terminal

Sensor terminal

Reference Wiring Diagram

Electric throttle control actuator terminal 1

EC-608

APP sensor terminal 4

EC-601

DTC P2135 TP SENSOR

EC-611

REPLACE ACCELERATOR PEDAL ASSEMBLY

Replace accelerator pedal assembly.

Perform

EC-79, "Accelerator Pedal Released Position Learning"

Perform

EC-79, "Throttle Valve Closed Position Learning"

Perform

EC-79, "Idle Air Volume Learning"

>> INSPECTION END

CHECK THROTTLE POSITION SENSOR GROUND CIRCUIT FOR OPEN AND SHORT

Turn ignition switch OFF.

Disconnect ECM harness connector.

Check harness continuity between electric throttle control actuator terminal 5 and ECM terminal 66.
Refer to Wiring Diagram.

Also check harness for short to ground and short to power.

OK or NG

>> GO TO 8.

>> Repair open circuit or short to ground or short to power in harness or connectors.

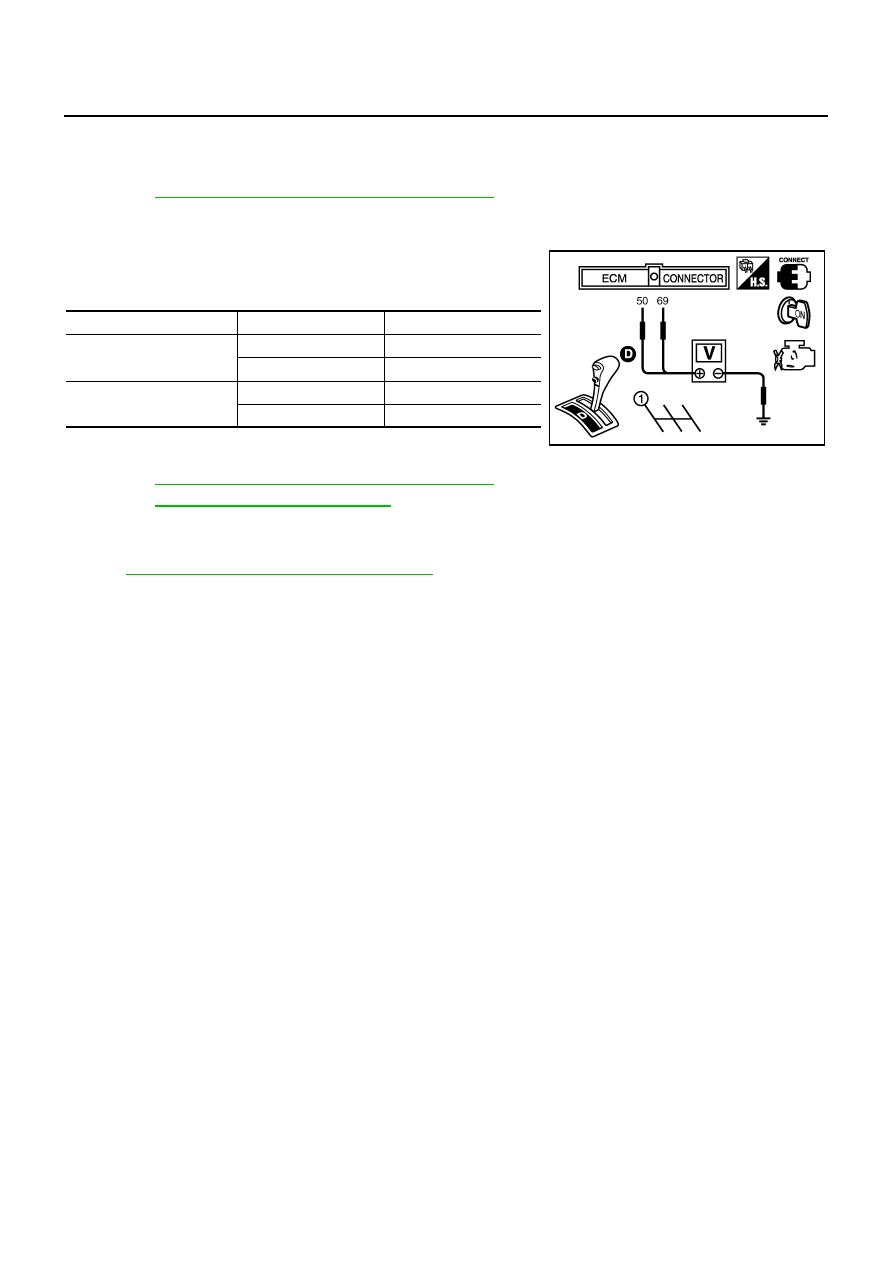

CHECK THROTTLE POSITION SENSOR INPUT SIGNAL CIRCUIT FOR OPEN AND SHORT

Check harness continuity between the following;
ECM terminal 50 and electric throttle control actuator terminal 4,
ECM terminal 69 and electric throttle control actuator terminal 2.
Refer to Wiring Diagram.

Also check harness for short to ground and short to power.

OK or NG

>> GO TO 9.

>> Repair open circuit or short to ground or short to power in harness or connectors.

CHECK THROTTLE POSITION SENSOR

Refer to

EC-612, "Component Inspection"

OK or NG

>> GO TO 11.

>> GO TO 10.

10.

REPLACE ELECTRIC THROTTLE CONTROL ACTUATOR
