DTC P0300 - P0306 MULTIPLE CYLINDER MISFIRE, NO. 1 - 6 CYLINDER MIS-

FIRE

EC-361

C

D

E

F

G

H

I

J

K

L

M

A

EC

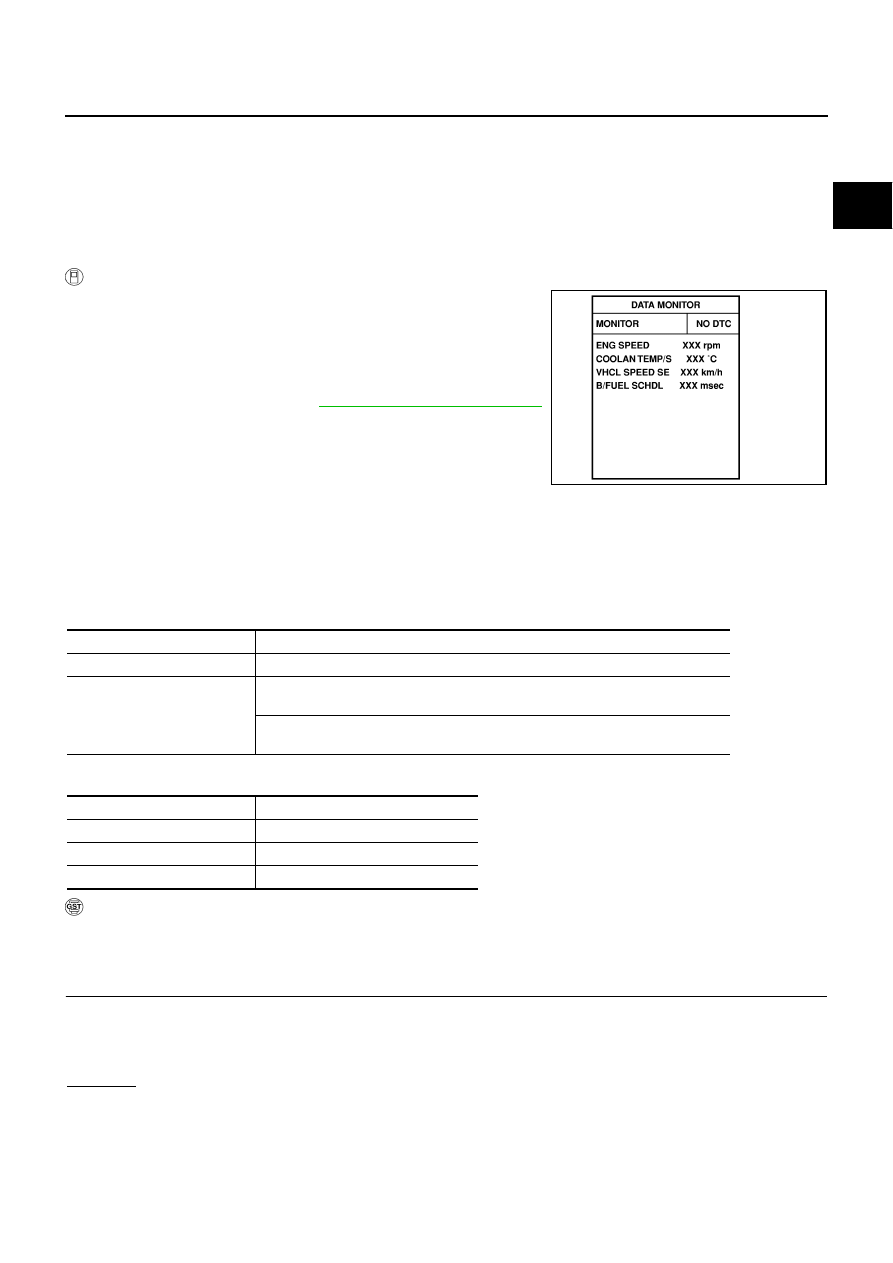

DTC Confirmation Procedure

NBS000RS

CAUTION:

Always drive vehicle in safe manner according to traffic conditions and obey all traffic laws when driv-
ing.

NOTE:
If DTC Confirmation Procedure has been previously conducted, always turn ignition switch OFF and wait at
least 10 seconds before conducting the next test.

 WITH CONSULT-II

1.

Turn ignition switch ON and select “DATA MONITOR” mode with
CONSULT-II.

2.

Start engine and warm it up to normal operating temperature.

3.

Turn ignition switch OFF and wait at least 10 seconds.

4.

Restart engine and let it idle for about 15 minutes.

5.

If 1st trip DTC is detected, go to

EC-361, "Diagnostic Procedure"

.

NOTE:
If 1st trip DTC is not detected during above procedure, perform-
ing the following procedure is advised.

a.

Turn ignition switch OFF and wait at least 10 seconds.

b.

Start engine and drive the vehicle under the similar conditions to (1st trip) Freeze Frame Data for a certain
time. Refer to the table below.
Hold the accelerator pedal as steady as possible.

The similar conditions to (1st trip) Freeze Frame Data means the vehicle operation that the following con-
ditions should be satisfied at the same time.

The time to driving varies according to the engine speed in the freeze frame data.

 WITH GST

Follow the procedure “WITH CONSULT-II” above.

Diagnostic Procedure

NBS000RT

1.

CHECK FOR INTAKE AIR LEAK AND PCV HOSE

1.

Start engine and run it at idle speed.

2.

Listen for the sound of the intake air leak.

3.

Check PCV hose connection.

OK or NG

OK

>> GO TO 2.

NG

>> Discover air leak location and repair.

PBIB0164E

Engine speed

Engine speed in the freeze frame data

±

 400 rpm

Vehicle speed

Vehicle speed in the freeze frame data

±

 10 km/h (6 MPH)

Engine coolant temperature
(T) condition

When the freeze frame data shows lower than 70

°

C (158

°

F),

T should be lower than 70

°

C (158

°

F).

When the freeze frame data shows higher than or equal to 70

°

C (158

°

F),

T should be higher than or equal to 70

°

C (158

°

F).

Engine speed

Time

Around 1,000 rpm

Approximately 10 minutes

Around 2,000 rpm

Approximately 5 minutes

More than 3,000 rpm

Approximately 3.5 minutes

EC-362

DTC P0300 - P0306 MULTIPLE CYLINDER MISFIRE, NO. 1 - 6 CYLINDER MIS-

FIRE

2.

CHECK FOR EXHAUST SYSTEM CLOGGING

Stop engine and visually check exhaust tube, three way catalyst and muffler for dents.

OK or NG

OK (With CONSULT-II)>>GO TO 3.
OK (Without CONSULT-II)>>GO TO 4.
NG

>> Repair or replace it.

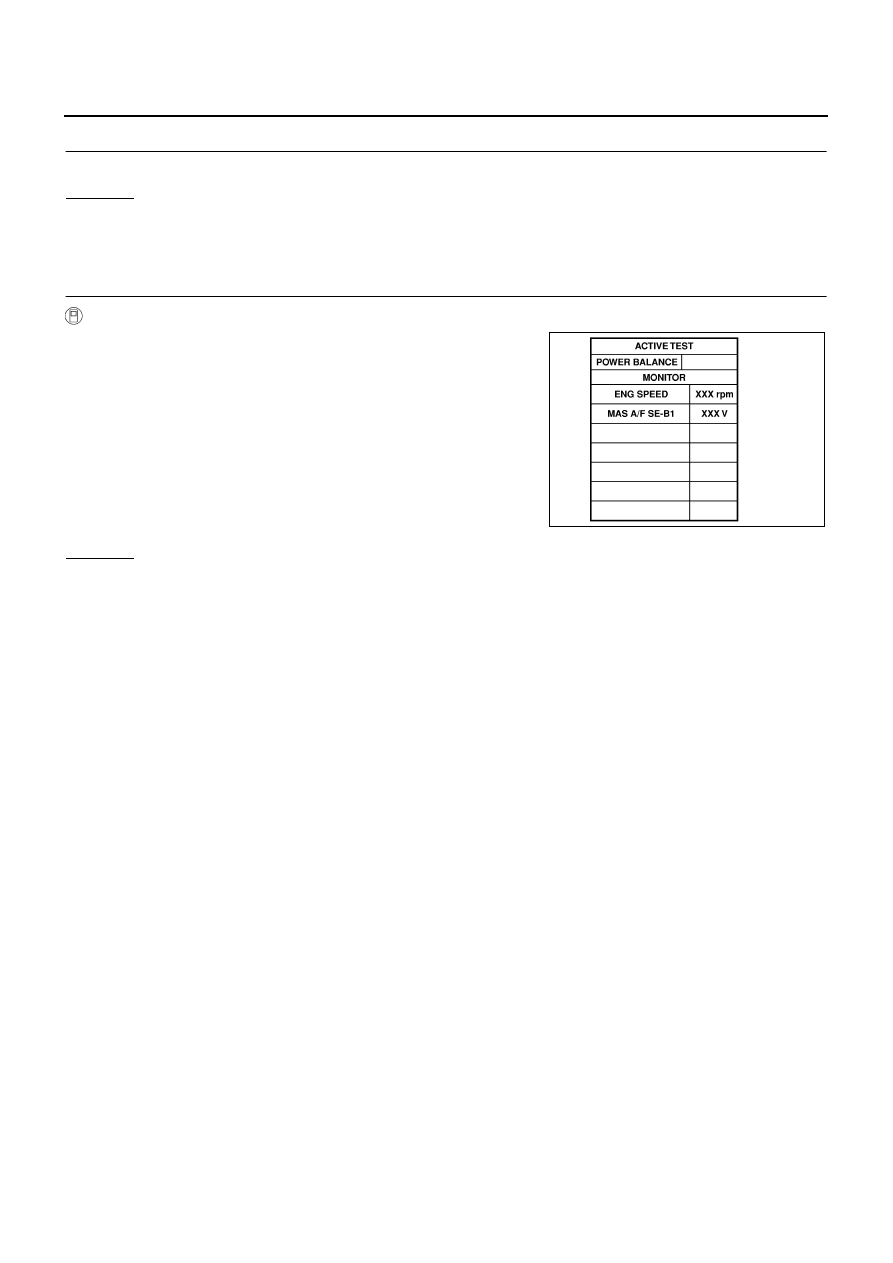

3.

PERFORM POWER BALANCE TEST

 With CONSULT-II

1.

Perform “POWER BALANCE” in “ACTIVE TEST” mode.

2.

Is there any cylinder which does not produce a momentary
engine speed drop?

Yes or No

Yes

>> GO TO 4.

No

>> GO TO 10.

PBIB0133E

DTC P0300 - P0306 MULTIPLE CYLINDER MISFIRE, NO. 1 - 6 CYLINDER MIS-

FIRE

EC-363

C

D

E

F

G

H

I

J

K

L

M

A

EC

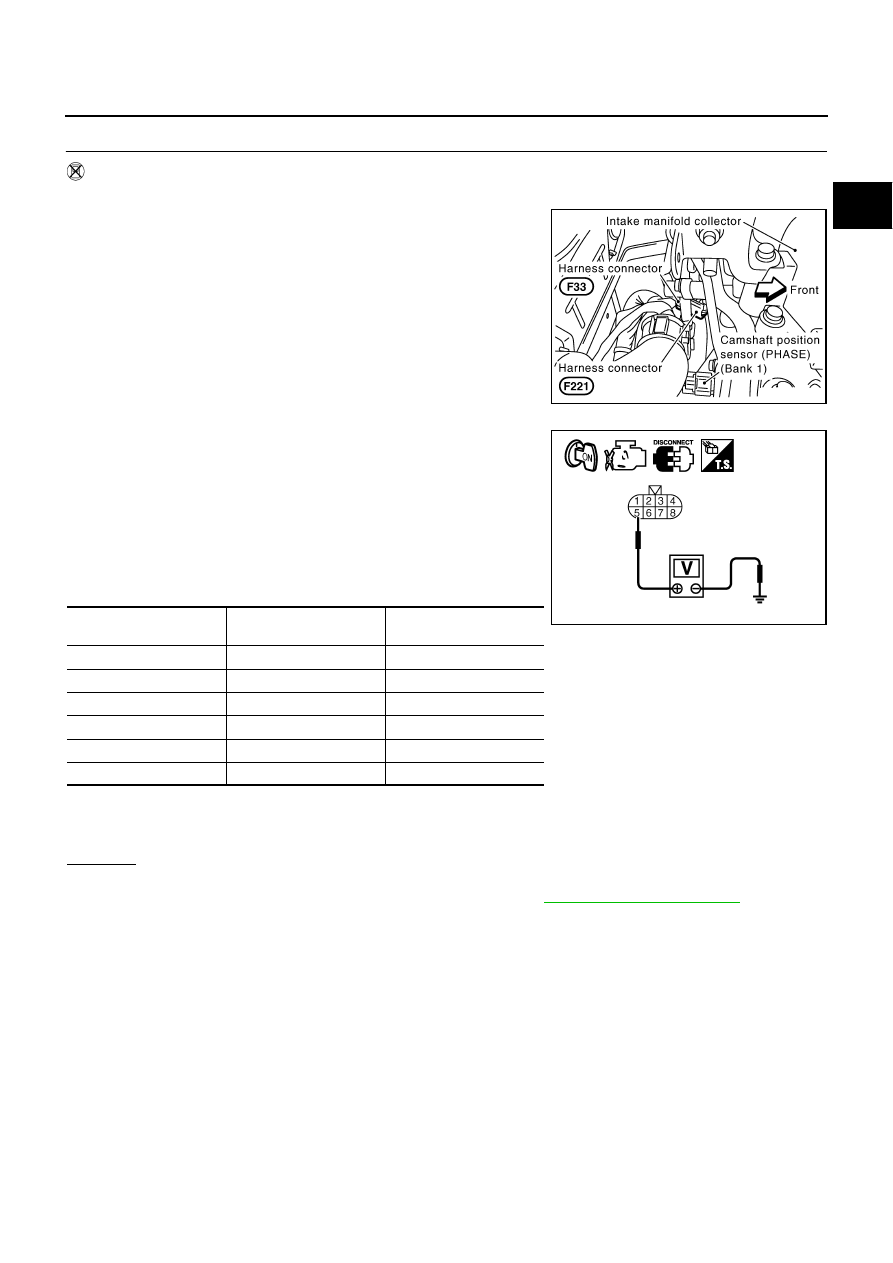

4.

CHECK FUNCTION OF FUEL INJECTOR-I

 Without CONSULT-II

1.

Turn ignition switch OFF.

2.

Disconnect harness connectors F33, F221

3.

Turn ignition switch ON.

4.

Check voltage between harness connector F33 terminal 5 and
ground with CONSULT-II or tester.

5.

Turn ignition switch OFF.

6.

Disconnect ECM harness connector.

7.

Check harness continuity between harness connector F33 and
ECM as follows.
Refer to Wiring Diagram.

8.

Also check harness for short to ground and short to power.

OK or NG

OK

>> GO TO 5.

NG

>> Perform trouble diagnosis for FUEL INJECTOR, refer to

EC-652, "FUEL INJECTOR"

 .

PBIB2479E

Voltage: Battery voltage

Cylinder

Harness connector F33

terminal

ECM terminal

1

6

23

2

4

42

3

2

22

4

3

41

5

1

21

6

7

40

Continuity should exist.

PBIB2323E

EC-364

DTC P0300 - P0306 MULTIPLE CYLINDER MISFIRE, NO. 1 - 6 CYLINDER MIS-

FIRE

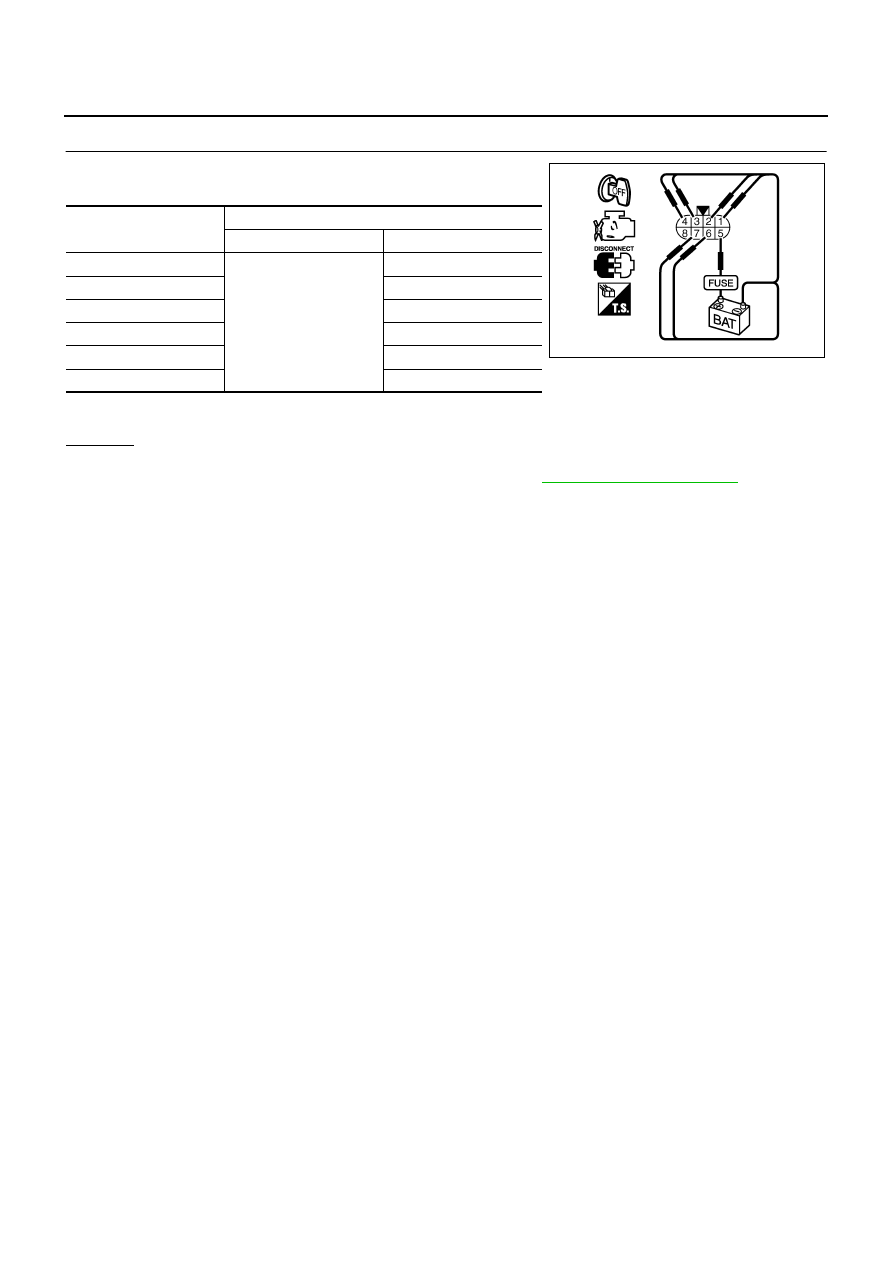

5.

CHECK FUNCTION OF FUEL INJECTOR-II

Provide battery voltage between harness connector F221 as follows
and then interrupt it. Listen to each fuel injector operating sound.

OK or NG

OK

>> GO TO 6.

NG

>> Perform trouble diagnosis for FUEL INJECTOR, refer to

EC-652, "FUEL INJECTOR"

 .

Cylinder

Harness connector F221 terminal

(+)

(–)

1

5

6

2

4

3

2

4

3

5

1

6

7

Operating sound should exist.
