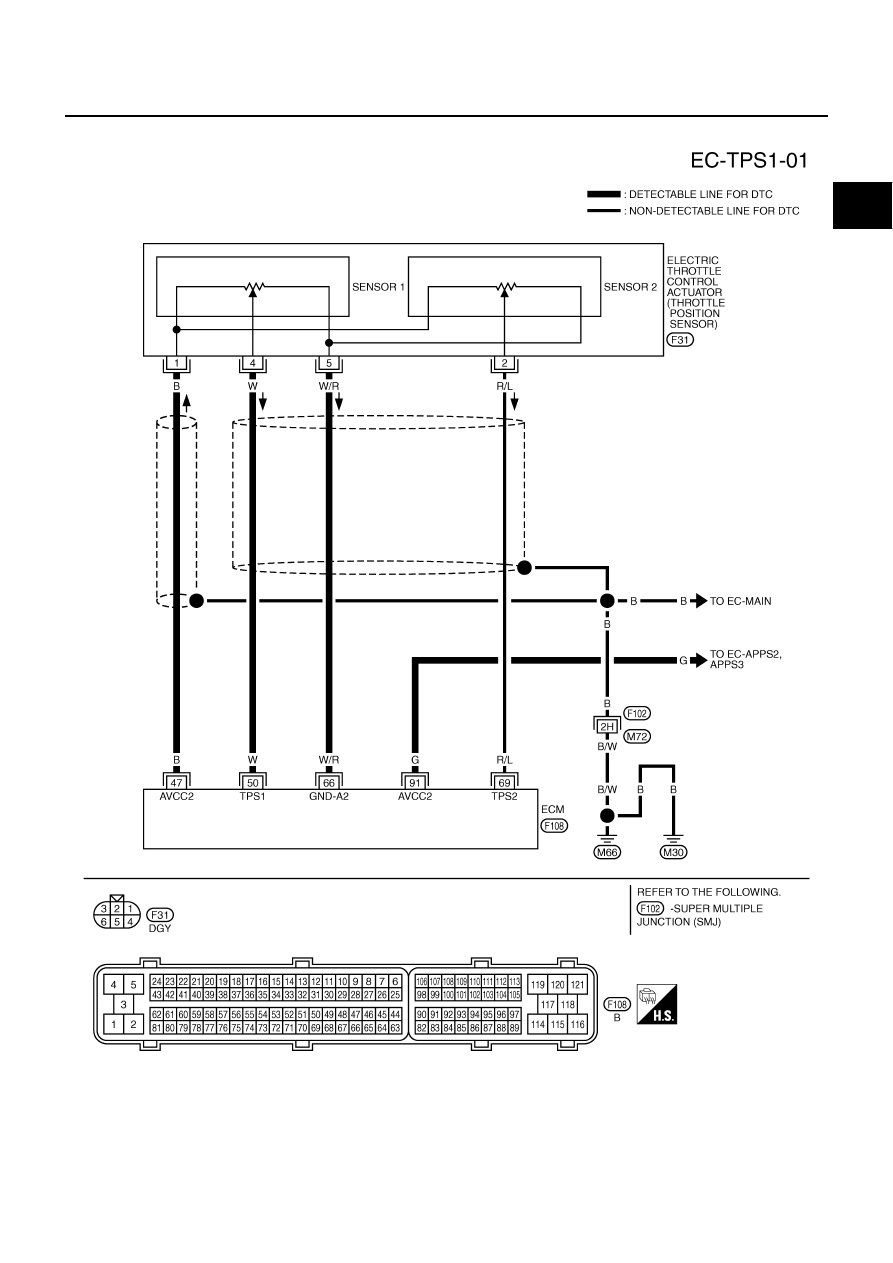

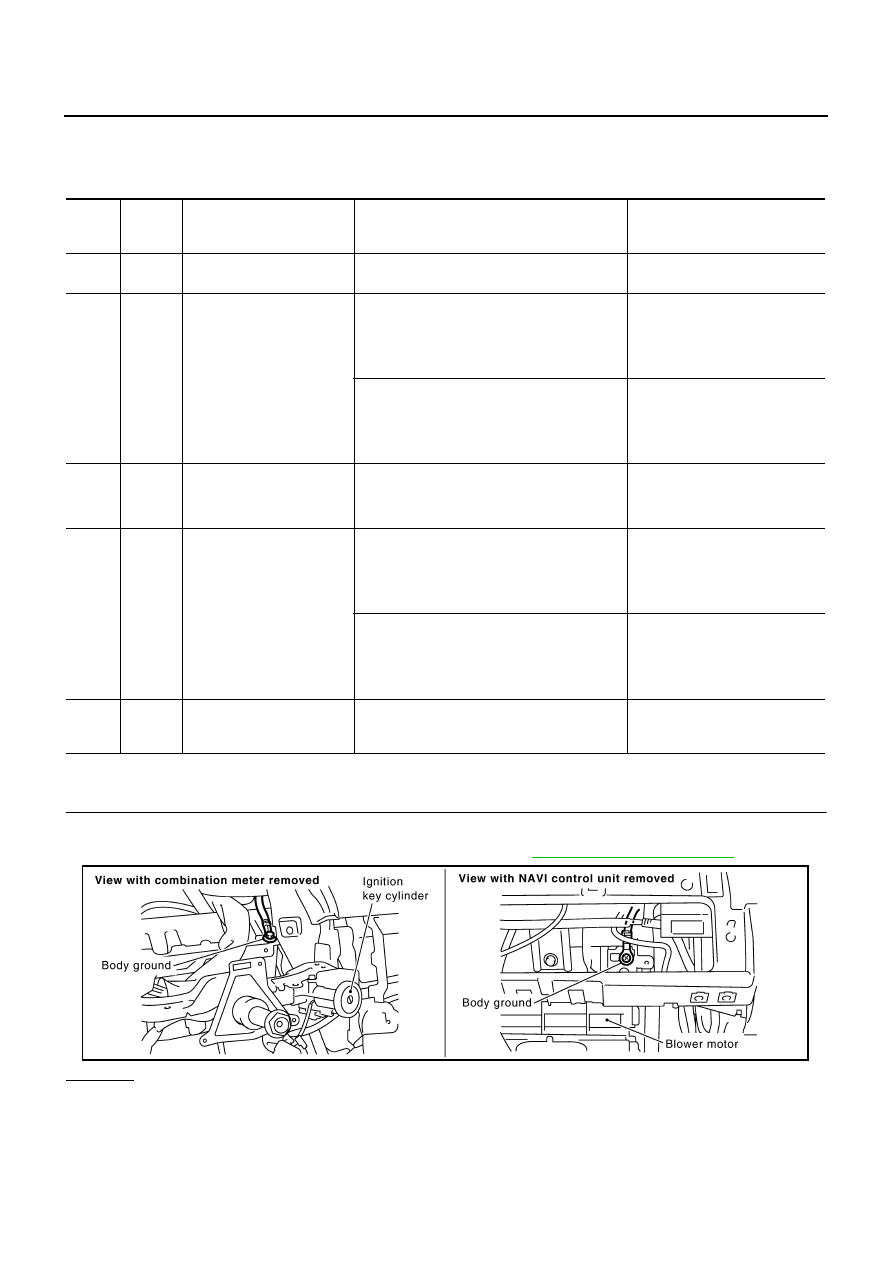

DTC P0222, P0223 TP SENSOR
PFP:16119
Component Description
NBS000RJ
Electric throttle control actuator consists of throttle control motor,
throttle position sensor, etc. The throttle position sensor responds to
the throttle valve movement.

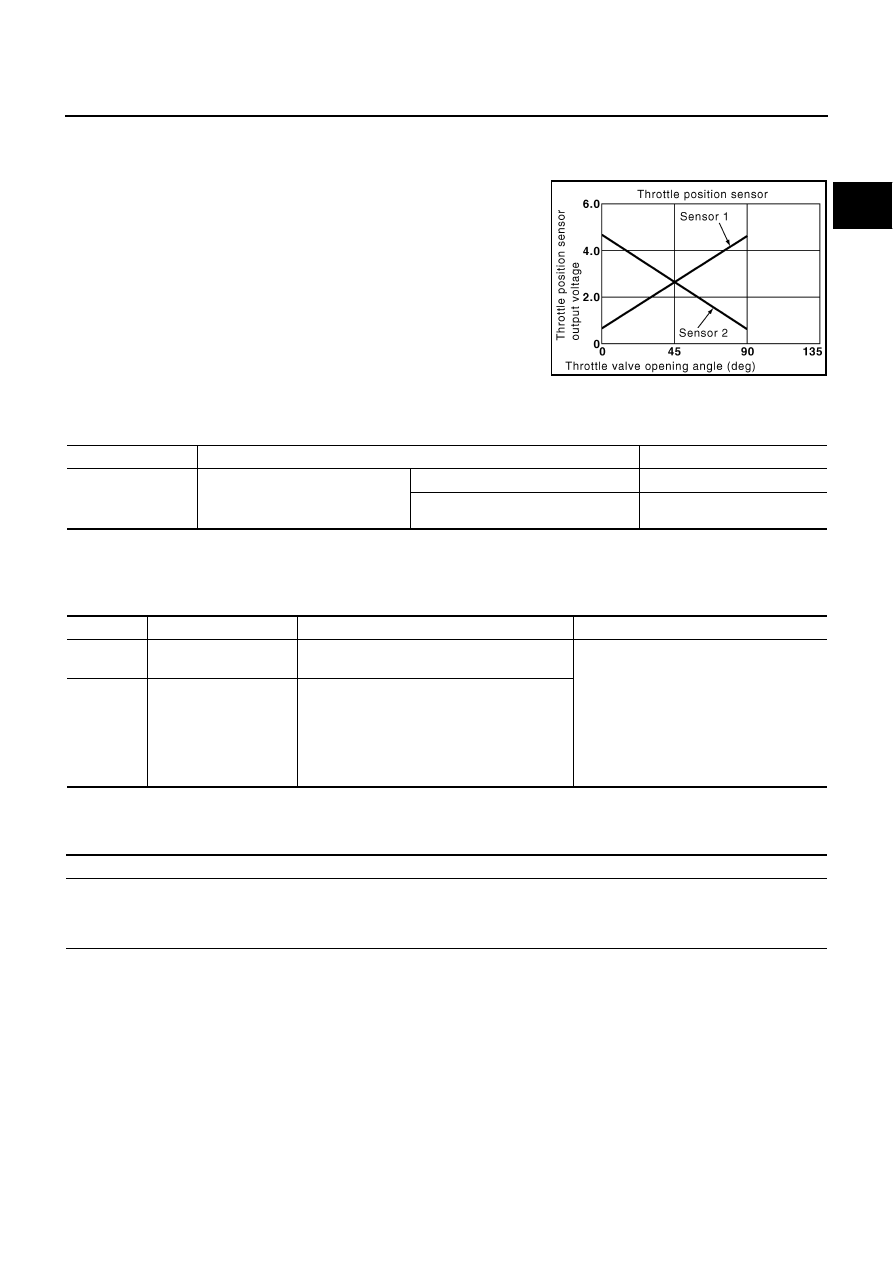

The throttle position sensor has the two sensors. These sensors are
a kind of potentiometers which transform the throttle valve position
into output voltage, and emit the voltage signal to the ECM. In addi-
tion, these sensors detect the opening and closing speed of the
throttle valve and feed the voltage signals to the ECM. The ECM
judges the current opening angle of the throttle valve from these sig-
nals and the ECM controls the throttle control motor to make the
throttle valve opening angle properly in response to driving condi-
tion.
CONSULT-II Reference Value in Data Monitor Mode
NBS000RK
Specification data are reference values.
*: Throttle position sensor 2 signal is converted by ECM internally. Thus, it differs from ECM terminal voltage signal.
On Board Diagnosis Logic
NBS000RL
These self-diagnoses have the one trip detection logic.
FAIL-SAFE MODE
When the malfunction is detected, ECM enters fail-safe mode and the MIL lights up.
PBIB0145E
MONITOR ITEM
CONDITION
SPECIFICATION
THRTL SEN 1
THRTL SEN 2*
●
Ignition switch: ON
(Engine stopped)
●
Shift lever: D (A/T) or 1st (M/T)
Accelerator pedal: Fully released
More than 0.36V
Accelerator pedal: Fully depressed
Less than 4.75V
DTC No.
Trouble diagnosis name
DTC detecting condition
Possible cause
P0222
0222
Throttle position sensor
1 circuit low input
An excessively low voltage from the TP sensor
1 is sent to ECM.
●
Harness or connectors
(The TP sensor 1 circuit is open or
shorted.)
(The APP sensor 2 circuit is shorted.)
●
Electric throttle control actuator
(TP sensor 1)
●
Accelerator pedal position sensor
(APP sensor 2)
P0223
0223
Throttle position sensor
1 circuit high input
An excessively high voltage from the TP sen-
sor 1 is sent to ECM.
Engine operation condition in fail-safe mode
ECM controls the electric throttle control actuator in regulating the throttle opening in order for the idle position to be within +10
degrees.
ECM regulates the opening speed of the throttle valve to be slower than the normal condition.
So, the acceleration will be poor.
