Infiniti G35 (V35). Manual - part 346

DTC P0131, P0151 A/F SENSOR 1

EC-265

C

D

E

F

G

H

I

J

K

L

M

A

EC

Removal and Installation

NBS000Y3

AIR FUEL RATIO (A/F) SENSOR 1

Refer to

EM-25, "EXHAUST MANIFOLD AND THREE WAY CATALYST"

 .

EC-266

DTC P0132, P0152 A/F SENSOR 1

DTC P0132, P0152 A/F SENSOR 1

PFP:22693

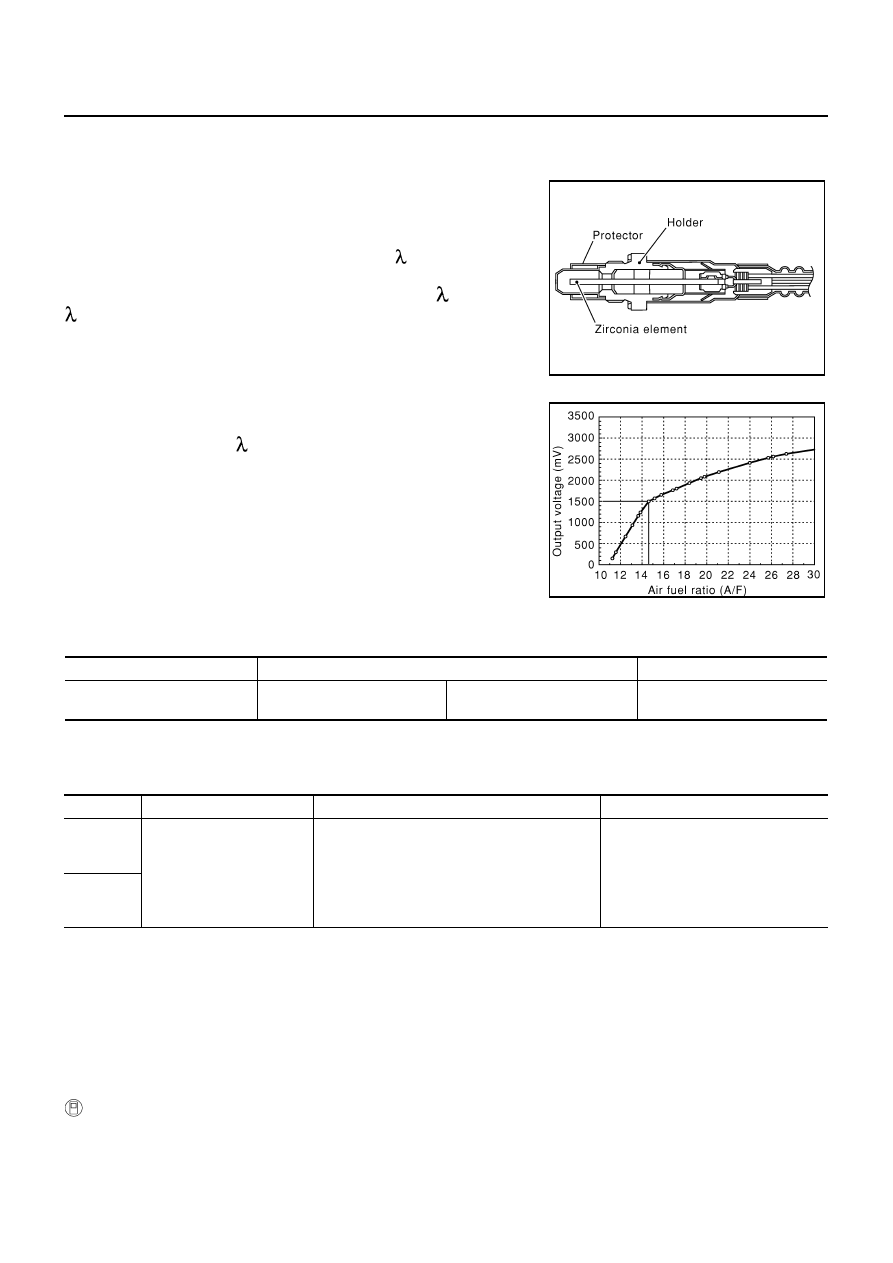

Component Description

NBS000Y4

The air fuel ratio (A/F) sensor 1 is a planar dual-cell limit current sen-
sor. The sensor element of the A/F sensor 1 is the combination of a
Nernst concentration cell (sensor cell) with an oxygen-pump cell,
which transports ions. It has a heater in the element.
The sensor is capable of precise measurement   = 1, but also in the
lean and rich range. Together with its control electronics, the sensor
outputs a clear, continuous signal throughout a wide   range (0.7 <

 < air).

The exhaust gas components diffuse through the diffusion gap at the
electrode of the oxygen pump and Nernst concentration cell, where
they are brought to thermodynamic balance.

An electronic circuit controls the pump current through the oxygen-
pump cell so that the composition of the exhaust gas in the diffusion
gap remains constant at   = 1. Therefore, the A/F sensor 1 is able to
indicate air/fuel ratio by this pumping of current. In addition, a heater
is integrated in the sensor to ensure the required operating tempera-
ture of 700 - 800

°

C (1,292 - 1,472

°

F).

CONSULT-II Reference Value in Data Monitor Mode

NBS000Y5

Specification data are reference values.

On Board Diagnosis Logic

NBS000Y6

To judge the malfunction, the diagnosis checks that the A/F signal computed by ECM from the A/F sensor 1
signal is not inordinately high.

DTC Confirmation Procedure

NBS000Y7

CAUTION:

Always drive vehicle at a safe speed.

NOTE:
If DTC Confirmation Procedure has been previously conducted, always turn ignition switch OFF and wait at
least 10 seconds before conducting the next test.
TESTING CONDITION:
Before performing the following procedure, confirm that battery voltage is more than 11V at idle.

 WITH CONSULT-II

1.

Start engine and warm it up to normal operating temperature.

2.

Select “A/F SEN1 (B1)” or “A/F SEN1 (B2)” in “DATA MONITOR” mode with CONSULT-II.

SEF579Z

SEF580Z

MONITOR ITEM

CONDITION

SPECIFICATION

A/F SEN1 (B1)
A/F SEN1 (B2)

●

Engine: After warming up

Maintaining engine speed at
2,000 rpm

Fluctuates around 1.5V

DTC No.

Trouble diagnosis name

DTC detecting condition

Possible Cause

P0132
0132
(Bank 1)

Air fuel ratio (A/F) sensor 1
circuit high voltage

●

The A/F signal computed by ECM from the A/F
sensor 1 signal is constantly approx. 5V.

●

Harness or connectors
(The A/F sensor 1 circuit is open or
shorted.)

●

Air fuel ratio (A/F) sensor 1

P0152
0152
(Bank 2)

DTC P0132, P0152 A/F SENSOR 1

EC-267

C

D

E

F

G

H

I

J

K

L

M

A

EC

3.

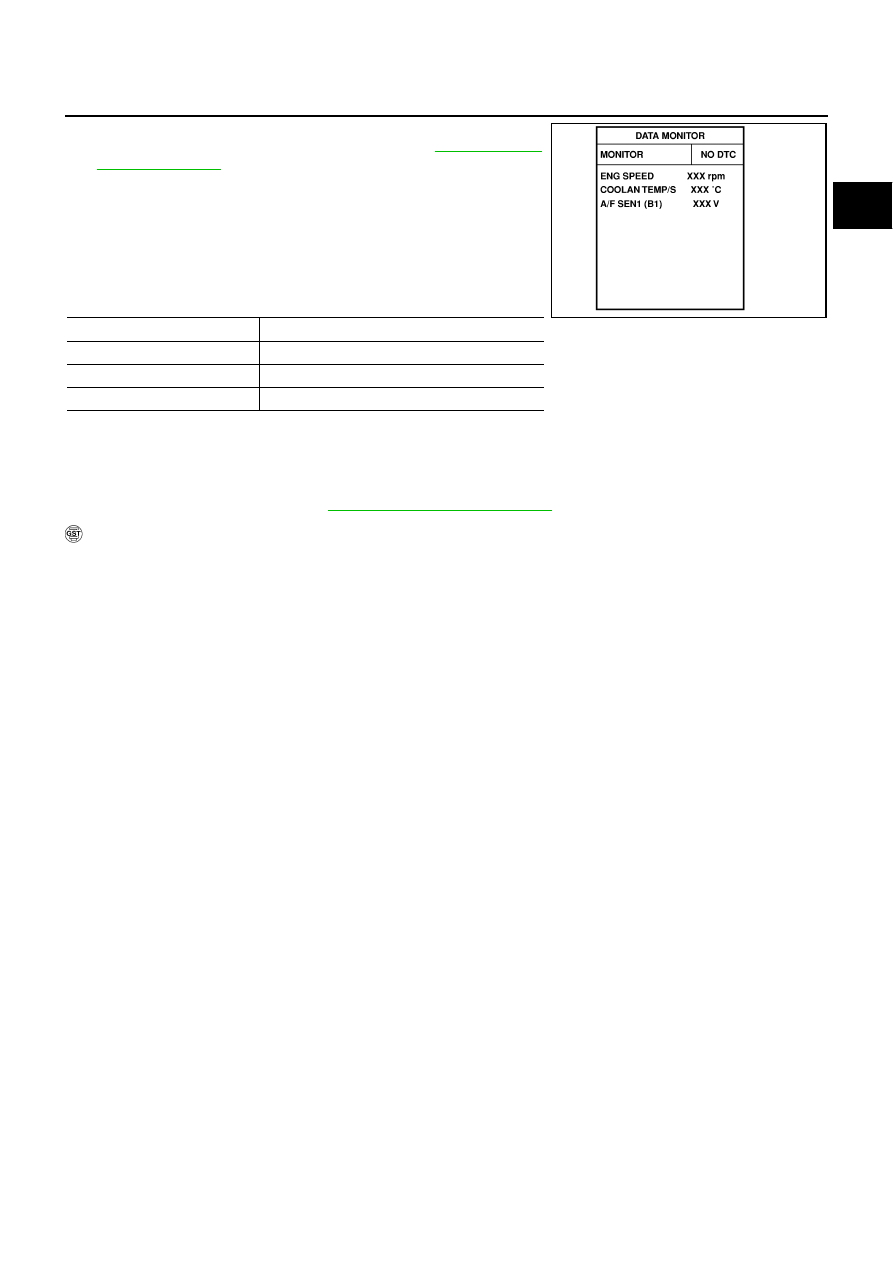

Check “A/F SEN1 (B1)” or “A/F SEN1 (B2)” indication.
If the indication is constantly approx. 5V, go to

EC-271, "Diag-

nostic Procedure"

 .

If the indication is not constantly approx. 5V, go to next step.

4.

Turn ignition switch OFF, wait at least 10 seconds and then
restart engine.

5.

Drive and accelerate vehicle to more than 40 km/h (25 MPH)
within 20 seconds after restarting engine.

6.

Maintain the following conditions for about 20 consecutive sec-
onds.

NOTE:

●

Keep the accelerator pedal as steady as possible during the cruising.

●

If this procedure is not completed within 1 minute after restarting engine at step 4, return to step
4.

7.

If 1st trip DTC is displayed, go to

EC-271, "Diagnostic Procedure"

 .

 WITH GST

Follow the procedure “WITH CONSULT-II” above.

ENG SPEED

1,000 - 3,200 rpm

VHCL SPEED SE

More than 40 km/h (25 MPH)

B/FUEL SCHDL

1.5 - 9.0 msec

Gear position

Suitable position

SEF581Z

EC-268

DTC P0132, P0152 A/F SENSOR 1

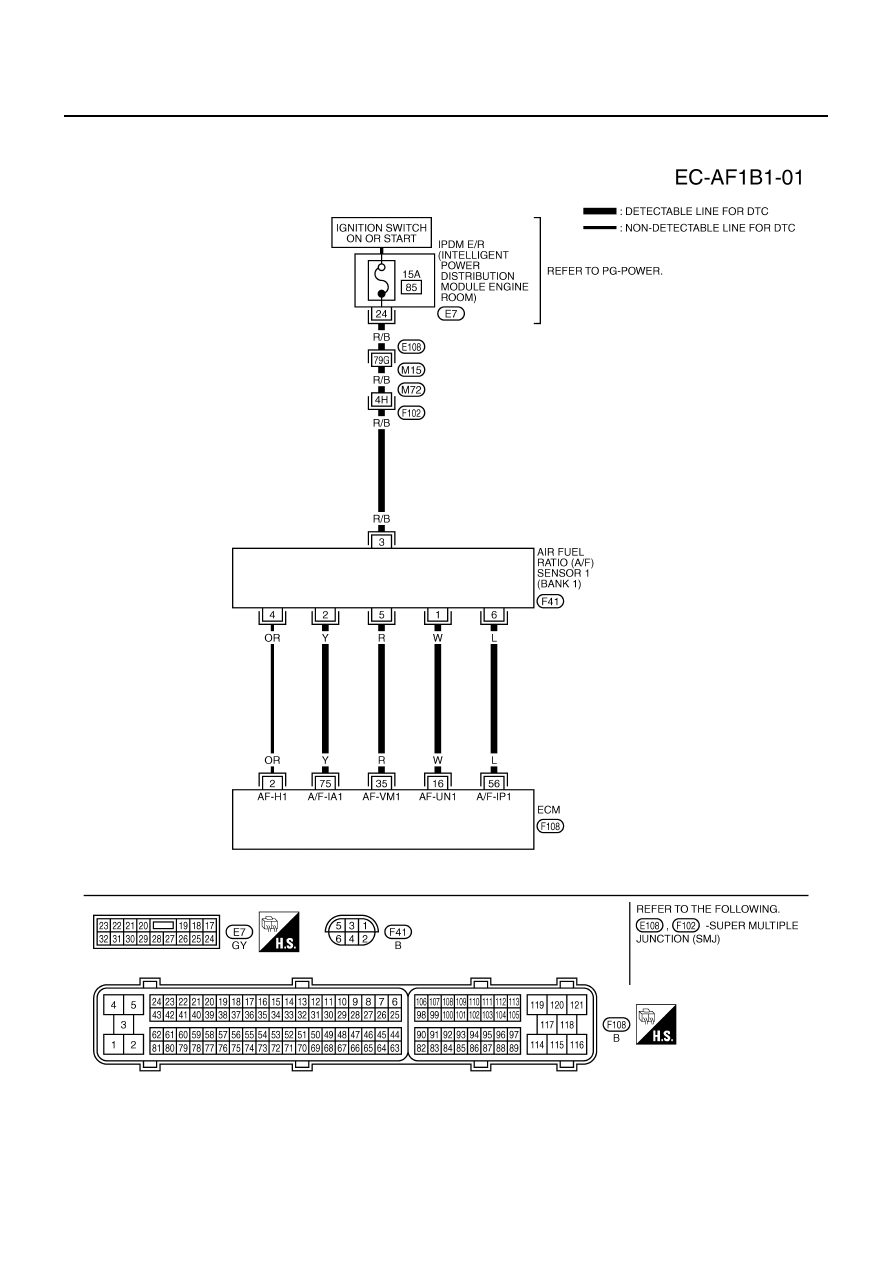

Wiring Diagram

NBS000Y8

BANK 1

TBWM0823E
