ON BOARD DIAGNOSTIC (OBD) SYSTEM

EC-57

C

D

E

F

G

H

I

J

K

L

M

A

EC

Driving Pattern

PBIB2906E

EC-58

ON BOARD DIAGNOSTIC (OBD) SYSTEM

The time required for each diagnosis varies with road surface conditions, weather, altitude, individual driv-
ing habits, etc.
Zone A refers to the range where the time, required for the diagnosis under normal conditions*, is the
shortest.
Zone B refers to the range where the diagnosis can still be performed if the diagnosis is not completed
within zone A.

*: Normal conditions refer to the following:

Sea level

Flat road

Ambient air temperature: 20 - 30

°

C (68 - 86

°

F)

Diagnosis is performed as quickly as possible under normal conditions.
Under different conditions [For example: ambient air temperature other than 20 - 30

°

C (68 - 86

°

F)], diag-

nosis may also be performed.

Pattern 1:

The engine is started at the engine coolant temperature of

10 to 35

°

C (14 to 95

°

F)

(where the voltage between the ECM terminal 73 and ground is 3.0 - 4.3V).

The engine must be operated at idle speed until the engine coolant temperature is greater than
70

°

C (158

°

F) (where the voltage between the ECM terminal 73 and ground is lower than 1.4V).

The engine is started at the fuel tank temperature of warmer than 0

°

C (32

°

F) (where the voltage

between the ECM terminal 107 and ground is less than 4.1V).

Pattern 2:

When steady-state driving is performed again even after it is interrupted, each diagnosis can be con-
ducted. In this case, the time required for diagnosis may be extended.

Pattern 3:

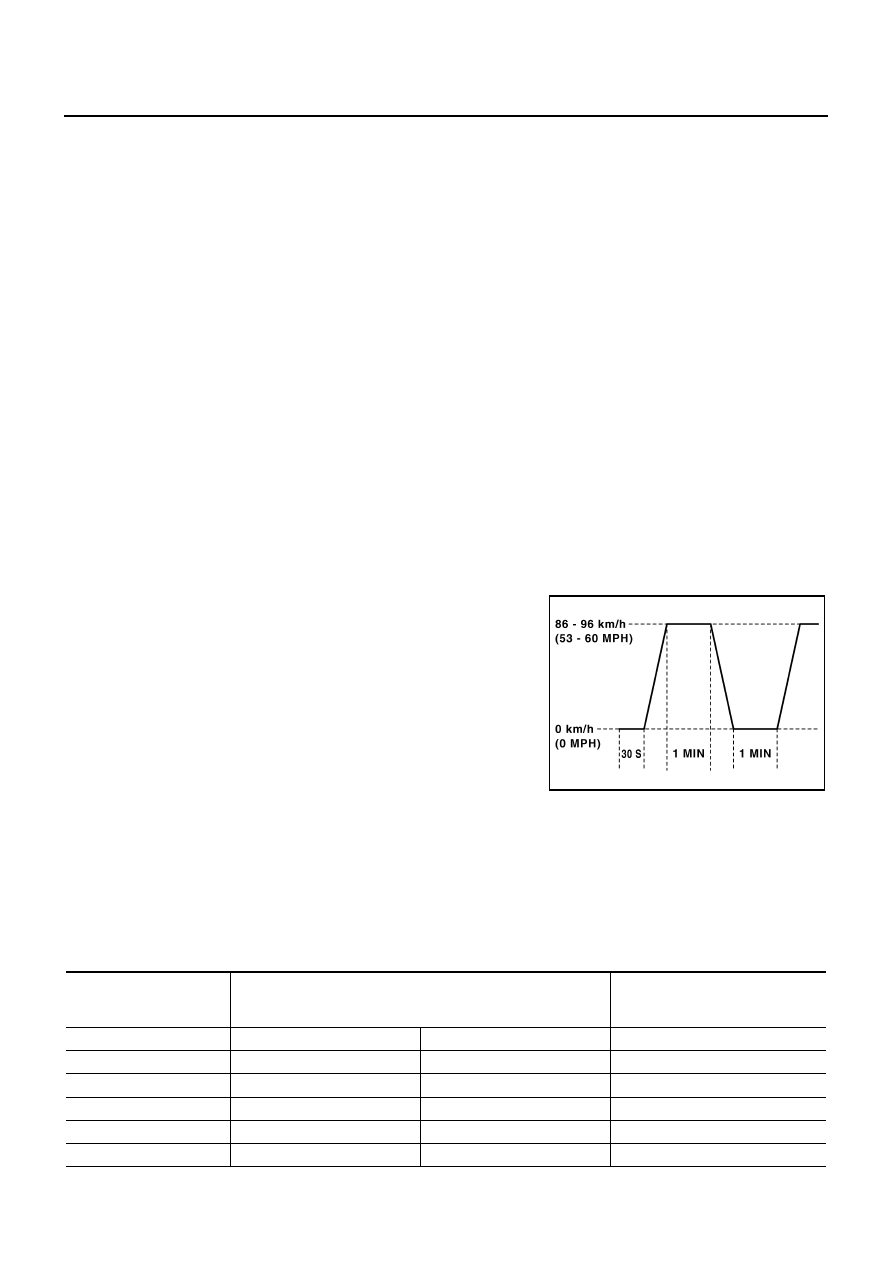

Operate vehicle following the driving pattern shown in the figure.

Release the accelerator pedal during decelerating vehicle speed
from 90 km/h (56 MPH) to 0 km/h (0 MPH).

Pattern 4:

The accelerator pedal must be held very steady during steady-
state driving.

If the accelerator pedal is moved, the test must be conducted all
over again.

*1: Depress the accelerator pedal until vehicle speed is 90 km/h (56
MPH), then release the accelerator pedal and keep it released for
more than 10 seconds. Depress the accelerator pedal until vehicle
speed is 90 km/h (56 MPH) again.
*2: Checking the vehicle speed with GST is advised.

Suggested Transmission Gear Position for A/T Models
Set the selector lever in the D position.
Suggested Upshift Speeds for M/T Models
Shown below are suggested vehicle speeds for shifting into a higher gear. These suggestions relate to fuel
economy and vehicle performance. Actual upshift speeds will vary according to road conditions, the weather
and individual driving habits.

PBIB2244E

For normal acceleration in low altitude areas

[less than 1,219 m (4,000 ft)]:

For quick acceleration in low altitude

areas and high altitude areas

[over 1,219 m (4,000 ft)]:

Gear change

ACCEL shift point km/h (MPH)

CRUISE shift point km/h (MPH)

km/h (MPH)

1st to 2nd

21 (13)

13 (8)

24 (15)

2nd to 3rd

37 (23)

26 (16)

40 (25)

3rd to 4th

48 (30)

40 (25)

64 (40)

4th to 5th

60 (37)

48 (30)

72 (45)

6th

68 (42)

53 (33)

80 (50)

ON BOARD DIAGNOSTIC (OBD) SYSTEM

EC-59

C

D

E

F

G

H

I

J

K

L

M

A

EC

Suggested Maximum Speed in Each Gear
Downshift to a lower gear if the engine is not running smoothly, or if you need to accelerate.
Do not exceed the maximum suggested speed (shown below) in any gear. For level road driving, use the high-
est gear suggested for that speed. Always observe posted speed limits and drive according to the road condi-
tions to ensure sage operation. Do not over-rev the engine when shifting to a lower gear as it may cause
engine damage or loss of vehicle control.

TEST VALUE AND TEST LIMIT (GST ONLY — NOT APPLICABLE TO CONSULT-II)

The following is the information specified in Service $06 of SAE J1979.
The test value is a parameter used to determine whether a system/circuit diagnostic test is OK or NG while
being monitored by the ECM during self-diagnosis. The test limit is a reference value which is specified as the
maximum or minimum value and is compared with the test value being monitored.
These data (test value and test limit) are specified by Test ID (TID) and Component ID (CID) and can be dis-
played on the GST screen.

Gear

km/h (MPH)

1st

56 (35)

2nd

96 (60)

3rd

136 (85)

4th

5th

6th

Item

Self-diagnostic test item

DTC

Test value

(GST display)

Test limit

Conversion

TID

CID

CATALYST

Three way catalyst function (Bank 1)

P0420

01H

01H

Max.

1/128

P0420

02H

81H

Min.

1

Three way catalyst function (Bank 2)

P0430

03H

02H

Max.

1/128

P0430

04H

82H

Min.

1

EVAP SYSTEM

EVAP control system (Small leak)

P0442

05H

03H

Max.

1/128mm

2

EVAP control system purge flow monitoring

P0441

06H

83H

Min.

20mV

EVAP control system (Very small leak)

P0456

07H

03H

Max.

1/128mm

2

EC-60

ON BOARD DIAGNOSTIC (OBD) SYSTEM

HO2S

Air fuel ratio (A/F) sensor 1 (Bank 1)

P0131

41H

8EH

Min.

5 mV

P0132

42H

0EH

Max.

5 mV

P2A00

43H

0EH

Max.

0.002

P2A00

44H

8EH

Min. 0.002

P0133

45H

8EH

Min. 0.004

P0130

46H

0EH

Max.

5 mV

P0130

47H

8EH

Min. 5

mV

P0133

48H

8EH

Min. 0.004

Air fuel ratio (A/F) sensor 1 (Bank 2)

P0151

4CH

8FH

Min.

5 mV

P0152

4DH

0FH

Max.

5 mV

P2A03

4EH

0FH

Max.

0.002

P2A03

4FH

8FH

Min.

0.002

P0153

50H

8FH

Min.

0.004

P0150

51H

0FH

Max.

5 mV

P0150

52H

8FH

Min.

5 mV

P0153

53H

8FH

Min.

0.004

Heated oxygen sensor 2 (Bank 1)

P0139

19H

86H

Min.

10mV/500ms

P0137

1AH

86H

Min.

10mV

P0138

1BH

06H

Max.

10mV

P0138

1CH

06H

Max.

10mV

Heated oxygen sensor 2 (Bank 2)

P0159

21H

87H

Min.

10mV/500ms

P0157

22H

87H

Min.

10mV

P0158

23H

07H

Max.

10mV

P0158

24H

07H

Max.

10mV

HO2S HTR

Air fuel ratio (A/F) sensor 1 heater (Bank 1)

P0032

57H

10H

Max.

5 mV

P0031

58H

90H

Min.

5 mV

Air fuel ratio (A/F) sensor 1 heater (Bank 2)

P0052

59H

11H

Max.

5 mV

P0051

5AH

91H

Min.

5 mV

Heated oxygen sensor 2 heater (Bank 1)

P0038

2DH

0AH

Max.

20mV

P0037

2EH

8AH

Min.

20mV

Heated oxygen sensor 2 heater (Bank 2)

P0058

2FH

0BH

Max.

20mV

P0057

30H

8BH

Min.

20mV

Item

Self-diagnostic test item

DTC

Test value

(GST display)

Test limit

Conversion

TID

CID
