DOOR

PFP:80100

Fitting Adjustment

NIS000C8

DOOR

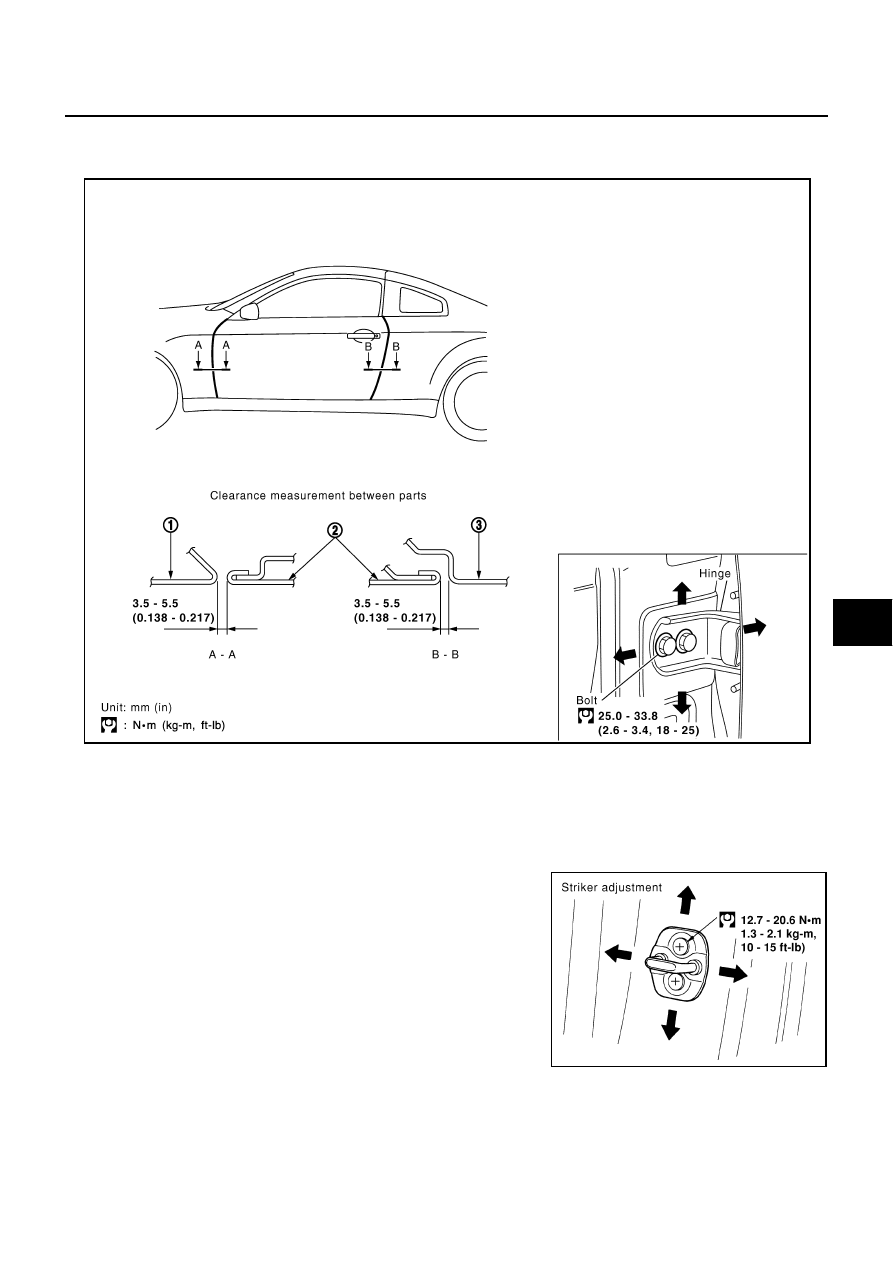

Longitudinal Clearance and Surface Height Adjustment at Front End

Loosen the hinge mounting bolts. Raise the front door at rear end to adjust.

STRIKER ADJUSTMENT

Adjust the striker so that it becomes parallel with the lock insertion
direction.

1.

Front fender

2.

Door outer

3.

Rear fender

PIIA3547E

LIIA0113E

BL-160

DOOR

Removal and Installation

NIS000C9

REMOVAL

CAUTION:

●

When removing and installing the door assembly, support the door with a jack and cloth to protect
the door and body.

●

When removing and installing door assembly, be sure to carry out the fitting adjustment.

●

Check the hinge rotating part for poor lubrication. If necessary, apply “body grease”.

●

After installing, check operation.

●

Operate with two workers, because of its heavy weight.

1.

Remove the door finisher. Refer to

EI-29, "Removal and Installation"

 .

2.

Remove the door window and module assembly. Refer to

GW-52, "Removal and Installation"

 .

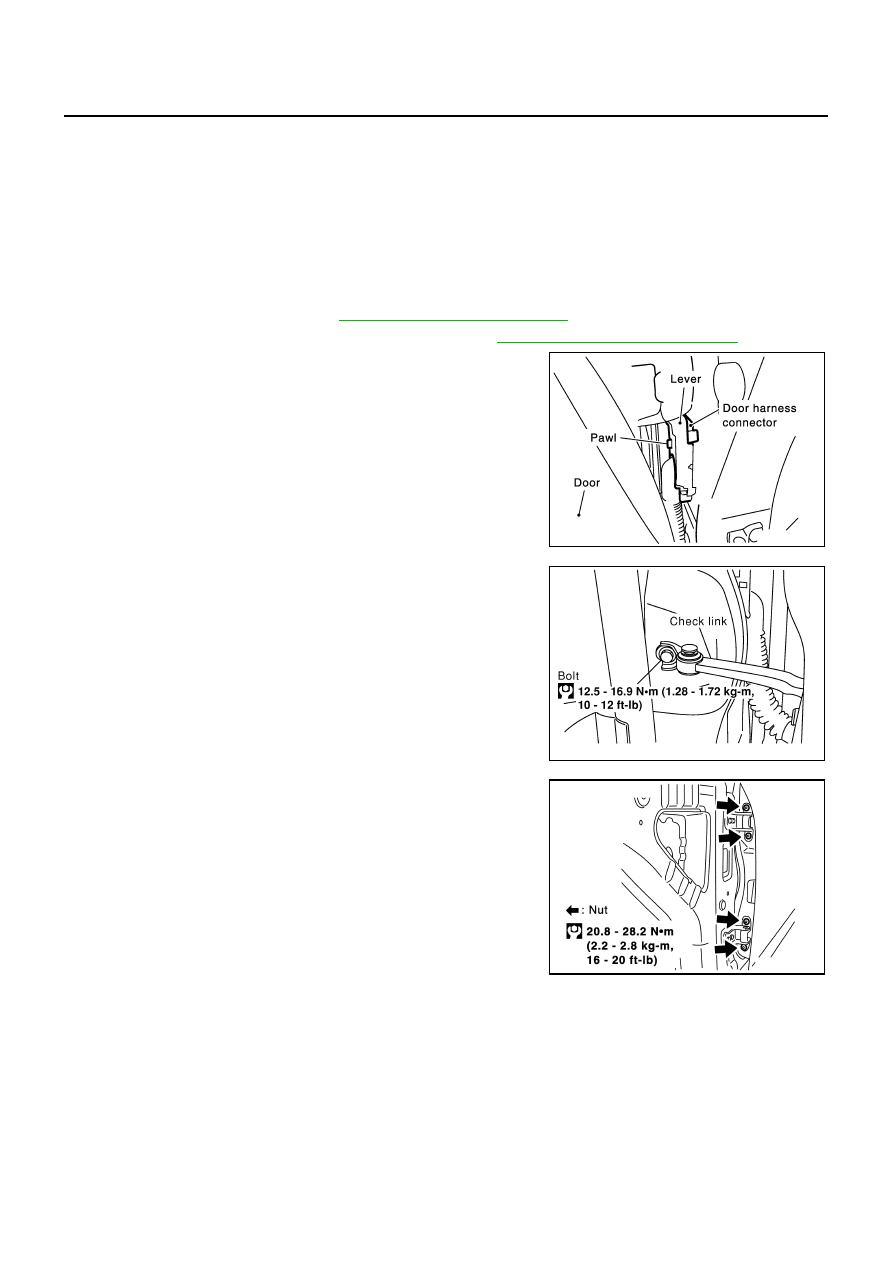

3.

Pull the lever and remove the door harness connector while
removing tabs of door harness connector.

4.

Remove the mounting bolts of the check link on the vehicle.

5.

Remove the door-side hinge mounting nuts, then remove the
door assembly.

INSTALLATION

Install in the reverse order of removal.

PIIA2514E

SIIA0339E

PIIA0600E

DOOR

BL-161

C

D

E

F

G

H

J

K

L

M

A

B

BL

Door Weatherstrip

NIS000CA

REMOVAL

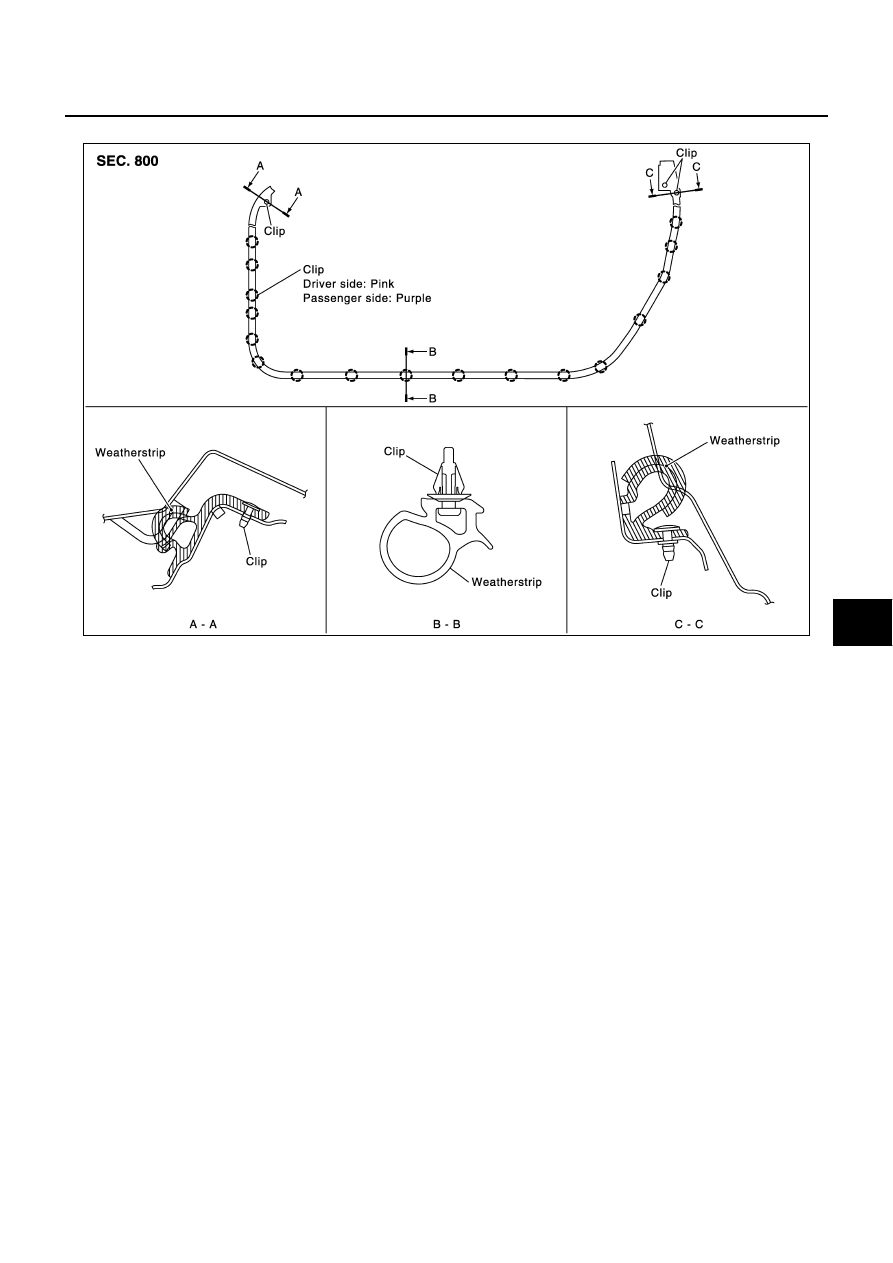

Remove the weatherstrip clips and remove weatherstrip.

INSTALLATION

Install in the reverse order of removal.

PIIA3560E

BL-162

DOOR LOCK

DOOR LOCK

PFP:80502

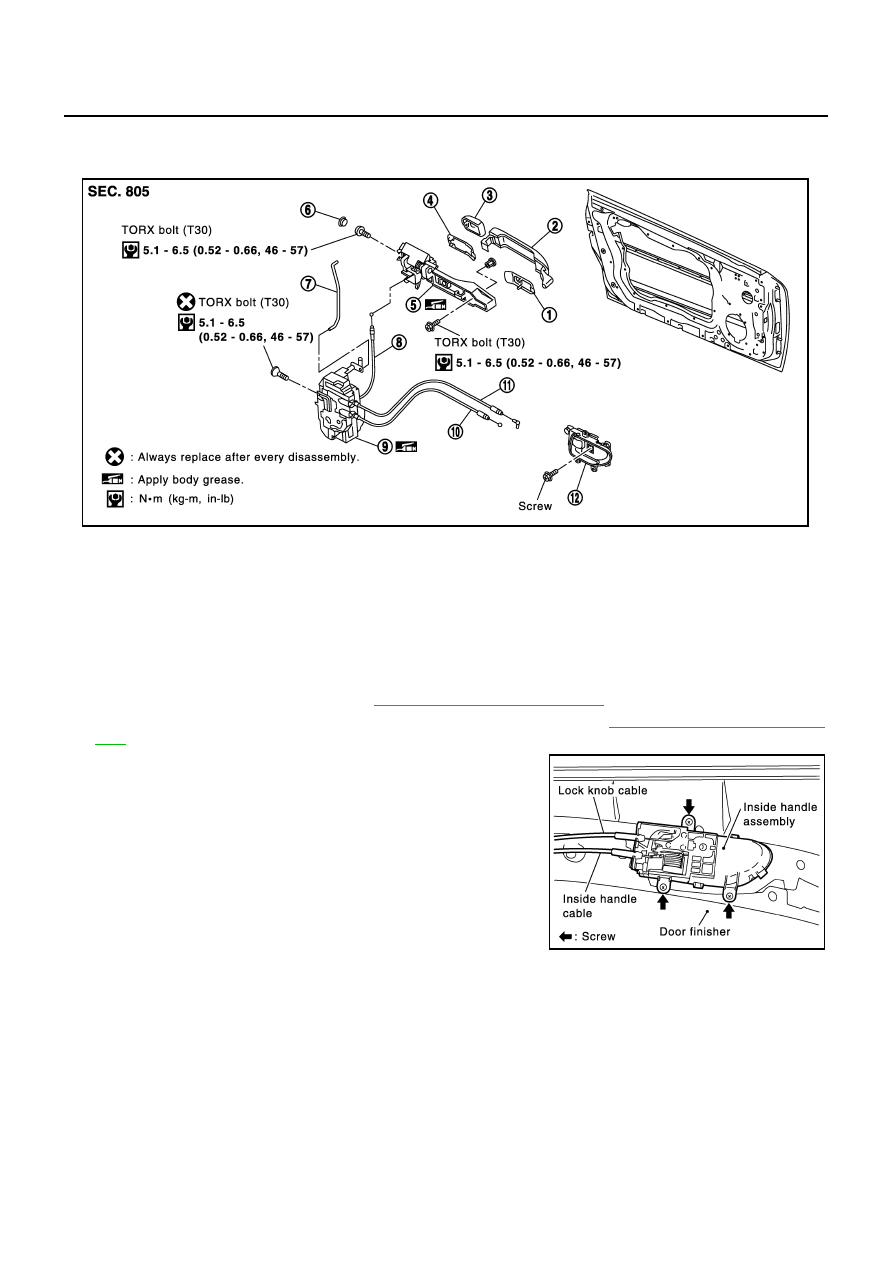

Component Structure

NIS000CB

Removal and Installation

NIS000CC

REMOVAL

1.

Remove the front door finisher. Refer to

EI-29, "Removal and Installation"

 .

2.

Remove the front door window and front door module assembly. Refer to

GW-52, "Removal and Installa-

tion"

 .

3.

Disconnect the inside handle cable and lock knob cable from the
back side of the front door finisher.

4.

Remove door side grommet, and remove door key cylinder assembly (driver side) or outside handle
escutcheon (passenger side) bolts (TORX T30) from grommet hole.

1.

Front gasket

2.

Outside handle

3.

Door key cylinder (Driver side)
Outside handle escutcheon (pas-
senger side)

4.

Rear gasket

5.

Outside handle bracket

6.

grommet

7.

Key cylinder rod (Driver side only)

8.

Outside handle cable

9.

Door lock assembly

10. Inside handle knob cable

11.

Lock knob cable

12. Inside handle

PIIA4137E

PIIA0632E
