REMOTE KEYLESS ENTRY SYSTEM

BL-67

C

D

E

F

G

H

J

K

L

M

A

B

BL

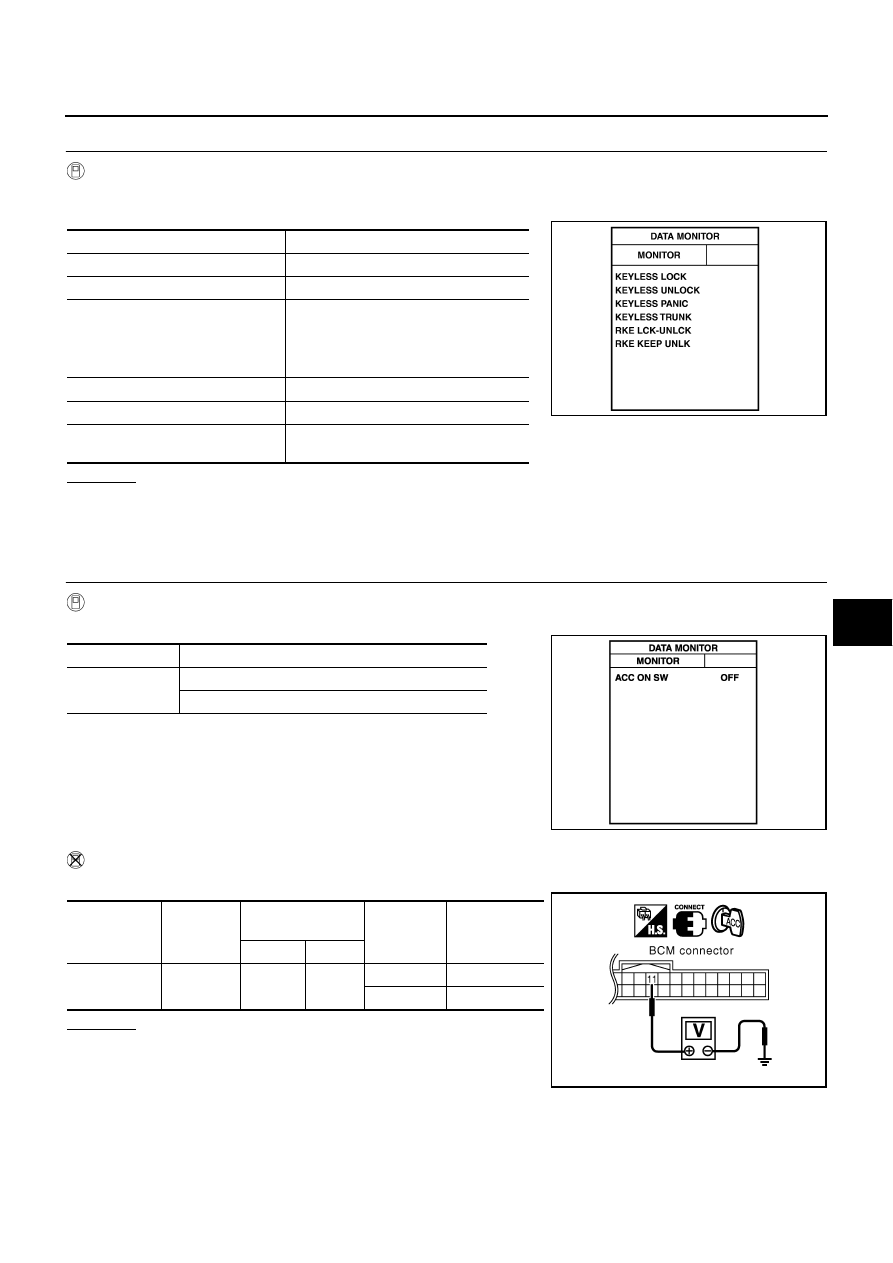

2.

CHECK KEYFOB FUNCTION

 With CONSULT-II

Check keyfob function in “DATA MONITOR” mode with CONSULT-II.
When pushing each button of keyfob, the corresponding monitor item should be turned as follows.

OK or NG

OK

>> Keyfob is OK.

NG

>> Replace keyfob.

Check ACC Power Supply

NIS000BW

1.

CHECK ACC SWITCH

 With CONSULT-II

Check ACC switch (“ACC ON SW ”) in “DATA MONITOR” mode with CONSULT-II.

Without CONSULT-II

Check voltage between BCM connector and ground.

OK or NG

OK

>> ACC power supply is OK.

NG

>> Check the following.

●

10A fuse [No. 6, located in fuse block (J/B)]

●

Harness for open or short between BCM and fuse.

Condition

Monitor item

Pushing LOCK

KEYLESS LOCK

: ON

Pushing UNLOCK

KEYLESS UNLOCK

: ON

Keep pushing UNLOCK

RKE KEEP UNLK

: ON*

*: RKE KEEP UNLK  turns to ON three
seconds after UNLOCK button keeps
pushing.

Pushing TRUNK

KEYLESS TRUNK

: ON

Pushing PANIC

KEYLESS PANIC

: ON

Pushing LOCK and UNLOCK at the
same time

RKE LCK-UNLCK

: ON

PIIA9920E

Monitor item

Condition

ACC ON SW

Ignition switch position is ACC or ON

: ON

Ignition switch position is OFF

: OFF

PIIA3367E

Item

Connector

Terminals

(Wire color)

Condition

Voltage [V]

(Approx.)

(+)

(–)

BCM

M1

11 (LG)

Ground

ACC or ON

Battery voltage

OFF

0

PIIA7002E

BL-68

REMOTE KEYLESS ENTRY SYSTEM

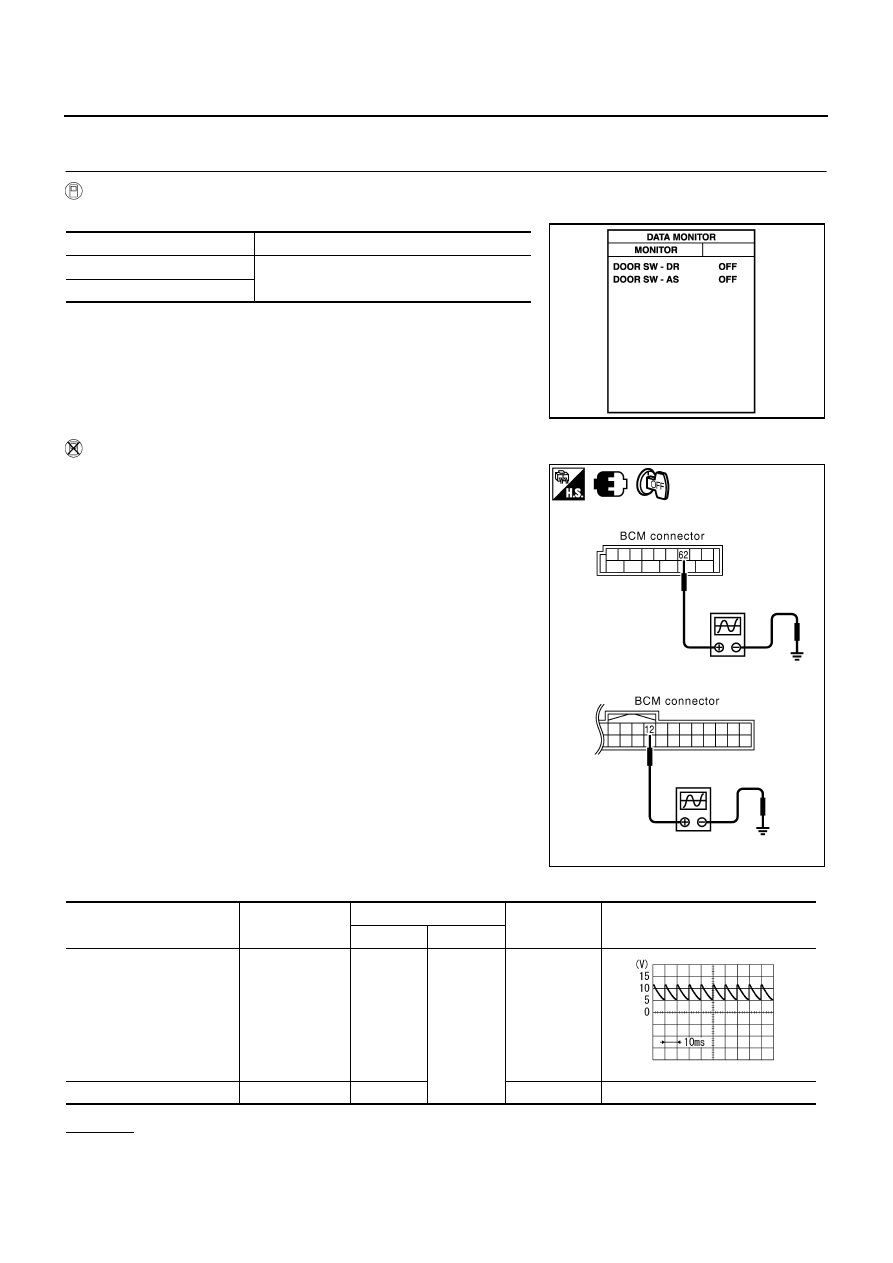

Check Door Switch

NIS000BX

1.

CHECK DOOR SWITCH INPUT SIGNAL

 With CONSULT-II

Check door switches (“DOOR SW-DR ” and “DOOR SW-AS ”) in “DATA MONITOR” mode with CONSULT-II.

Without CONSULT-II

Check voltage between BCM connectors B4 (driver side), M1 (pas-
senger side) terminals 62, 12 and ground.

OK or NG

OK

>> Door switch circuit is OK.

NG

>> GO TO 2.

Monitor item

Condition

DOOR SW-DR

CLOSE

→

 OPEN

: OFF

→

 ON

DOOR SW-AS

PIIA2464E

PIIB7648E

Item

Connectors

Terminals (Wire color)

Condition

Voltage [V]

(Approx.)

(+)

(–)

Driver side door switch

B4

62 (Y)

Ground

CLOSE

Passenger side door switch

M1

12 (P)

OPEN

0

SKIB3419J

REMOTE KEYLESS ENTRY SYSTEM

BL-69

C

D

E

F

G

H

J

K

L

M

A

B

BL

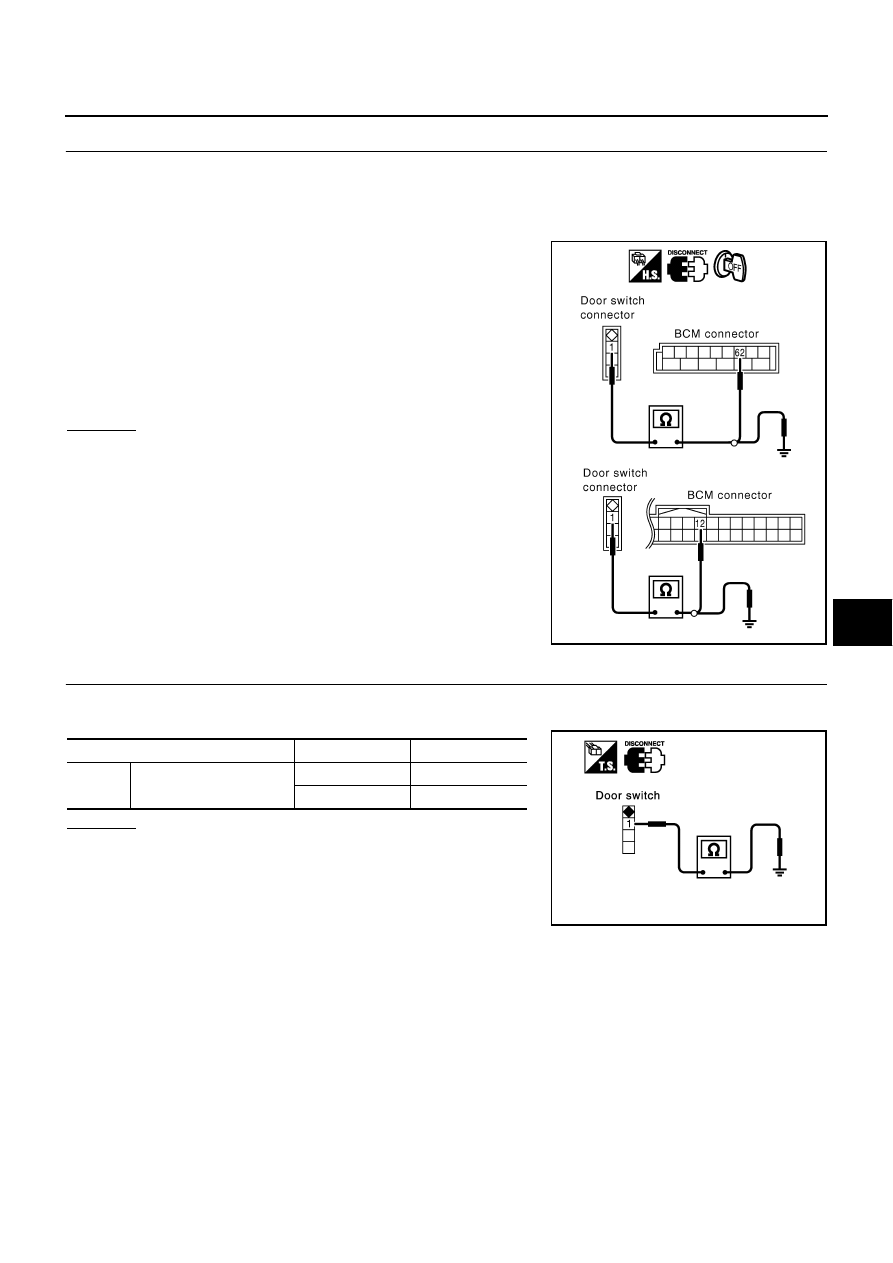

2.

CHECK DOOR SWITCH CIRCUIT

1.

Turn ignition switch OFF.

2.

Disconnect door switch and BCM connector.

3.

Check continuity between door switch connector B17 (driver side), B410 (passenger side) terminals 1 and
BCM connector B4, M1 terminals 62, 12.

4.

Check continuity between door switch connector B17 (driver
side), B410 (passenger side) terminals 1 and ground.

OK or NG

OK

>> GO TO 3.

NG

>> Repair or replace harness.

3.

CHECK DOOR SWITCH

Check continuity between door switch B17 (driver side) or B410 (passenger side) terminal 1 and ground part
of door switch.

OK or NG

OK

>> GO TO 4.

NG

>> Replace door switch.

Driver side door

1 (G/B) – 62 (Y)

: Continuity should exist.

Passenger side door

1 (P) – 12 (P)

: Continuity should exist.

1 (G/B and P) – Ground

: Continuity should not exist.

PIIA9540E

Terminal

Door switch

Continuity

1

Ground part of door switch

Pushed (close)

No

Released (open)

Yes

PIIA3351E

BL-70

REMOTE KEYLESS ENTRY SYSTEM

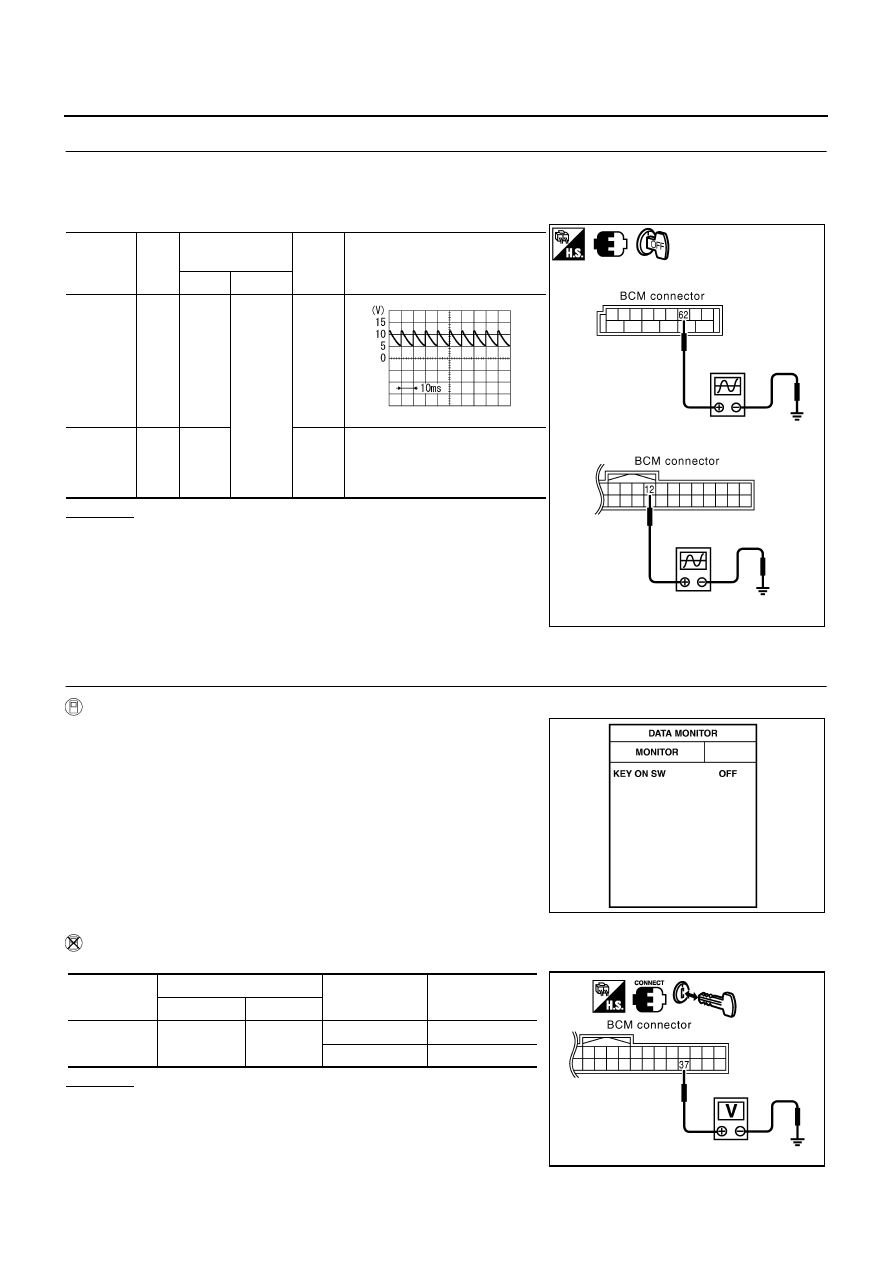

4.

CHECK DOOR SWITCH INPUT SIGNAL

1.

Connect BCM connector.

2.

Check voltage between BCM connectors B4 (driver side), M1 (passenger side) terminals 62, 12 and
ground.

OK or NG

OK

>> Check harness connection.

NG

>> Replace BCM.

Check Key Switch

NIS000BY

1.

CHECK KEY SWITCH INPUT SIGNAL

 With CONSULT-II

Check ignition key cylinder switch “KEY ON SW ” in “DATE MONI-
TOR” mode with CONSULT-II

●

When key is inserted in ignition key cylinder

●

When key is removed from ignition key cylinder

 Without CONSULT-II

Check voltage between BCM connector and ground.

OK or NG

OK

>> Key switch circuit is OK.

NG

>> GO TO 2.

Item

Con-
nec-
tors

Terminals (Wire

color)

Condi-
tion

Voltage [V]

(Approx.)

(+)

(–)

Driver
side door
switch

B4

62

(Y)

Ground

CLOS
E

Passen-
ger side
door
switch

M1

12

(P)

OPEN

0

PIIB7648E

SKIB3419J

KEY ON SW

: ON

KEY ON SW

: OFF

PIIA6470E

Connector

Terminals (Wire color)

Condition

Voltage [V]

(Approx.)

(+)

(–)

M1

37 (B/P)

Ground

Key is inserted

Battery voltage

Key is removed

0
