REMOTE KEYLESS ENTRY SYSTEM

BL-63

C

D

E

F

G

H

J

K

L

M

A

B

BL

MULTI ANSWER BACK SET

AUTO LOCK SET

PANIC ALARM SET

TRUNK OPEN SET

PW DOWN SET

Data Monitor

Active Test

MODE 1

(C mode)

MODE 2

(S mode)

Keyfob operation

Lock

Unlock

Lock

Unlock

Hazard warning lamp flash

Twice

Once

Twice

—

Horn sound

Once

—

—

—

MODE 1

MODE 2

MODE 3

Auto locking function

1 minutes

Nothing

5 minutes

MODE 1

MODE 2

MODE 3

Keyfob operation

0.5 seconds

Nothing

1.5 seconds

MODE 1

MODE 2

MODE 3

Keyfob operation

0.5 seconds

Nothing

1.5 seconds

MODE 1

MODE 2

MODE 3

Keyfob operation

3 seconds

Nothing

5 seconds

Monitored Item

Description

IGN ON SW

Indicates [ON/OFF] condition of ignition switch in ON position.

KEY ON SW

Indicates [ON/OFF] condition of key switch.

ACC ON SW

Indicates [ON/OFF] condition of ignition switch in ACC position.

KEYLESS LOCK

Indicates [ON/OFF] condition of lock signal from keyfob.

KEYLWSS UNLOCK

Indicates [ON/OFF] condition of unlock signal from keyfob.

KEYLESS PANIC

Indicates [ON/OFF] condition of panic signal from keyfob.

KEYLESS TRUNK

Indicates [ON/OFF] condition of trunk open signal from keyfob.

DOOR SW-DR

Indicates [ON/OFF] condition of front door switch driver side.

DOOR SW-AS

Indicates [ON/OFF] condition of door switch passenger side.

DOOR SW-RR

This is displayed even when it is not equipped.

DOOR SW-RL

This is displayed even when it is not equipped.

BACK DOOR SW

This is displayed even when it is not equipped.

TRUNK OPN MNTR

Indicates [ON/OFF] condition of trunk room lamp switch.

CDL LOCK SW

Indicates [ON/OFF] condition of lock signal from door lock and unlock switch.

CDL UNLOCK SW

Indicates [ON/OFF] condition of unlock signal from door lock and unlock switch.

RKE LCK-UNLOCK

Indicates [ON/OFF] condition of simultaneous signal of lock and unlock from keyfob.

RKE KEEP UNLK

Indicates [ON/OFF] condition of unlock continuousness signal from keyfob.

KEY CYL LK-SW

Indicates [ON/OFF] condition of lock signal from door key cylinder switch.

Test Item

Description

FLASHER

This test is able to check right hazard reminder operation.
The right hazard lamp turns on when “ON” on CONSULT-II screen is touched.

POWER WINDOW DOWN

This test is able to check power window open operation.
The front power windows activate for 10 seconds after “ON” on CONSULT-II screen is touched.

BL-64

REMOTE KEYLESS ENTRY SYSTEM

CONSULT-II START PROCEDURE  (IPDM E/R)

Refer to

GI-37, "CONSULT-II Start Procedure"

Data Monitor

Active Test

Work Flow

NIS000BT

1.

Check the trouble symptom and customer's requests.

2.

Understand outline of system. Refer to

BL-51, "System Description"

 .

3.

Confirm that power door lock system operates normally.
Refer to

BL-21, "POWER DOOR LOCK SYSTEM"

 .

4.

Refer to trouble diagnosis chart by symptom, repair or replace any malfunctioning parts.
Refer to

BL-65, "Trouble Diagnosis Chart by Symptom"

 .

5.

Inspection end.

HORN

This test is able to check panic alarm and horn reminder operations.
The horn activate for 0.5 seconds after “ON” on CONSULT-II screen is touched.

DOOR LOCK

This test is able to check all door lock actuators operation.
There are four items, “ALL LOCK”, “ALL UNLOCK”, “DR UNLOCK”, and “OTHER UNLOCK”, on
CONSULT-II screen.

●

When “ALL LOCK” is touched, all door lock actuators lock.

●

When “ALL UNLOCK” is touched, all door lock actuators unlock.

●

When “DR UNLOCK” is touched, driver door lock actuator unlock.

●

When “OTHER UNLOCK” is touched, all door lock actuator (except driver side door lock actuator)
unlock.

TRUNK/BACK DOOR

This is displayed even when it is not equipped.

Test Item

Description

Monitored Item

Description

HORN CHIRP

Indicates [ON/OFF] condition of horn function by IPDM E/R.

Test Item

Description

HORN

This test is able to check horn operation. Horn activates when “ON” on CONSULT-II screen is
touched.

REMOTE KEYLESS ENTRY SYSTEM

BL-65

C

D

E

F

G

H

J

K

L

M

A

B

BL

Trouble Diagnosis Chart by Symptom

NIS000BU

NOTE:

●

Always check the “Work Flow” before troubleshooting. Refer to

BL-64, "Work Flow"

●

Always check keyfob battery before replacing keyfob.

Symptom

Diagnoses/service procedure

Reference

page

All function of remote keyless entry system do not
operate.

1. Check keyfob battery and function.

BL-66

2. Replace keyfob. Refer to ID Code Entry Procedure.

NOTE:
If the result of keyfob function check with CONSULT-II is OK, key-
fob is not malfunctioning.

BL-76

3. Check remote keyless entry receiver.

BL-72

4. Replace BCM.

BCS-16

The new ID of keyfob cannot be entered without
CONSULT-II.

1. Check Keyfob battery and function.

BL-66

2. Check key switch.

BL-70

3. Check door switch.

BL-68

4. Check ACC power supply.

BL-67

5. Replace keyfob. Refer to ID Code Entry Procedure.

NOTE:
If the result of keyfob function check with CONSULT-II is OK, key-
fob is not malfunctioning.

BL-76

6. Replace BCM.

BCS-16

Door lock or unlock does not function with keyfob.
(Power door lock system is “OK”.)

1. Check keyfob battery and function.

BL-66

2. Replace keyfob. Refer to ID Code Entry Procedure.

NOTE:
If the result of keyfob function check with CONSULT-II is OK, key-
fob is not malfunctioning.

BL-76

3. Replace BCM.

BCS-16

Trunk does not open when trunk opener button is
continuously pressed with keyfob.

1. Check trunk open operation mode.*
*: Trunk open operation can be changed.
First check the trunk open operation setting.

BL-62

2. Check keyfob battery and function.

BL-66

3. Check trunk lid function.

BL-74

4. Check key switch.

BL-70

5. Replace keyfob. Refer to ID Code Entry Procedure.

NOTE:
If the result of keyfob function check with CONSULT-II is OK, key-
fob is not malfunctioning.

BL-76

6. Replace BCM.

BCS-16

Hazard and horn reminder does not activate prop-
erly when pressing lock or unlock button of keyfob.

1. Check hazard and horn reminder mode.*
*: Hazard and horn reminder can be changed.
First check the hazard and horn reminder setting.

BL-62

2. Check door switch.

BL-68

3. Replace BCM.

BCS-16

Hazard reminder does not activate properly when
pressing lock or unlock button of keyfob.
(Horn reminder is “OK”.)

1. Check hazard reminder mode.*
*: Hazard reminder can be changed.
First check the hazard reminder setting.

BL-62

2. Check hazard function.

BL-74

3. Replace BCM.

BCS-16

BL-66

REMOTE KEYLESS ENTRY SYSTEM

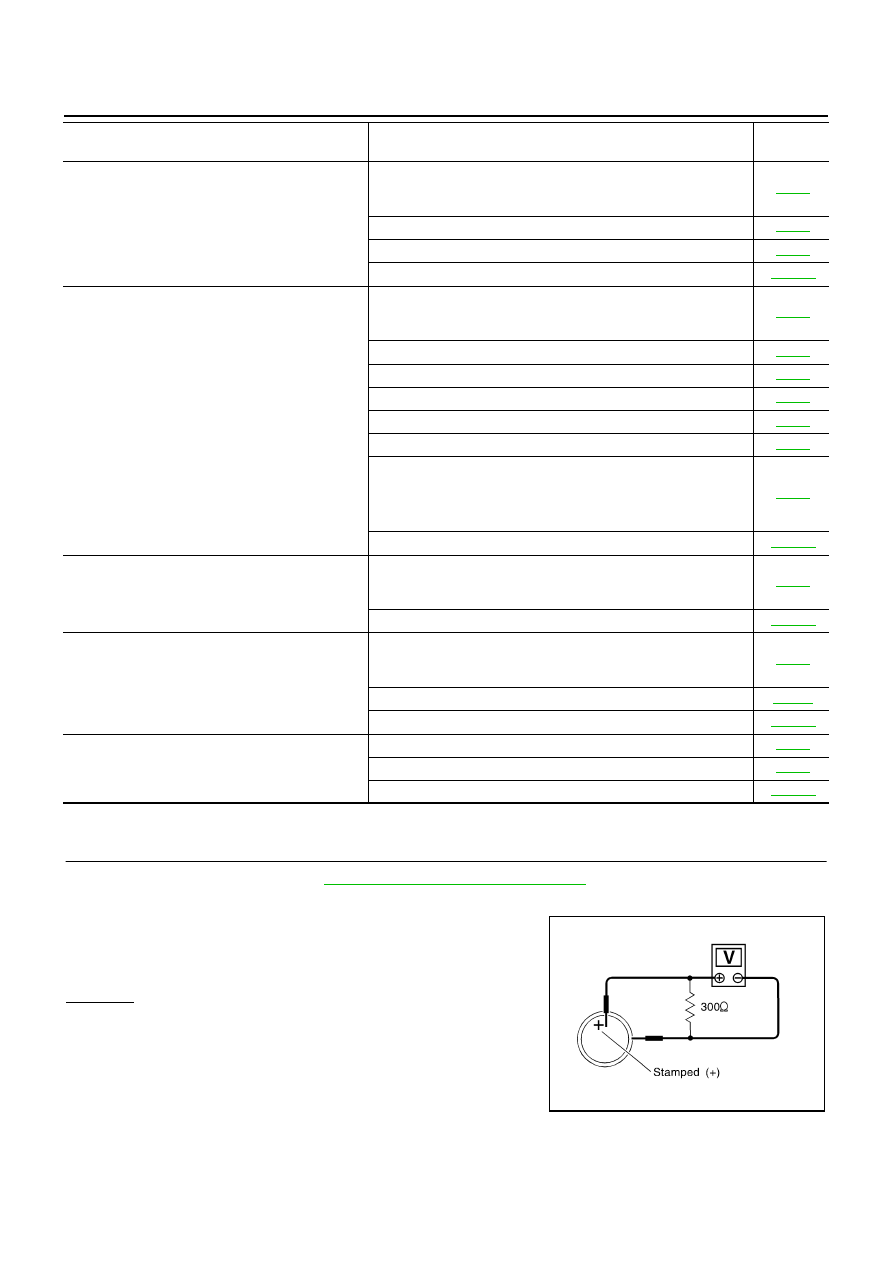

Check Keyfob Battery and Function

NIS000BV

1.

CHECK KEYFOB BATTERY

1.

Remove keyfob battery. Refer to

BL-79, "Keyfob Battery Replacement"

 .

2.

Measure voltage between battery positive and negative terminals.

NOTE:
Keyfob does not function if battery is not set correctly.
OK or NG

OK

>> GO TO 2

NG

>> Replace battery.

Horn reminder does not activate properly when
pressing lock button of keyfob.
(Hazard reminder is “OK”.)

1. Check horn reminder mode.*
*: Horn reminder can be changed.
First check the horn chirp setting.

BL-62

2. Check horn function.

BL-74

3. Check IPDM E/R operation.

BL-71

4. Replace BCM.

BCS-16

Panic alarm (horn and headlamp) does not activate
when panic alarm button is continuously pressed.

1. Check panic alarm mode.*
*: Panic alarm can be changed.
First check the Panic alarm setting.

BL-62

2. Check keyfob battery and function.

BL-66

3. Check headlamp function.

BL-75

4. Check horn function.

BL-74

5. Check IPDM E/R operation.

BL-71

6. Check key switch.

BL-70

7. Replace keyfob. Refer to ID Code Entry Procedure.

NOTE:
If the result of keyfob function check with CONSULT-II is OK, key-
fob is not malfunctioning.

BL-76

8. Replace BCM.

BCS-16

Auto door lock operation does not activate properly.
(All other remote keyless entry system function is
OK.)

1. Check auto door lock operation mode.*
*: Auto door lock operation can be changed.
First check the auto door lock operation setting.

BL-62

2. Replace BCM.

BCS-16

Keyless power window down (open) operation does
not activate properly.
(All other remote keyless entry system function is
OK.)

1. Check power window down operation mode.*
*: Power window down operation can be changed.
First check the power window down setting.

BL-62

2. Check power window function.

GW-17

3. Replace BCM.

BCS-16

Map lamp and ignition keyhole illumination opera-
tion does not activate properly.

1. Check map lamp and ignition keyhole illumination function.

BL-75

2. Check door switch.

BL-68

3. Replace BCM.

BCS-16

Symptom

Diagnoses/service procedure

Reference

page

Voltage

: 2.5V – 3.0V

SEL237W
