Infiniti G35 (V35). Manual - part 159





POWER DOOR LOCK SYSTEM

BL-23

C

D

E

F

G

H

J

K

L

M

A

B

BL

When the door is unlocked with door key cylinder switch, ground is supplied

to power window main switch (door lock and unlock switch) terminal 7

through door key cylinder switch terminals 6 and 5

through grounds M30 and M66.

Then door key cylinder switch operation signal is supplied

to BCM terminal 22

through power window main switch (door lock and unlock switch) terminal 12.

POWER WINDOW SERIAL LINK

BCM is connected to power window main switch (door lock and unlock switch) and power window sub-switch
(door lock and unlock switch) as serial link.
Power window main switch, power window sub-switch and BCM transmit and receive the signal by power win-
dow serial link.
The under mentioned signal is transmitted from power window main switch to BCM.

Door lock and unlock switch signal.

The under mentioned signal is transmitted from power window sub-switch to BCM.

Door lock and unlock switch signal.

OUTLINE
Functions Available by Operating the Door Lock and Unlock Switches on Driver's Door and
Passenger's Door

With the locking operation of door lock and unlock switch, driver side door lock actuator, passenger side
door lock actuator and fuel lid lock actuator are locked.

With the unlocking operation of door lock and unlock switch, driver side door lock actuator, passenger side
door lock actuator and fuel lid lock actuator are unlocked.

Functions Available by Operating the Key Cylinder Switch

With the locking operation of door key cylinder, driver side door lock actuator, passenger side door lock
actuator and fuel lid lock actuator are locked.

When door key cylinder is unlocked, driver side door lock actuator and fuel lid lock actuator are unlocked.

When door key cylinder is unlocked for the second time within 5 seconds after the first operation, passen-
ger side door lock actuator is unlocked.

Unlock mode can be changed using “DOOR LOCK-UNLOCK SET” in “WORK SUPPORT”.
Refer to

BL-36, "WORK SUPPORT"

 .

Key Reminder Door System

When door lock and unlock switch is operated to lock doors with ignition key put in key cylinder and driver's or
passenger's door open, driver and passenger door lock actuators are locked and then unlocked.
Key reminder door mode can be changed using “ANTI-LOCK OUT SET” in “WORK SUPPORT”.
Refer to

BL-36, "WORK SUPPORT"

 .

CAN Communication System Description

NIS000B3

CAN (Controller Area Network) is a serial communication line for real time application. It is an on-vehicle mul-
tiplex communication line with high data communication speed and excellent error detection ability. Many elec-
tronic control units are equipped onto a vehicle, and each control unit shares information and links with other
control units during operation (not independent). In CAN communication, control units are connected with 2
communication lines (CAN H line, CAN L line) allowing a high rate of information transmission with less wiring.
Each control unit transmits/receives data but selectively reads required data only.

CAN Communication Unit

NIS000B4

Refer to

LAN-47, "CAN System Specification Chart"

 .

BL-24

POWER DOOR LOCK SYSTEM

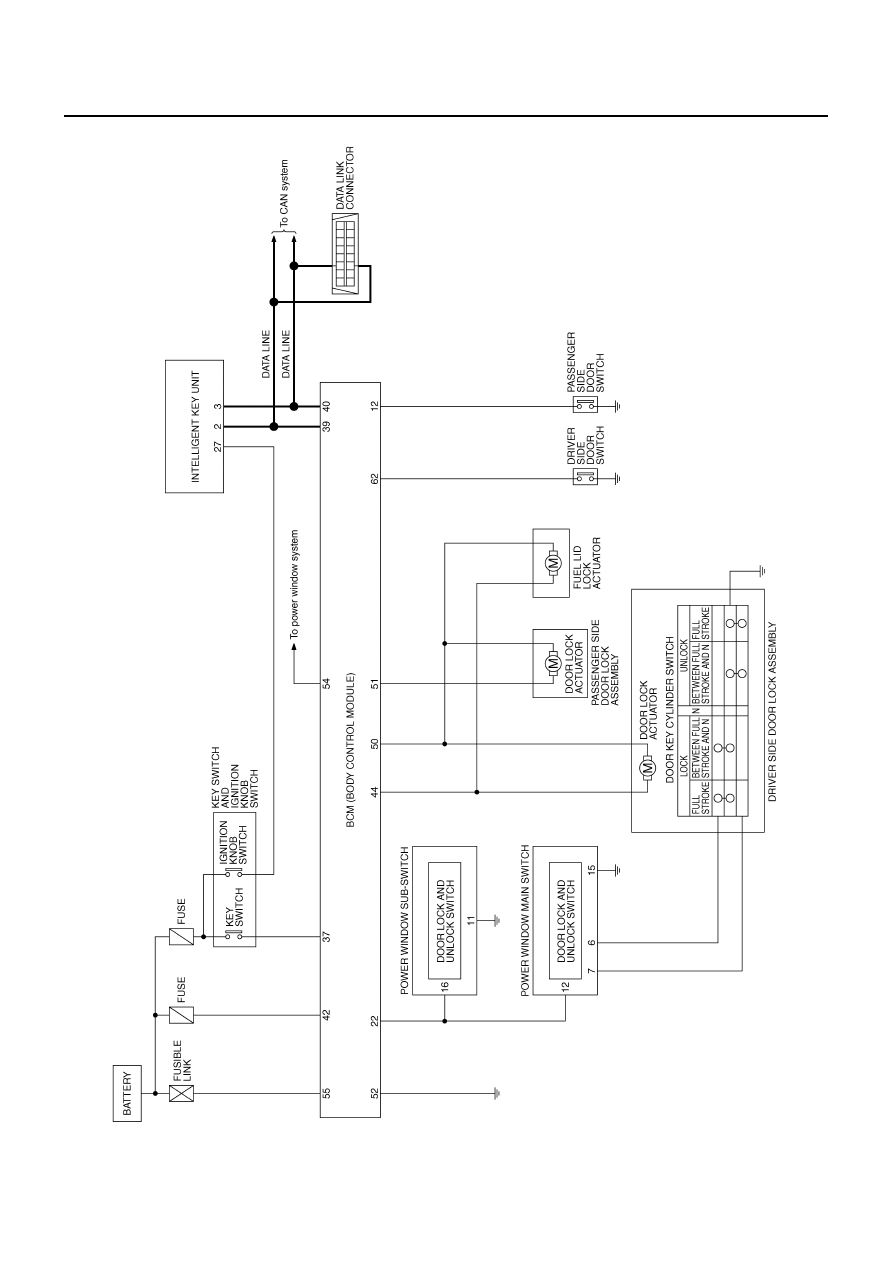

Schematic/With Intelligent Key

NIS000B5

TIWM1458E

POWER DOOR LOCK SYSTEM

BL-25

C

D

E

F

G

H

J

K

L

M

A

B

BL

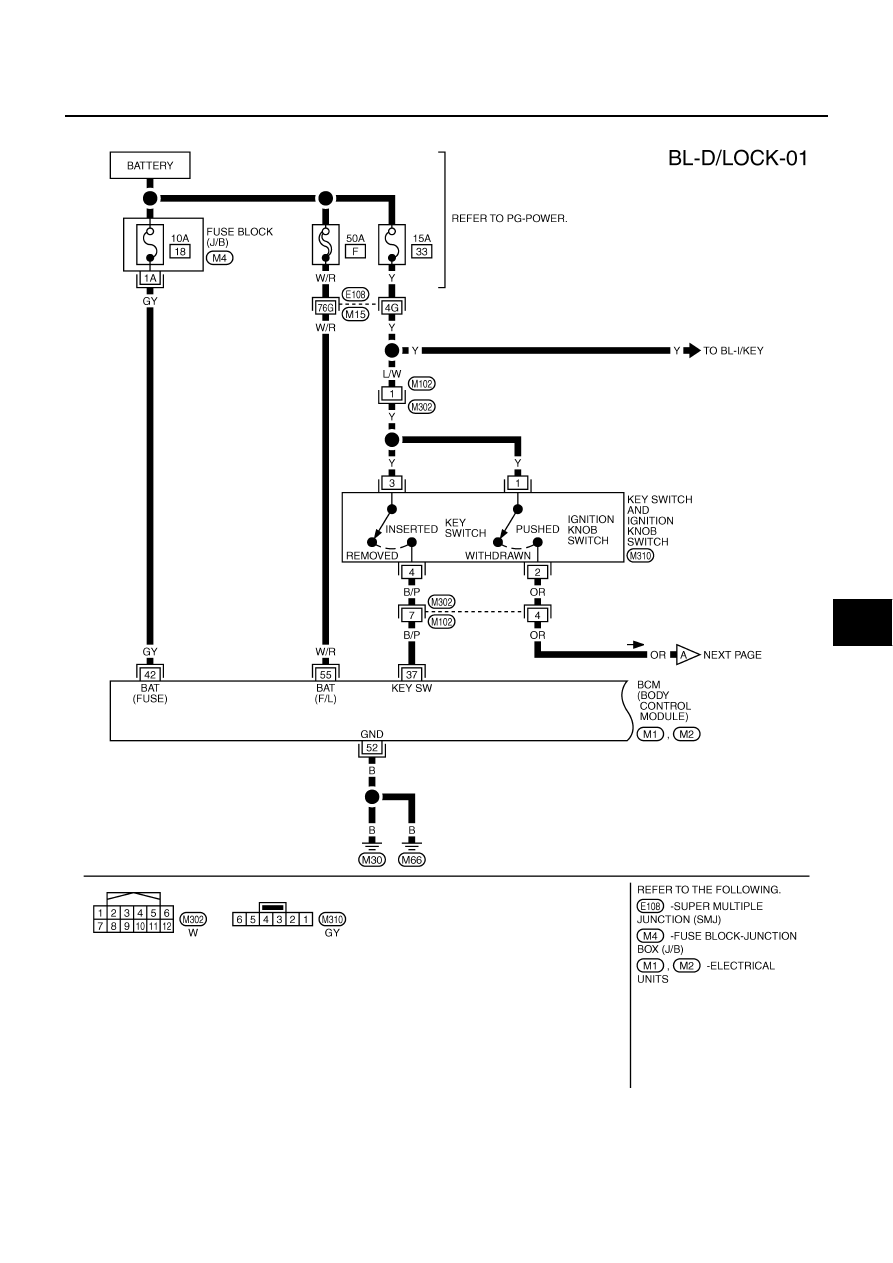

Wiring Diagram —D/LOCK—/With Intelligent Key

NIS000B6

TIWM1459E

BL-26

POWER DOOR LOCK SYSTEM

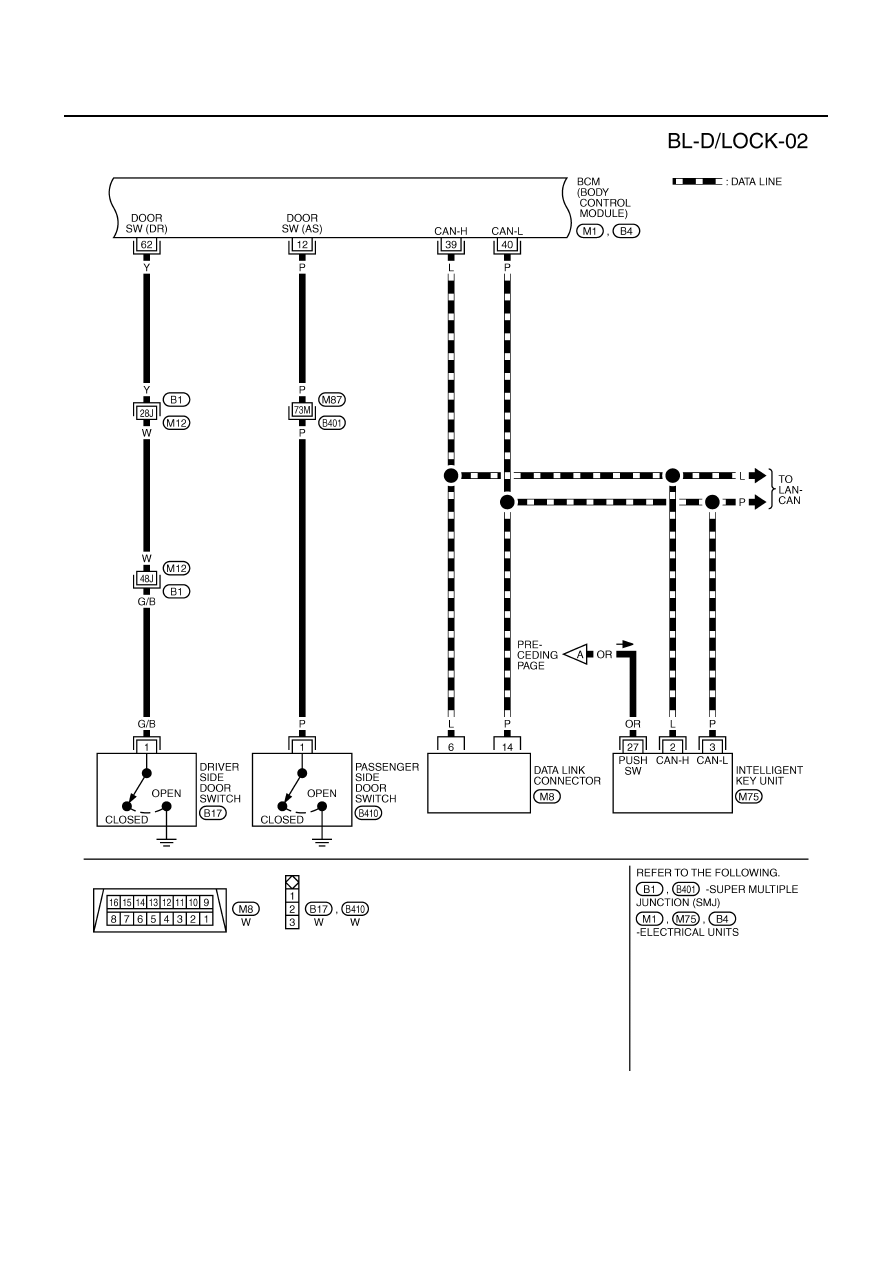

TIWM1460E
