NAVIGATION SYSTEM

AV-79

C

D

E

F

G

H

I

J

L

M

A

B

AV

2.

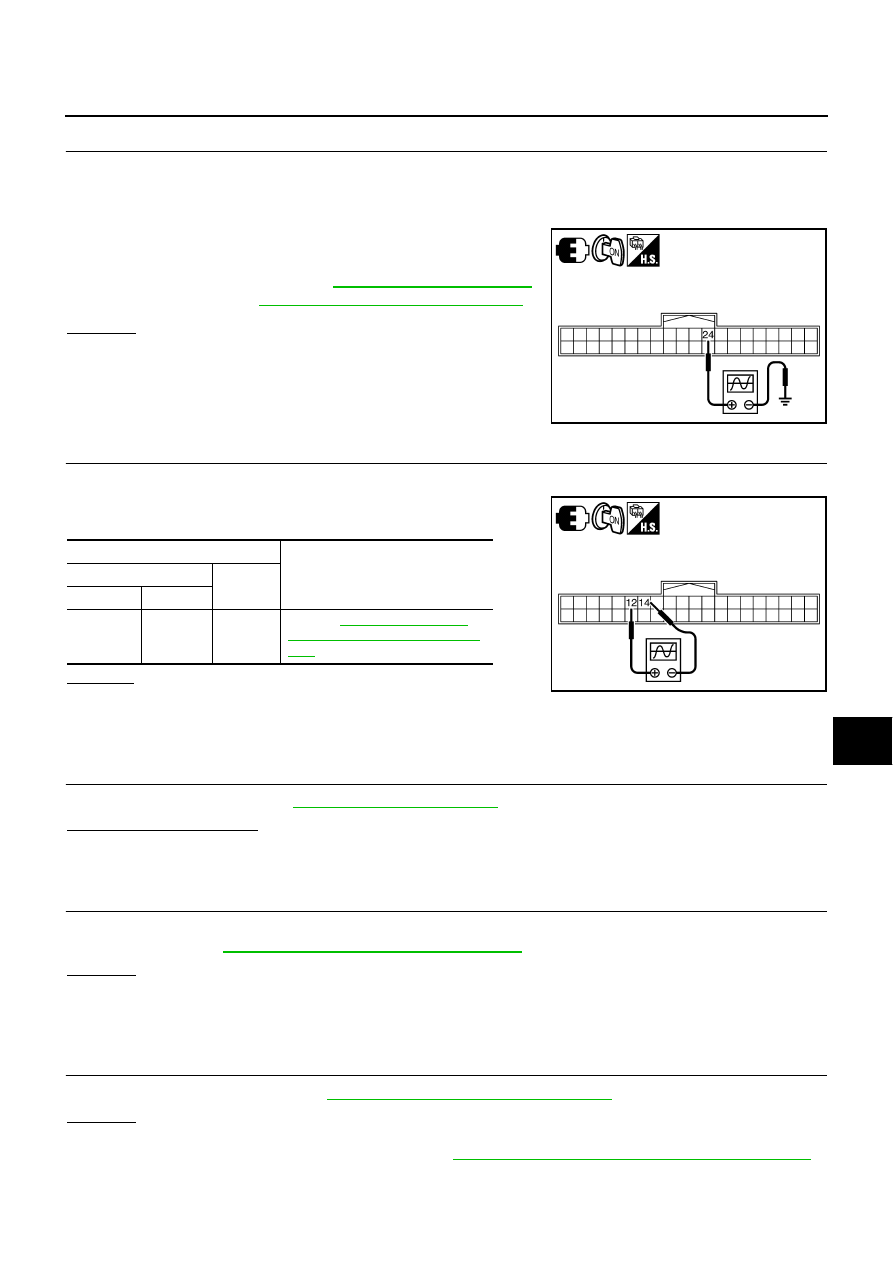

CHECK VOICE GUIDANCE ON SIGNAL

1.

Connect NAVI control unit connector and audio unit connector.

2.

Turn ignition switch ON.

3.

Press “VOICE” switch.

4.

Check the signal between NAVI control unit harness connector
M58 terminal 24 and ground with CONSULT-ll or oscilloscope.

OK or NG

OK

>> GO TO 3.

NG

>> Replace NAVI control unit.

3.

CHECK VOICE GUIDANCE SIGNAL

1.

Press the “VOICE” switch.

2.

Check the signal between NAVI control unit harness connector
M58 terminals 12 and 14 with CONSULT-ll or oscilloscope.

Ok or NG

OK

>> Replace audio unit.

NG

>> Replace NAVI control unit

No Fuel Information Is Displayed

NKS002GG

1.

PERFORM SELF-DIAGNOSIS

Perform self-diagnosis. Refer to

AV-59, "Self Diagnosis Mode"

 .

Is self-diagnosis result OK?

YES

>> GO TO 2.

NO

>> Check applicable parts.

2.

CHECK COMBINATION METER

Using CONSULT-ll select “ECM SELF-DIAGNOSIS” to check CAN communication between ECM and combi-
nation meter. Refer to

EC-121, "CONSULT-II Function (ENGINE)"

 .

OK or NG

OK

>> Replace combination meter.

NG

>> Check applicable parts.

Vehicle Condition Setting Is Not Possible

NKS002GH

1.

CHECK VEHICLE SPEED SIGNAL

Check vehicle speed signal. Refer to

AV-68, "Vehicle Speed Signal Inspection"

 .

OK or NG

OK

>> Replace NAVI control unit.

NG

>> Check combination meter system. Refer to

DI-12, "Self-Diagnosis Mode of Combination Meter"

 .

24 – Ground

: Refer to

AV-53, "Terminals and Ref-

erence Value for NAVI Control Unit"

 .

SKIB7280E

Terminals

Reference Signal

(+)

(–)

Connector

Terminal

M57

12

14

Refer to

AV-53, "Terminals and

Reference Value for NAVI Control
Unit"

 .

SKIB7281E

AV-80

NAVIGATION SYSTEM

No Warning Message Is Displayed (Warning Lamp In  Combination Meter  Illumi-
nates)

NKS002GI

1.

CHECK DISPLAY CONDITION

Check display condition of warning screen.

>> GO TO 2.

2.

PERFORM SELF-DIAGNOSIS

Perform self-diagnosis. Refer to

AV-59, "Self Diagnosis Mode"

 .

Is self-diagnosis result OK?

YES

>> Replace combination meter.

NO

>> Check applicable parts.

The Position of The Current-Location Mark Is Not Correct

NKS002GJ

1.

PERFORM SELF-DIAGNOSIS

 Perform self-diagnosis function in “Self-diagnosis mode”. Refer to

AV-59, "Self Diagnosis Mode"

 .

OK or NG

OK

>> GO TO 2.

NG

>> Check applicable parts.

2.

PERFORM ERROR HISTORY DIAGNOSIS

Was any error stored in

AV-63, "ERROR HISTORY"

  of the CONFIRMATION/ADJUSTMENT mode?

YES or NO

YES

>>

AV-63, "ERROR HISTORY"

.

NO

>>

AV-81, "Driving Test"

.

Radio Wave From The GPS Satellite Is Not Received

NKS002GK

1.

CHECK ENVIRONMENT

Check if any metal object that intercepts radio waves or an object that emits radio waves (such as a portable
phone) is located near the GPS antenna. Check if the vehicle is shielded by a building.

OK or NG

OK

>>

System is normal.
The GPS antenna may not be able to receive radio waves from the GPS satellite if it is shielded
by metal object or an object emitting radio waves is placed near it.

NG

>> GO TO 2.

2.

PERFORM SELF-DIAGNOSIS

Perform self-diagnosis function. Refer to

AV-59, "Self Diagnosis Mode"

 .

OK or NG

OK

>> Replace GPS antenna.

NG

>> Check applicable parts.

Warning screen

Display condition

Door Open

When door switch is ON and vehicle speed is
more than 5 km/h (3 MPH)

NAVIGATION SYSTEM

AV-81

C

D

E

F

G

H

I

J

L

M

A

B

AV

Driving Test

NKS002GL

1.

DRIVING TEST 1

1.

Scroll the map screen to display the area to make correction. Press “ENTER” and select “ADJUST CUR-
RENT LOCATION”.

2.

Correct direction of the vehicle mark.

3.

Perform the distance correction of the CONFIRMATION/ADJUSTMENT mode.

NOTE:
Normally, adjustment is not necessary because this system has automatic distance correction function.
However, when a tire chain is fitted, adjustment in accordance with the tire diameter ratio must be made.

4.

Are symptoms applicable to

AV-82, "Example of Symptoms Judged Not Malfunction"

  present after driving

the vehicle?

YES or NO

YES

>> Limit of the location detection capacity of the navigation system

NO

>> GO TO 2.

2.

DRIVING TEST 2

Does any malfunction occur when the proper test in the following test patterns is performed?

Test pattern
Driving test it to find the difference between the symptoms monitored with and without each sensor.

Test pattern 1: Test method with no GPS location correction
Disconnect the GPS antenna connector connected to the NAVI control unit. Accurately adjust the current
position and the direction, and then drive the vehicle.

Test pattern 2: Test method with no map-matching
Accurately adjust the current position and the direction. Eject the map DVD-ROM from the NAVI control
unit with the ignition switch turned to OFF, and then drive the vehicle. After driving, insert the map DVD-
ROM back in the unit, display the track of the vehicle on the map screen and compare it with the actual
road configuration.

Sample tests

<When the current-location mark skips at the same position, to determine, whether it is caused by map-
matching or by GPS>
Perform test pattern 1.

<To determine if the pattern of streets displayed is correct or not>
Perform test pattern 1and 2.
Compare the track of the vehicle on the map screen and the actual road configuration. For fairly accurate
tracking, plotting shall be made every several hundred meters.

<When the distance is adjusted accurately>
Perform test pattern 1and 2.
Drive on a road of which distance is accurately known (by utilizing distance posts on a highway). Calculate
the rate of change (increased/decreased) of the distance by comparing with the actual distance.
Correction = A/B
A: Distance shown on the screen
B: Actual distance

YES or NO

YES

>>

If adjustment is insufficient, perform adjustment again.

If any error is found in the map, please let us know.

Replace NAVI control unit

NO

>> Limit of the location detection capacity of the navigation system

AV-82

NAVIGATION SYSTEM

Example of Symptoms Judged Not Malfunction

NKS002GM

NOTE:
For navigation system operation infomation, refer to navigation system owner's manual.

BASIC OPERATION

VEHICLE MARK

Symptom

Cause

Remedy

No image is shown.

Display brightness adjustment is set fully to
DARK side.

Adjust the display brightness.

No guidance sound is heard.
Audio guidance volume is too low
or too high.

Volume control is set to OFF, MIN or MAX.

Adjust the audio guidance volume.

Audio guidance is not available while the vehicle
is driving on a dark pink route.

System is not malfunction.

Screen is too dark.
Motion of the image is too slow.

Temperature inside the vehicle is low.

Wait until the temperature inside the vehicle
reaches the proper temperature.

Small black or bright spots appear
on the screen.

Symptom peculiar to a liquid crystal display.

System is not malfunction.

Symptom

Cause

Remedy

Map screen and bird view ™Name
of the place vary with the screen.

Some thinning of the character data is done to
prevent the display becoming to complex. In
some cases and in some locations, the display
contents may differ.
The same place name, street name, etc. may not
be displayed every time on account of the data
processing.

System is not malfunction.

Vehicle mark is not positioned cor-
rectly.

Vehicle is transferred by ferry or by towing after its
ignition switch is turned to OFF.

Drive the vehicle for a while in the GPS sat-
ellite signal receiving condition.

Screen will not switch to nighttime
mode after the lighting switch is
turned ON.

The daytime screen is selected by the “SWITCH
SCREENS” when the last time the screen dim-
ming setting is done.
Switching between daytime/nighttime screens
may be inhibited by the automatic illumination
adjustment function.

Perform screen dimming and select the
nighttime screen by “SWITCH SCREENS”.

Map screen will not scroll in accor-
dance with the vehicle travel.

Current location is not displayed.

Press “MAP” switch to display the current
location.

Vehicle mark will not be shown.

Current location is not displayed.

Press “MAP” switch to display the current
location.

Accuracy indicator (GPS satellite
mark) on the map screen stays
gray.

GPS satellite signal is intercepted because the
vehicle is in or behind a building.

Move the vehicle out to an open space.

GPS satellite signal cannot be received because
an obstacle is placed on top of the display.

Do not place anything in the center on top of
the display.

GPS satellites are located badly.

Wait until the location becomes better.

Vehicle location accuracy is low.

Accuracy indicator (GPS satellite mark) on the
map screen stays gray.

Current location is not determined.

Vehicle speed setting by the vehicle speed pulse
has been deviated (advanced or retarded) from
the actual vehicle speed because tire chain is fit-
ted or the system has been used on another vehi-
cle.

Drive the vehicle for a while [for approx. 30
minutes at approx. 30 km/h (19 MPH)] and
the deviation will be automatically adjusted.
If advancement or retards still occur, perform
the distance adjustment by CONFIRMA-
TION/ADJUSTMENT mode of diagnosis
function.

Map data has error or omission. (Vehicle mark is
always deviated to the same position.)

As a rule, an updated map DVD-ROM will be
released once a year.
