NAVIGATION SYSTEM

AV-51

C

D

E

F

G

H

I

J

L

M

A

B

AV

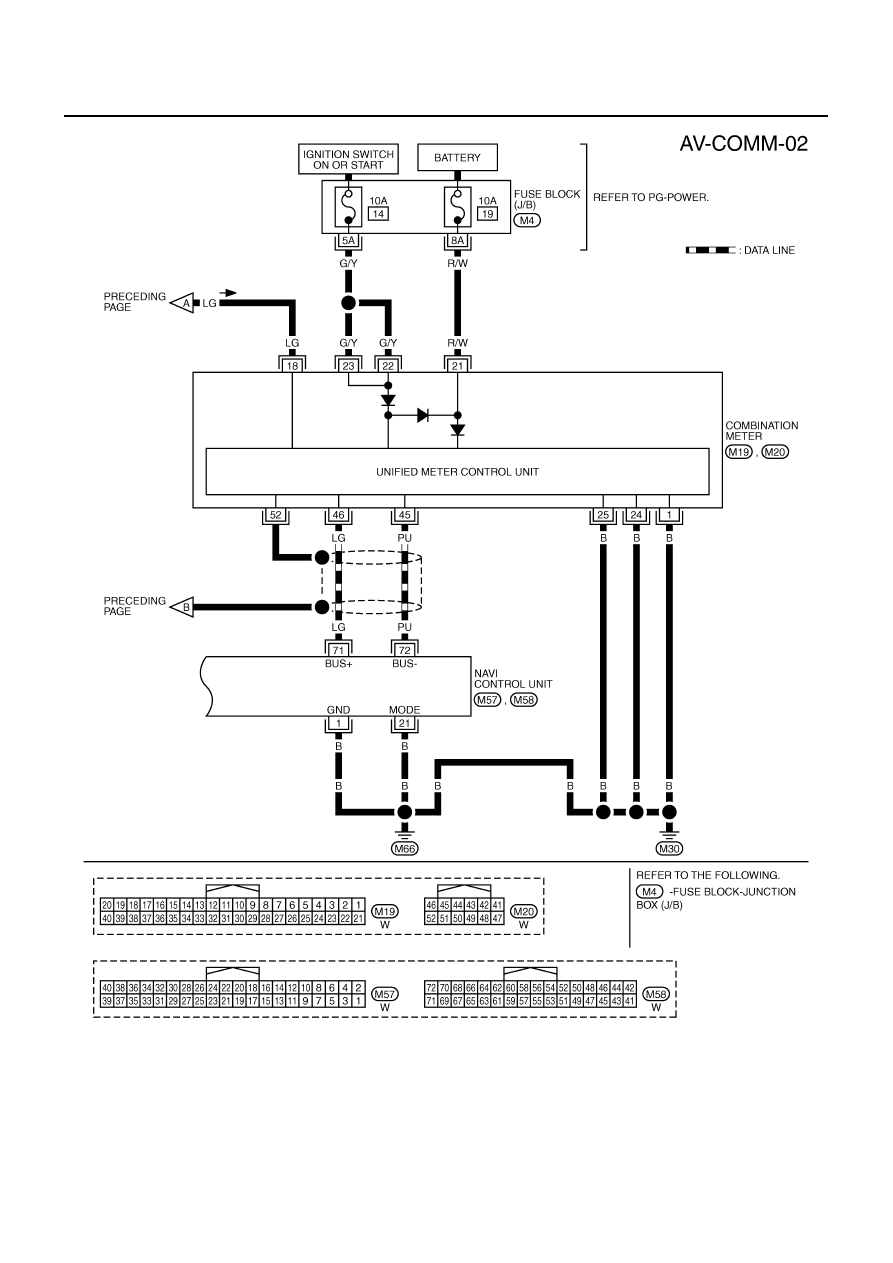

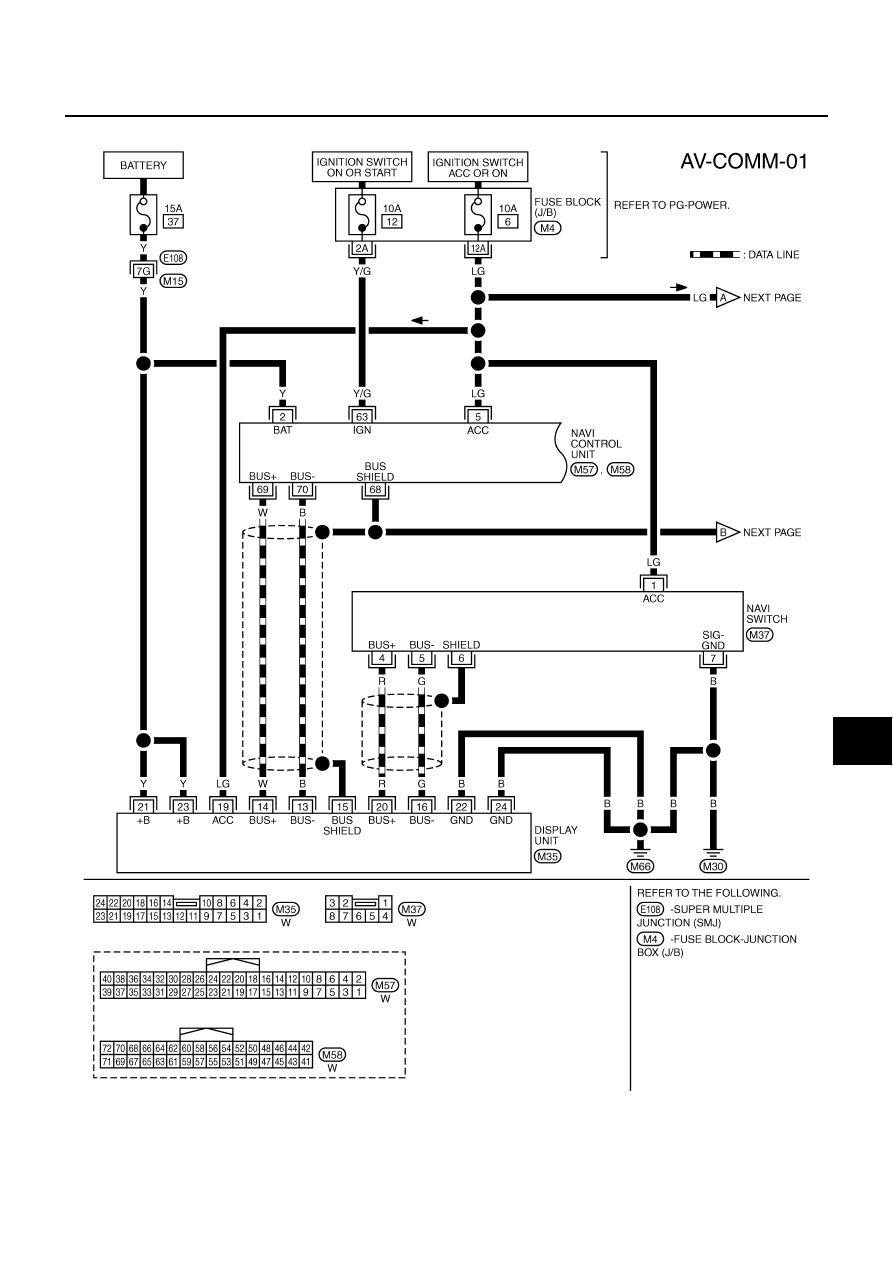

Wiring Diagram — COMM—

NKS000PB

TKWM3514E

AV-52

NAVIGATION SYSTEM

TKWM4946E

NAVIGATION SYSTEM

AV-53

C

D

E

F

G

H

I

J

L

M

A

B

AV

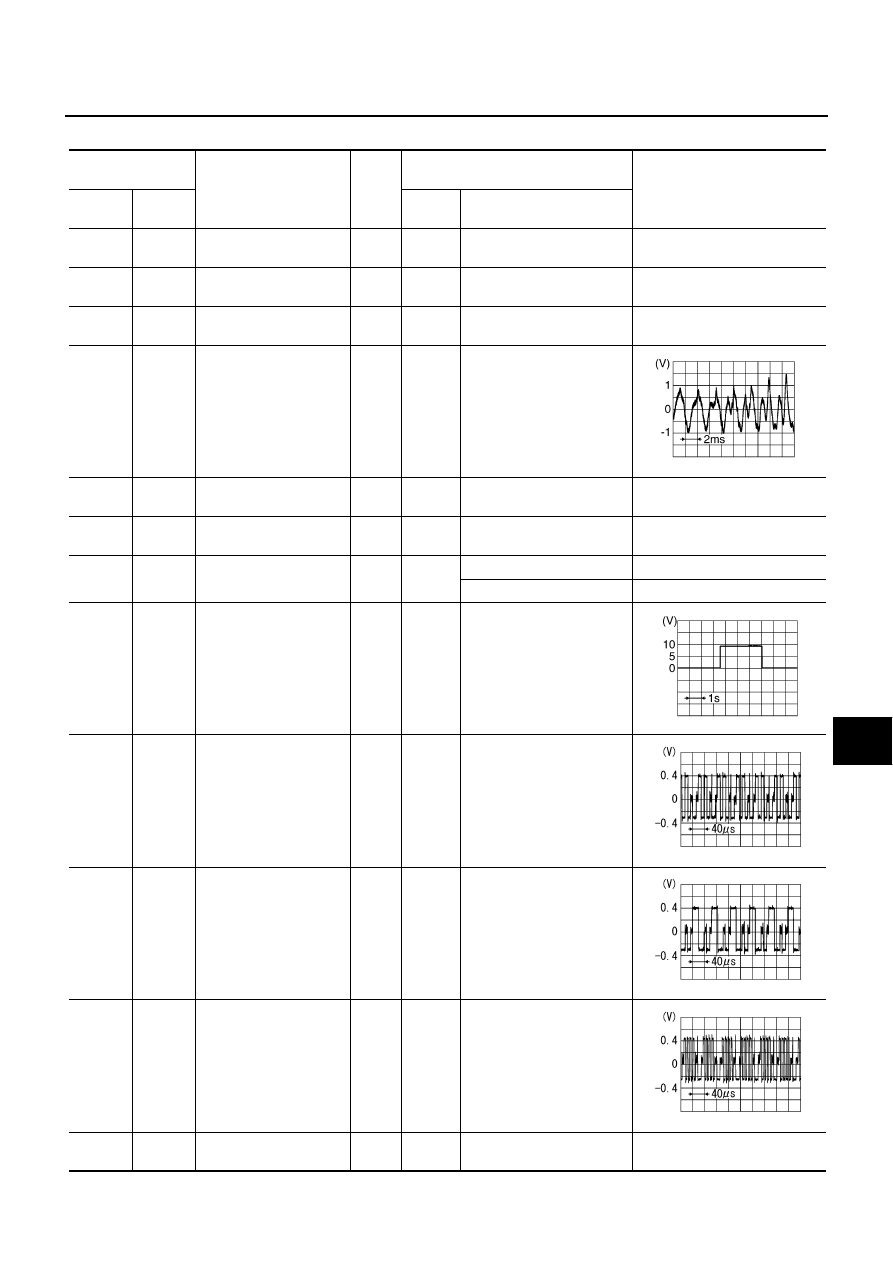

Terminals and Reference Value for NAVI Control Unit

NKS002FT

Terminal

(Wire color)

Item

Signal

Input/

output

Condition

Reference value

+

–

Ignition

switch

Operation

1

(B)

Ground

Ground

—

ON

—

Approx. 0 V

2

(Y)

Ground

Battery power supply

Input

OFF

—

Battery voltage

5

(LG)

Ground

ACC power supply

Input

ACC

—

Battery voltage

12

(L/W)

14

(W/B)

Voice guidance signal

Output

ON

When inputting voice guid-
ance.

13

(B)

—

Shield

—

—

—

—

21

(B)

Ground

Ground

—

ON

—

Approx. 0 V

22

(R/W)

Ground

Limit switch signal

Input

ON

Display unit is opened.

Approx. 5 V

Except for above

Approx. 0 V

24

(R/B)

Ground

Voice guidance ON sig-
nal

Output

ON

Press the “VOICE” switch.

44

(B)

47

(G)

RGB signal (R: red)

Output

ON

Start confirmation/adjust-
ment mode, and then dis-
play color bar by selecting
“Color Spectrum Bar” on
DISPLAY DIAGNOSIS
screen.

45

(W)

47

(G)

RGB signal (G: green)

Output

ON

Start confirmation/adjust-
ment mode, and then dis-
play color bar by selecting
“Color Spectrum Bar” on
DISPLAY DIAGNOSIS
screen.

46

(R)

47

(G)

RGB signal (B: blue)

Output

ON

Start confirmation/adjust-
ment mode, and then dis-
play color bar by selecting
“Color Spectrum Bar” on
DISPLAY DIAGNOSIS
screen.

47

(G)

Ground

RGB ground

—

ON

—

Approx.0 V

SKIB3609E

SKIB0232E

SKIB2238J

SKIB2236J

SKIB2237J

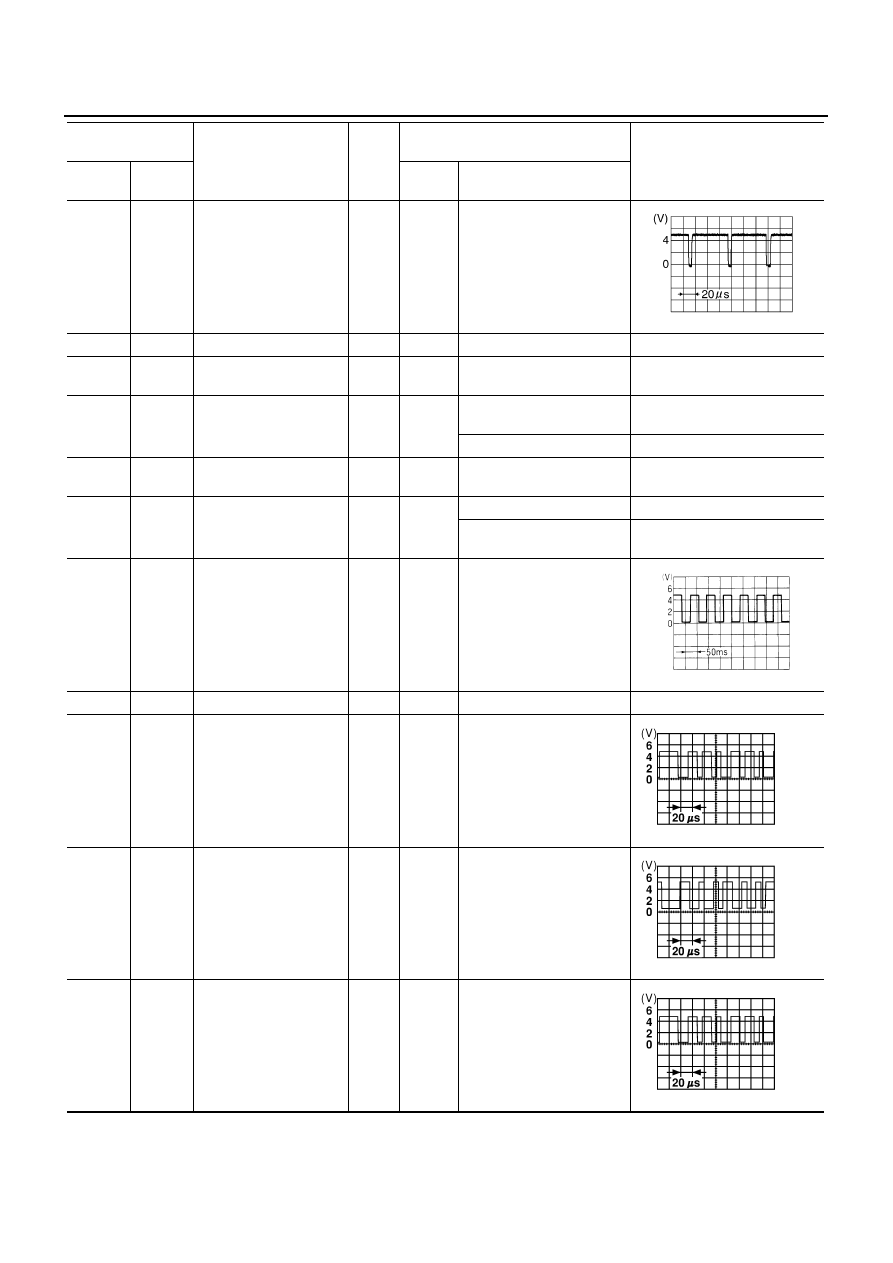

AV-54

NAVIGATION SYSTEM

48

(P)

Ground

RGB synchronizing sig-
nal

Output

ON

—

49

—

Shield

—

—

—

—

50

(L)

Ground

RGB area (YS) signal

Output

ON

When inputting RGB image.

Approx. 5 V

61

(R/L)

Ground

Illumination signal

Input

OFF

Lighting switch position 1st
or 2nd

Approx. 12 V

Lighting switch position OFF

Approx. 0 V

63

(Y/G)

Ground

Ignition signal

Input

ON

—

Battery voltage

65

(OR)

Ground

Reverse signal

Input

ON

Select lever in R position.

Approx. 12 V

Other than selector lever in
R position.

Approx. 0 V

66

(W/G)

Ground

Vehicle speed signal
(2-pulse)

Input

ON

When vehicle speed is
approx. 40 km/h (25 MPH).

68

—

Shield

—

—

—

—

69

(W)

Ground

Communication signal
(+)

Input/

Output

ON

Press the “BACK” switch.

70

(B)

Ground

Communication signal
(

−

)

Input/

Output

ON

Press the “BACK” switch.

71

(LG)

Ground

Communication signal
(+)

Input/

Output

ON

—

Terminal

(Wire color)

Item

Signal

Input/

output

Condition

Reference value

+

–

Ignition

switch

Operation

SKIB3603E

ELF1080D

SKIA0175E

SKIA0176E

SKIA0175E
