NAVIGATION SYSTEM

AV-43

C

D

E

F

G

H

I

J

L

M

A

B

AV

COMPONENT DESCRIPTION
NAVI Control Unit

The gyro (angular speed sensor) and the DVD-ROM drive are
built-in units that control the navigation functions.

Signals are received from the gyro, the vehicle speed sensor,
and the GPS antenna. Vehicle location is determined by com-
bining chese data with the data contained in the DVD-ROM
map. Locational information is shown on LCD (liquid crystal dis-
play) screen.

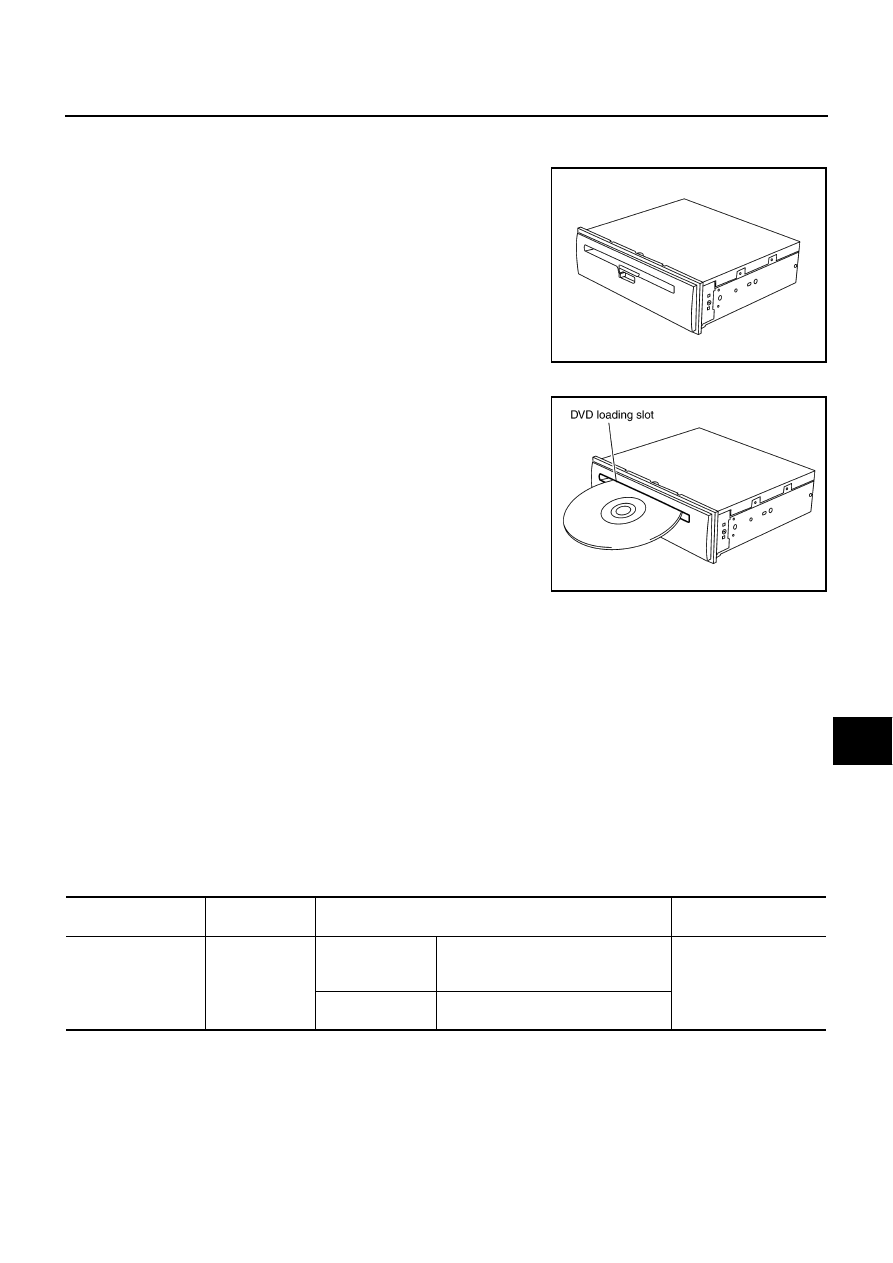

DVD-ROM Drive

Maps, traffic control regulations, and other pertinent information can
be easily read from the DVD-ROM disc.

Map DVD-ROM

The map DVD-ROM has maps, traffic control regulations, and other pertinent information.

To improve DVD-ROM map-matching and route determination functions, the DVD-ROM uses an exclu-
sive Nissan format. Therefore, the use of a DVD-ROM provided by other manufacturers is not recom-
mended.

Gyro (Angular Speed Sensor)

The oscillator gyro sensor is used to detect changes in vehicle steering angle.

The gyro is built into the NAVI control unit.

WARNING INDICATIONS

When combination meter receives warning signal from door switch, combination meter warning lamp is illumi-
nated.
Then combination meter sends warning signal to NAVI control unit to display warning indications on the
screen.

SKIB3892E

SKIB6982E

Warning indicators

Warning lamps in

instrument panel

Warning detection and cancel conditions

Cases of malfunction

Door Open

Door

Detection condition

Vehicle is running [approx. 5 km/h (3
MPH) or faster] and door ajar of any of
the doors is detected.

Door is open.

Cancel condition

Vehicle is stopped and all the doors
close.

AV-44

NAVIGATION SYSTEM

Precautions for NAVI Control Unit Replacement

NKS002FR

When replacing the NAVI control unit, eject the map DVD-ROM before disconnecting the battery.

The NAVI control unit has the following information stored in its memory. Record the memory contents
before replacing the control unit, and input them in the new unit as necessary.

NOTE:
Only removing the battery does not erase the memory.

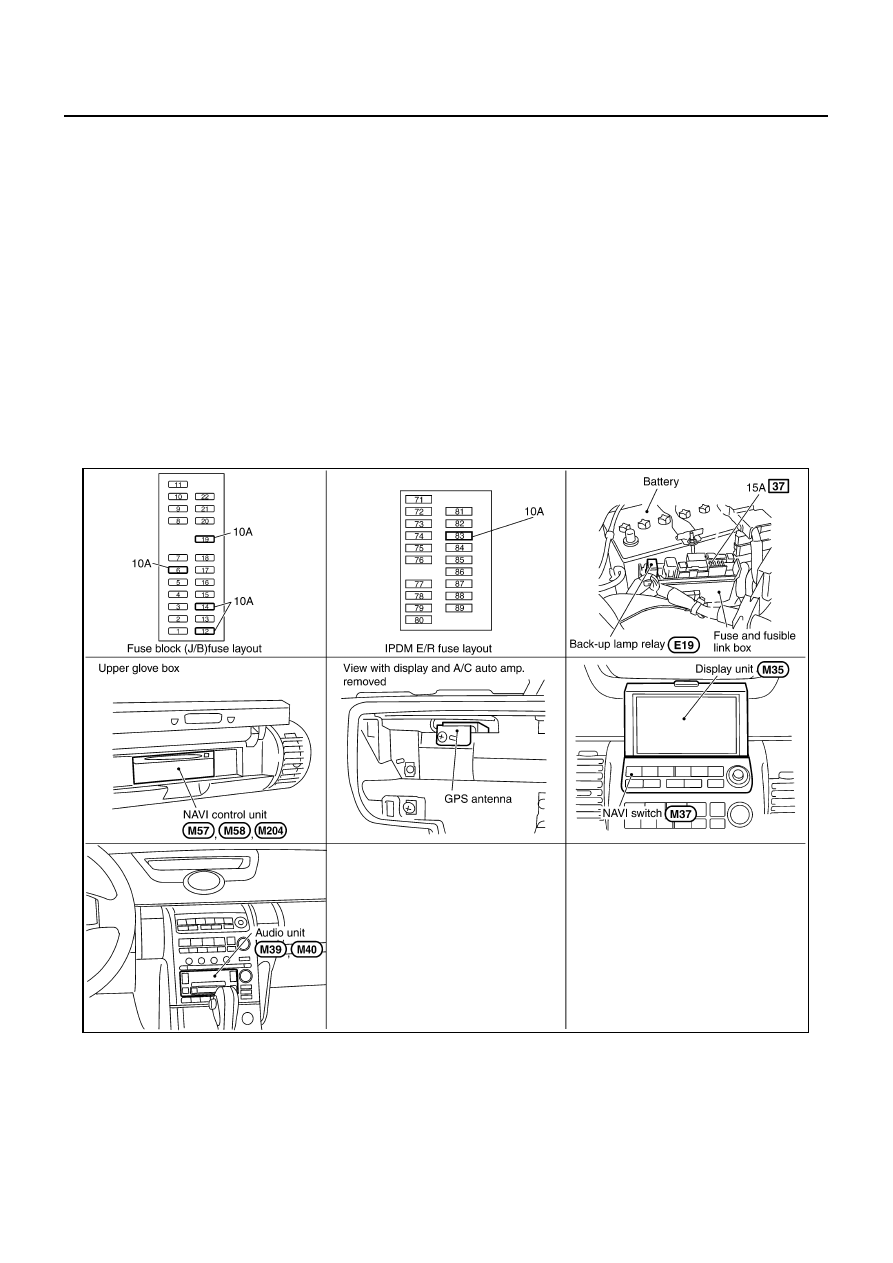

Component Parts Location

NKS002FS

<Image quality>

Brightness of light when ON/OFF

Dimming switching

Display color switching

<Navigation mode>

Latest status (map screen/BIRD VIEW™, reduced scale, rotation angle
of map screen, route guidance ON/OFF, track ON/OFF, etc.)

Current position

Destination, passing point 1 - 5

Registered places, their names, etc.

PKIB3966E

NAVIGATION SYSTEM

AV-45

C

D

E

F

G

H

I

J

L

M

A

B

AV

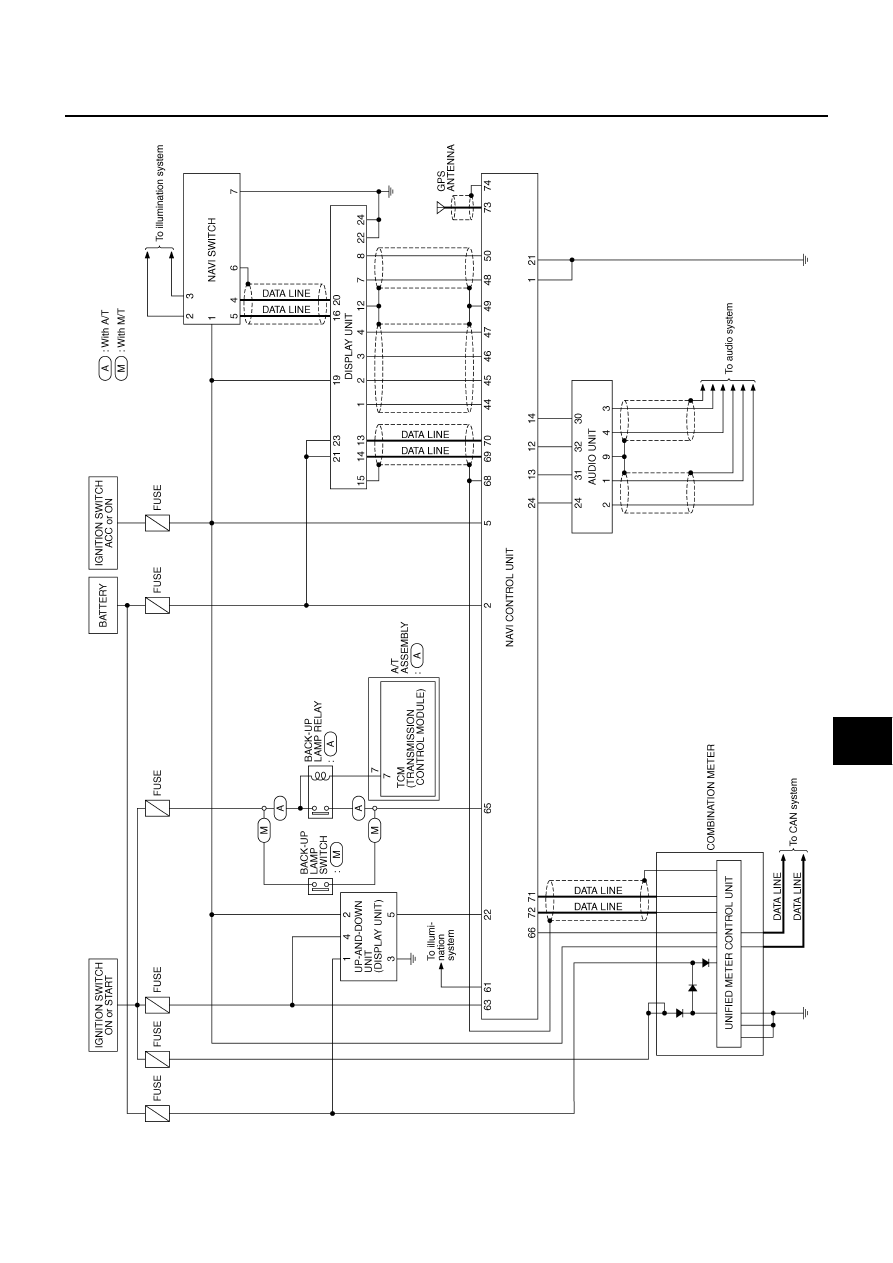

Schematic

NKS000P9

TKWM3508E

AV-46

NAVIGATION SYSTEM

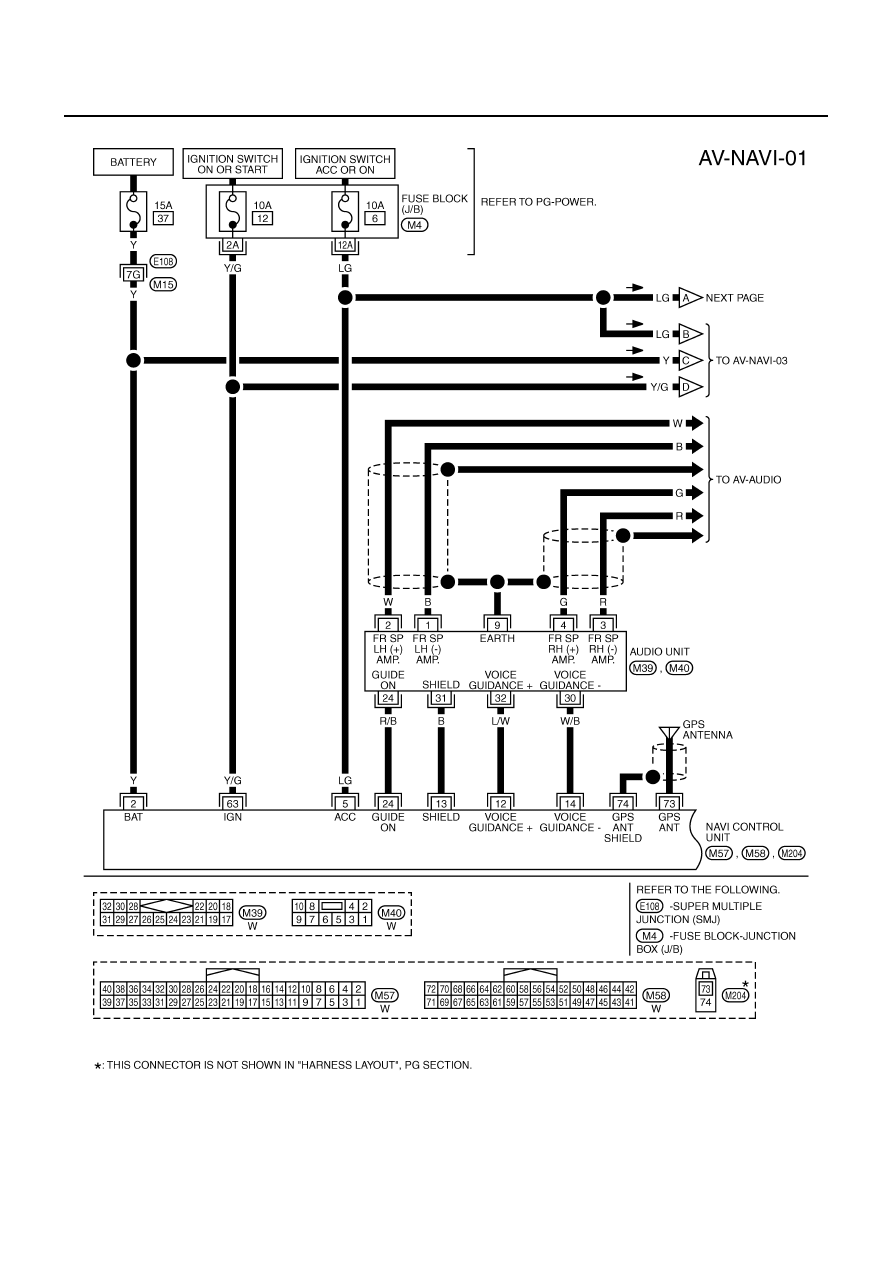

Wiring Diagram —NAVI—

NKS000PA

TKWM3509E
