ATC

AMBIENT SENSOR

PFP:27722

Removal and Installation

NJS0003X

REMOVAL

1.

Remove front grille. Refer to

EI-18, "FRONT GRILLE"

 .

2.

Disconnect ambient sensor connector, and then remove ambi-
ent sensor.

INSTALLATION

Installation is basically the reverse order of removal.

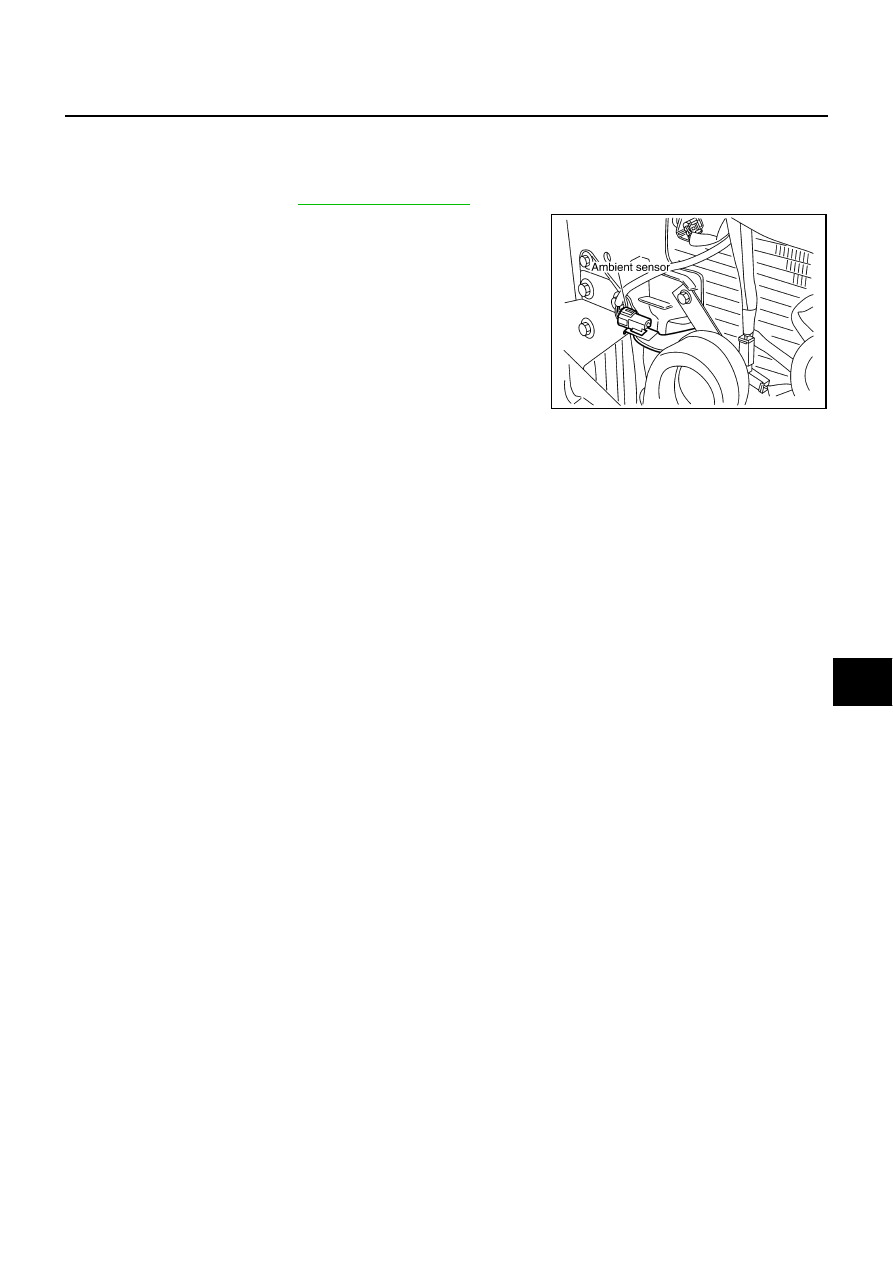

RJIA1868E

ATC-116

IN-VEHICLE SENSOR

IN-VEHICLE SENSOR

PFP:27720

Removal and Installation

NJS0003Y

REMOVAL

1.

Remove instrument driver lower panel. Refer to

IP-10, "INSTRUMENT PANEL ASSEMBLY"

 .

2.

Remove mounting screw, and then remove in-vehicle sensor.

INSTALLATION

Installation is basically the reverse order of removal.

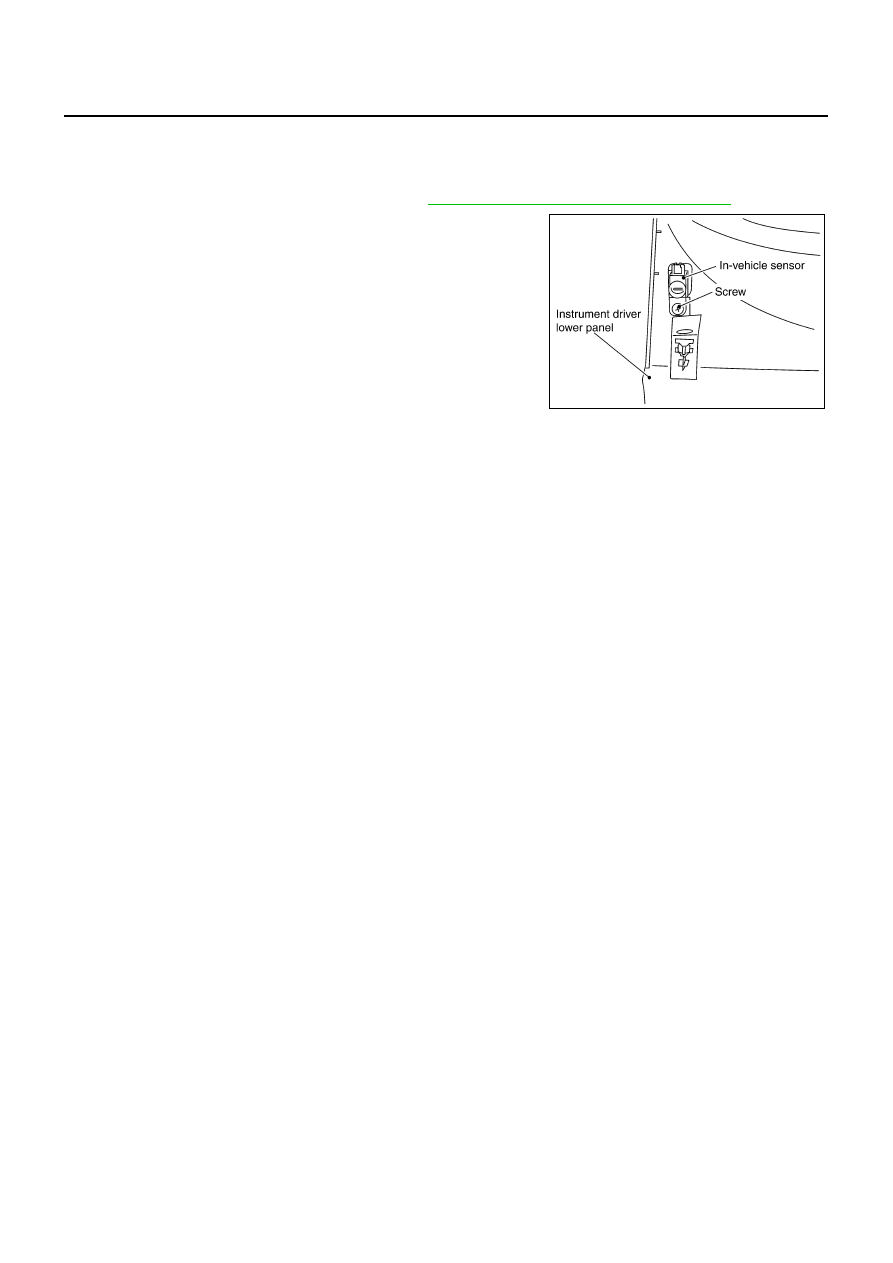

RJIA3584E

SUNLOAD SENSOR

ATC-117

C

D

E

F

G

H

I

K

L

M

A

B

ATC

SUNLOAD SENSOR

PFP:27721

Removal and Installation

NJS0003Z

REMOVAL

1.

Remove front defroster grille (LH). Refer to

IP-10, "INSTRUMENT PANEL ASSEMBLY"

 .

2.

Disconnect sunload sensor connector, and then remove sunload
sensor.

INSTALLATION

Installation is basically the reverse order of removal.

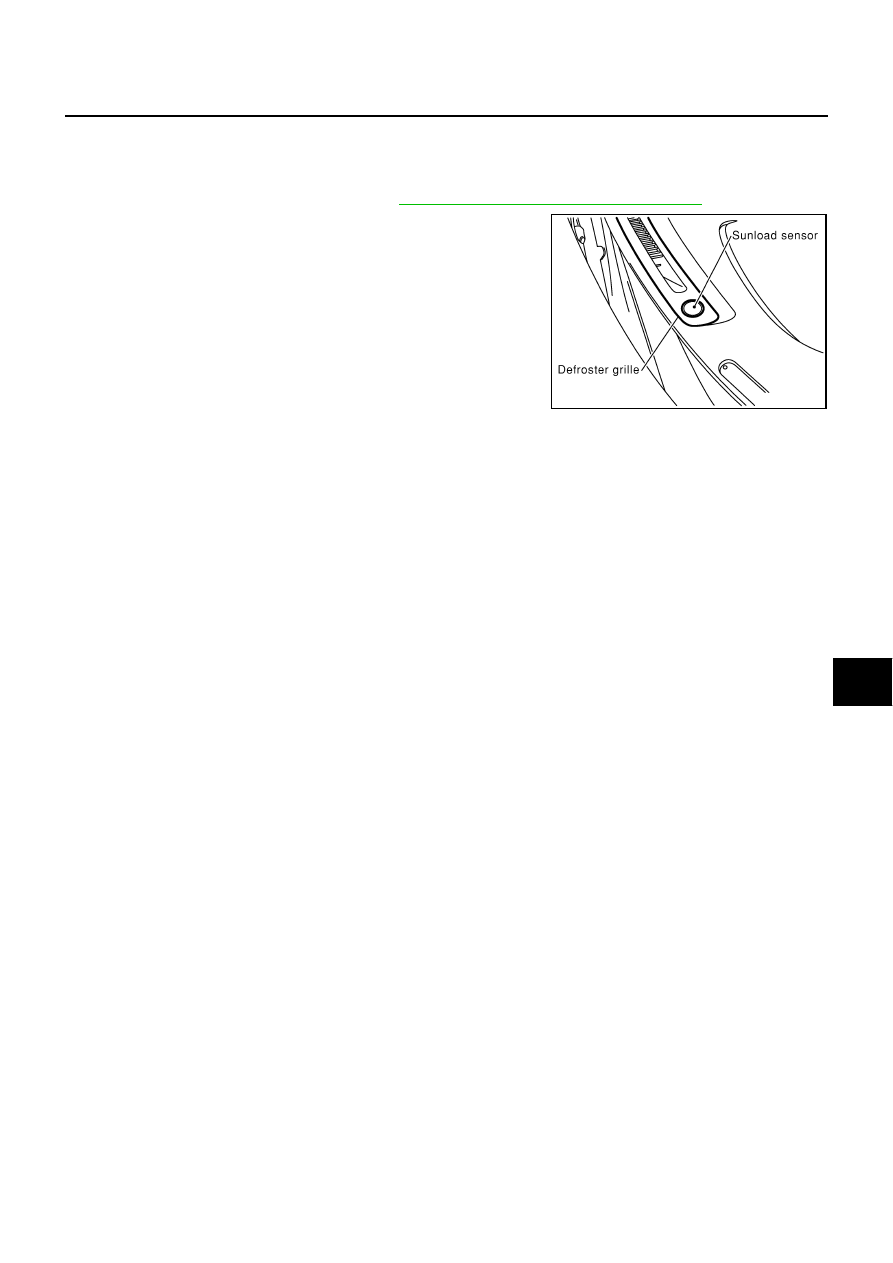

RJIA0925E

ATC-118

INTAKE SENSOR

INTAKE SENSOR

PFP:27723

Removal and Installation

NJS00040

REMOVAL

1.

Remove low-pressure pipe 2 and high-pressure pipe 2. Refer to

ATC-144, "Removal and Installation of

Low-pressure Pipe 2 and High-pressure Pipe 2"

 .

CAUTION:

Cap or wrap the joint of evaporator, low-pressure pipe 1 and high-pressure pipe 2 with suitable
material such as vinyl tape to avoid the entry of air.

2.

Slide evaporator to passenger side, and then remove intake
sensor.

INSTALLATION

Installation is basically the reverse order of removal.

CAUTION:

●

Replace O-rings of low-pressure pipe 1, 2 and high-pressure pipe 1, 2 with new ones, and then
apply compressor oil to it when installing it.

●

Mark the mounting position of intake sensor bracket prior to removal so that the reinstalled sen-
sor can be located in the same position.

●

Female-side piping connection is thin and easy to deform. Slowly insert the male-side piping
straight in axial direction.

●

Insert piping securely until a click is heard.

●

After piping connection is completed, pull male-side piping by hand to make sure that connection
does not come loose.

●

When recharging refrigerant, check for leaks.

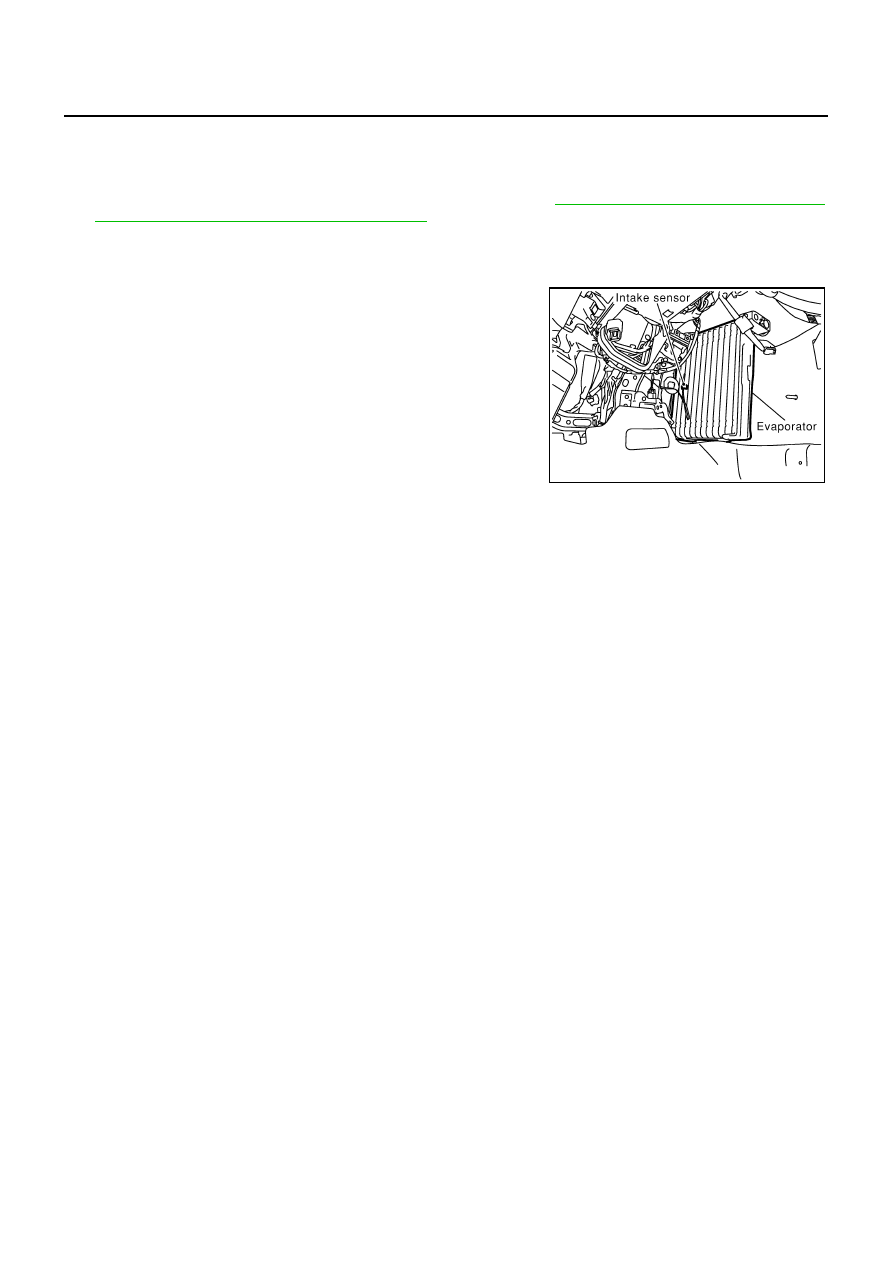

RJIA0928E
