TROUBLE DIAGNOSIS

ATC-107

C

D

E

F

G

H

I

K

L

M

A

B

ATC

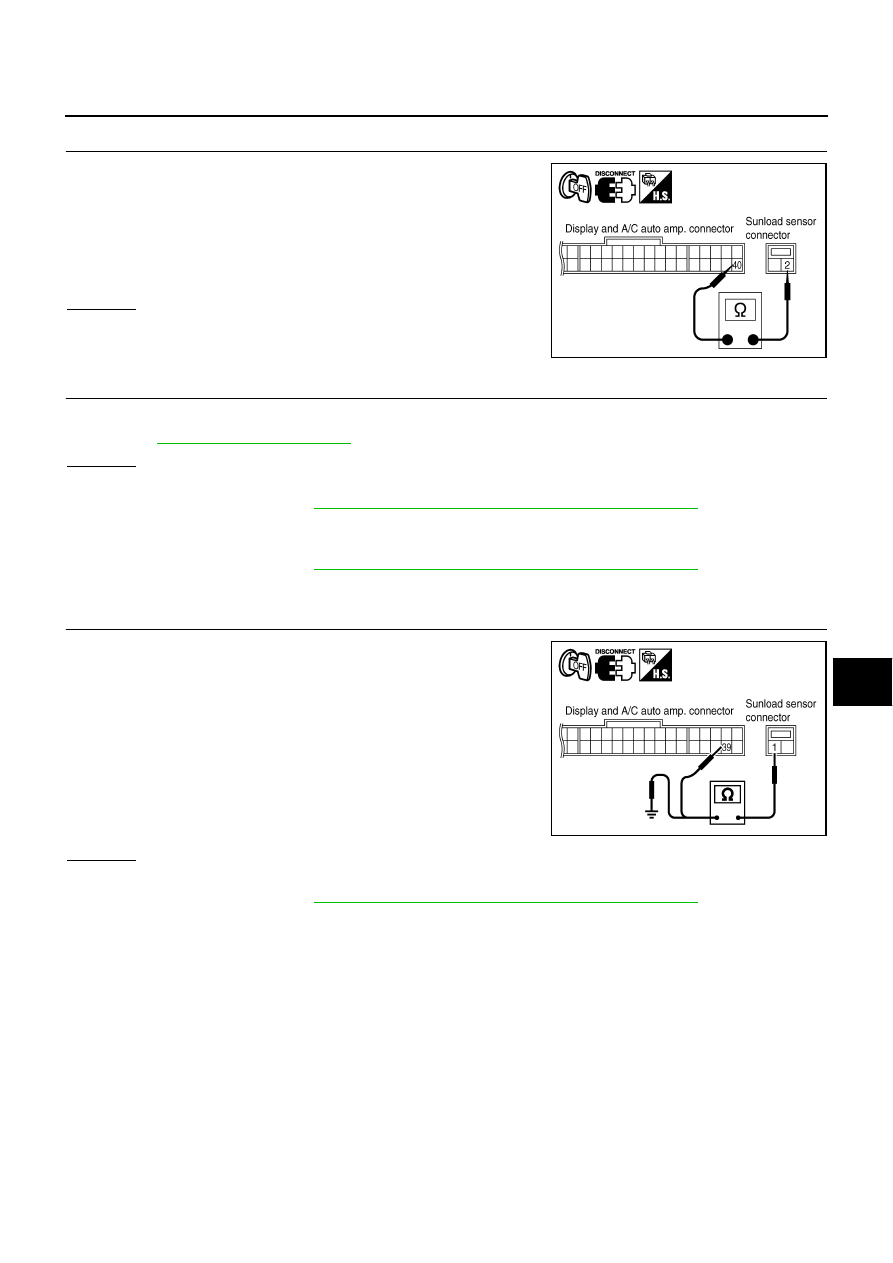

2.

CHECK CIRCUIT CONTINUITY BETWEEN SUNLOAD SENSOR AND DISPLAY AND A/C AUTO AMP.

1.

Turn ignition switch OFF.

2.

Disconnect display and A/C auto amp. connector.

3.

Check continuity between sunload sensor harness connector
M18 terminal 2 and display and A/C auto amp. harness connec-
tor M31 terminal 40.

OK or NG

OK

>> GO TO 3.

NG

>> Repair harness or connector.

3.

CHECK SUNLOAD SENSOR

1.

Reconnect sunload sensor connector and display and A/C auto amp. connector.

2.

Refer to

ATC-106, "Sunload Sensor"

 .

OK or NG

OK

>> 1. Replace display and A/C auto amp.

2. Go to self-diagnosis

ATC-52, "FUNCTION CONFIRMATION PROCEDURE"

  and perform self-

diagnosis STEP-2. Confirm that code No. 20 is displayed.

NG

>> 1. Replace sunload sensor.

2. Go to self-diagnosis

ATC-52, "FUNCTION CONFIRMATION PROCEDURE"

  and perform self-

diagnosis STEP-2. Confirm that code No. 20 is displayed.

4.

CHECK CIRCUIT CONTINUITY BETWEEN SUNLOAD SENSOR AND DISPLAY AND A/C AUTO AMP.

1.

Turn ignition switch OFF.

2.

Disconnect display and A/C auto amp. connector.

3.

Check continuity between sunload sensor harness connector
M18 terminal 1 and display and A/C auto amp. harness connec-
tor M31 terminal 39.

4.

Check continuity between sunload sensor harness connector
M18 terminal 1 and ground.

OK or NG

OK

>> 1. Replace display and A/C auto amp.

2. Go to self-diagnosis

ATC-52, "FUNCTION CONFIRMATION PROCEDURE"

  and perform self-

diagnosis STEP-2. Confirm that code No. 20 is displayed.

NG

>> Repair harness or connector.

2 – 40

: Continuity should exist.

RJIA3534E

1 – 39

: Continuity should exist.

1 – Ground

: Continuity should not exist.

RJIA3535E

ATC-108

TROUBLE DIAGNOSIS

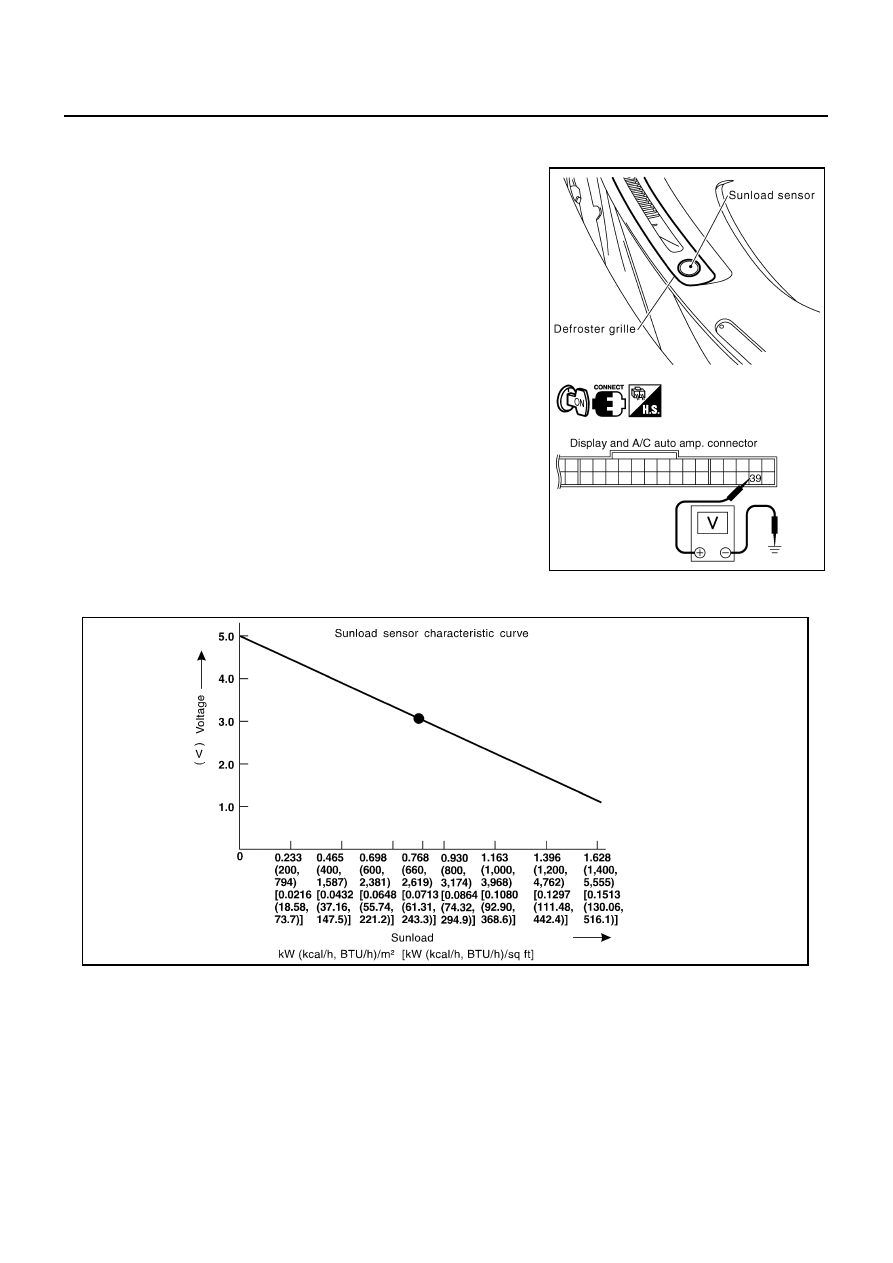

COMPONENT INSPECTION
Sunload Sensor

Measure voltage between display and A/C auto amp. harness con-
nector M31 terminal 39 and ground.

●

When checking sunload sensor, select a place where sunshine directly on it.

If NG, replace sunload sensor.

RJIA3536E

SHA930E

TROUBLE DIAGNOSIS

ATC-109

C

D

E

F

G

H

I

K

L

M

A

B

ATC

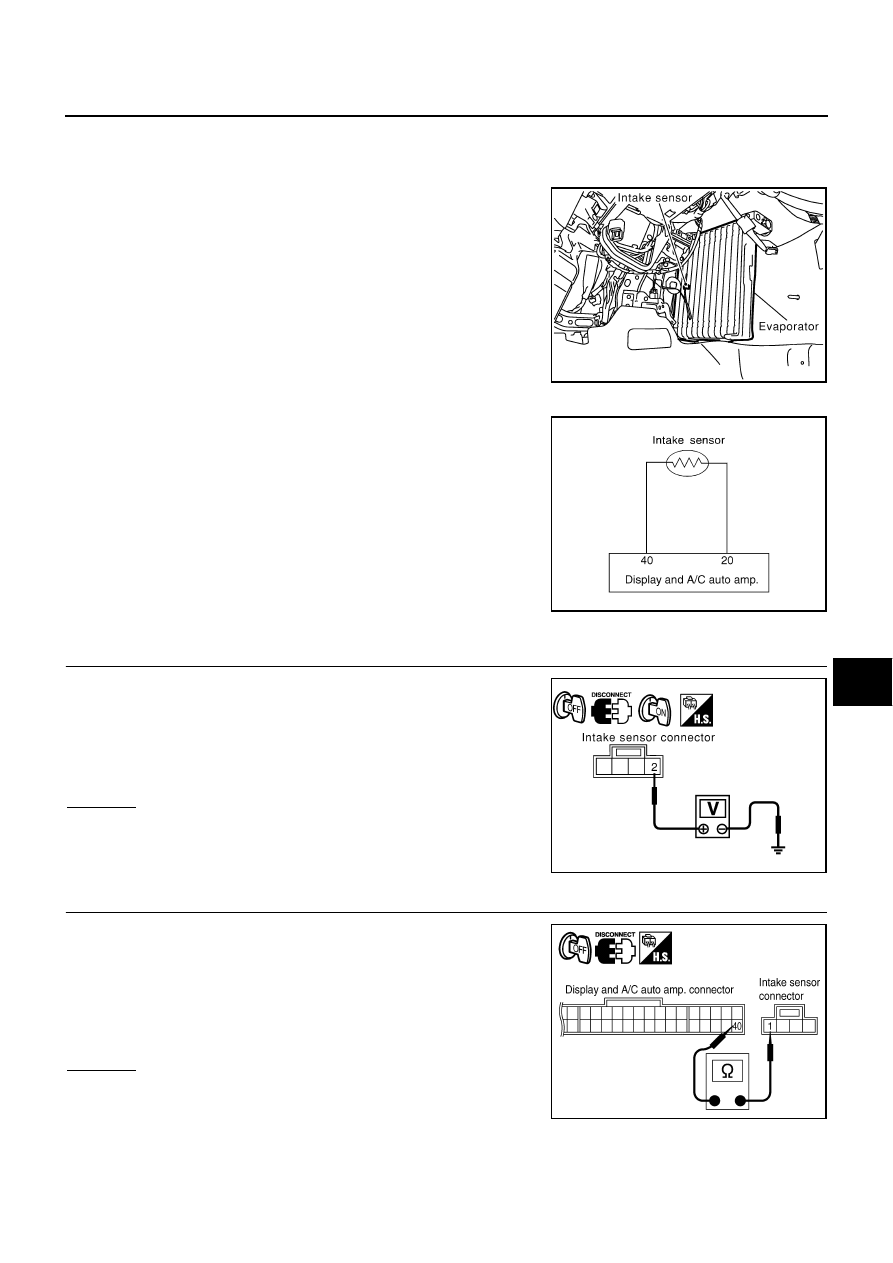

Intake Sensor Circuit

NJS0003T

COMPONENT DESCRIPTION
Intake Sensor

The intake sensor is located on the heater & cooling unit assembly. It
converts temperature of air after it passes through the evaporator
into a resistance value which is then input to the display and A/C
auto amp.

DIAGNOSIS PROCEDURE FOR INTAKE SENSOR

SYMPTOM: Intake sensor circuit is open or shorted. (24 or

−

24 is

indicated on display and A/C auto amp. as a result of performing
self-diagnosis STEP-2.)

1.

CHECK VOLTAGE BETWEEN INTAKE SENSOR AND GROUND

1.

Disconnect intake sensor connector.

2.

Turn ignition switch ON.

3.

Check voltage between intake sensor harness connector M256
terminal 2 and ground.

OK or NG

OK

>> GO TO 2.

NG

>> GO TO 4.

2.

CHECK CIRCUIT CONTINUITY BETWEEN INTAKE SENSOR AND DISPLAY AND A/C AUTO AMP.

1.

Turn ignition switch OFF.

2.

Disconnect display and A/C auto amp. connector.

3.

Check continuity between intake sensor harness connector
M256 terminal 1 and display and A/C auto amp. harness con-
nector M31 terminal 40.

OK or NG

OK

>> GO TO 3.

NG

>> Repair harness or connector.

RJIA0928E

RJIA3537E

2 – Ground

: Approx. 5 V

RJIA2031E

1 – 40

: Continuity should exist.

RJIA3538E

ATC-110

TROUBLE DIAGNOSIS

3.

CHECK INTAKE SENSOR

Refer to

ATC-109, "Intake Sensor"

 .

OK or NG

OK

>> 1. Replace display and A/C auto amp.

2. Go to self-diagnosis

ATC-52, "FUNCTION CONFIRMATION PROCEDURE"

  and perform self-

diagnosis STEP-2. Confirm that code No. 20 is displayed.

NG

>> 1. Replace intake sensor.

2. Go to self-diagnosis

ATC-52, "FUNCTION CONFIRMATION PROCEDURE"

  and perform self-

diagnosis STEP-2. Confirm that code No. 20 is displayed.

4.

CHECK CIRCUIT CONTINUITY BETWEEN INTAKE SENSOR AND DISPLAY AND A/C AUTO AMP.

1.

Turn ignition switch OFF.

2.

Disconnect display and A/C auto amp. connector.

3.

Check continuity between intake sensor harness connector
M256 terminal 2 and display and A/C auto amp. harness con-
nector M31 terminal 20.

4.

Check continuity between intake sensor harness connector
M256 terminal 2 and ground.

OK or NG

OK

>> 1. Replace display and A/C auto amp.

2. Go to self-diagnosis

ATC-52, "FUNCTION CONFIRMATION PROCEDURE"

  and perform self-

diagnosis STEP-2. Confirm that code No. 20 is displayed.

NG

>> Repair harness or connector.

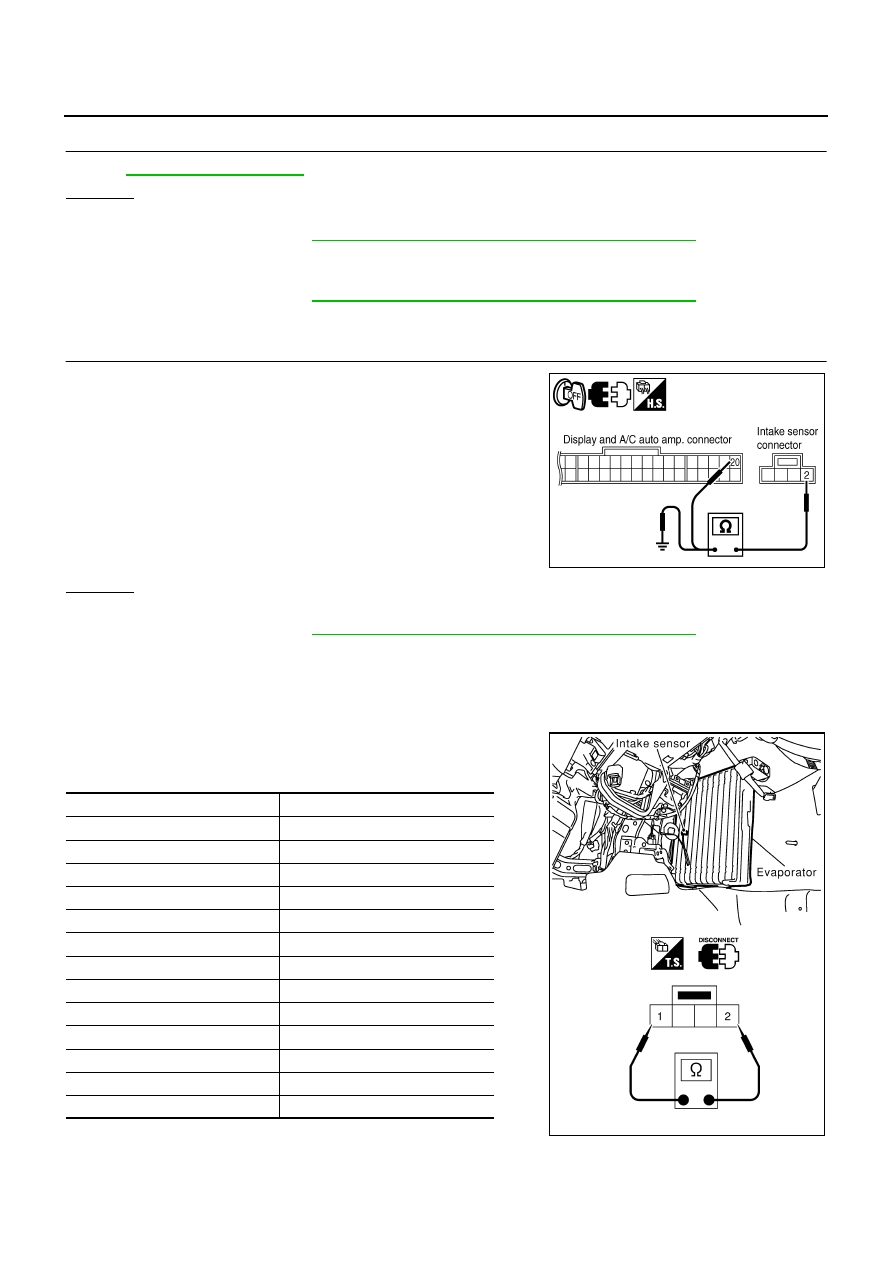

COMPONENT INSPECTION
Intake Sensor

After disconnecting intake sensor connector M256, measure resis-
tance between terminals 1 and 2 at sensor side. Refer to the table
below.

If NG, replace intake sensor.

2 – 20

: Continuity should exist.

2 – Ground

: Continuity should not exist.

RJIA3539E

Temperature

°

C (

°

F)

Resistance k

Ω



−

15 (5)

12.34



−

10 (14)

9.62



−

5 (23)

7.56

0 (32)

6.00

5 (41)

4.80

10 (50)

3.87

15 (59)

3.15

20 (68)

2.57

25 (77)

2.12

30 (86)

1.76

35 (95)

1.47

40 (104)

1.23

45 (113)

1.04

RJIA1615E
