REFRIGERATION SYSTEM

ATC-23

C

D

E

F

G

H

I

K

L

M

A

B

ATC

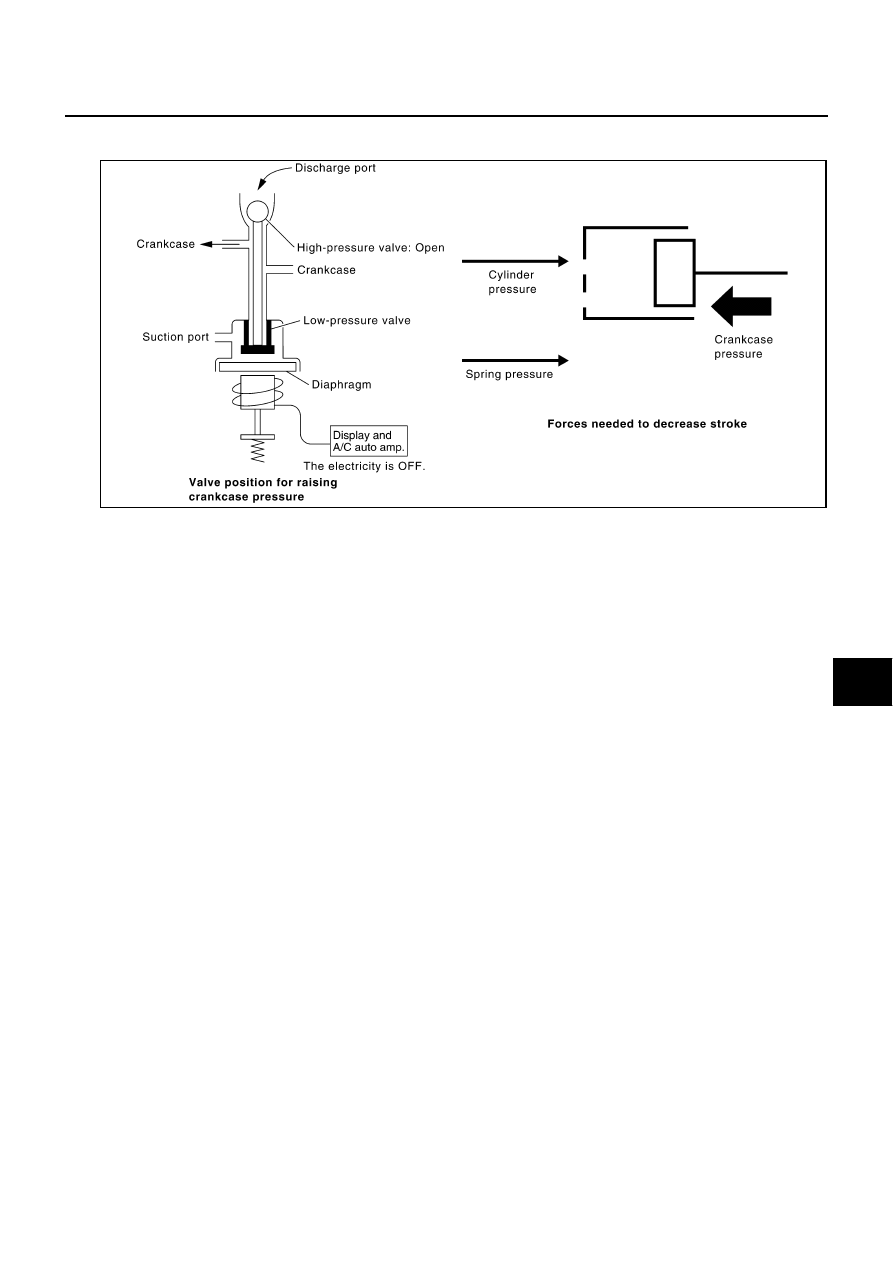

increase triggers pressure difference between the piston and the crankcase. The pressure difference
changes the angle of the wobble (swash) plate.

RJIA3577E

ATC-24

REFRIGERATION SYSTEM

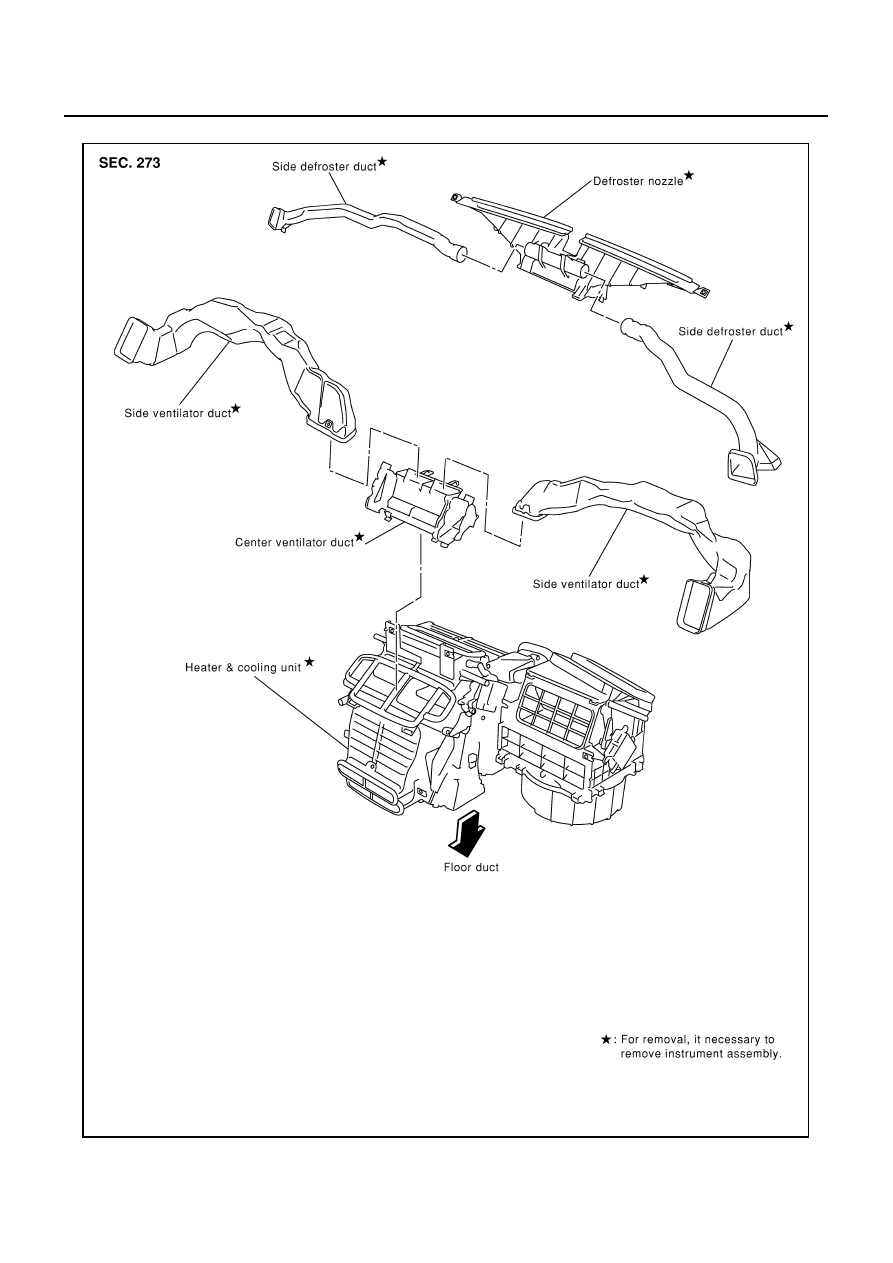

Component Layout

NJS0002V

RJIA1604E

LUBRICANT

ATC-25

C

D

E

F

G

H

I

K

L

M

A

B

ATC

LUBRICANT

PFP:KLG00

Maintenance of Lubricant Quantity in Compressor

NJS0002W

The lubricant in the compressor circulates through the system with the refrigerant. Add lubricant to compres-
sor when replacing any component or after a large refrigerant leakage occurred. It is important to maintain the
specified amount.
If lubricant quantity is not maintained properly, the following malfunctions may result:

●

Lack of lubricant: May lead to a seized compressor.

●

Excessive lubricant: Inadequate cooling (thermal exchange interference)

LUBRICANT

LUBRICANT RETURN OPERATION

Adjust the lubricant quantity according to the test group shown below.

1.

CHECK LUBRICANT RETURN OPERATION

Can lubricant return operation be performed?

●

A/C system works properly.

●

There is no evidence of a large amount of lubricant leakage.

CAUTION:

If excessive lubricant leakage is noted, never perform the lubricant return operation.

OK or NG

OK

>> GO TO 2.

NG

>> GO TO 3.

2.

PERFORM LUBRICANT RETURN OPERATION, PROCEEDING AS FOLLOWS

1.

Start the engine, and set to the following conditions:

–

Engine speed: Idling to 1,200 rpm

–

A/C switch: ON

–

Blower speed: Max. position

–

Temp. control: Optional [Set so that intake air temperature is 25 to 30

°

C (77 to 86

°

F).]

–

Intake position: Recirculation (REC)

2.

Perform lubricant return operation for about 10 minutes.

3.

Stop the engine.

>> GO TO 3.

3.

CHECK REPLACEMENT PART

Should the compressor be replaced?

YES

>> GO TO

ATC-27, "LUBRICANT ADJUSTING PROCEDURE FOR COMPRESSOR REPLACE-

MENT"

 .

NO

>> GO TO

ATC-26, "LUBRICANT ADJUSTING PROCEDURE FOR COMPONENTS REPLACE-

MENT EXCEPT COMPRESSOR"

 .

Name

: Nissan A/C System Oil Type S

ATC-26

LUBRICANT

LUBRICANT ADJUSTING PROCEDURE FOR COMPONENTS REPLACEMENT EXCEPT COM-
PRESSOR

After replacing any of the following major components, add the correct amount of lubricant to the system.
Amount of lubricant to be added:

*1: If the refrigerant leak is small, no addition of lubricant is needed.

Part replaced

Lubricant to be added to system

Remarks

Amount of lubricant

m

 (US fl oz., Imp fl oz.)

Evaporator

75 (2.5, 2.6)

—

Condenser

35 (1.2, 1.2)

—

Liquid tank

10 (0.3, 0.4)

—

In case of refrigerant leak

30 (1.0, 1.1)

Large leak

—

Small leak

 *1
