PREPARATION

ATC-15

C

D

E

F

G

H

I

K

L

M

A

B

ATC

PREPARATION

PFP:00002

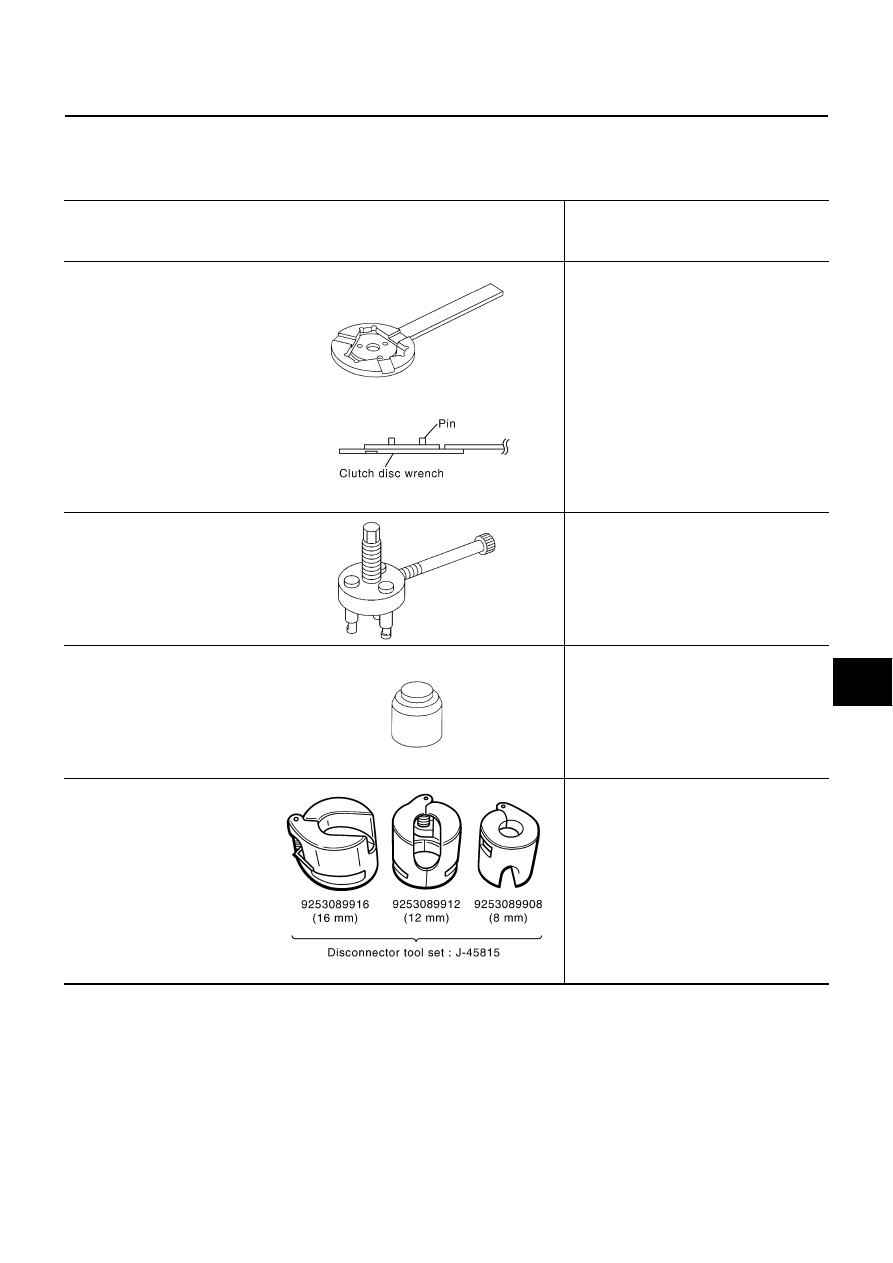

Special Service Tools

NJS0002P

The actual shapes of Kent-Moore tools may differ from those of special service tools illustrated here.

Tool number
(Kent-Moore No.)
Tool name

Description

KV99106100
(J-41260)
Clutch disc wrench

Removing shaft nut and clutch disc

KV99232340
(J-38874)
Clutch disc puller

Removing clutch disc

KV99106200
(J-41261)
Pulley installer

Installing pulley

9253089908 (for high-pressure
pipe 1)
( - )
9253089912 (for high-pressure
flexible hose)
( - )
9253089916 (for low-pressure
pipe 1 and low-pressure flexible
hose)
( - )
Disconnector tool set
(J-45815)

Disconnect one-touch joint connection

S-NT232

SJIA1168E

S-NT376

S-NT235

SJIA1274E

ATC-16

PREPARATION

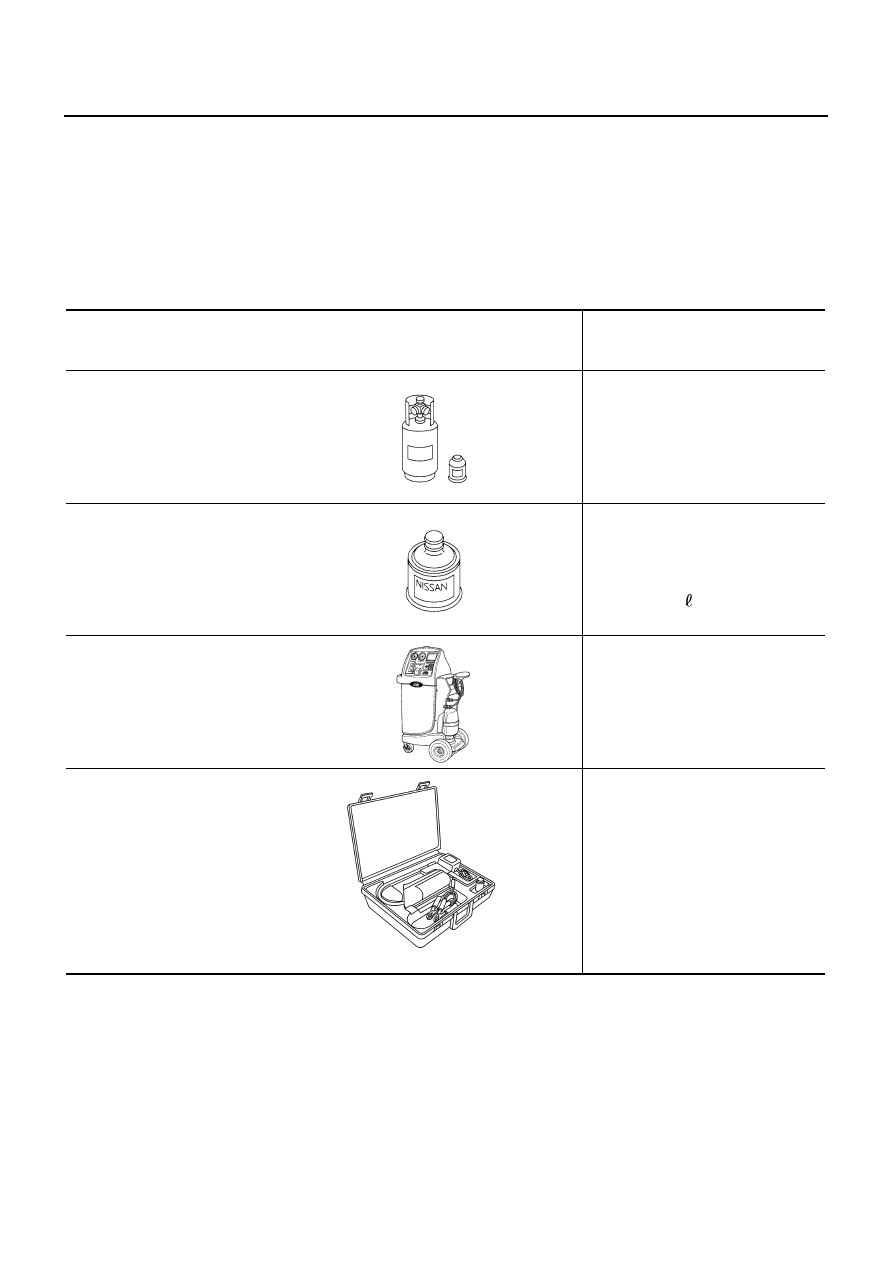

HFC-134a (R-134a) Service Tools and Equipment

NJS0002Q

Never mix HFC-134a (R-134a) refrigerant and/or its specified lubricant with CFC-12 (R-12) refrigerant and/or
its lubricant.
Separate and non-interchangeable service equipment must be used for handling each type of refrigerant/lubri-
cant.
Refrigerant container fittings, service hose fittings and service equipment fittings (equipment which handles
refrigerant and/or lubricant) are different between CFC-12 (R-12) and HFC-134a (R-134a). This is to avoid
mixed use of the refrigerants/lubricant.
Never use adapters that convert one size fitting to another: refrigerant/lubricant contamination occurs and
compressor malfunction may result.

Tool number
(Kent-Moore No.)
Tool name

Description

HFC-134a (R-134a) refrigerant

Container color: Light blue
Container marking: HFC-134a (R-
134a)
Fitting size: Thread size

●

Large container 1/2

″

 -16 ACME

Nissan A/C System Oil Type S
(DH-PS)

Type: Polyalkylene glycol oil (PAG),
type S (DH-PS)
Application: HFC-134a (R-134a)
wobble (swash) plate compressors
(Nissan only)

Capacity: 40 m

 (1.4 US fl oz., 1.4

Imp fl oz.)

(ACR2005-NI)
ACR5 A/C Service Center

Function: Refrigerant recovery,
recycling and recharging

(J-41995)
Electrical A/C leak detector

Power supply:
DC 12 V (Battery terminal)

S-NT196

S-NT197

WJIA0293E

AHA281A

PREPARATION

ATC-17

C

D

E

F

G

H

I

K

L

M

A

B

ATC

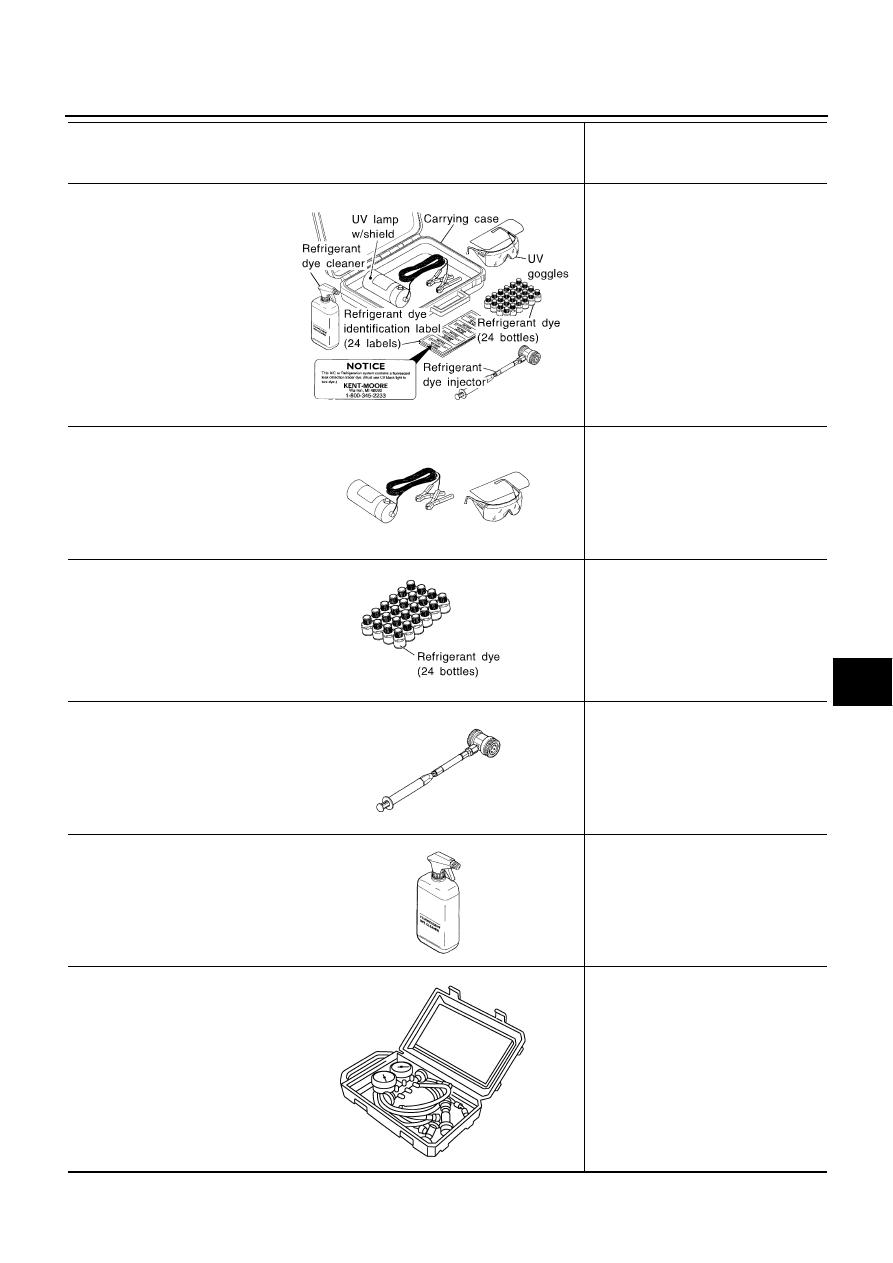

(J-43926)
Refrigerant dye leak detection kit
Kit includes:
(J-42220)
UV lamp and UV safety goggles
(J-41459)
HFC-134a (R-134a) dye injector
Use with J-41447, 1/4 ounce
bottle
(J-41447)
HFC-134a (R-134a) fluorescent
leak detection dye
(Box of 24, 1/4 ounce bottles)
(J-43872)
Refrigerant dye cleaner

Power supply:
DC 12 V (Battery terminal)

(J-42220)
 UV lamp and UV safety goggles

Power supply:
DC 12 V (Battery terminal)
For checking refrigerant leak when
fluorescent dye is installed in A/C
system
Includes:
UV lamp and UV safety goggles

(J-41447)
HFC-134a (R-134a) fluorescent
leak detection dye
(Box of 24, 1/4 ounce bottles)

Application:
For HFC-134a (R-134a) PAG oil
Container:
1/4 ounce (7.4 cc) bottle
(Includes self-adhesive dye
identification labels for affixing to
vehicle after charging system with
dye.)

(J-41459)
HFC-134a (R-134a) dye injector
Use with J-41447, 1/4 ounce
bottle

For injecting 1/4 ounce of fluorescent
leak detection dye into A/C system

(J-43872)
Refrigerant dye cleaner

For cleaning dye spills

(J-39183)
Manifold gauge set (with hoses
and couplers)

Identification:

●

The gauge face indicates HFC-134a
(R-134a).

Fitting size: Thread size

●

1/2

″

 -16 ACME

Tool number
(Kent-Moore No.)
Tool name

Description

ZHA200H

SHA438F

SHA439F

SHA440F

SHA441F

RJIA0196E

ATC-18

PREPARATION

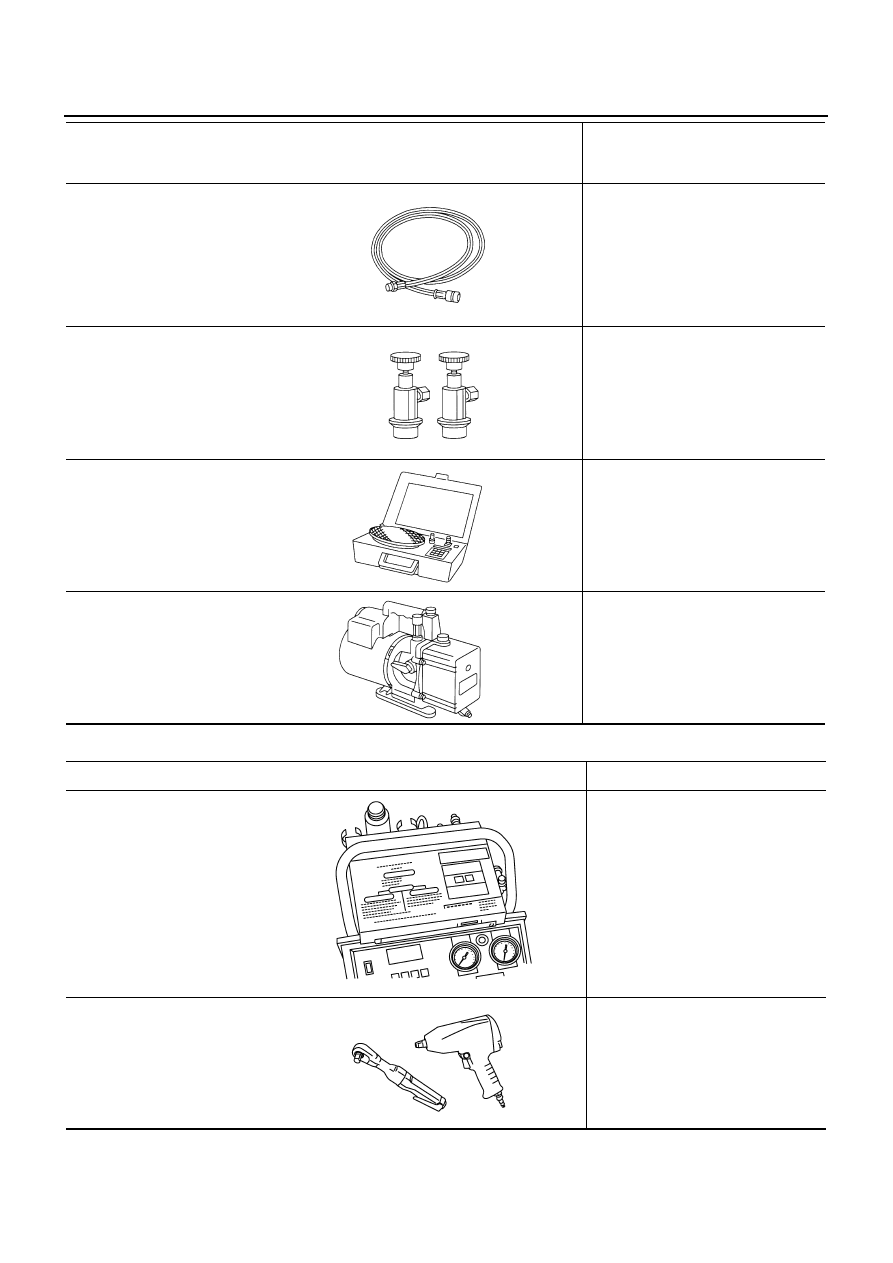

Commercial Service Tools

NJS0002R

Service hoses

●

High-pressure side hose
(J-39501-72)

●

Low-pressure side hose
(J-39502-72)

●

Utility hose
(J-39476-72)

Hose color:

●

Low hose: Blue with black stripe

●

High hose: Red with black stripe

●

Utility hose: Yellow with black stripe
or green with black stripe

Hose fitting to gauge:

●

1/2

″

 -16 ACME

Service couplers

●

High-pressure side coupler
(J-39500-20)

●

Low-pressure side coupler
(J-39500-24)

Hose fitting to service hose:
M14 x 1.5 fitting is optional or
permanently attached.

(J-39650)
Refrigerant weight scale

For measuring of refrigerant
Fitting size: Thread size

1/2

″

 -16 ACME

(J-39649)
Vacuum pump
(Including the isolator valve)

Capacity:

●

Air displacement: 4 CFM

●

Micron rating: 20 microns

●

Oil capacity: 482 g (17 oz.)

Fitting size: Thread size

●

1/2

″

 -16 ACME

Tool number
(Kent-Moore No.)
Tool name

Description

S-NT201

S-NT202

S-NT200

S-NT203

Tool name

Description

Refrigerant identifier equipment

Checking for refrigerant purity and
system contamination

Power tool

For loosening bolts and nuts

RJIA0197E

PBIC0190E
