DISASSEMBLY

AT-271

D

E

F

G

H

I

J

K

L

M

A

B

AT

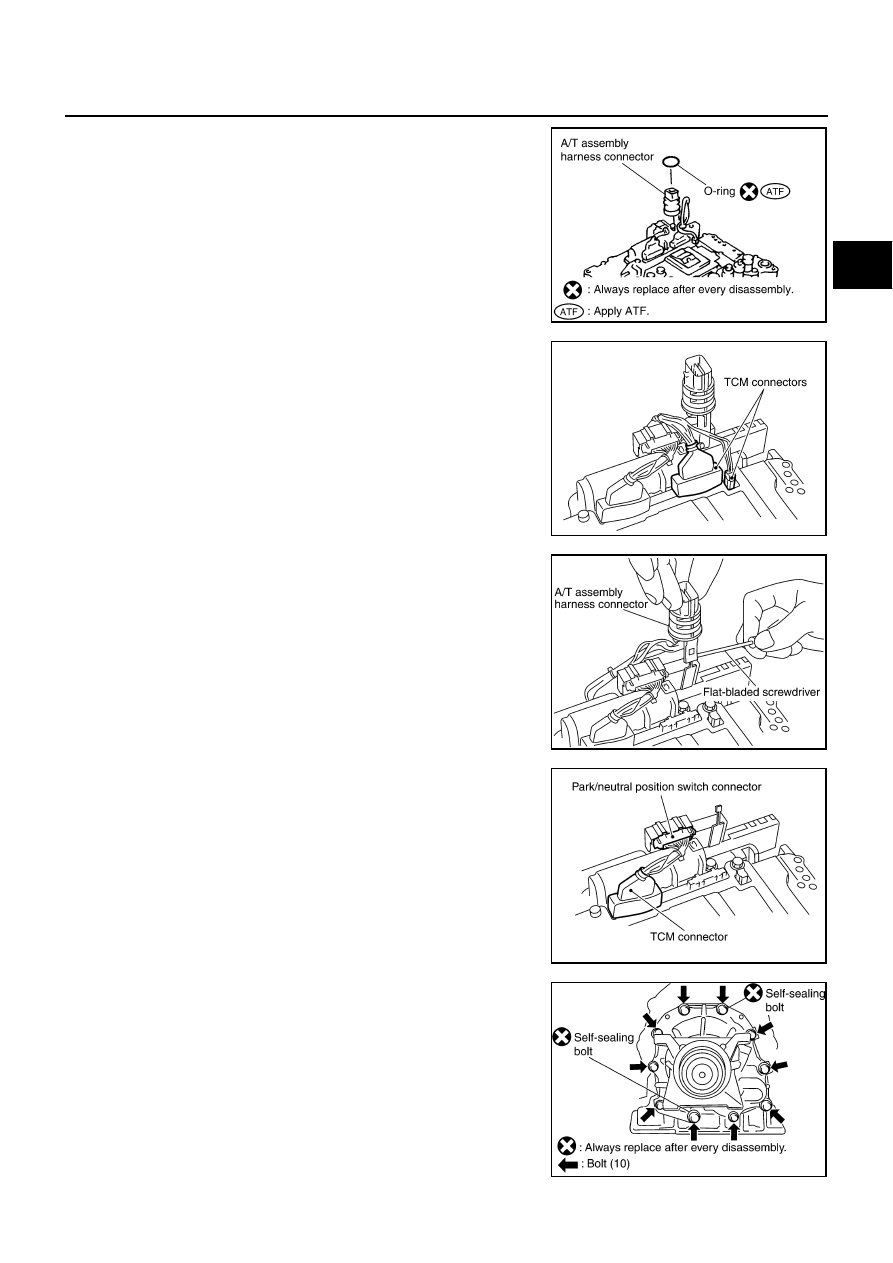

41. Remove O-ring from A/T assembly harness connector.

42. Disconnect TCM connectors.

CAUTION:

Be careful not to damage connectors.

43. Remove A/T assembly harness connector from control valve

with TCM using a flat-bladed screwdriver.

44. Disconnect TCM connector and park/neutral position switch

connector.

CAUTION:

Be careful not to damage connectors.

45. Remove tightening bolts for rear extension assembly and trans-

mission case.

SCIA5155E

SCIA5447E

SCIA5448E

SCIA5449E

SCIA6941E

AT-272

DISASSEMBLY

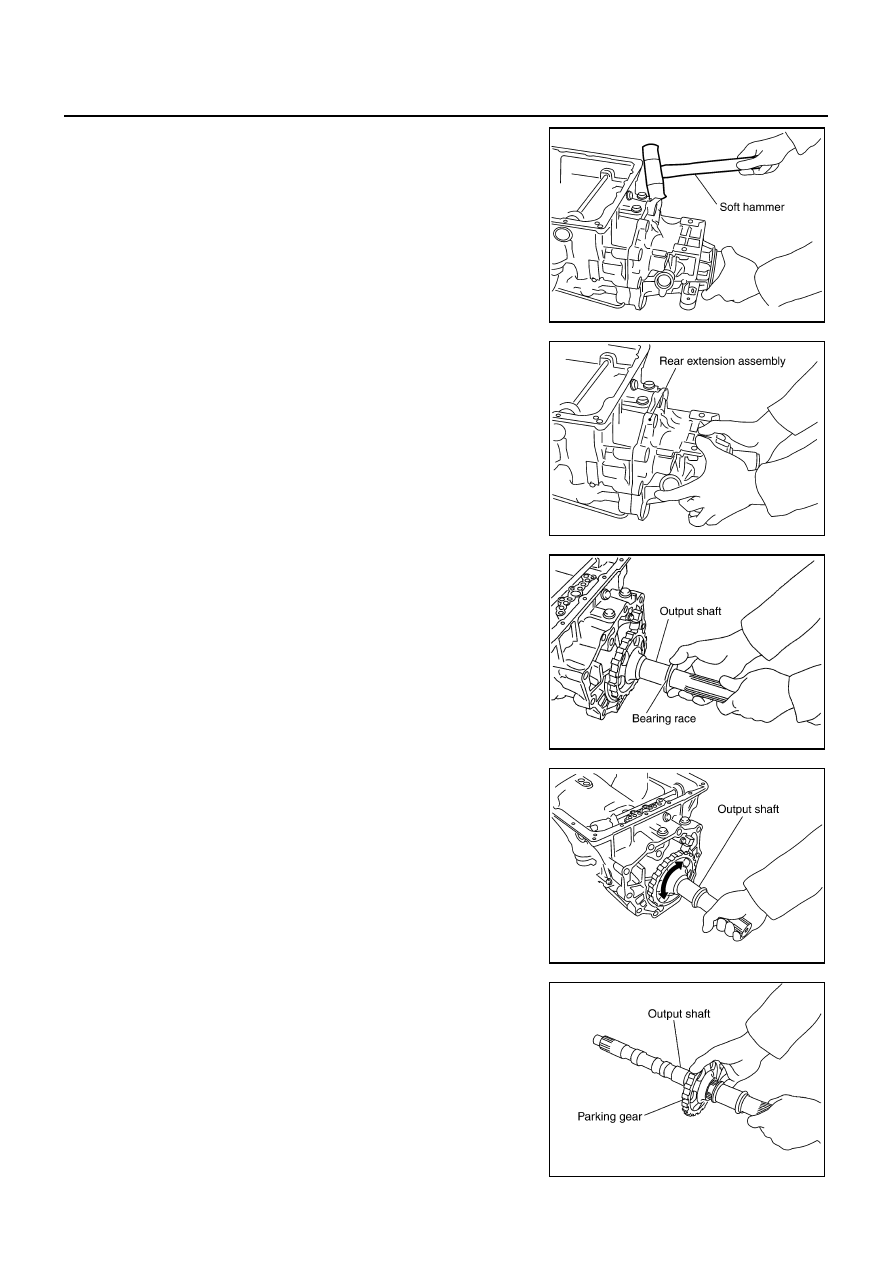

46. Tap rear extension assembly with a soft hammer.

47. Remove rear extension assembly from transmission case. (With

needle bearing)

48. Remove bearing race from output shaft.

49. Remove output shaft from transmission case by rotating left/

right.

50. Remove parking gear from output shaft.

SCIA5028E

SCIA5029E

SCIA5245E

SCIA5030E

SCIA5247E

DISASSEMBLY

AT-273

D

E

F

G

H

I

J

K

L

M

A

B

AT

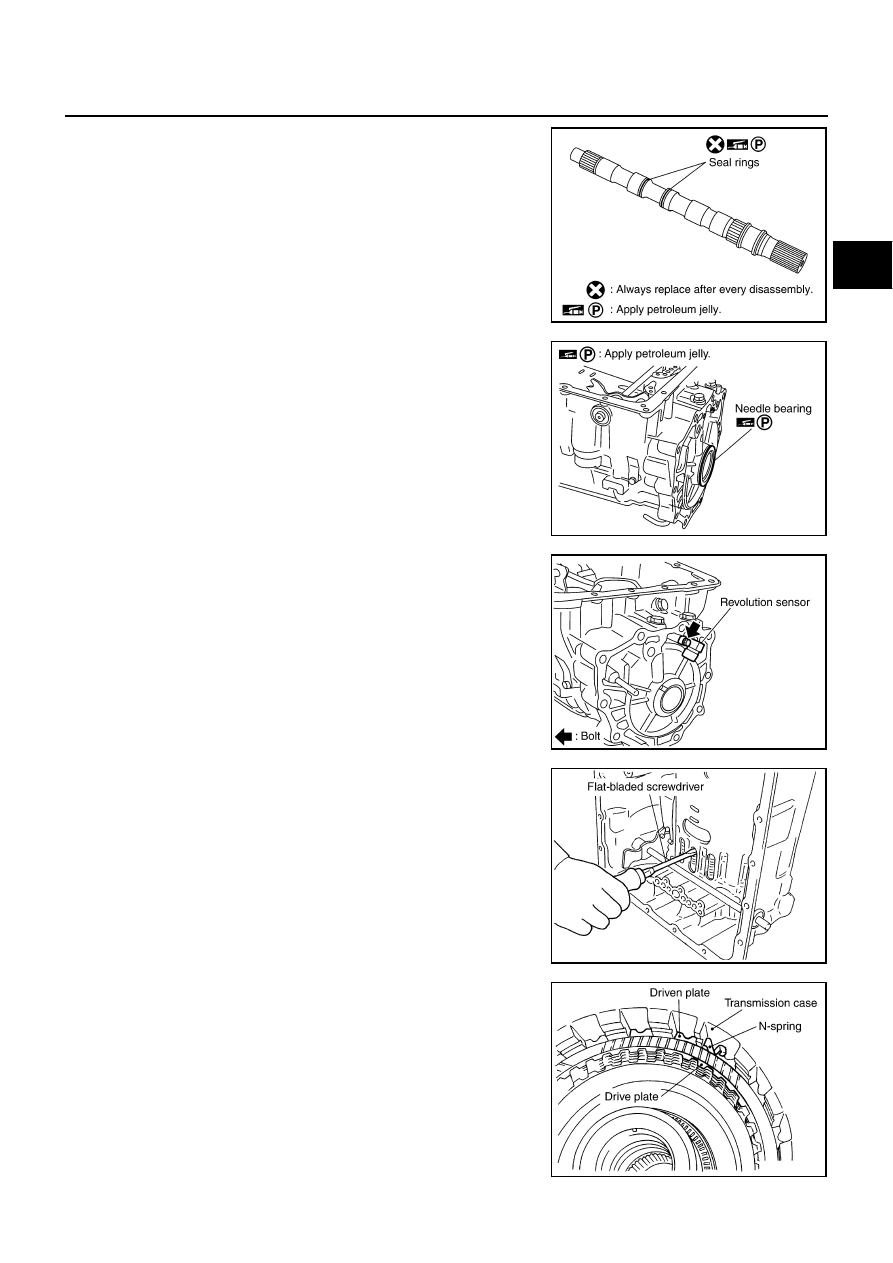

51. Remove seal rings from output shaft.

52. Remove needle bearing from transmission case.

53. Remove revolution sensor from transmission case.

CAUTION:

●

Do not subject it to impact by dropping or hitting it.

●

Do not disassemble.

●

Do not allow metal filings, etc. to get on the sensor's front
edge magnetic area.

●

Do not place in an area affected by magnetism.

54. Remove reverse brake snap ring (fixing plate) using 2 flat-

bladed screwdrivers.

NOTE:
Press out snap ring from the transmission case oil pan side gap
using a flat-bladed screwdriver, and remove it using another
screwdriver.

55. Remove reverse brake retaining plate from transmission case.

●

Check facing for burns, cracks or damage. If necessary,
replace the plate.

56. Remove N-spring from transmission case.

SCIA5209E

SCIA5031E

SCIA2320E

SCIA5032E

SCIA5214E

AT-274

DISASSEMBLY

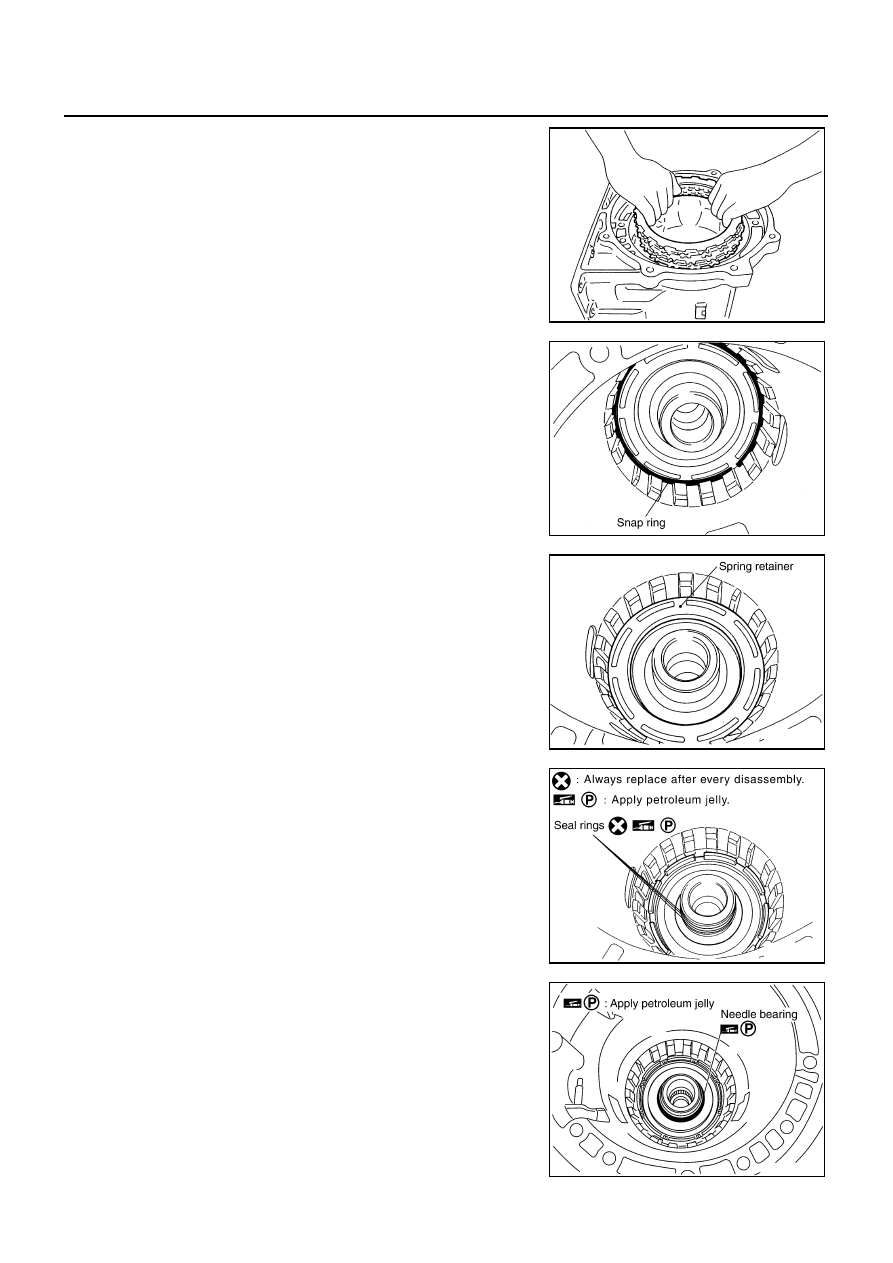

57. Remove reverse brake drive plates, driven plates and dish

plates from transmission case.

●

Check facing for burns, cracks or damage. If necessary,
replace the plate.

58. Remove snap ring (fixing spring retainer) using a flat-bladed

screwdriver.

59. Remove spring retainer and return spring from transmission

case.

60. Remove seal rings from drum support.

61. Remove needle bearing from drum support edge surface.

SCIA2322E

SCIA2323E

SCIA2324E

SCIA3333E

SCIA2796E
