DTC P0717 TURBINE REVOLUTION SENSOR

AT-111

D

E

F

G

H

I

J

K

L

M

A

B

AT

Diagnostic Procedure

NCS000EL

1.

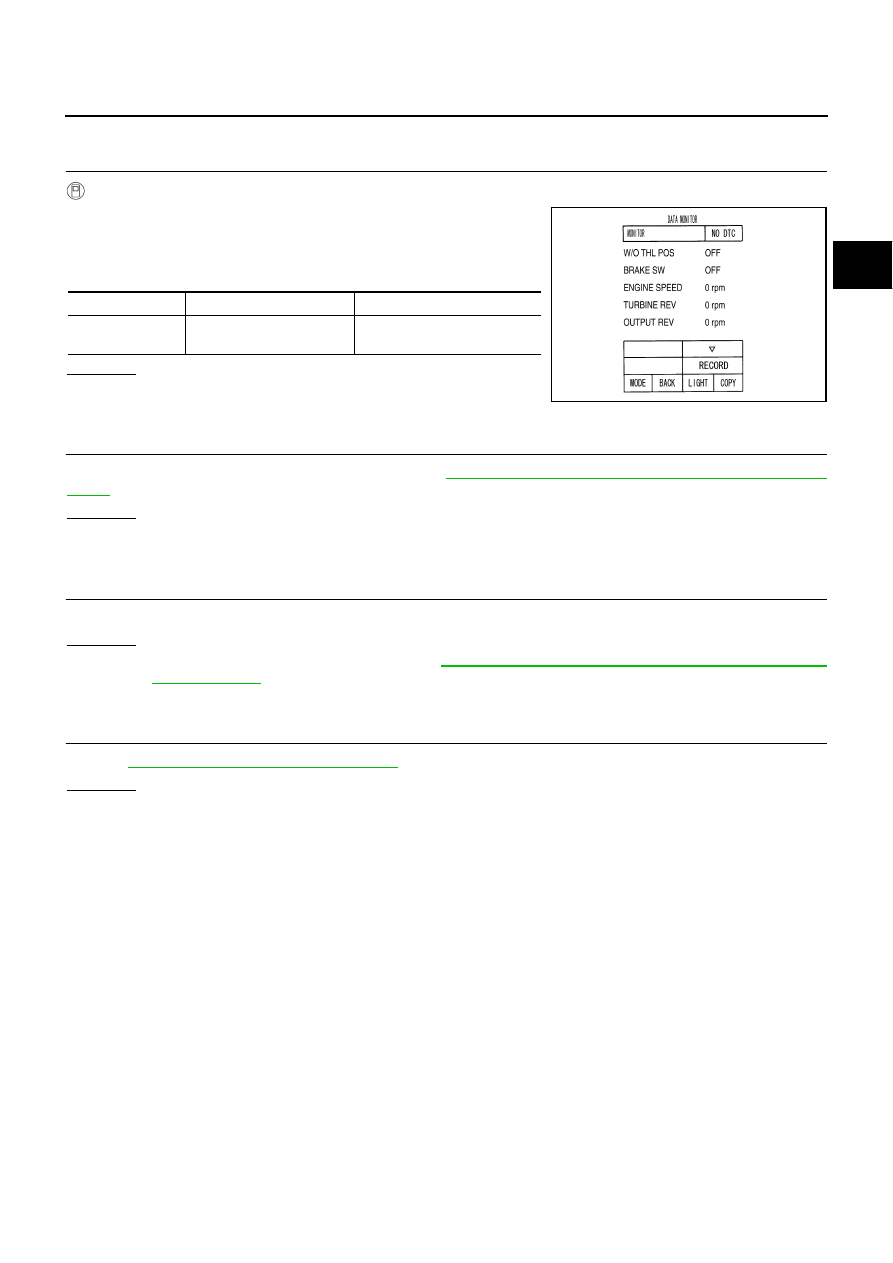

CHECK INPUT SIGNAL

 With CONSULT-II

1.

Start engine.

2.

Select “ECU INPUT SIGNALS” in “DATA MONITOR” mode for
“A/T” with CONSULT-II.

3.

Vehicle start and read out the value of “TURBINE REV”.

OK or NG

OK

>> GO TO 4.

NG

>> GO TO 2.

2.

CHECK TCM POWER SUPPLY AND GROUND CIRCUIT

Check TCM power supply and ground circuit. Refer to

AT-172, "MAIN POWER SUPPLY AND GROUND CIR-

CUIT"

 .

OK or NG

OK

>> GO TO 3.

NG

>> Repair or replace damaged parts.

3.

DETECT MALFUNCTIONING ITEM

Check A/T assembly harness connector pin terminals for damage or loose connection with harness connector.
OK or NG

OK

>> Replace control valve with TCM. Refer to

AT-225, "Control Valve with TCM and A/T Fluid Temper-

ature Sensor 2"

 .

NG

>> Repair or replace damaged parts.

4.

CHECK DTC

Perform

AT-110, "DTC Confirmation Procedure"

 .

OK or NG

OK

>> INSPECTION END

NG

>> GO TO 2.

Item name

Condition

Display value

TURBINE REV

During driving (lock-up ON)

Approximately matches the
engine speed.

PCIA0041E

AT-112

DTC P0720 VEHICLE SPEED SENSOR A/T (REVOLUTION SENSOR)

DTC P0720 VEHICLE SPEED SENSOR A/T (REVOLUTION SENSOR)

PFP:32702

Description

NCS000CX

The revolution sensor detects the revolution of the parking gear and emits a pulse signal. The pulse signal is
sent to the TCM which converts it into vehicle speed.

CONSULT-II Reference Value

NCS000CY

On Board Diagnosis Logic

NCS000CZ

This is an OBD-II self-diagnostic item.

Diagnostic trouble code “P0720 VEH SPD SEN/CIR AT” with CONSULT-II or 1st judgment flicker without
CONSULT-II is detected under the following conditions.

When TCM does not receive the proper voltage signal from the sensor.

After ignition switch is turned ON, irregular signal input from vehicle speed sensor MTR before the vehicle
starts moving.

Possible Cause

NCS000D0

Harness or connectors.
(Sensor circuit is open or shorted.)

Revolution sensor.

Vehicle speed sensor MTR.

DTC Confirmation Procedure

NCS000D1

CAUTION:

Always drive vehicle at a safe speed.

Be careful not to rev engine into the red zone on the tachometer.

NOTE:
If “DTC Confirmation Procedure” has been previously performed, always turn ignition switch OFF and
wait at least 10 seconds before performing the next test.
After the repair, perform the following procedure to confirm the malfunction is eliminated.

 WITH CONSULT-II

1.

Turn ignition switch ON.

2.

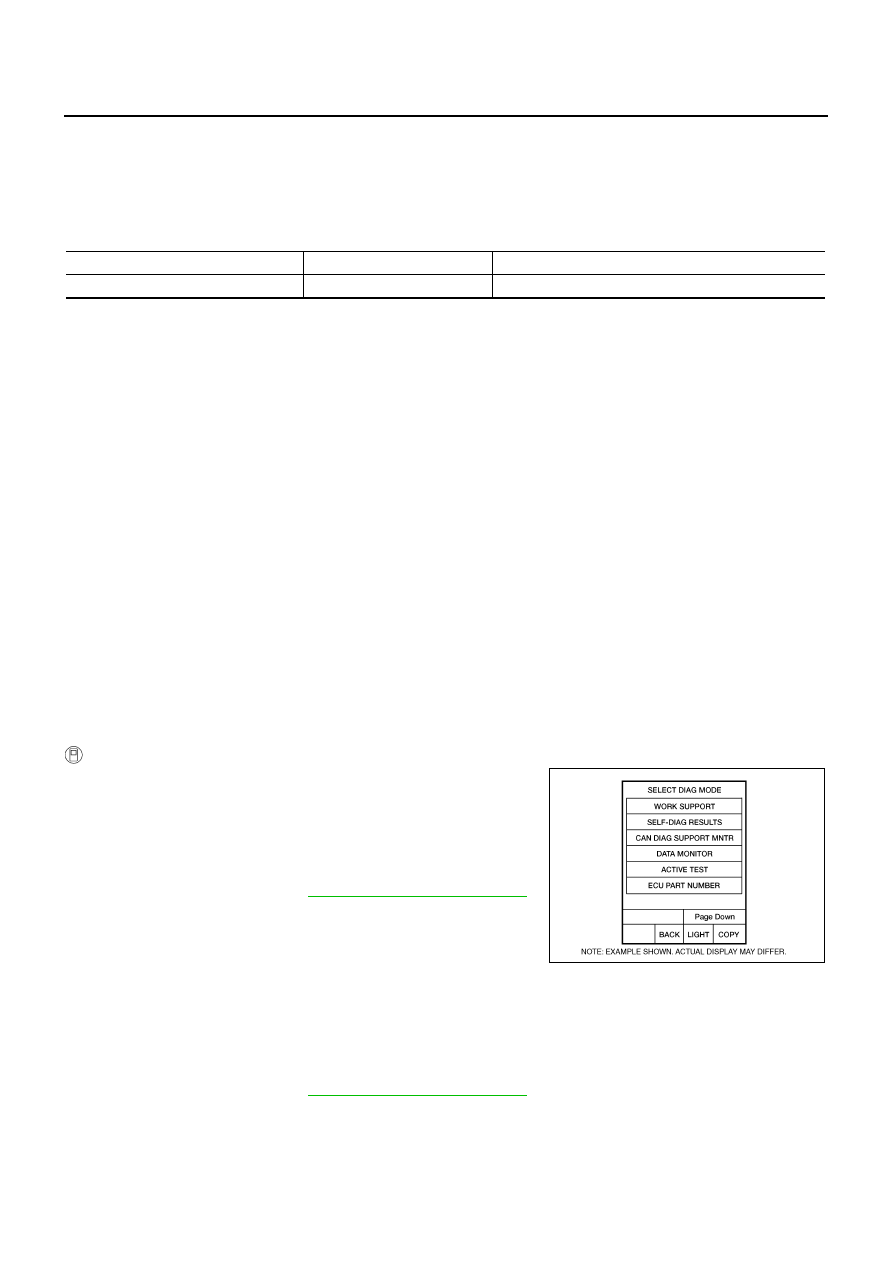

Select “ECU INPUT SIGNALS” in “DATA MONITOR” mode for
“A/T” with CONSULT-II.

3.

Touch “START”.

4.

Drive vehicle and check for an increase of “VHCL/S SE-A/T”
value in response to “VHCL/S SE-MTR” value.
If the check result is NG, go to

AT-115, "Diagnostic Procedure"

 .

If the check result is OK, go to following step.

5.

Select “SELECTION FROM MENU” in “DATA MONITOR” mode
for “A/T” with CONSULT-II and check monitor “VHCL/S SE-A/T”,
“ACCELE POSI”, “ENGINE SPEED” and “SLCT LVR POSI”.

6.

Start engine and maintain the following conditions for at least 5 consecutive seconds.
VHCL/S SE-A/T: 30 km/h (19 MPH) or more
ACCELE POSI: More than 1.0/8
SLCT LVR POSI: “D” position
Driving location: Driving the vehicle uphill (increased engine load) will help maintain the driving
conditions required for this test.
If the check result is NG, go to

AT-115, "Diagnostic Procedure"

 .

If the check result is OK, go to following step.

7.

Maintain the following conditions for at least 5 consecutive seconds.
ENGINE SPEED: 3,500 rpm or more
ACCELE POSI: More than 1.0/8

Item name

Condition

Display value

VHCL/S SE-A/T

During driving

Approximately matches the speedometer reading.

BCIA0031E

DTC P0720 VEHICLE SPEED SENSOR A/T (REVOLUTION SENSOR)

AT-113

D

E

F

G

H

I

J

K

L

M

A

B

AT

SLCT LVR POSI: “D” position
Driving location: Driving the vehicle uphill (increased engine load) will help maintain the driving
conditions required for this test.

8.

If DTC is detected, go to

AT-115, "Diagnostic Procedure"

 .

 WITH GST

Follow the procedure “WITH CONSULT-II”.

AT-114

DTC P0720 VEHICLE SPEED SENSOR A/T (REVOLUTION SENSOR)

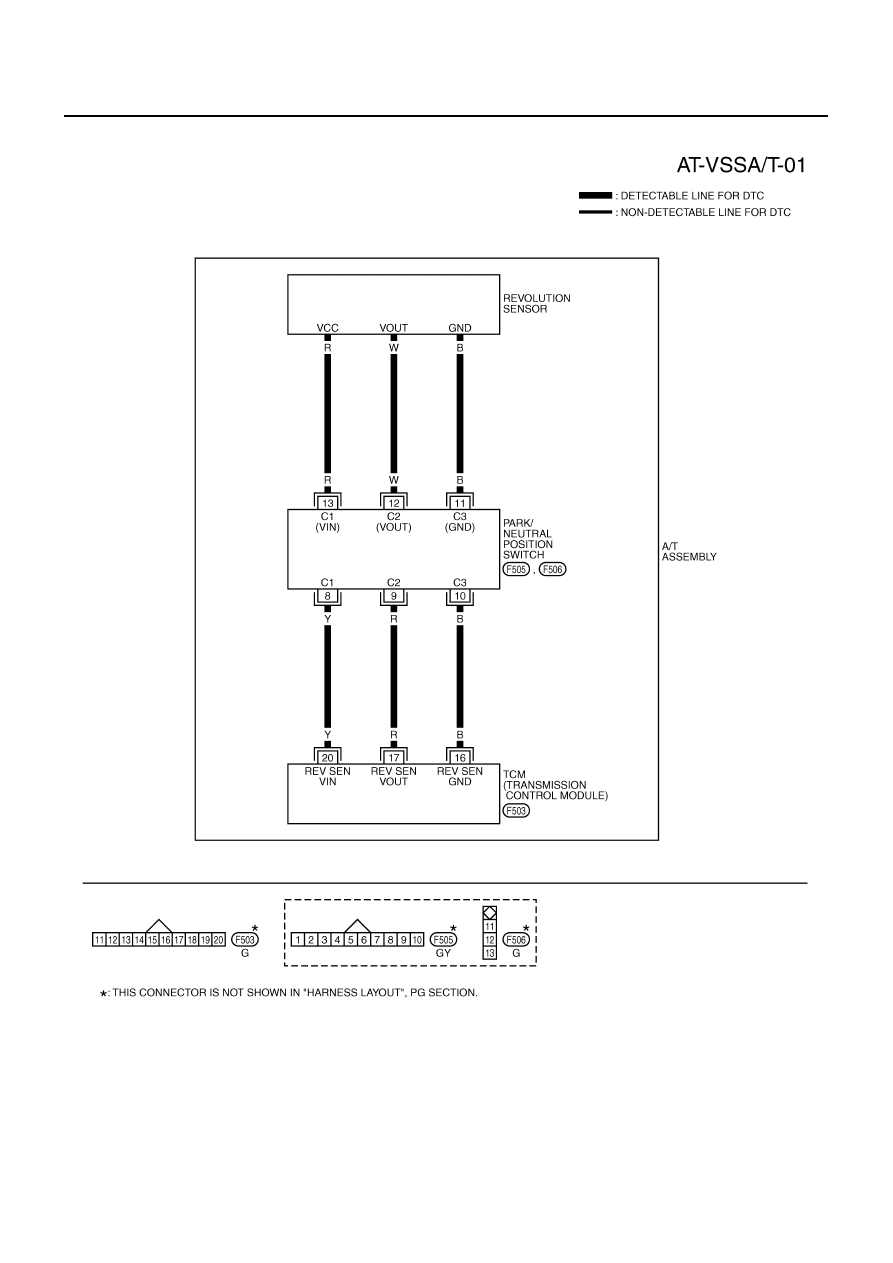

Wiring Diagram — AT — VSSA/T

NCS000D2

TCWM0249E
