Hyundai Tucson Plug-in Hybrid (2024 year). Manual in english

Introduction

Your HYUNDAI should not be modified in any way. Such modifications may

adversely affect the performance, safety or durability of your HYUNDAI

and may, in addition, violate conditions of the limited warranties covering

the vehicle. Certain modifications may also be in violation of regulations

established by the U.S. Department of Transportation and other federal or state

agencies.

Your vehicle is equipped with a Tire Pressure Monitoring System, Passenger

Occupant Classification System and other CAN bus systems. It is possible for

an improperly installed/adjusted high powered two-way radio to adversely

affect electronic systems. For this reason, we recommend that you carefully

follow the radio manufacturer’s instructions if you choose to install one of these

devices.

CAUTION: MODIFICATIONS TO YOUR HYUNDAI

7:2ǘ:$<5$',2,167$//$7,21

This manual includes information titled as DANGER, WARNING, CAUTION and

NOTICE.
These titles indicate the following:

DANGER

DANGER indicates a hazardous situation which, if not avoided, will result in

death or serious injury.

WARNING

WARNING indicates a hazardous situation which, if not avoided, could result

in death or serious injury.

CAUTION

CAUTION indicates a hazardous situation which, if not avoided, could result

in minor or moderate injury.

NOTICE

NOTICE indicates a situation which, if not avoided, could result in vehicle

damage.

SAFETY AND VEHICLE DAMAGE WARNING

Your Hyundai vehicle may be equipped with technologies and services that use

information collected, generated, recorded or stored by the vehicle. Hyundai

has created a Vehicle Owner Privacy Policy to explain how these technologies

and services collect use and share this information.

You may read our Vehicle Owner Privacy Policy on the Hyundaiusa.com website

at: https://www.hyundaiusa.com/owner-privacy-policy.aspx
If you would like to receive a hard copy of our Vehicle Owner Privacy Policy,

please contact the Hyundai Customer Care Center at:

Hyundai Customer Care
P.O Box 20850
Fountain Valley, CA 92728
800-633-5151
consumeraffairs@hmausa.com

Hyundai’s Customer Care Center representatives are available Monday through

Friday,
between the hours of 6:00 AM and 5:00 PM PST and Saturday between 6:30

AM and 3:00 PM PST (English).
For Customer Care assistance in Spanish or Korean, representatives are

available Monday through Friday between 6:30 AM and 3:00 PM PST.

HYUNDAI VEHICLE OWNER PRIVACY POLICY

Maintenance

Index

Emergency Situations

Driver Assistance System

Driving Your Vehicle

Convenience Features

Instrument Cluster

Seats & Safety System

Vehicle Information, Consumer Information and

Reporting Safety Defects

Foreword / Starting your Hybrid /

Plug-in hybrid vehicle

Table of contents

Vehicle Data Collection and Event Data Recorders ........................................1-8
HEV (Hybrid Electric Vehicle) System ..............................................................1-9
PHEV (Plug-in Hybrid Electric Vehicle) System ............................................. 1-10
Charging the Plug-in Hybrid Vehicle ............................................................... 1-11

Charging Information ...................................................................................................1-11

Charging Time ..............................................................................................................1-11

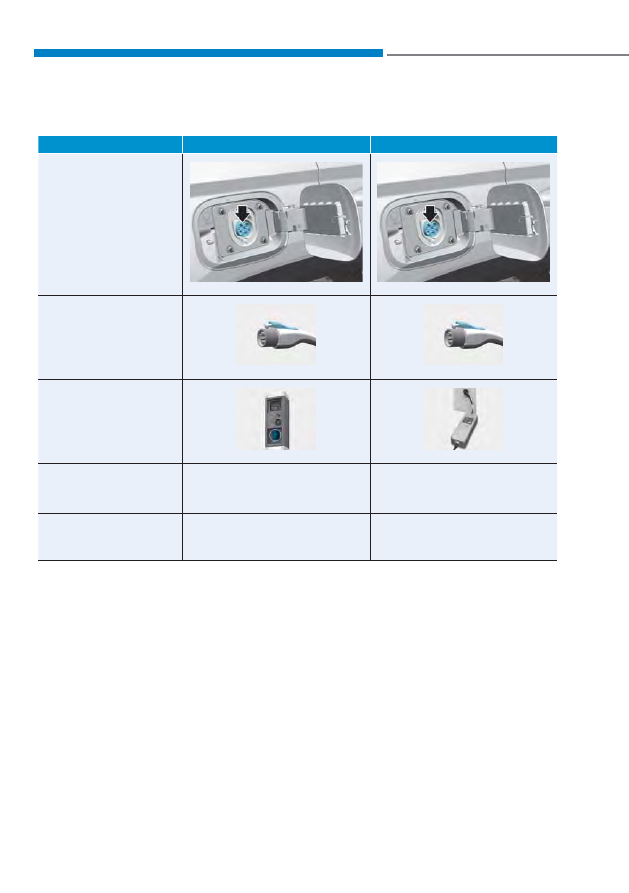

Charging Types ............................................................................................................ 1-12

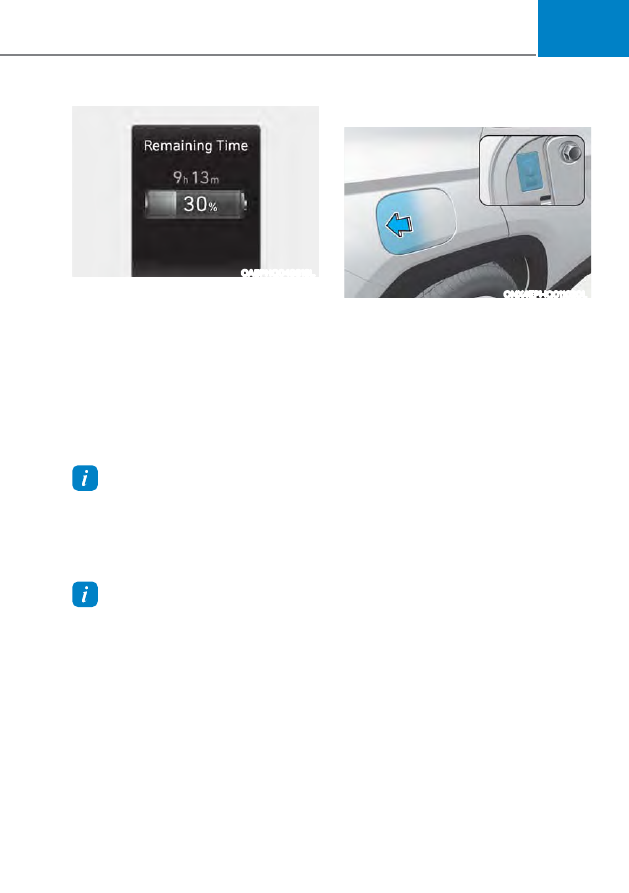

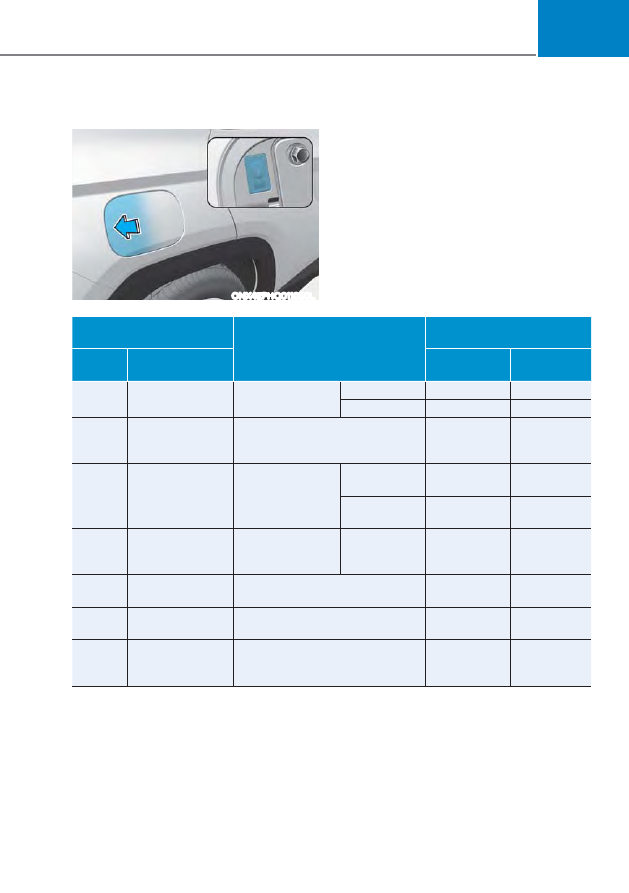

Charging Status ........................................................................................................... 1-13

Scheduled Charging.................................................................................................... 1-14

Charging Connector Lock ........................................................................................... 1-15

Charging Precautions .................................................................................................1-16

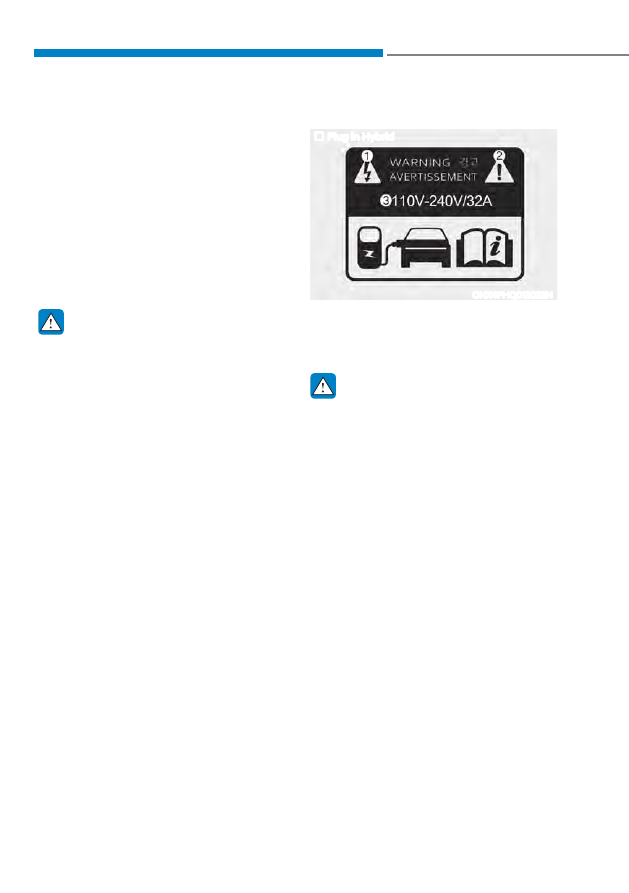

Electric Charging Label ...............................................................................................1-18

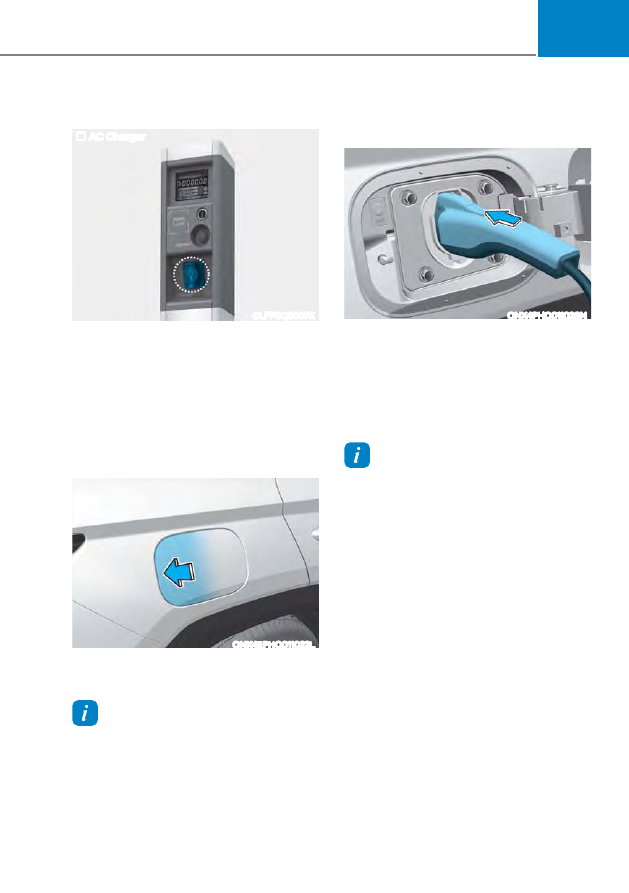

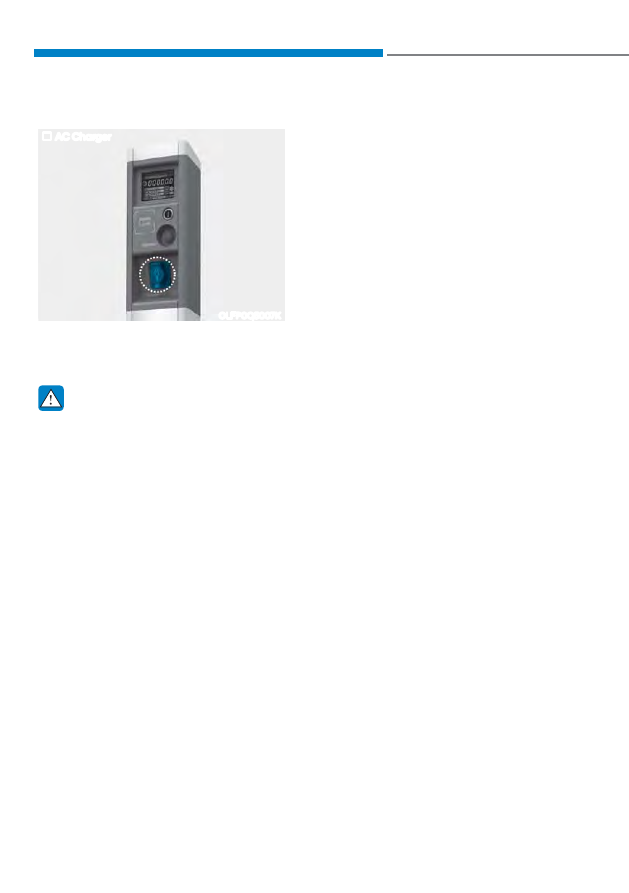

AC Charge .................................................................................................................... 1-19

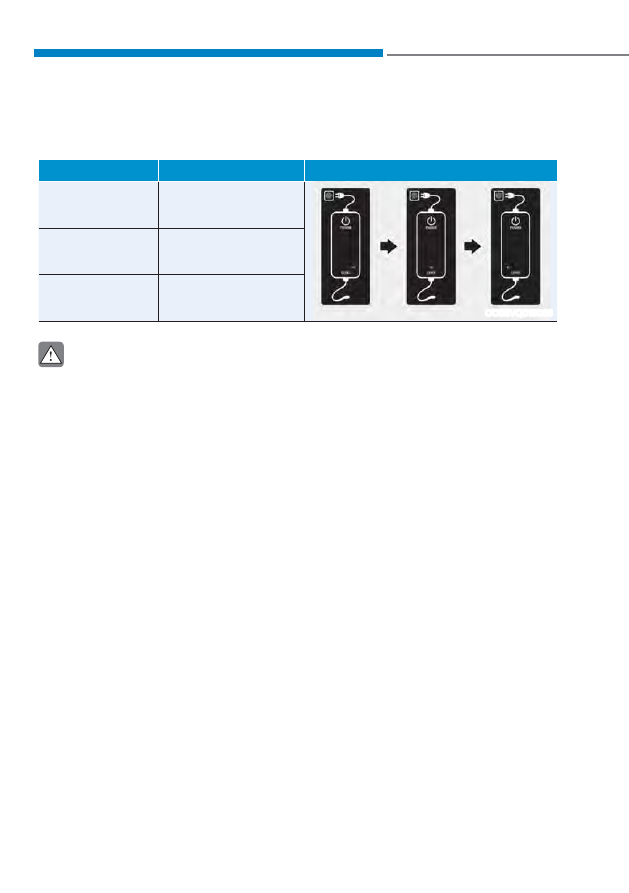

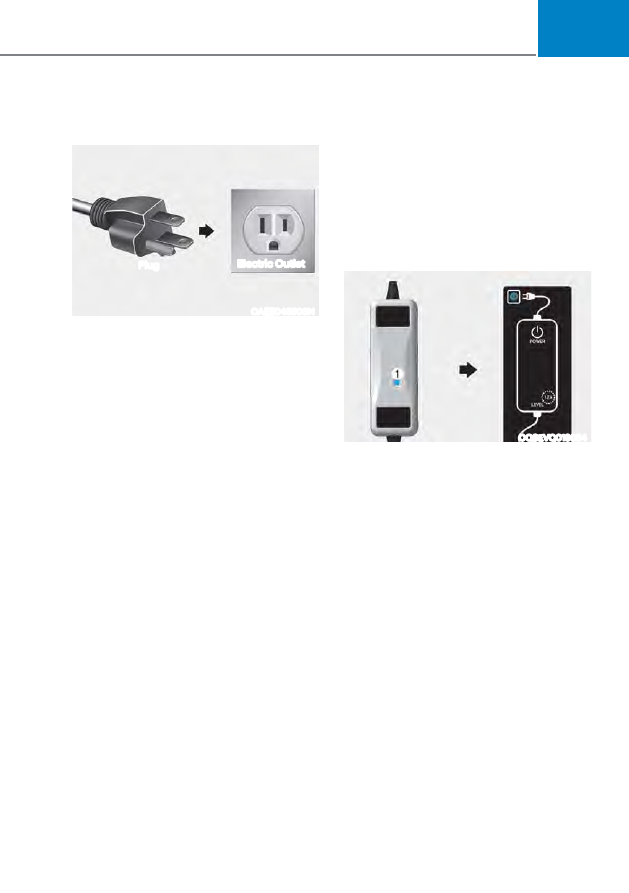

Trickle Charge (Type A) ...............................................................................................1-24

Trickle Charge (Type B) .............................................................................................. 1-36

Action to be Taken when Charging Stops Abruptly ................................................. 1-49

Driving the Hybrid Vehicle ..............................................................................1-50

Starting the Vehicle .................................................................................................... 1-50

Special Features ......................................................................................................... 1-50

Hybrid System Gauge ................................................................................................ 1-52

Plug-in Hybrid Mode (Plug-in hybrid vehicle) .......................................................... 1-53

Aux. Battery Saver+ (Plug-in hybrid vehicle) ............................................................ 1-54

Warning and Indicator Lights .................................................................................... 1-56

LCD Display Messages ................................................................................................1-57

Energy Flow ................................................................................................................ 1-65

Hybrid Driving System .....................................................................................1-68

e-Handling (Electrically Assisted Handling Performance)/e-EHA (Electrically

Evasive Handling Assist) ............................................................................................1-68

Safety Precautions for Hybrid System ............................................................1-69

Hybrid Vehicle Components .....................................................................................1-69

Service Interlock Connector ....................................................................................... 1-71

Hybrid Battery Cooling Duct ...................................................................................... 1-71

If an accident occurs ...................................................................................................1-72

When the Hybrid Vehicle Shuts Off ...........................................................................1-73

1. Foreword/Starting your

Hybrid/Plug-in hybrid vehicle

Foreword/Starting your Hybrid/Plug-in hybrid vehicle

1-2

FOREWORD

Congratulations, and thank you for choosing HYUNDAI. We are pleased to welcome

you to the growing number of discerning people who drive HYUNDAIs. We are very

proud of the advanced engineering and high-quality construction of each HYUNDAI

we build.
Your Owner’s Manual will introduce you to the features and operation of your new

HYUNDAI. To become familiar with your new HYUNDAI, so that you can fully enjoy it,

read this Owner’s Manual carefully before driving your new vehicle.
This manual contains important safety information and instructions intended to

familiarize you with your vehicle’s controls and safety features so you can safely

operate your vehicle.
This manual also contains information on maintenance designed to enhance safe

operation of the vehicle. It is recommended that all service and maintenance on your

car be performed by an authorized HYUNDAI dealer. An authorized HYUNDAI dealers

are prepared to provide high-quality service, maintenance and any other assistance

that may be required.
This Owner’s Manual should be considered a permanent part of your vehicle, and

should be kept in the vehicle so you can refer to it at any time. The manual should stay

with the vehicle if you sell it to provide the next owner with important operating, safety

and maintenance information.

HYUNDAI MOTOR AMERICA

CAUTION

Severe engine and transmission damage may result from the use of poor quality

fuels and lubricants that do not meet HYUNDAI specifications. You must always use

high quality fuels and lubricants that meet the specifications listed on Page 2-18 in

the Vehicle Specifications section of the Owner’s Manual.

publication may be reproduced, stored in any retrieval system or transmitted in

any form or by any means without the prior written permission of HYUNDAI Motor

America.

1-3

GUIDE TO HYUNDAI GENUINE PARTS

1. What are HYUNDAI Genuine Parts?

HYUNDAI Genuine Parts are the

same parts used by HYUNDAI Motor

Company to manufacture vehicles.

They are designed and tested for the

optimum safety, performance, and

reliability for our customers.

2. Why Hyundai Genuine Parts?

HYUNDAI Genuine Parts are

engineered and built to meet rigid

manufacturing requirements.

Damage caused by using imitation,

counterfeit or used salvage parts is

not covered under the HYUNDAI New

Vehicle Limited Warranty or any other

HYUNDAI warranty.
In addition, any damage to or failure

of HYUNDAI Genuine Parts caused

by the installation or failure of an

imitation, counterfeit or used salvage

part is not covered by any HYUNDAI

Warranty.

3. How can you tell if you are

purchasing HYUNDAI Genuine Parts?

Look for the HYUNDAI Genuine Parts

Logo on the package (see below).
HYUNDAI Genuine Parts exported

to the U.S. are packaged with labels

written only in English.
HYUNDAI Genuine Parts are only

sold through authorized HYUNDAI

Dealerships.

Foreword/Starting your Hybrid/Plug-in hybrid vehicle

1-4

HOW TO USE THIS MANUAL

We want to help you get the greatest possible driving pleasure from your vehicle. Your

Owner’s Manual can assist you in many ways. To gain an overview of the contents

of your Owner’s Manual, use the Table of Contents in the front of the manual. The

first page of each Chapter includes a detailed Table of Contents of the topics in that

Chapter.
To quickly locate information about your vehicle, use the Index in the back of the

manual. It is an alphabetical list of what is in this manual and the page number where it

can be found.
For your convenience, we have incorporated tabs on the right-hand page edges.

These tabs are coded with the Chapter titles to assist you with navigating through the

manual.

SAFETY MESSAGES

Your safety, and the safety of others, are very important. This Owner’s Manual provides

you with many safety precautions and operating procedures. This information alerts

you to potential hazards that may hurt you or others, as well as damage your vehicle.
Safety messages found on vehicle labels and in this manual describe these hazards

and what to do to avoid or reduce the risks.
Warnings and instructions contained in this manual are for your safety. Failure to follow

safety warnings and instructions can lead to serious injury or death.

Throughout this manual DANGER, WARNING, CAUTION, NOTICE, and the SAFETY

ALERT SYMBOL will be used.

This is the safety alert symbol. It is used to alert you to potential physical injury

hazards. Obey all safety messages that follow this symbol to avoid possible

injury or death. The safety alert symbol precedes the signal words DANGER,

WARNING, and CAUTION.

DANGER

DANGER indicates a hazardous

situation that, if not avoided, will result

in death or serious injury.

WARNING

WARNING indicates a hazardous

situation that, if not avoided, could

result in death or serious injury.

CAUTION

CAUTION indicates a hazardous

situation that, if not avoided, could

result in minor or moderate injury.

NOTICE

NOTICE indicates a situation that, if

not avoided, could result in vehicle

damage.

1-5

Unleaded

Your new vehicle is designed to perform optimally with unleaded fuel having an octane

number((R+M)/2) of 87 (Research Octane Number 91) or higher. (Do not use methanol

blended fuels)

Your new vehicle is designed to obtain maximum performance with UNLEADED FUEL,

as well as minimize exhaust emissions and spark plug fouling.

NOTICE

To prevent damage to the engine and engine components, never add any fuel

system cleaning agents to the fuel tank other than what has been specified.
Consult an authorized HYUNDAI dealer for additional information.

WARNING

Do not “top off” after the nozzle automatically shuts off when refueling.

Always check that the fuel cap is installed securely to prevent fuel spillage in the

event of an accident.

Gasoline containing alcohol and methanol

Gasohol, a mixture of gasoline and ethanol (also known as grain alcohol) are being

marketed along with or instead of leaded or unleaded gasoline. For example, “E15” is a

gasohol comprised of 15% ethanol and 85% gasoline.
Do not use gasohol containing more than 10% ethanol, and do not use gasoline or

gasohol containing any methanol. Either of these fuels may cause drivability problems

and damage to the fuel system, engine control system and emission control system.
Discontinue using gasohol of any kind if drivability problems occur.
“E85” fuel is an alternative fuel comprised of 85 percent ethanol and 15 percent

gasoline, and is manufactured exclusively for use in Flexible Fuel Vehicles. “E85” is

not compatible with your vehicle. Use of “E85” may result in poor engine performance

and damage to your vehicle’s engine and fuel system. HYUNDAI recommends that

customers do not use fuel with an ethanol content exceeding 15 percent.

NOTICE

To prevent damage to your vehicle’s engine and fuel system:

Never use gasohol which contains methanol.

Never use gasohol containing more than 15% ethanol.

Never use leaded fuel or leaded gasohol.

Never use “E85” fuel.

Your New Vehicle Limited Warranty does not cover damage to the fuel system or any

performance problems caused by the use of “E85” fuel.

FUEL REQUIREMENTS

Foreword/Starting your Hybrid/Plug-in hybrid vehicle

1-6

Using Fuel Additives (except Detergent Fuel Additives)

Using fuel additives such as:

- Silicone fuel additive

- Ferrocene (iron-based) fuel additive

- Other metallic-based fuel additives

may result in cylinder misfire, poor acceleration, engine stalling, damage to the

catalyst, or abnormal corrosion, and may cause damage to the engine resulting in a

reduction in the overall life of the powertrain.

- The Malfunction Indicator Lamp (MIL) may illuminate.

NOTICE

Damage to the fuel system or performance problem caused by the use of these fuels

may not be covered by your New Vehicle Limited Warranty.

Gasoline containing MMT

Some gasoline contains harmful manganese-based fuel additives such as MMT
(Methylcyclopentadienyl Manganese Tricarbonyl). HYUNDAI does not recommend the

use of gasoline containing MMT. This type of fuel can reduce vehicle performance and

affect your emission control system.
The malfunction indicator lamp on the cluster may come on.

Detergent Fuel Additives

HYUNDAI recommends that you use good quality gasolines treated with detergent

additives such as TOP TIER Detergent Gasoline, which help prevent deposit formation

in the engine. These gasolines will help the engine run cleaner and enhance

performance of the Emission Control System. For more information on TOP TIER

Detergent Gasoline, please go to the website (www. toptiergas.com).
For customers who do not use TOP Tier Detergent Gasoline regularly, and have

problems starting or the engine does not run smoothly, detergent-based fuel additives

that you can purchase separately may be added to the gasoline. If TOP TIER Detergent

Gasoline is not available, one bottle of additive added to the fuel tank according to the

maintenance schedule is recommended (refer to the Maintenance Schedule in chapter

9).
Additives are available from your authorized HYUNDAI dealer along with information

on how to use them. Do not mix other additives.

Operation in foreign countries

If you are going to drive your vehicle in another country, be sure to:

Observe all regulations regarding registration and insurance.

Determine that acceptable fuel is available.

1-7

VEHICLE MODIFICATIONS

This vehicle should not be modified. Modification of your vehicle could affect its

performance, safety or durability and may even violate governmental safety and

emissions regulations.
In addition, damage or performance problems resulting from any modification may

not be covered under warranty.

If you use unauthorized electronic devices, it may cause the vehicle to operate

abnormally, wire damage, battery discharge and fire. For your safety, do not use

unauthorized electronic devices.

NOTICE

Some warning sounds (including welcome/good-bye sound, etc.) are generated

from the interior speakers or amplifiers. If necessary, purchase HYUNDAI Part to

replace an interior speaker or amplifier. Any unauthorized product may cause a

malfunction of the interior speakers or amplifiers.

9(+,&/(%5($.ǘ,1352&(66

By following a few simple precautions for the first 600 miles (1,000 km) you may add to

the performance, economy and life of your vehicle.

Do not race the engine.

While driving, avoid sudden acceleration.

Do not maintain a single speed for long periods of time, either fast or slow. Varying

engine speed is needed to properly break-in the engine.

Avoid hard stops, except in emergencies, to allow the brakes to seat properly.

Fuel economy and engine performance may vary depending on vehicle break-in

process and be stabilized after 4,000 miles (6,000 km). New engines may consume

more oil during the vehicle break-in period.

Do not tow a trailer during the first 1,200 miles (2,000km) of operation.

WARNING

CALIFORNIA PROPOSITION 65 WARNING
Items contained in motor vehicles or emitted from them are known to the State of

California to cause cancer and birth defects or reproductive harm. These include:

Gasoline and its vapors

Engine exhaust

Used engine oil

Interior passenger compartment components and materials

Component parts which are subject to heat and wear

In addition, battery posts, terminals and related accessories contain lead, lead

compounds and other chemicals known to the State of California to cause cancer

and reproductive harm.
For more information go to https://www.p65warnings.ca.gov/passenger-vehicle

Foreword/Starting your Hybrid/Plug-in hybrid vehicle

1-8

VEHICLE DATA COLLECTION AND EVENT DATA RECORDERS

This vehicle is equipped with an event data recorder (EDR). The main purpose of

an EDR is to record, in certain crash or near crash-like situations, such as an air bag

deployment or hitting a road obstacle, data that will assist in understanding how a

vehicle’s systems performed. The EDR is designed to record data related to vehicle

dynamics and safety systems for a short period of time, typically 30 seconds or less.
The EDR in this vehicle is designed to record such data as:

How various systems in your vehicle were operating;

Whether or not the driver and passenger safety belts were buckled/fastened;

How far (if at all) the driver was depressing the accelerator and/or brake pedal; and,

How fast the vehicle was traveling.

These data can help provide a better understanding of the circumstances in which

crashes and injuries occur. NOTE: EDR data are recorded by your vehicle only if a non-

trivial crash situation occurs; no data are recorded by the EDR under normal driving

conditions and no personal data (for example, name, gender, age, and crash location)

are recorded. However, other parties, such as law enforcement, could combine the

EDR data with the type of personally identifying data routinely acquired during a crash

investigation.
To read data recorded by an EDR, special equipment is required, and access to the

vehicle or the EDR is needed. In addition to the vehicle manufacturer, other parties,

such as law enforcement, that have the special equipment, can read the information if

they have access to the vehicle or the EDR.

1-9

+(9ǣ+<%5,'(/(&75,&9(+,&/(Ǥ6<67(0

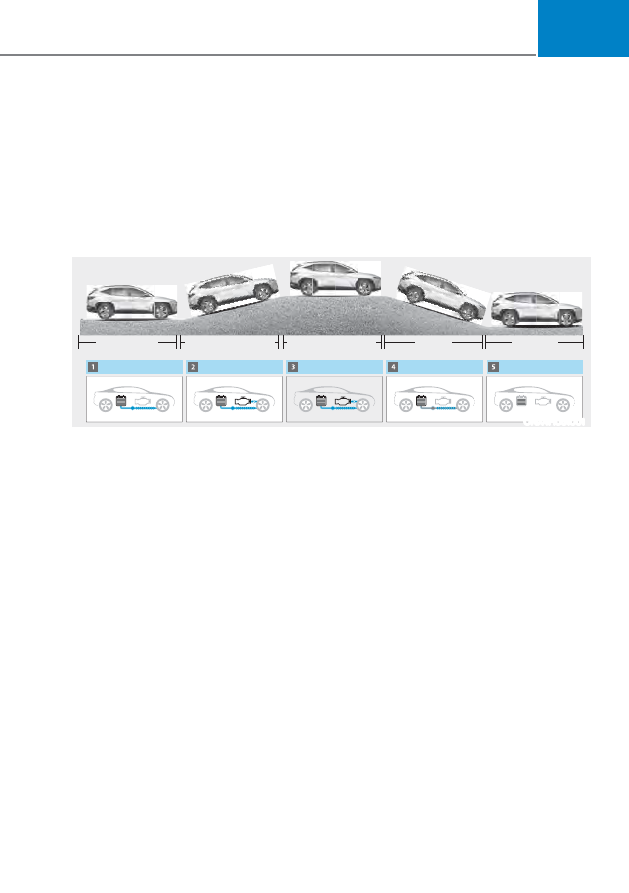

The HYUNDAI Hybrid Electric Vehicle (HEV) uses both the gasoline engine and the

electric motor for power. The electric motor is run by a high-voltage HEV battery.
Depending on the driving conditions, the HEV computer selectively operates between

the engine and the electric motor or even both at the same time.
Fuel efficiency increases when the engine is at idle, or when the vehicle is driven by the

electric motor with the HEV battery.
The HEV battery charge must be maintained, so at times the engine will come on even

at idle to act as a generator. Charging also occurs when decelerating or by regenerative

braking.

ONX4H061001

Startup/

Low speed cruise

Acceleration

High speed cruise

Deceleration

Stop

Electric motor

Electric motor + Engine

Charging

Engine OFF

Foreword/Starting your Hybrid/Plug-in hybrid vehicle

1-10

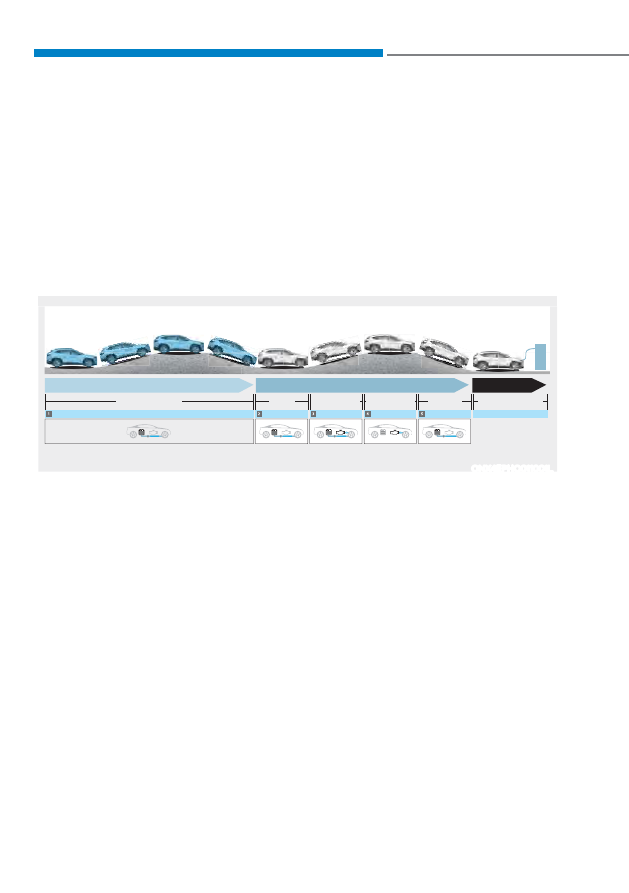

The HYUNDAI Plug-in Hybrid Electric Vehicle (PHEV) shares the characteristics of both

a conventional hybrid electric vehicle and an all-electric vehicle.
When used as a conventional hybrid electric vehicle, the HEV computer selectively

operates between the engine and the electric motor or even both at the same time.
When it is operating in the electric vehicle mode, the vehicle is driven only using

the electric motor over a certain distance until the hybrid battery becomes low. The

driving distance in EV mode depends on customer driving style and road conditions.

Aggressive driving maneuvers or in need of diagnosis for emission related parts, may

enable the engine to operate. However, engine power can be limited during emission

reduction control period in cold engine condition.
The hybrid battery can be fully charged by connecting a plug to an external electric

power source.

CD (Charge Depleting) Mode

CS (Charge Sustaining) Mode

Charging

Electric motor

Motor

Engine + Motor Engine + Motor

Charging

Battery Charging

Electric Vehicle Mode

Startup/Low speed

Acceleration

High speed

Deceleration

External charging

ONX4EPHQ011001L

3+(9ǣ3/8*ǘ,1+<%5,'(/(&75,&9(+,&/(Ǥ6<67(0

1-11

Charging Information

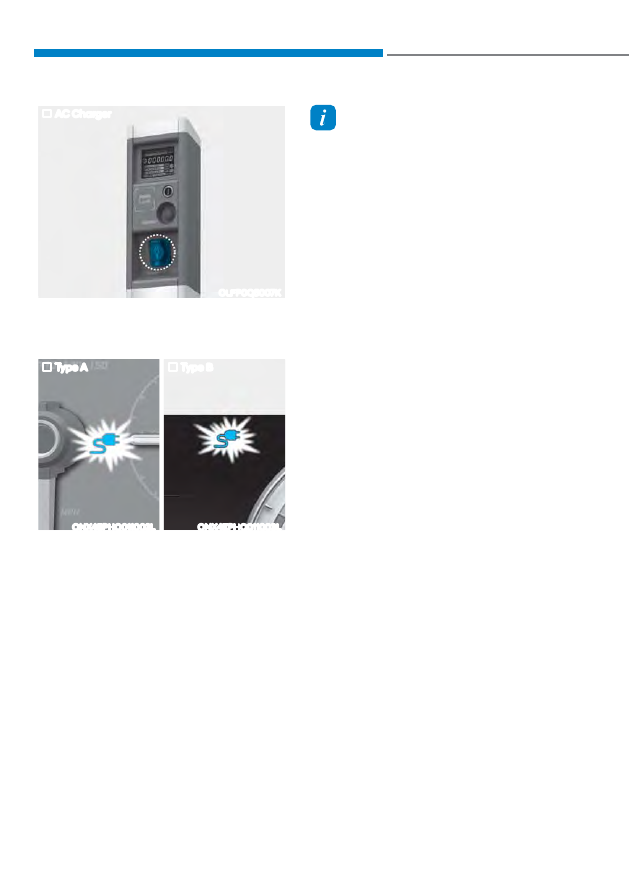

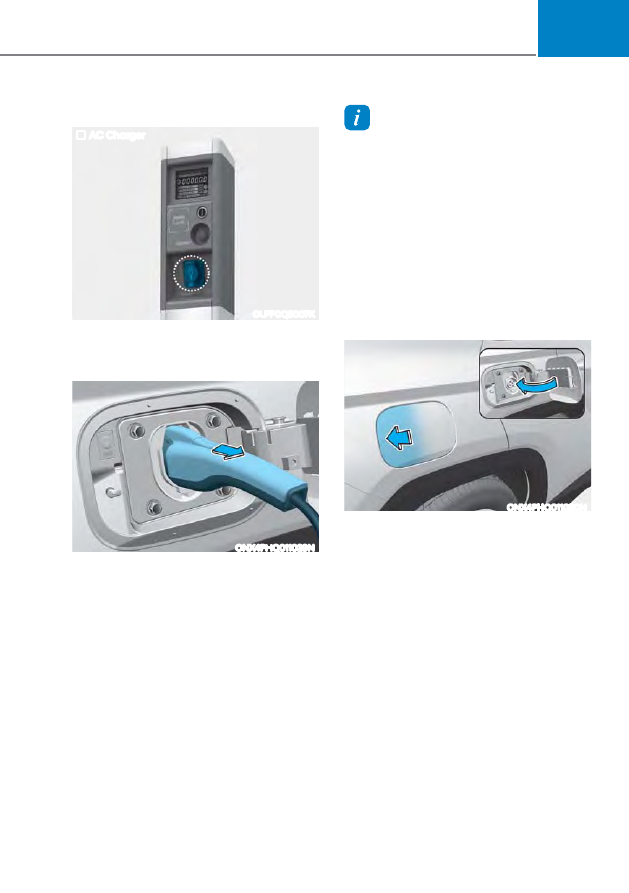

AC Charge:

The plug-in hybrid vehicle is charged by

plugging into a AC charger installed in

your home or a public charging station.

(For further details, refer to the ‘AC

Charge’.)

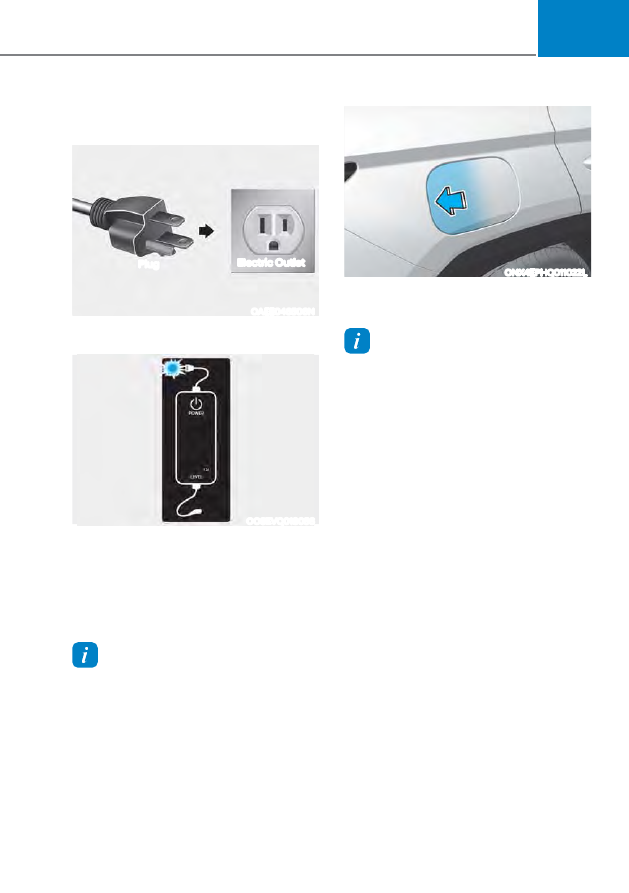

Trickle Charge:

The plug-in hybrid vehicle can be

charged by using household electricity.

The electrical outlet in your home must

comply with regulations and can safely

accommodate the Voltage / Current

(Amps) / Power (Watts) ratings specified

on the portable charge.

Charging Time

AC Charge:

Takes approximately 2 hours 15 minutes

at room temperature. (Can be charged to

100%.)

Information

Depending on the condition and durability
of the high voltage battery, charger
specifications, and ambient temperature,
the time required for charging the high
voltage battery may vary.

&+$5*,1*7+(3/8*ǘ,1+<%5,'9(+,&/(

Foreword/Starting your Hybrid/Plug-in hybrid vehicle

1-12

Charging Types

Category

AC Charge

Trickle Charge

Charging Inlet (Vehicle)

ONX4PHQ011018N

Charging Connector

ONE1Q011083

Charging Outlet

OLFP0Q5007K

ONX4EPHQ011019L

How to Charge

Use AC charger installed in

homes or public charging

station

Use household current

Charging Time

Approx. 2 hours 15 minutes (to

fully charge, 100%)

For charging at home. Please

note that the Trickle Charger is

slower than the AC Charger.

Depending on the condition and durability of the high voltage battery, charger

specifications, and ambient temperature, the time required for charging the high

voltage battery may vary.

Actual charger image and charging method may vary in accordance with the

charger manufacturer.

1-13

Charging Status

ONX4EPHQ011020L

When charging the high voltage battery,

the charge level can be checked from

outside the vehicle.

Classification

Details

Operation of charging

indicator lamp

Mode

Status

Charging

inlet

Charging

button

READY

Non-charging

state

0 ~ 65 %

On (Yellow)

Off

65 ~ 100 %

On (Green)

Off

Aux. Battery

Saver / High

voltage warning

Charging the 12V auxiliary

battery / High voltage warning

state

On (Red)

Off

Charging

0 ~ 65 %

Blinking

(Yellow)

Off

65 ~ 100 %

Blinking

(Green)

Off

Charging

complete

Charging

completed (turns

off in 5 seconds)

100 %

2Q*UHHQƟ

OFF

Off

Charging failed

Error while charging

Blinking

(Red)

Off

Scheduled

charging standby

Reserved charging is operating

(turns OFF after 3 minutes)

Off

Error

CAN communication error

status

2Q*UHHQƟ

On (Orange)

Ɵ2Q5HG

Off

Foreword/Starting your Hybrid/Plug-in hybrid vehicle

1-14

Scheduled Charging

(if equipped)

You can set-up a charging

schedule for your vehicle using the

infotainment system or BlueLink

application.
Refer to the infotainment system

manual or the BlueLink manual for

detailed information about setting

scheduled charging.

Scheduled charging can only be

done when using a AC charger or

the portable charger (ICCB: InCable

Control Box).

ONX4EPHQ011020L

When scheduled charging is set

and the AC charger or the portable

charger (ICCB: In-Cable Control

Box) is connected for charging, the

indicator lamp in the middle blinks (for

3 minutes) to indicate that scheduled

charging is set.

When scheduled charging is set,

charging is not initiated immediately

when the AC charger or portable

charger (ICCB: In-Cable Control

Box) is connected. When immediate

charging is required, use the

infotainment system to deactivate

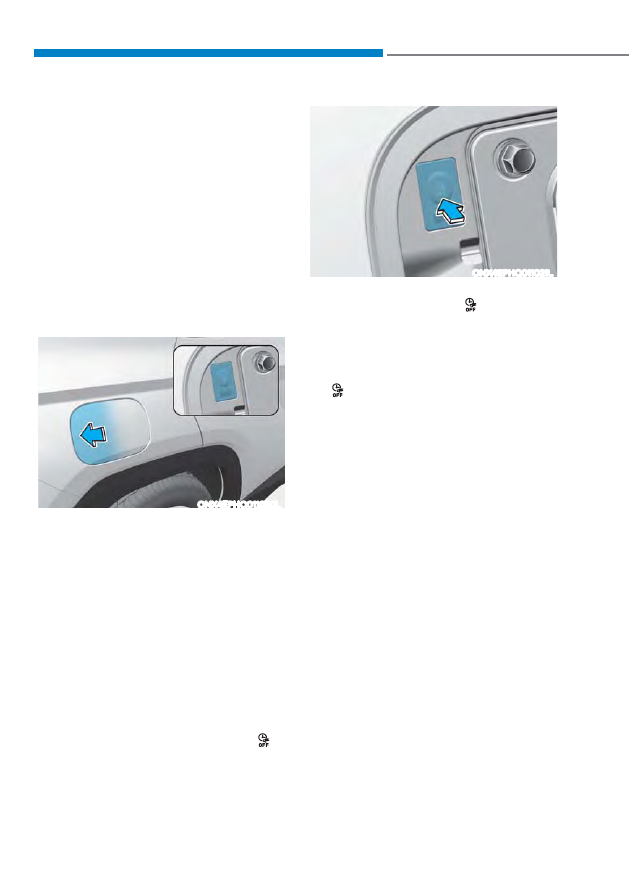

the scheduled charge setting or press

scheduled charging deactivation ( )

button.

ONX4EPHQ011021L

If you press the scheduled

charging deactivation ( ) button

to immediately charge the battery,

charging must be initiated 3 minutes

after the charging cable has been

connected. When you press the

scheduled charging deactivation

( ) button for immediate charging,

the scheduled charge setting is not

completely deactivated. If you need to

completely deactivate the scheduled

charge setting, use the infotainment

system to finalize the deactivation.

Refer to “AC Charge (Station) or Trickle

Charge” for details about connecting

the AC charger and the portable charger

(ICCB: In-Cable Control Box).

1-15

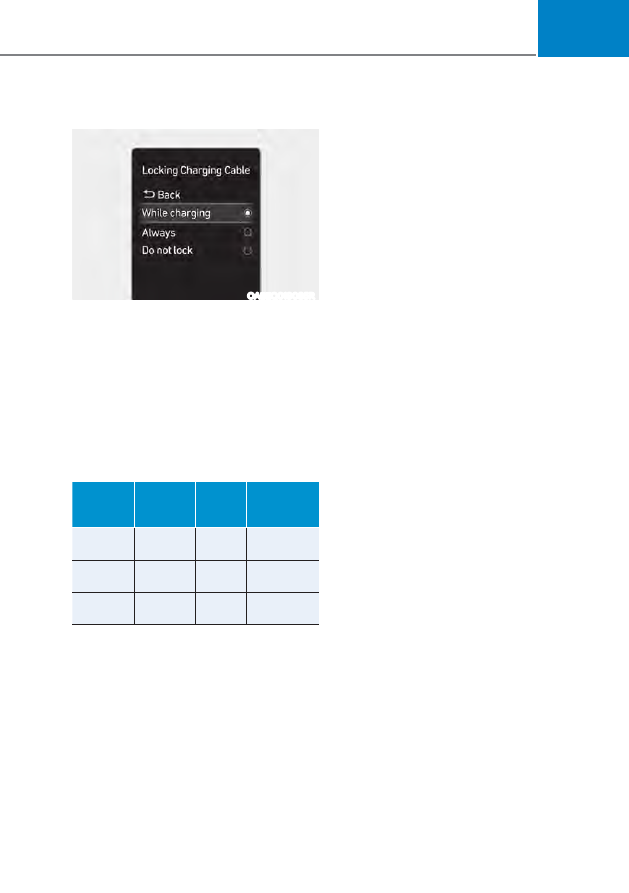

Charging Connector Lock

OAEEQ019085R

You may select when the charging

connector can be locked and unlocked in

the charging inlet.
The driver can select the charge

connector lock mode from the User

Settings in the LCD display by selecting

œ8VHU6HWWLQJVƟ&RQYHQLHQFHƟ/RFNLQJ

Charging Cable’.

When the Charging Connector is

Locked

While

charging Always

Do not

lock (if

equipped)

Before

charging

While

charging

Finished

charging

Always mode

The connector locks when the charging

connector is plugged into the charging

inlet. The connector is locked until all

doors are unlocked by the driver. This

mode can be used to prevent charging

cable theft.

If the charging connector is unlocked

when all doors are unlocked, but the

charging cable is not disconnected

within 15 seconds, the connector will

be automatically locked again.

If the charging connector is unlocked

when all doors are unlocked, but all

doors are locked again, immediately,

the connector will be automatically

locked again.

While charging mode

The connector locks when charging

starts. The connector unlocks when

charging is complete. This mode can be

used when charging in a public charging

station.

Do not lock mode (if equipped)

The connector unlocks regardless of the

state of charging.
Press the charging connector release

button, disconnect the connector.
Be careful to theft of the charging cable.

Foreword/Starting your Hybrid/Plug-in hybrid vehicle

1-16

Charging Precautions

AC Charger

OLFP0Q5007K

Actual charger image and charging

method may vary in accordance with the

charger manufacturer.

WARNING

Electromagnetic waves that are

generated from the charger can

seriously impact medical electric

devices such as an implantable

cardiac pacemaker.
When using medical electric devices

such as an implantable cardiac

pacemaker, make sure to ask the

medical team and manufacturer

whether charging your electric

vehicle will impact the operation of

the medical electric devices such as

an implantable cardiac pacemaker.

Check to make sure there is no

water or dust on the charging

cable connector and plug before

connecting to the charger and

charging inlet. Connecting while

there is water or dust on the charging

cable connector and plug may cause

a fire or electric shock.

Be careful not to touch the charging

connector, charging plug, and the

charging inlet when connecting

the cable to the charger and the

charging inlet on the vehicle.

Comply with the following in order

to prevent electrical shock when

charging:

Use a waterproof charger.

Be careful when touching the

charging connector and charging

plug with your hands wet, or when

standing in water or snow while

connecting the charging cable.

Be careful when there is lightning.

Be careful when the charging

connector and plug is wet.

Immediately stop charging when

you find abnormal symptoms (odor,

smoke).

Replace the charging cable if the

cable coating is damaged to prevent

electrical shock.

When connecting or removing the

charging cable, make sure to hold

the charging connector handle and

charging plug.
If you pull the cable itself (without

using the handle), the internal wires

may disconnect or get damaged. This

may lead to electric shock or fire.

1-17

CAUTION

Always keep the charging connector

and charging plug in clean and

dry condition. Be sure to keep the

charging cable in a condition where

there is no water or moisture.

Make sure to use the designated

charger for charging the electric

vehicle. Using any other charger may

cause failure.

Before charging the battery, turn the

vehicle OFF

When the vehicle is switched OFF

while charging, the cooling fan

inside the motor compartment may

automatically operate. Do not touch

the cooling fan while charging.

Be careful not to drop the charging

connector. The charging connector

can be damaged.

WARNING

Immediately stop charging when

you find abnormal symptoms (odor,

smoke).

Replace the charging cable if the

cable coating is damaged to prevent

electrical shock.

When connecting or removing the

charging cable, make sure to hold

the charging connector handle and

charging plug.
If you pull the cable itself (without

using the handle), the internal wires

may disconnect or get damaged. This

may lead to electric shock or fire.

CAUTION

Always keep the charging connector

and charging plug in clean and

dry condition. Be sure to keep the

charging cable in a condition where

there is no water or moisture.

Before charging the battery, turn the

vehicle OFF.

When the vehicle is switched OFF

while charging, the cooling fan

inside the motor compartment may

automatically operate. Do not touch

the cooling fan while charging.

Be careful not to drop the charging

connector. The charging connector

can be damaged.

Foreword/Starting your Hybrid/Plug-in hybrid vehicle

1-18

Precautions for AC and portable

charger charging

1. After opening the charging door,

check the charging symbol at the

bottom of the warning label

2. Check the charging connector symbol

of the AC and Trickle charger cable

3. After checking the alphabet letter of

the charging symbol, proceed the

charging step (Refer to Electric

charging label symbol table in this

chapter).

WARNING

Risks of failure, fire, injury, etc. are

expected when using the charging

connector with unmatched symbol.

Electric Charging Label

Plug in Hybrid

ONX4PHQ012032N

1. Warning for high voltage
2. Caution
3. Charging voltage and current

WARNING

Risks of failure, fire, injury, etc. are

expected when using the charging

connector with unmatched symbol.

1-19

AC Charge

AC Charger

OLFP0Q5007K

Actual charger image and charging

method may vary in accordance with the

charger manufacturer.

How to Connect AC Charger

1. Depress the brake pedal and apply the

parking brake.

2. Turn OFF all switches, shift to P (Park),

and turn OFF the vehicle.

ONX4EPHQ011022L

3. Press center edge of the charging

door to open the charging door.

Information

If the charging door does not open because
ice has formed around it, tap lightly or
push on the door to break the ice and
release the door. Do not pry on the door. If
necessary, spray around the door with an
approved deicer fluid (do not use radiator
antifreeze) or move the vehicle to a warm
place and allow the ice to melt.

4. Check if there is dust on the charging

connector and charging inlet.

ONX4PHQ011028N

5. Hold the charging connector handle

and connect it to the vehicle AC

charging inlet. Push the connector

until you hear a “clicking” sound. If

the charging connector and charging

terminal are not connected properly,

this may cause a fire.

Information

Charging connector AUTO/LOCK mode

The charging connector is locked in the
inlet at a different period according to
which mode is selected.

LOCK mode : The connector locks
when the charging connector is plugged
into the charging inlet.

AUTO mode : The connector locks
when charging starts.

For more details, refer to “Charging
Connector AUTO/ LOCK Mode” in this
chapter.

Foreword/Starting your Hybrid/Plug-in hybrid vehicle

1-20

AC Charger

OLFP0Q5007K

6. Connect the charging plug to the

electric outlet at a AC charging station

to start charging.

Type A

Type B

ONX4EPHQ011002L

ONX4EPHQ011003L

7. Check if the charging indicator

light of the high voltage battery

on the instrument cluster is turned

ON. Charging is not done when the

charging indicator lamp is OFF.
When the charging connector and

charging plug are not connected

properly, reconnect the charging

cable to charge.

Information

Even though charging is possible with
the ignition switch in the ON/START
position, for your safety, start charging
when the ignition switch is in the
LOCK/OFF position and the vehicle
shifted to P (Park). After charging
has started, you can use electrical
components such as the radio by
placing the ignition switch in the ACC
or ON position.

During AC charging, the radio
reception may be bad.

Moving the shift button from P (Park)
to R (Reverse)/N(Neutral)/D (Drive)
stops the charging process.

To restart the charging process, move
the shift button to P (Park), place the
ignition switch to the LOCK/OFF
position, and disconnect the charging
cable. Then, connect the charging cable.

1-21

OAEPHQ049818L

8. After charging has started, the

estimated charging time is displayed

on the instrument cluster for about 1

minute.
If you open the driver seat door while

charging, the estimated charging time

is also displayed on the instrument

cluster for about 1 minute.
When scheduled charging is set, the

estimated charging time is displayed

as “--” .

Information

Depending on the condition and durability
of the high voltage battery, charger
specifications, and ambient temperature,
the time required for charging the battery
may vary.

Information

To control the temperature of the high
voltage battery while charging or when
the battery temperature is high, the air
conditioner is used to cool down the
battery. It may generate noise or vibration
from operation of the air conditioner
compressor and cooling fan, but it is a
normal condition when charging the high
voltage battery. Also, the air conditioner’s
performance may be degraded due to
operation of the cooling system to charge
the high voltage battery. This is a normal
condition.

Checking Charging Status

ONX4EPHQ011020L

When charging the high voltage battery,

the charge level can be checked from

outside the vehicle.

Foreword/Starting your Hybrid/Plug-in hybrid vehicle

1-22

Classification

Details

Operation of charging

indicator lamp

Mode

Status

Charging

inlet

Charging

button

READY

Non-charging

state

0 ~ 65 %

On (Yellow)

Off

65 ~ 100 %

On (Green)

Off

Aux. Battery

Saver / High

voltage warning

Charging the 12V auxiliary

battery / High voltage warning

state

On (Red)

Off

Charging

0 ~ 65 %

Blinking

(Yellow)

Off

65 ~ 100 %

Blinking

(Green)

Off

Charging

complete

Charging

completed (turns

off in 5 seconds)

100 %

2Q*UHHQƟ

OFF

Off

Charging failed

Error while charging

Blinking

(Red)

Off

Scheduled

charging standby

Reserved charging is operating

(turns OFF after 3 minutes)

Off

Error

CAN communication error

status

2Q*UHHQƟ

On (Orange)

Ɵ2Q5HG

Off

1-23

How to Disconnect AC Charger

AC Charger

OLFP0Q5007K

1. When charging is complete, remove

the charging plug from the electrical

outlet of the AC charging station.

ONX4PHQ011029N

2. Hold the charging connector handle

and pull it while pressing the release

button (1).

Information

To prevent charging cable theft,
the charging connector cannot be
disconnected from the inlet when the
doors are locked. Unlock all doors to
disconnect the charging connector from
the inlet.

However, if the vehicle is in the charging
connector AUTO mode, the charging
connector automatically unlocks from the
inlet when charging is completed.

For more details, refer to “Charging
Connector AUTO/ LOCK Mode” in this
chapter.

ONX4PHQ011030N

3. Make sure to completely close the

charging door.

The charging door dose not have a

locking system.

Foreword/Starting your Hybrid/Plug-in hybrid vehicle

1-24

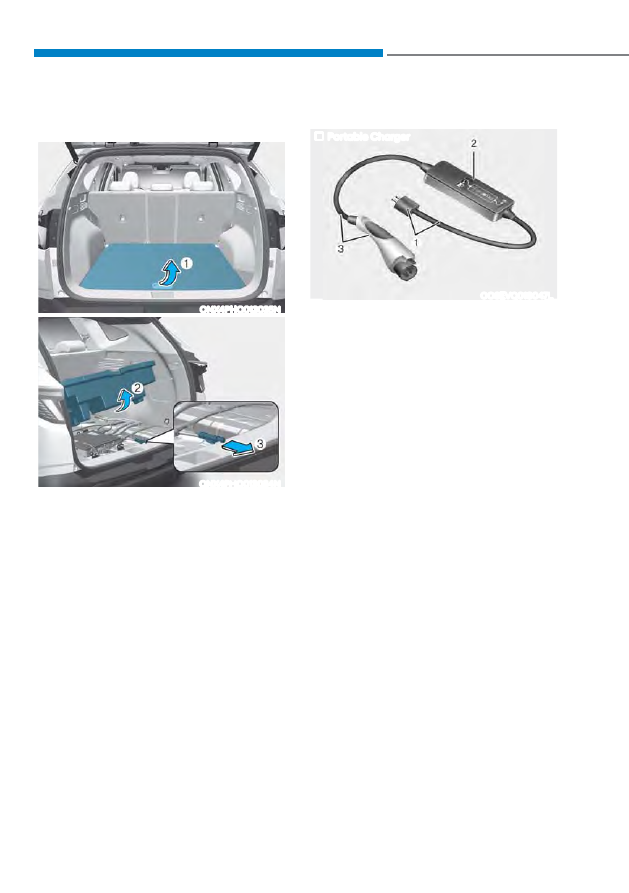

Unlock Charging Connector in

Emergency

ONX4PHQ013035N

ONX4PHQ013034N

If the charging connector does not

disconnect due to battery discharge

and electric wire failure, perform the

following:
1. Open the liftgate.
2. Lift the luggage tray cover by the

handle (1).

3. Raise the luggage tray (2).
4. Gently pull the emergency cable (3) to

disconnect the charging connector.

Trickle Charge (Type A)

Portable Charger

OOSEVQ018047L

(1) Code and Plug (Code set)
(2) Control Box
(3) Charging Cable and Charging

Connector

Portable Charge can be used when

AC Charge is not available by using

household electricity.

1-25

How to set the charging rate of the

portable charger

OAEE046506N

Plug

Electric Outlet

Charging a plug-in hybrid vehicle at

home can stress the household electrical

system more than a typical household

appliance. Most modern residential

electrical circuits are rated at 15 or 20

amps. The portable charger is rated

to supply a 12A continuous load. To

avoid tripping a fuse or breaker in

the household, the portable charger

charging rate can be reduced. Follow the

steps below to set the charging rate of

the portable charger.

1. Check the current output of the

electrical outlet prior to connecting

the portable charger in order to

determine the permissible charging

rate.

2. Connect the plug to a household

electric outlet.

3. Check the LED display on the portable

charger controller. The indicator 8A,

10A or 12A will be displayed.

OOSEVQ018054

4. The charging rate (amps) can be

adjusted on the portable charger

controller. Press the button (1) on the

back of the controller.

5. The charging rate (12A, 10A, 8A) on the

LED display changes each time you

press the button. Refer to the table to

adjust the charging rate based on the

electrical outlet current output.

6. When the charging rate is set, follow

the procedure in the next section to

connect your vehicle.

Foreword/Starting your Hybrid/Plug-in hybrid vehicle

1-26

Example for setting the ICCB charge level

The example is only for reference and may vary according to the surrounding

environment.

Outlet current

ICCB charge level

Control box display window

14-16A

12A

OOSEVQ018055

13-12A

10A

11-10A

CAUTION

Please make sure that charge level selection matches the capacity of your circuit

breaker to avoid blown fuse.

1-27

How to Connect Portable Charger

(ICCB: In-Cable Control Box)

OAEE046506N

Plug

Electric Outlet

1. Connect the plug to a household

electric outlet.

OOSEVQ018056

2. Check if the power lamp (green)

illuminates on the controller.

3. Depress the brake pedal and apply the

electronic parking brake.

4. Turn OFF all switches, shift to P (Park),

and turn OFF the vehicle.

Information

If charging is initiated without the gear in
P (Park), charging will start only after the
gear is automatically shifted to P (Park).

ONX4EPHQ011022L

5. Press center edge of the charging

door to open the charging door.

Information

If you cannot open the charging door due
to freezing weather tap lightly or remove
any ice near the charging door. Do not try
to forcibly open the charging door.

6. Open the protection caps of the

charging connector and the charging

plug. Check if there are any foreign

substances or dust.

7. Hold the charging connector handle

and connect it to the vehicle charging

inlet. Push the connector all the way

in. If the charging connector and

charging terminal are not connected

properly, this may cause a fire.
