Hyundai Elantra Hybrid (2024 year). Manual in english

Introduction

Your HYUNDAI should not be modified in any way. Such modifications may

adversely affect the performance, safety or durability of your HYUNDAI

and may, in addition, violate conditions of the limited warranties covering

the vehicle. Certain modifications may also be in violation of regulations

established by the U.S. Department of Transportation and other federal or state

agencies.

Your vehicle is equipped with a Tire Pressure Monitoring System, Passenger

Occupant Classification System and other CAN bus systems. It is possible for

an improperly installed/adjusted high powered two-way radio to adversely

affect electronic systems. For this reason, we recommend that you carefully

follow the radio manufacturer’s instructions if you choose to install one of these

devices.

CAUTION: MODIFICATIONS TO YOUR HYUNDAI

TWO-WAY RADIO INSTALLATION

This manual includes information titled as DANGER, WARNING, CAUTION and

NOTICE.
These titles indicate the following:

DANGER

DANGER indicates a hazardous situation which, if not avoided, will result in

death or serious injury.

WARNING

WARNING indicates a hazardous situation which, if not avoided, could result

in death or serious injury.

CAUTION

CAUTION indicates a hazardous situation which, if not avoided, could result

in minor or moderate injury.

NOTICE

NOTICE indicates a situation which, if not avoided, could result in vehicle

damage.

SAFETY AND VEHICLE DAMAGE WARNING

Your Hyundai vehicle may be equipped with technologies and services that use

information collected, generated, recorded or stored by the vehicle. Hyundai

has created a Vehicle Owner Privacy Policy to explain how these technologies

and services collect use and share this information.

You may read our Vehicle Owner Privacy Policy on the Hyundaiusa.com website

at: https://www.hyundaiusa.com/owner-privacy-policy.aspx
If you would like to receive a hard copy of our Vehicle Owner Privacy Policy,

please contact the Hyundai Customer Care Center at:

Hyundai Customer Care
P.O. Box 20850
Fountain Valley, CA 92728
800-633-5151
consumeraffairs@hmausa.com

Hyundai’s Customer Care Center representatives are available Monday through

Friday, between the hours of 6:00 AM and 5:00 PM PST and Saturday between

6:30 AM and 3:00 PM PST (English).
For Customer Care assistance in Spanish or Korean, representatives are

available Monday through Friday between 6:30 AM and 3:00 PM PST.

HYUNDAI VEHICLE OWNER PRIVACY POLICY

Foreword / Hybrid System Overview

1-2

INTRODUCTION

Congratulations, and thank you for choosing HYUNDAI. We are pleased to welcome

you to the growing number of discerning people who drive HYUNDAIs. We are very

proud of the advanced engineering and high-quality construction of each HYUNDAI

we build.
Your Owner’s Manual will introduce you to the features and operation of your new

HYUNDAI. To become familiar with your new HYUNDAI, so that you can fully enjoy it,

read this Owner’s Manual carefully before driving your new vehicle.
This manual contains important safety information and instructions intended to

familiarize you with your vehicle’s controls and safety features so you can safely

operate your vehicle.
This manual also contains information on maintenance designed to enhance safe

operation of the vehicle. It is recommended that all service and maintenance on your

car be performed by an authorized HYUNDAI dealer. HYUNDAI dealers are prepared

to provide high-quality service, maintenance and any other assistance that may be

required.
This Owner’s Manual should be considered a permanent part of your vehicle, and

should be kept in the vehicle so you can refer to it at any time. The manual should stay

with the vehicle if you sell it to provide the next owner with important operating, safety

and maintenance information.

HYUNDAI MOTOR AMERICA

CAUTION

Severe engine and transmission damage may result from the use of poor quality

fuels and lubricants that do not meet HYUNDAI specifications. You must always use

high quality fuels and lubricants that meet the specifications listed on Page 2-11 in

the Vehicle Specifications section of the Owner’s Manual.

publication may be reproduced, stored in any retrieval system or transmitted in

any form or by any means without the prior written permission of HYUNDAI Motor

America.

1-3

1. What are HYUNDAI Genuine Parts?

HYUNDAI Genuine Parts are the

same parts used by HYUNDAI Motor

Company to manufacture vehicles.

They are designed and tested for the

optimum safety, performance, and

reliability for our customers.

2. Why Hyundai Genuine Parts?

HYUNDAI Genuine Parts are

engineered and built to meet rigid

manufacturing requirements.

Damage caused by using imitation,

counterfeit or used salvage parts is

not covered under the HYUNDAI New

Vehicle Limited Warranty or any other

HYUNDAI warranty.
In addition, any damage to or failure

of HYUNDAI Genuine Parts caused

by the installation or failure of an

imitation, counterfeit or used salvage

part is not covered by any HYUNDAI

Warranty.

3. How can you tell if you are

purchasing HYUNDAI Genuine Parts?

Look for the HYUNDAI Genuine Parts

Logo on the package (see below).
HYUNDAI Genuine Parts exported

to the U.S. are packaged with labels

written only in English.
HYUNDAI Genuine Parts are only

sold through authorized HYUNDAI

Dealerships.

GUIDE TO HYUNDAI GENUINE PARTS

Foreword / Hybrid System Overview

1-4

We want to help you get the greatest

possible driving pleasure from your

vehicle. Your Owner’s Manual can assist

you in many ways. To gain an overview

of the contents of your Owner’s Manual,

use the Table of Contents in the front

of the manual. The first page of each

Chapter includes a detailed Table of

Contents of the topics in that Chapter.
To quickly locate information about your

vehicle, use the Index in the back of the

manual. It is an alphabetical list of what

is in this manual and the page number

where it can be found.
For your convenience, we have

incorporated tabs on the right-hand

page edges. These tabs are coded with

the Chapter titles to assist you with

navigating through the manual.

Your safety, and the safety of others,

is very important. This Owner’s

Manual provides you with many safety

precautions and operating procedures.

This information alerts you to potential

hazards that may hurt you or others, as

well as damage your vehicle.
Safety messages found on vehicle

labels and in this manual describe these

hazards and what to do to avoid or

reduce the risks.
Warnings and instructions contained in

this manual are for your safety. Failure to

follow safety warnings and instructions

can lead to serious injury or death.

HOW TO USE THIS MANUAL

SAFETY MESSAGES

1-5

Your new vehicle is designed to obtain

maximum performance with UNLEADED

FUEL, as well as minimize exhaust

emissions and spark plug fouling.

Your new vehicle is designed to perform

optimally using unleaded fuel having

an octane number ((R+M)/2) of 87

(Research Octane Number 91) or higher.

(Do not use methanol blended fuels)

NOTICE

To prevent damage to the engine and

engine components, never add any fuel

system cleaning agents to the fuel tank

other than what has been specified.
Consult an authorized HYUNDAI dealer

for additional information.

WARNING

•

Do not “top off” after the nozzle

automatically shuts off when

refueling.

•

Always check that the fuel cap is

installed securely to prevent fuel

spillage in the event of an accident.

FUEL REQUIREMENTS

Throughout this manual DANGER,

WARNING, CAUTION, NOTICE and the

SAFETY ALERT SYMBOL will be used.

This is the safety alert symbol. It

is used to alert you to potential

physical injury hazards. Obey

all safety messages that follow

this symbol to avoid possible

injury or death. The safety alert

symbol precedes the signal

words DANGER, WARNING and

CAUTION.

DANGER

DANGER indicates a hazardous

situation which, if not avoided, will

result in death or serious injury.

WARNING

WARNING indicates a hazardous

situation which, if not avoided, could

result in death or serious injury.

CAUTION

CAUTION indicates a hazardous

situation which, if not avoided, could

result in minor or moderate injury.

NOTICE

NOTICE indicates a situation which,

if not avoided, could result in vehicle

damage.

Foreword / Hybrid System Overview

1-6

Gasoline containing alcohol or

methanol

Gasohol, a mixture of gasoline and

ethanol (also known as grain alcohol) are

being marketed along with or instead

of leaded or unleaded gasoline. For

example, “E15” is a gasohol comprised of

15% ethanol and 85% gasoline.
Do not use gasohol containing more than

15% ethanol, and do not use gasoline or

gasohol containing any methanol. Either

of these fuels may cause drivability

problems and damage to the fuel

system, engine control system and

emission control system.
Discontinue using gasohol of any kind if

drivability problems occur.
“E85” fuel is an alternative fuel

comprised of 85 percent ethanol and 15

percent gasoline, and is manufactured

exclusively for use in Flexible Fuel

Vehicles. “E85” is not compatible with

your vehicle. Use of “E85” may result in

poor engine performance and damage

to your vehicle’s engine and fuel system.

HYUNDAI recommends that customers

do not use fuel with an ethanol content

exceeding 15 percent.

NOTICE

To prevent damage to your vehicle’s

engine and fuel system:

•

Never use gasohol which contains

methanol.

•

Never use gasohol containing more

than 15% ethanol.

•

Never use leaded fuel or leaded

gasohol.

•

Never use “E85” fuel.

Your New Vehicle Limited Warranty

does not cover damage to the fuel

system or any performance problems

caused by the use of “E85” fuel.

Using Fuel Additives (except

Detergent Fuel Additives)

Using fuel additives such as:

- Silicone fuel additive

- Ferrocene (iron-based) fuel additive

- Other metallic-based fuel additives
may result in cylinder misfire, poor

acceleration, engine stalling, damage

to the catalyst, or abnormal corrosion,

and may cause damage to the engine

resulting in a reduction in the overall life

of the powertrain.

- The Malfunction Indicator Lamp (MIL)

may illuminate.

NOTICE

Damage to the fuel system or

performance problem caused by the

use of these fuels or fuel additives may

not be covered by your New Vehicle

Limited Warranty.

Gasoline containing MMT

Some gasoline contains harmful

manganese-based fuel additives such

as MMT (Methylcyclopentadienyl

Manganese Tricarbonyl).
HYUNDAI does not recommend the use

of gasoline containing MMT.
This type of fuel can reduce vehicle

performance and affect your emission

control system.
The malfunction indicator lamp on the

cluster may come on.

1-7

Detergent Fuel Additives

HYUNDAI recommends that you use

good quality gasolines treated with

detergent additives such as TOP TIER

Detergent Gasoline, which help prevent

deposit formation in the engine. These

gasolines will help the engine run

cleaner and enhance performance of

the Emission Control System. For more

information on TOP TIER Detergent

Gasoline, please go to the website (www.

toptiergas.com).
For customers who do not use TOP Tier

Detergent Gasoline regularly, and have

problems starting or the engine does

not run smoothly, detergent-based

fuel additives that you can purchase

separately may be added to the gasoline.

If TOP TIER Detergent Gasoline is

not available, one bottle of additive

added to the fuel tank according to the

maintenance schedule is recommended

(refer to the Maintenance Schedule in

chapter 9).
Additives are available from your

authorized HYUNDAI dealer along with

information on how to use them. Do not

mix other additives.

Operation in foreign countries

If you are going to drive your vehicle in

another country, be sure to:

•

Observe all regulations regarding

registration and insurance.

•

Determine that acceptable fuel is

available.

•

This vehicle should not be modified.

Modification of your vehicle could

affect its performance, safety or

durability and may even violate

governmental safety and emissions

regulations.
In addition, damage or performance

problems resulting from any

modification may not be covered

under warranty.

•

If you use unauthorized electronic

devices, it may cause the vehicle to

operate abnormally, wire damage,

battery discharge and fire. For your

safety, do not use unauthorized

electronic devices.

VEHICLE BREAK-IN

PROCESS

By following a few simple precautions for

the first 600 miles (1,000 km) you may

add to the performance, economy and

life of your vehicle.

•

Do not race the engine.

•

While driving, avoid sudden

acceleration.

•

Do not maintain a single speed for

long periods of time, either fast or

slow. Varying engine speed is needed

to properly break-in the engine.

•

Avoid hard stops, except in

emergencies, to allow the brakes to

seat properly.

•

Don’t tow a trailer during the first

1,200 miles (2,000 km) of operation.

•

Fuel economy and engine

performance may vary depending on

vehicle break-in process and stabilize

after driving about 4,000 miles (6,000

km). Engine may consume more oil

during the vehicle break-in period.

VEHICLE MODIFICATIONS

Foreword / Hybrid System Overview

1-8

VEHICLE DATA COLLECTION

AND EVENT DATA

RECORDERS

This vehicle is equipped with an event

data recorder (EDR). The main purpose

of an EDR is to record, in certain crash

or near crash-like situations, such as

an air bag deployment or hitting a

road obstacle, data that will assist in

understanding how a vehicle’s systems

performed. The EDR is designed to

record data related to vehicle dynamics

and safety systems for a short period of

time, typically 30 seconds or less. The

EDR in this vehicle is designed to record

such data as:

•

How various systems in your vehicle

were operating;

•

Whether or not the driver and

passenger safety belts were buckled/

fastened;

•

How far (if at all) the driver was

depressing the accelerator and/or

brake pedal; and,

•

How fast the vehicle was traveling.

These data can help provide a better

understanding of the circumstances in

which crashes and injuries occur. NOTE:

EDR data is recorded by your vehicle

only if a non-trivial crash situation

occurs; no data are recorded by the EDR

under normal driving conditions and

no personal data (for example, name,

gender, age, and crash location) are

recorded. However, other parties, such

as law enforcement, could combine the

EDR data with the type of personally

identifying data routinely acquired

during a crash investigation.
To read data recorded by an EDR,

special equipment is required, and

access to the vehicle or the EDR is

needed. In addition to the vehicle

manufacturer, other parties, such as

law enforcement, that have the special

equipment, can read the information if

they have access to the vehicle or the

EDR.

WARNING

CALIFORNIA PROPOSITION 65

WARNING
Items contained in motor vehicles or

emitted from them are known to the

State of California to cause cancer and

birth defects or reproductive harm.

These include:

•

Gasoline and its vapors

•

Engine exhaust

•

Used engine oil

•

Interior passenger compartment

components and materials

•

Component parts which are subject

to heat and wear

In addition, battery posts, terminals and

related accessories contain lead, lead

compounds and other chemicals known

to the State of California to cause

cancer and reproductive harm.
For more information go to

https://www.p65warnings.ca.gov/

passenger-vehicle

1-9

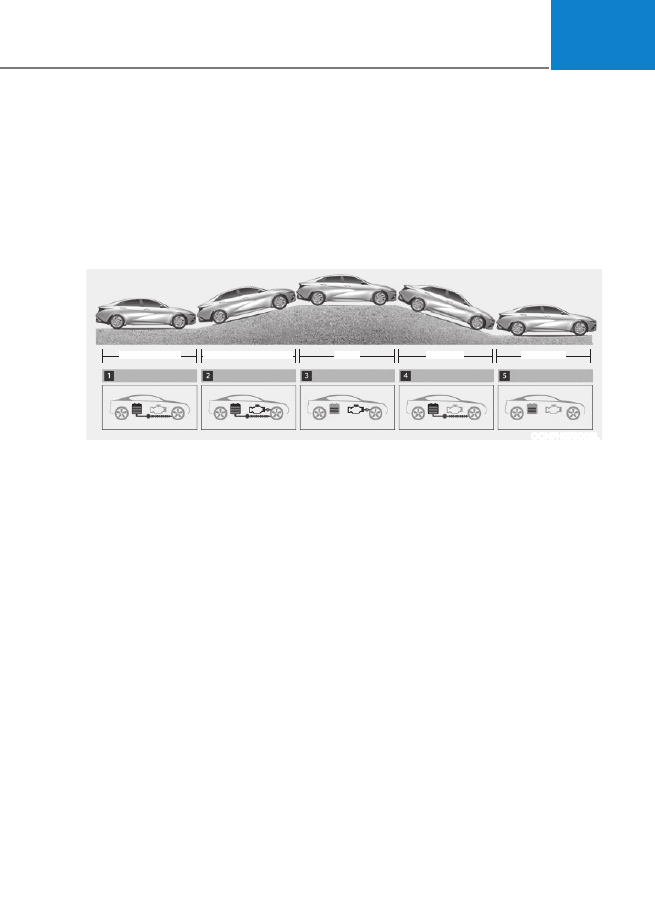

HEV (HYBRID ELECTRIC VEHICLE) SYSTEM

The HYUNDAI Hybrid Electric Vehicle (HEV) uses both the gasoline engine and the

electric motor for power. The electric motor is run by a high-voltage HEV battery.
Depending on the driving conditions, the HEV computer selectively operates between

the engine and the electric motor or even both at the same time.
Fuel efficiency increases when the engine is at idle, or when the vehicle is driven by the

electric motor with the HEV battery.
The HEV battery charge must be maintained, so at times the engine will come on even

at idle to act as a generator. Charging also occurs when decelerating or by regenerative

braking.

Startup/

Low speed cruise

Electric motor

Acceleration

Electric motor + Engine

High speed cruise

Engine

Deceleration

Charging

Stop

Engine OFF

OCN7H073002L

Foreword / Hybrid System Overview

1-10

Starting the Vehicle

Vehicles with smart key system

1. Carry the smart key or leave it inside

the vehicle.

2. Make sure the parking brake is firmly

applied.

3. Make sure the shift lever is in P (Park).

With the shift lever in N (Neutral), you

cannot start the vehicle.

4. Depress the brake pedal.
5. Turn on the vehicle. If the hybrid

system starts, the “

” indicator

will come on.
Whether the engine is cold or warm, it

should be started without depressing

the accelerator.

After following the start procedures,

“

” indicator on the instrument

cluster will turn on. For more details,

please check chapter 6.

ECONOMICAL and SAFE OPERATION

of Hybrid system

•

Drive smoothly. Accelerate at a

moderate rate and maintain a steady

cruising speed. Do not make “jack-

rabbit” starts. Do not race between

stoplights.

•

Avoid heavy traffic whenever possible.

Always maintain a safe distance

from other vehicles so you can

avoid unnecessary braking. This also

reduces brake wear.

•

The regenerative brake generates

energy when the vehicle decelerates.

•

When the hybrid battery power is

low, the hybrid system automatically

recharges the hybrid battery.

•

When the engine is running with the

shift lever in N (Neutral), the hybrid

system cannot generate electricity.

The hybrid battery cannot recharge

with the shift lever in N (Neutral).

Information

In the hybrid system, the engine
automatically runs and stops. When the
hybrid system operates, the “

”

indicator is illuminated.

In the following situation, the engine may
operate automatically.

When the engine is ready to run

When the hybrid battery is being
charged

Depending on the temperature
condition of the hybrid battery

Special Features

Hybrid vehicles sound different than

gasoline engine vehicles. When the

hybrid system operates, you may hear

a sound from the hybrid battery system

behind the rear seat. If you apply the

accelerator pedal rapidly, you may hear

an unconventional sound. When you

apply the brake pedal, you may hear

a sound from the regenerative brake

system. When the hybrid system is

turned off or on, you may hear a sound

in the engine compartment. If you

depress the brake pedal repeatedly

when the hybrid system is turned on,

you may hear a sound in the engine

compartment. None of these sounds

indicate a problem. These are normal

characteristics of hybrid vehicles.
If any of following occur, it’s a normal

condition if you hear a motor sound in

the engine compartment:

- After turning off the hybrid system,

the brake pedal is released.

- When the hybrid system is turned off,

the brake pedal is applied.

- When the driver door is opened.

DRIVING THE HYBRID VEHICLE

1-11

When the hybrid system is turned ON,

the gasoline engine may run or may not.

In this situation, you may feel a vibration.

This does not indicate a malfunction.

When the “

” indicator illuminates,

the hybrid system is ready to begin

driving. Even if the engine is off, you can

operate the vehicle as long as the

“

” indicator is illuminated.

NOTICE

The hybrid system contains many

electronic components. High voltage

components, such as cables and other

parts, may emit electromagnetic waves.

Even when the electromagnetic cover

blocks electromagnetic emissions,

electromagnetic waves may have an

effect on electronic devices. When your

vehicle is not used for a long period of

time, the hybrid system will discharge.

You need to drive the vehicle several

times a month. Have driving at least

for 1 hour or 10 miles (16 km). When the

hybrid battery is discharged, or when it

is impossible to jump start the vehicle,

contact your authorized HYUNDAI

dealer.

WARNING

•

When you start the hybrid system

with the shift lever in P (Park), the

“

” indicator illuminates on the

instrument cluster. The driver can

drive the vehicle, even when the

gasoline engine is off.

•

When you leave the vehicle, you

should turn OFF the hybrid system

or locate the shift lever in P (Park).

When you depress the accelerator

pedal by mistake, or when the shift

lever is not in P (Park), the vehicle

will abruptly move, possibly resulting

in serious injury or death.

Virtual Engine Sound System (VESS)

The Virtual Engine Sound System

generates engine sound for pedestrians

to hear vehicle sound because there is

limited sound while motor power is used.

•

If the gear shifts out of P (Park) after

start-up, the VESS sound is output.

•

When the gear is shifted to R

(Reverse), an additional warning

sound will be heard.

What does regenerative braking do?

It uses an electric motor when

decelerating and when braking. It

transforms kinetic energy to electrical

energy in order to charge the high

voltage battery.

Battery

•

The vehicle is composed of a high

voltage battery that drives the motor

and air conditioner, and an integrated

12 V lithium ion battery with the HEV

battery that drives the lamps, wipers,

and audio system.

•

The integrated 12 V battery is

automatically charged when the

vehicle is in the ready (

) mode.

Foreword / Hybrid System Overview

1-12

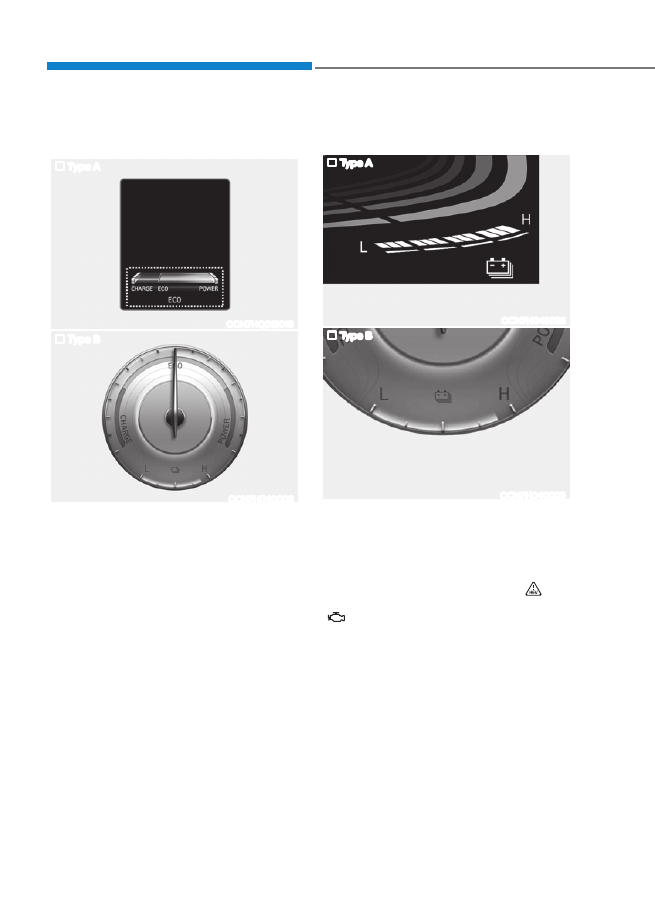

Hybrid System Gauge

Power gauge

Type A

OCN7HQ013016

Type B

OCN7H040002

The hybrid system gauge indicates

whether the current driving condition is

fuel efficient or not.

•

CHARGE:
Shows that the energy made by the

vehicle is being converted to electrical

energy. (Regenerated energy)

•

ECO:
Shows that the vehicle is being driven

in an Eco-friendly manner.

•

POWER:
Shows that the vehicle is exceeding

the Eco-friendly range.

According to the hybrid system gauge

area, the “EV” indicator comes on or off.

- “EV” indicator ON : Vehicle is driven

using the electric motor or the

gasoline engine is stopped.

- “EV” indicator OFF : Vehicle is driven

using the gasoline engine.

Hybrid battery SOC (State of Charge)

gauge

Type A

OCN7H043026

Type B

OCN7H040003

This gauge indicates the remaining

hybrid battery power. If the SOC is

near the “L (Low)” level, the vehicle

automatically operates the engine to

charge the battery.
However, if the Service Indicator (

)

and Malfunction Indicator Lamp (MIL)

(

) turn on when the SOC gauge is

near the “L (Low)” level, have the vehicle

checked by an authorized HYUNDAI

dealer.

1-13

Warning and Indicator Lights

Ready indicator

This indicator illuminates:

When the vehicle is ready to be driven.

- ON : Normal driving is possible.

- OFF : Normal driving is not possible,

or a problem has occurred.

- Blinking : Emergency driving.

When the ready indicator goes OFF

or blinks, there is a problem with the

system. If this occurs, have your vehicle

inspected by an authorized HYUNDAI

dealer.

EV mode indicator

This indicator illuminates:

When the vehicle is driven by the electric

motor.

Service warning light

This warning light illuminates:

•

When you set the ignition switch to

the ON position.

- The service warning light illuminates

for approximately 3 seconds and

then turns off when all checks have

been performed.

•

When there is a problem with the

hybrid vehicle control system or

hardware.

When the warning light illuminates while

driving, or does not go OFF after starting

the vehicle, have the vehicle inspected

by an authorized HYUNDAI dealer.

Regenerative brake warning

light

(yellow)

This warning light illuminates:

When the regenerative brake does not

operate and the brake does not perform

well. This causes the Brake Warning

light (red) and Regenerative Brake

Warning Light (yellow) to illuminate

simultaneously.
If this occurs, drive safely and have

your vehicle inspected by an authorized

HYUNDAI dealer. The operation of the

brake pedal may be more difficult than

normal and the braking distance may

increase.

Foreword / Hybrid System Overview

1-14

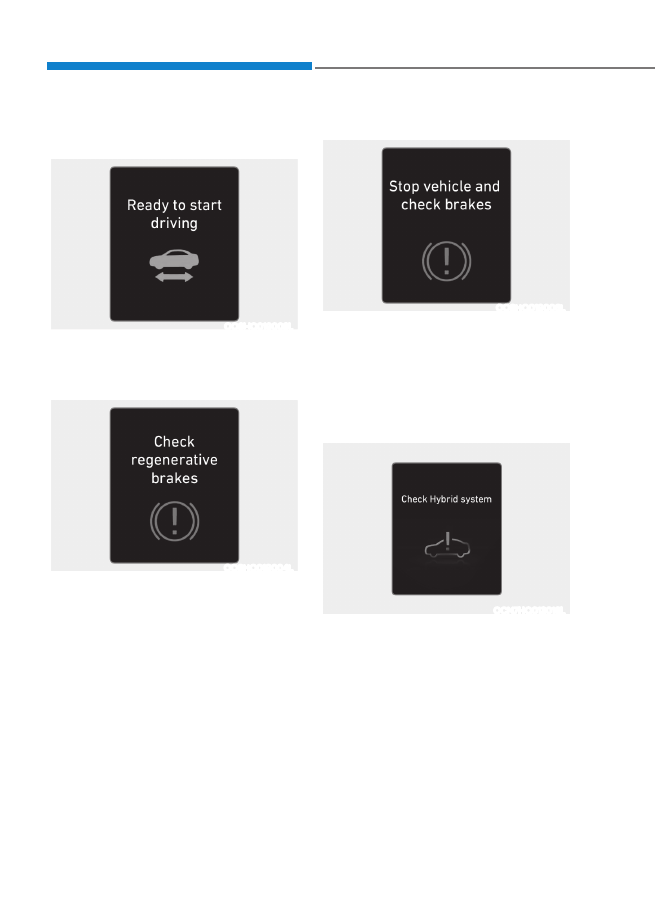

Cluster Display Messages

Ready to start driving

OOSHQ019003L

This message is displayed when the

vehicle is ready to be driven.

Check regenerative brakes

OOSHQ019004L

This message is displayed when

the brake performance is low or the

regenerative brake does not work

properly due to a problem in the brake

system.
If this occurs, it may take longer for the

brake pedal to operate and the braking

distance may become longer.

Stop vehicle and check brakes

OOSHQ019006L

This message is displayed when a

problem occurs in the brake system.
If this occurs, park the vehicle in a safe

location and tow your vehicle to the

nearest authorized HYUNDAI dealer and

have the vehicle inspected.

Check Hybrid system

OCN7HQ013018L

This message is displayed when there is a

problem with the hybrid control system.

Refrain from driving when the warning

message is displayed.
If this occurs, have your vehicle

inspected by an authorized HYUNDAI

dealer.

1-15

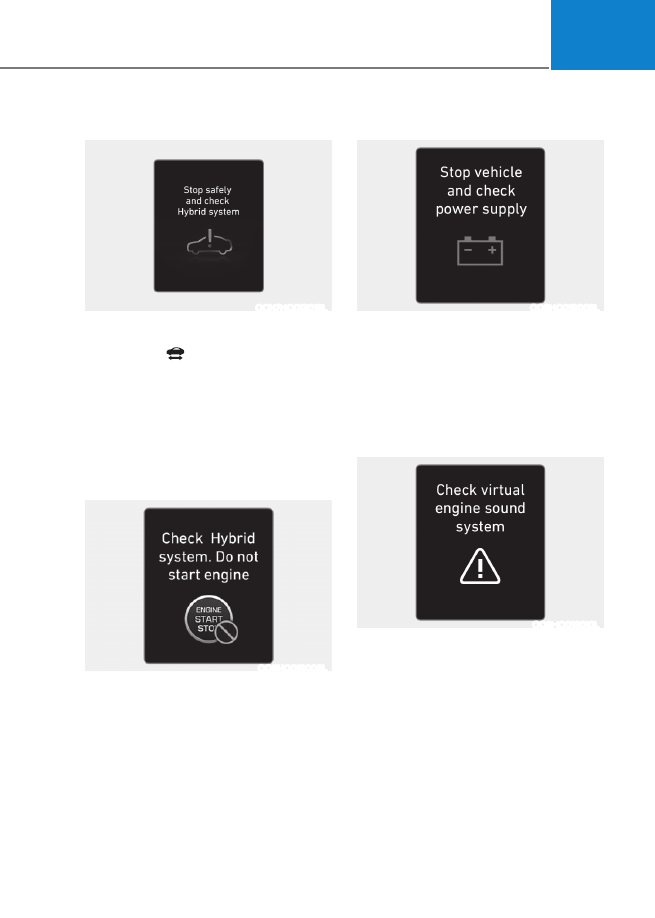

Stop safely and check Hybrid system

OCN7HQ013019L

This message is displayed when there

is a problem with the hybrid control

system. The “

” indicator will blink

and a warning chime will sound until the

problem is solved. Refrain from driving

when the warning message is displayed.
If this occurs, have your vehicle

inspected by an authorized HYUNDAI

dealer.

Check Hybrid system. Do not start

engine

OOSHQ019008L

This message is displayed when the

hybrid battery power (SOC) level is low.

A warning chime will sound until the

problem is solved. Refrain from driving

when the warning message is displayed.
If this occurs, have your vehicle

inspected by an authorized HYUNDAI

dealer.

Stop safely and check power supply

OOSHQ019009L

This message is displayed when a

problem occurs in the power supply

system.
If this occurs, park the vehicle in a safe

location and tow your vehicle to the

nearest authorized HYUNDAI dealer and

have the vehicle inspected.

Check virtual engine sound system

OOSHQ019010L

This message is displayed when there is

a problem with the Virtual Engine Sound

System (VESS).
If this occurs, have your vehicle

inspected by an authorized HYUNDAI

dealer.

Foreword / Hybrid System Overview

1-16

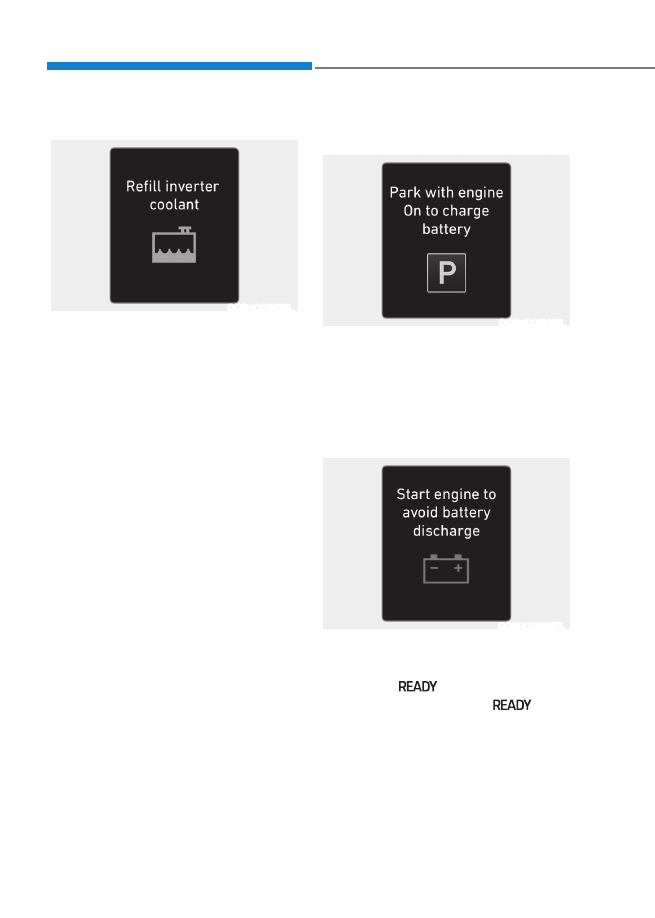

Refill inverter coolant

OOSHQ019012L

This message is displayed when the

inverter coolant is nearly empty.
You should refill the inverter coolant.

Park with engine On to charge

battery

OOSHQ019013L

This message is displayed when the

hybrid battery power (SOC) level is low.
If this occurs, park the vehicle in a safe

location and wait until the hybrid battery

is charged.

Start engine to avoid battery

discharge

OOSHQ019027L

This message is displayed to inform the

driver the 12 V battery may be discharged

if the ignition switch is in ON position

(without the

indicator ON).

Set the vehicle to the ready (

)

mode to prevent the 12 V battery from

being discharged.

1-17

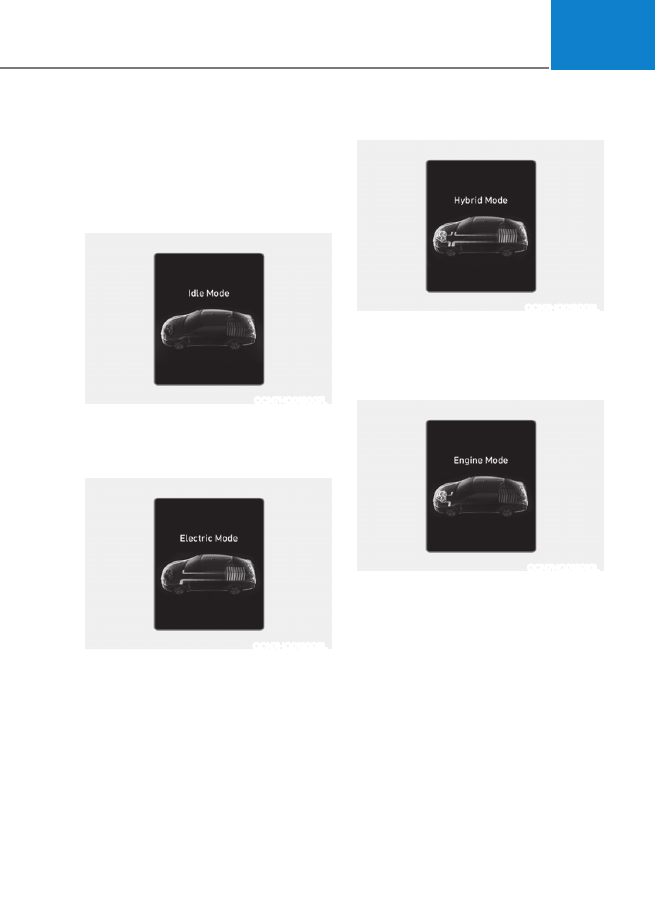

Energy Flow

The hybrid system displays the energy

flow in various operating modes. While

driving, the current energy flow is

specified in 11 modes.

Vehicle stop

OCN7HQ013007L

The vehicle is stopped.
(No energy flow)

EV propulsion

OCN7HQ013008L

Only the motor power is used to drive the

vehicle.

(Battery → Wheel)

Power assist

OCN7HQ013009L

Both the motor and the engine power are

used to drive the vehicle.

(Battery & Engine → Wheel)

Engine only propulsion

OCN7HQ013010L

Only the engine power is used to drive

the vehicle.

(Engine → Wheel)

Foreword / Hybrid System Overview

1-18

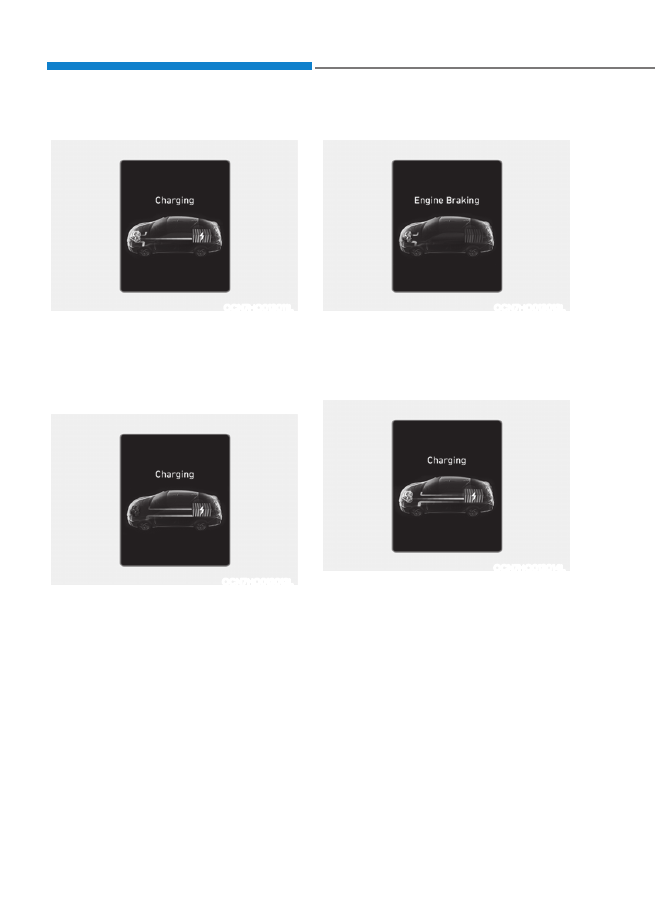

Engine generation

OCN7HQ013011L

When the vehicle is stopped, the high-

voltage battery is charged up by the

engine.

(Engine → Battery)

Regeneration

OCN7HQ013012L

The high-voltage battery is charged up

by the regenerative brake system.

(Wheel → Battery)

Engine brake

OCN7HQ013013L

The engine braking is used to decelerate

the vehicle.

(Wheel → Engine)

Power reserve

OCN7HQ013014L

The engine is simultaneously used to

drive the vehicle and to charge up the

high-voltage battery.

(Engine → Wheel & Battery)

1-19

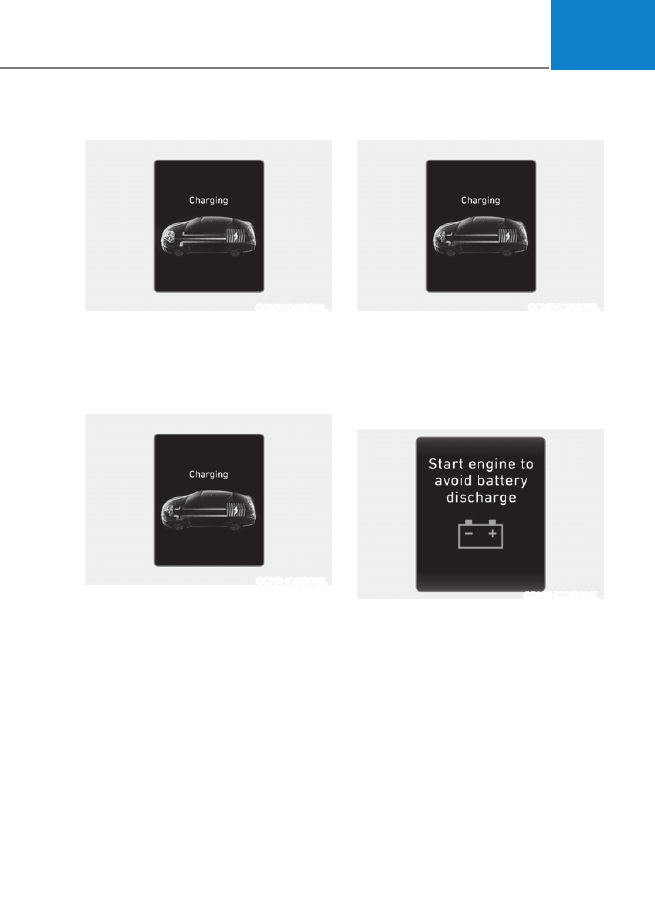

Engine generation/motor drive

OCN7HQ013014L

The engine charges up the high-voltage

battery. The motor power is used to drive

the vehicle.

(Engine → Battery → Wheel)

Engine generation/regeneration

OCN7HQ013015L

The engine and regenerative brake

system charges up the high-voltage

battery.

(Engine & Wheel → Battery)

Engine brake/regeneration

OCN7HQ013015L

The engine braking is simultaneously

used to decelerate the vehicle and to

charge up the high-voltage battery.

(Wheel → Engine & Battery)

Start engine to avoid battery

discharge

ODN8HQ019030L

If the engine is not turned on with the

ignition switch in ACC or ON for a while,

the battery can be discharged. Please

turn on the engine to prevent 12 V battery

from discharge.

Foreword / Hybrid System Overview

1-20

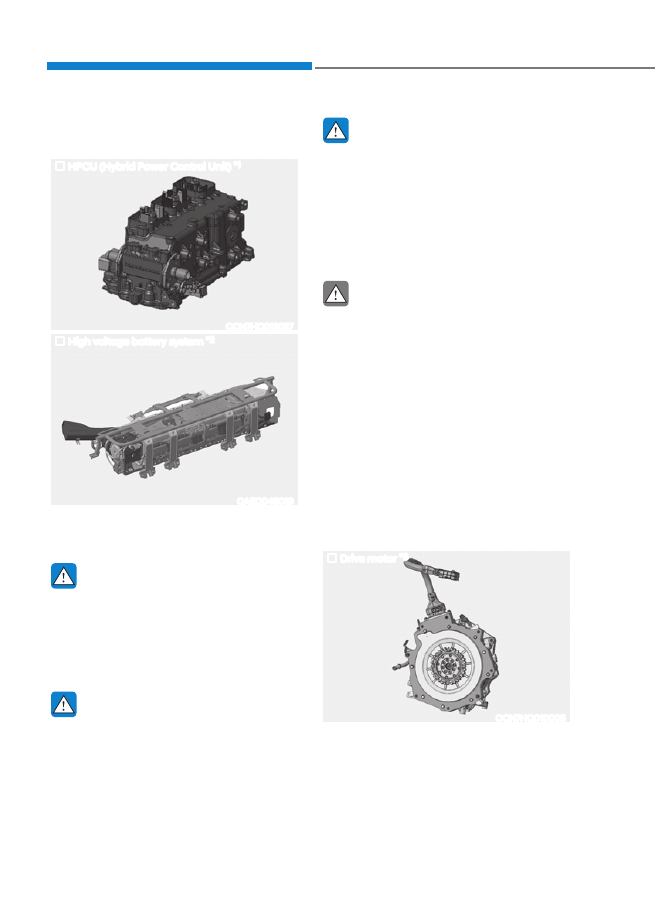

SAFETY PRECAUTIONS FOR HYBRID SYSTEM

Hybrid Vehicle Components

High voltage battery system

HPCU (Hybrid Power Control Unit)

OCN7HQ013027

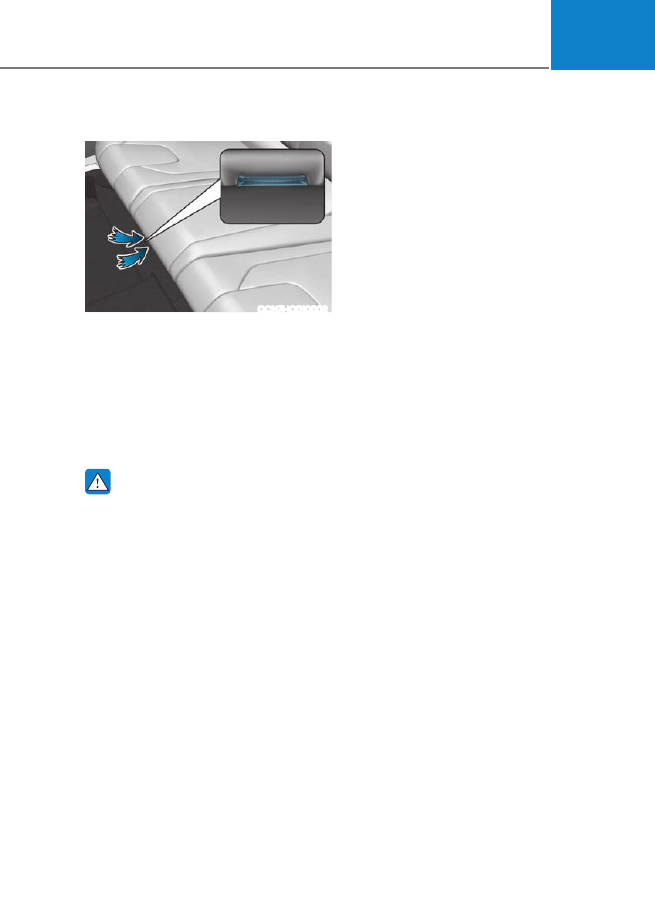

High voltage battery system

OAEQ046019

*1 :

Located in the engine compartment

*2 :

Located under the rear seats

WARNING

Never touch orange colored or high

voltage labeled components, including

wires, cables, and connections. When

the insulators or covers are damaged or

removed, severe injury or death from

electrocution may occur.

WARNING

While replacing the fuses in the

engine compartment, never touch the

HPCU. The HPCU carries high voltage.

Touching the HPCU may result in

electrocution, serious injury, or death.

WARNING

In the hybrid system, the hybrid battery

uses high voltage to operate the motor

and other components. This high

voltage hybrid battery system can be

very dangerous.
Never touch the hybrid system. When

you touch the hybrid battery system,

serious injury or death may occur.

CAUTION

•

Do not pile up any items in an area

behind the high voltage battery. In

a crash, the battery may become

unstable, or its performance may

degrade.

•

Do not apply strong force nor pile

up any items above the luggage

compartment. Such an attempt

may distort the high voltage battery

case, causing a safety problem or

degrading the performance.

•

Be careful when loading flammable

liquid in the luggage compartment.

It could cause operational and safety

degradation if the liquid leaks and

flows in the high voltage battery.

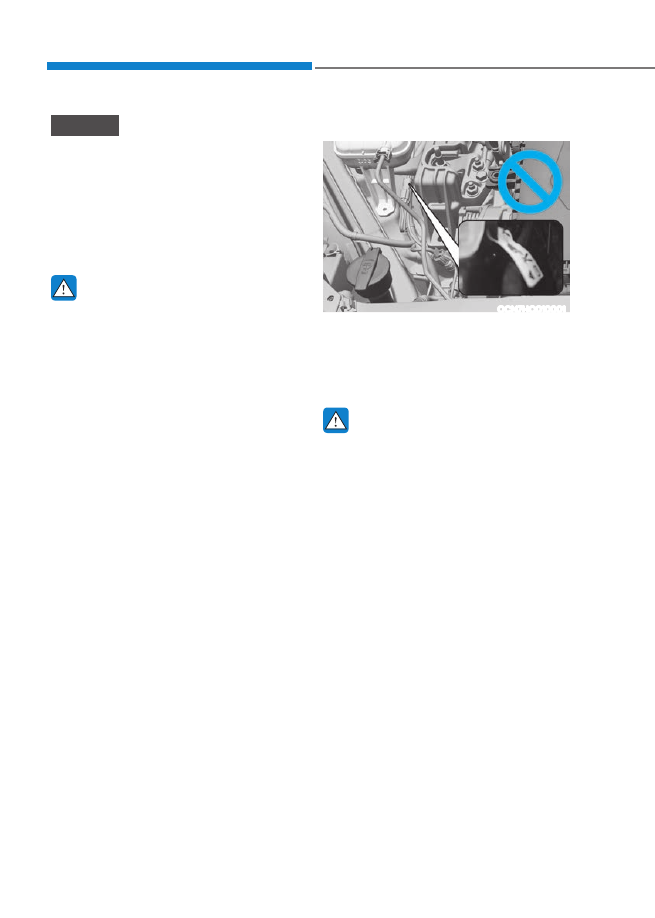

Drive motor

OCN7HQ010005

*3 :

Located in the engine compartment

1-21

WARNING

•

Do not disassemble the high voltage

motor connector. The high voltage

motor connector may contain

residual high voltage. Coming in

contact with high voltage may result

in death or serious injury.

•

Your vehicle’s hybrid system should

only be inspected or repaired by an

authorized HYUNDAI dealer.

WARNING

•

Do not disassemble or assemble

the high voltage battery system.

Doing so may result in electric shock,

causing death or serious injury.

•

If you disassemble or assemble

hybrid system components

improperly, it may damage the

performance and reliability of your

vehicle.

•

If electrolyte comes in contact

with your body, clothes or eyes,

immediately flush with a large

quantity of fresh tap water. Have

your eyes examined by a doctor as

soon as possible.

WARNING

Never assemble or disassemble the

high voltage battery system.

•

If you assemble or disassemble the

high voltage battery system, the

durability and performance of the

vehicle may be damaged.

•

When you want to check the high

voltage battery system, have the

vehicle inspected by an authorized

HYUNDAI dealer.

•

Do not touch the high voltage

battery and high voltage cable

connected to motor (orange color).

Severe burns and electric shock may

occur. For your safety, do not touch

the cover of electronic components

and electronic cable. Do not remove

the cover of electronic components

and electronic cable. In particular,

never touch the high voltage battery

system when the hybrid system is in

operation. It may result in death or

serious injury.

WARNING

•

Never use the package modules

(high voltage battery, inverter and

converter) for any other purpose.

•

Do not use an unauthorized battery

charger to charge the high voltage

battery. Doing so may result in death

or serious injury.

•

Never locate the high voltage system

near or in a fire.

•

Never drill into or strike the package

module. Otherwise, it may be

damaged. An electric shock may

occur, resulting in serious injury or

death.

Foreword / Hybrid System Overview

1-22

NOTICE

•

When the vehicle is paint baked, do

not bake over 30 minutes in 158°F

(70°C) or 20 minutes in 176°F (80°C)

degree.

•

Do not wash the engine

compartment, using water. Water

may cause an electric shock and

damage the electronic components.

WARNING

This hybrid vehicle uses the hybrid

battery system inverter and converter

to generate high voltage. High voltage

in the hybrid battery system is very

dangerous and may cause severe burns

and electric shock. This may result in

serious injury or death.

•

For your safety, never touch,

replace, disassemble or remove the

hybrid battery system including

components, cables and connectors.

Severe burns or electric shock may

result in serious injury or death when

you fail to follow this warning.

•

When the hybrid battery system

operates, the hybrid battery system

can be hot. Always be careful

because burns or electric shock may

be caused by high voltage.

•

Do not spill liquid on the HPCU, HSG,

motor and fuses. If the hybrid system

components come in contact with

liquid, it may result in electric shock.

High Voltage Cut-off Switch

OCN7HQ010001

High voltage cut-off switch is a device

located inside the engine compartment

to block the battery’s high voltage when

your vehicle is inspected at an authorized

HYUNDAI dealer.

WARNING

•

Never touch the high voltage cut-off

switch. This could result in serious

injury or death in a collision or

electric shock.

•

If the high voltage cut-off switch

requires an inspection or repair,

contact an authorized an authorized

HYUNDAI dealer.

•

Never disconnect or cut the high

voltage cut-off switch except in

an emergency situation. Serious

problems may occur, such as the

vehicle may not start.

1-23

Hybrid Battery Cooling Duct

OCN7HQ010002

The hybrid battery cooling duct is

located on the middle side of the rear

seats. The cooling duct cools down the

hybrid battery. When the hybrid battery

cooling duct is blocked, the hybrid

battery may be overheated.
Clean the cooling duct for the hybrid

battery with a dry cloth on a regular

basis.

WARNING

•

Never clean the cooling duct of the

hybrid battery with a wet cloth. If

any water enters the cooling duct

of the hybrid battery, the hybrid

battery may cause an electric shock,

resulting in a serious damage, an

injury or death.

•

The hybrid battery is composed of

lithium-ion. If the hybrid battery is

improperly handled, it is dangerous

to the environment. Also it may

cause electrical shock and severe

burns, resulting in a serious injury or

death.

•

Do not spill liquid over the cooling

duct of the hybrid battery. Doing

so is very dangerous. It may cause

electric shock or serious injury.

•

Do not cover the cooling duct with

objects.

•

Do not put any objects into the

cooling duct of the hybrid battery.

Doing so may cause loss of cooling

duct volume to the hybrid battery.

When the cooling duct is blocked

with any objects, immediately

contact your HYUNDAI dealer.

•

Never place a container of liquid on

or near the cooling duct. If the liquid

spills, the hybrid battery located in

the luggage compartment may be

damaged.

•

Secure all loads in the luggage

compartment to prevent them from

being tossed about before driving.

When a sharp or heavy load strike

with a strong impact or pierce the

interior luggage compartment

wall, the hybrid battery system

may be damaged, deteriorating its

performance.

•

Do not obstruct the cooling duct

with any other objects.

Foreword / Hybrid System Overview

1-24

Countermeasures for Accidents

or Fire

When an accident occurs while driving

the hybrid vehicle, turn on the hazard

warning flasher, move the vehicle to a

safe place, and do not let other people

approach the site.

WARNING

When an accident occurs, and the high

voltage battery is damaged, harmful

gas and electrolytes may leak.

•

Be careful not to touch the leaked

liquid.

•

When you suspect leakage of

inflammable gas and other harmful

gases, open the windows and

immediately evacuate to a safe

location.

•

If any leaked fluid comes in contact

with your eyes or skin, immediately

clean the affected area thoroughly

with tap water or saline solution and

have doctors inspect it as soon as

possible.

If the hybrid vehicle catches fire

If a fire occurs, evacuate to a safe place

and do not let other people approach the

site.

•

Contact the fire department, report a

hybrid vehicle fire, and then follow its

instructions.

CAUTION

•

If a fire occurs, evacuate to a safe

place and wait until the firefighters

arrive.

•

If the lower part of the vehicle where

the high voltage battery is located

catches fire, large amount of water

must be supplied continuously for a

long time to completely extinguish

the fire. It is hard to extinguish the

fire without sufficient water and

appropriate fire extinguishers. If you

approach the vehicle carelessly, it

may cause accidents, such as electric

shock, and result in serious injury.

If the hybrid vehicle is submerged

If the hybrid vehicle is submerged while

driving, follow the instructions below:

•

Immediately turn off the vehicle and

evacuate to a safe place with your key.

•

Contact the emergency rescue service

such as a fire department, or an

authorized HYUNDAI dealer.

WARNING

Never touch the submerged hybrid

vehicle. This may lead to an accident

such as an electric shock or fire.

1-25

When the Hybrid Vehicle Shuts

Off

When the high voltage battery or 12 volt

battery is discharged, or when the fuel

tank is empty, the hybrid system may

not operate while driving. When the

Hybrid system does not operate, do the

following:
1. Gradually reduce the vehicle speed.

Pull over your vehicle off the road in a

safe area.

2.  Make sure the shift lever is in P (Park).
3.  Turn ON the hazard warning flashers.
4.  Turn OFF the vehicle, and try to

start the hybrid system again, while

depressing the brake pedal and

turning on the ignition switch.

5. When the hybrid system still does not

operate, refer to “If the 12 V Battery Is

Discharged” section in chapter 8.
Before jump-starting the vehicle,

check the fuel level and the exact

procedure to jump start. For further

details, refer to “If the 12 V Battery

Is Discharged” section in chapter

8. When the fuel level is low, do not

attempt to drive the vehicle only with

the battery power. The high voltage

battery may be discharged, and the

hybrid system will turn OFF.

Hyundai Elantra Hybrid (2024 year). Manual in english - page 1
