8-15

9.Loosen the wheel nuts with the wheel

lug wrench and remove them with your

fingers. Remove the wheel from the

studs and lay it flat on the ground out of

the way. Remove any dirt or debris from

the studs, mounting surfaces, and

spare tire.

WARNING

Because the wheels may have sharp

edges, handle them carefully to avoid

possible severe injury. Before putting

the wheel into place, make sure that

there is nothing on the hub or wheel

(such as mud, tar, gravel, etc.) that

interferes with the wheel from fitting

solidly against the hub.
If there is, remove it. If there is not good

contact on the mounting surface

between the wheel and hub, the wheel

nuts may come loose and cause the

loss of a wheel. Loss of a wheel may

result in loss of control of the vehicle.

This may cause serious injury or death.

10.Install the spare tire onto the studs of

the hub.

11.Tighten the wheel nuts with your

fingers onto the studs with the smaller

end of the wheel nuts closest to the

wheel.

12.Lower the vehicle to the ground by

turning the jack handle

counterclockwise.

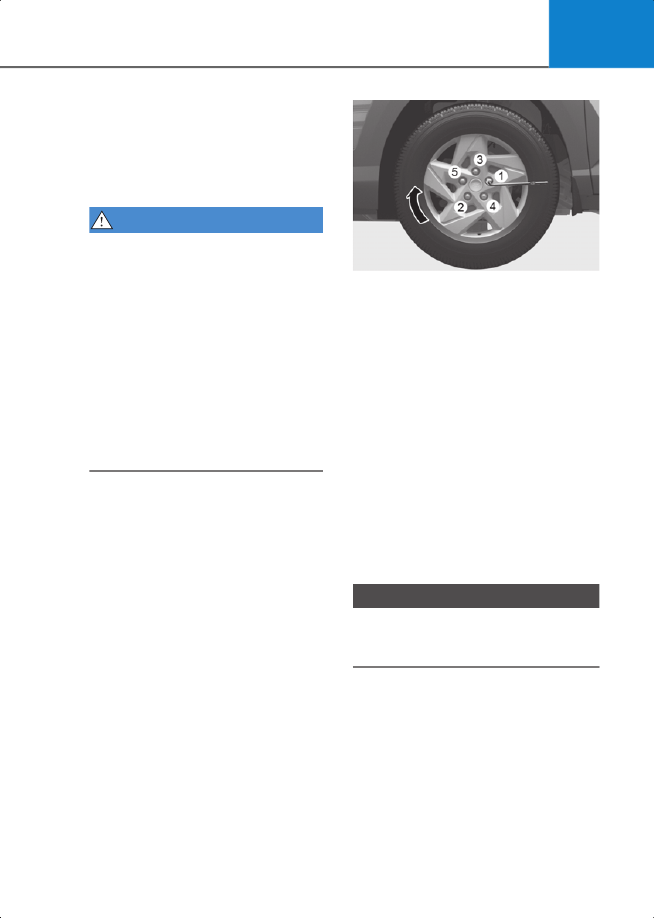

13.Use the wheel lug nut wrench to

tighten the wheel nuts in the order

shown. Double-check each wheel nut

until they are tight. After changing tires,

have an authorized HYUNDAI dealer

tighten the lug nuts to their proper

torque as soon as possible.
Tighten wheel nuts to 79-94 lbf.ft (11-13

kgf.m).

2C_SpareTireReplacementPrecedure_7

Check the tire pressure after installing the

compact spare tire. The compact spare

tire should be inflated to 60 psi (420 kPa).
If you have a tire gauge, check the tire

pressure (refer to the "Tires And Wheels"

section in chapter 2 for tire pressure

instructions). If the spare tire pressure is

lower or higher than the recommended,

drive slowly to the nearest service station

and adjust it to the recommended

pressure.
Always reinstall the valve cap after

checking or adjusting the tire pressure. If

the cap is not replaced, air may leak from

the tire. If you lose a valve cap, buy

another and install it as soon as possible.

After changing tires, secure the flat tire

and return the jack and tools to their

proper storage locations.

NOTICE

Check the tire pressure as soon as

possible after installing a spare tire.

Adjust it to the recommended pressure.

Emergency Situations

8-16

WARNING

Your vehicle has metric threads on the

studs and wheel nuts. During tire

changing, make sure that the wheel nuts

that were removed are reinstalled. If you

have to replace your wheel nuts, make

sure they have metric threads to avoid

damaging the studs and make sure the

wheel is properly secured to the hub.

Contact an authorized HYUNDAI dealer

for assistance.

If any of the equipment such as the jack,

wheel nuts, studs, or other equipment is

damaged or in poor condition, do not

attempt to change the tire and call for

assistance.

Use of compact spare tires

Compact spare tires are designed for

emergency use only. Drive carefully on

the compact spare tire and always follow

the safety precautions.

WARNING

To prevent compact spare tire failure and

loss of control, possibly resulting in a

collision:
• Use the compact spare tire only in an

emergency.

• NEVER operate your vehicle over 50

mph (80 km/h).

• Do not exceed the vehicle’s maximum

load rating or the load carrying capacity

shown on the sidewall of the compact

spare tire.

• Do not use the compact spare tire

continuously. Repair or replace the

original tire as soon as possible to avoid

failure of the compact spare tire.

When driving with the compact spare tire

mounted to your vehicle:
• Do not take this vehicle through an

automatic car wash after the compact

spare tire has been installed.

• Do not use the compact spare tire on

any other vehicle because this tire has

been designed especially for your

vehicle.

• The compact spare tire’s tread life is

shorter than a regular tire. Inspect your

compact spare tire regularly and

replace worn compact spare tires with

the same size and design, mounted on

the same wheel.

• Do not use more than one compact

spare tire at a time.

• Do not tow a trailer while the compact

spare tire is installed.

NOTICE

When the original tire and wheel are

repaired and reinstalled on the vehicle,

the wheel nut torque must be set

correctly. The correct wheel nut

tightening torque is 79-94 lbf.ft (11-13

kgf.m).

8-17

CAUTION

To prevent damaging the compact spare

tire and your vehicle:
• Drive slowly enough for the road

conditions to avoid all hazards, such as

a potholes or debris.

• Avoid driving over obstacles. The

compact spare tire diameter is smaller

than the diameter of a conventional tire

and reduces the ground clearance

about 1 inch (25 mm).

• Do not use tire chains on the compact

spare tire. Because of the smaller size, a

tire chain will not fit properly.

• Do not use the compact spare tire on

any other wheels, nor should standard

tires, snow tires, wheel covers or trim

rings be used with the compact spare

wheel.

• Do not suddenly accelerate or

decelerate (0-25 mph (0-40 km/h)) in

any driving mode. It may cause leakage

of transfer oil.

Emergency Situations

8-18

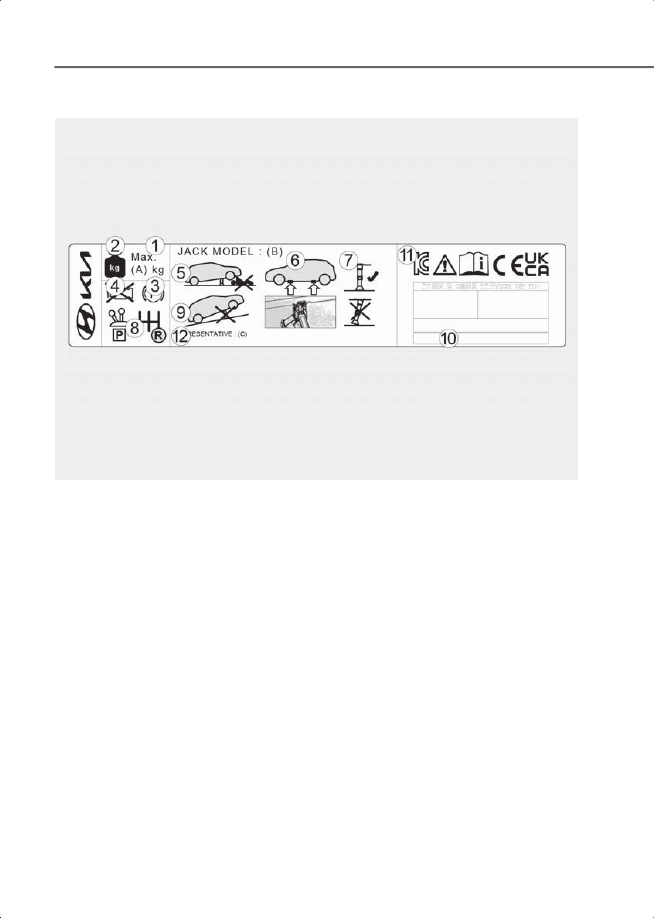

Jack label

1C_JackLabel

(1) Model Name
(2) Maximum allowable load
(3) Always apply the parking brake before using a jack.
(4) Always turn off the engine before using a jack.
(5) Never put any portion of your body under the vehicle supported by a jack.
(6) Only use the designated jacking locations on the frame.
(7) When supporting the vehicle, have the base plate of the jack flat on the ground under

the lifting point.

(8) Shift into R (Reverse) gear with manual transmission or shift the gear to the P (Park)

position on vehicles with automatic transmission, dual clutch transmission, and

intelligent variable transmission.

(9) Do not jack the vehicle on an incline. Only jack the vehicle on a firm level ground.
(10)Jack manufacturer
(11) Production date
(12)Representative company and address
The actual Jack label in the vehicle may differ from the illustration.
For more detailed specifications, refer to the label attached to the jack.

8-19

If You Have A Flat Tire

if equipped

(with Tire Mobility Kit)

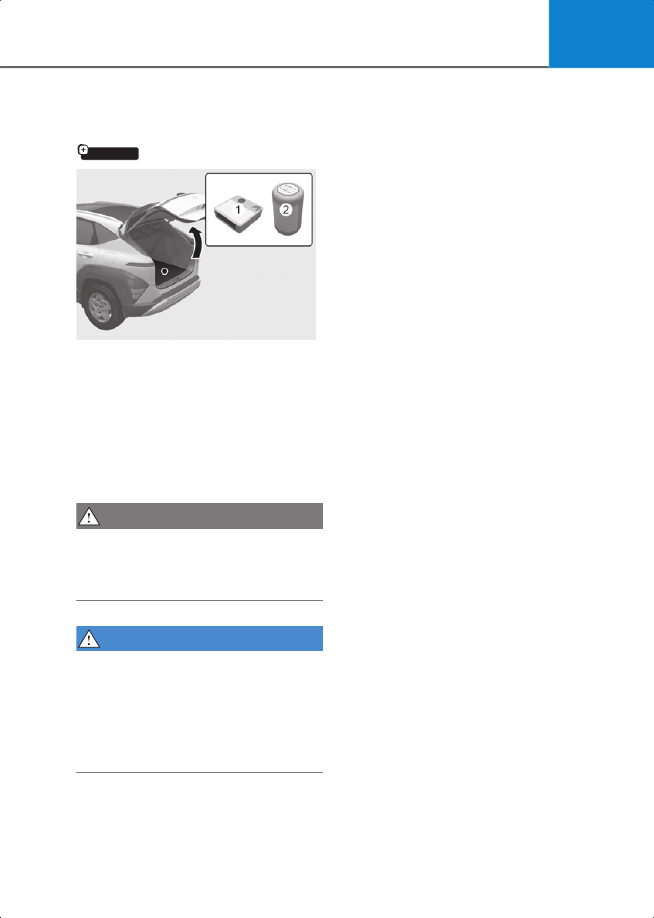

2C_TMKOverview

(1) Compressor
(2) Sealant bottle
For safe operation, carefully read and

follow the instructions in this manual

before use.
The Tire Mobility Kit is a temporary fix to

the tire, have the tire replaced by an

authorized HYUNDAI dealer as soon as

possible.

CAUTION

When two or more tires are flat, do not

use the Tire Mobility Kit because the

sealant provided with the Tire Mobility Kit

must be used for only one flat tire.

WARNING

• Do not use the Tire Mobility Kit to repair

punctures in the tire walls. This can

result in an accident due to tire failure.

• Have your tire repaired as soon as

possible. The tire may lose air pressure

at any time after inflating with the Tire

Mobility Kit.

Introduction

With the Tire Mobility Kit you stay mobile

even after experiencing a tire puncture.
The compressor and sealing compound

system effectively and comfortably seals

most punctures in a passenger car tire

caused by nails or similar objects and

reinflates the tire.
After you are ensure that the tire is

properly sealed you can drive cautiously

on the tire (distance up to 120 miles (200

km)) at a maximum speed of 50 mph (80

km/h) in order to reach a service station

or tire dealer for tire replacement.
It is possible that some tires, especially

with larger punctures or damage to the

sidewall, cannot be sealed completely.
Air pressure loss in the tire may adversely

affect tire performance.
For this reason, you should avoid abrupt

steering or other driving maneuvers,

especially if the vehicle is heavily loaded

or if a trailer is in use.
The Tire Mobility Kit is not designed or

intended as a permanent tire repair

method and is to be used for one tire only.
This instruction shows you step by step

how to temporarily seal the puncture

simply and reliably.
Read the section “Notes on the safe use

of the Tire Mobility Kit”.

Emergency Situations

8-20

Notes on the safe use of the

Tire Mobility Kit

• Park your vehicle at the side of the road

so that you can work with the Tire

Mobility Kit away from moving traffic.

• To be sure your vehicle does not move,

even when you are on level ground,

always apply your parking brake.

• Only use the Tire Mobility Kit for

sealing/inflation passenger car tires.

Only punctured areas located within

the tread region of the tire can be

sealed using the tire mobility kit.

• Do not use on motorcycles, bicycles or

any other type of tires.

• When the tire and wheel are damaged,

do not use Tire Mobility Kit.

• Use of the Tire Mobility Kit may not be

effective for tire damage larger than

about 0.16 inches (4 mm).
Contact an authorized HYUNDAI dealer

if the tire cannot be made roadworthy

with the Tire Mobility Kit.

• Do not use the Tire Mobility Kit if a tire

is severely damaged by driving run flat

or with insufficient air pressure.

• Only punctured areas located within

the tread region of the tire can be

sealed using the Tire Mobility Kit.

• Do not remove any foreign objects such

as nails or screws that have penetrated

the tire.

• Provided the vehicle is outdoors, leave

the vehicle running. Otherwise

operating the compressor may

eventually drain the car battery.

• Never leave the Tire Mobility Kit

unattended while it is being used.

• Do not leave the compressor running

for more than 10 minutes at a time or it

may overheat.

• Do not use the Tire Mobility Kit if the

ambient temperature is below -22 °F

(-30 °C).

• In case of skin contact with the sealant,

wash the area thoroughly with plenty of

water. If the irritation persists, seek

medical attention.

• In case of eye contact with the sealant,

flush your eyes for at least 15 minutes. If

the irritation persists, seek medical

attention.

• In case of swallowing the sealant, rinse

the mouth and drink plenty of water.

However, never give anything to an

unconscious person and seek medical

attention immediately.

• Long time exposure to the sealant may

cause damage to bodily tissue such as

kidney, etc.

8-21

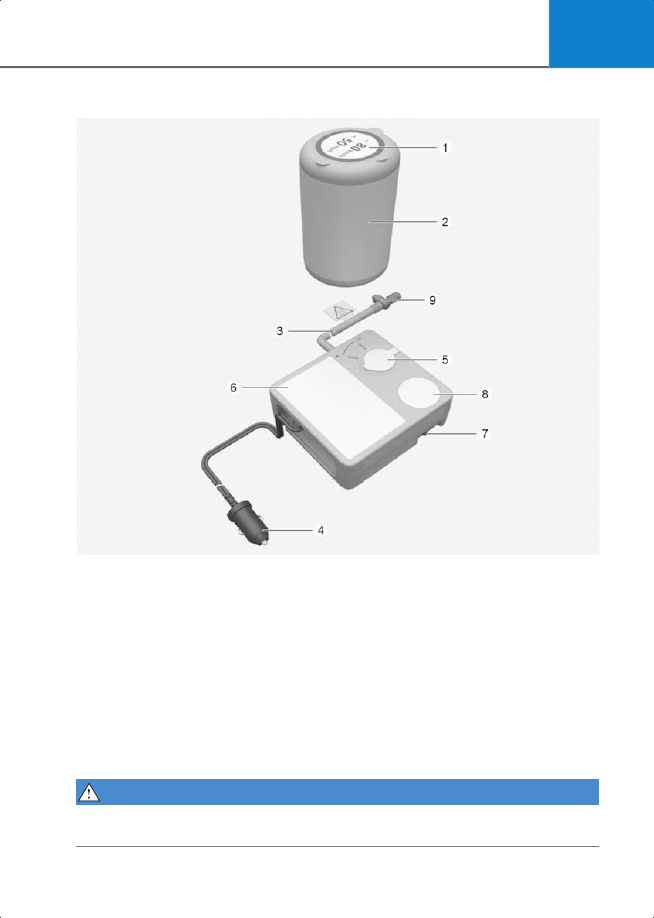

Components of the Tire Mobility Kit

1C_TMKPartsOverveiw

(1) Speed restriction label
(2) Sealant bottle
(3) Filling hose from sealant bottle to wheel
(4) Connectors and cable for the power outlet direct connection
(5) Holder for the sealant bottle
(6) Compressor
(7) ON/OFF switch
(8) Pressure gauge for displaying the tire inflation pressure
(9) Button for reducing the tire inflation pressure
Strictly follow the specified sequence, otherwise the sealant may escape under high

pressure.

WARNING

Do not use the tire sealant after the sealant has expired (the expiration date is pasted on

the sealant container). This can increase the risk of tire failure.

Emergency Situations

8-22

WARNING

Sealant
• Keep out of reach of children.
• Avoid contact with eyes.
• Do not swallow.

Using the Tire Mobility Kit

when a tire is flat

CAUTION

2C_HowToUseTMK

Detach the speed restriction label (1) from

the sealant bottle (2), and place it in a

highly visible place inside the vehicle

such as on the steering wheel to remind

the driver not to drive too fast.

CAUTION

If only the tire pressure needs to be

adjusted, refer to the "How to adjust tire

pressure" section in this chapter.
Before using the Tire Mobility Kit, be fully

aware of the explanation on the sealant.

1. Shake the sealant bottle (2).

2C_TMKPrecedure

2. Remove the sealant bottle (2) cap and

sealant bottle holder (5) cap and screw

the bottle onto the sealant bottle

holder.

2C_TMKPrecedure_2

3. Make sure the compressor valve on the

filling hose is locked.

4. Unscrew the valve cap and screw the

filling hose (3) onto the tire valve.

2C_TMKPrecedure_6

8-23

CAUTION

Securely install the sealant filling hose

to the valve. If not, sealant may flow

backward, possibly clogging the filling

hose.

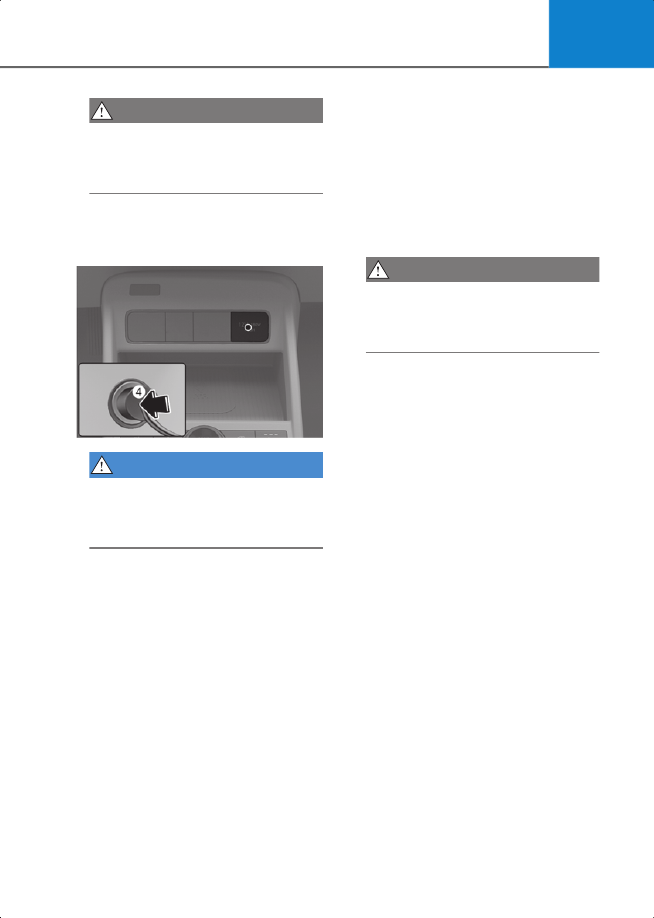

5. Make sure the compressor is turned off

and plug the compressor power cord

(4) into the vehicle power outlet.

2C_TMKPrecedure_4

WARNING

Do not connect another vehicle’s Tire

Mobility Kit to the power outlet. This

may cause a fire due to the difference in

current capacity.

6. With the engine ON, switch on the

compressor and let it run for about 5-7

minutes to fill the sealant up to proper

pressure. (refer to the “Tires And

Wheels” section in chapter 2). The

inflation pressure of the tire after filling

is unimportant and can be

checked/corrected later.
Be careful not to overinflate the tire and

stay away from the tire when filling it.

CAUTION

Do not attempt to drive your vehicle if

the tire pressure is below 29 psi (200

kPa). This could result in an accident

due to sudden tire failure.

7. Switch off the compressor.
8.Detach the hoses from the sealant

bottle connector and from the tire

valve.
Return the Tire Mobility Kit to its

storage location in the vehicle.

Emergency Situations

8-24

9.Immediately drive about 4-6 miles (7-10

km or about 10 minutes) to evenly

distribute the sealant in the tire.

2C_TMKPrecedure_5

Do not exceed a speed of 50 mph (80

km/h). If possible, do not fall below a

speed of 12 mph (20 km/h).
While driving, if you experience any

unusual vibration, ride disturbance or

noise, reduce your speed and drive with

caution until you can safely pull off of

the side of the road.
Call for road side service or towing.

10.After driving about 4-6 miles (7-10 km

or about 10 minutes), stop at a safety

location.

11.Connect the filling hose (3) of the

compressor directly to the tire valve.

2C_TMKPrecedure_3

12.Plug the compressor power cord into

the vehicle power outlet.

13.Adjust the tire inflation pressure to the

recommended tire inflation.
With the engine running, proceed as

follows:
• To increase the inflation pressure:

Switch on the compressor. To check

the current inflation pressure setting,

briefly switch off the compressor.

• To reduce the inflation pressure:

Press the button (9) on the

compressor.

NOTICE

Do not let the compressor run for more

than 10 minutes, otherwise the device

may overheat and may be damaged.

Information

The pressure gauge may show higher

than actual reading when the compressor

is running. To get an accurate tire

pressure, the compressor needs to be

turned off.

CAUTION

• If the tire inflation pressure is not

maintained, drive the vehicle a second

time, refer to step 9. Then repeat steps

10 to 13.

• Use of the Tire Mobility Kit may not be

effective for tire damage larger than

about 0.16 inches (4 mm).

Contact an authorized HYUNDAI dealer if

the tire cannot be made roadworthy with

the Tire Mobility Kit.

8-25

WARNING

The tire inflation pressure must be

inflated to the proper pressure, refer to

the "Tires And Wheels" section in chapter

2. If it is not inflated, do not continue to

drive.
Call for road side service or towing.

CAUTION

Tire pressure sensor
The sealant on the tire pressure sensor

and wheel should be removed when you

replace the tire with a new one and

inspect the tire pressure sensors. Have

this done at an authorized HYUNDAI

dealer.

Information

When reinstalling the repaired or

replaced tire and wheel on the vehicle,

tighten the wheel nut to 79-94 lbf·ft (11-13

kgf·m).

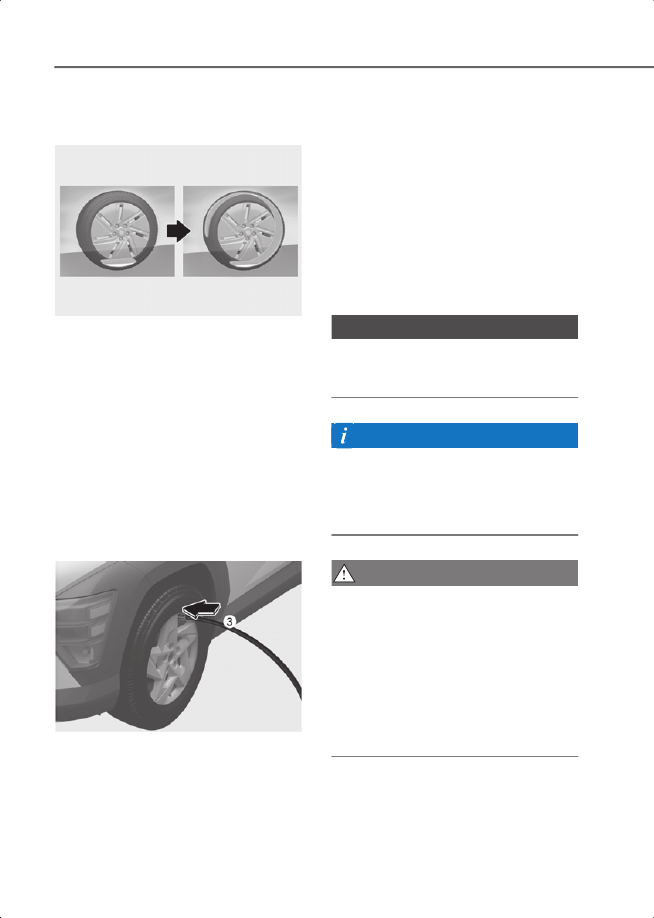

How to adjust tire pressure

2C_TMKPrecedure_3

1. Park your vehicle in a safe location.

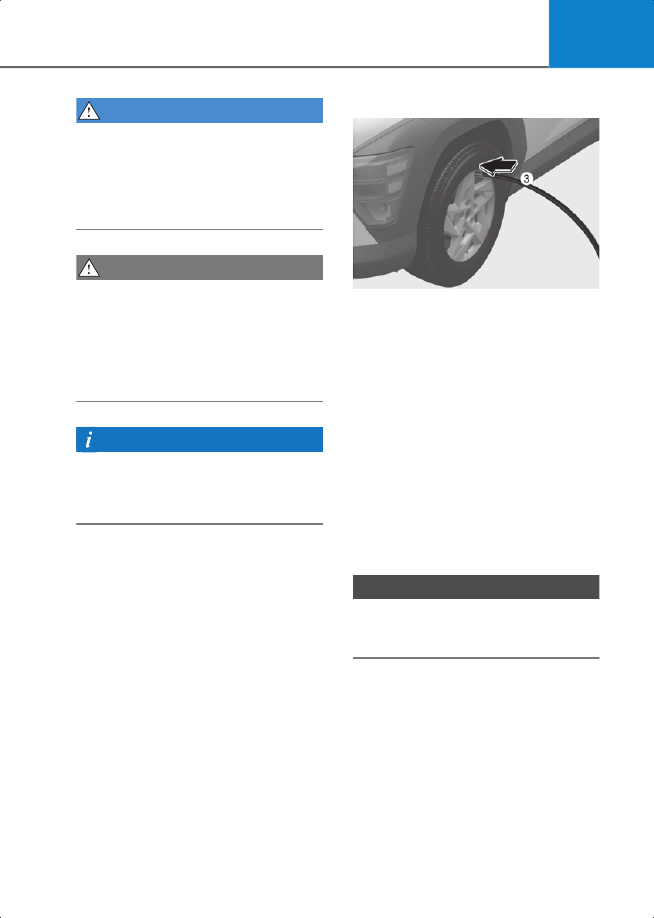

2. Connect the filling hose (3) of the

compressor directly to the tire valve.

3. Plug the compressor power cord (4)

into the vehicle power outlet.

4. Adjust the tire inflation pressure to the

recommended tire inflation.
With the engine running, proceed as

follows:
• To increase the inflation pressure:

Switch on the compressor. To check

the current inflation pressure setting,

briefly switch off the compressor.

• To reduce the inflation pressure:

Press the button (9) on the

compressor.

NOTICE

Do not let the compressor run for more

than 10 minutes, otherwise the device

may overheat and may be damaged.

Emergency Situations

8-26

Information

• The pressure gauge may show higher

than actual reading when the

compressor is running. To get an

accurate tire reading, the compressor

needs to be turned off.

• When reinstalling the repaired or

replaced tire and wheel on the vehicle,

tighten the wheel nut to 79-94 lbf·ft

(11-13kgf·m).

CAUTION

Do not use the sealant when the tire

pressure only needs to be adjusted.

WARNING

The tire inflation pressure must be

inflated to the proper pressure, refer to

the "Tires And Wheels" section in chapter

2. If it is not inflated, do not continue to

drive.
Call for road side service or towing.

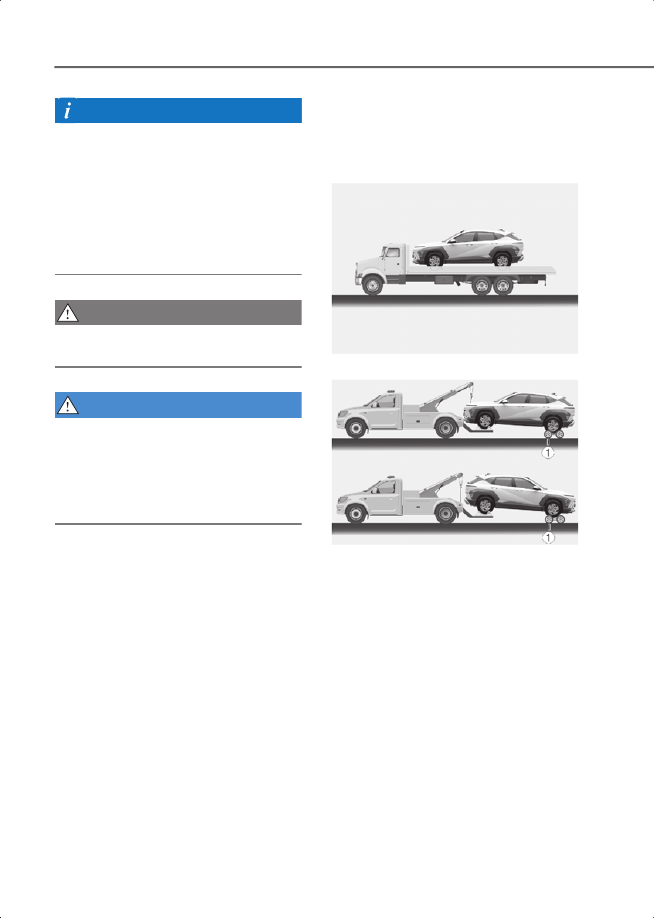

Towing

Towing service

Flatbed Towing

2C_TowingGood

Wheel lift Towing

2C_TowingGood_2

(1) Dollies
If towing is necessary, contact an

authorized HYUNDAI dealer or a

commercial tow-truck service.
AWD vehicles must be towed with a

wheel lift and dollies or flatbed with all the

wheels off the ground.
2WD vehicles can be towed with the rear

wheels on the ground (without dollies)

and the front wheels off the ground.
The use of wheel dollies or flatbed is

recommended. If any of the loaded

wheels or suspension components are

damaged or the vehicle is towed with the

front wheels on the ground, use a towing

dolly under the front wheels.

8-27

NOTICE

To prevent damage when towing:
• Do not lift using the trailer hitch or body

and chassis parts.

• Do not tow the vehicle with the front

wheels on the ground.

2C_TowingBad

• Do not tow vehicles with sling-type

equipment. Only use wheel lift or

flatbed equipment.

2C_TowingBad_2

When towing your vehicle without wheel

dollies:
1. Release the parking brake before

turning off the engine.

2. Press the Engine Start/Stop button to

the OFF position.

3. Change the gear to N (Neutral) while

depressing the brake pedal.

4. Press the Engine Start/Stop button to

the ACC position.

WARNING

If your vehicle is equipped with a rollover

sensor, Press the Engine Start/Stop

button to the OFF or ACC position when

the vehicle is being towed. The side

impact and curtain airbag may deploy if

the sensor detects the situation as a

rollover.

Information

Always shift the gear to N (Neutral) to

prevent damage to the transmission

before towing.

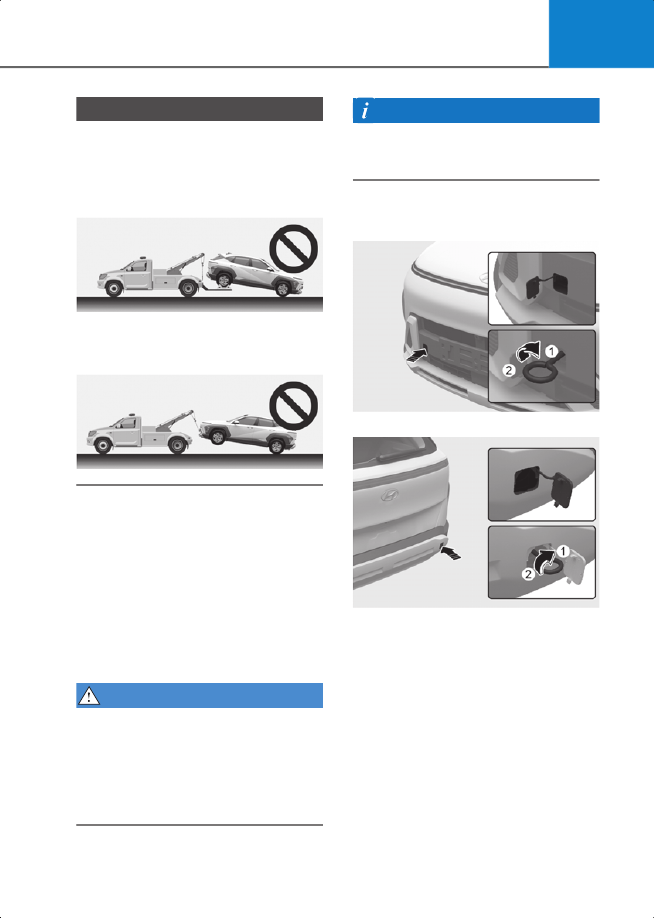

Removable towing hook

Front

2C_TowingHook

Rear

2C_TowingHook_2

(1) Install
(2) Remove
1. Open the liftgate and remove the

towing hook from the tool case.

2. Remove the hole cover pressing the

lower part of the cover on the bumper.

3. Install the towing hook by turning it

clockwise into the hole until it is fully

secured.

4. Remove the towing hook and install the

cover after use.

Emergency Situations

8-28

NOTICE

Failure to properly tighten the towing

hook may result in vehicle damage and

deformation of related parts.

CAUTION

Make sure the towing hook is tighten

properly. If not, during towing the towing

hook may be thrown off the vehicle

resulting in serious injury or accident.

Emergency towing

Front

2C_TowingHookWithGeneralVehicle

Rear

2C_TowingHookWithGeneralVehicle_2

If emergency towing is necessary,

contact an authorized HYUNDAI dealer or

a commercial tow-truck service.
If tow-truck service is not available in an

emergency, your vehicle can be

temporarily towed using a cable or chain

secured to the removable towing hook at

the front (or rear) of the vehicle.
Perform emergency towing using cables

or chains on hard-surfaced roads for a

short distance and at low speeds. The

wheels, axles, powertrain, steering, and

brakes must all be in good working

condition.

WARNING

Use extreme caution when towing the

vehicle with a cable or chain. A driver

must be in the vehicle to steer it and

operate the brakes. Passengers other

than the driver must not be in the vehicle.

Always follow these emergency towing

precautions:
• Press the Engine Start/Stop button to

the ACC position so the steering wheel

is not locked.

• Shift the gear in N (Neutral).
• Release the parking brake.
• Depress the brake pedal with more

force than normal because you have

reduced braking performance.

• More steering effort is required

because the power steering system will

be disabled.

• Use a vehicle heavier than your own to

tow your vehicle.

• The drivers of both vehicles must

communicate with each other

frequently.

• Before emergency towing, check that

the removable hook is not broken or

damaged.

• Fasten the towing cable or chain

securely to the hook.

• Do not jerk the cables, chains, or

removable hook. Apply steady and

even force.

8-29

• Use a towing cable or chain less than 16

ft. (5 m) long. Attach a white or red cloth

(about 12 inches (30 cm) wide) in the

middle of the cable or chain for easy

visibility.

2C_TowingHookRange

(1) 16 ft. (5m)
• Drive carefully so the towing cable or

chain remains tight during towing.

• Before towing, check the Automatic

Transmission, and Intelligent Variable

Transmission for fluid leaks under your

vehicle. If the transmission fluid is

leaking, flatbed equipment or a towing

dolly must be used.

NOTICE

Accelerate or decelerate the vehicle in a

slow and gradual manner while

maintaining tension on the tow rope or

chain to start or drive the vehicle.

Otherwise tow hooks and the vehicle may

be damaged.

NOTICE

To avoid damage to your vehicle and

vehicle components when towing:
• Always pull straight ahead when using

the towing hooks. Do not pull from the

side or at a vertical angle.

• Do not use the towing hooks to pull the

vehicle out of mud, sand, or other

conditions from which the vehicle

cannot be driven out under its own

power.

• Limit the vehicle speed to 10 mph (15

km/h) and drive less than 1 mile (1.6 km)

when towing to avoid serious damage

to transmission.

9. Maintenance

Engine Compartment......................................................................................................9-4
Maintenance Services .....................................................................................................9-6

Owner’s responsibility .................................................................................................9-6
Owner maintenance precautions ...............................................................................9-6

Owner Maintenance ........................................................................................................ 9-7

Owner maintenance schedule .................................................................................... 9-7

Scheduled Maintenance Services ..................................................................................9-9

Normal maintenance schedule.................................................................................. 9-11
Maintenance under severe usage and low mileage conditions ............................. 9-15

Explanation Of Scheduled Maintenance Items............................................................9-17

Engine Oil ....................................................................................................................... 9-19

Checking the engine oil level .................................................................................... 9-19
Checking the engine oil and filter.............................................................................9-20

Engine Coolant .............................................................................................................. 9-22

Checking the coolant level ........................................................................................9-22
Changing coolant ...................................................................................................... 9-24

Brake Fluid..................................................................................................................... 9-24

Checking the brake fluid level .................................................................................. 9-24

Washer Fluid.................................................................................................................. 9-25

Checking the washer fluid level ............................................................................... 9-25

Air Cleaner ..................................................................................................................... 9-26

Filter replacement ..................................................................................................... 9-26

Cabin Air Filter................................................................................................................9-27

Filter inspection..........................................................................................................9-27
Filter replacement ......................................................................................................9-27

Wiper Blades ................................................................................................................. 9-28

Blade inspection........................................................................................................ 9-28
Blade replacement .................................................................................................... 9-28

Battery ............................................................................................................................ 9-31

Tires And Wheels........................................................................................................... 9-35

9. Maintenance

Fuses...............................................................................................................................9-47

Instrument panel fuse replacement ........................................................................ 9-48
Engine compartment panel fuse replacement....................................................... 9-48
Fuse/relay panel description.....................................................................................9-50

Light Bulbs .....................................................................................................................9-59

Appearance Care ...........................................................................................................9-65

Exterior care ...............................................................................................................9-65
Interior care............................................................................................................... 9-69

Emission Control System .............................................................................................. 9-72

Crankcase emission control system......................................................................... 9-72
Evaporative emission control system including Onboard Refueling Vapor Recovery

(ORVR) ........................................................................................................................ 9-72
Exhaust emission control system ............................................................................. 9-73

California Perchlorate Notice .......................................................................................9-74

Maintenance

9-4

Engine Compartment

Smartstream G1.6 T-GDI

1C_EngineRoom

The actual engine compartment in the vehicle may differ from the illustration.

(1) Engine coolant reservoir/Engine coolant cap
(2) Battery
(3) Brake fluid reservoir
(4) Air cleaner
(5) Engine oil filler cap
(6) Engine oil dipstick
(7) Windshield washer fluid reservoir
(8) Fuse box

9-5

Smartstream G2.0 ATKINSON

1C_EngineRoom_2

The actual engine compartment in the vehicle may differ from the illustration.

Maintenance

9-6

Maintenance Services

You should exercise the utmost care to

prevent damage to your vehicle and

injury to yourself whenever performing

any maintenance or inspection

procedures.
Have the vehicle maintained and repaired

by an authorized HYUNDAI dealer. An

authorized HYUNDAI dealer meets

HYUNDAI’s high service quality standards

and receives technical support from

HYUNDAI in order to provide you with a

high level of service satisfaction.

Owner’s responsibility

Maintenance service and record

retention are the owner’s responsibility.
You should retain documents that show

proper maintenance has been performed

on your vehicle in accordance with the

scheduled maintenance service charts

shown on the following pages. You need

this information to establish your

compliance with the servicing and

maintenance requirements of your

vehicle warranties.
Detailed warranty information is provided

in your Owner's Handbook & Warranty

Information booklet.
Repairs and adjustments required as a

result of improper maintenance or a lack

of required maintenance are not covered.

Owner maintenance

precautions

Inadequate, incomplete or insufficient

servicing may result in operational

problems with your vehicle that could

lead to vehicle damage, an accident, or

personal injury. This chapter provides

instructions only for the maintenance

items that are easy to perform. Several

maintenance procedures can only be

done with special tools, therefore contact

an authorized HYUNDAI dealer.
Your vehicle should not be modified in

any way. Such modifications may

adversely affect the performance, safety

or durability of your vehicle and may, in

addition, violate conditions of the limited

warranties covering the vehicle.
Certain modifications may also be in

violation of regulations established by the

U.S. Department of Transportation and

other federal or state agencies.

NOTICE

Improper owner maintenance during the

warranty period may affect warranty

coverage. For information, read the

separate Owner's Handbook & Warranty

Information booklet provided with the

vehicle. If your unsure about any service

or maintenance procedure, contact an

authorized HYUNDAI dealer.

9-7

Owner Maintenance

WARNING

Performing maintenance work on a

vehicle can be dangerous. If you lack

sufficient knowledge and experience or

the proper tools and equipment to do the

work, have it done by an authorized

HYUNDAI dealer.
ALWAYS follow these precautions for

performing maintenance work:
• Park your vehicle on level ground. Shift

the vehicle to P (Park), apply the

parking brake, and press the Engine

Start/Stop button to the OFF position.

• Block the tires (front and back) to

prevent the vehicle from moving.
Remove loose clothing or jewelry that

can become entangled in moving parts.

• If you must run the engine during

maintenance, do it in an outdoor area

or in an area with plenty of ventilation.

• Keep flames, sparks, or smoking

materials away from the battery and

fuel-related parts.

WARNING

Touching metal parts

WL_TouchingMetalPartWarning

Do not touch metal parts (including strut

bars) while the engine is operating or hot

to prevent serious injury. Turn off the

engine and wait until the metal parts cool

down before working on the vehicle.

The following lists are vehicle checks and

inspections that should be performed by

the owner or an authorized HYUNDAI

dealer at the frequencies indicated to

help ensure safe and dependable

operation of your vehicle.
Any adverse conditions should be

brought to the attention of your

authorized HYUNDAI dealer as soon as

possible.
These Owner Maintenance vehicle

checks are generally not covered by

warranties and you may be charged for

labor, parts and lubricants used.

Owner maintenance schedule

When you stop for fuel:

• Check the coolant level in the engine

coolant reservoir.

• Check the windshield washer fluid

level.

• Check for low or under-inflated tires.

WARNING

Be careful when checking your coolant

level when the engine is hot. This may

result in coolant being blown out of the

opening and cause serious burns and

other injuries.

While operating your vehicle:

• Note any changes in the sound of the

exhaust or any smell of exhaust fumes

in the vehicle.

• Check for vibrations in the steering

wheel. Notice if there is any increased

steering effort or looseness in the

steering wheel, or change in its

straight-ahead position.

• Notice if your vehicle constantly turns

slightly or “pulls” to one side when

traveling on smooth, level road.

• When stopping, listen and check for

unusual sounds, pulling to one side,

Maintenance

9-8

increased brake pedal travel or

“hard-to-push” brake pedal.

• If any slipping or changes in the

operation of your transmission occurs,

check the transmission fluid level.

• Check the transmission P (Park)

function.

• Check the parking brake.
• Check for fluid leaks under your vehicle

(water dripping from the air

conditioning system during or after use

is normal).

At least monthly:

• Check coolant level in the engine

coolant reservoir.

• Check the operation of all exterior

lights, including the stoplights, turn

signals and hazard warning flashers.

• Check the inflation pressures of all tires

including the spare for tires that are

worn, show uneven wear, or are

damaged.

• Check for loose wheel lug nuts.

At least twice a year: (for example,

every Spring and Autumn)

• Check radiator, heater and air

conditioning hoses for leaks or

damage.

• Check windshield washer spray and

wiper operation. Clean wiper blades

with a clean cloth dampened with

washer fluid.

• Check headlight alignment.
• Check muffler, exhaust pipes, shields

and clamps.

• Check the seat belts for wear and

function.

At least once a year:

• Clean body and door drain holes.
• Lubricate door hinges and hood hinges.
• Lubricate door and hood locks and

latches.

• Lubricate door rubber weather strips.
• Check the air conditioning system.
• Inspect and lubricate automatic

transmission linkage and controls.

• Clean the battery and terminals.
• Check the brake fluid level.

9-9

Scheduled Maintenance Services

Follow Normal Maintenance Schedule if the vehicle is usually operated where none of the

following conditions apply. If any of the following conditions apply, you must follow the

Maintenance Under Severe Usage Conditions.
• Repeated driving short distance of less than 5 miles (8 km) in normal temperature or

less than 10 miles (16 km) in freezing temperature

• Extensive engine idling or low speed driving for long distances
• Driving on rough, dusty, muddy, unpaved, graveled or salt-spread roads
• Driving in areas using salt or other corrosive materials or in very cold weather
• Driving in heavy dust conditions
• Driving in heavy traffic area
• Driving on uphill, downhill, or mountain road repeatedly
• Towing a trailer or using a camper, or driving with loads on the roof
• Driving as a patrol car, taxi, other commercial use of vehicle towing
• Frequently driving under high speed or rapid acceleration/deceleration
• Frequently driving in stop-and-go condition
• Engine oil usage which is not recommended (Mineral type, Semi-synthetic, Lower

grade spec, etc.)

If your vehicle is operated under the above conditions, you should inspect, replace or

refill more frequently than the following Normal Maintenance Schedule. After the periods

or distance shown in the chart, continue to follow the prescribed maintenance intervals.

NOTICE

After driving more than 10 years or 100,000 miles, use severe maintenance schedule.

Maintenance

9-10

Information

• As it is normal for engine oil to be consumed during driving, the engine oil level should

be checked on regular basis.

• The engine oil change interval for normal operating conditions is based on the use of

the recommended engine specification. If the recommended engine oil specification

is not used, then replace the engine oil according to the maintenance schedule under

severe operating conditions.

• The vehicle may be equipped with the Oil Life Management System that predicts

engine oil life based on the driver’s driving history and alerts the driver to change

engine oil.
- If the deterioration of the engine oil increases depending on the driver’s driving

severity, the remaining oil life alert appears on the instrument cluster before the

normal engine oil replacement interval. Have the engine oil and filter changed by an

authorized HYUNDAI dealer.

- Oil Life Management System works when the recommended engine oil is used. So,

if recommended engine oil is not used, replace the engine oil according to the

maintenance schedule under severe usage condition. Also, check the amount of

engine oil regularly as this system assumes that the engine oil is being filled normally.

- Always reset the remaining engine oil life whenever the engine oil is changed.

Otherwise, the indication of remaining Oil life in the Oil Life Management System

may not be accurate. To reset the Oil Change Reminder, select “

RESET

” from the

infotainment system. Then, select "

Yes

" when the message “Has the engine oil been

changed? Press [Yes] to reset the oil life.” appears on the screen.

- If there is no alert until the maximum maintenance interval, have your vehicle

inspected by an authorized HYUNDAI dealer.

9-11

Normal maintenance schedule

I: Inspect and if necessary, adjust, correct, clean or replace.
R: Replace or change.

*1 The drive belt should be replaced when cracks occur or tension is reduced excessively.
*2 Requires <API SN PLUS (or above) Full synthetic> grade engine oil. If a lower grade engine oil (mineral type,

semi- synthetic, lower grade spec, etc.) is used, replace the engine oil and engine oil filter as indicated in

maintenance under severe usage conditions.

*3 Never add any additives to the engine oil. Engine oil additives can change the properties of engine oil and may

cause serious engine failure.

*4 If TOP TIER Detergent Gasoline is not available, one bottle of additive is recommended. Additives are available

from your authorized HYUNDAI dealer along with information on how to use them. Do not mix other additives.

MAINTENANCE

INTERVALS

Number of months or driving distance, whichever comes first

Months

12 24 36 48 60 72 84 96 108 120 132 144 156

Miles × 1,000

8 16 24 32 40 48 56 64 72 80 88 96 104

Km × 1,000

13 26 39 52 65 78 91 104 117 130 143 156 169

MAINTENANCE ITEM

Drive belts

At first, inspect at 48,000 miles (78,000 km) or 72

months. After that, inspect every 8,000 miles (13,000 km)

or 12 months

Engine oil and

engine oil filter

*2*3

Smartstream

1.6 T-GDi

Replace every 8,000 miles (13,000 km) or 12 months

Smartstream

2.0

ATKINSON

Replace every 8,000 miles (13,000 km) or 12 months

Fuel additives

Add every 8,000 miles (13,000 km) or 12 months

Air cleaner filter

Maintenance

9-12

I: Inspect and if necessary, adjust, correct, clean or replace.
R: Replace or change.

*1 For your convenience, it can be replaced prior to it’s interval when you do maintenance of other items.
*2 Fuel filter is considered to be maintenance free but the quality of fuel used may impact the frequency of

maintenance needed. If there are some important safety matters like fuel flow restriction, surging, loss of

power, hard starting problem, etc., replace the filter immediately regardless of maintenance schedule. Consult

an authorized HYUNDAI dealer for details.

MAINTENANCE

INTERVALS

Number of months or driving distance, whichever comes first

Months

12 24 36 48 60 72 84 96 108 120 132 144 156

Miles × 1,000

8 16 24 32 40 48 56 64 72 80 88 96 104

Km × 1,000

13 26 39 52 65 78 91 104 117 130 143 156 169

MAINTENANCE ITEM

Spark plugs

Smartstream

1.6 T-GDi

Replace every 48,000 miles (78,000 km)

Smartstream

2.0

ATKINSON

Replace every 96,000 miles (156,000 km)

Vapor hose, fuel filler cap and

fuel tank

Fuel tank air filter

Intercooler, in/out hose

At first, Inspect at 5,000 miles (8,000 km) or 6 months

After that, Inspect every 20,000 miles (32,000 km) or 24

months

Fuel lines, hoses and

connections

Fuel filter

9-13

I: Inspect and if necessary, adjust, correct, clean or replace.
R: Replace or change.

MAINTENANCE

INTERVALS

Number of months or driving distance, whichever comes first

Months

12 24 36 48 60 72 84 96 108 120 132 144 156

Miles ×
1,000

16 24 32 40 48 56 64 72 80 88 96 104

Km ×
1,000

13 26 39 52 65 78 91 104 117 130 143 156 169

MAINTENANCE ITEM

Engine coolant

At first, replace at 120,000 miles (200,000 km) or 120 months.

After that, replace every 24,000 miles (39,000 km) or 24

months

Battery condition

Brake lines, hoses and

connections

Brake fluid

Inspect every 8,000 miles (13,000 km) or 12 months, Replace

every 48,000 miles (78,000 km) or 48 months

Disc brakes and pads

Steering gear rack,

linkage and boots

Driveshaft and boots

Rotate Tires (includes

tread wear inspection and

tire pressure check)

Rotate tires every 8,000 miles (13,000 km) or 12 months

Maintenance

9-14

I: Inspect and if necessary, adjust, correct, clean or replace.
R: Replace or change.

*1 Automatic Transmission/Intelligent Variable Transmission fluid, transfer case oil, and rear differential oil should

be changed anytime they have been submerged in water.

MAINTENANCE

INTERVALS

Number of months or driving distance, whichever comes first

Months

12 24 36 48 60 72 84 96 108 120 132 144 156

Miles × 1,000 8 16 24 32 40 48 56 64 72 80 88 96 104

Km × 1,000

13 26 39 52 65 78 91 104 117 130 143 156 169

MAINTENANCE ITEM

Suspension mounting bolts

Air conditioner refrigerant

Air conditioner compressor

Cabin air filter

Automatic

Transmission

fluid

Smartstream

1.6 T-GDi

No check, No service required

Intelligent

Variable

Transmission

fluid

Smartstream

2.0

ATKINSON

No check, No service required

Transfer case oil (AWD)

Rear differential oil (AWD)

Propeller shaft (AWD)

Exhaust pipe and muffler

9-15

Maintenance under severe usage and low mileage conditions

The following items must be serviced more frequently on the vehicles mainly used under

severe and low mileage driving conditions. Refer to the chart below for the appropriate

maintenance intervals.
R: Replace
I: Inspect and if necessary, adjust, correct, clean or replace

Maintenance item

Maintenance

operation

Maintenance intervals

Driving

condition

Engine oil

and engine

oil filter

Smartstream

1.6 T-GDi

Replace every 5,000 miles

(8,000 km) or 6 months

D, H, I, L

Smartstream

2.0 ATKINSON

Replace every 5,000 miles

(8,000 km) or 6 months

A, B, C, D, E, F,

G, H, I, J, K, L

Air cleaner filter

Replace more frequently

depending on the

condition

C, E

Spark plugs

Replace more frequently

depending on the

condition

A, B, F, G, H, I,

Steering gear rack, linkage

and boots

Inspect more frequently

depending on the

condition

C, D, E, F, G

Suspension mounting bolts

Inspect more frequently

depending on the

condition

C, D, E, F, G, H, I

Disc brakes and pads,

calipers and rotors

Inspect more frequently

depending on the

condition

C, D, E, G, H

Driveshaft and boots

Inspect more frequently

depending on the

condition

C, D, E, F, G, H,

I, J

Cabin air filter

Replace more frequently

depending on the

condition

C, E, G

Automatic

Transmission

fluid

Smartstream

1.6 T-GDi

Replace every 60,000

miles (100,000 km)

A, C, E, F, G, I

Intelligent

Variable

Transmission

fluid

Smartstream

2.0 ATKINSON

Replace every 55,000

miles (90,000 km)

A, C, D, E, F, G,

H, I, K

Maintenance

9-16

Severe driving conditions

• A: Repeatedly driving short distance of less than 5 miles (8 km) in normal temperature

or less than 10 miles (16 km) in freezing temperature

• B: Extensive engine idling or low speed driving for long distances
• C: Driving on rough, dusty, muddy, unpaved, graveled or salt-spread roads
• D: Driving in areas using salt or other corrosive materials or in very cold weather
• E: Driving in the heavy dust conditions
• F: Driving in heavy traffic
• G: Driving on uphill, downhill, or mountain roads
• H: Using for towing or camping, and driving with loading on the roof
• I: Driving for patrol car, taxi, or other commercial use
• J: Frequently driving under high speed or rapid acceleration/deceleration
• K: Frequently driving in stop-and-go conditions
• L: Engine oil usage which is not recommended (Mineral type, Semi-synthetic, Lower

grade spec, etc.)

Transfer case oil (AWD)

Replace every 72,000

miles (120,000 km)

C, D, E, G, H, I, J

Rear differential oil (AWD)

Replace every 72,000

miles (120,000 km)

C, D, E, G, H, I, J

Propeller shaft

Inspect more frequently

depending on the

condition

C, D, E, F, G, H,

I, J

Maintenance item

Maintenance

operation

Maintenance intervals

Driving

condition

Content .. 14 15 16 17 ..
