The following objects may not be

detected:

- Sharp or slim objects, such as ropes,

chains or small poles.

- Objects, which tend to absorb

sensor frequency, such as clothes,

spongy material or snow.

- Objects smaller than 100 cm (40 in.)

in length and narrower than 14 cm

(6 in.) in diameter.

- Pedestrians, animals or objects

that are very close to the ultrasonic

sensors

•

Parking Distance Warning Indicators

may be displayed differently from

the actual detected location when

the obstacle is located between the

sensors.

•

Parking Distance Warning indicator

may not occur sequentially depending

on vehicle speed or obstacle shape.

•

If Reverse Parking Distance Warning

needs repair, have the vehicle

inspected by an authorized HYUNDAI

dealer.

7-77

-------------------------------------------------------------------------------------------------------------------------------------------------------------

8. Emergency Situations

Hazard Warning Flasher

8-2

In Case of an Emergency While Driving

8-2

If the Engine Stalls While Driving

8-2

If the Engine Stalls at a Crossroad or Crossing

8-2

If you Have a Flat Tire While Driving

8-3

If the Engine Will not Start

8-3

If the Engine Doesn’t Turn Over or Turns Over Slowly

8-3

If the Engine Turns Over Normally but Doesn’t Start

8-3

Jump Starting

8-4

If the Engine Overheats

8-7

Tire Pressure Monitoring System (TPMS)

8-9

Check Tire Pressure

8-9

Tire Pressure Monitoring System

8-10

Low Tire Pressure Telltale

8-11

Low Tire Pressure Position and Tire Pressure Telltale

8-11

TPMS (Tire Pressure Monitoring System) Malfunction Indicator

8-13

Changing a Tire with TPMS

8-13

If You Have a Flat Tire (with tire mobility kit)

8-15

Introduction

8-15

Components of the Tire Mobility Kit

8-16

Using the Tire Mobility Kit when a Tire is Flat

8-17

How to Adjust Tire Pressure

8-20

Notes on the Safe Use of the Tire Mobility Kit

8-21

Towing

8-22

Towing Service

8-22

Emergency Towing

8-23

Removable Towing Hook

8-23

Emergency Towing

8-24

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Emergency Situations

HAZARD WARNING FLASHER

IN CASE OF AN EMERGENCY

WHILE DRIVING

If the Engine Stalls While Driving

• Reduce your speed gradually, keeping

a straight line. Move cautiously off the

road to a safe place.

• Turn on your hazard warning flasher.

• Try to start the engine again. If your

vehicle will not start, contact an

authorized HYUNDAI dealer or seek

other qualified assistance.

OCN7070001

The hazard warning flasher serves as

If the Engine Stalls at a Crossroad

a warning to other drivers to exercise

or Crossing

extreme caution when approaching,

overtaking, or passing your vehicle.

If the engine stalls at a crossroads or

crossing, if safe to do so, move the shift

It should be used whenever emergency

lever to the N (Neutral) position and then

repairs are being made or when the

push the vehicle to a safe location.

vehicle is stopped near the edge of a

roadway.

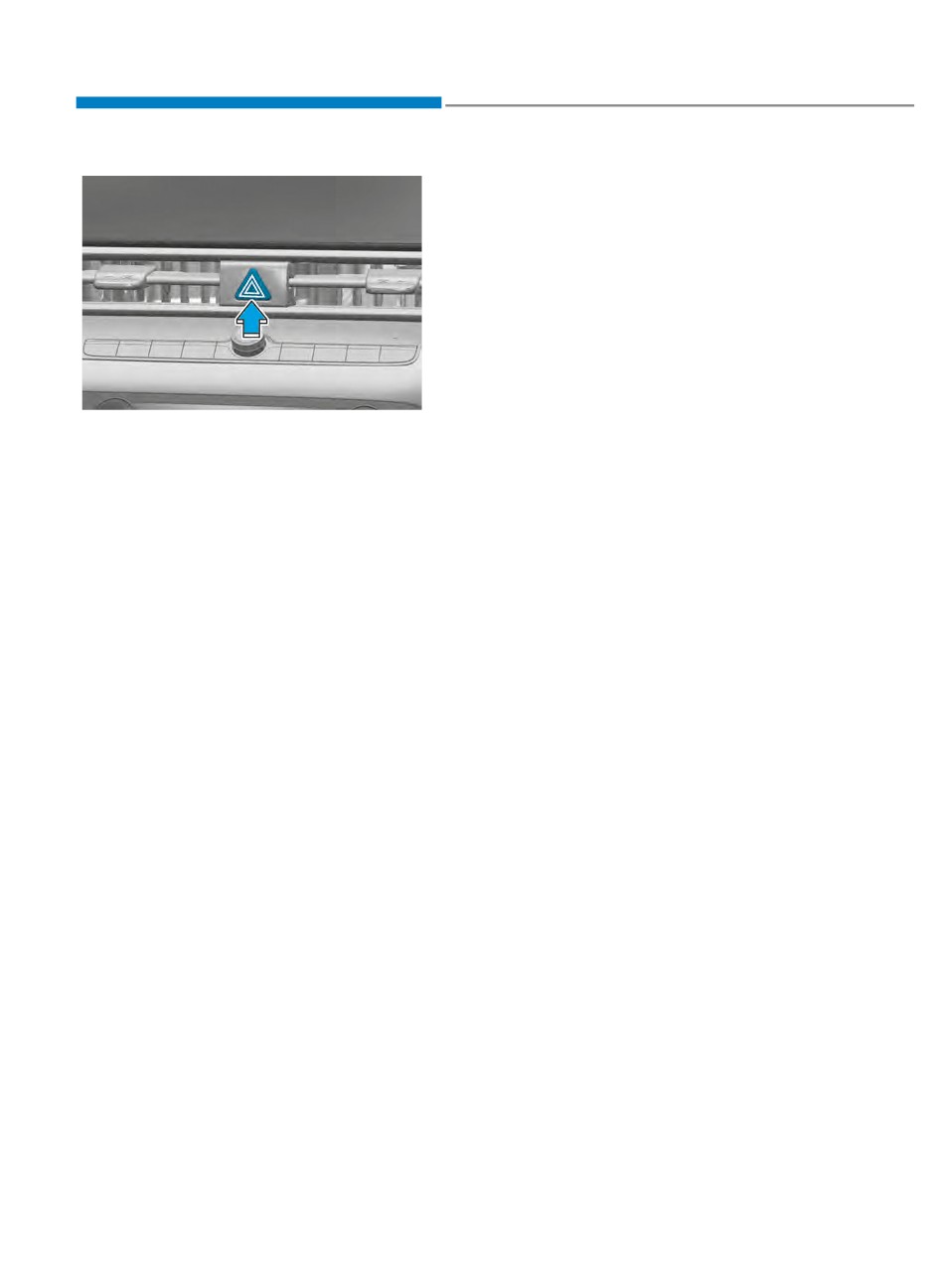

To turn the hazard warning flasher

on or off, press the hazard warning

flasher button. The button is located

in the center fascia panel. Both the left

and right turn signal lights will flash

simultaneously.

• The hazard warning flasher operates

whether your vehicle is running or not.

• The turn signals do not work when the

hazard flasher is on.

8-2

-------------------------------------------------------------------------------------------------------------------------------------------------------------

IF THE ENGINE WILL NOT

If you Have a Flat Tire While

START

Driving

If the Engine Doesn’t Turn Over

If a tire goes flat while you are driving:

or Turns Over Slowly

•

Take your foot off the accelerator

• Be sure the shift lever is in N (Neutral)

pedal and let the vehicle slow down

or P (Park). The engine starts only

while driving straight ahead. Do not

when the shift lever is in N (Neutral) or

apply the brakes immediately or

P (Park).

attempt to pull off the road as this

• Check the battery connections to be

may cause loss of vehicle control

sure they are clean and tight.

resulting in an accident. When the

vehicle has slowed to such a speed

• Turn on the interior light. If the light

that it is safe to do so, brake carefully

dims or goes out when you operate

and pull off the road. Drive off the

the starter, the battery is drained.

road as far as possible and park on

Do not push or pull the vehicle to start it.

firm, level ground. If you are on a

This could cause damage to your vehicle.

divided highway, do not park in the

See instructions for “Jump Starting”

median area between the two traffic

provided in this chapter.

lanes.

•

When the vehicle is stopped, press the

CAUTION

hazard warning flasher button, move

the shift lever into P (Park), and apply

Push or pull starting the vehicle may

the parking brake, and set the Engine

cause the catalytic converter to

Start/Stop button in the OFF position.

overload which can lead to damage to

the emission control system.

•

Have all passengers get out of the

vehicle. Be sure they all get out on the

side of the vehicle that is away from

If the Engine Turns Over

traffic.

Normally but Doesn’t Start

•

When changing a flat tire, follow the

Check the fuel level and add fuel if

instructions provided later in this

necessary.

chapter.

If the engine still does not start, have

your vehicle checked by an authorized

HYUNDAI dealer.

8-3

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Emergency Situations

JUMP STARTING

Jump starting can be dangerous if done

If acid gets into your eyes, flush your

incorrectly. Follow the jump starting

eyes with clean water for at least 15

procedure in this section to avoid serious

minutes and get immediate medical

injury or damage to your vehicle. If in

attention. If acid gets on your skin,

doubt about how to properly jump start

thoroughly wash the area. If you feel

your vehicle, have a service technician or

pain or a burning sensation, get medical

towing service do it for you.

attention immediately.

•

When lifting a plastic-cased battery,

excessive pressure on the case may

WARNING

cause battery acid to leak. Lift with a

To prevent SERIOUS INJURY or DEATH

battery carrier or with your hands on

to you or bystanders, always follow

opposite corners.

these precautions when working near

•

Do not attempt to jump start your

or handling the battery:

vehicle if your battery is frozen.

Always read and follow

•

NEVER attempt to recharge the

instructions carefully when

battery when the vehicle’s battery

handling a battery.

cables are connected to the battery.

•

The electrical ignition system works

Wear eye protection designed

with high voltage. NEVER touch

to protect the eyes from acid

these components with the engine

splashes.

running or when the Engine Start/

Stop button in the OFF position.

Keep all flames, sparks, or

smoking materials away from

the battery.

Hydrogen is always present

in battery cells, is highly

combustible, and may explode

if ignited.

Keep batteries out of reach of

children.

Batteries contain sulfuric acid

which is highly corrosive. Do

not allow acid to contact your

eyes, skin or clothing.

8-4

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Jump starting procedure

8. Connect the other end of the second

jumper cable to the black, negative (-)

1. Position the vehicles close enough

chassis ground of your vehicle (4).

that the jumper cables will reach, but

do not allow the vehicles to touch.

Do not allow the jumper cables to

contact anything except the correct

2. Avoid fans or any moving parts in the

battery or jumper terminals or the

engine compartment at all times, even

correct ground. Do not lean over the

when the vehicles are turned off.

battery when making connections.

3. Turn off all electrical devices such as

radios, lights, air conditioning, etc.

Put the vehicle in P (Park), and set the

CAUTION

parking brakes. Turn both vehicles

Before jump starting, make sure to

OFF.

correctly identify the positive (+) and

negative (-) terminals to avoid reverse

polarity connections.

WARNING

Do not connect the jumper cable to

the negative (-) jumper terminal of the

discharged battery. A spark could cause

the battery to explode and lead to a

personal injury or vehicle damage.

OCN7N081001N

9. Operate your vehicle for at least

4. Open the engine hood.

30 minutes of driving or at least

60 minutes of engine running at

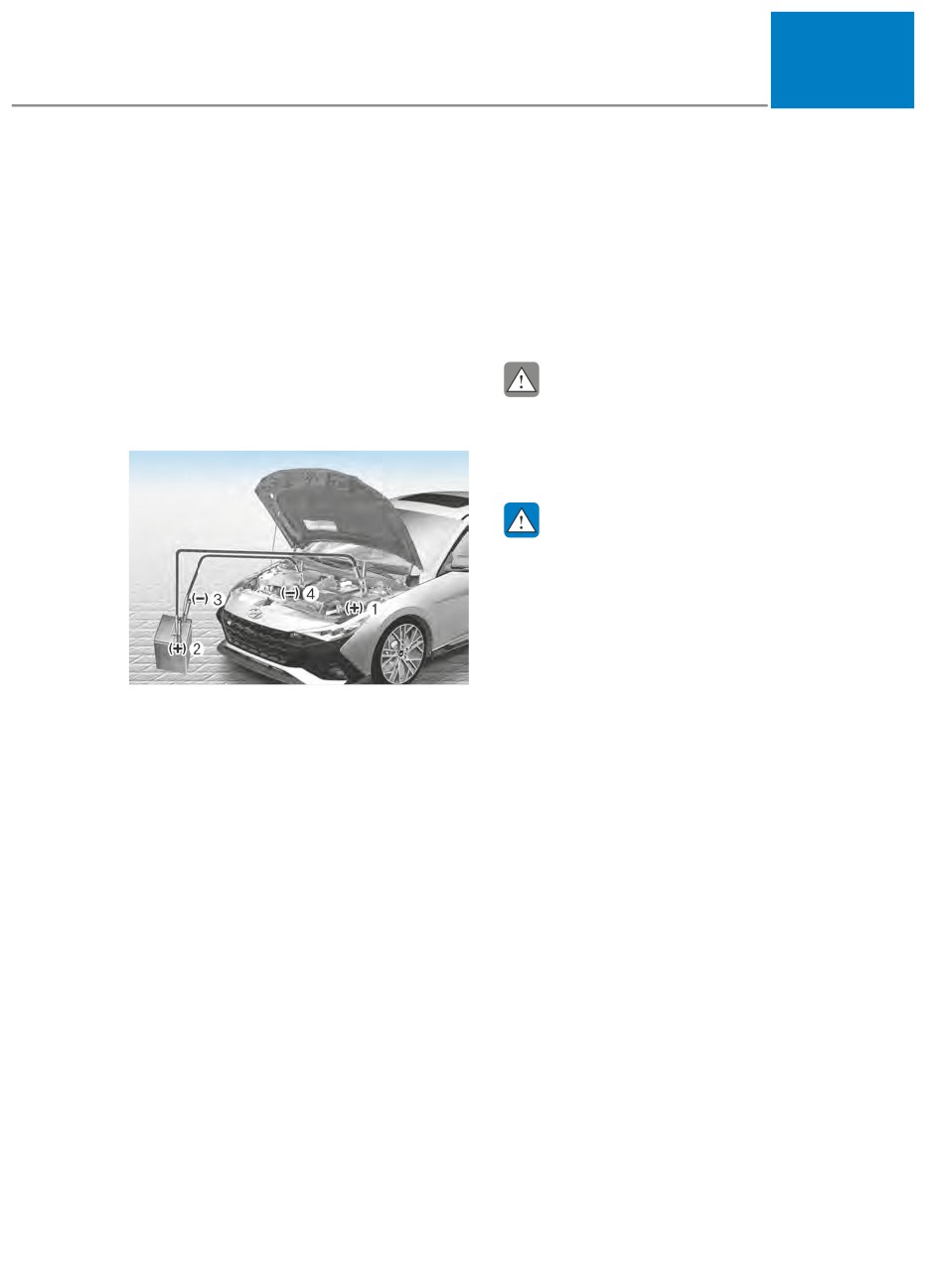

5. Connect the jumper cables in

idle before shutting off the engine.

the exact sequence shown in the

Without sufficient time to charge

illustration. First connect one jumper

the battery the vehicle will reoccur

cable to the red, positive (+) jumper

another no start. You can also visit

terminal of your vehicle (1).

your nearest dealer to request the

6. Connect the other end of the jumper

battery be charged and tested.

cable to the red, positive (+) battery/

If your vehicle will not start after a few

jumper terminal of the assisting

attempts, it probably requires servicing.

vehicle (2).

In this event please seek qualified

7. Connect the second jumper cable to

assistance. If the cause of your battery

the black, negative (-) battery/jumper

discharging is not apparent, have your

terminal of the assisting vehicle (3).

vehicle checked by an authorized

HYUNDAI dealer.

8-5

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Emergency Situations

Disconnect the jumper cables in the

exact reverse order you connected them:

1. Disconnect the jumper cable from the

black, negative (-) chassis ground of

your vehicle (4).

2. Disconnect the other end of the

jumper cable from the black, negative

(-) battery/chassis ground of the

assisting vehicle (3).

3. Disconnect the second jumper cable

from the red, positive (+) battery/

jumper terminal of the assisting

vehicle (2).

4. Disconnect the other end of the

jumper cable from the red, positive (+)

jumper terminal of your vehicle (1).

WARNING

While jump starting your vehicle, avoid

the positive (+) and negative (-) cables

to come in contact. A spark could cause

personal injury.

Information

An inappropriately disposed

battery can be harmful to

the environment and human

health. Dispose of the battery

according to your local law(s) or

regulations.

NOTICE

To prevent damage to your vehicle:

• Only use a 12-volt power supply

(battery or jumper system) to jump

start your vehicle.

• Do not attempt to jump start your

vehicle by push-starting.

8-6

-------------------------------------------------------------------------------------------------------------------------------------------------------------

IF THE ENGINE OVERHEATS

If your temperature gauge indicates

4. Check to see if the water pump drive

overheating, you experience a loss of

belt is missing.

power, or hear loud pinging or knocking,

(1) If it is not missing, check to see that

the engine may be overheating. If this

it is tight.

happens, you should:

(2) If the drive belt seems to be

1. Pull off the road and stop as soon as it

satisfactory, check for coolant leaking

is safe to do so.

from the radiator, hoses or under

2. Put the vehicle in P (Park), and set the

the vehicle. (If the air conditioning

parking brake. If the air conditioning is

had been in use, it is normal for cold

ON, turn it OFF.

water to be draining from it when you

stop.)

3. If engine coolant is running out under

the vehicle or steam is coming out

5. If the water pump drive belt is broken

from the hood, stop the engine. Do

or engine coolant is leaking out, stop

not open the hood until the coolant

the engine immediately and call

has stopped running or the steaming

an authorized HYUNDAI dealer for

has stopped. If there is no visible

assistance.

loss of engine coolant and no steam,

leave the engine running and check

to be sure the engine cooling fan is

WARNING

operating. If the fan is not running,

NEVER remove the engine

turn the engine off.

coolant cap or the drain plug

while the engine and radiator

are hot. Hot coolant and steam

WARNING

may blow out under pressure,

While the engine is running,

causing serious injury.

keep hands, clothing and tools

Turn the engine off and wait until the

away from the moving parts

engine cools down. Use extreme care

such as the cooling fan and

when removing the engine coolant cap.

drive belt to prevent serious

Wrap a thick towel around it, and turn

injury.

it counterclockwise slowly to the first

stop. Step back while the pressure is

released from the cooling system. When

you are sure all the pressure has been

released, press down on the cap, using

a thick towel, and continue turning

counterclockwise to remove it.

8-7

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Emergency Situations

6. If you cannot find the cause of the

overheating, wait until the engine

temperature has returned to normal.

Then, if coolant has been lost,

carefully add coolant to the reservoir

to bring the fluid level in the reservoir

up to the halfway mark.

7. Proceed with caution, keeping alert

for further signs of overheating. If

overheating happens again, call

an authorized HYUNDAI dealer for

assistance.

NOTICE

• Serious loss of coolant indicates a

leak in the cooling system and have

system be checked by an authorized

HYUNDAI dealer.

• When the engine overheats from

low engine coolant, suddenly adding

engine coolant may cause cracks

in the engine. To prevent damage,

add engine coolant slowly in small

quantities.

8-8

-------------------------------------------------------------------------------------------------------------------------------------------------------------

TIRE PRESSURE MONITORING SYSTEM (TPMS)

Check Tire Pressure



Type A

OCN7N081002N

OCN7N081056L



Type B

OCN7N081055L

(1) Low Tire Pressure Telltale/TPMS

OCN7N041115L

Malfunction Indicator

•

You can check the tire pressure in the

(2) Low Tire Pressure Position Telltale

Assist mode on the cluster.

and Tire Pressure Telltale (Shown on

•

Refer to the “LCD Display Modes” in

the LCD display)

chapter 4.

•

Tire pressure is displayed after a few

minutes of driving after initial engine

start up.

•

If tire pressure is not displayed when

the vehicle is stopped, “Drive to

display” message will appear. After

driving, check the tire pressure.

•

The displayed tire pressure values may

differ from those measured with a tire

pressure gauge.

•

You can change the tire pressure unit

in the User Settings Mode on the

cluster.

- psi, kpa, bar (Refer to the “User

Settings Mode” section in chapter

4).

8-9

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Emergency Situations

Tire Pressure Monitoring System

Please note that the TPMS is not a

substitute for proper tire maintenance,

and it is the driver’s responsibility to

WARNING

maintain correct tire pressure, even if

under-inflation has not reached the level

Over-inflation or under-inflation can

to trigger illumination of the TPMS low

reduce tire life, adversely affect vehicle

tire pressure telltale.

handling, and lead to sudden tire failure

that may cause loss of vehicle control

Your vehicle has also been equipped with

resulting in an accident.

a TPMS malfunction indicator to indicate

when the system is not operating

properly. The TPMS malfunction

Each tire, including the spare, should be

checked monthly when cold and inflated

indicator is combined with the low

tire pressure telltale. When the system

to the inflation pressure recommended

by the vehicle manufacturer on the

detects a malfunction, the telltale will

flash for approximately one minute and

vehicle placard or tire inflation pressure

label. (If your vehicle has tires of a

then remain continuously illuminated.

This sequence will continue upon

different size than the size indicated

on the vehicle placard or tire inflation

subsequent vehicle start-ups as long as

the malfunction exists.

pressure label, you should determine the

proper tire inflation pressure for those

When the malfunction indicator is

tires.)

illuminated, the system may not be able

As an added safety feature, your

to detect or signal low tire pressure as

intended. TPMS malfunctions may occur

vehicle has been equipped with a tire

pressure monitoring system (TPMS)

for a variety of reasons, including the

installation of replacement or alternate

that illuminates a low tire pressure

telltale when one or more of your tires is

tires or wheels on the vehicle that

prevent the TPMS from functioning

significantly under-inflated. Accordingly,

when the low tire pressure telltale

properly.

illuminates, you should stop and check

Always check the TPMS malfunction

your tires as soon as possible, and inflate

telltale after replacing one or more tires

them to the proper pressure. Driving on

or wheels on your vehicle to ensure that

a significantly underinflated tire causes

the replacement or alternate tires and

the tire to overheat and can lead to tire

wheels allow the TPMS to continue to

failure.

function properly.

Under-inflation also reduces fuel

efficiency and tire tread life, and may

affect the vehicle’s handling and

stopping ability.

8-10

-------------------------------------------------------------------------------------------------------------------------------------------------------------

NOTICE

Low Tire Pressure Telltale

If any of the below happens, have

the system checked by an authorized

HYUNDAI dealer.

Low Tire Pressure Position and

1. The Low Tire Pressure Telltale/ TPMS

Tire Pressure Telltale

Malfunction Indicator does not

illuminate for 3 seconds when the

Engine Start/Stop button is set to

the ON position or engine is running.

2. The TPMS Malfunction Indicator

remains illuminated after blinking for

approximately 1 minute.

3. The Low Tire Pressure Position

Telltale remains illuminated.

OCN7080057L

When the tire pressure monitoring

system warning indicators are

illuminated and a warning message

displayed on the cluster LCD display,

one or more of your tires is significantly

under-inflated. The Low Tire Pressure

Position Telltale will indicate which

tire is significantly underinflated by

illuminating the corresponding position

light.

8-11

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Emergency Situations

If either telltale illuminates, immediately

CAUTION

reduce your speed, avoid hard cornering

and anticipate increased stopping

In winter or cold weather, the Low Tire

distances. You should stop and check

Pressure Telltale may be illuminated if

your tires as soon as possible. Inflate the

the tire pressure was adjusted to the

tires to the proper pressure as indicated

recommended tire inflation pressure

on the vehicle’s placard or tire inflation

in warm weather. It does not mean

pressure label located on the driver’s

your TPMS is malfunctioning because

side center pillar outer panel.

the decreased temperature leads to a

proportional lowering of tire pressure.

If you cannot reach a service station or

if the tire cannot hold the newly added

When you drive your vehicle from a

air, replace the low pressure tire with the

warm area to a cold area or from a cold

spare tire.

area to a warm area, or the outside

temperature is greatly higher or lower,

The Low Tire Pressure Telltale will remain

you should check the tire inflation

on and the TPMS Malfunction Indicator

pressure and adjust the tires to the

may blink for one minute and then

recommended tire inflation pressure.

remain illuminated (when the vehicle

is driven approximately 10 minutes at

speed above 22mph (35km/h)) until you

WARNING

have the low pressure tire repaired and

replaced on the vehicle.

Low pressure damage

Significantly low tire pressure makes

the vehicle unstable and can contribute

Information

to loss of vehicle control and increased

The spare tire is not equipped with a tire

braking distances.

pressure sensor.

Continued driving on low pressure tires

can cause the tires to overheat and fail.

8-12

-------------------------------------------------------------------------------------------------------------------------------------------------------------

TPMS (Tire Pressure

Changing a Tire with TPMS

Monitoring System)

If you have a flat tire, the Low Tire

Malfunction Indicator

Pressure and Position telltales will come

on. Have the flat tire be repaired by an

The TPMS Malfunction Indicator

authorized HYUNDAI dealer as soon as

will illuminate after it blinks for

possible or replace the flat tire with the

approximately one minute when there

spare tire.

is a problem with the Tire Pressure

Monitoring System.

Have the system be checked by an

NOTICE

authorized HYUNDAI dealer.

It is recommended that you do not use a

puncture-repairing agent not approved

NOTICE

by a HYUNDAI dealer to repair and/or

inflate a low pressure tire. Tire sealant

If there is a malfunction with the TPMS,

not approved by a HYUNDAI dealer may

the Low Tire Pressure Position Telltale

damage the tire pressure sensor.

will not be displayed even though the

vehicle has an under-inflated tire.

The spare tire (if equipped) does not

come with a tire pressure monitoring

NOTICE

sensor. When the low pressure tire or the

The TPMS Malfunction Indicator may

flat tire is replaced with the spare tire,

illuminate after blinking for one minute

the Low Tire Pressure Telltale will remain

if the vehicle is near electric power

on. Also, the TPMS Malfunction Indicator

supply cables or radio transmitters

will illuminate after blinking for one

such as police stations, government

minute if the vehicle is driven at speed

and public offices, broadcasting

above 22mph (35km/h) for approximately

stations, military installations, airports,

10 minutes.

transmitting towers, etc.

Once the original tire equipped with

Additionally, the TPMS Malfunction

a tire pressure monitoring sensor is

Indicator may illuminate if snow chains

reinflated to the recommended pressure

are used or electronic devices such as

and reinstalled on the vehicle, the

computers, chargers, remote starters,

Low Tire Pressure Telltale and TPMS

navigation, etc. This may interfere with

Malfunction Indicator will go off within a

normal operation of the TPMS.

few minutes of driving.

If the indicators do not extinguish after a

few minutes, please visit an authorized

HYUNDAI dealer.

8-13

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Emergency Situations

Each wheel is equipped with a tire

WARNING

pressure sensor mounted inside the tire

behind the valve stem. You must use

Tampering with, modifying, or disabling

TPMS specific wheels. Always have your

the Tire Pressure Monitoring System

tires serviced by an authorized HYUNDAI

(TPMS) components may interfere

dealer.

with the system’s ability to warn the

driver of low tire pressure conditions

You may not be able to identify a tire

and/or TPMS malfunctions. Tampering

with low pressure by simply looking at it.

with, modifying, or disabling the Tire

Always use a good quality tire pressure

Pressure Monitoring System (TPMS)

gauge to measure the tire’s inflation

components may void the warranty for

pressure. Please note that a tire that is

that portion of the vehicle.

hot (from being driven) will have a higher

pressure measurement than a tire that is

cold.

Information

A cold tire means the vehicle has been

This device complies with Part 15 of the

sitting for 3 hours and driven for less

FCC rules.

than 1 mile (1.6 km) in that 3 hour period.

Operation is subject to the following three

Allow the tire to cool before measuring

conditions:

the inflation pressure. Always be sure

1. This device may not cause harmful

the tire is cold before inflating to the

interference.

recommended pressure.

2. This device must accept any

interference received, including

WARNING

interference that may cause undesired

• The TPMS cannot alert you to severe

operation.

and sudden tire damage caused by

3. Changes or modifications not expressly

external factors such as nails or road

approved by the party responsible

debris.

for compliance could void the user’s

• If you feel any vehicle instability,

authority to operate the equipment.

immediately take your foot off

the accelerator, apply the brakes

gradually with light force, and slowly

move to a safe position off the road.

8-14

-------------------------------------------------------------------------------------------------------------------------------------------------------------

IF YOU HAVE A FLAT TIRE (WITH TIRE MOBILITY KIT)

Introduction

With the Tire Mobility Kit you stay mobile

even after experiencing a tire puncture.

The system of compressor and sealing

compound effectively and comfortably

seals most punctures in a passenger car

tire caused by nails or similar objects and

reinflates the tire.

After you ensured that the tire is properly

sealed you can drive cautiously on the

OCN7N081003N

tire (distance up to 120 miles (200 km/h))

at a max. speed of 50 mph (80 km/h) in

For safe operation, carefully read and

order to reach a service station or tire

follow the instructions in this manual

dealer to have the tire replaced.

before use.

It is possible that some tires, especially

(1) Compressor

with larger punctures or damage to the

(2) Sealant bottle

sidewall, cannot be sealed completely.

The Tire Mobility Kit is a temporary fix

Air pressure loss in the tire may adversely

to the tire and we recommend that the

affect tire performance.

system be inspected by an authorized

For this reason, you should avoid abrupt

HYUNDAI dealer.

steering or other driving maneuvers,

especially if the vehicle is heavily loaded

CAUTION

or if a trailer is in use.

When two or more tires are flat, do not

The Tire Mobility Kit is not designed

or intended as a permanent tire repair

use the tire mobility kit because the

supported one sealant of Tire Mobility

method and is to be used for one tire

only. This instruction shows you step

Kit is only used for one flat tire.

by step how to temporarily seal the

puncture simply and reliably.

WARNING

Read the section “Notes on the safe use

Do not use the Tire Mobility Kit to repair

of the Tire Mobility Kit”.

punctures in the tire walls. This can

result in an accident due to tire failure.

WARNING

Do not use the TMK if a tire is severely

WARNING

damaged by driving run flat or with

Have your tire repaired as soon as

insufficient air pressure.

possible. The tire may loose air pressure

Only punctured areas located within the

at any time after inflating with the Tire

tread region of the tire can be sealed

Mobility Kit.

using the TMK.

8-15

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Emergency Situations

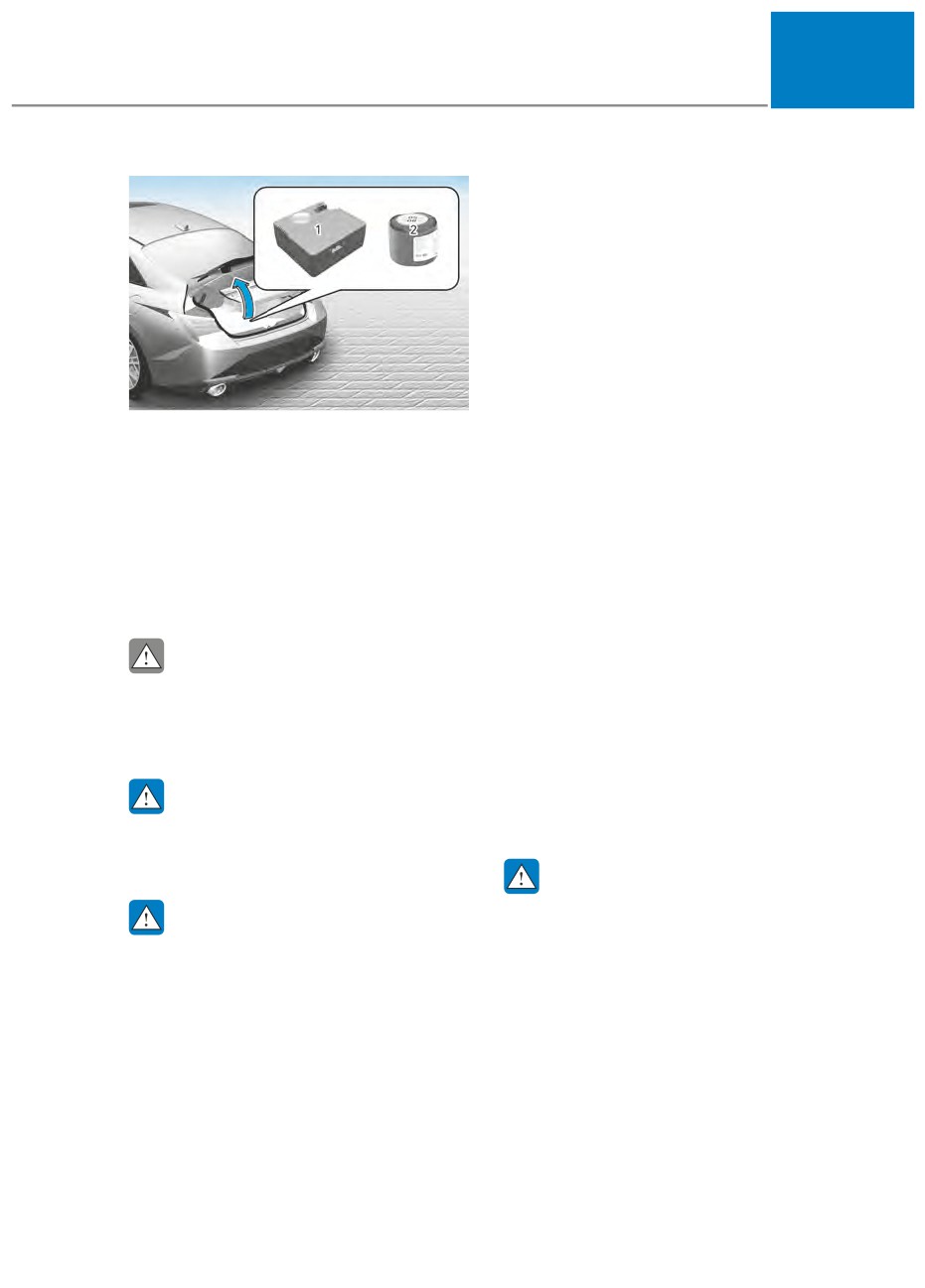

Components of the Tire Mobility Kit

OCN7H080007

0. Speed-restriction label

1. Sealant bottle and label with speed restriction

2. Filling hose

3. Connectors and cable for the power outlet direct connection

4. Holder for the sealant bottle

5. Compressor

6. ON/OFF switch

7. Pressure gauge for displaying the tire inflation pressure

8. Button for reducing the tire inflation pressure

Connectors, cable and connection hose are stored in the compressor housing.

Strictly follow the specified sequence, otherwise the sealant may escape under high

pressure.

8-16

-------------------------------------------------------------------------------------------------------------------------------------------------------------

1. Shake the sealant bottle.

WARNING

Expired sealant

Do not use the Tire sealant after

the sealant has expired (i.e. pasted

the expiration date on the sealant

container). This can increase the risk of

tire failure.

WARNING

Sealant

• Keep out of reach of children.

OCN7070007

• Avoid contact with eyes.

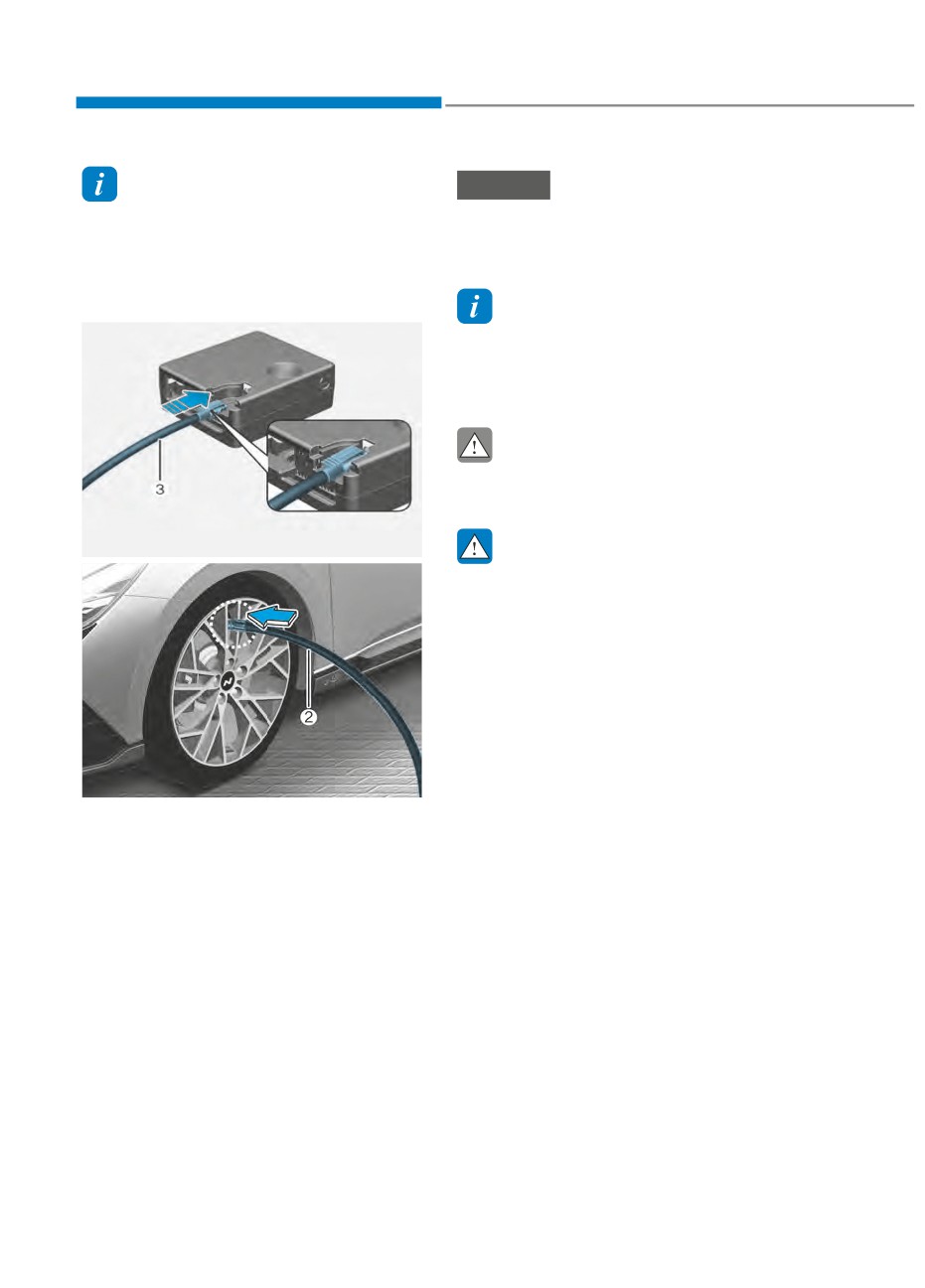

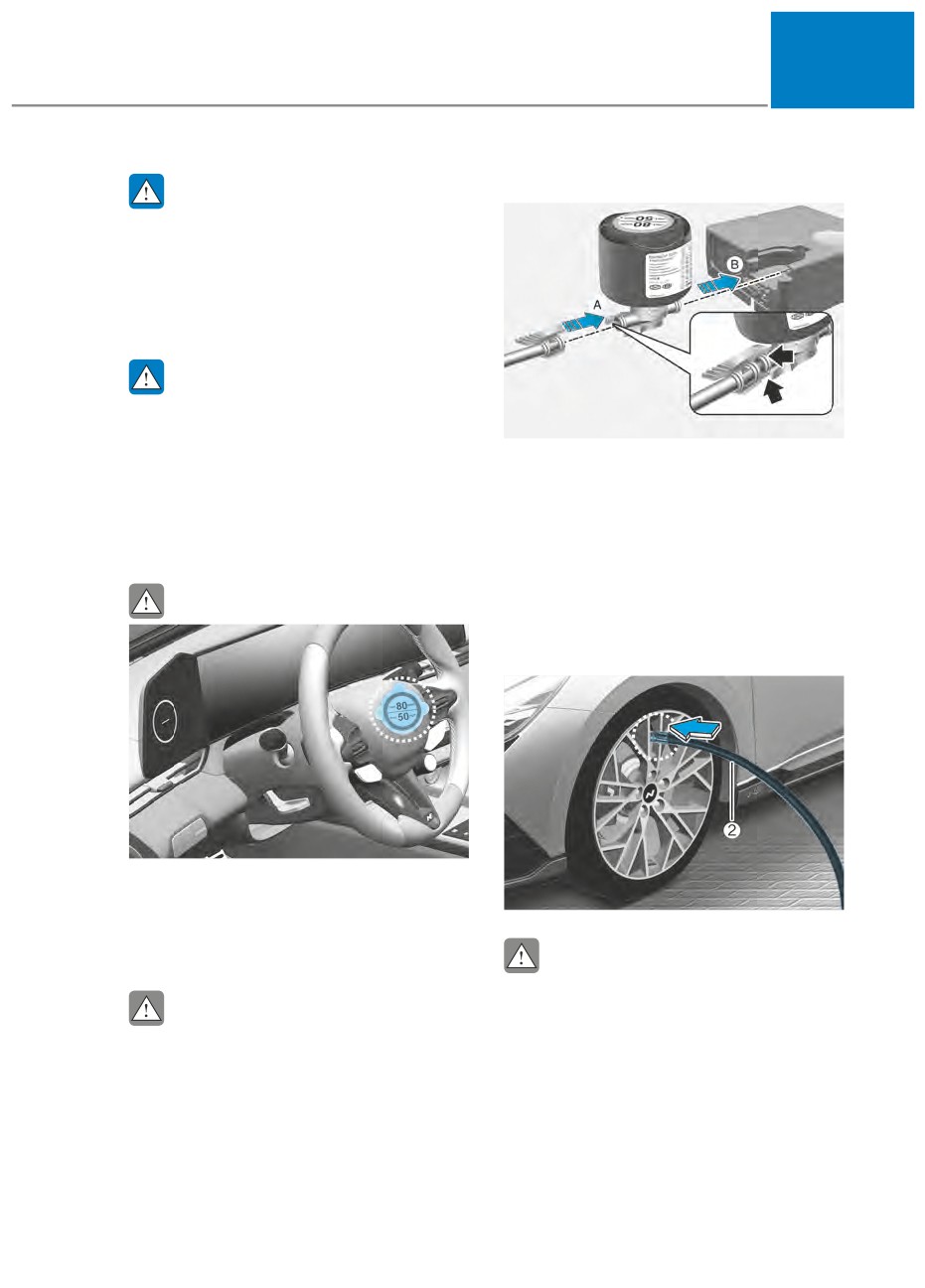

2. Connect the filling hose (2) to the

sealant bottle (1) in the direction of (A)

• Do not swallow.

and connect the sealant bottle to the

compressor (5) in the direction of (B).

Using the Tire Mobility Kit when

3. Ensure that the compressor is

a Tire is Flat

switched OFF.

4. Unscrew the valve cap from the valve

CAUTION

of the defective wheel and screw the

filling hose (2) of the sealant bottle

onto the valve.

OCN7N081004N

Detach the speed restriction label (0)

from the sealant bottle (1), and place

OCN7N081093

it in a highly visible place inside the

vehicle such as on the steering wheel to

remind the driver not to drive too fast.

CAUTION

Securely install the sealant filling hose

CAUTION

to the valve. If not, sealant may flow

backward, possibly clogging the filling

If only the tire pressure needs to be

hose.

adjusted, refer to “How to Adjust Tire

Pressure” in this chapter.

Before using the Tire Mobility Kit, be

fully aware of the explanation on the

sealant.

8-17

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Emergency Situations

8. Switch off the compressor.

9. Detach the hoses from the sealant

bottle connector and from the tire

valve.

Return the Tire Mobility Kit to its storage

location in the vehicle.

WARNING

Carbon monoxide

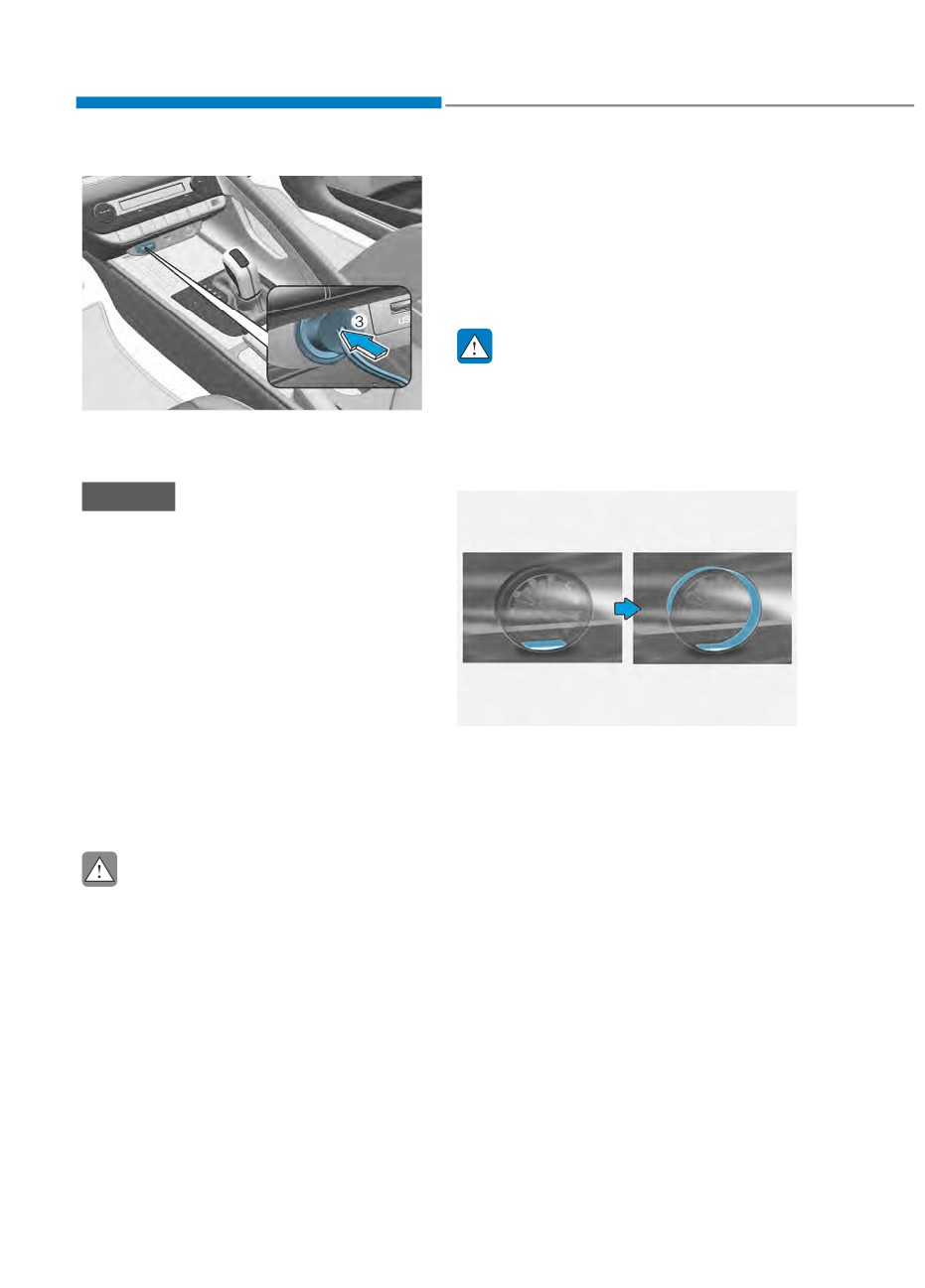

OCN7N081005

Do not leave your vehicle running in

a poorly ventilated area for extended

5. Plug the compressor power cord (4)

periods of time. Carbon monoxide

into the vehicle power outlet.

poisoning and suffocation can occur.

NOTICE

Only use the front passenger side

power outlet when connecting the

power cord.

6. Set the Engine Start/Stop button to

the ON position.

7. Switch on the compressor and let it

run for approximately 5~7 minutes to

fill the sealant up to proper pressure.

(refer to the Tire and Wheels, chapter

2). The inflation pressure of the tire

OLMF064106

after filling is unimportant and will be

10. Immediately drive approximately 4~6

checked/corrected later.

miles (7~10 km or, about 10min) to

Be careful not to overinflate the tire

evenly distribute the sealant in the

and stay away from the tire when

tire.

filling it.

Do not exceed a speed of 50 mph (80

km/h). If possible, do not fall below a

CAUTION

speed of 12 mph (20 km/h).

Tire pressure

While driving, if you experience any

unusual vibration, ride disturbance or

Do not attempt to drive your vehicle if

noise, reduce your speed and drive with

the tire pressure is below 29 psi (200

caution until you can safely pull off of the

kPa). This could result in an accident

side of the road.

due to sudden tire failure.

Call for road side service or towing.

8-18

-------------------------------------------------------------------------------------------------------------------------------------------------------------

NOTICE

Do not let the compressor run for more

than 10 minutes, otherwise the device

will overheat and may be damaged.

Information

The pressure gauge may show higher than

actual reading when the compressor is

running. To get an accurate tire reading,

the compressor needs to be turned off.

OOSN081023

CAUTION

If the inflation pressure is not

maintained, drive the vehicle a second

time, refer to step 10.

Then repeat steps 11 to 14.

Use of the TMK may be ineffectual for

tire damage larger than approximately

0.16 in (4 mm).

Please contact the nearest HYUNDAI

OCN7N081093

dealership if the tire cannot be made

11.

After driving approximately 4~6 miles

roadworthy with the Tire Mobility Kit.

(7~10 km or, about 10min), stop at a

safety location.

WARNING

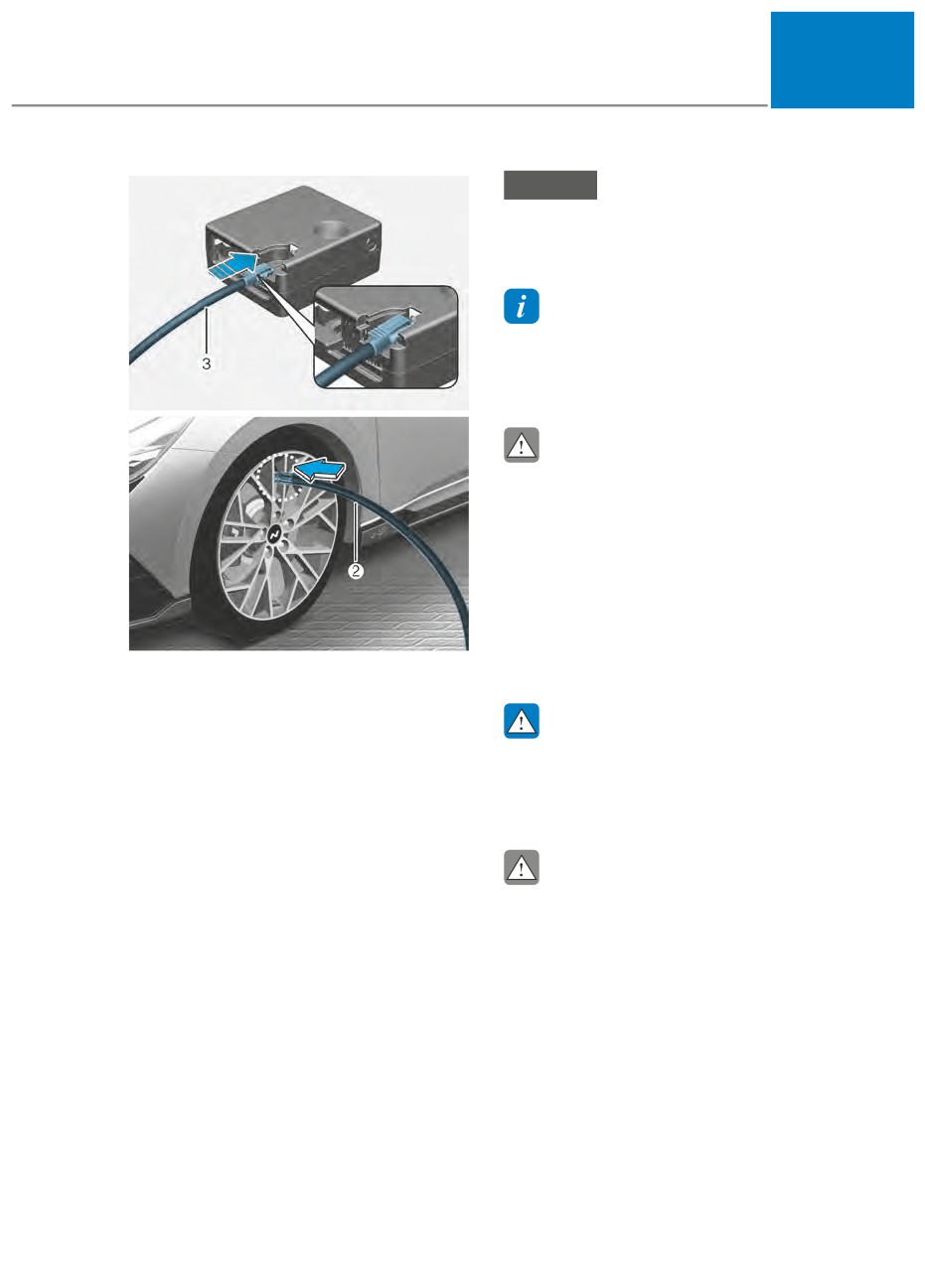

12. Connect the filling hose (2) of the

compressor directly to the tire valve.

The tire inflation pressure must be at

least 32 psi (220 kPa). If it is not, do not

13. Plug the compressor power cord into

continue driving.

the vehicle power outlet.

Call for road side service or towing.

14. Adjust the tire inflation pressure to the

recommended tire inflation.

With the Engine Start/Stop button in

CAUTION

the ON position, proceed as follows.

Tire pressure sensor

- To increase the inflation pressure

(if equipped with TPMS)

: Switch on the compressor. To

The sealant on the tire pressure sensor

check the current inflation pressure

and wheel should be removed when

setting, briefly switch off the

you replace the tire with a new one and

compressor.

inspect the tire pressure sensors. We

- To reduce the inflation pressure:

recommend that you get this done at an

Press the button (8) on the

authorized HYUNDAI dealer.

compressor.

8-19

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Emergency Situations

NOTICE

Information

Do not let the compressor run for more

When reinstalling the repaired or replaced

than 10 minutes, otherwise the device

tire and wheel on the vehicle, tighten the

will overheat and may be damaged.

wheel lug nut to 79~94 lbf·ft (11~13 kgf·m).

How to Adjust Tire Pressure

Information

The pressure gauge may show higher than

actual reading when the compressor is

running. To get an accurate tire reading,

the compressor needs to be turned off.

CAUTION

Do not use the sealant when the tire

pressure only needs to be adjusted.

OOSN081023

WARNING

The tire inflation pressure must be at

least 32 psi (220 kPa). If it is not, do not

continue driving.

Call for road side service or towing.

OCN7N081093

1. Park your vehicle in a safe location.

2. Connect the filling hose (2) of the

compressor directly to the tire valve.

3. Plug the compressor power cord into

the vehicle power outlet.

4. Adjust the tire inflation pressure to the

recomended tire inflation.

With the Engine Start/Stop button ON,

proceed as follows.

- To increase the inflation pressure

: Switch on the compressor. To

check the current inflation pressure

setting, briefly switch off the

compressor.

- To reduce the inflation pressure:

Press the button (8) on the

compressor.

8-20

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Notes on the Safe Use of the Tire

•

Never leave the Tire Mobility Kit

unattended while it is being used.

Mobility Kit

•

Do not leave the compressor running

•

Park your car at the side of the road

for more than 10 min. at a time or it

so that you can work with the Tire

may overheat.

Mobility Kit away from moving traffic.

•

Do not use the Tire Mobility Kit if the

•

To be sure your vehicle will not move,

ambient temperature is below -22°F

even when you’re on fairly level

(-30°C).

ground, always set your parking brake.

•

In case of skin contact with the

•

Only use the Tire Mobility Kit for

sealant, wash the area thoroughly

sealing/inflation passenger car tires.

with plenty of water. If the irritation

Only punctured areas located within

persists, seek medical attention.

the tread region of the tire can be

sealed using the tire mobility kit.

•

In case of eye contact with the

sealant, flush your eyes for at least 15

•

Do not use on motorcycles, bicycles

minutes. If the irritation persists, seek

or any other type of tires.

medical attention.

•

When the tire and wheel are

•

In case of swallowing the sealant,

damaged, do not use Tire Mobility Kit

rinse the mouth and drink plenty of

for your safety.

water. However, never give anything

•

Use of the Tire Mobility Kit may not be

to an unconscious person and seek

effective for tire damage larger than

medical attention immediately.

approximately 0.24 in (6 mm).

•

Long time exposure to the sealant

•

Please contact the nearest HYUNDAI

may cause damage to bodily tissue

dealership if the tire cannot be made

such as kidney, etc.

roadworthy with the Tire Mobility Kit.

•

Do not use the Tire Mobility Kit if a tire

is severely damaged by driving run flat

or with insufficient air pressure.

•

Do not remove any foreign objects

such as nails or screws that have

penetrated the tire.

•

Provided the car is outdoors, leave the

engine running. Otherwise operating

the compressor may eventually drain

the car battery.

8-21

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Emergency Situations

TOWING

Towing Service

CAUTION

• Do not tow the vehicle with the front

wheels on the ground as this may

cause damage to the vehicle.

OCN7N081097L

•

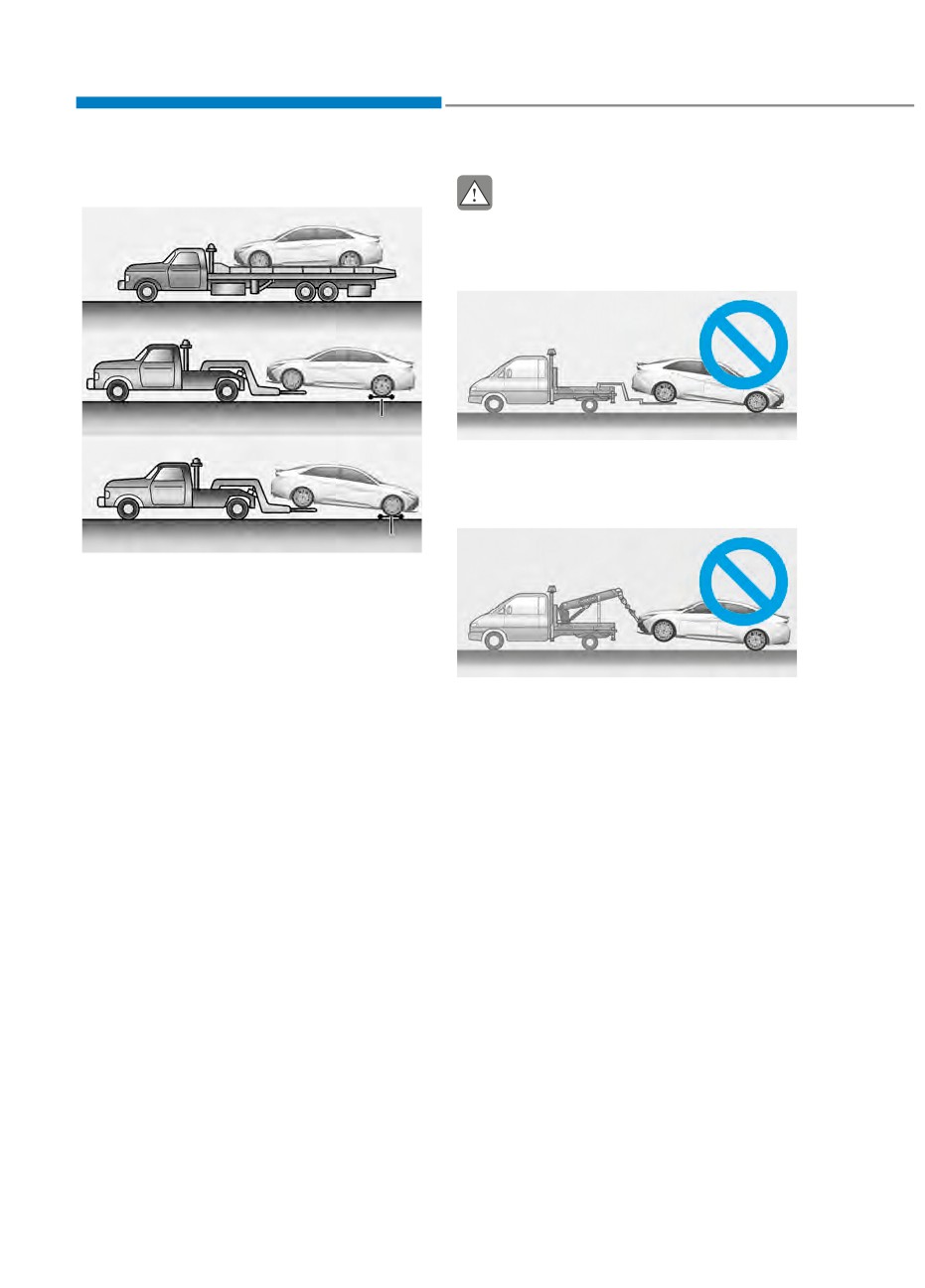

Do not tow with sling-type

equipment. Use a wheel lift or

flatbed equipment.

OCN7N081095L

If emergency towing is necessary, have it

done by an authorized HYUNDAI dealer

or a commercial tow-truck service.

Proper lifting and towing procedures

are necessary to prevent damage to

the vehicle. The use of wheel dollies or

OCN7N081096L

flatbed is recommended.

•

Do not tow the vehicle with four

It is acceptable to tow the vehicle with

wheels in contact with the ground if

the rear wheels on the ground (without

it is the vehicle equipped with dual

dollies) and the front wheels off the

clutch transmission.

ground.

Otherwise, the transmission will be

If any of the loaded wheels or suspension

seriously damaged. Also, make sure

components are damaged or the vehicle

not to tow the vehicle connecting it

is being towed with the front wheels on

with other vehicles including camper

the ground, use a towing dolly under the

vans.

front wheels.

When being towed by a commercial tow

truck and wheel dollies are not used,

the front of the vehicle should always be

lifted, not the rear.

8-22

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Emergency Towing

WARNING

If towing is necessary, have it done by

If your vehicle is equipped with a

an authorized HYUNDAI dealer or a

rollover sensor, set the Engine Start/

commercial tow truck service.

Stop button in the OFF or ACC position

when the vehicle is being towed.

The side impact and curtain air bag

Removable Towing Hook

may deploy if the sensor detects the

situation as a rollover.

OCN7N081098L

When towing your vehicle in an

emergency without wheel dollies:

OCN7N081006N

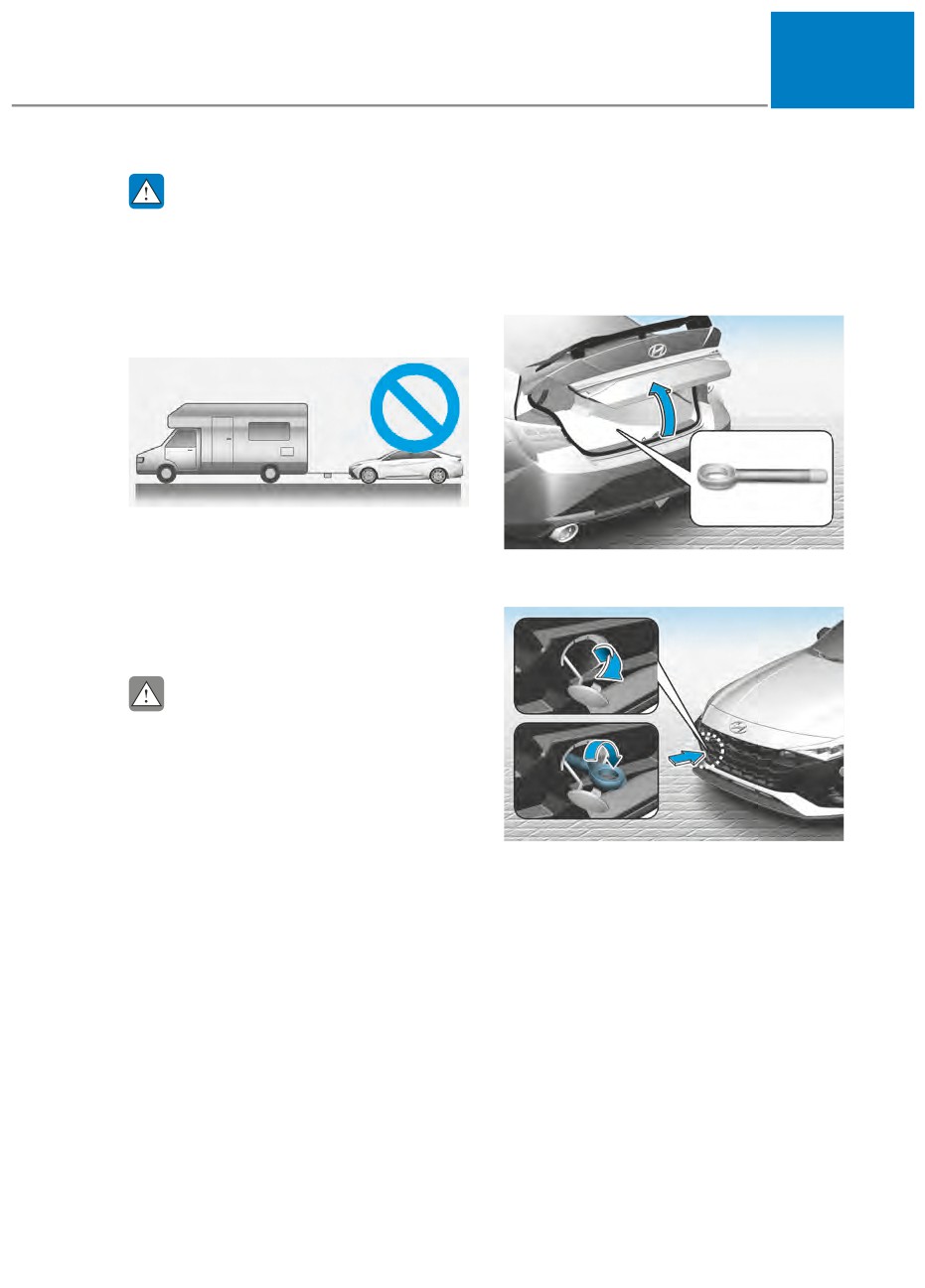

1. Set the Engine Start/Stop button in

1. Open the trunk, and remove the

the ACC position.

towing hook from the tool case.

2. Place the shift lever in N (Neutral).

3. Release the parking brake.

CAUTION

Failure to place the shift lever in N

(Neutral) when being towed with the

front wheels on the ground can cause

internal damage to the transmission.

OCN7N081007N

2. Remove the hole cover by pressing

the lower part of the cover on the

bumper.

3. Install the towing hook by turning it

clockwise into the hole until it is fully

secured.

4. Remove the towing hook and install

the cover after use.

8-23

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Emergency Situations

Emergency Towing

CAUTION



Front

The driver must be in the vehicle for

steering and braking operations when

the vehicle is being towed. Passengers

other than the driver must not be in the

vehicle.

Always follow these emergency towing

precautions:

•

Set the Engine Start/Stop button

in the ACC position so the steering

wheel is not locked.

OCN7N081008N



Rear

•

Place the shift lever in N (Neutral).

•

Release the parking brake.

•

Depress the brake pedal with more

force than normal since you will have

reduced braking performance.

•

More steering effort will be required

because the power steering system

will be disabled.

•

Use a vehicle heavier than your own to

tow your vehicle.

OCN7N081105N

•

The drivers of both vehicles should

If towing is necessary, have it done by

communicate with each other

an authorized HYUNDAI dealer or a

frequently.

commercial tow truck service.

•

Before emergency towing, check that

If towing service is not available in

the hook is not broken or damaged.

an emergency, your vehicle may be

•

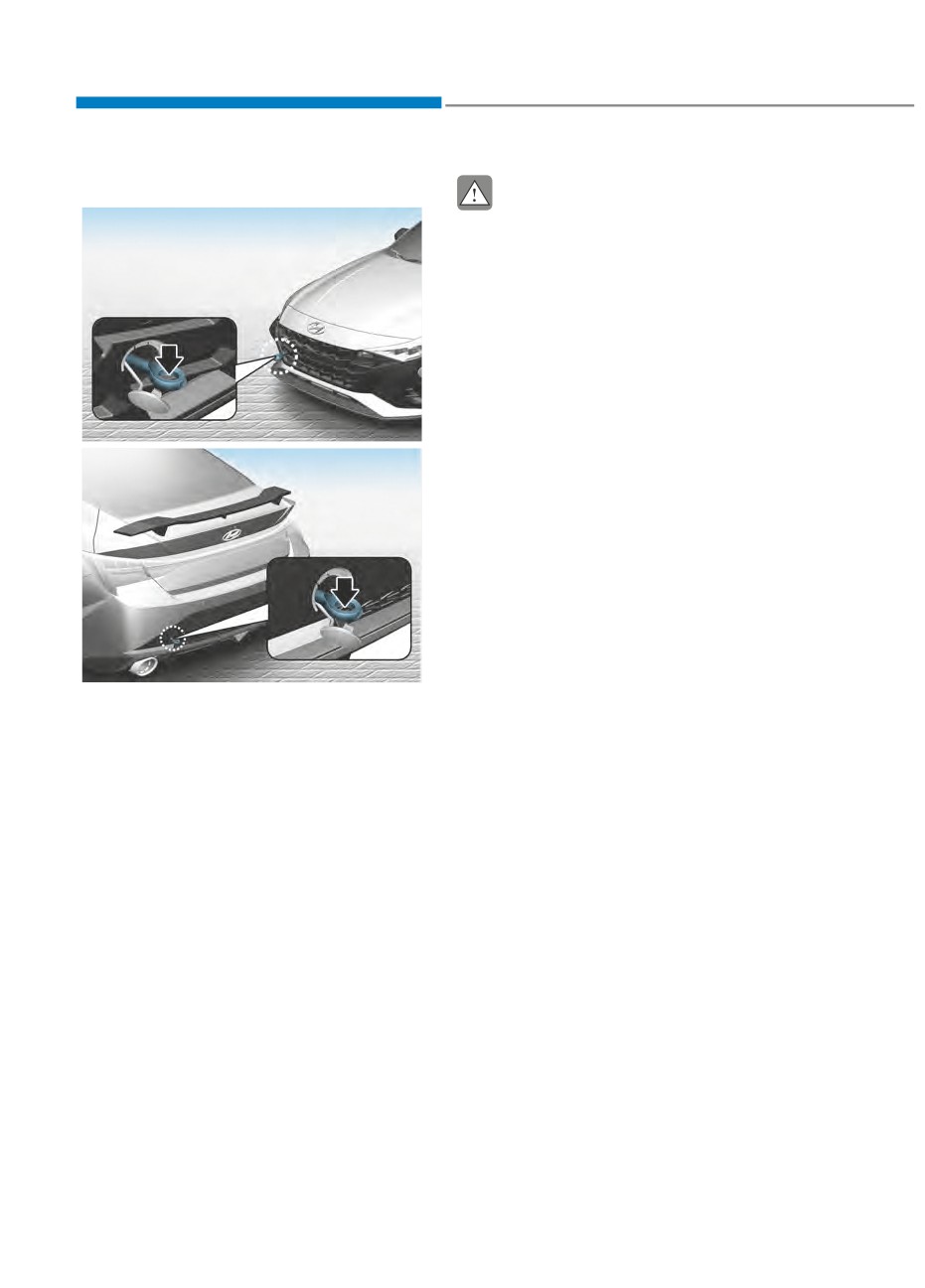

Fasten the towing cable or chain

temporarily towed using a cable or chain

securely to the hook.

secured to the emergency towing hook

•

Do not jerk the hook. Apply steady

at the front (or rear) of the vehicle.

and even force.

Use extreme caution when towing the

vehicle with a cable or chain. A driver

must be in the vehicle to steer it and

operate the brakes.

Towing in this manner may be done

only on hard-surfaced roads for a short

distance and at low speeds. Also, the

wheels, axles, power train, steering and

brakes must all be in good condition.

8-24

-------------------------------------------------------------------------------------------------------------------------------------------------------------

NOTICE

Accelerate or decelerate the vehicle

in a slow and gradual manner while

maintaining tension on the tow rope

or chain to start or drive the vehicle,

otherwise tow hooks and the vehicle

may be damaged.

NOTICE

To avoid damage to your vehicle and

OCN7N081099L

vehicle components when towing:

•

Use a towing cable or chain less than

• Always pull straight ahead when

5 m (16 feet) long. Attach a white or

using the towing hooks. Do not pull

red cloth (about 30 cm (12 inches)

from the side or at a vertical angle.

wide) in the middle of the cable or

• Do not use the towing hooks to pull

chain for easy visibility.

a vehicle out of mud, sand or other

•

Drive carefully so the towing cable or

conditions from which the vehicle

chain remains tight during towing.

cannot be driven out under its own

•

Before towing, check the Dual clutch

power.

transmission for fluid leaks under

• Limit the vehicle speed to 10mph

your vehicle. If the Dual clutch

(15km/h) and drive less than 1 mile

transmission fluid is leaking, flatbed

(1.5 km) when towing to avoid serious

equipment or a towing dolly must be

damage to Manual transmission /

used.

Dual clutch transmission.

8-25

-------------------------------------------------------------------------------------------------------------------------------------------------------------

9.Maintenance

Engine Compartment

9-3

Maintenance Services

9-4

Owner’s Responsibility

9-4

Owner Maintenance Precautions

9-4

Owner Maintenance

9-5

Owner Maintenance Schedule

9-5

Scheduled Maintenance Services

9-7

Normal Maintenance Schedule

9-9

Maintenance Under Severe Usage Conditions

9-12

Explanation of Scheduled Maintenance Items

9-14

Dual clutch transmission fluid

9-15

Drive Axle Shafts and Boots

9-15

Engine Oil

9-16

Checking the Engine Oil Level

9-16

Checking the Engine Oil and Filter

9-17

Engine Coolant

9-19

Checking the Engine Coolant Level

9-19

Changing Engine Coolant

9-22

Brake/Clutch Fluid

9-23

Checking the Brake/Clutch Fluid Level

9-23

Washer Fluid

9-24

Checking the Washer Fluid Level

9-24

Parking Brake

9-24

Checking the Parking Brake

9-24

Air Cleaner

9-25

Filter Replacement

9-25

Cabin Air Filter

9-27

Filter Inspection

9-27

Filter Replacement

9-27

Wiper Blades

9-28

Blade Inspection

9-28

Blade Replacement

9-28

Battery

9-30

For Best Battery Service

9-31

Battery Capacity Label

9-31

Battery Recharging

9-32

Reset Items

9-32

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Tires and Wheels

9-33

Tire Care

9-34

Recommended Cold Tire Inflation Pressures

9-34

Check Tire Inflation Pressure

9-35

Tire Rotation

9-35

Wheel Alignment and Tire Balance

9-36

Tire Replacement

9-37

Wheel Replacement

9-38

Tire Traction

9-38

Tire Maintenance

9-38

Tire Sidewall Labeling

9-38

Tire Terminology and Definitions

9-41

All Season Tires

9-44

Summer Tires

9-44

Snow Tires

9-44

Radial-Ply Tires

9-45

Low Aspect Ratio Tires

9-45

Fuses

9-47

Instrument Panel Fuse Replacement

9-48

Engine Compartment Panel Fuse Replacement

9-49

Fuse/Relay Panel Description

9-50

Light Bulbs

9-58

Headlamp, Position Lamp, Turn Signal Lamp and Daytime Running

Light Bulb Replacement

9-59

Side Repeater Lamp Replacement

9-60

Rear Combination Lamp Bulb Replacement

9-60

High Mounted Stop Lamp Replacement

9-62

License Plate Light Bulb Replacement

9-63

Interior Light Bulb Replacement

9-63

Appearance Care

9-65

Exterior Care

9-65

Interior Care

9-70

Emission Control System

9-73

California Perchlorate Notice

9-76

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Maintenance

MAINTENANCE SERVICES

You should exercise the utmost care

Owner Maintenance Precautions

to prevent damage to your vehicle and

Inadequate, incomplete or insufficient

injury to yourself whenever performing

servicing may result in operational

any maintenance or inspection

problems with your vehicle that could

procedures.

lead to vehicle damage, an accident, or

Have your vehicle maintained and

personal injury. This chapter provides

repaired by an authorized HYUNDAI

instructions only for the maintenance

dealer. An authorized HYUNDAI dealer

items that are easy to perform. Several

meets HYUNDAI’s high service quality

procedures can be done only by an

standards and receives technical support

authorized HYUNDAI dealer with special

from HYUNDAI in order to provide you

tools.

with a high level of service satisfaction.

Your vehicle should not be modified

in any way. Such modifications may

Owner’s Responsibility

adversely affect the performance, safety

Maintenance service and record

or durability of your vehicle and may, in

retention are the owner’s responsibility.

addition, violate conditions of the limited

warranties covering the vehicle.

You should retain documents that show

proper maintenance has been performed

Certain modifications may also be in

on your vehicle in accordance with

violation of regulations established by

the scheduled maintenance service

the U.S. Department of Transportation

charts shown on the following pages.

and other federal or state agencies.

You need this information to establish

your compliance with the servicing

NOTICE

and maintenance requirements of your

vehicle warranties.

Improper owner maintenance during

the warranty period may affect

Detailed warranty information is

warranty coverage. For details, read

provided in your Owner’s Handbook &

the separate Owner’s Handbook &

Warranty Information booklet.

Warranty Information booklet provided

Repairs and adjustments required as a

with the vehicle. If you’re unsure about

result of improper maintenance or a lack

any service or maintenance procedure,

of required maintenance are not covered.

have it done by an authorized HYUNDAI

dealer.

9-4

Hyundai Elantra N (2022 year). Manual in english - page 14
